Special Service Tools - Other Tools
Click on the thumbnail for larger image and model application details
Submissions of tool photos, missing tool numbers, and scans are welcomed

Tools Listing Information
Page 1 (100 series) | Page 2 (200-249) | Page 3 (250-299) | Page 4 (300 series) | Page 5 (400 series)
Page 6 (500 series) | Page 7 (600 series) | Page 8 (700-999) | Page 9 (1000-up) | Page 10 (Other)
Local Manufacture of Tools (600-799) | 8/70 Spare Parts

Number Designation and Application Tool Photo

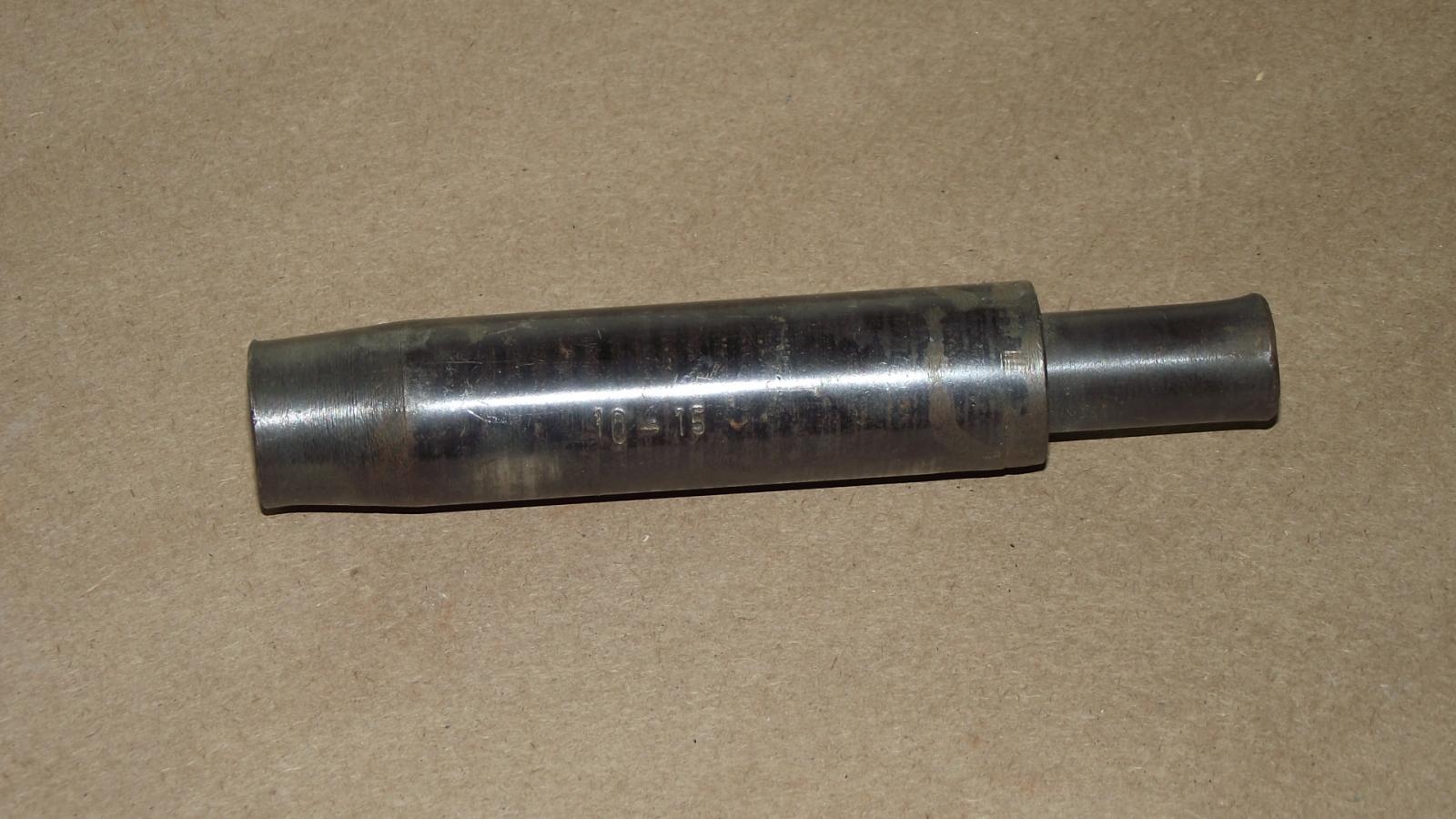

10-15Unknown

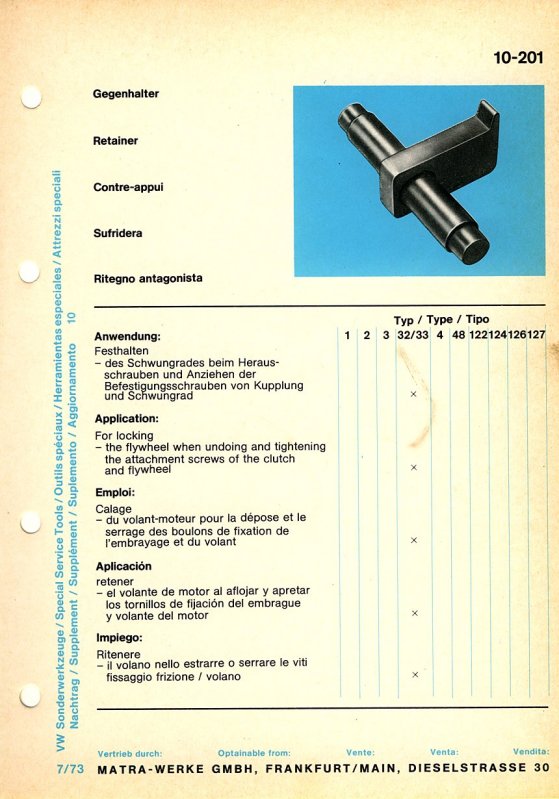

10-201Retainer
For locking the flywheel when undoing and tightening the attachment screws of the clutch and flywheel (Dasher)
10-202Extractor
For extracting the needle bearing out of the crankshaft (Dasher)

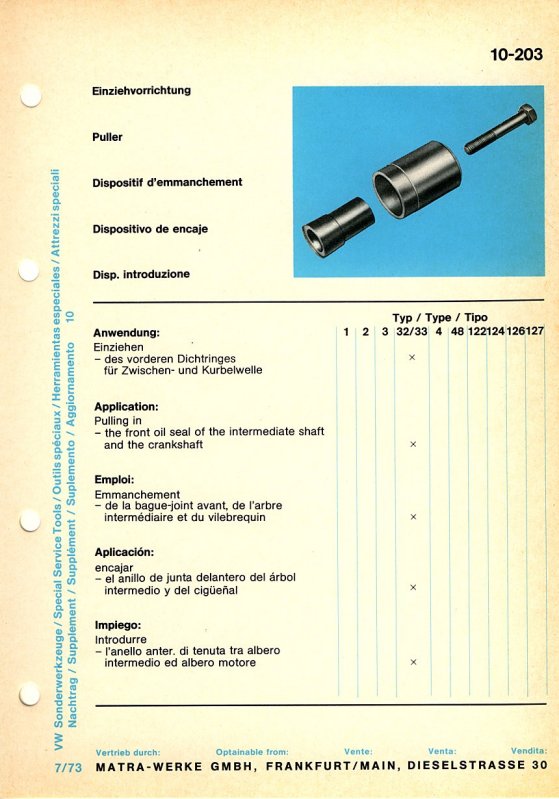

10-203Puller
For pulling in the front oil seal of the intermediate shaft and crankshaft (Dasher)
10-204Mandrel
For pressing on the valve stem seal (Dasher)
10-205Fitting Sleeve
For fitting the crankshaft oil seal at the flywheel end (Dasher)
10-207Engine Suspension Chain
For removal and installation of the engine in conjunction with the workshop crane VW 1202 (Dasher)

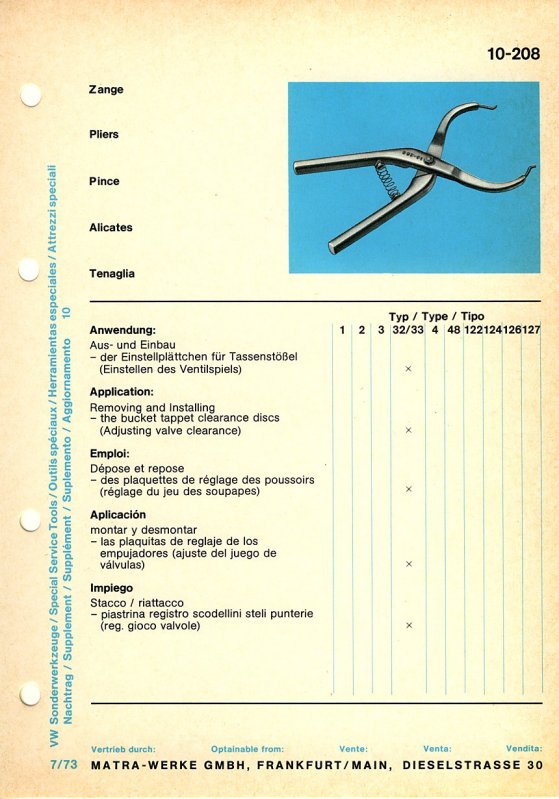

10-208Pliers
For removing and installing the bucket tappet clearance discs (adjusting valve clearance) (Dasher)

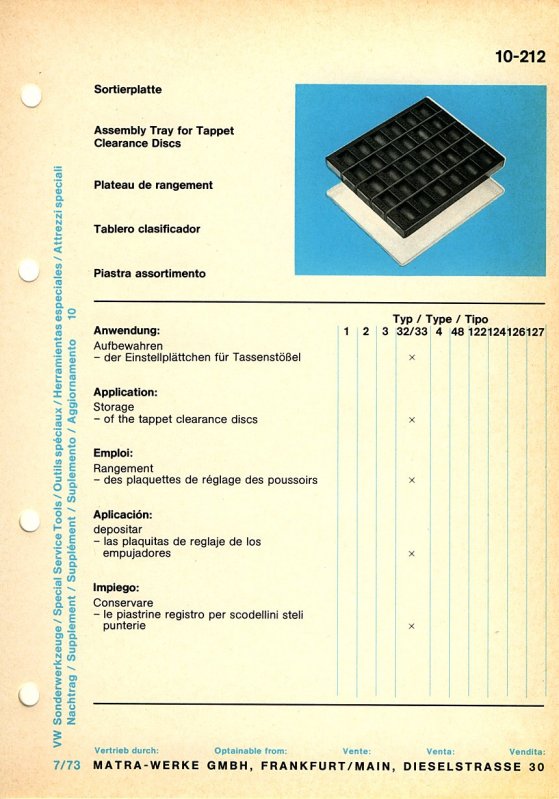

10-212Assembly Tray for Tappet Clearance Discs
For storage of the tappet clearance discs (Dasher)
10-218Pliers
For removing the valve stem seal and the valve spring seat (Dasher)

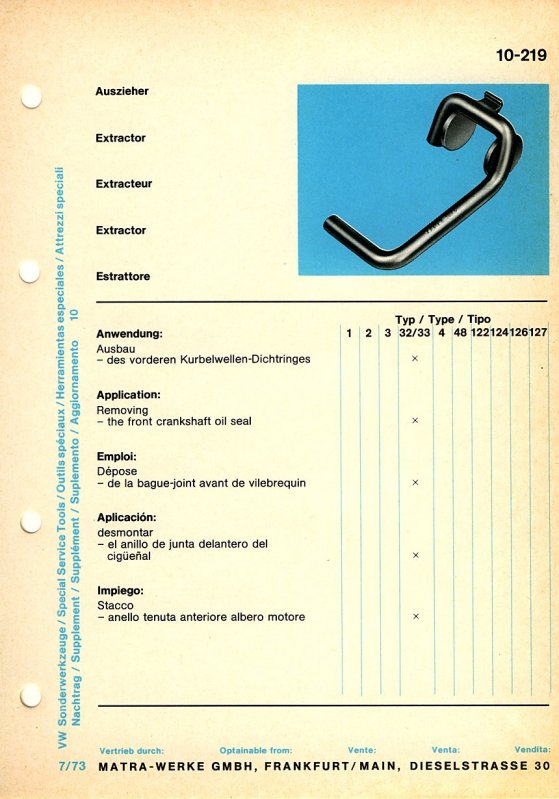

10-219Extractor
For removing the front crankshaft oil seal (Dasher)
10-220Puller Ring
For fitting the crankshaft oil seal at the flywheel end (Dasher)

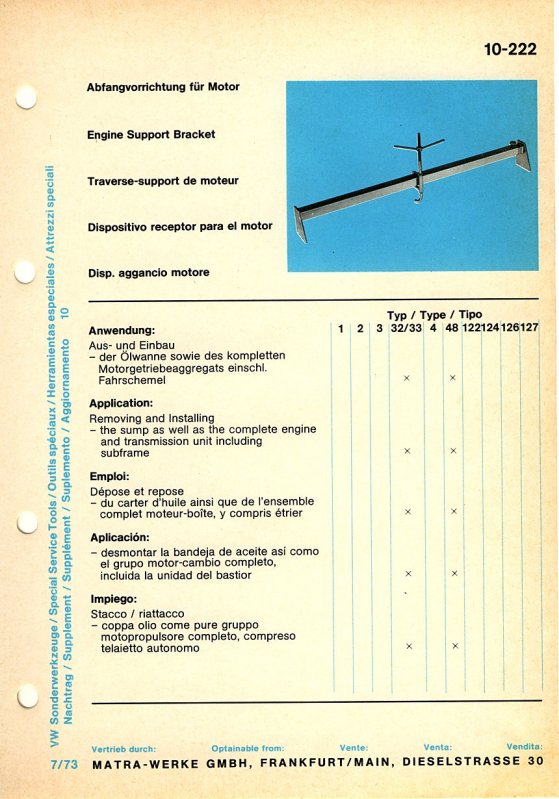

10-222Engine Support Bracket
For removing and installing the sump as well as the complete engine and transmission unit including subframe (Dasher and NSU K70)
30-10Unknown

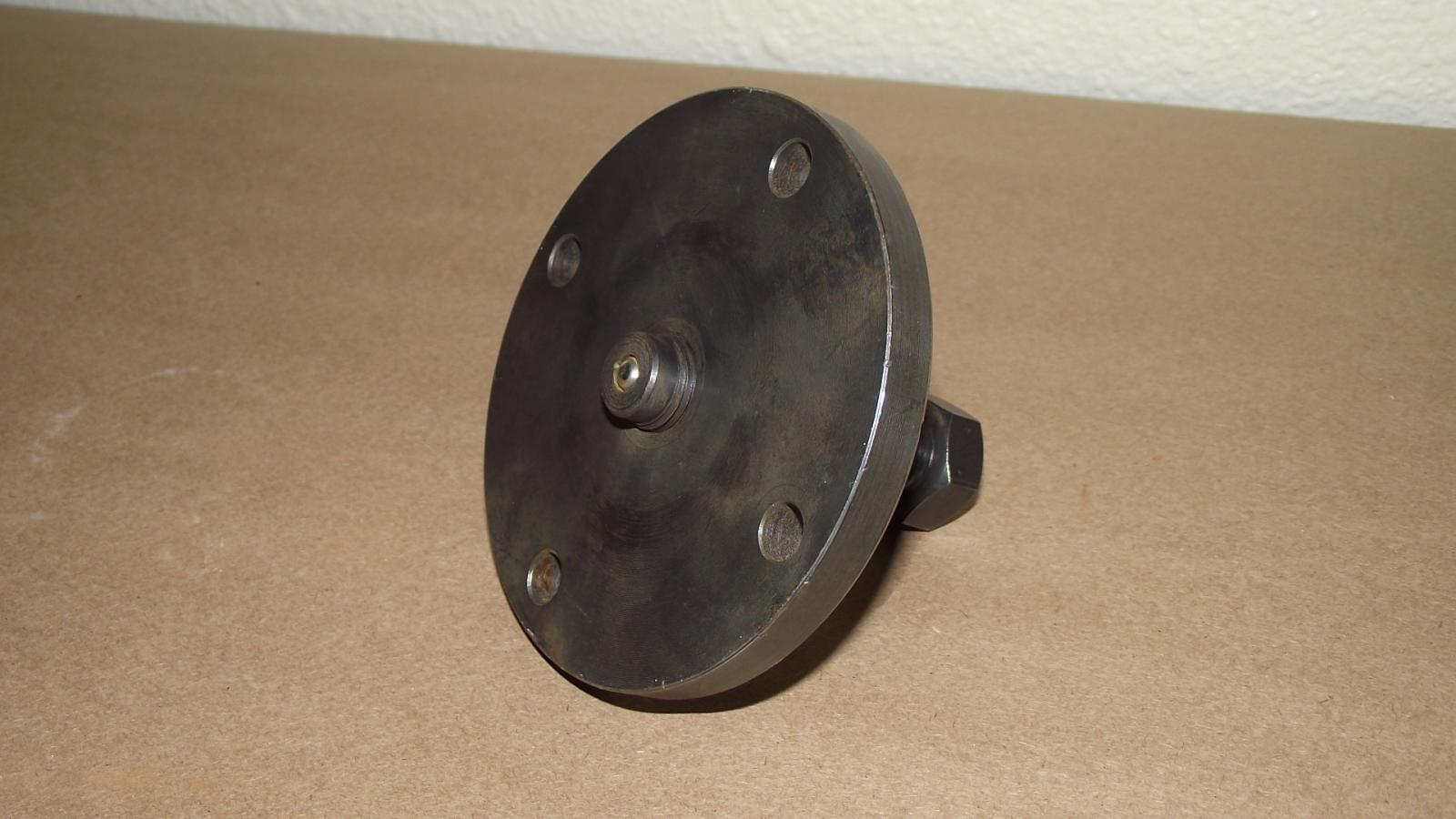

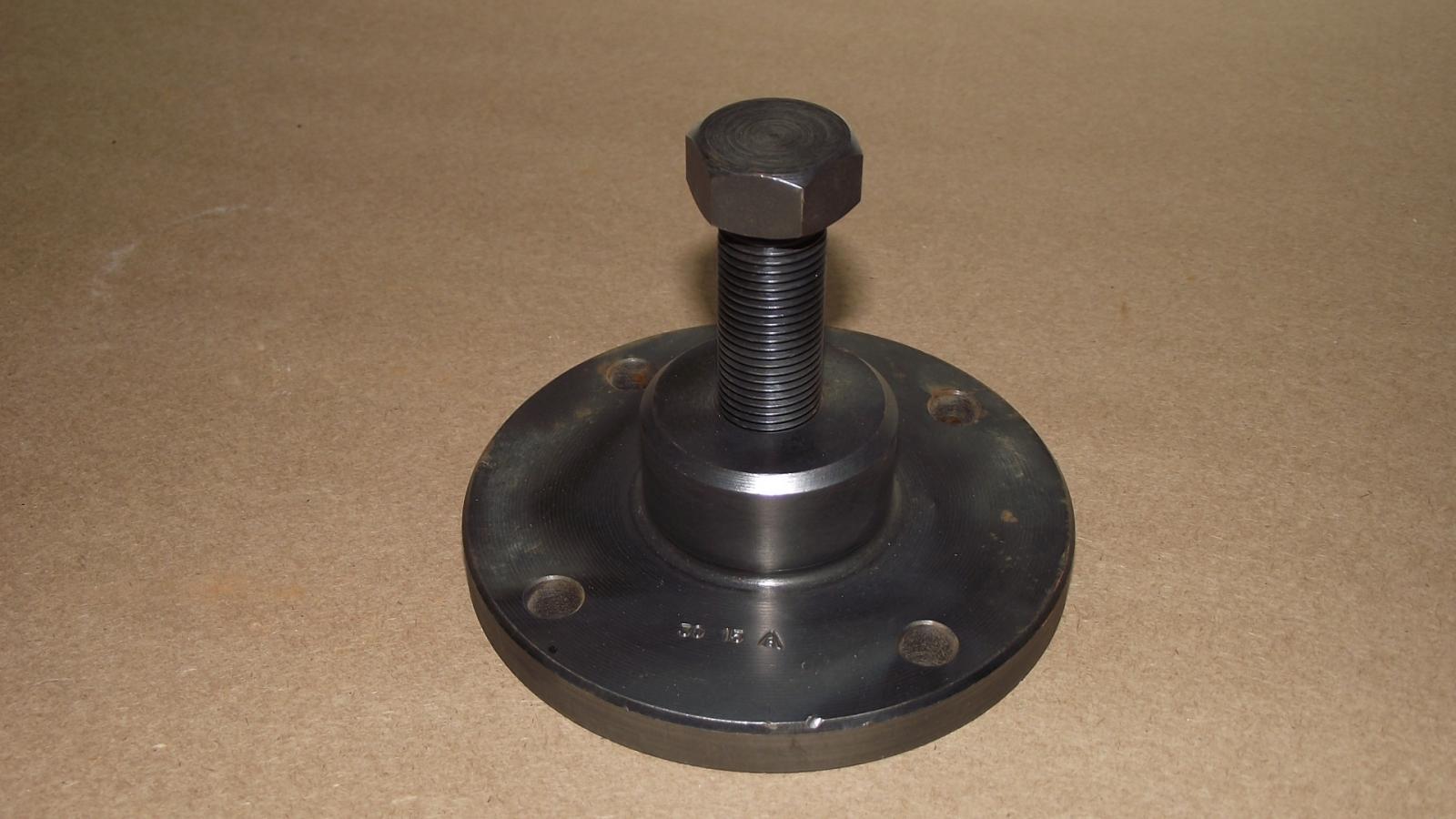

30-15Unknown

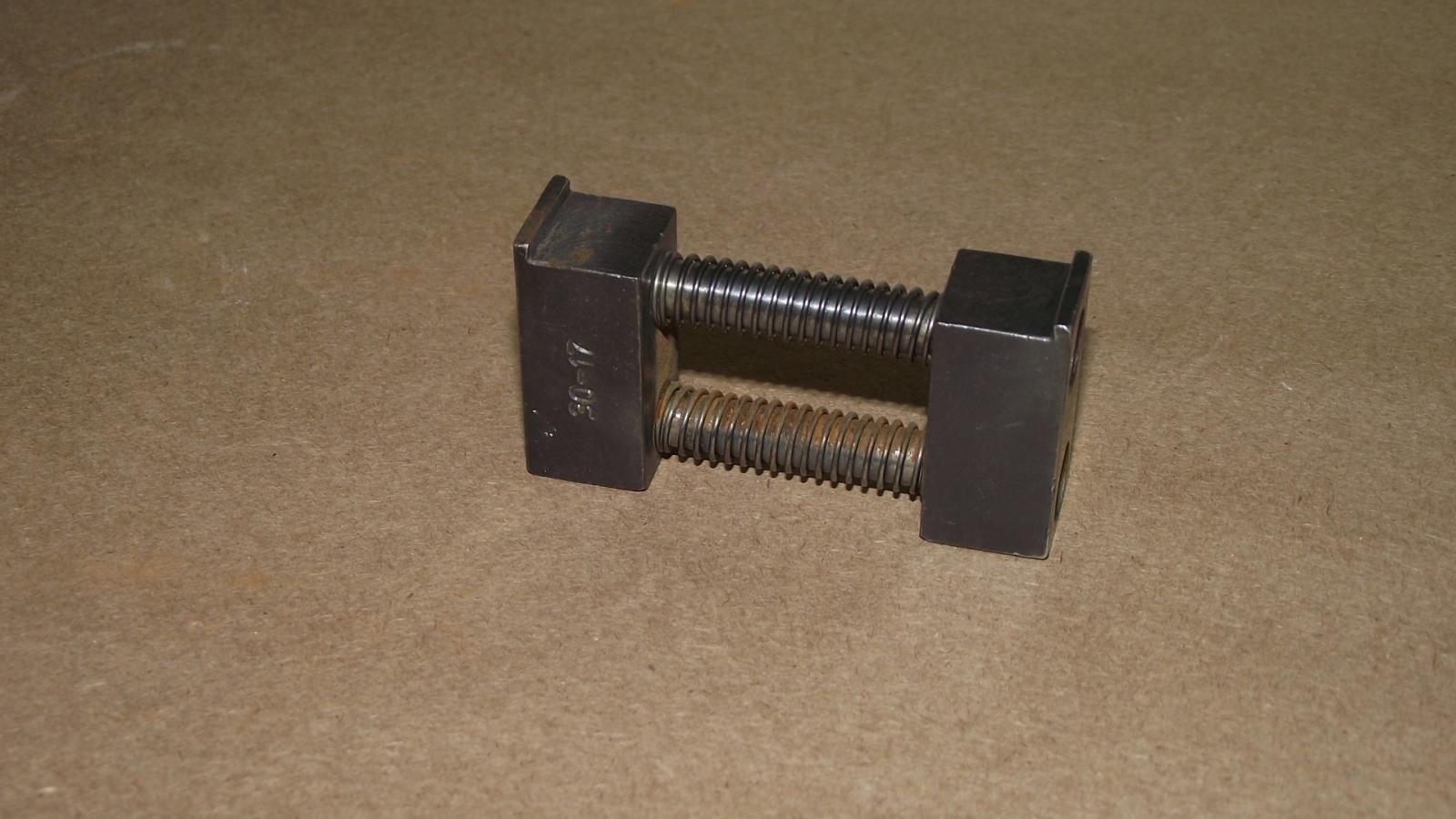

30-17Unknown

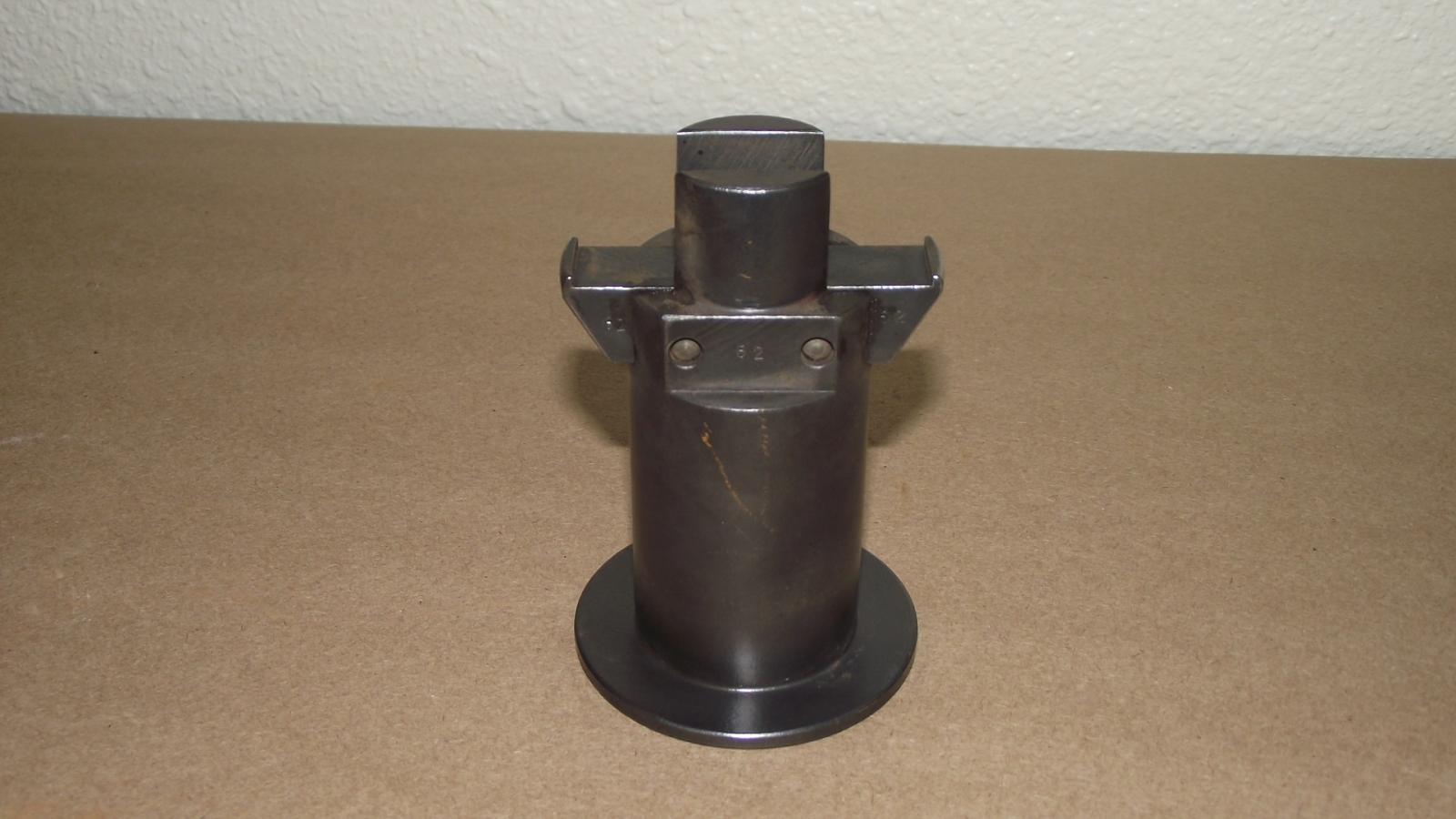

30-18Unknown

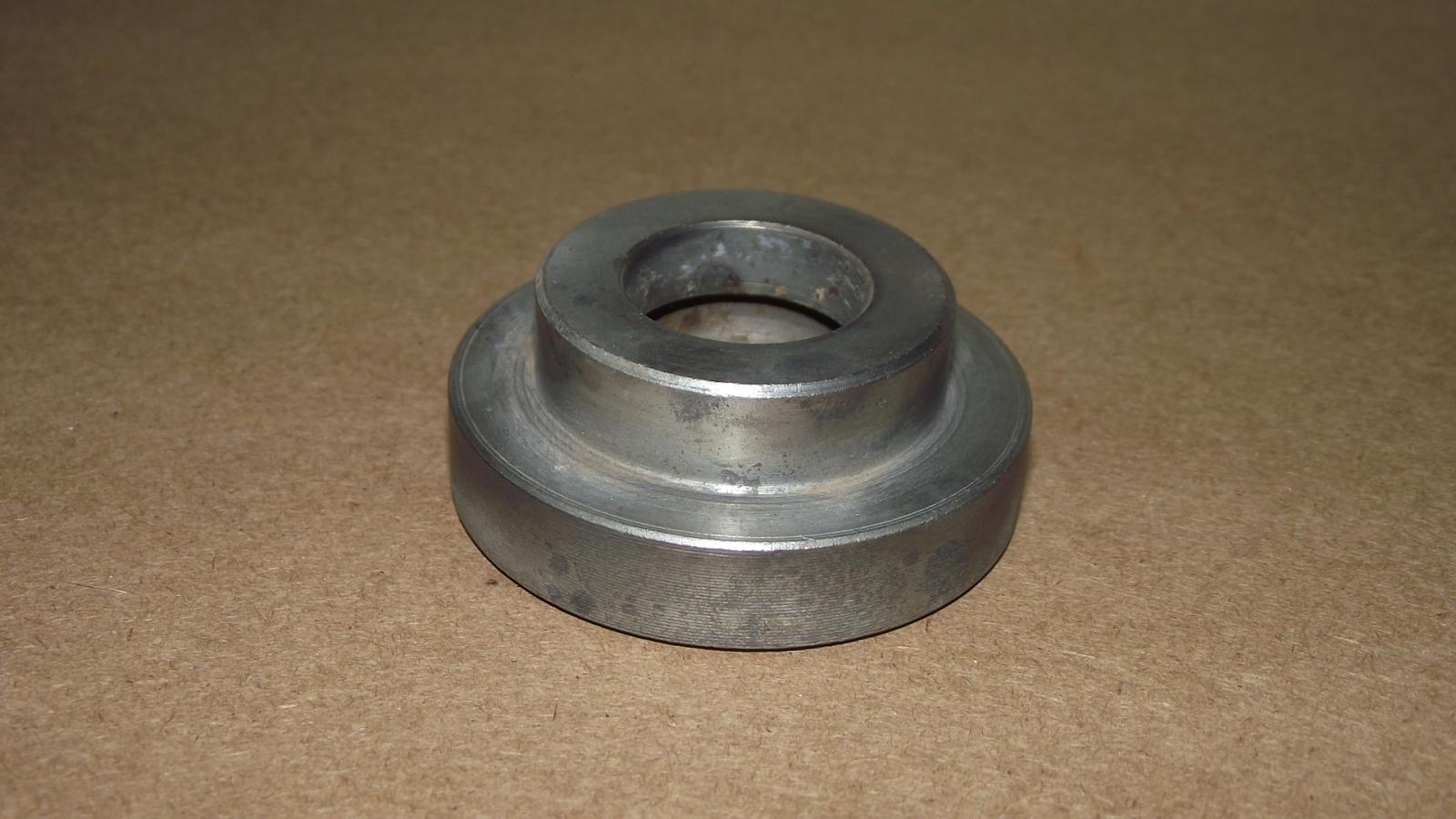

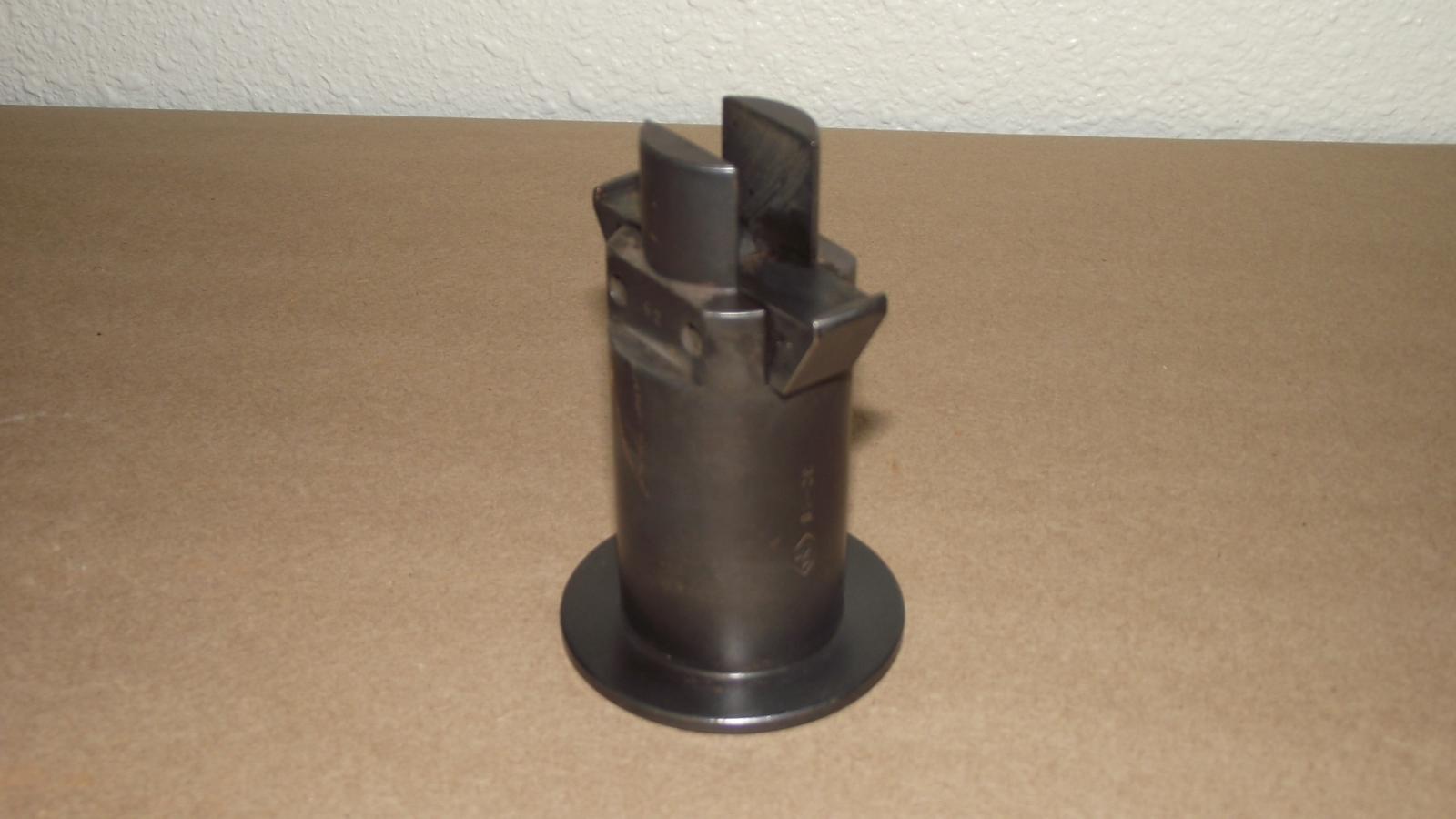

30-26Unknown
30-101Unknown

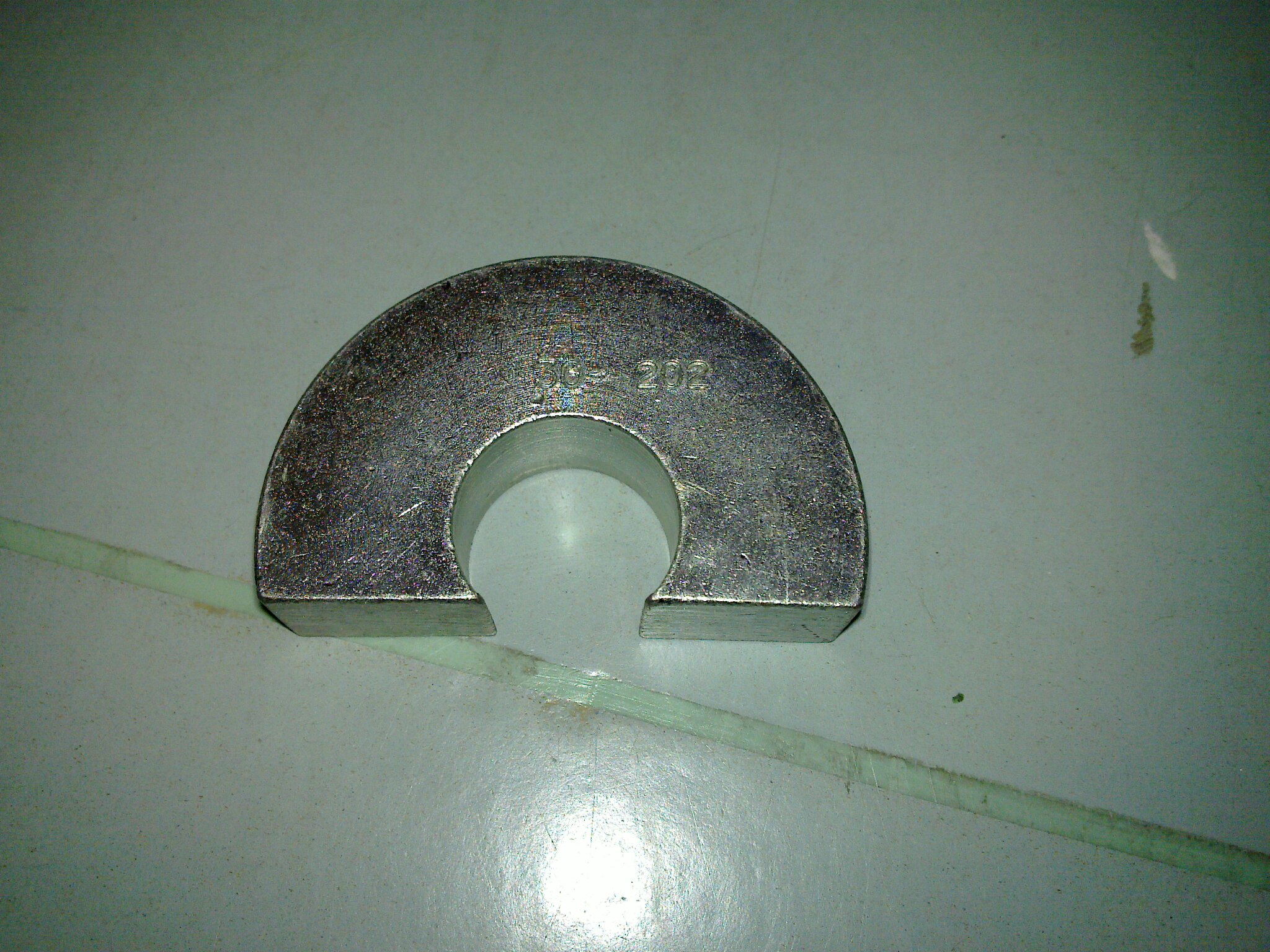

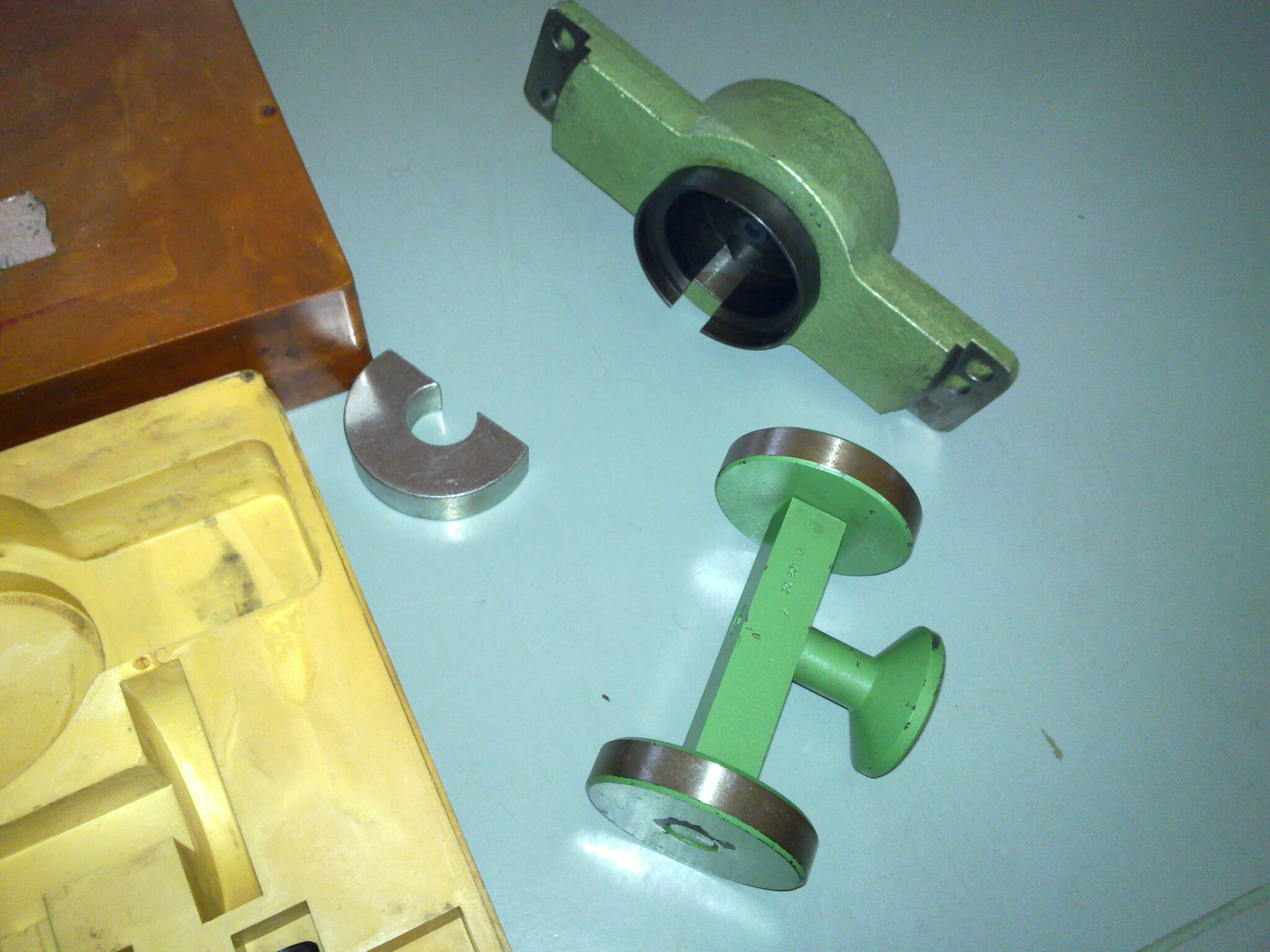

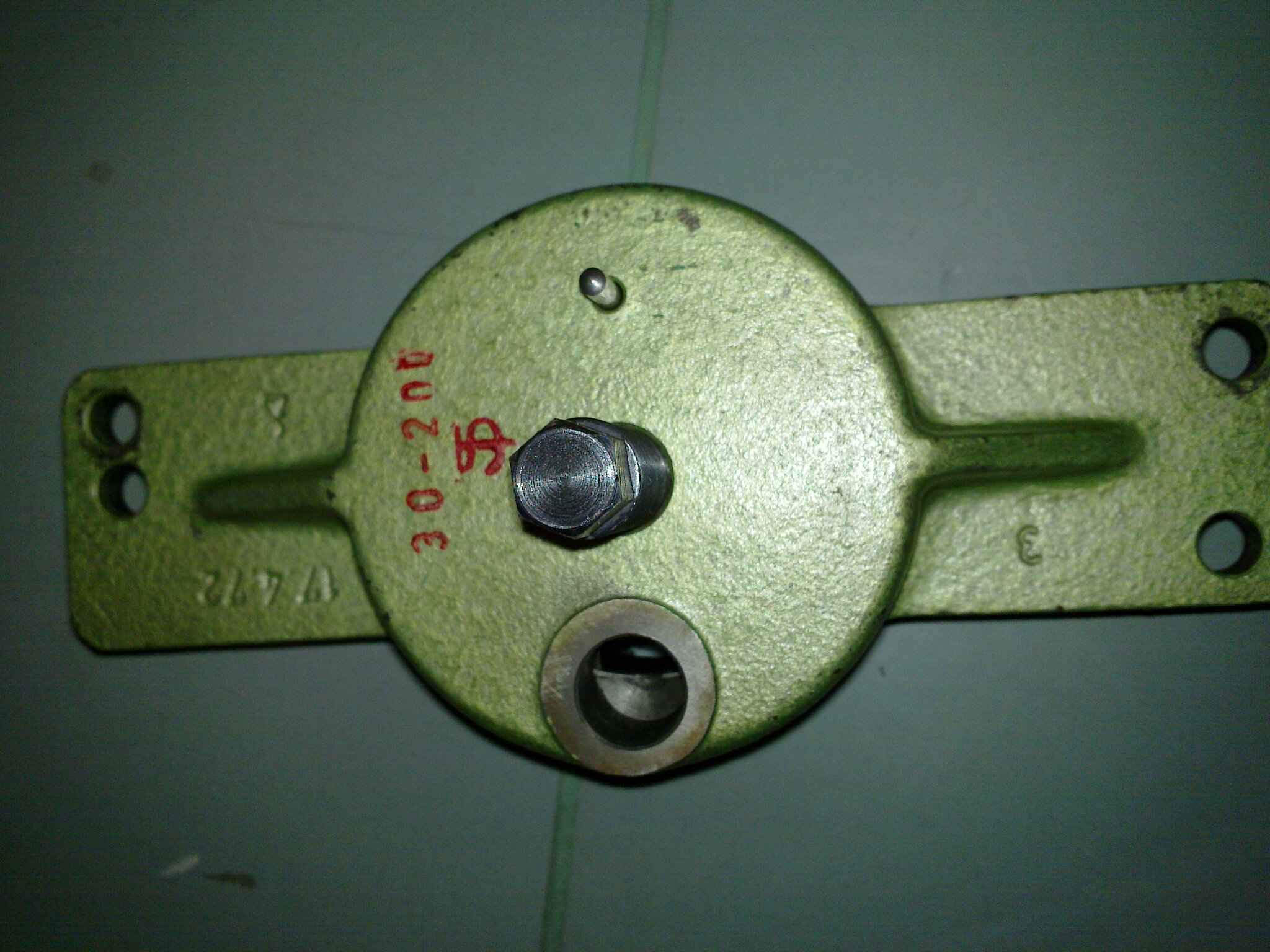

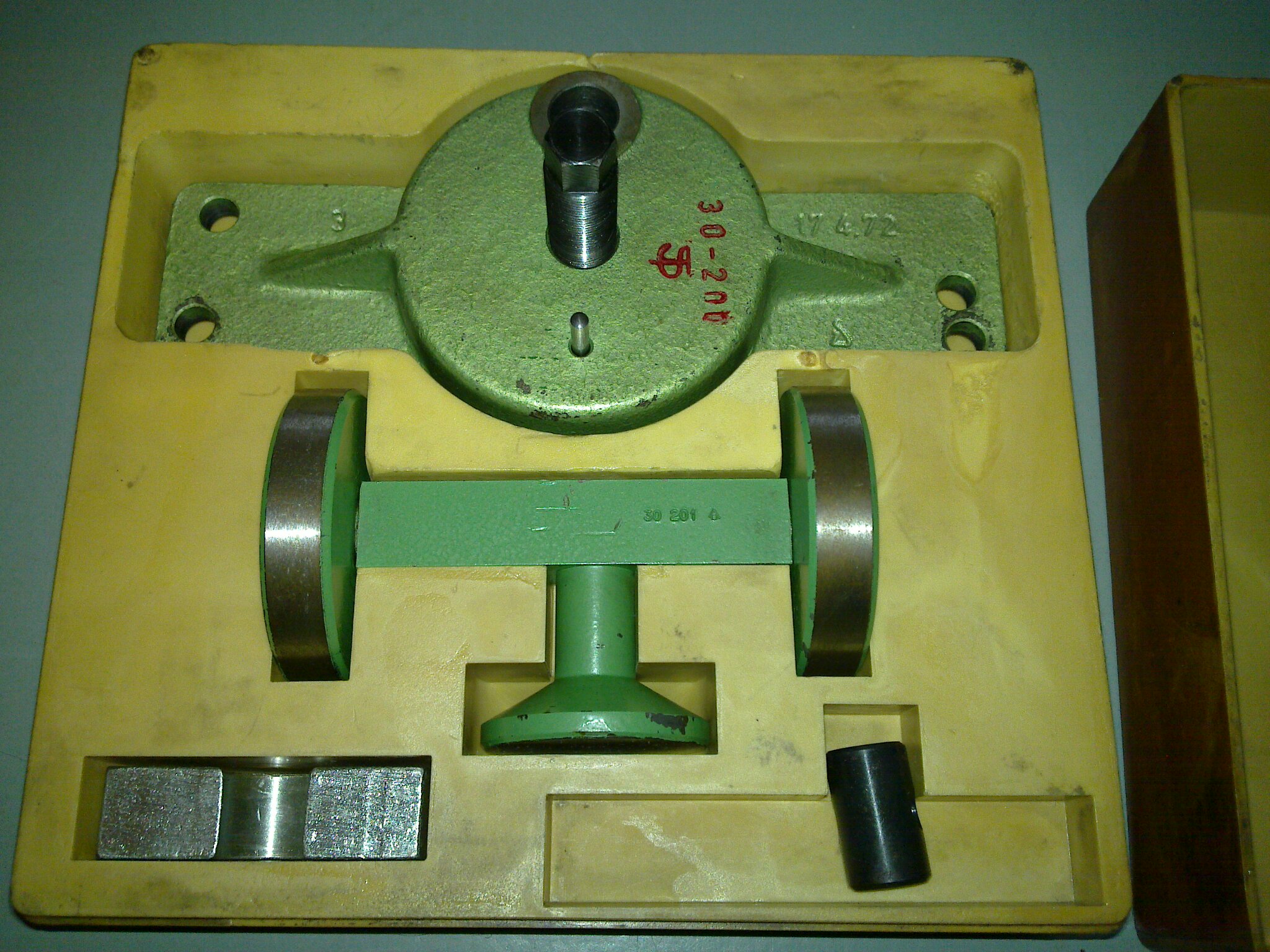

30-200
30-201
30-202
Measuring Flange
Meßflansch zur Tellerad und Trieblingseinstellung bei der Getriebeinstandsetzung
Measuring flange to the bevel-gear drive with the gearbox repair
Manufactured by Matra

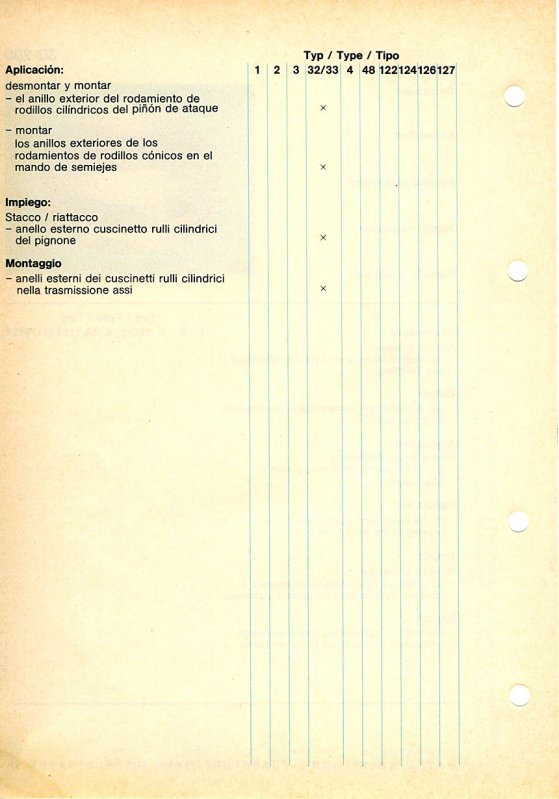

30-205Thrust Pad
For removing and installing the outer race of the drive pinion roller bearing (Dasher)

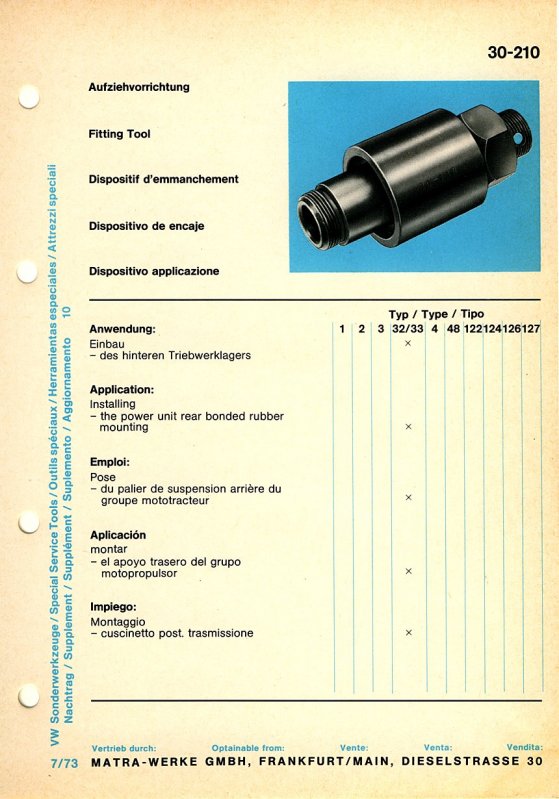

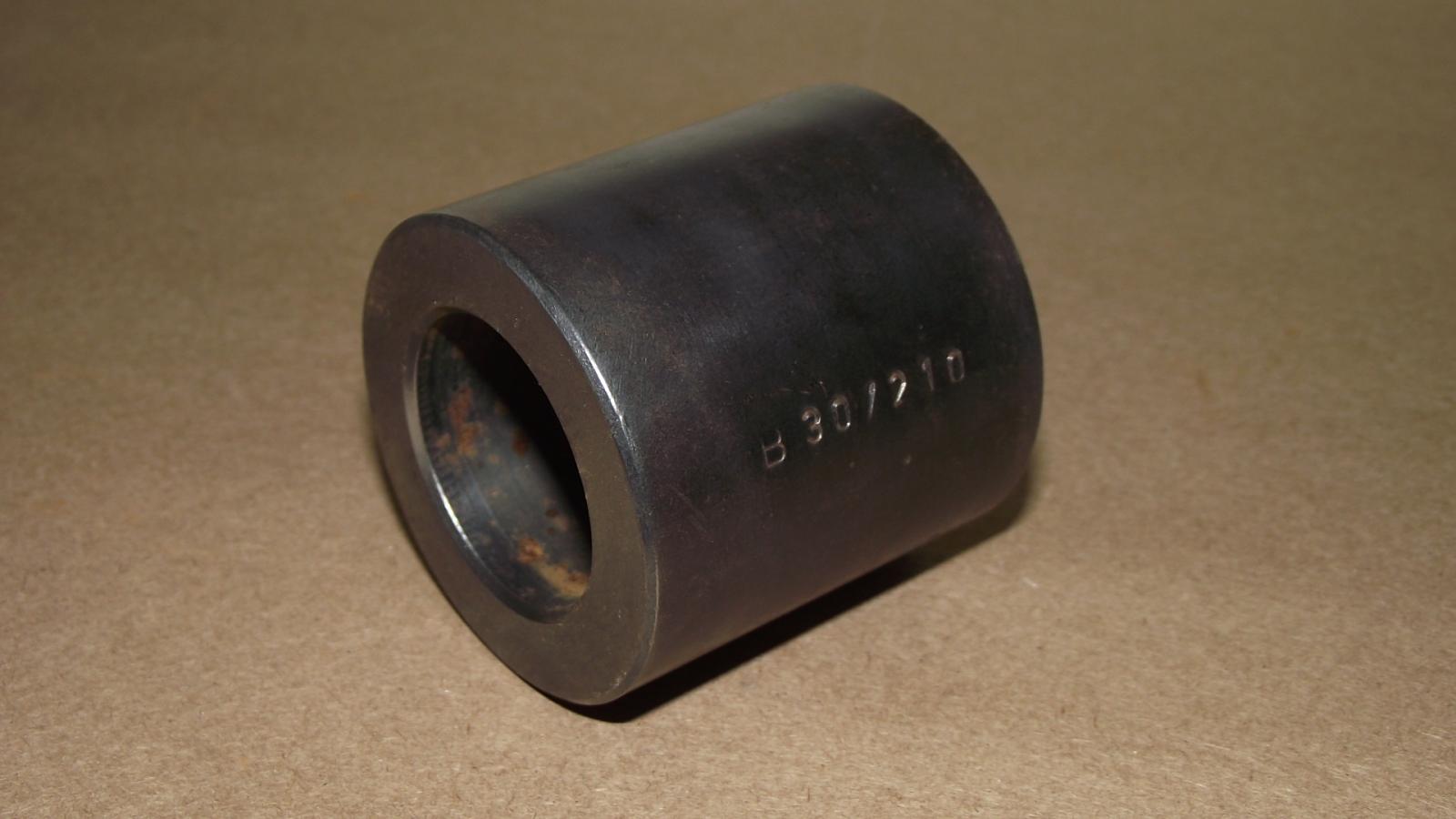

30-210Fitting Tool
For installing the power unit rear bonded rubber mounting (Dasher)

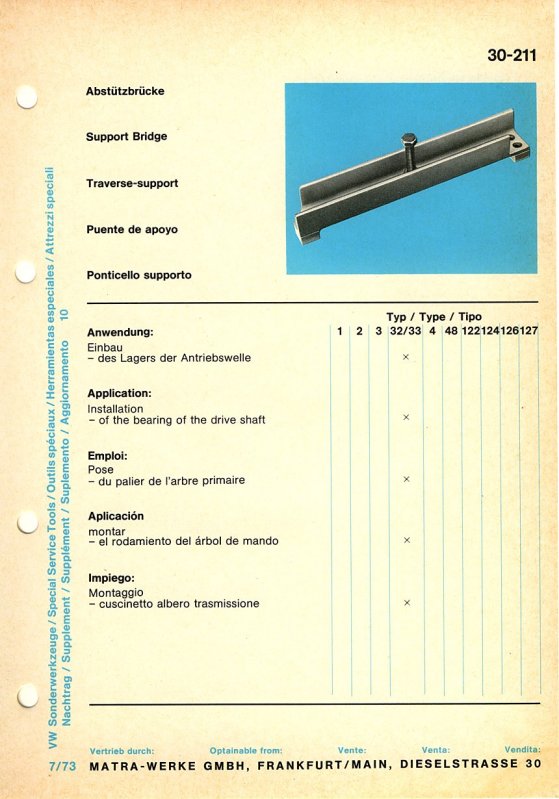

30-211Support Bridge
For installation of the bearing of the drive shaft (Dasher)
30-212Punch
For installing the oil seal in the final drive (Dasher)

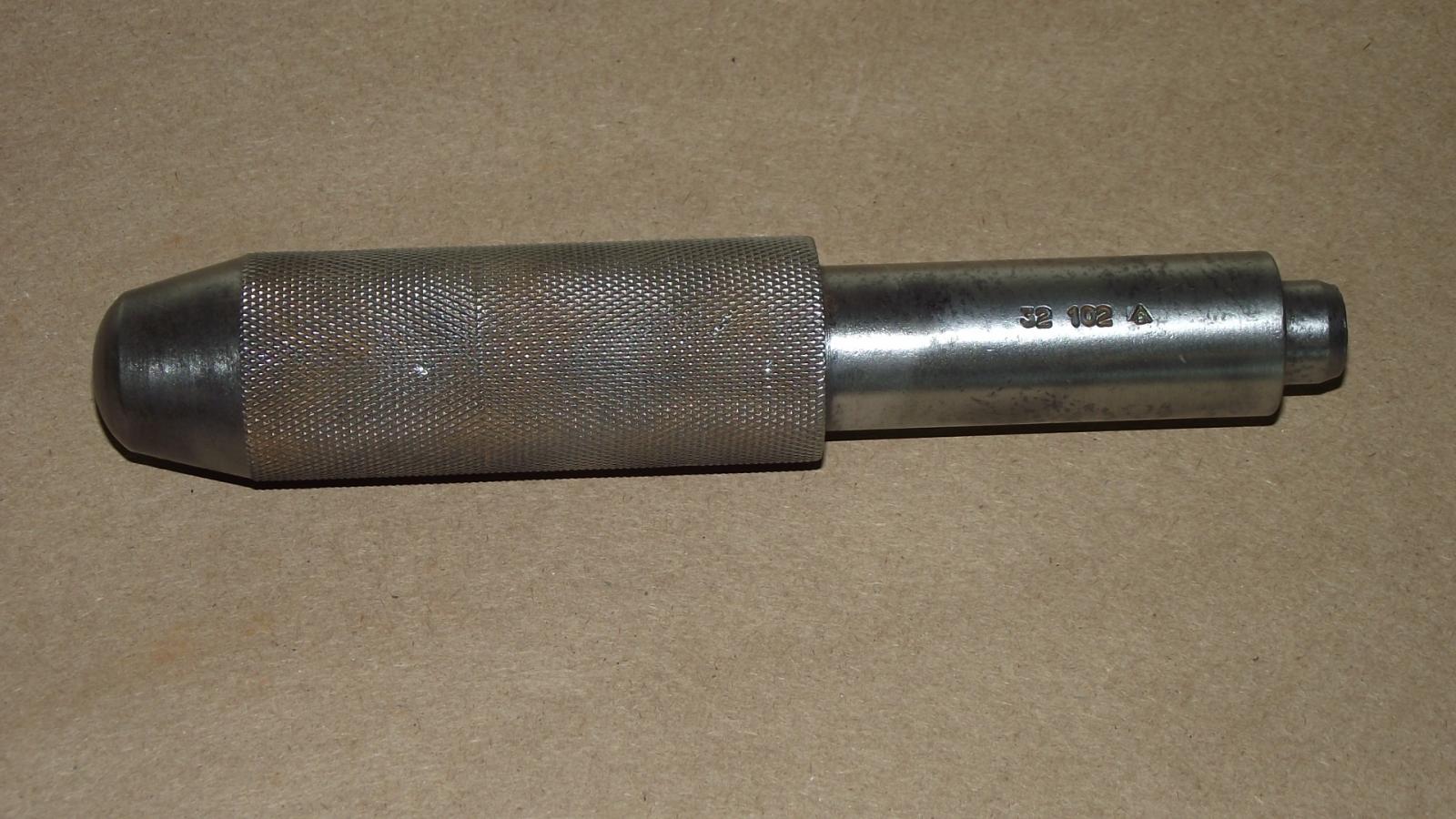

32-102Punch
Dasher, NSU Ro80

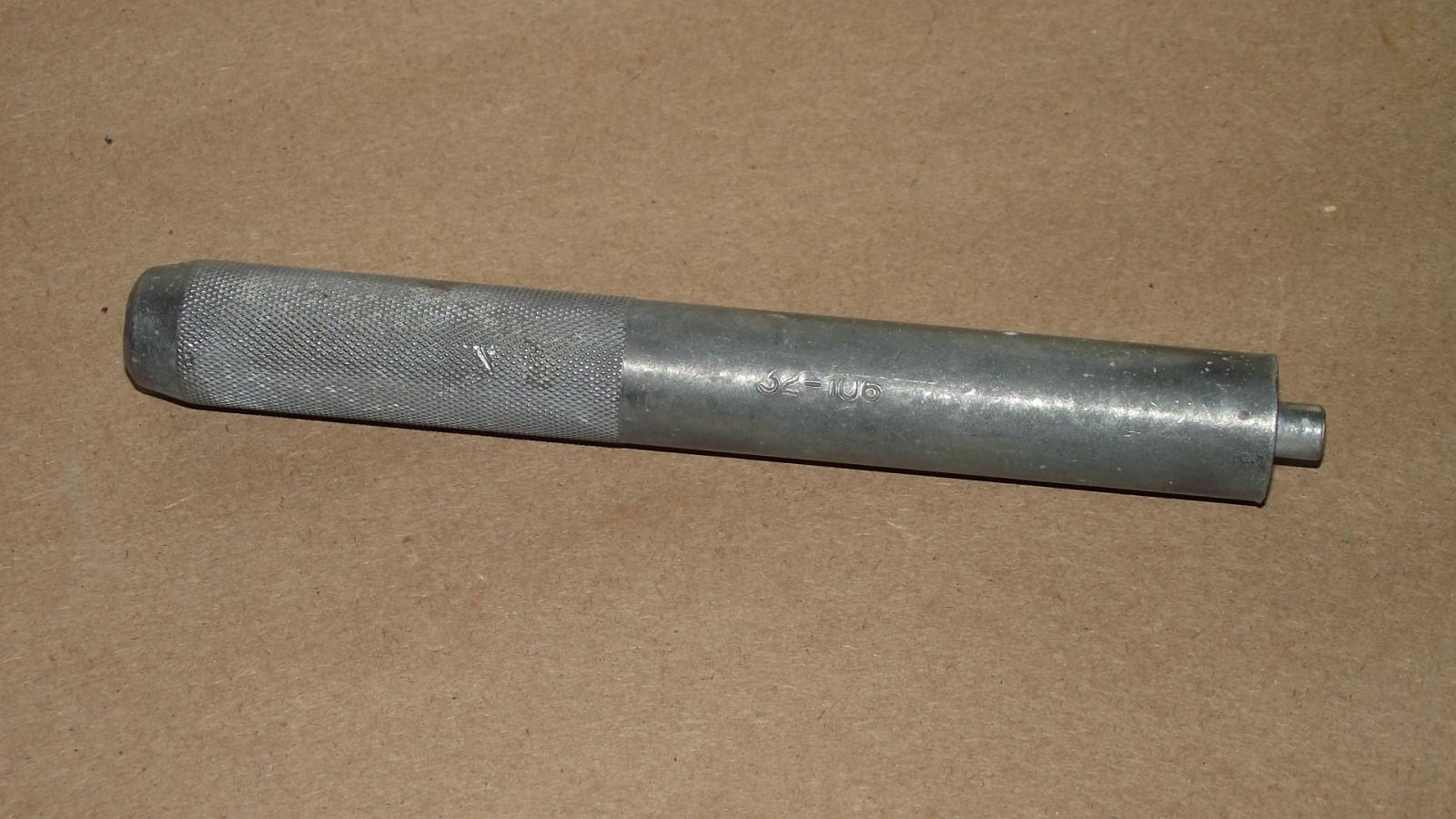

32-106Punch
Rabbit, Dasher

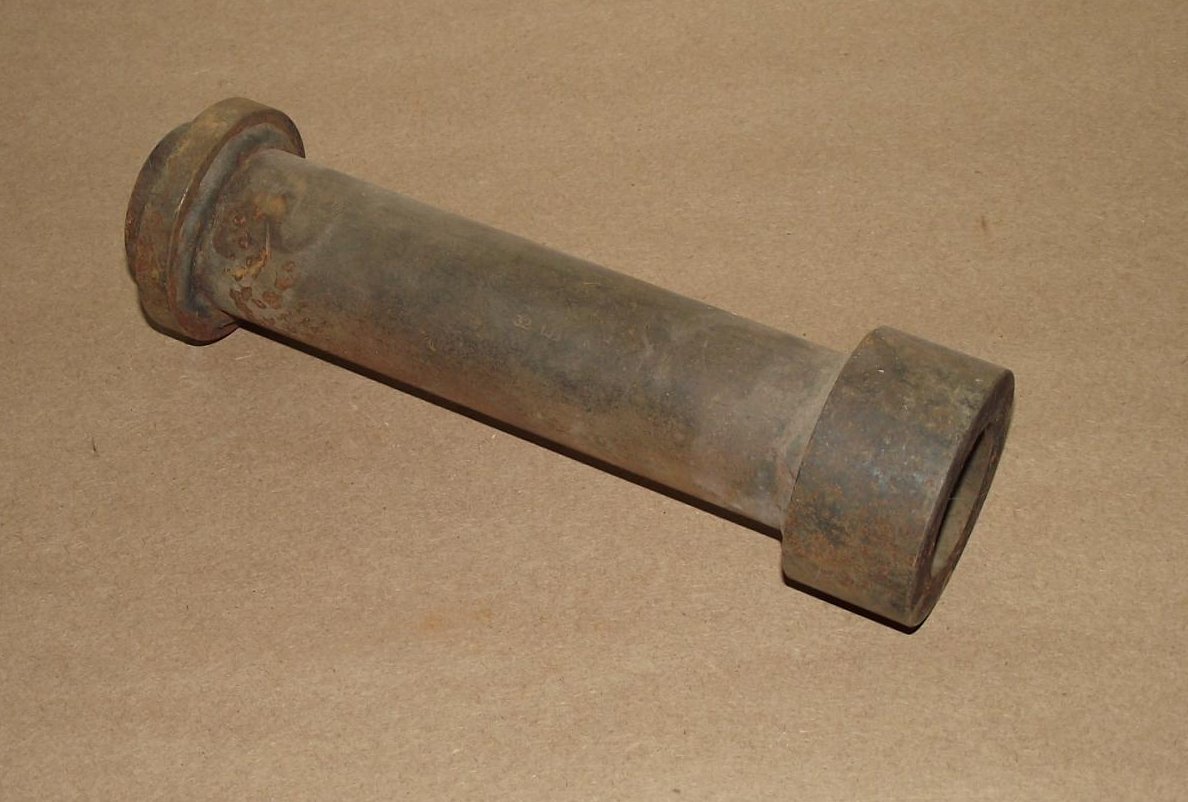

32-109Press Tube
Type 1, 2, transmission and other purposes

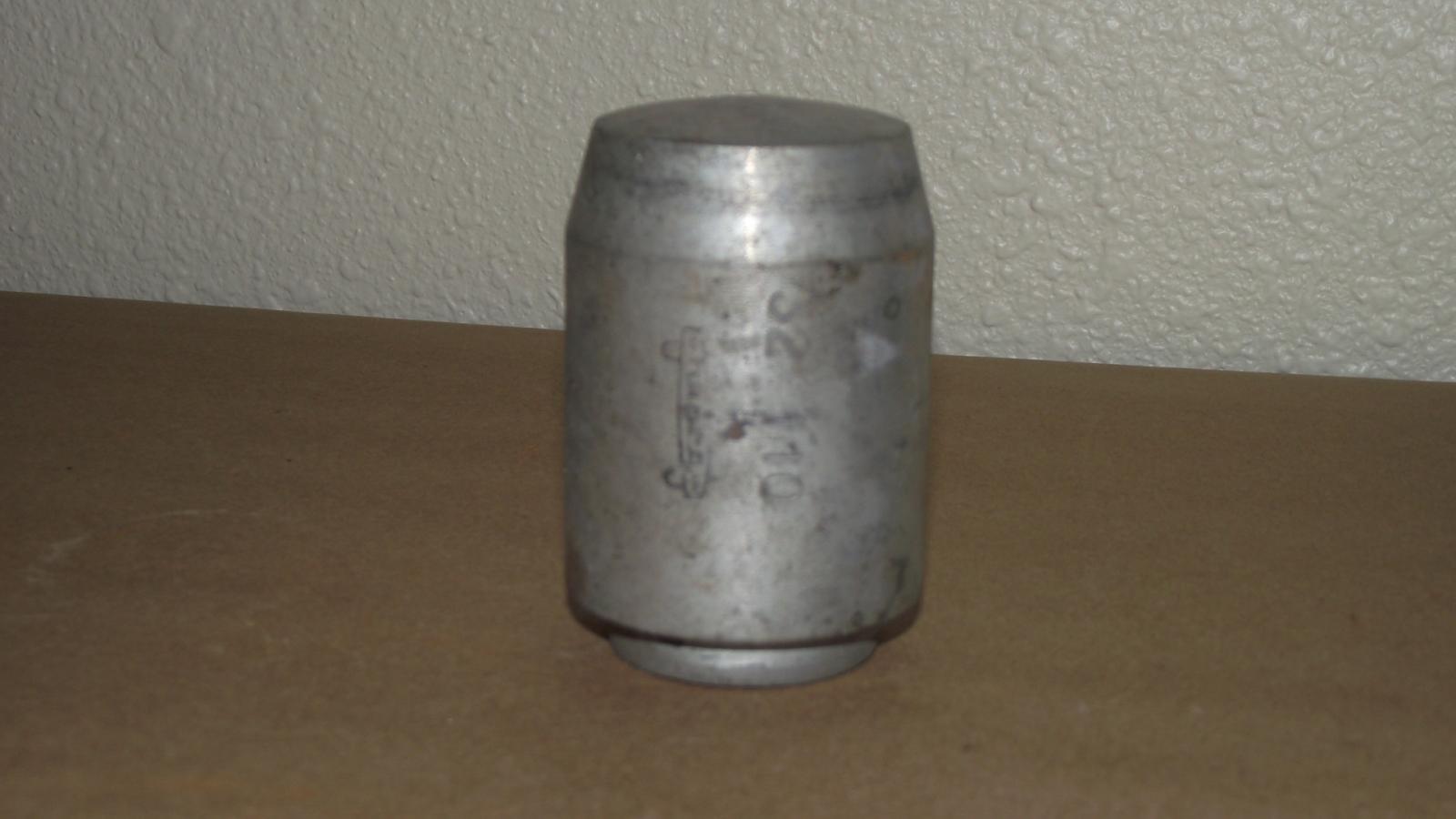

32-110Unknown

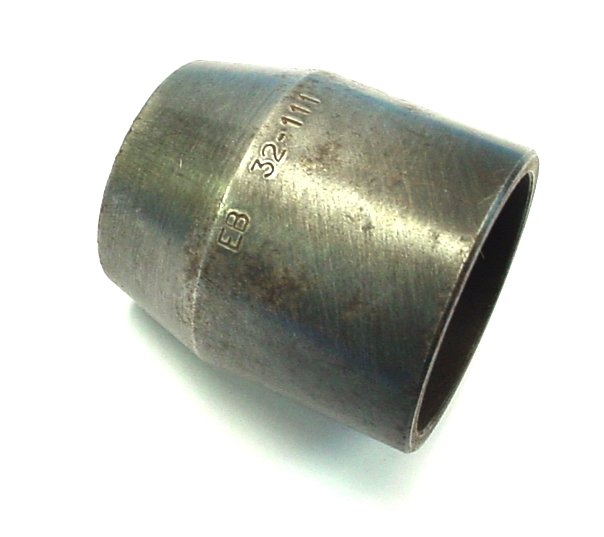

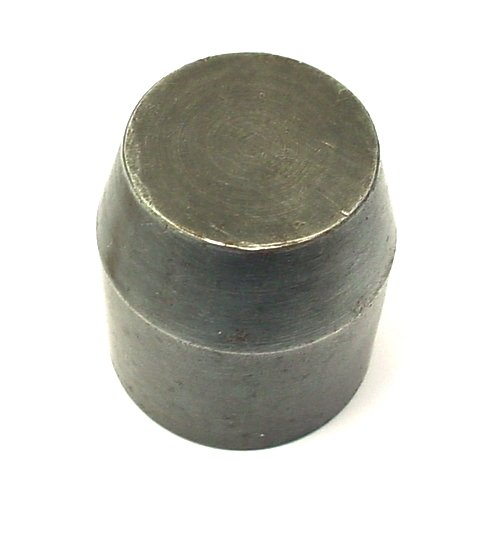

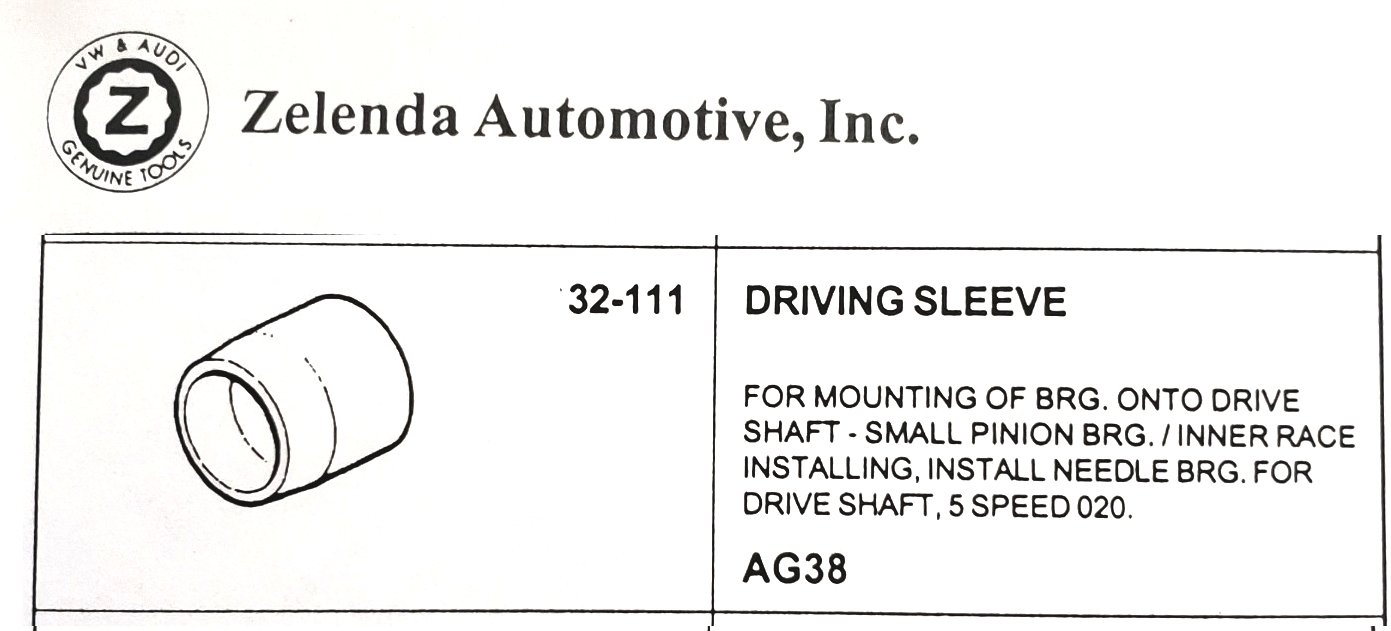

32-111Driving Sleeve
For mounting of bearing onto drive shaft - small pinion bearing / inner race installing, installing needle bearing for drive shaft, 5 speed 020

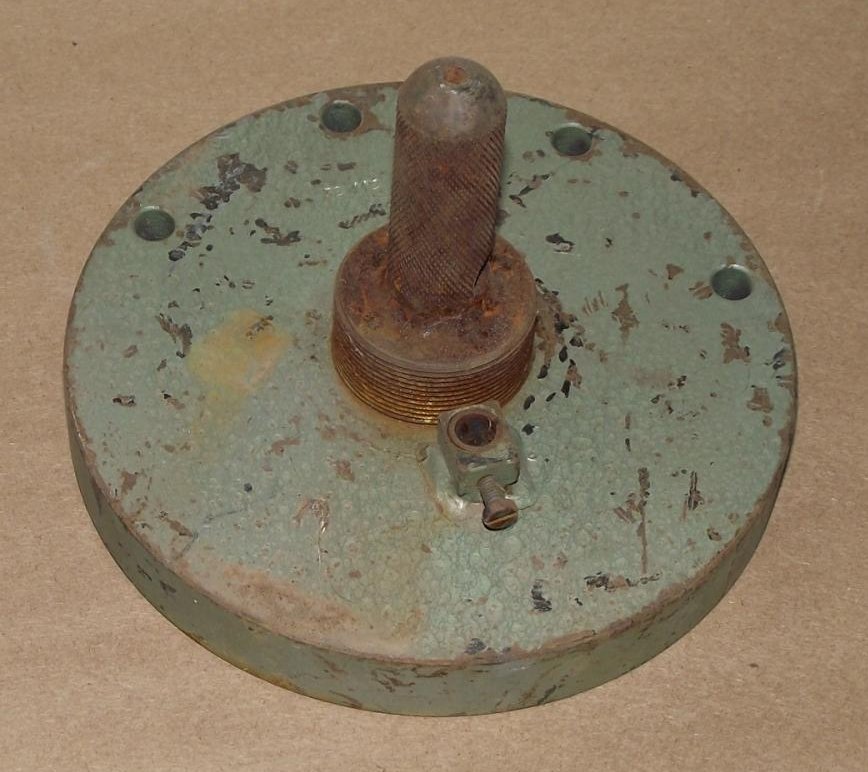

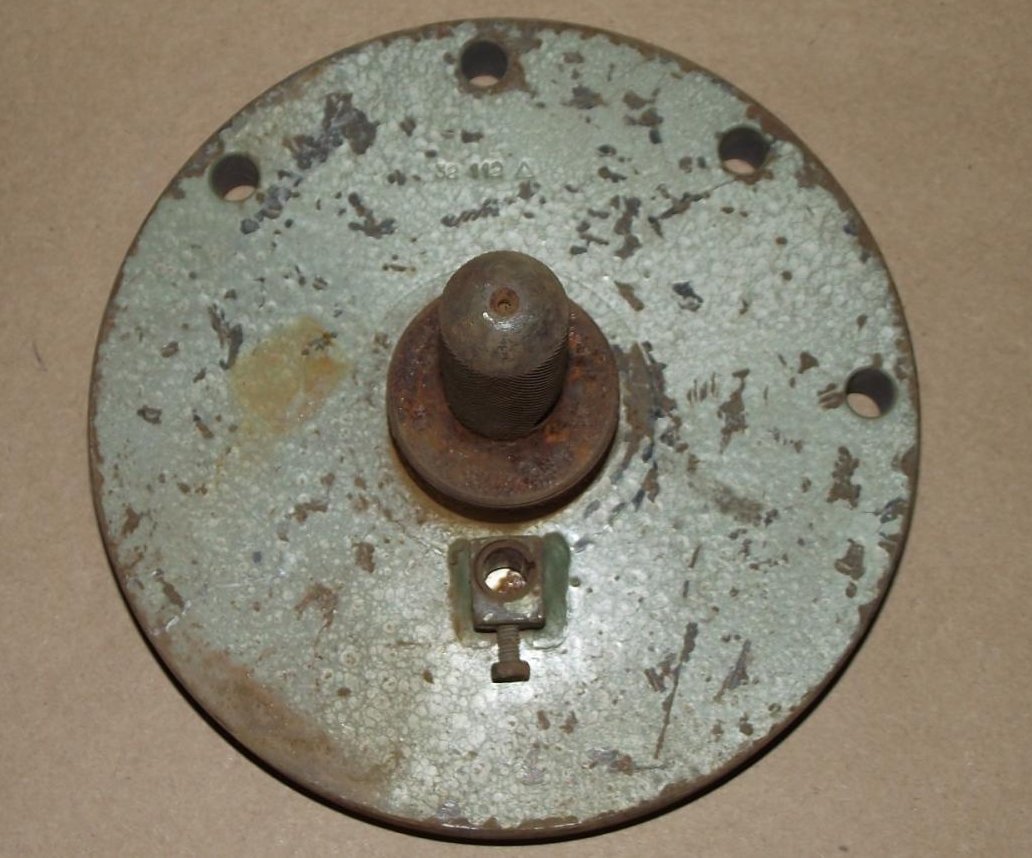

32-112Measuring tool for Audi 100
(German model, may be different for USA)

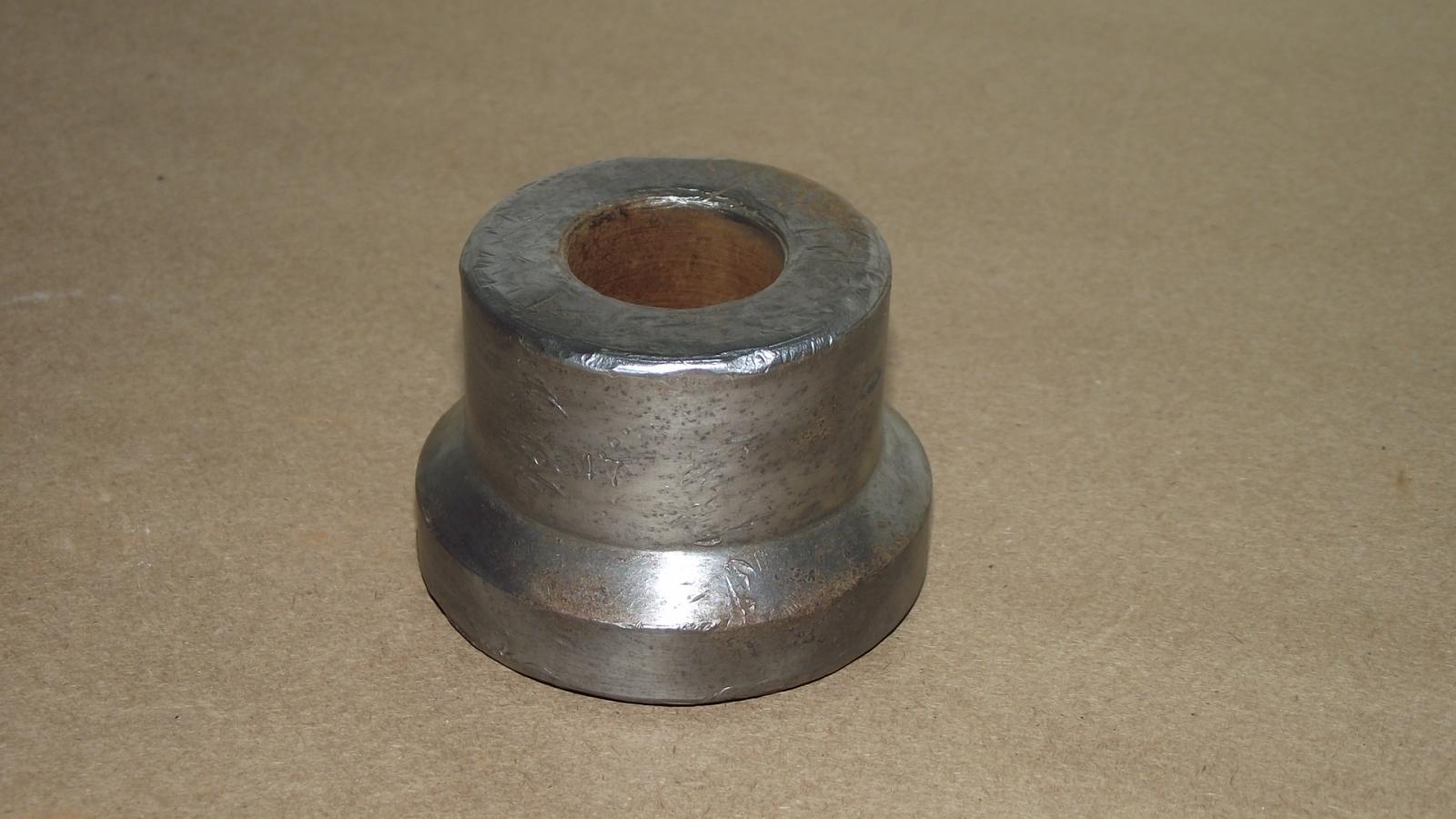

35-47Unknown

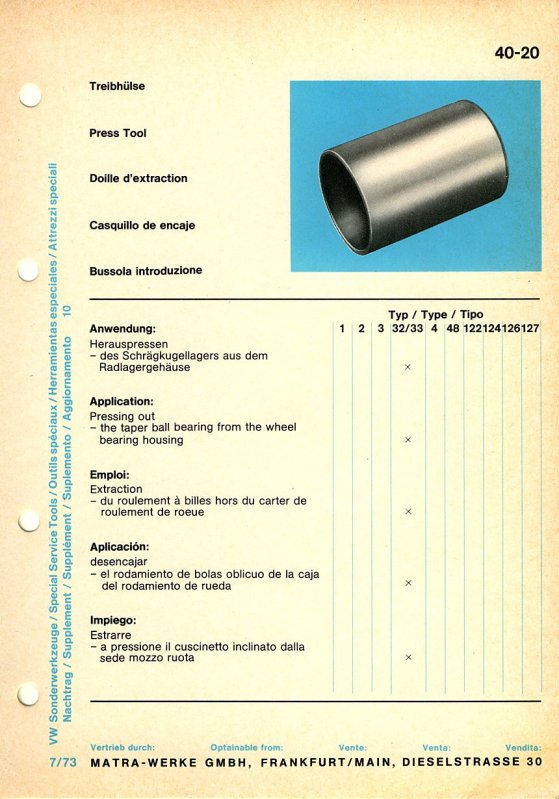

40-20Press Tool
For pressing out the taper ball bearing from the wheel bearing housing (Dasher)

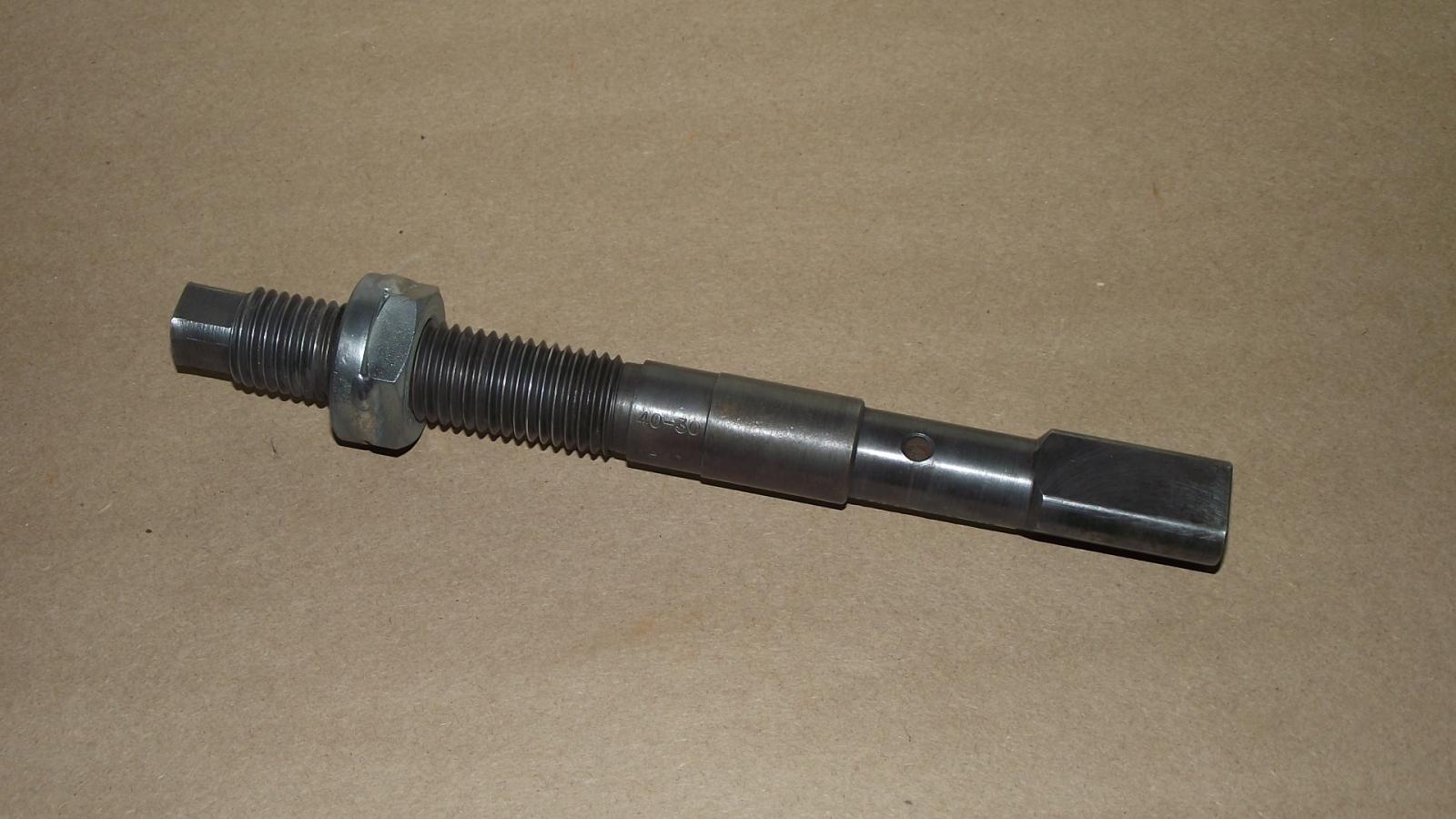

40-30Unknown

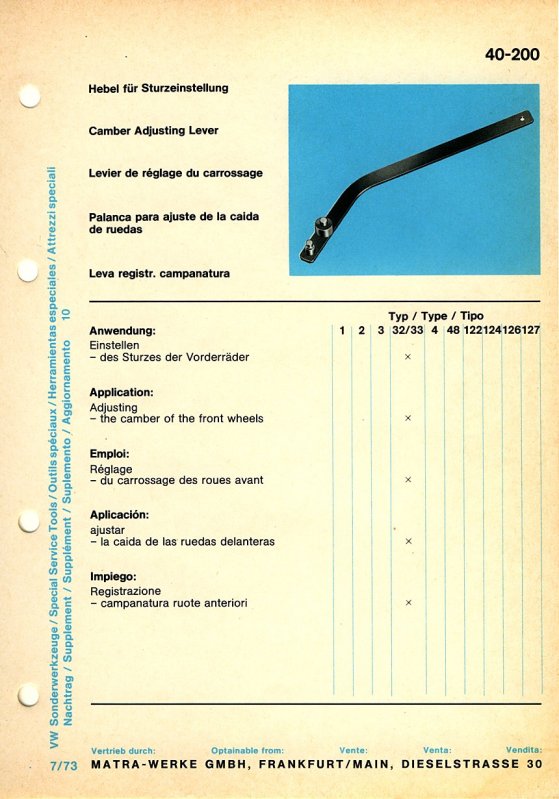

40-200Camber Adjusting Lever
For adjusting the camber of the front wheels (Dasher)

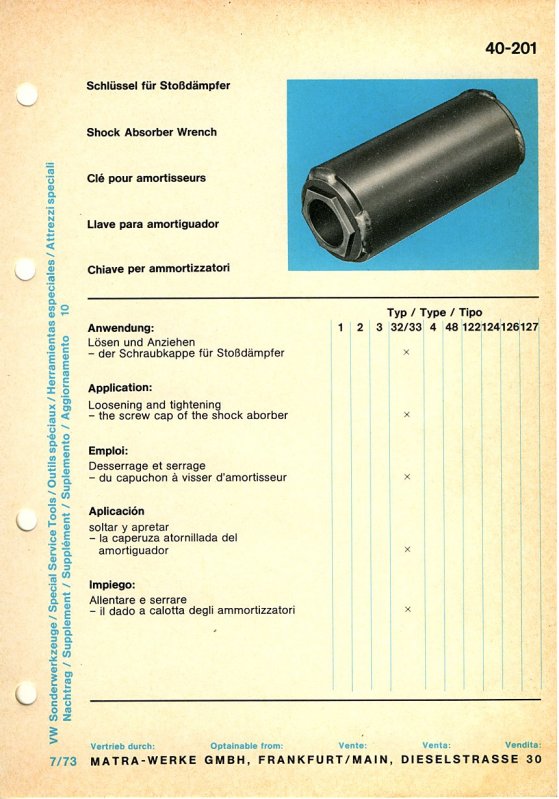

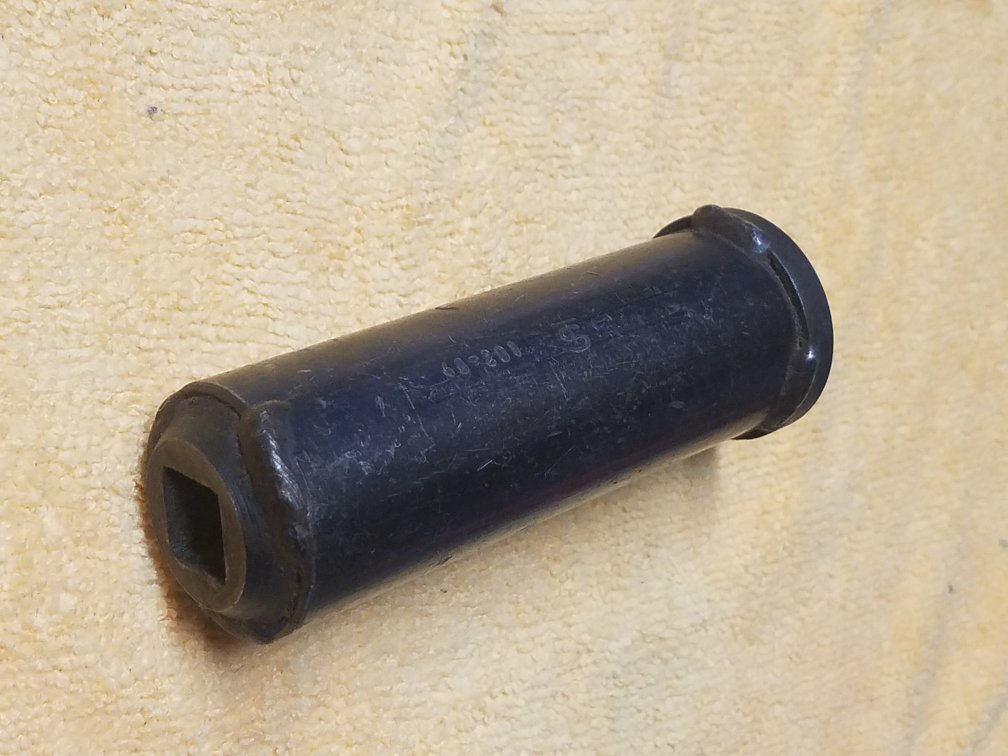

40-201Shock Absorber Wrench
For loosening and tightening the screw cap of the shock absorber (Dasher)

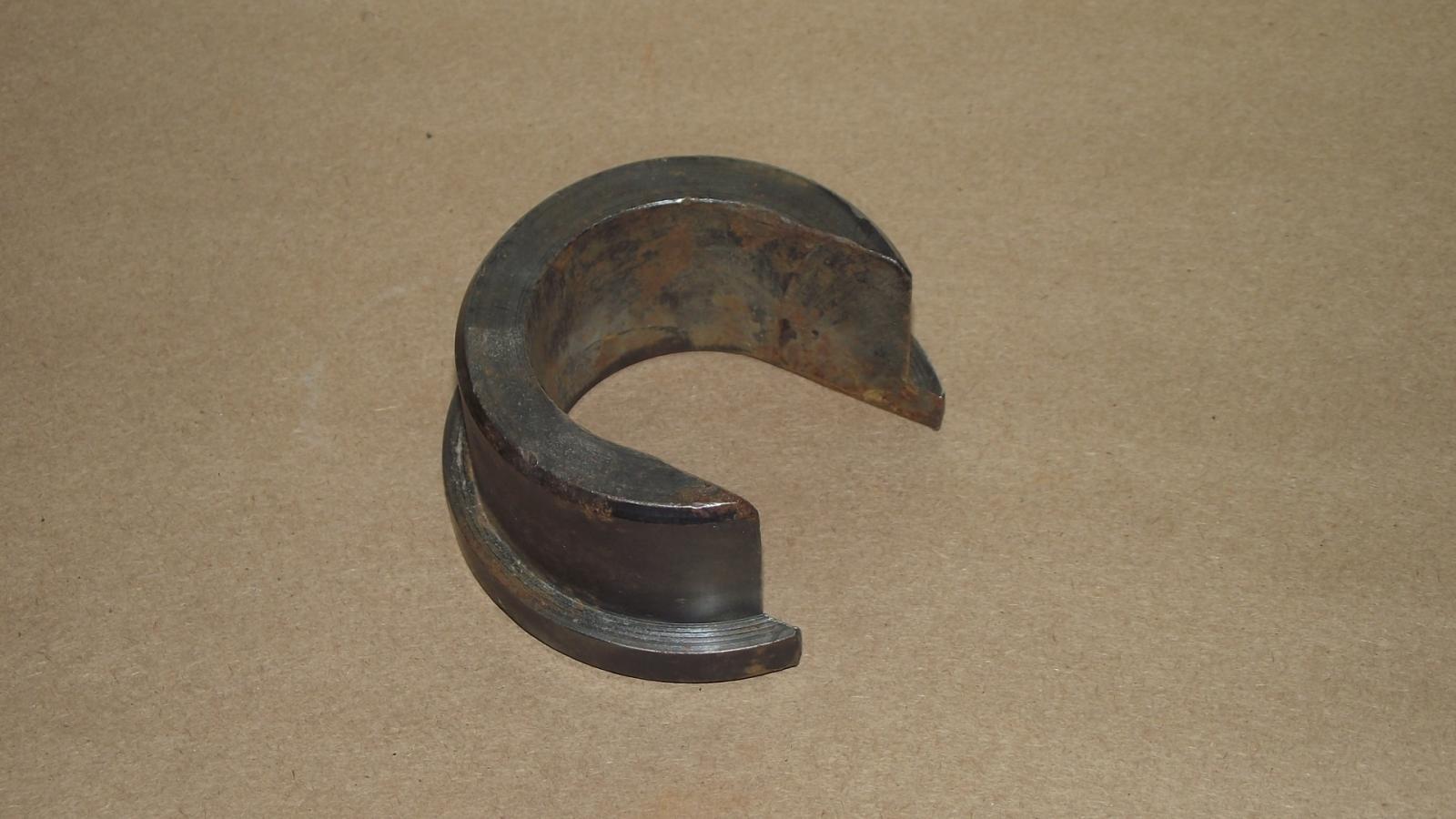

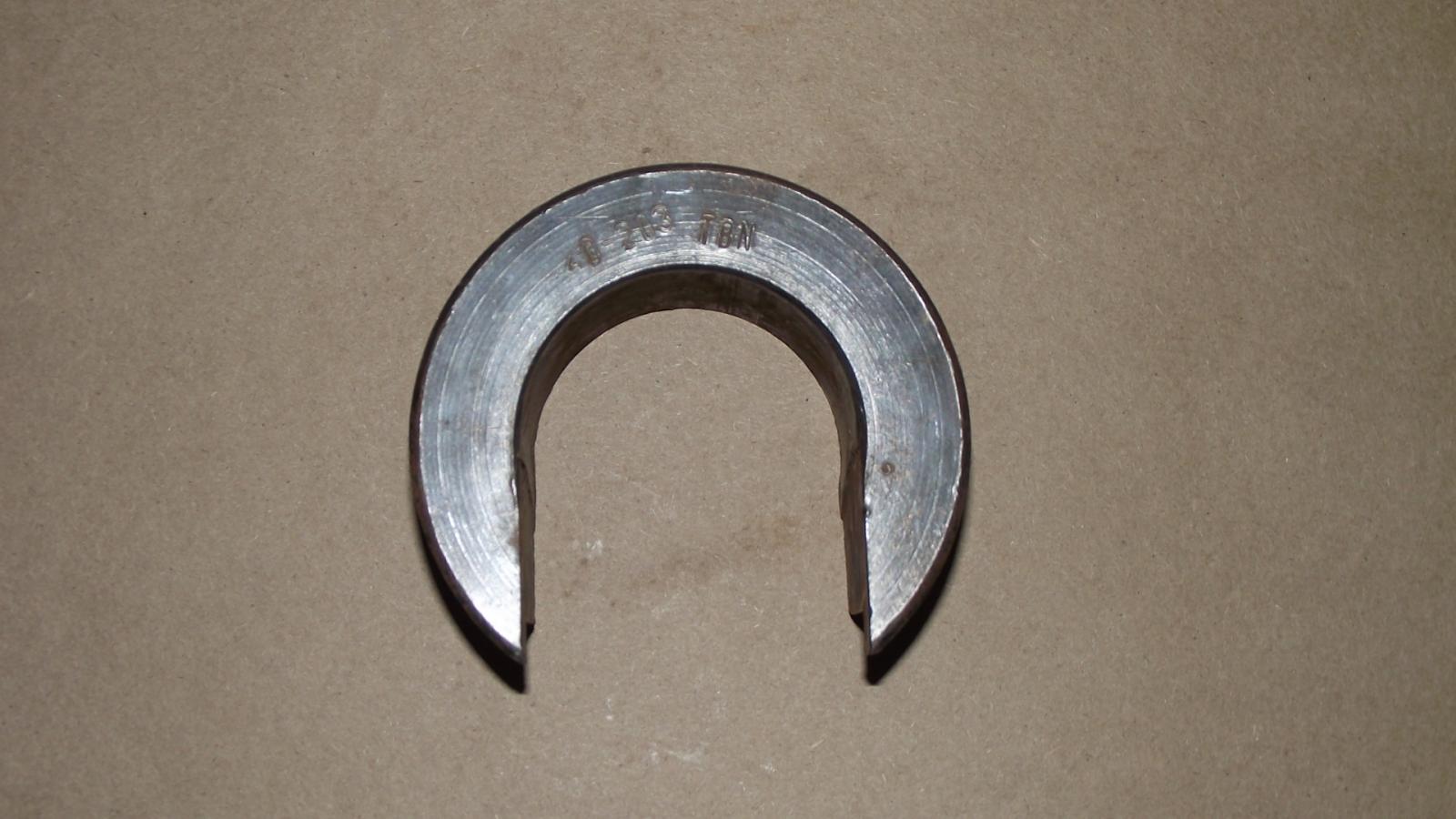

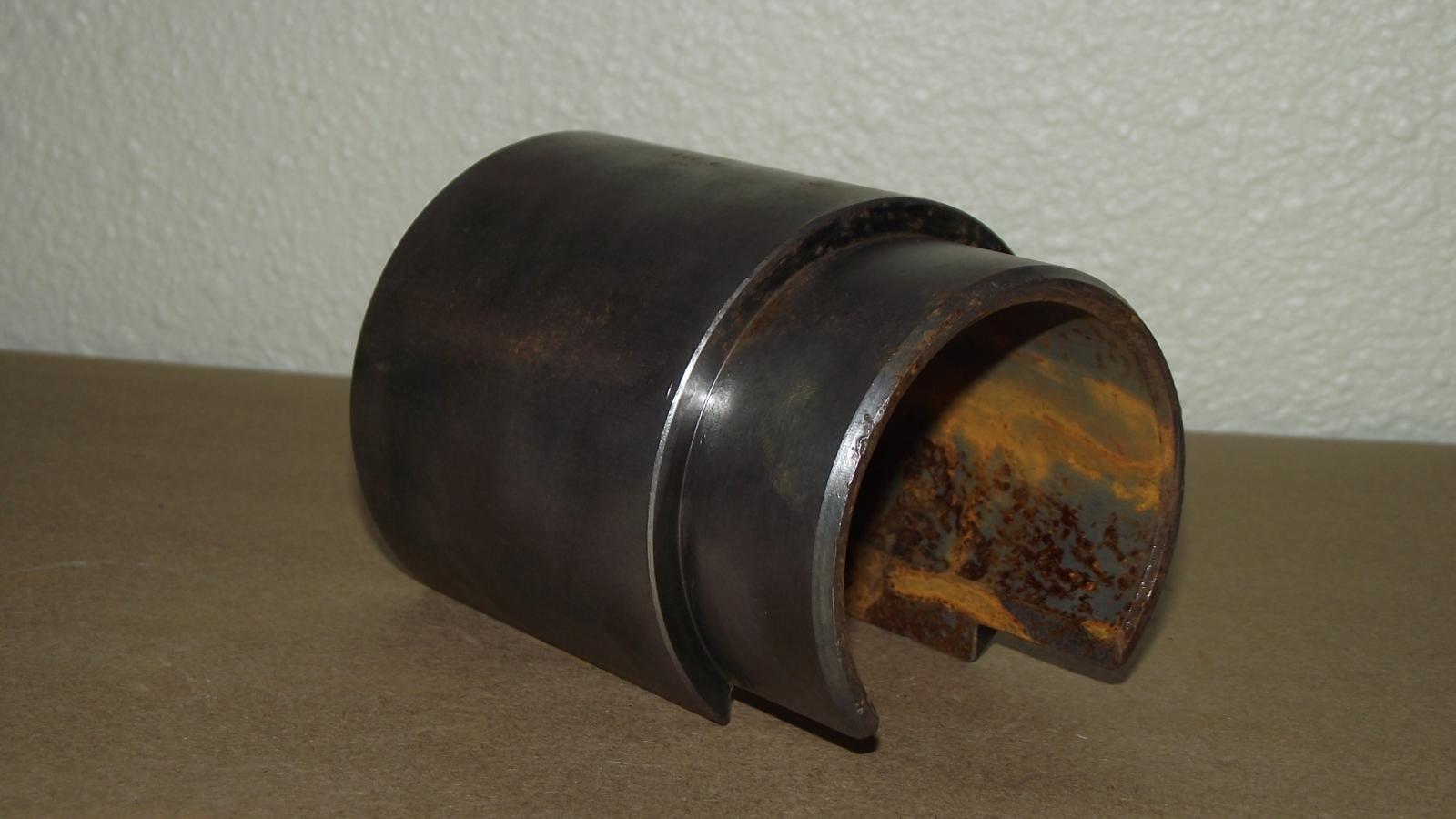

40-203Split Tube
40-204Tensioner
For pressing on the inner constant velocity joint of the drive shaft (Dasher)

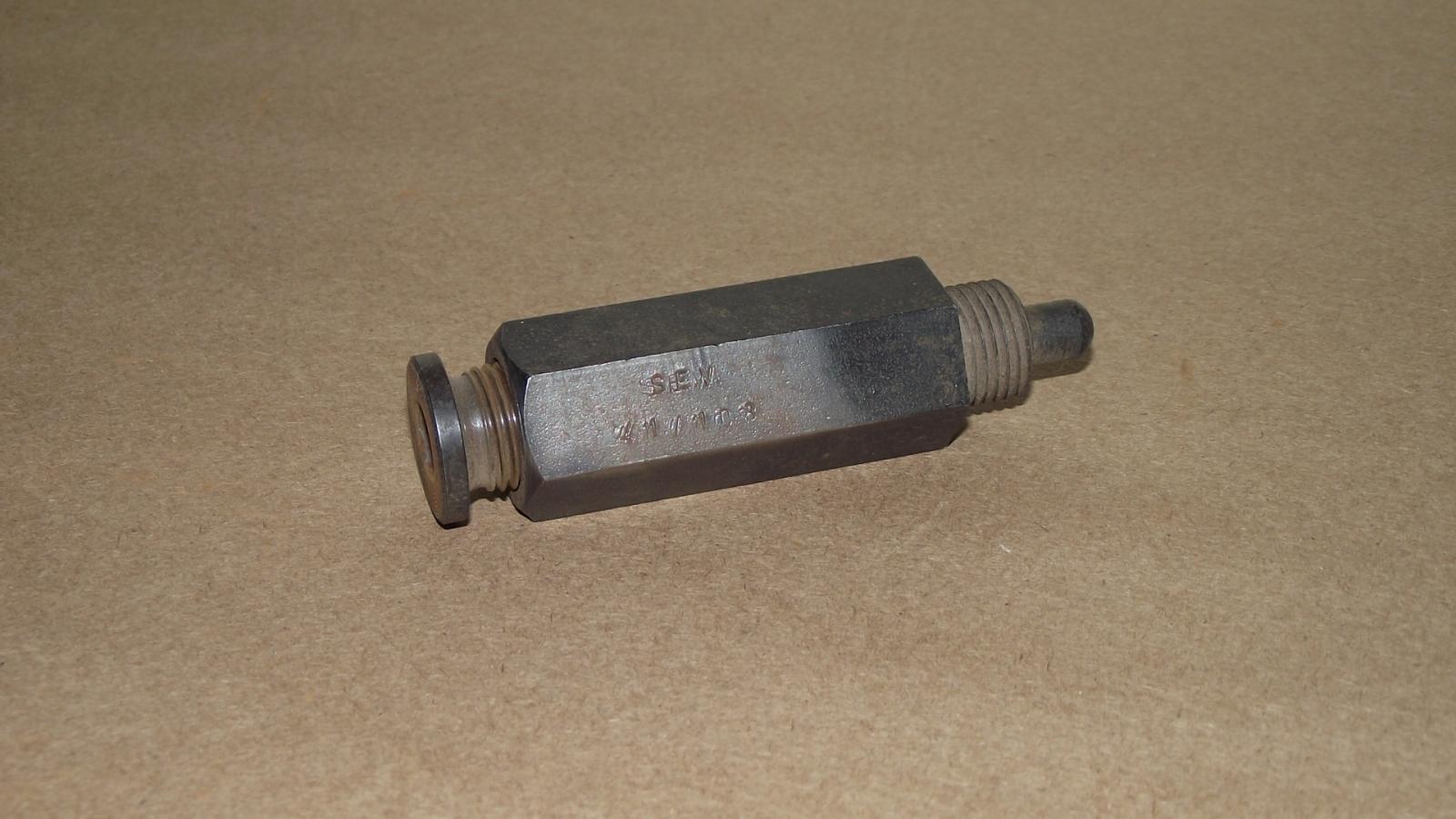

41-108Unknown

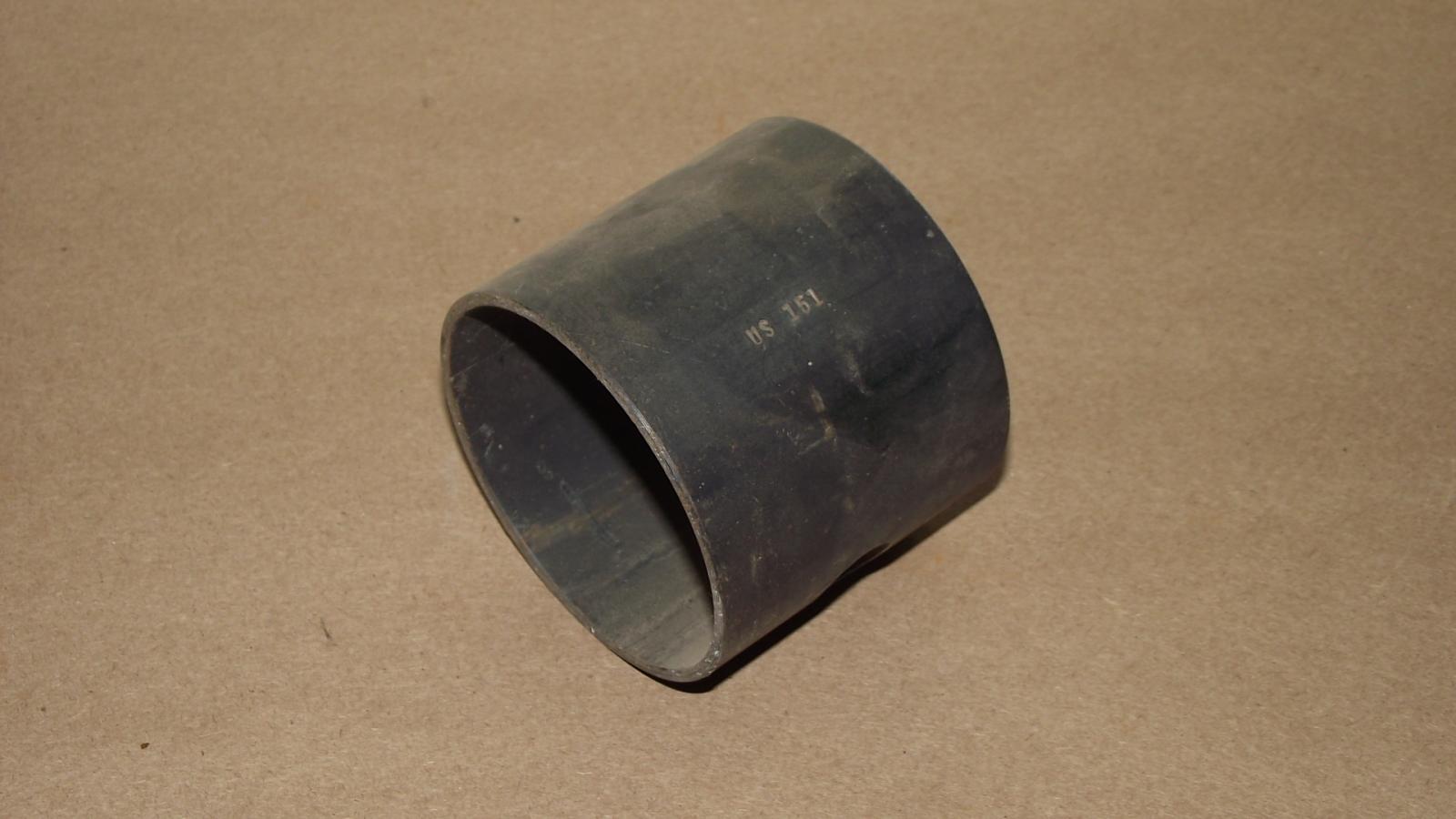

US 151Unknown
Manufactured by Zelenda
US 415A-1Unknown
Manufactured by Zelenda

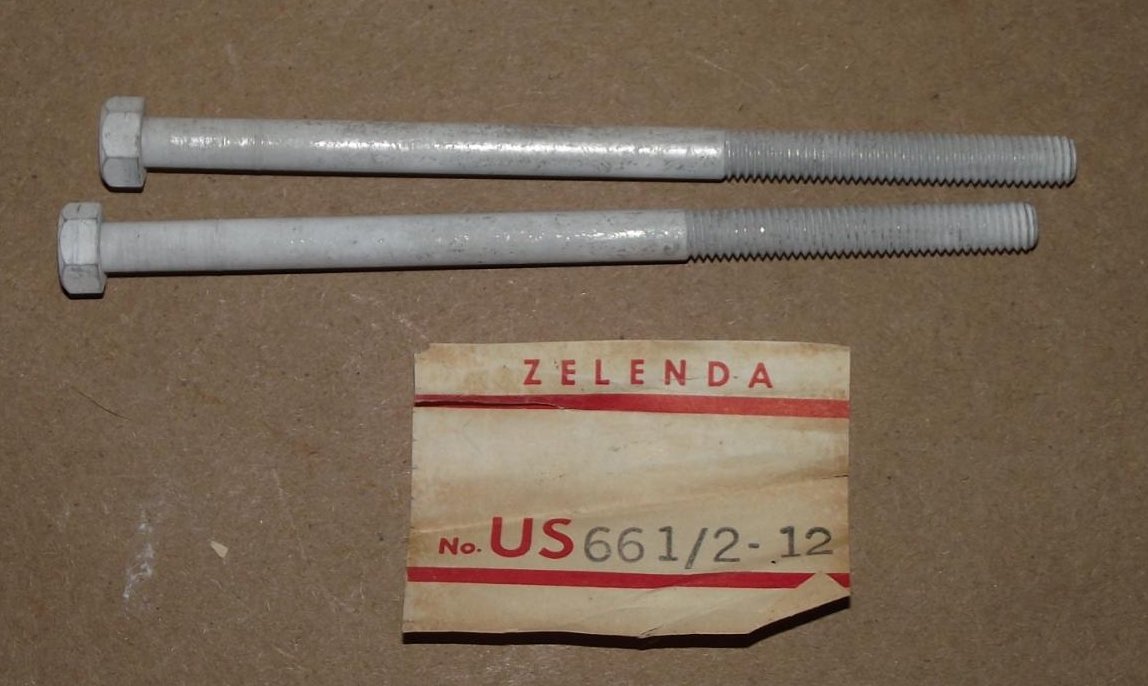

US 661/2-12Unknown
Manufactured by Zelenda

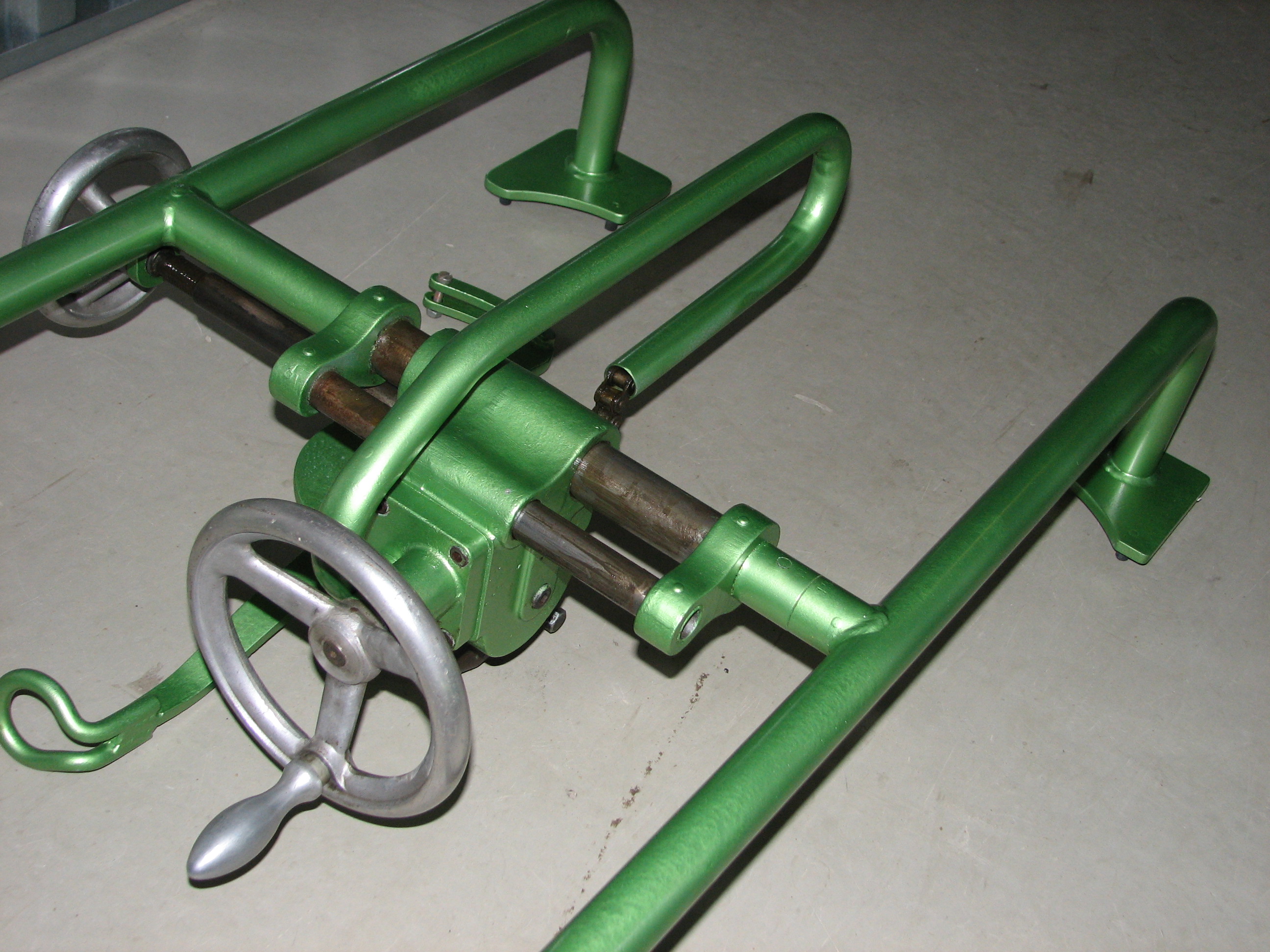

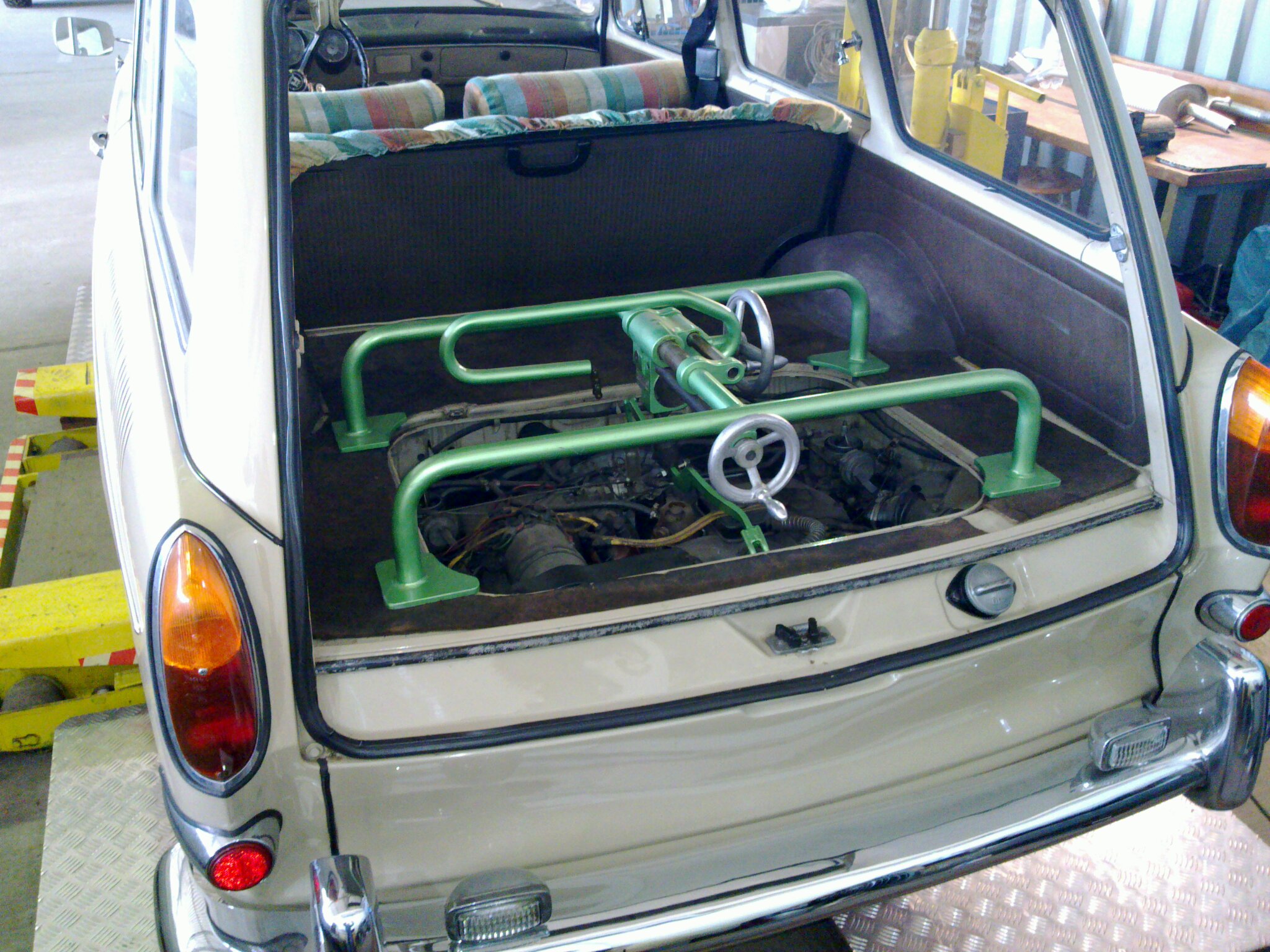

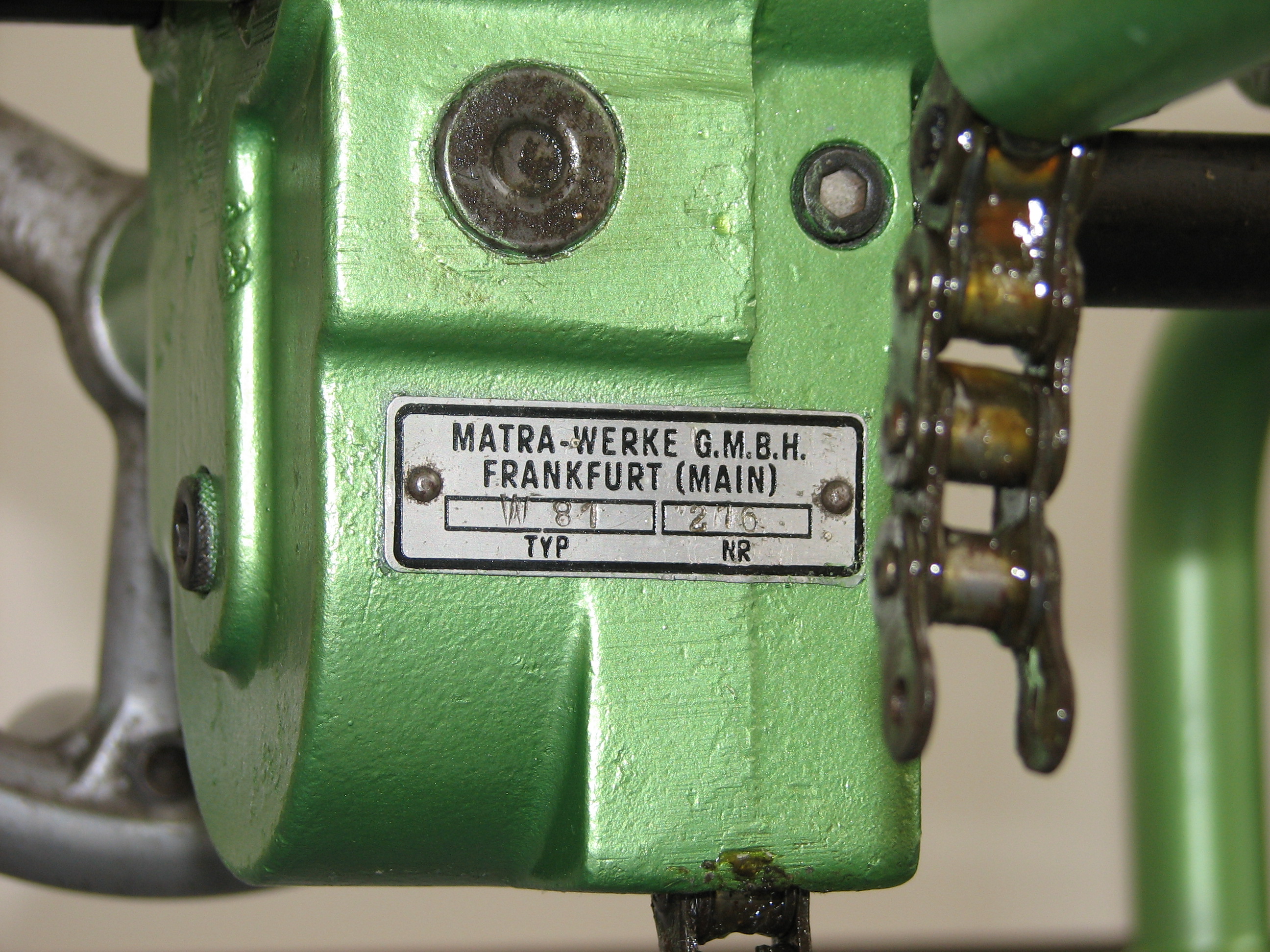

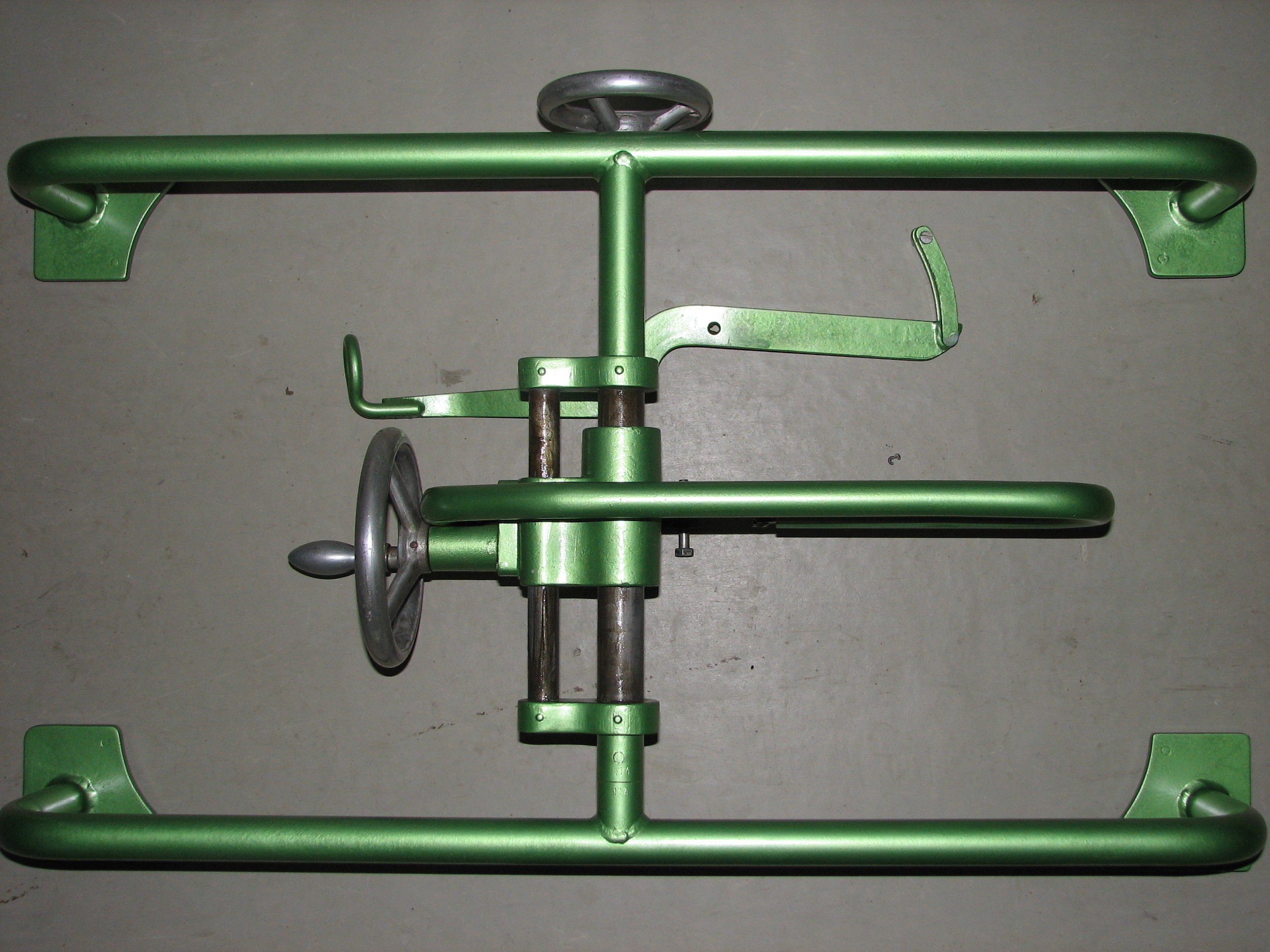

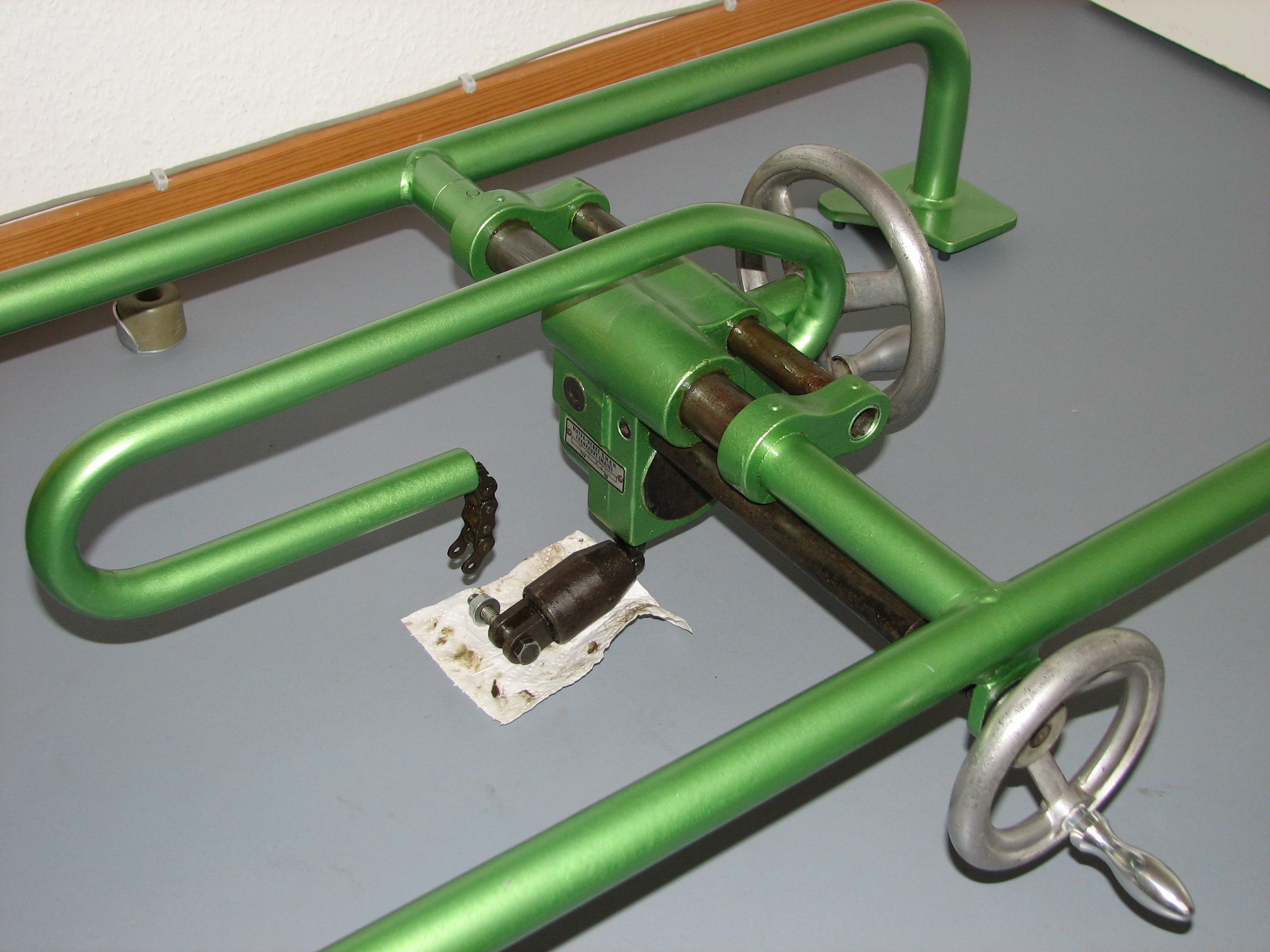

W81Engine lift
Motorheber mit Kettenzug und Getriebe um einem Motor auszubauen
Develop motor lifter with chain and gear to a motor
Manufacturer by Matra

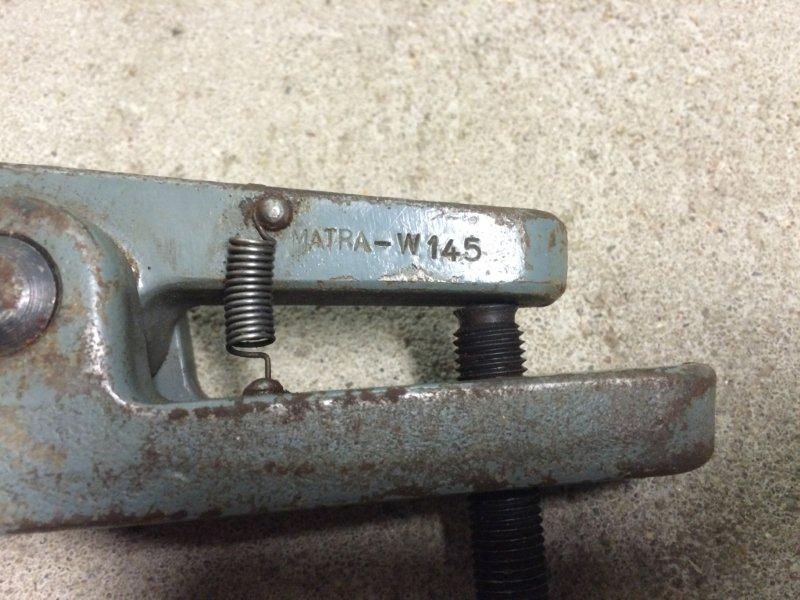

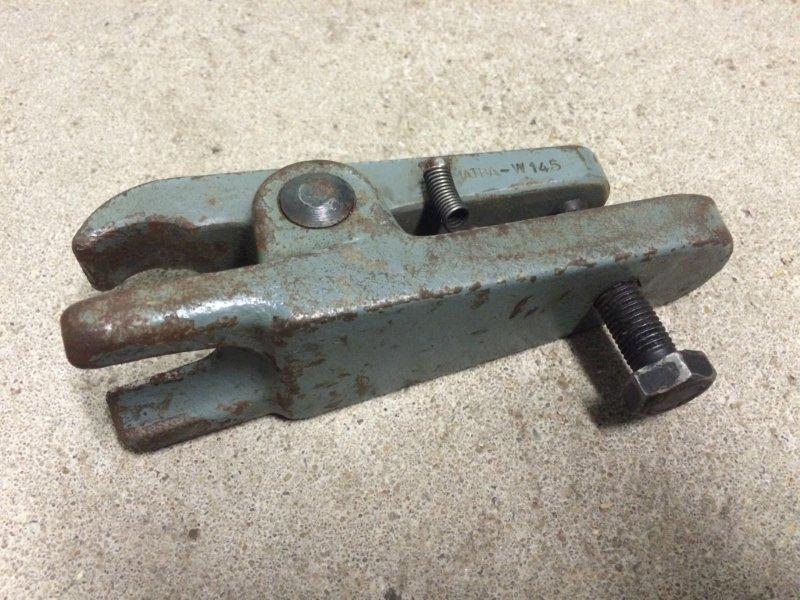

W145Separator

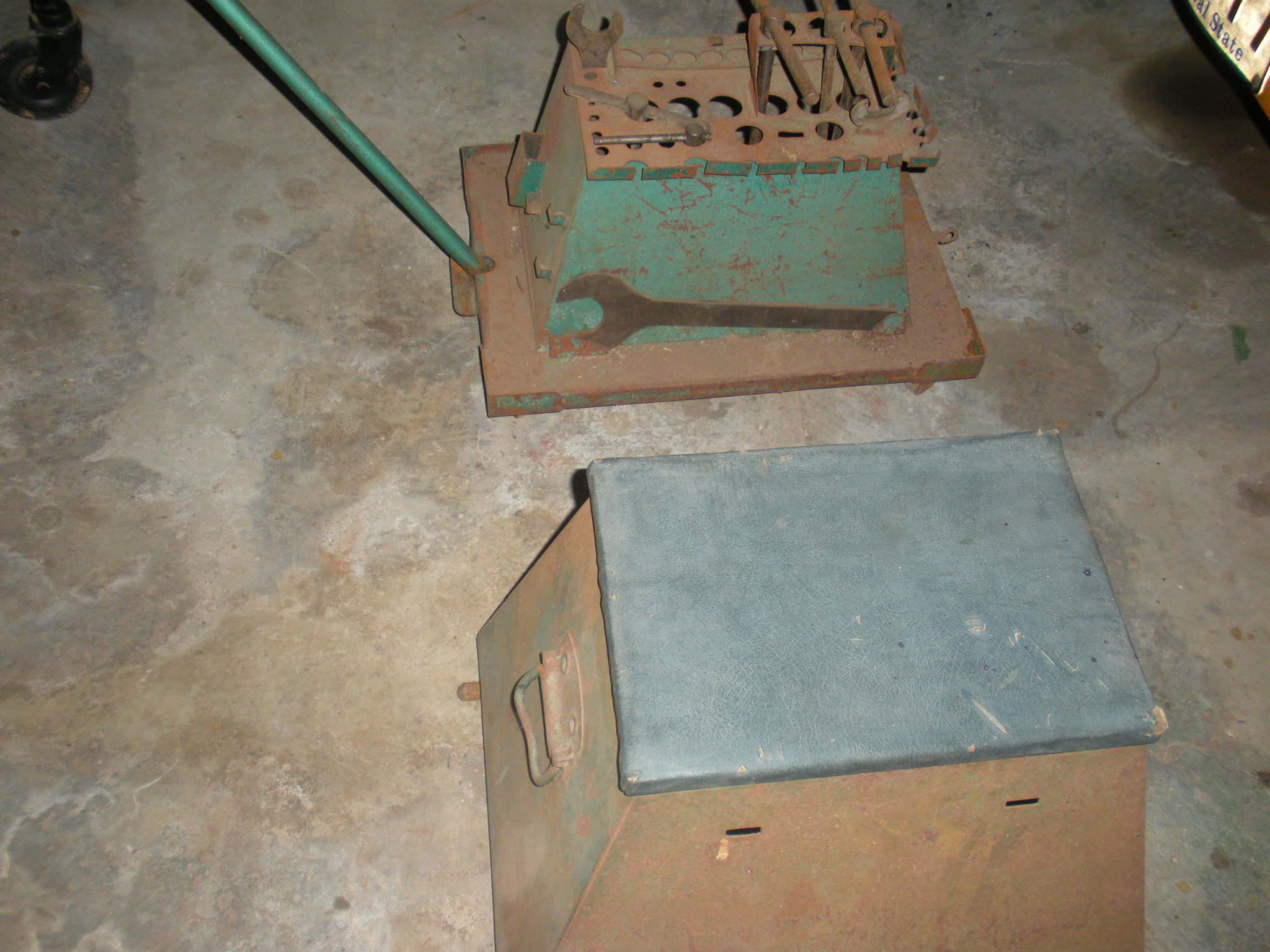

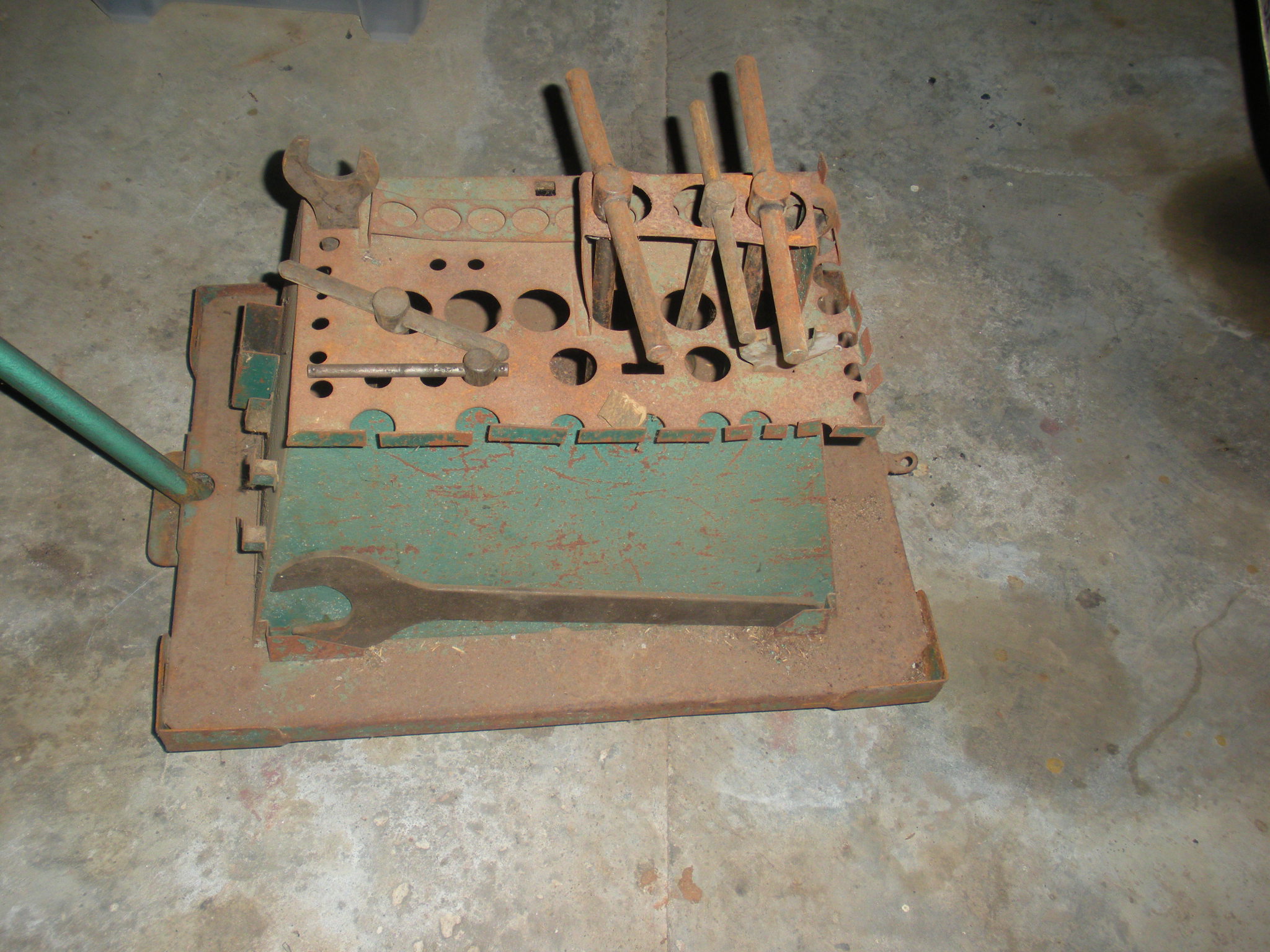

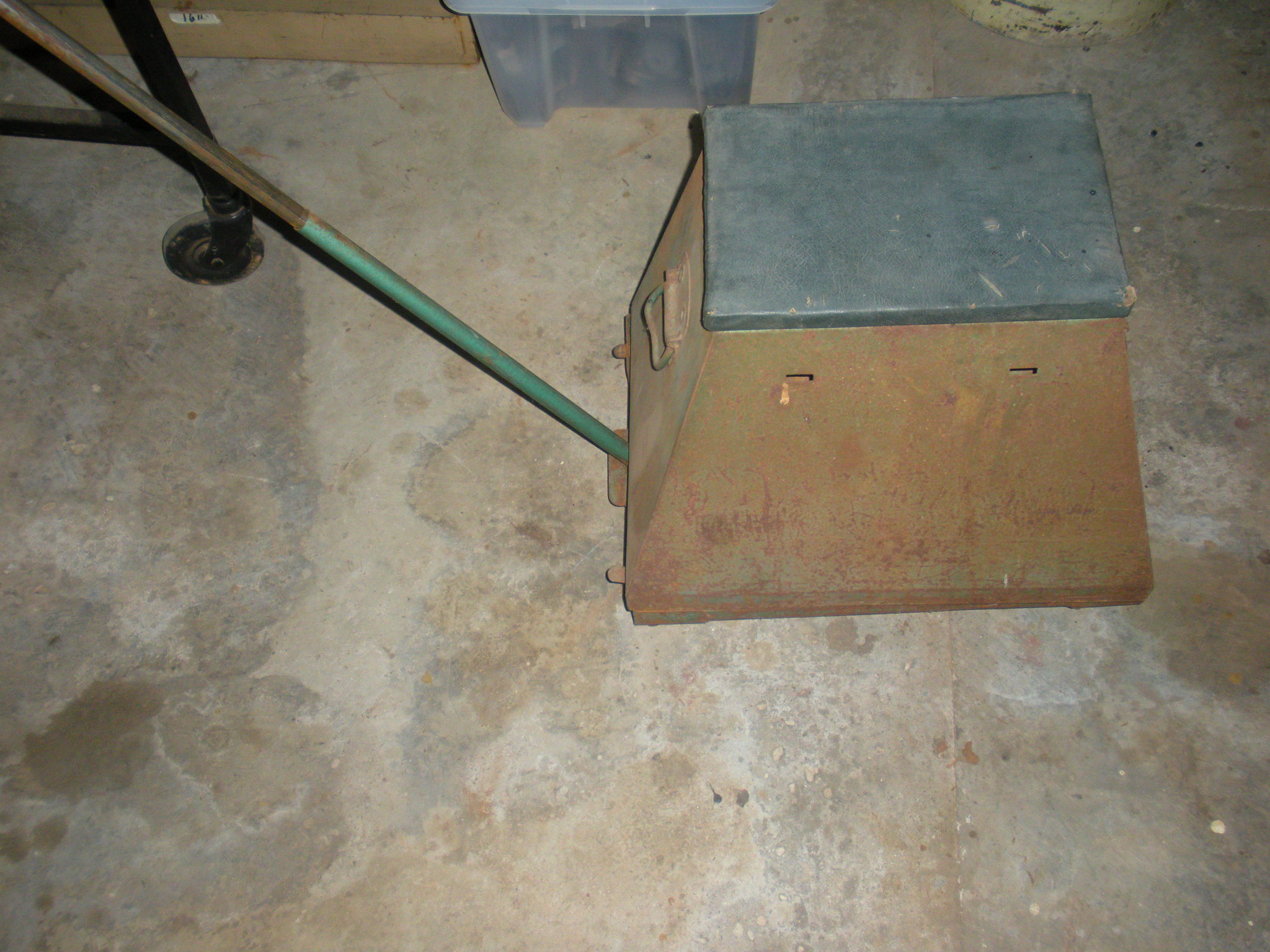

...Tool Trolley

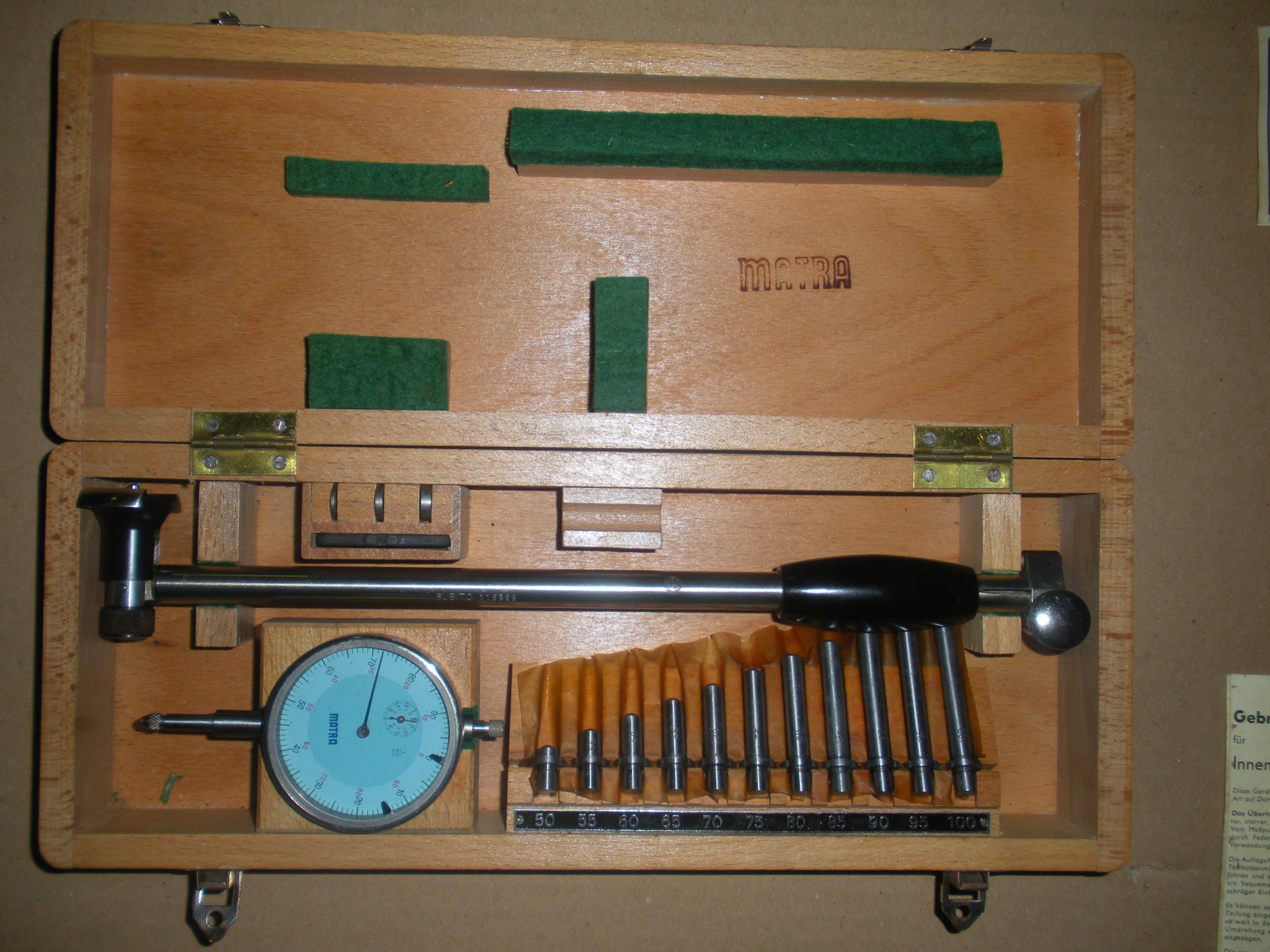

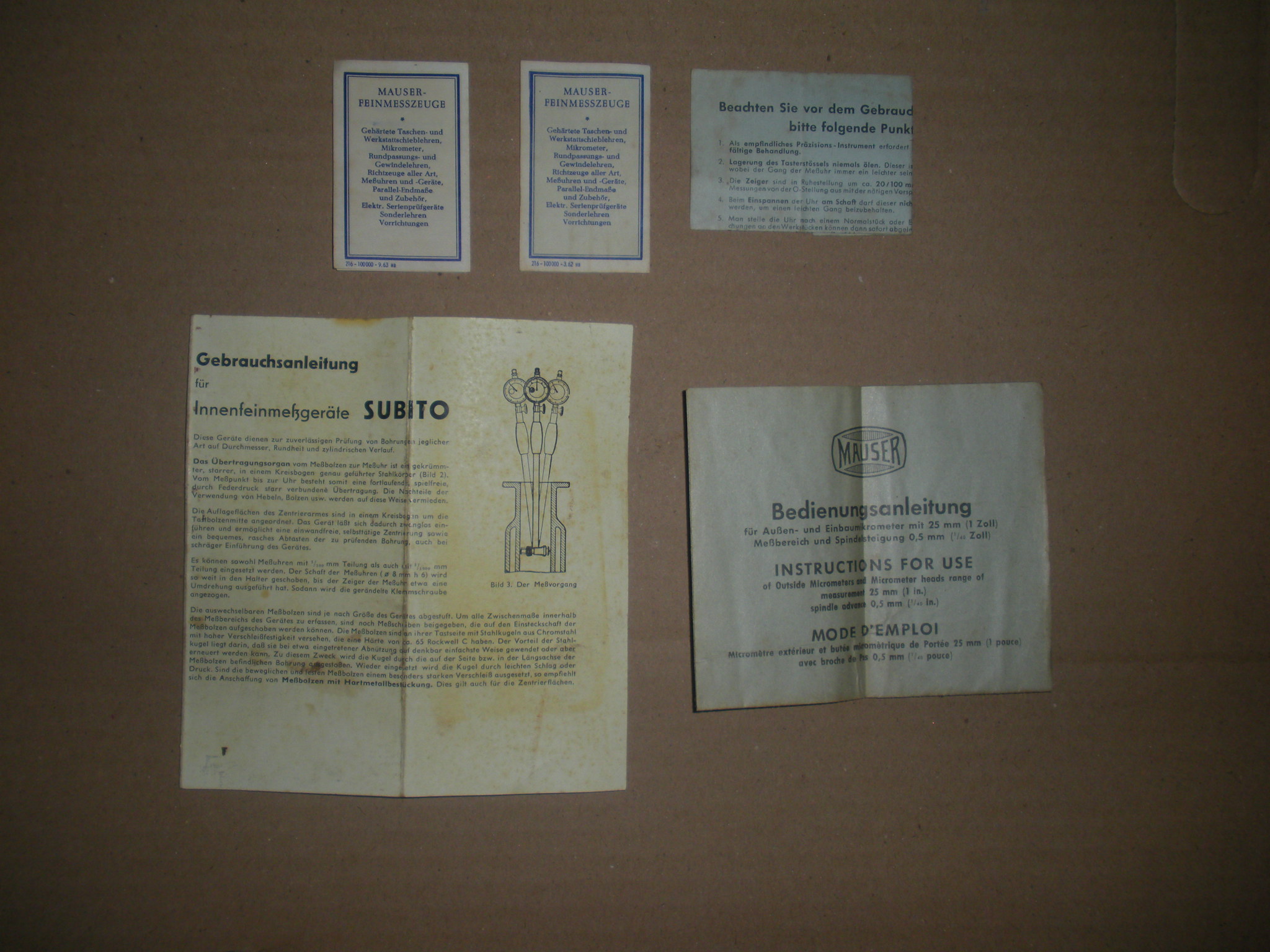

...Bore Gauge Set
Matra with VW markings
UnknownFuel pump base removal tool
