| Number |
Designation and Application |
Tool Photo |

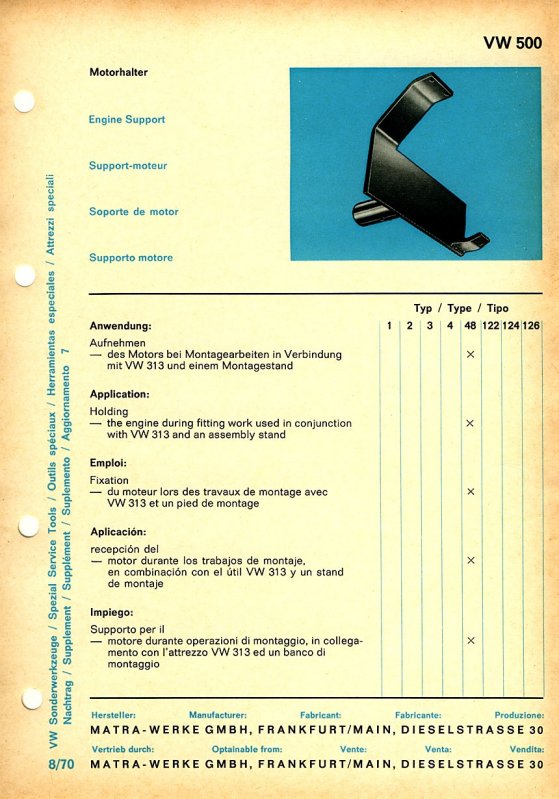

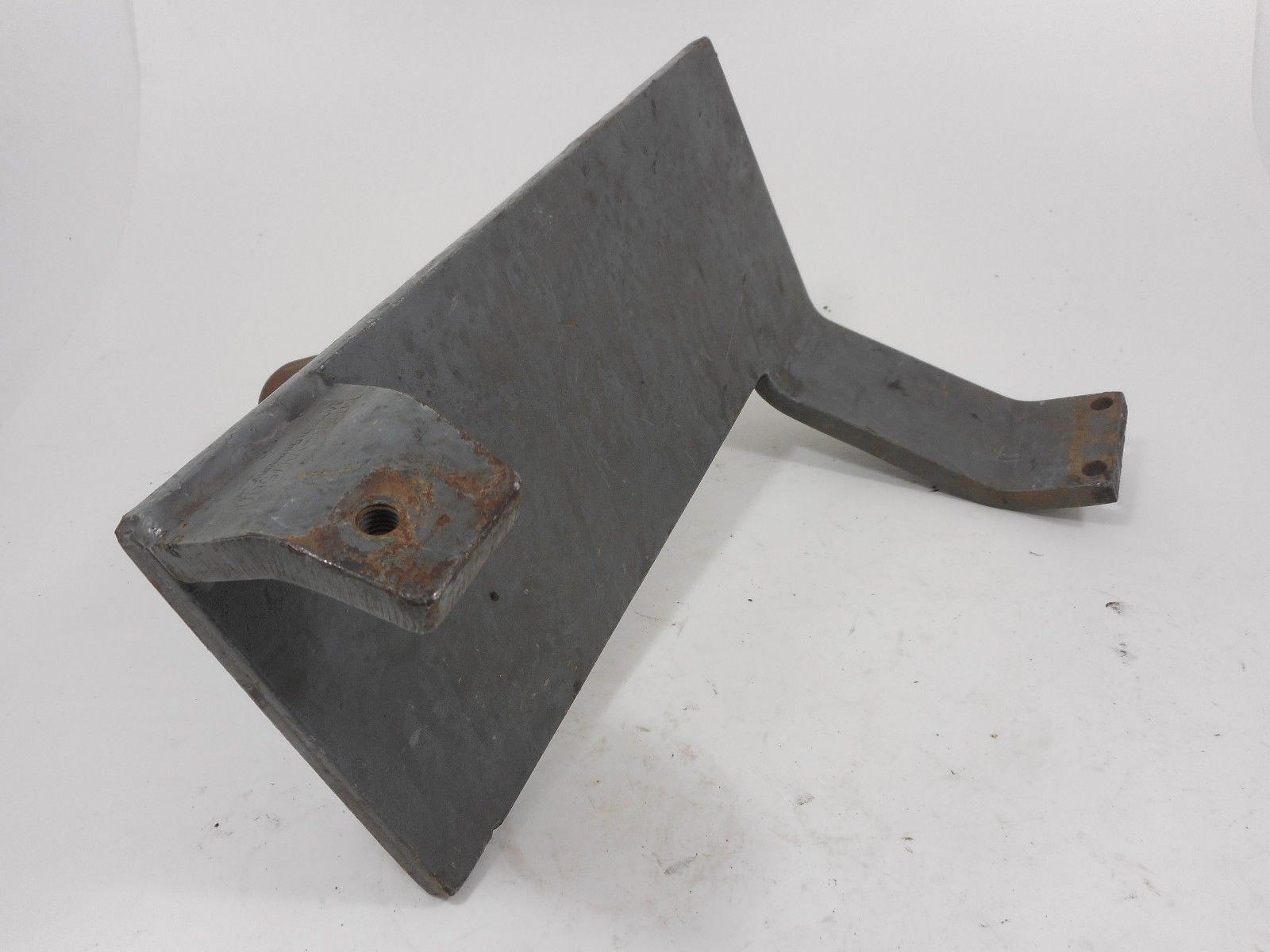

| 500 | Engine Support
For holding the engine during fitting work, used in
conjunction with VW 313 and an assembly stand |
 |

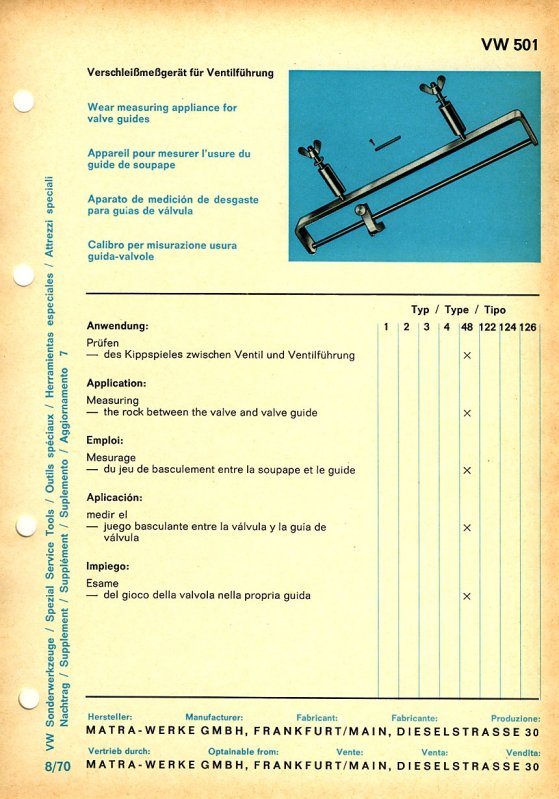

| 501 | Wear Measurer
Appliance for Valve Guides
For measuring the rock between the valve and the
valve guide |
 |

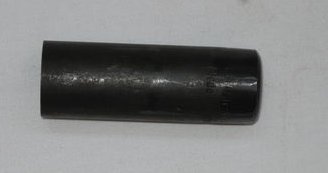

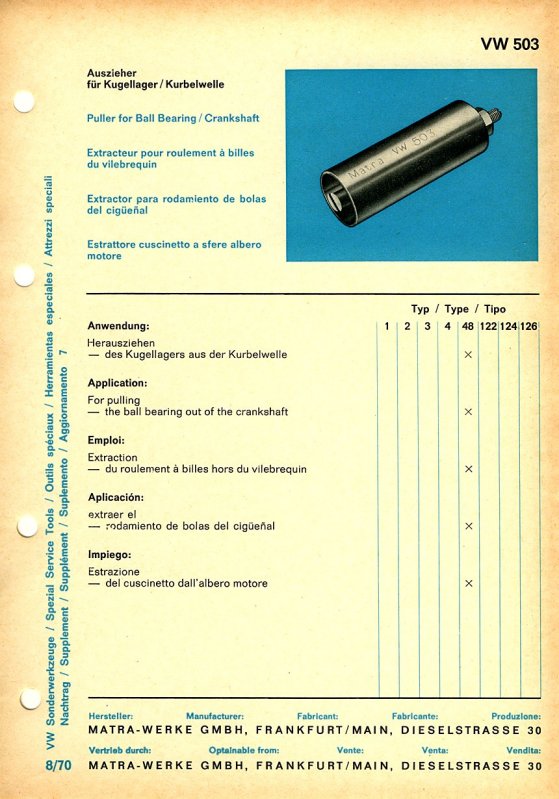

| 503 | Puller for Ball
Bearing
For pulling the ball bearing out of the crankshaft |
 |

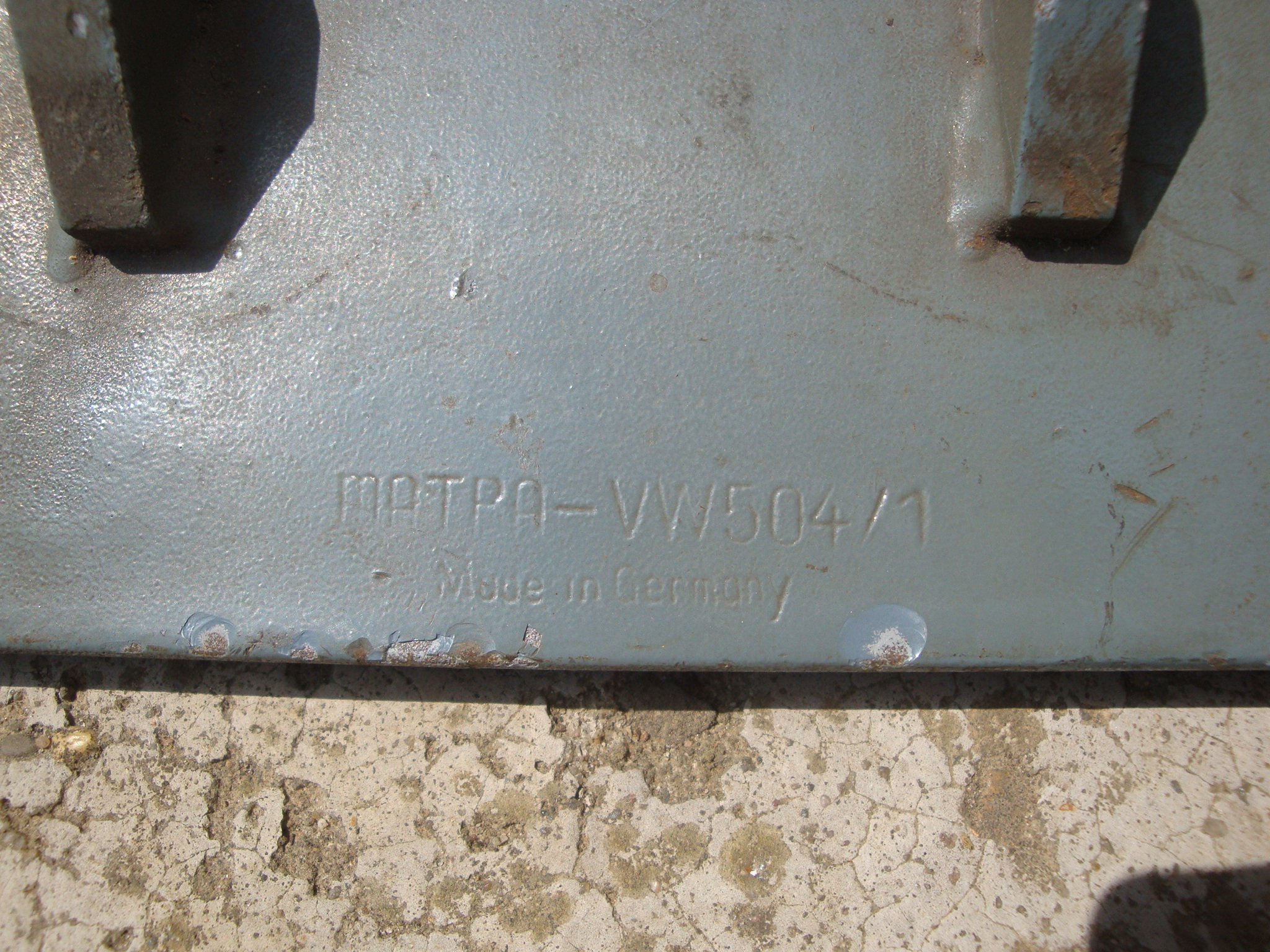

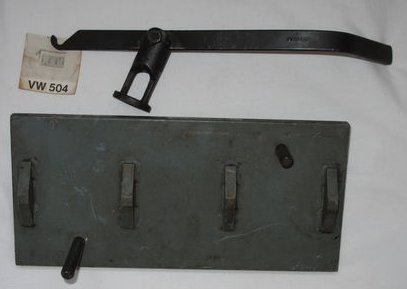

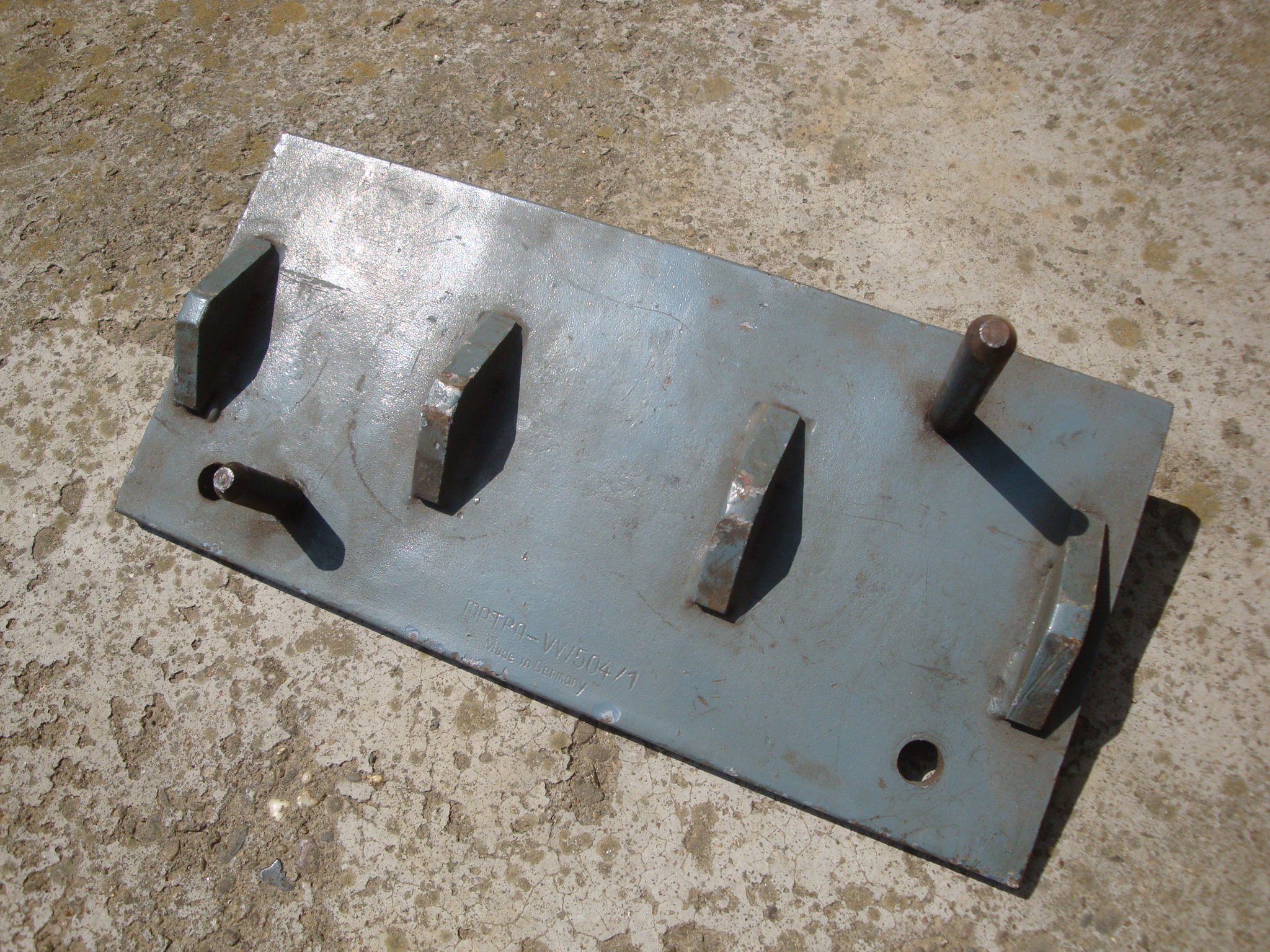

| 504 | Valve Assembly
Appliance (2 parts)
For inserting the cylinder head when using the valve
spring compressor to remove or install the valves |
  |

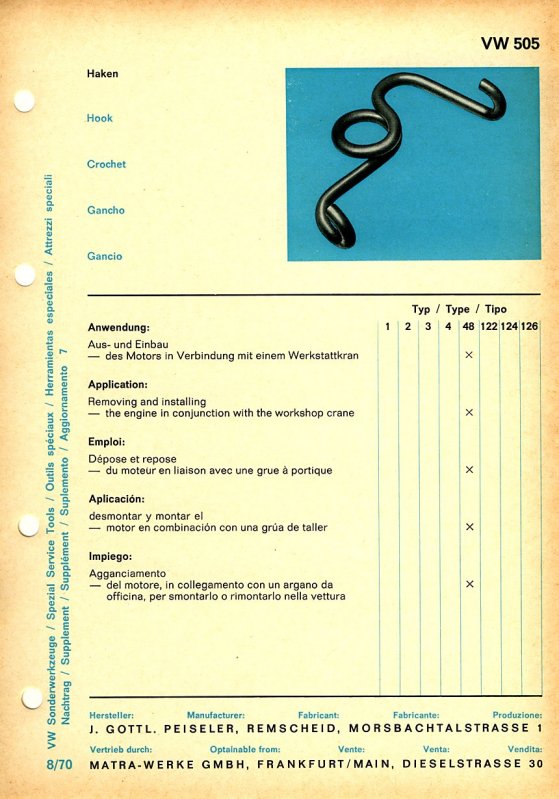

| 505 | Hook
For removing and installing the engine in conjunction
with the workshop crane |
 |

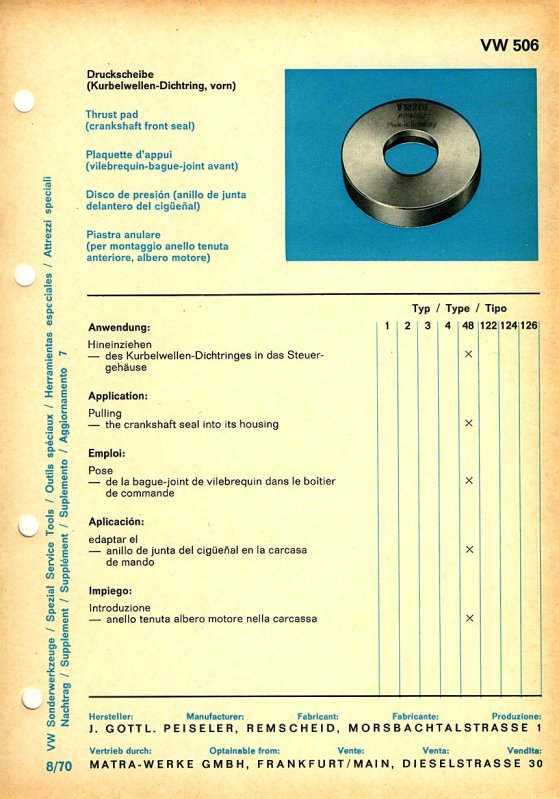

| 506 | Thrust Pad
(Crankshaft front seal)
For pulling the crankshaft seal into its housing |
 |

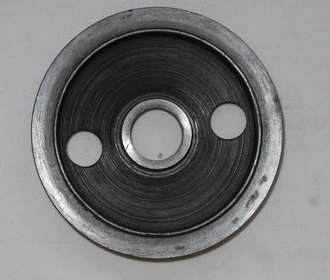

| 507 | Thrust Pad
(Crankshaft rear seal)
For pushing the crankshaft seal into the clutch
housing in conjunction with VW 295 |
 |

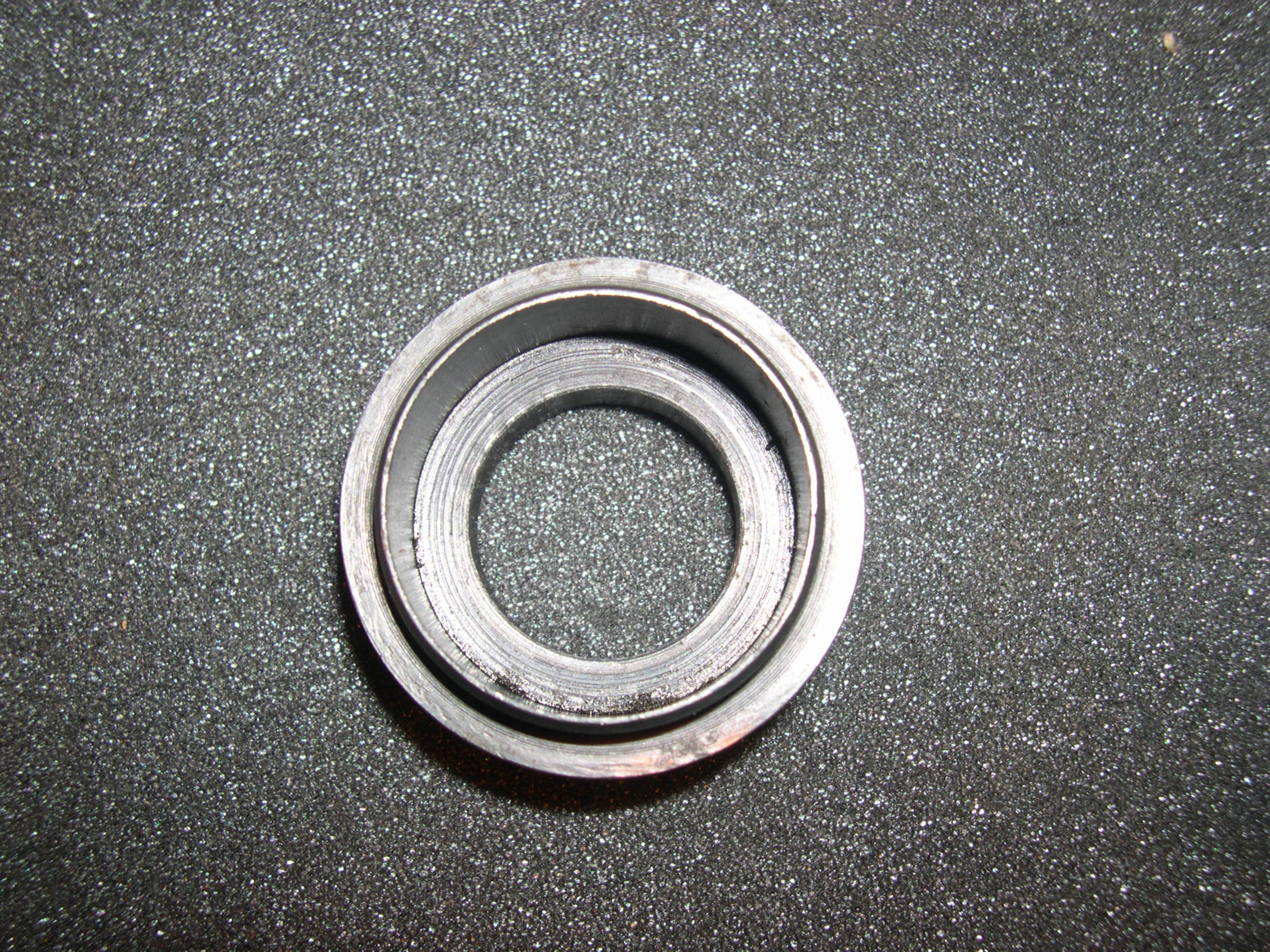

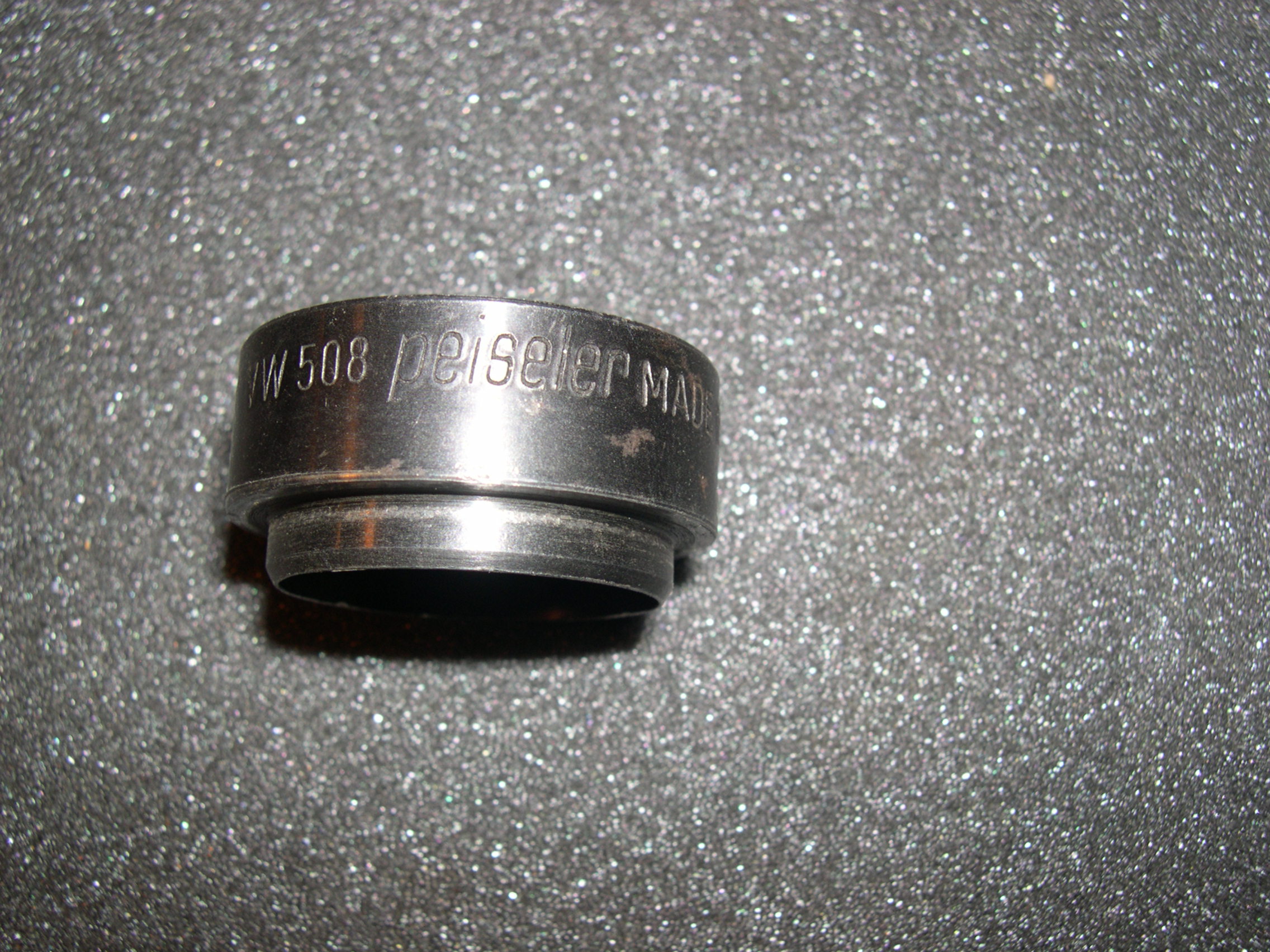

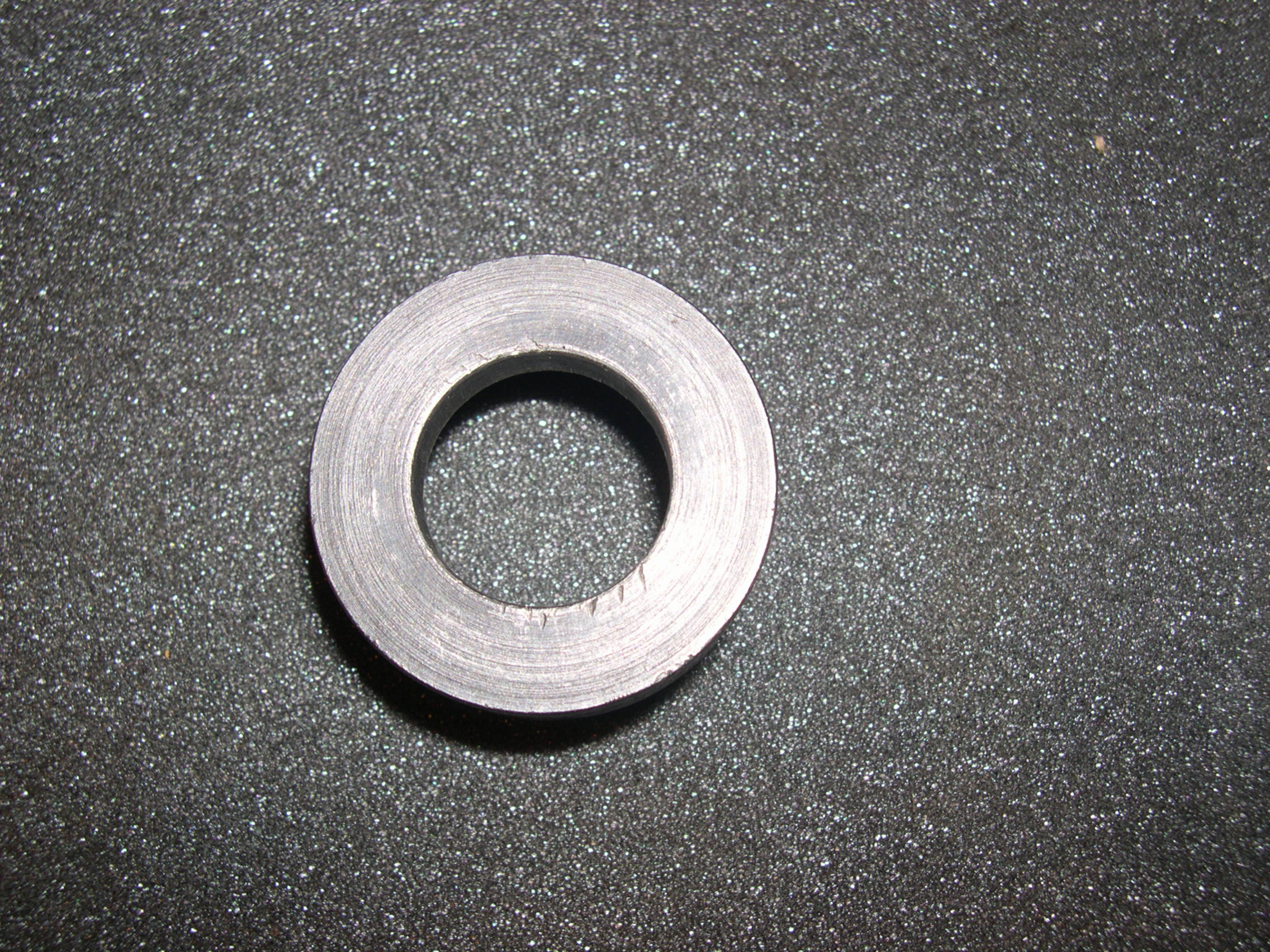

| 508 | Mandrel (Oil
seal/Drive shaft)
For inserting the oil seal of the drive shaft in
conjunction with VW 295 |
 |

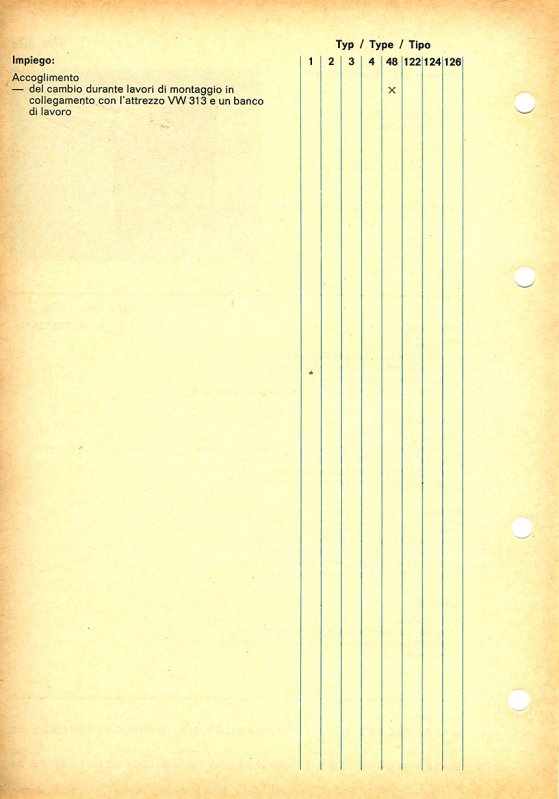

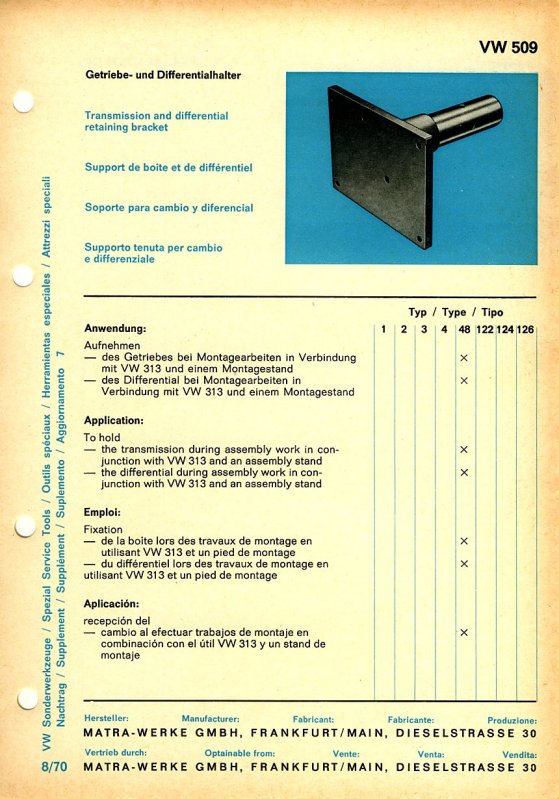

| 509 | Transmission and
Differential Retaining Bracket
To hold
- the transmission during assembly work in conjunction with VW 313 and an
assembly stand,
- the differential during assembly work in conjunction with VW 313 and an
assembly stand |
  |

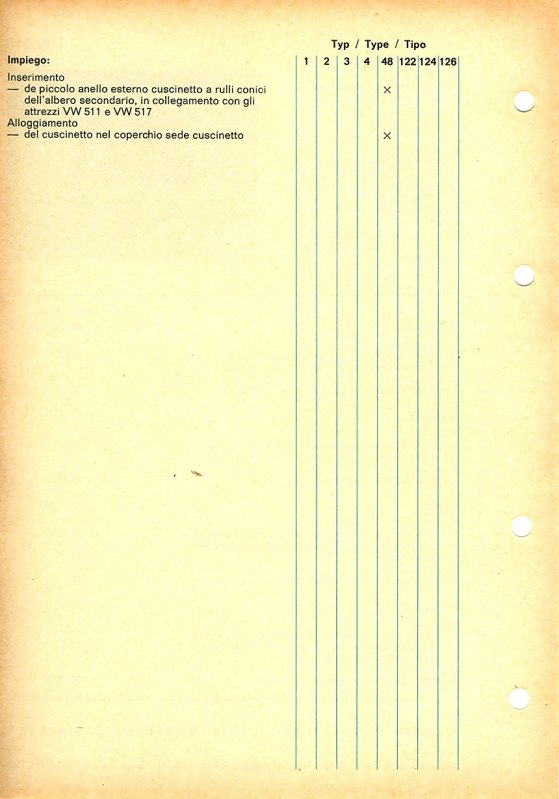

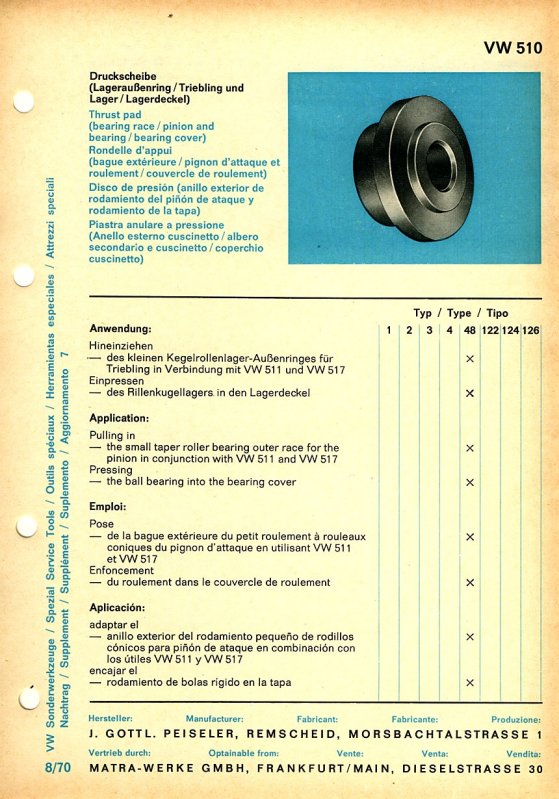

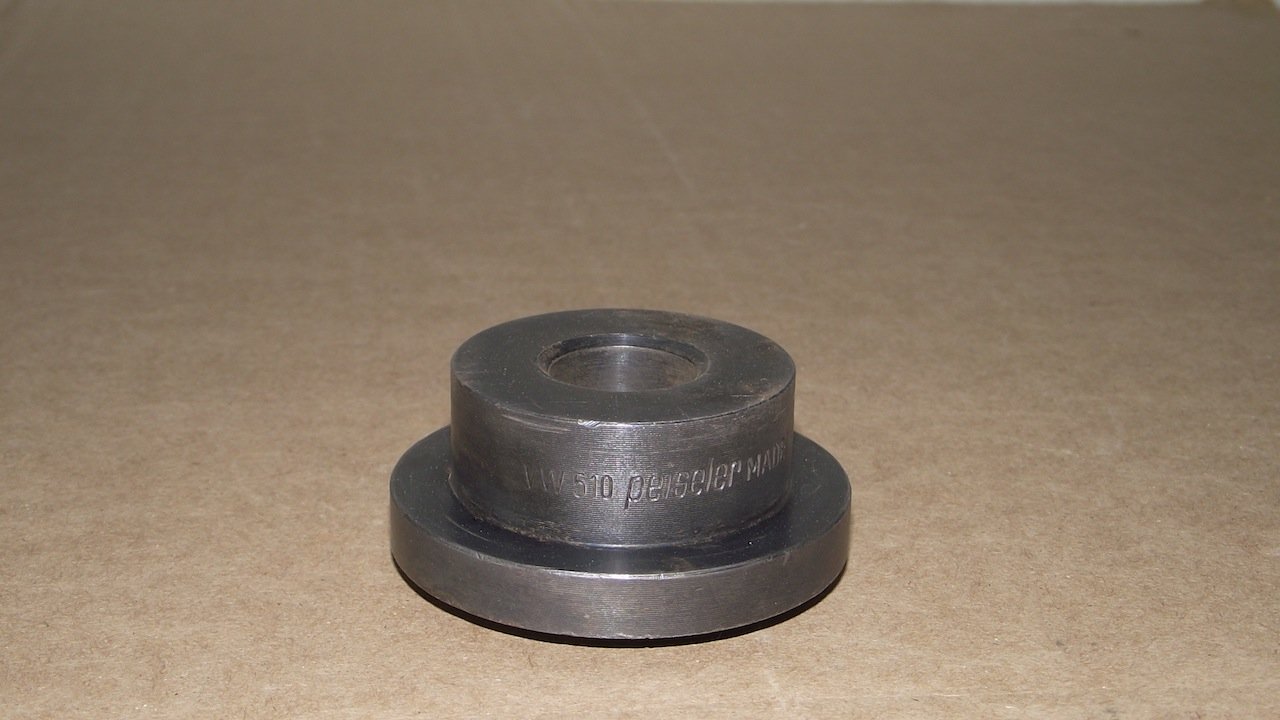

| 510 | Thrust Pad
(Bearing race/pinion and bearing/bearing cover)
For pulling in the small taper roller bearing outer
race for the pinion in conjunction with VW 511 and VW 517
For pressing the ball bearing into the bearing cover |
  |

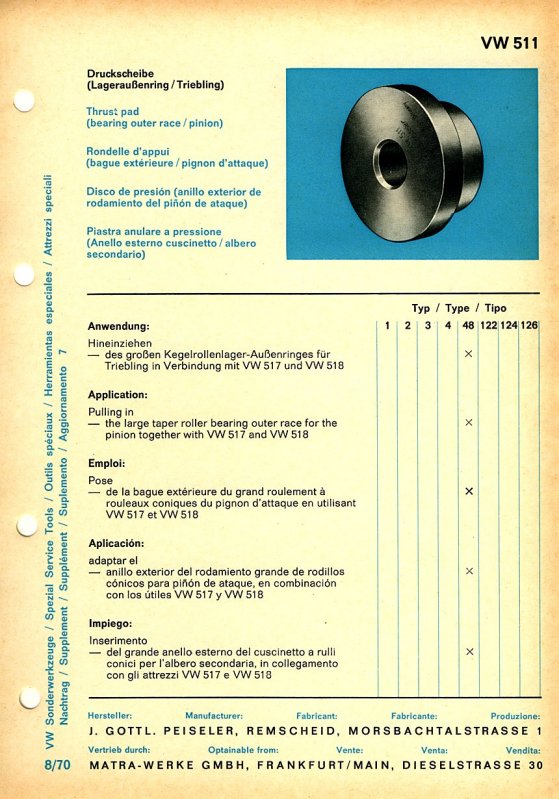

| 511 | Thrust Pad
(Bearing outer race/pinion)
For pulling in the large taper roller bearing outer
race for the pinion together with VW 517 and VW 518 |

 |
| 512 | Thrust Pad
(Seal/pinion)
For installing the pinion seal in conjunction with VW
295 |

 |

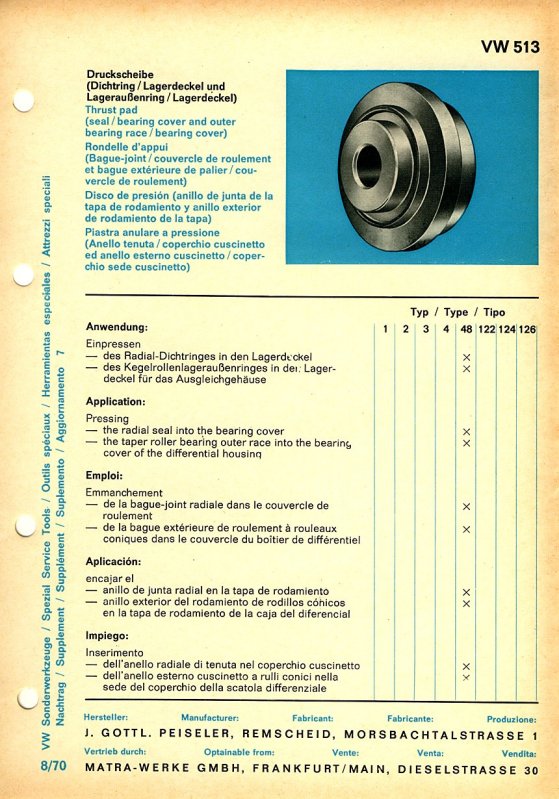

| 513 | Thrust Pad
(Seal/bearing cover and outer bearing race/bearing cover)
For pressing
- the radial seal into the bearing cover,
- the taper roller bearing outer race into the bearing cover of the
differential housing |
 |

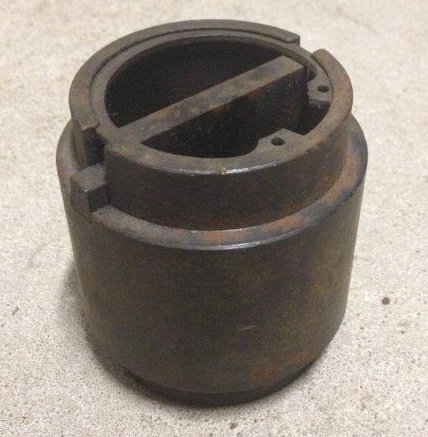

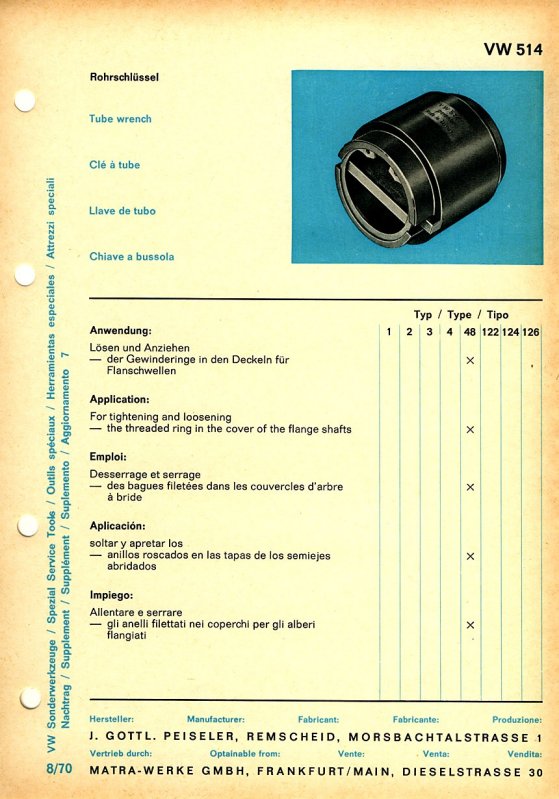

| 514 | Tube Wrench
For tightening and loosening the threaded ring in the
cover of the flange shafts |
 |

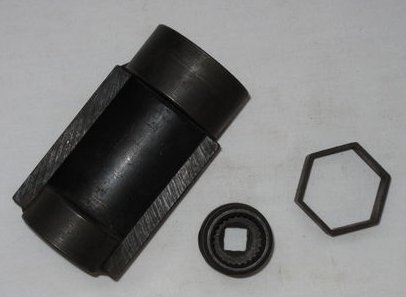

| 515 | Special Wrench
for Pinion and Flange Shaft Nuts (3 parts)
For loosening and tightening
- the nut on the pinion with SW 41
- the nut on the flange shaft with SW 46 |
 |

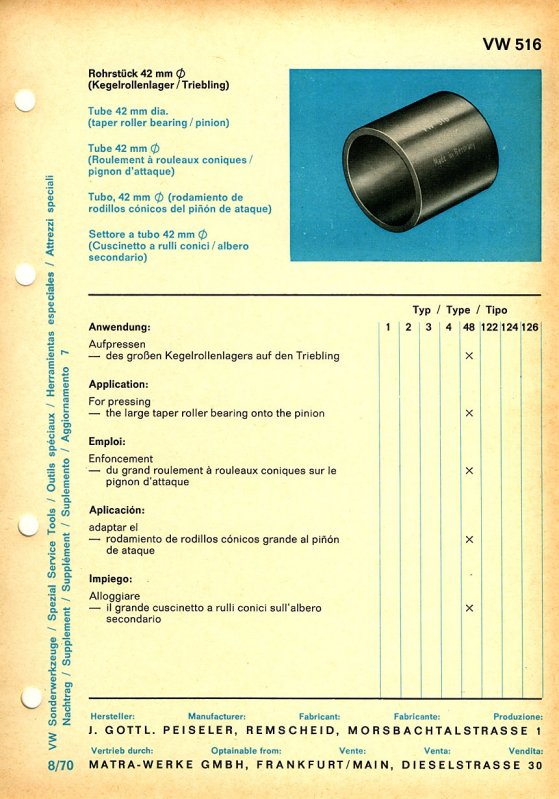

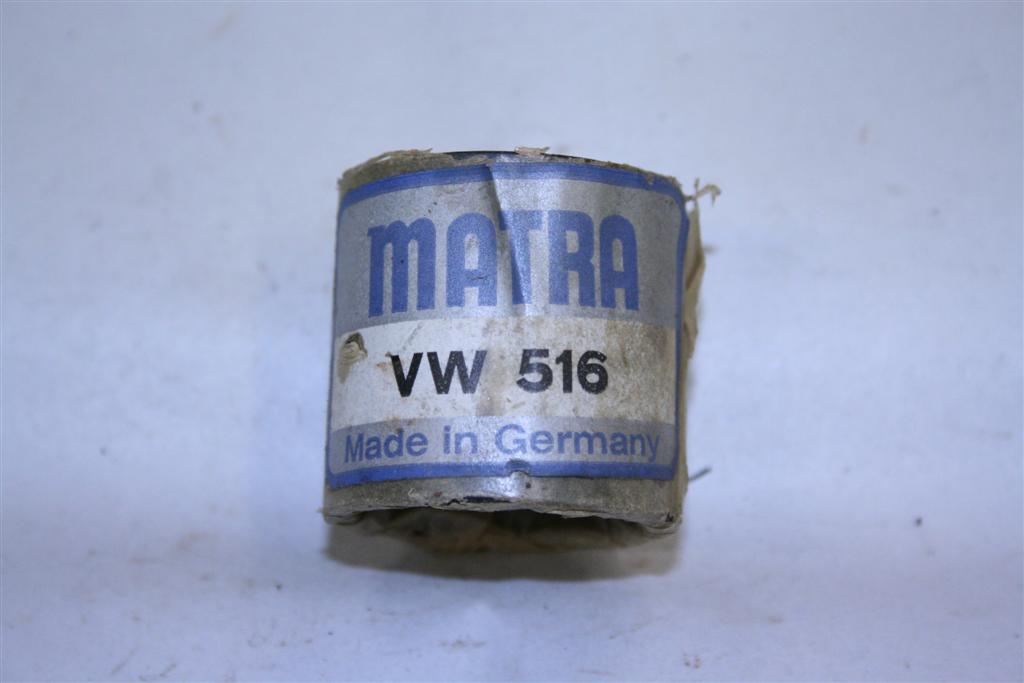

| 516 | Tube 42 mm dia.
(Taper roller bearing/pinion)
For pressing the large taper roller bearing onto the
pinion |

 |

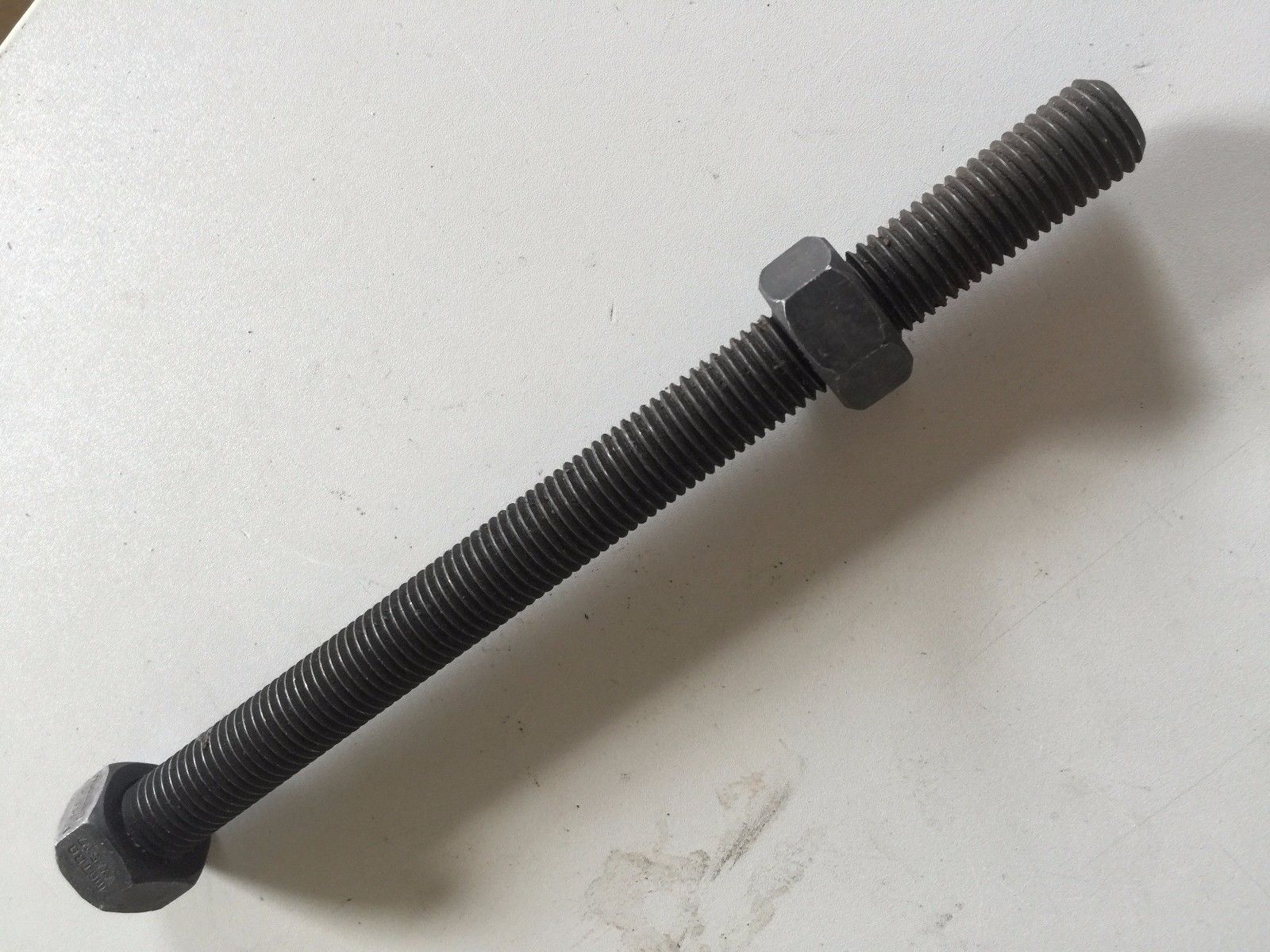

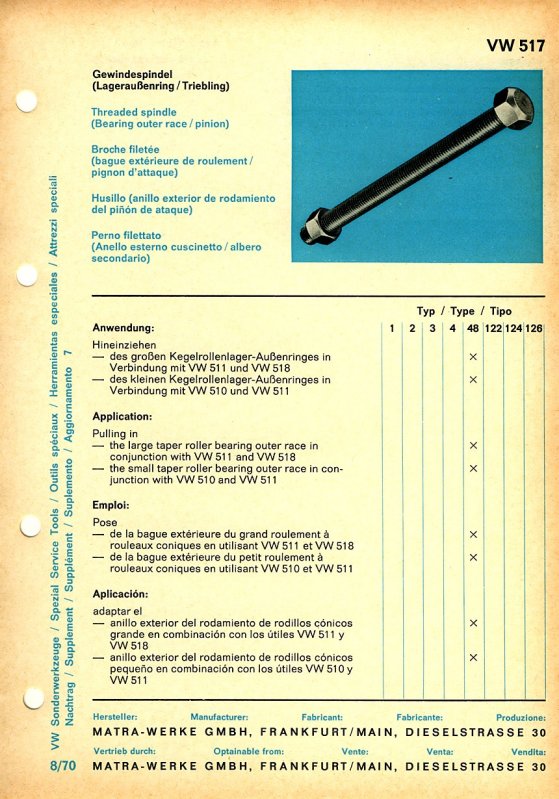

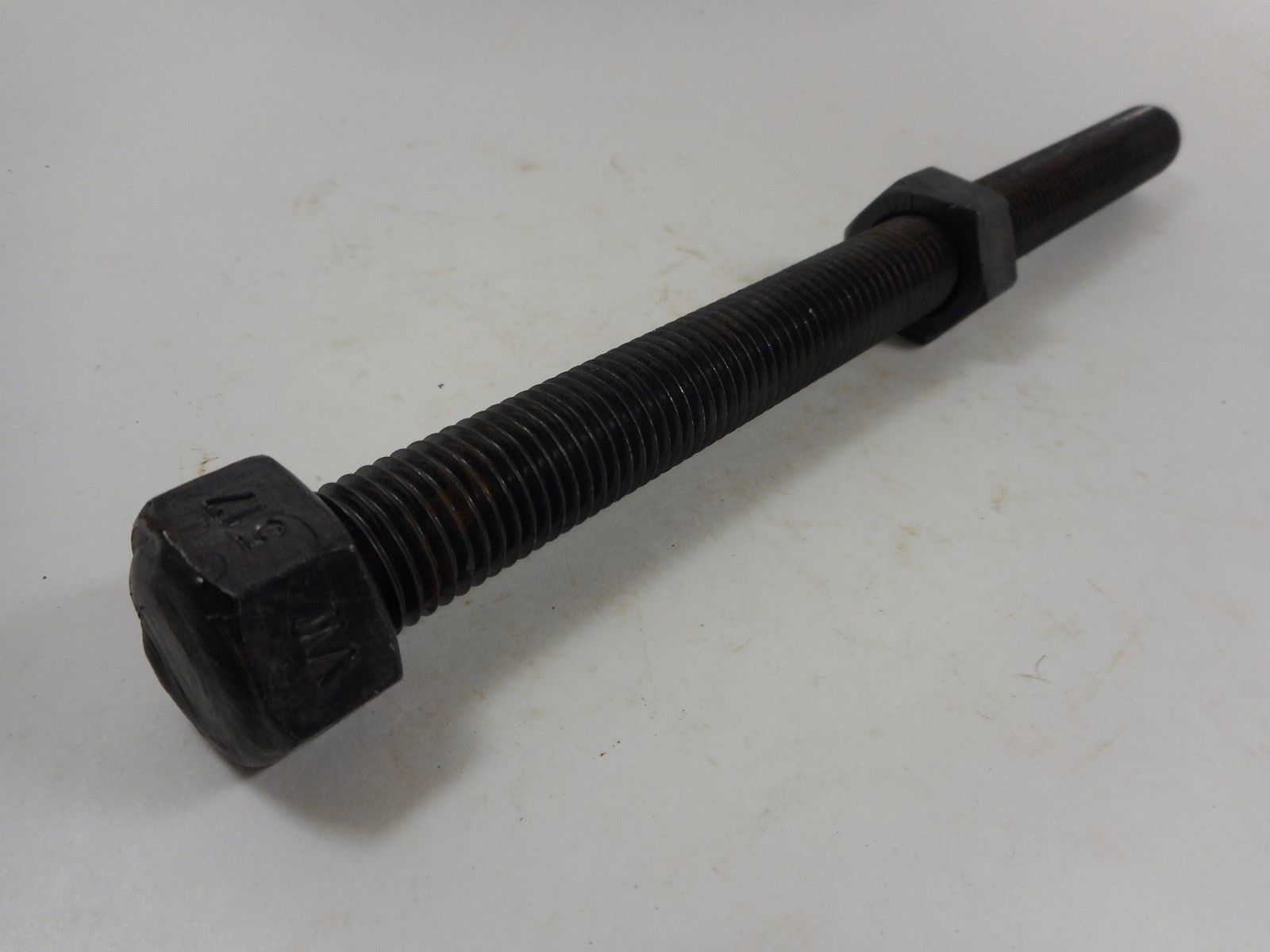

| 517 | Threaded Spindle
(Bearing outer race/pinion)
For pulling in
- the large taper roller bearing outer race in conjunction with VW 511 and
VW 518,
- the small taper roller bearing outer race in conjunction with VW 510 and
VW 511 |
  |

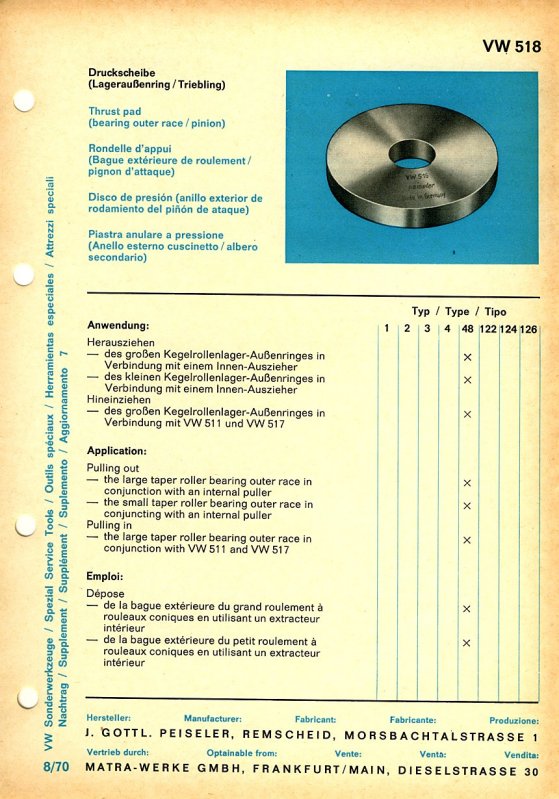

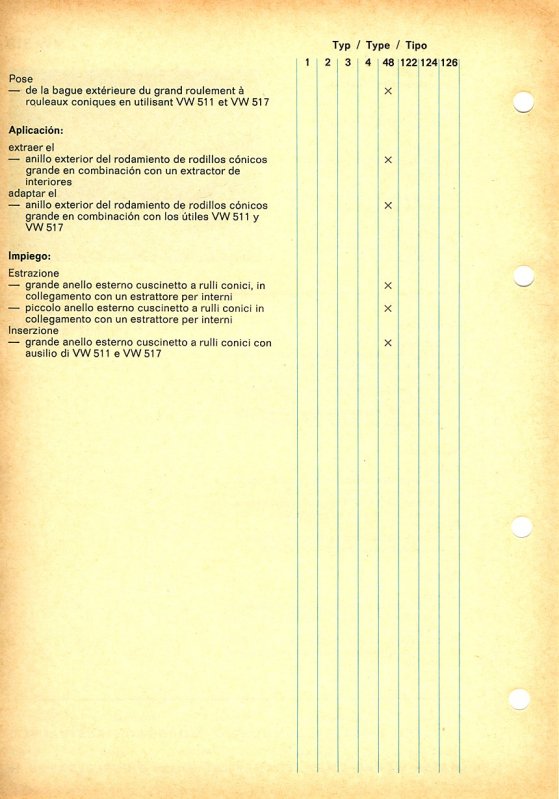

| 518 | Thrust Pad
(Bearing outer race/pinion)
For pulling out
- the large taper roller bearing outer race in conjunction with an
internal puller,
- the small taper roller bearing outer race in conjunction with an
internal puller
For pulling in the large taper roller bearing outer race in conjunction with
VW 511 and VW 517 |
  |

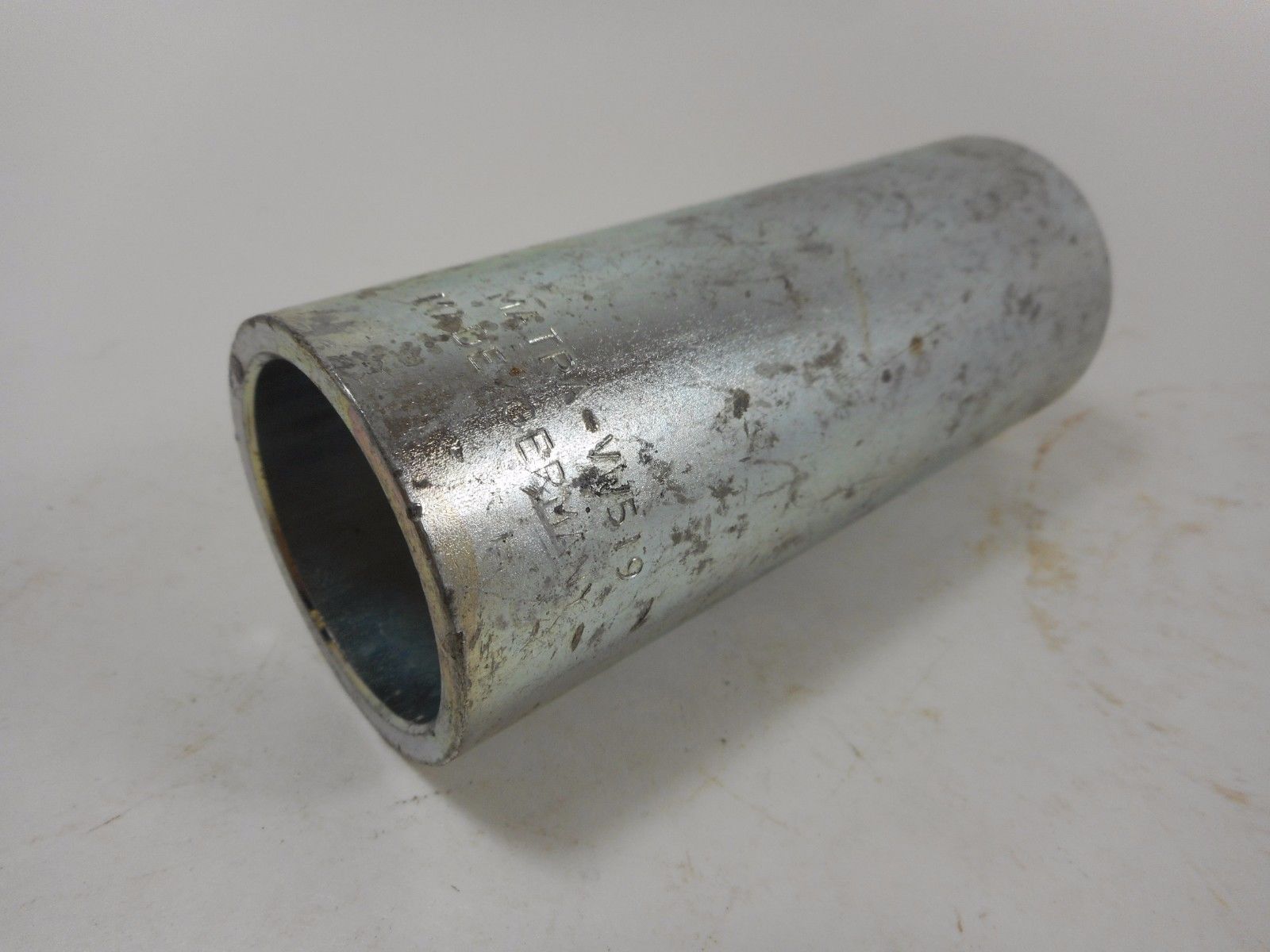

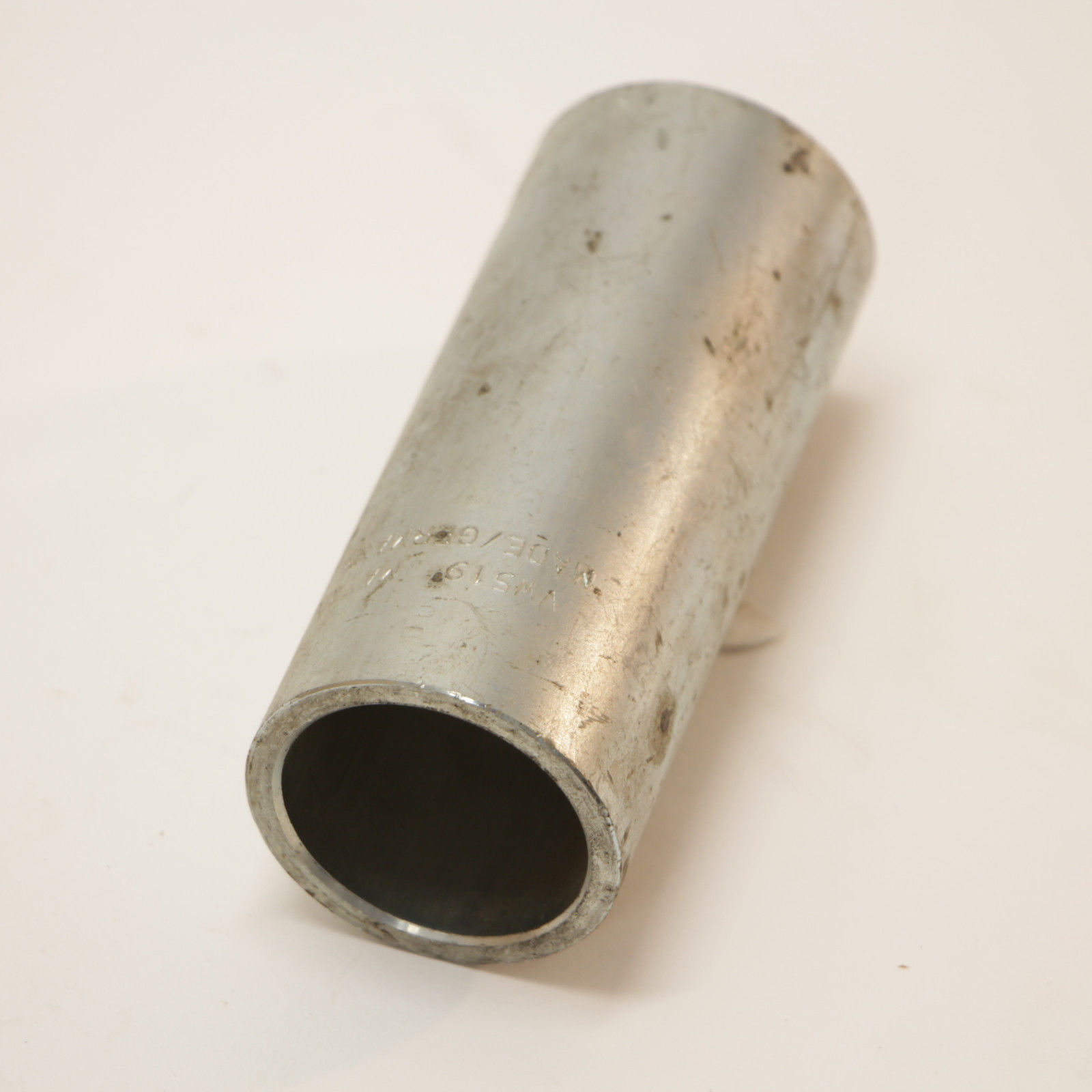

| 519 | Tube 50 mm dia.
(Flange shaft/bearing cover)
For pushing the flange shaft into the bearing cover |
 |
| 520 | Tube 28.5 mm dia.
(Taper roller bearing/counter shaft)
For pressing the small taper roller bearing onto the
counter shaft |
 |

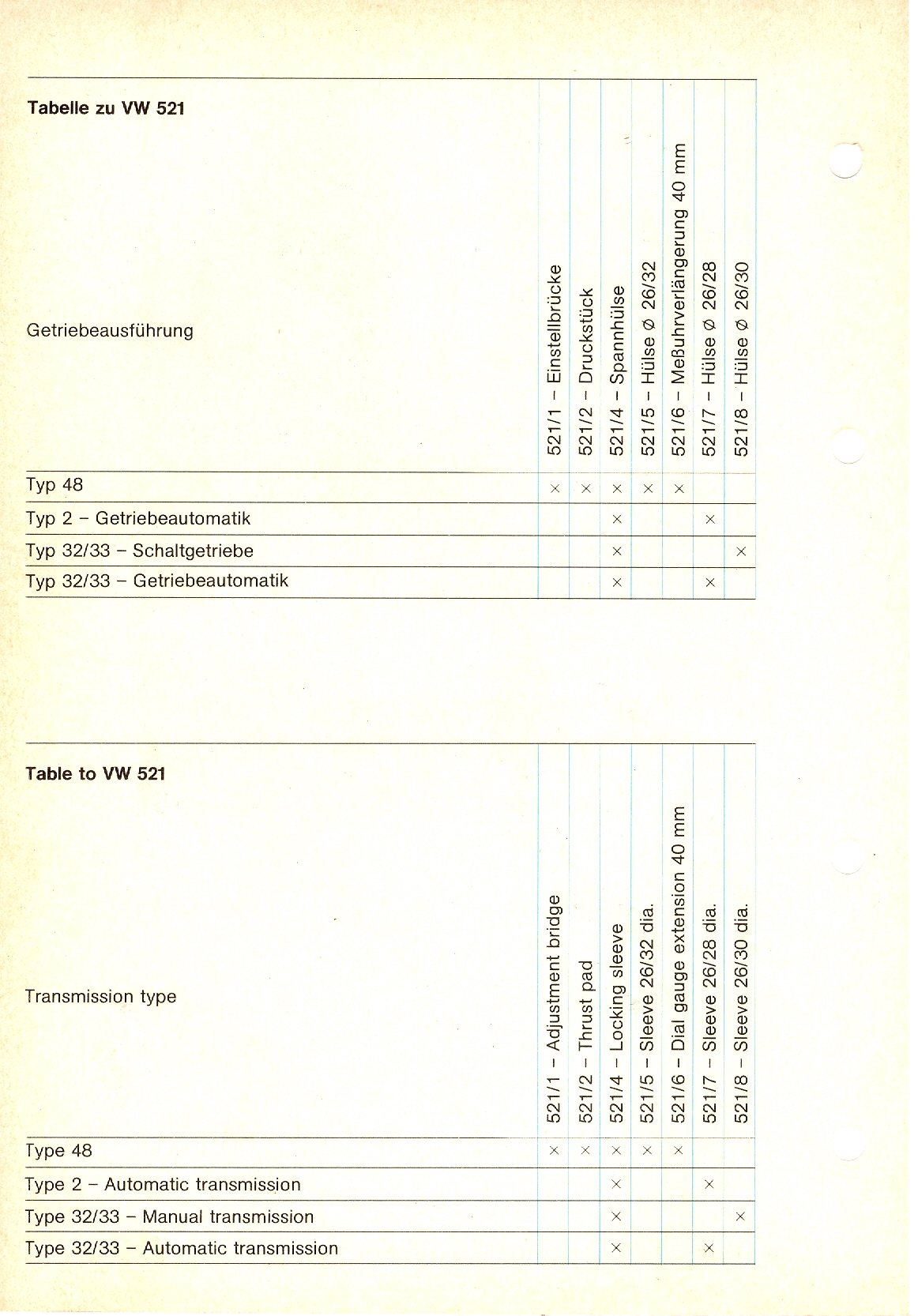

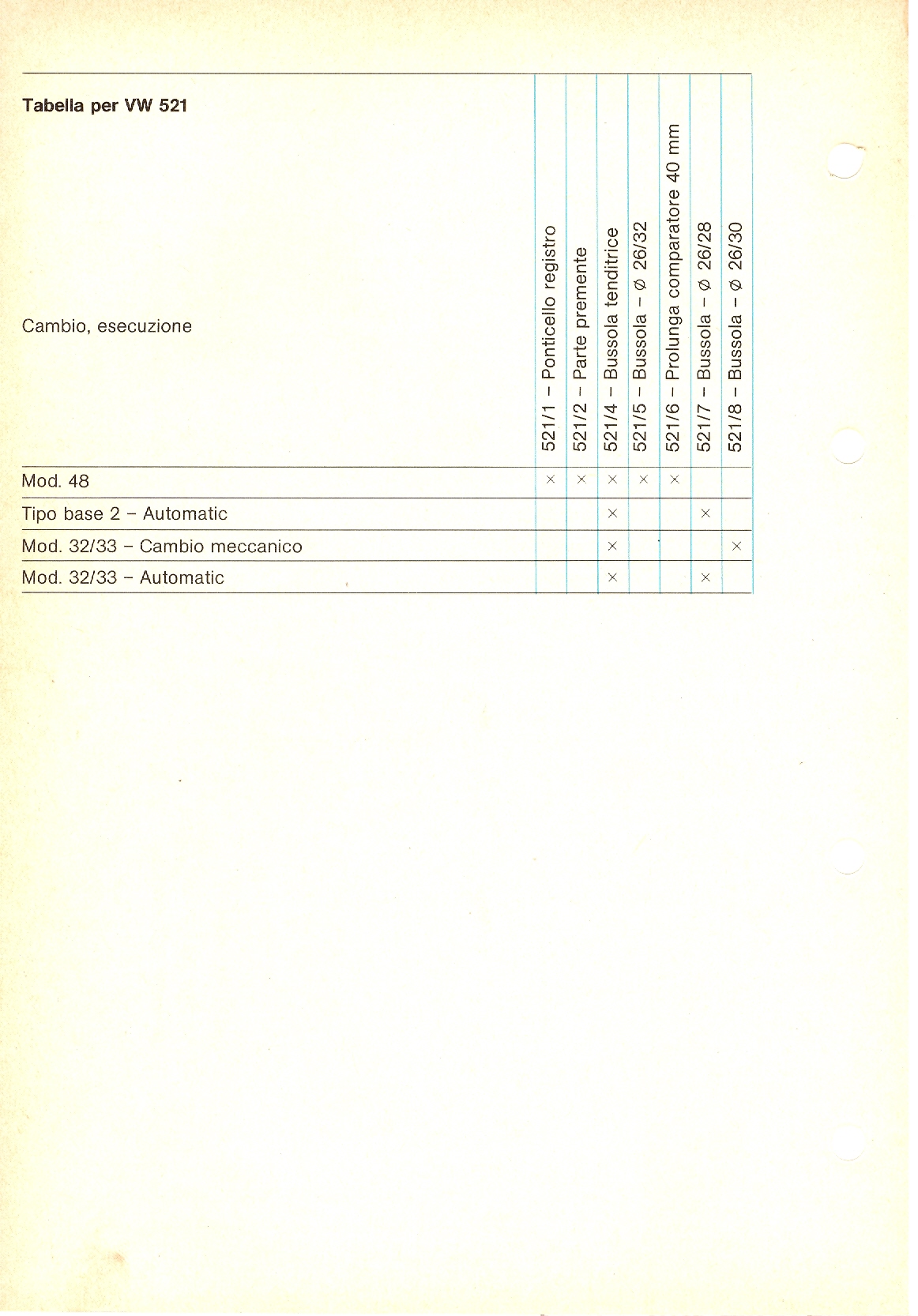

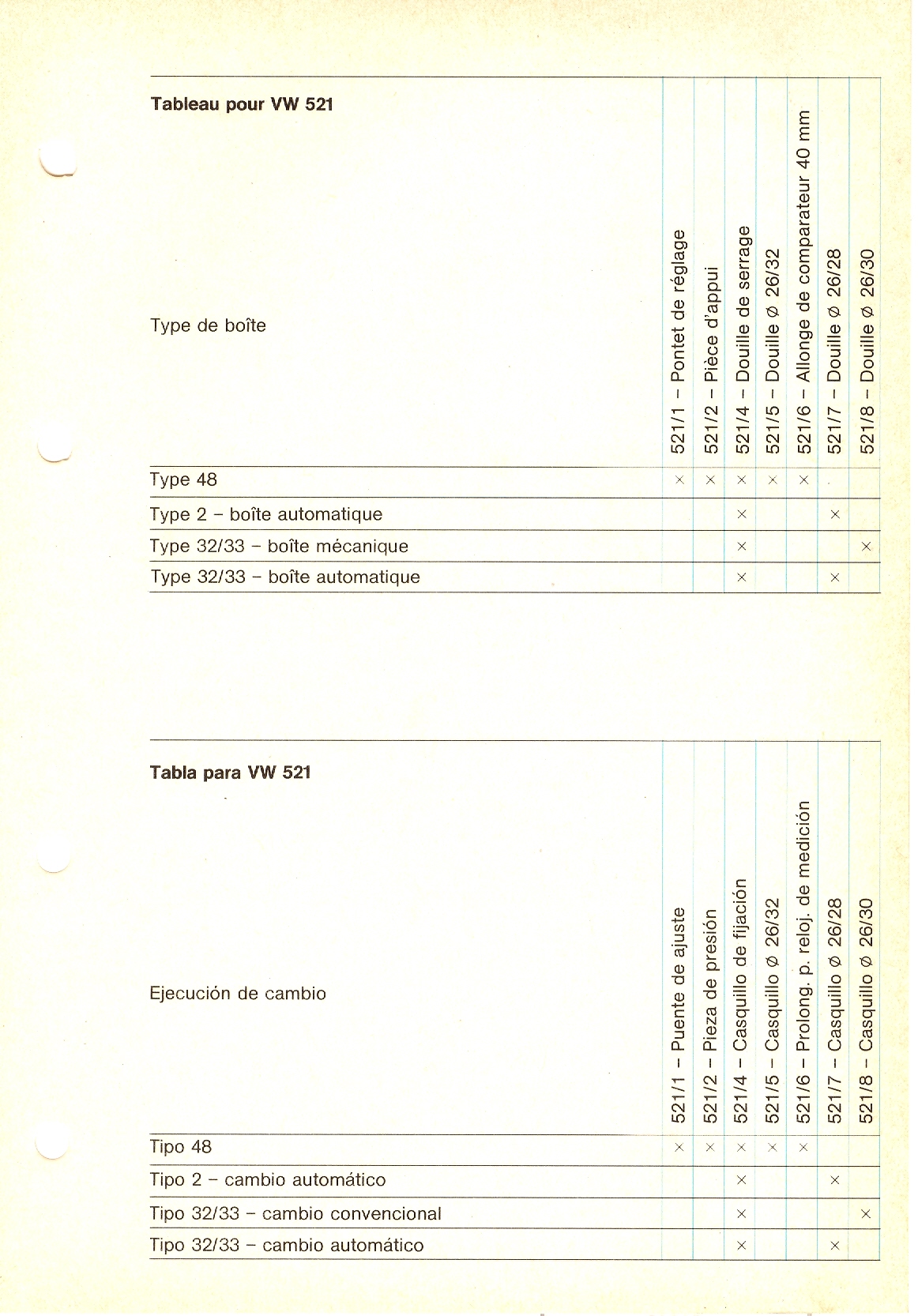

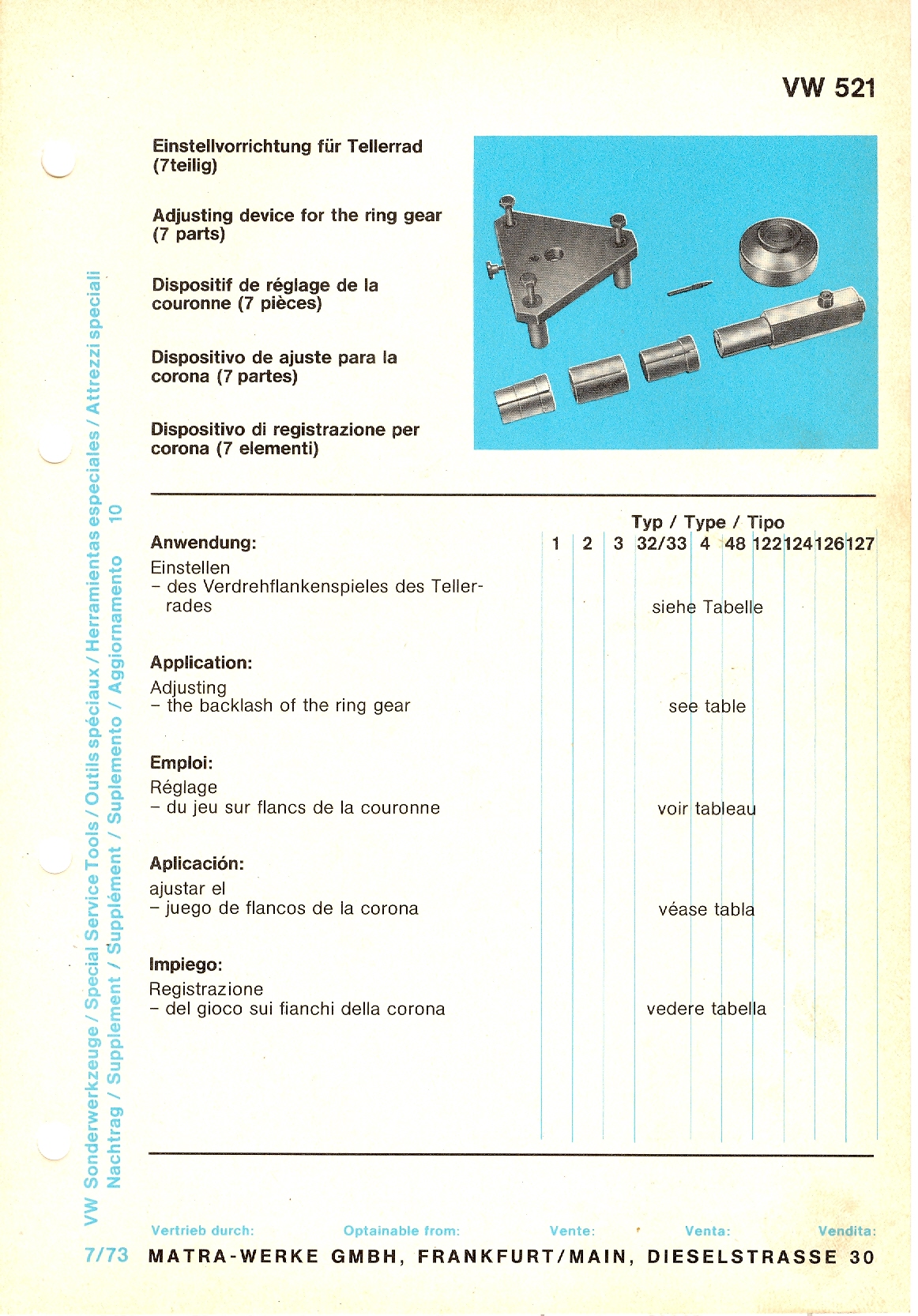

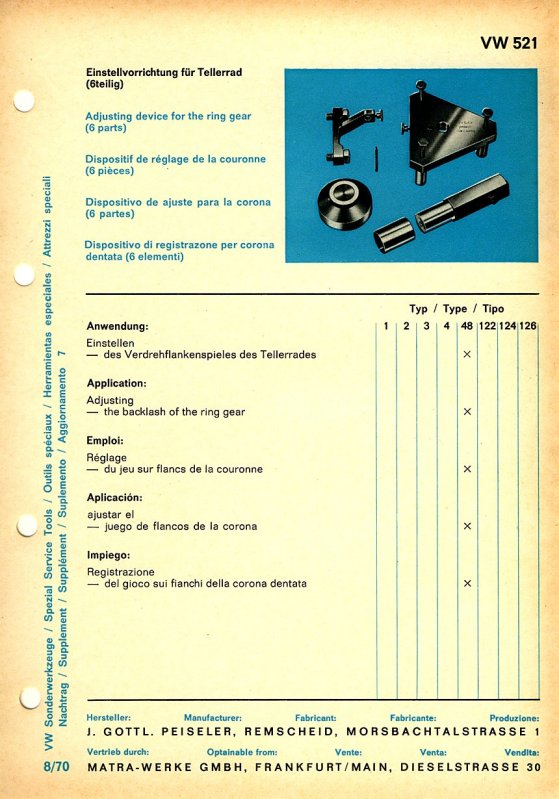

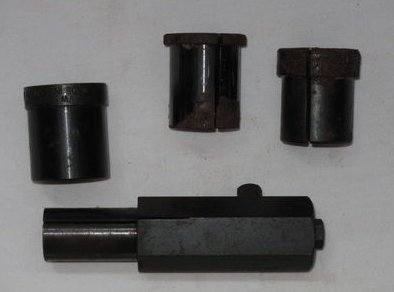

| 521 | Adjusting Device
for the Ring Gear (6 parts)
For adjusting the backlash of the ring gear |

    |
| 522 | Support Sleeve
for Assembled Drive Shaft
For pressing off the sliding joint of the drive shaft |

 |

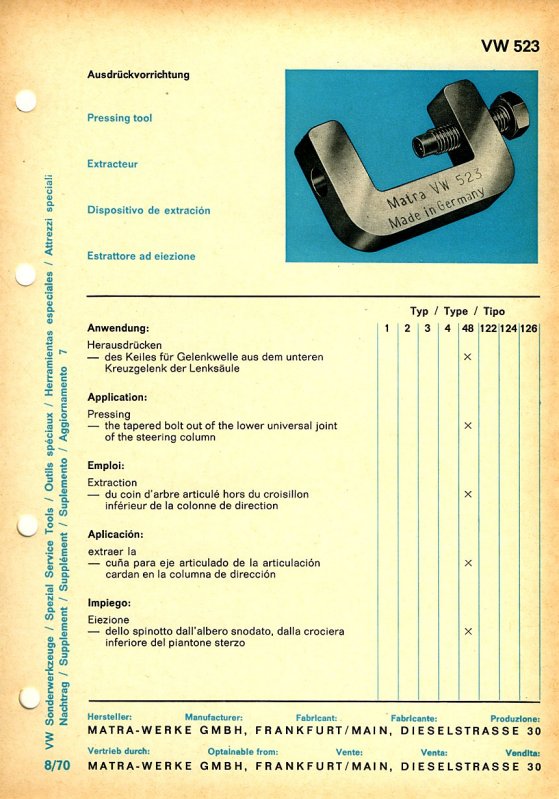

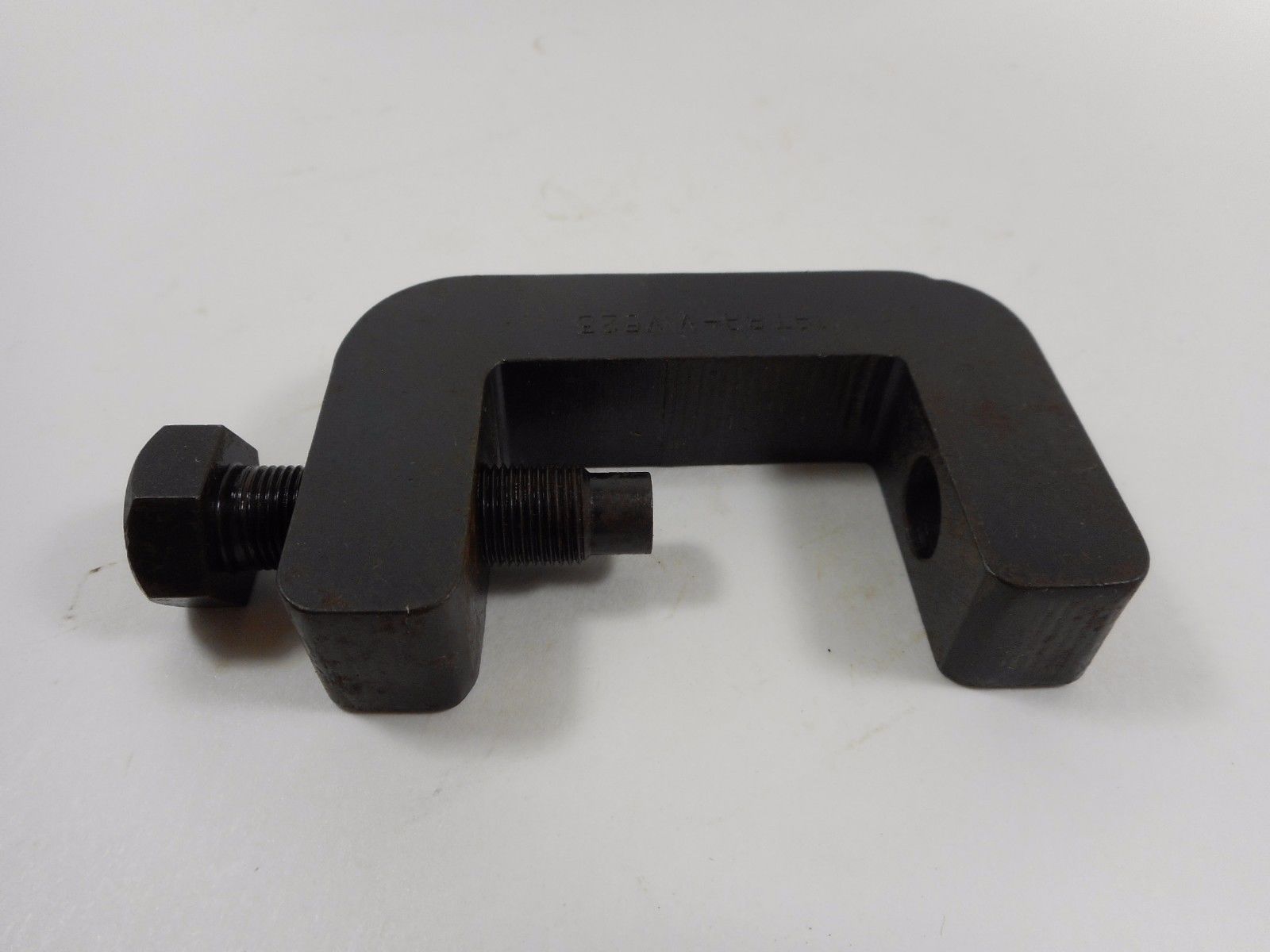

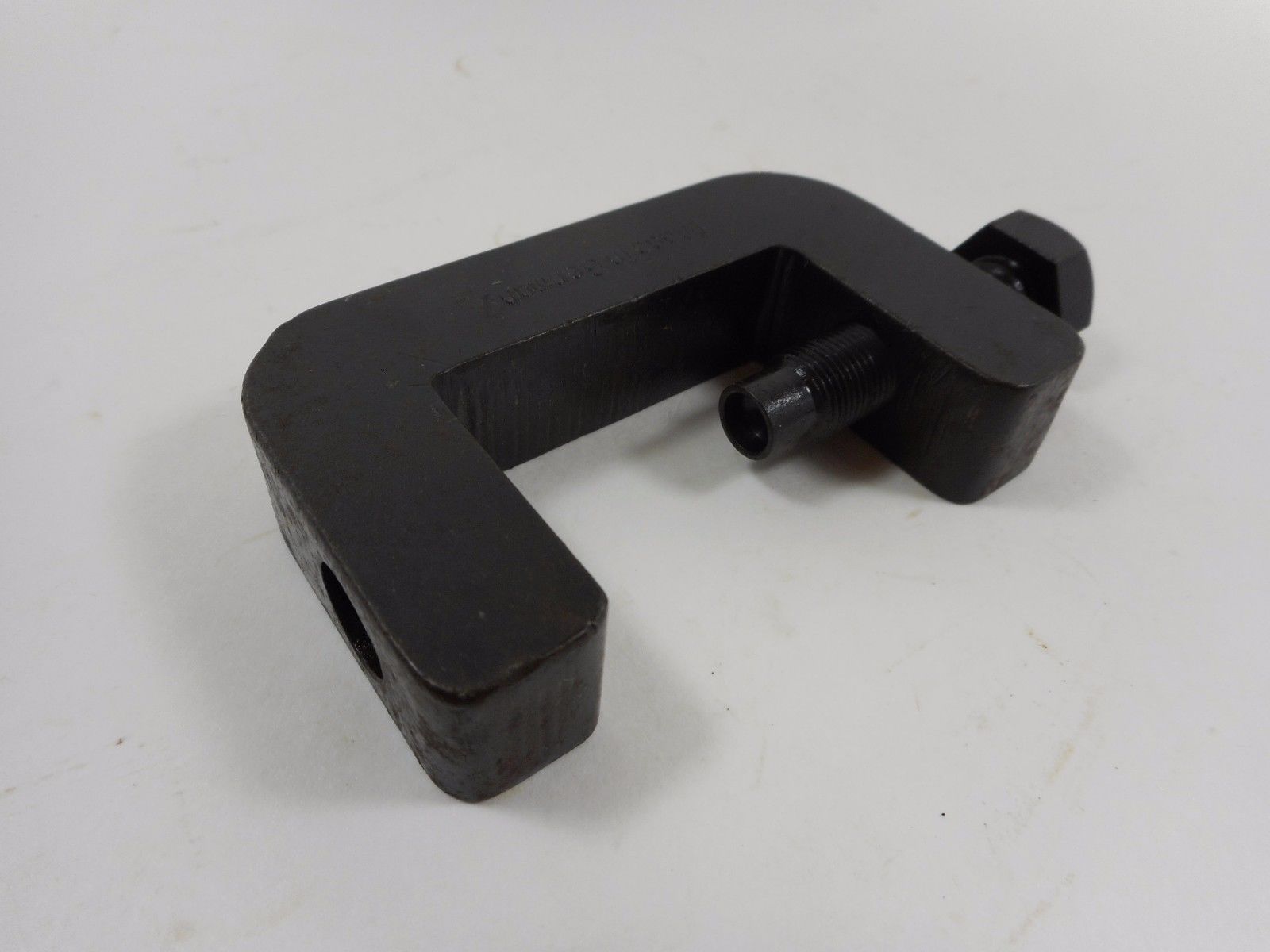

| 523 | Pressing Tool
For pressing the tapered bolt out of the lower
universal joint of the steering column |
 |

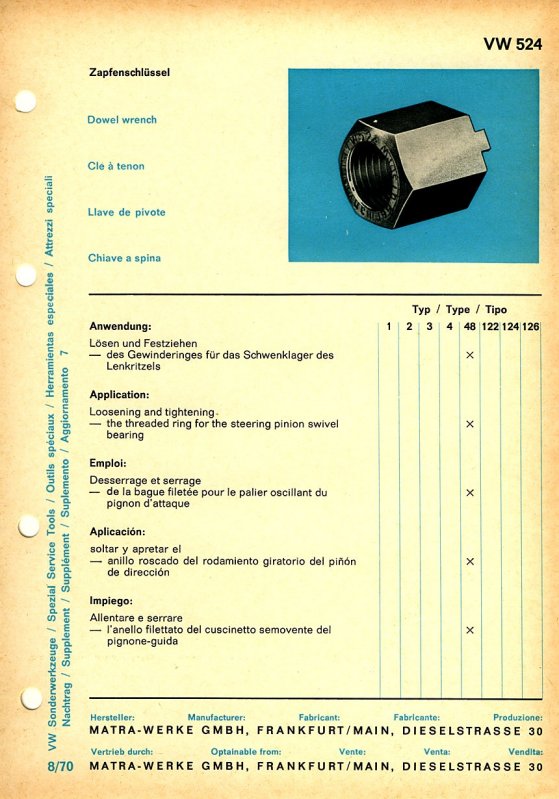

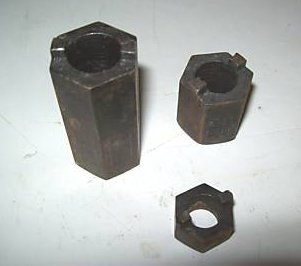

| 524 | Dowel Wrench
For loosening and tightening the threaded ring for
the steering pinion swivel bearing |

 |

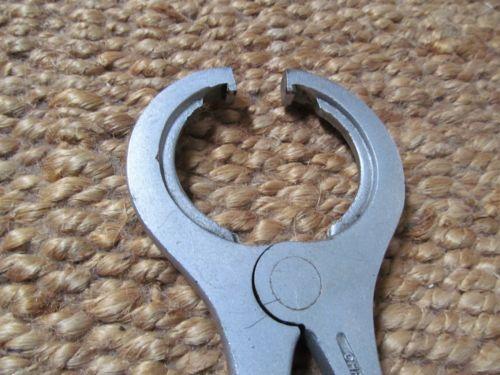

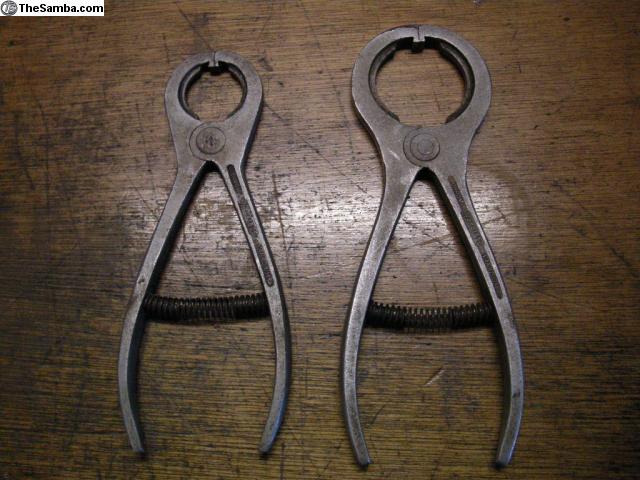

| 524 | Dowel Wrench
? |
 |

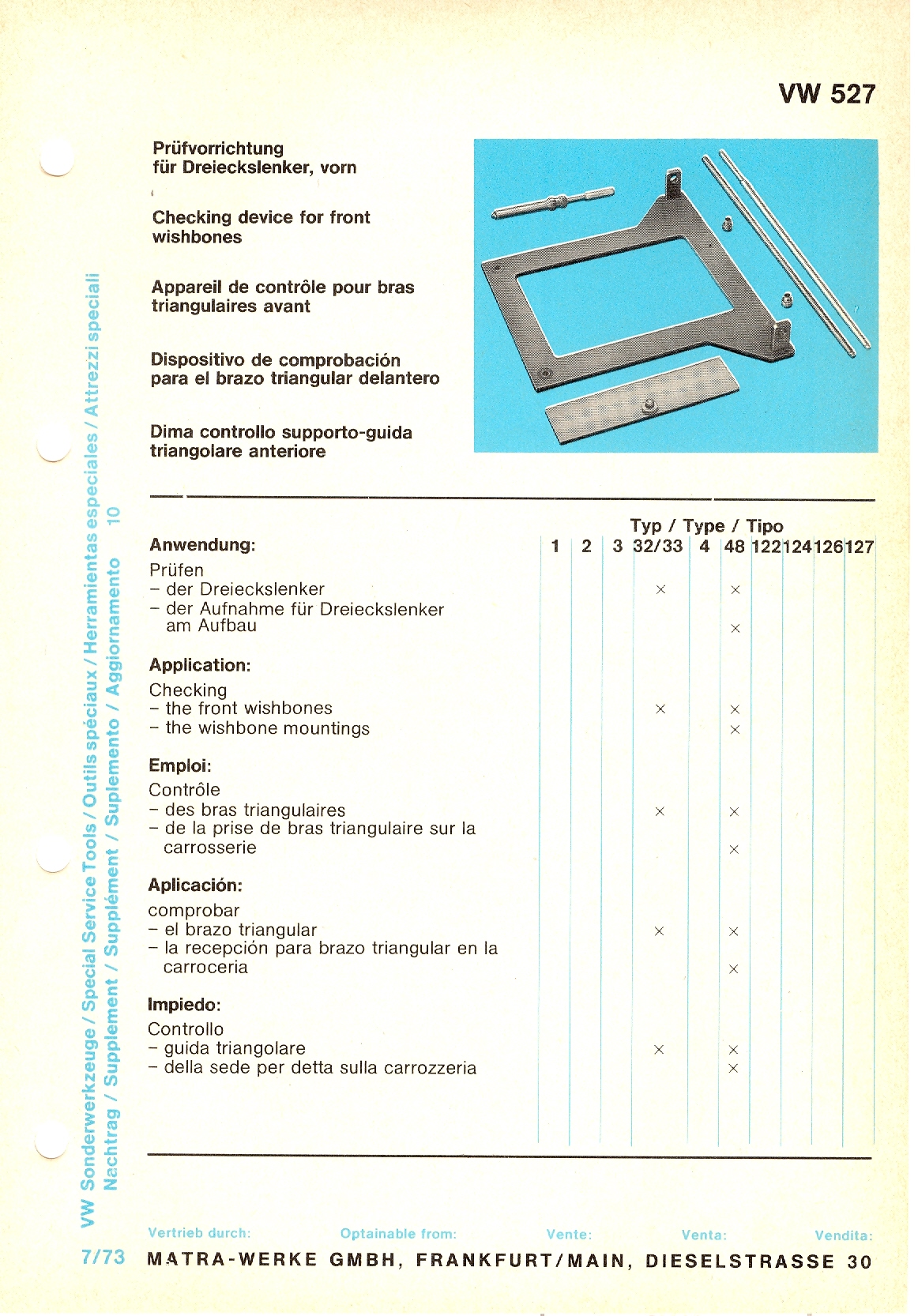

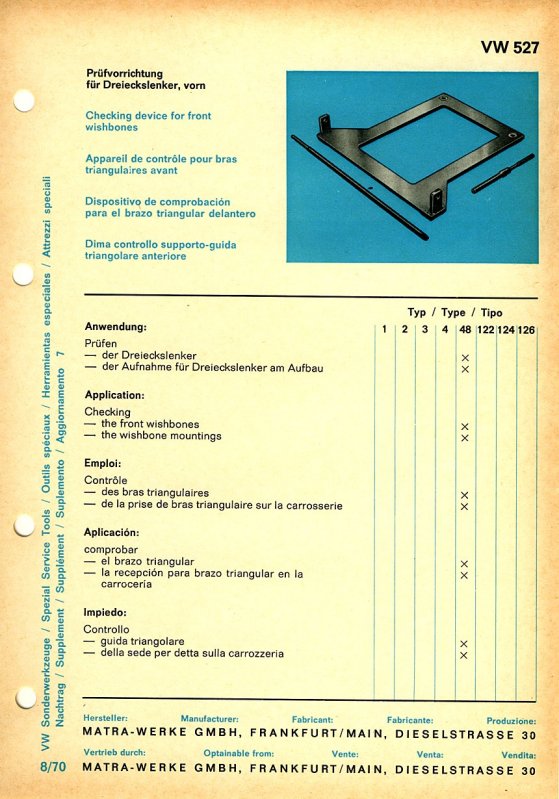

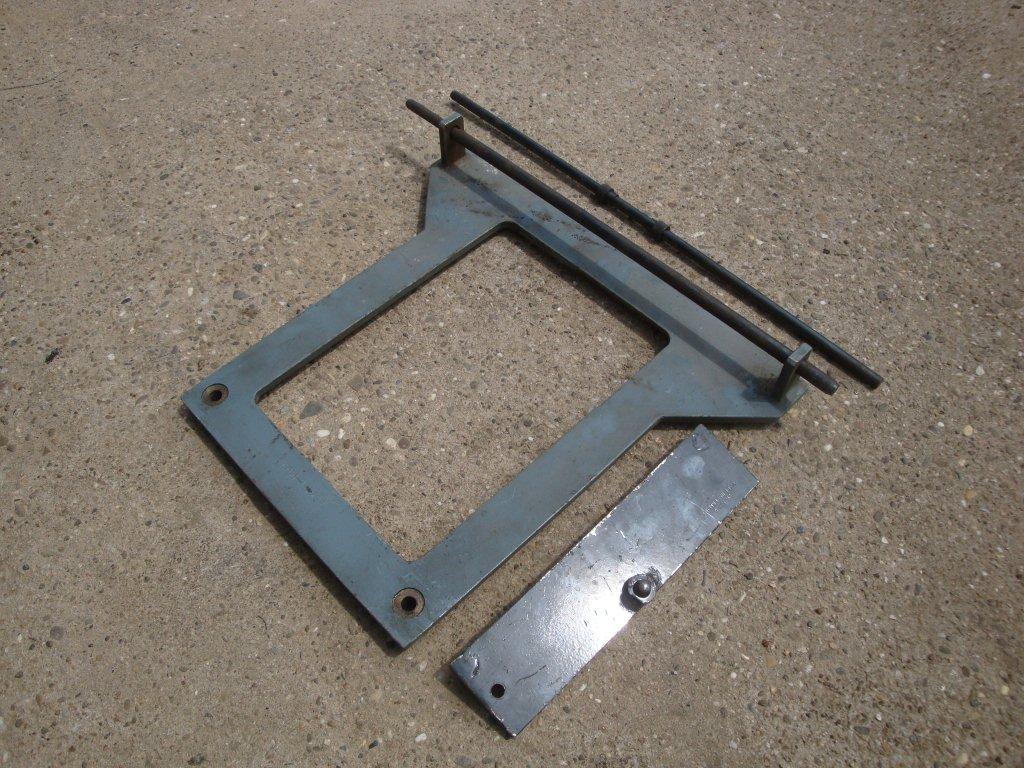

| 527 | Checking Device
for front Wishbones
For checking the front wishbones and wishbone
mountings |
  |

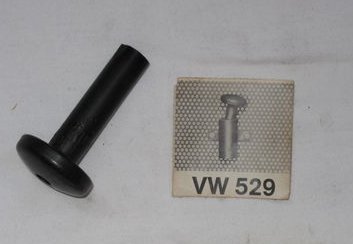

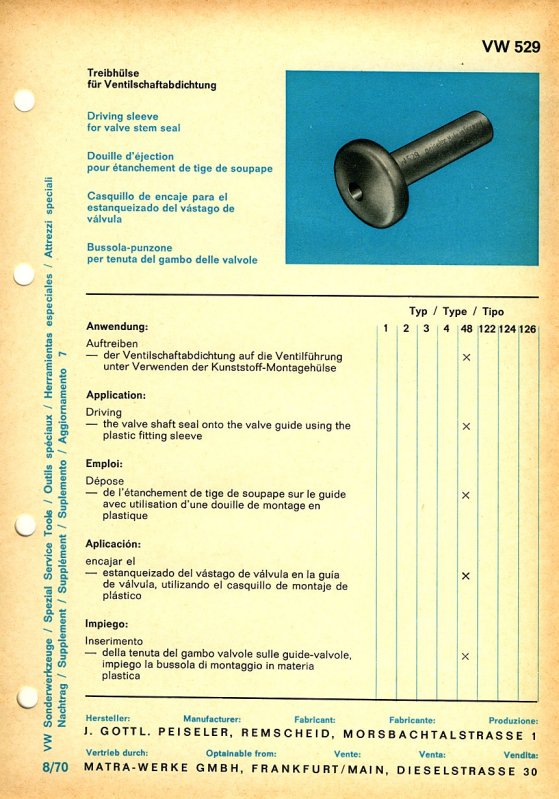

| 529 | Driving Sleeve
for Valve Stem Seal
For driving the valve shaft seal onto the valve guide
using the plastic fitting sleeve |
 |

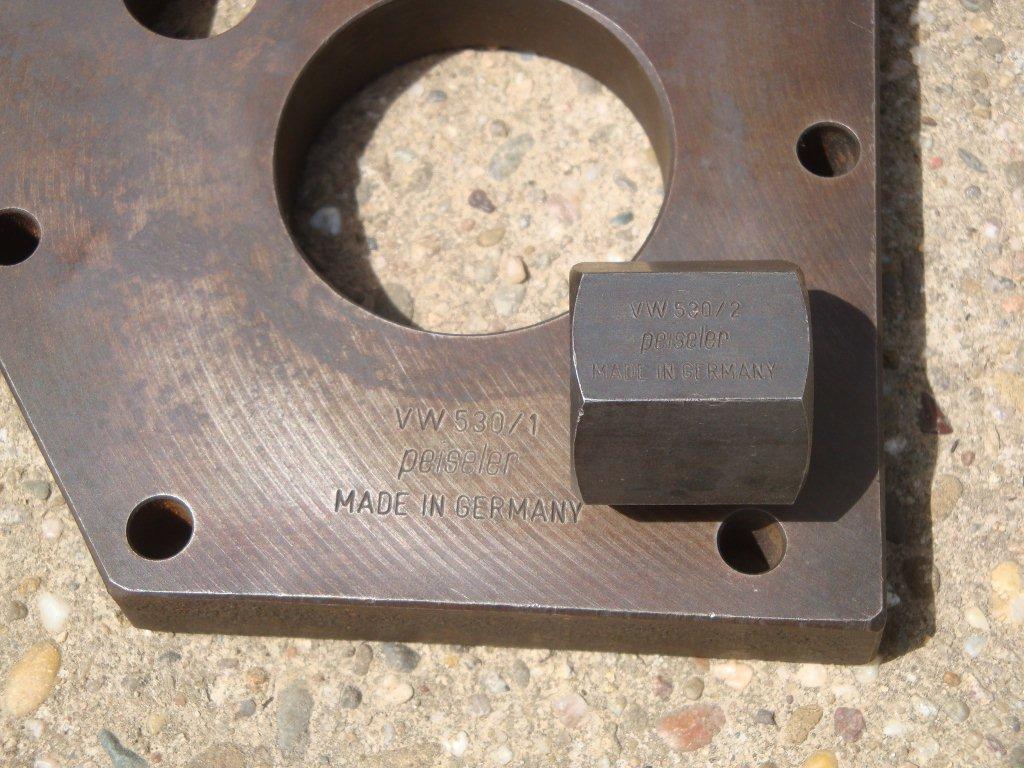

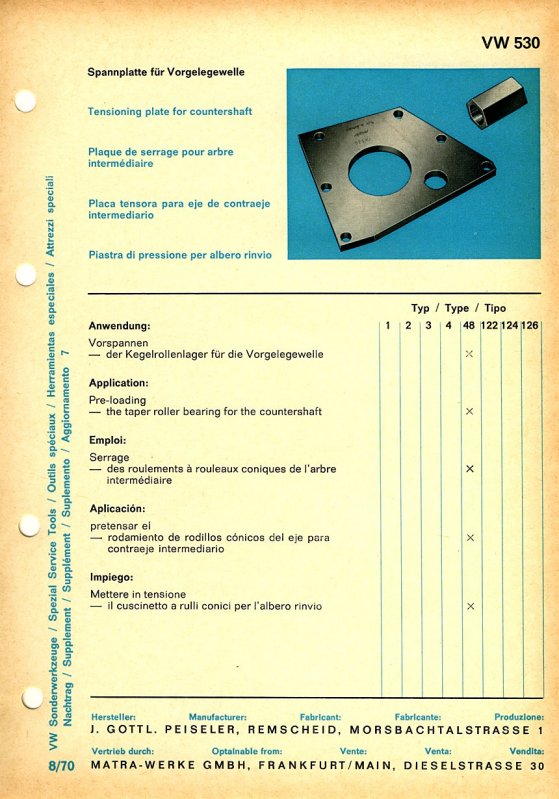

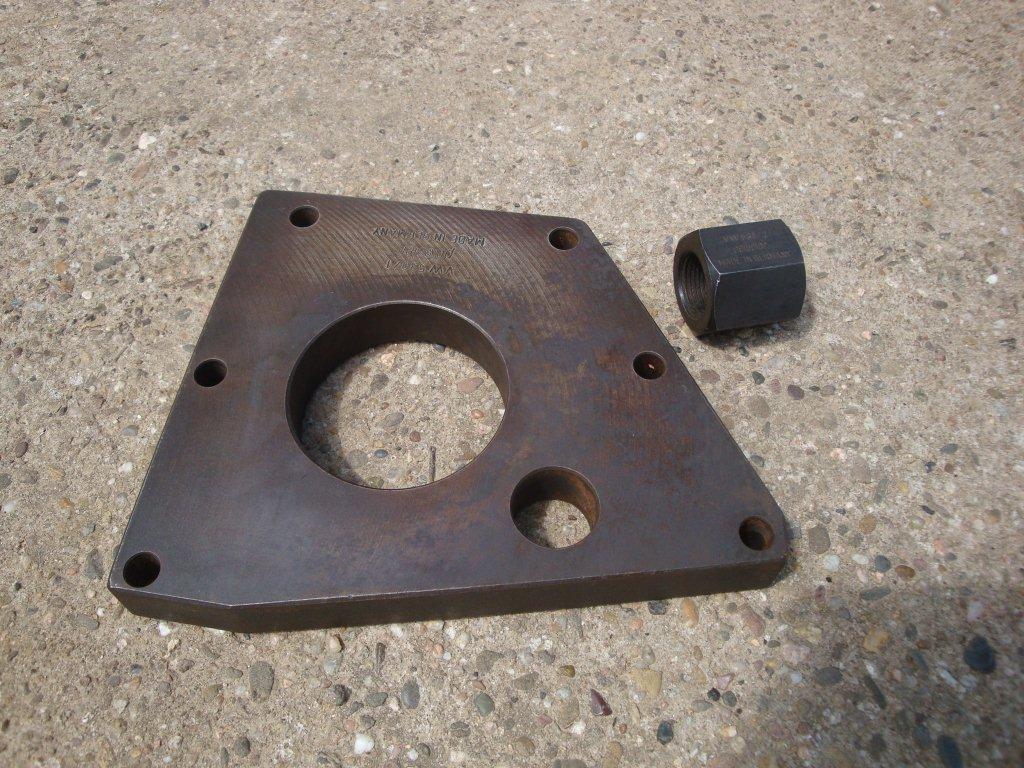

| 530 | Tensioning Plate
for Countershaft
For pre-loading the taper roller bearing for the
countershaft |
 |

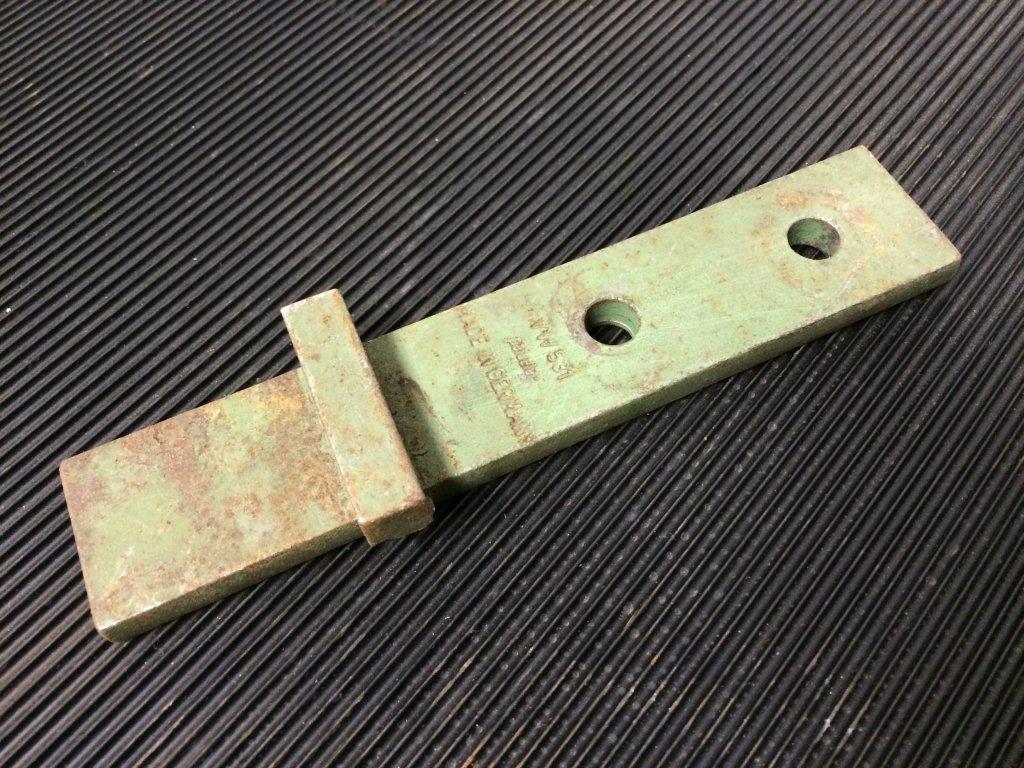

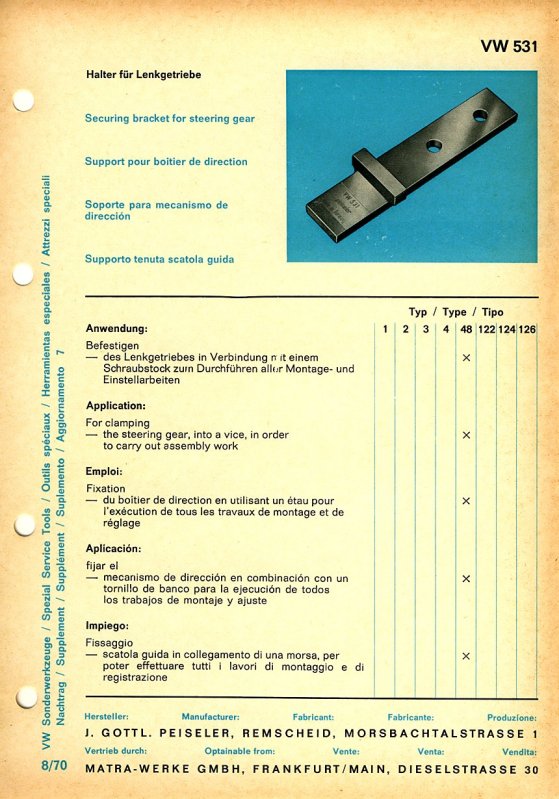

| 531 | Securing Bracket
for Steering Gear
For clamping the steering gear into a vice in order
to carry out assembly work |
 |

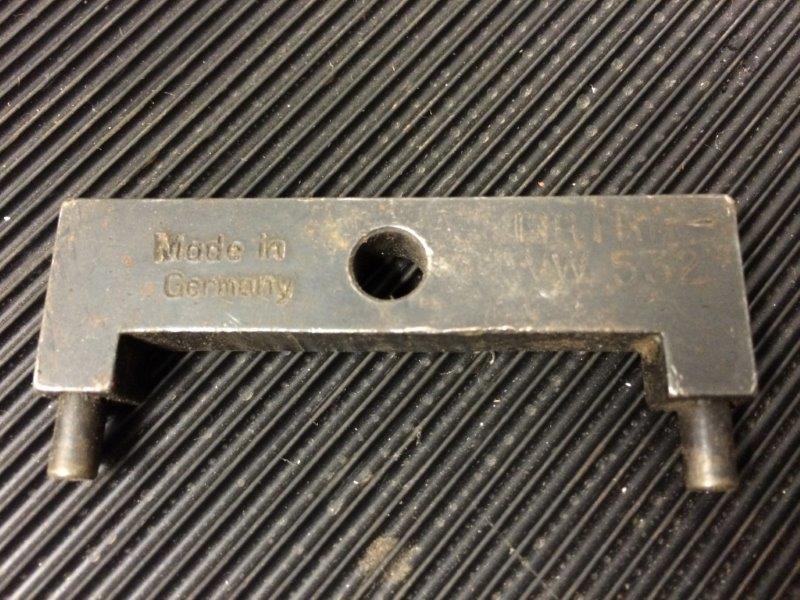

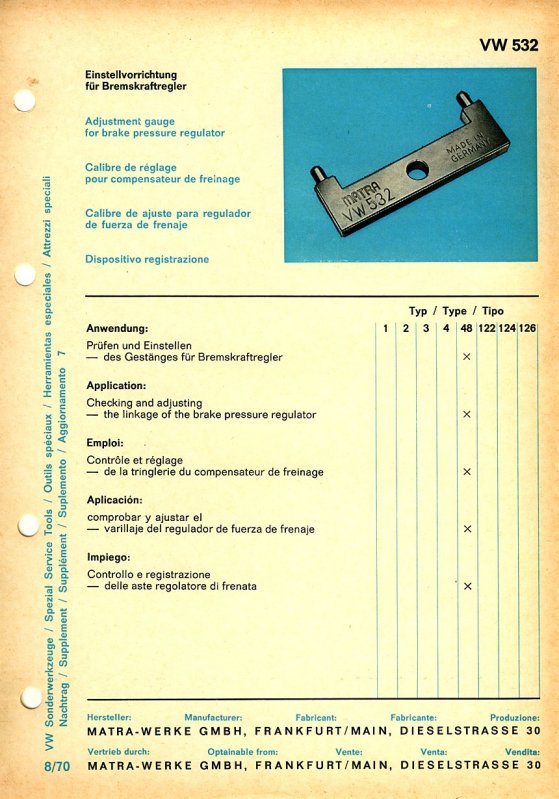

| 532 | Adjustment Gauge
for Brake Pressure Regulator
For checking and adjusting the linkage of the brake
pressure regulator |
 |

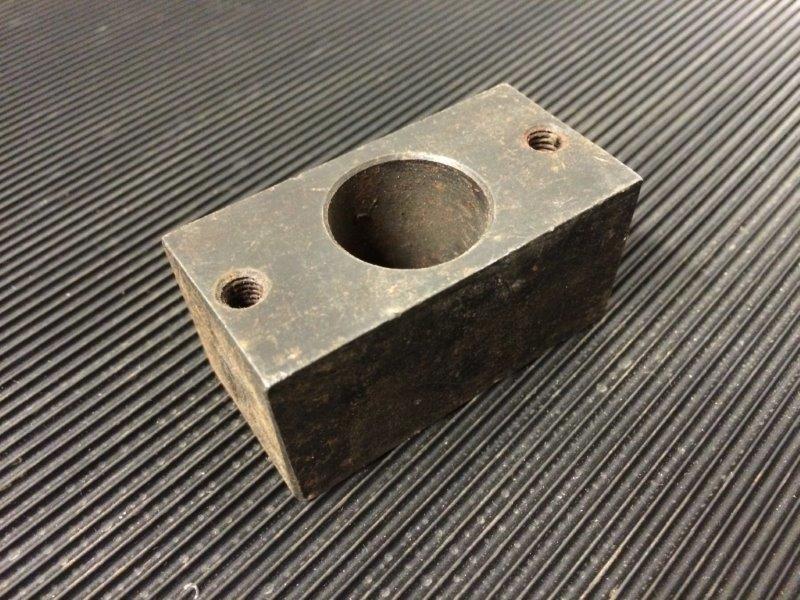

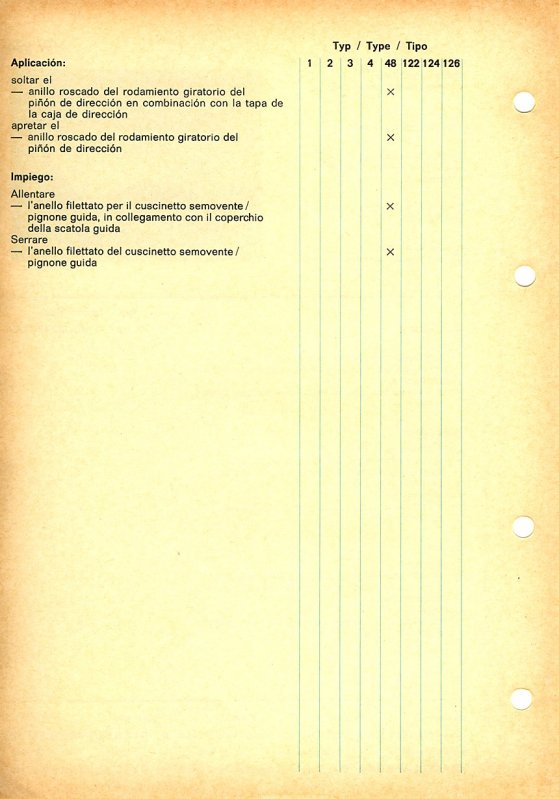

| 534 | Securing Device
(Steering gear/pinion)
For slackening the threaded ring of the self aligning
bearing/steering pinion, in conjunction with the steering gear housing
cover
For tightening the threaded ring of the self aligning bearing/steering
pinion |
  |

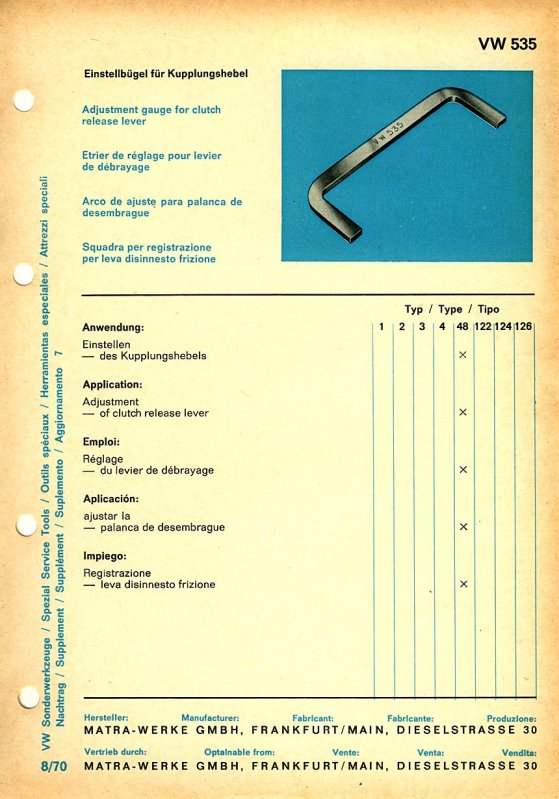

| 535 | Adjustment Gauge
for Clutch Release Lever
For adjustment of clutch release lever |
 |

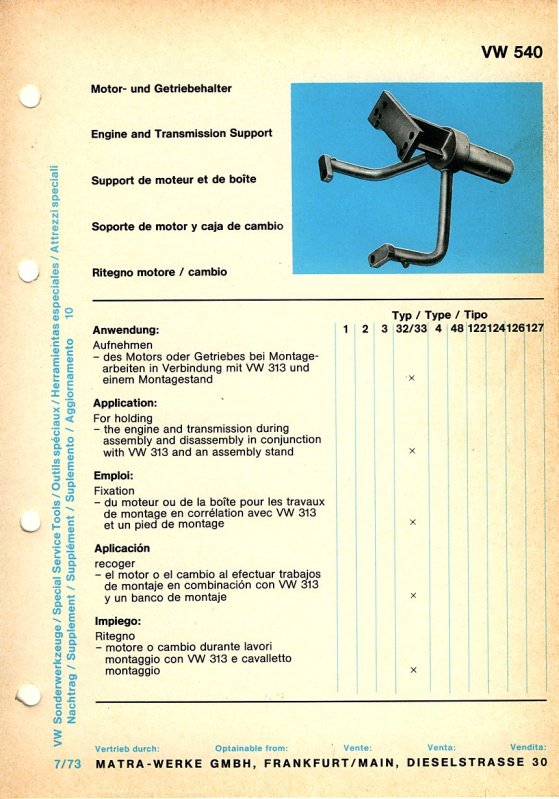

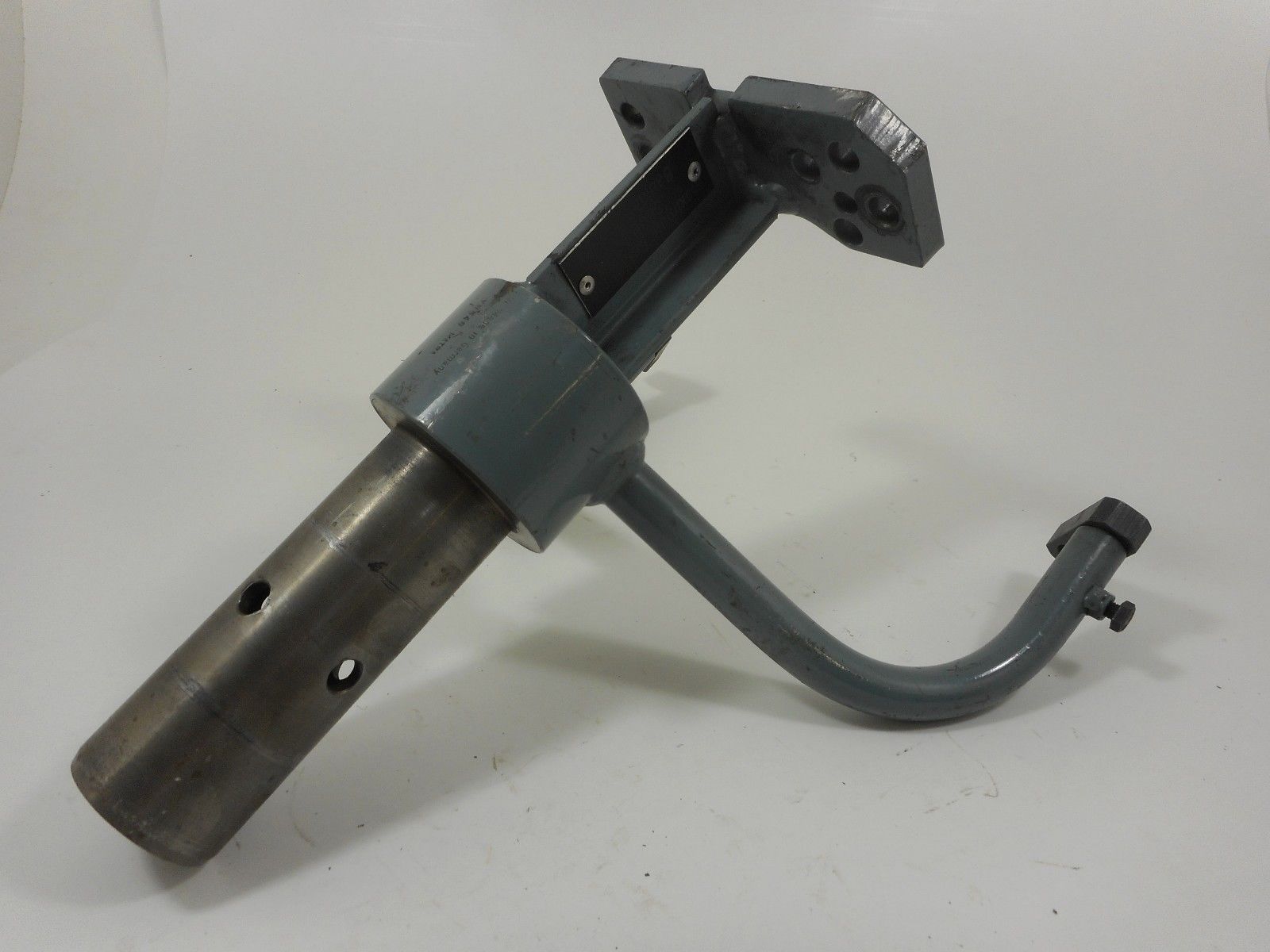

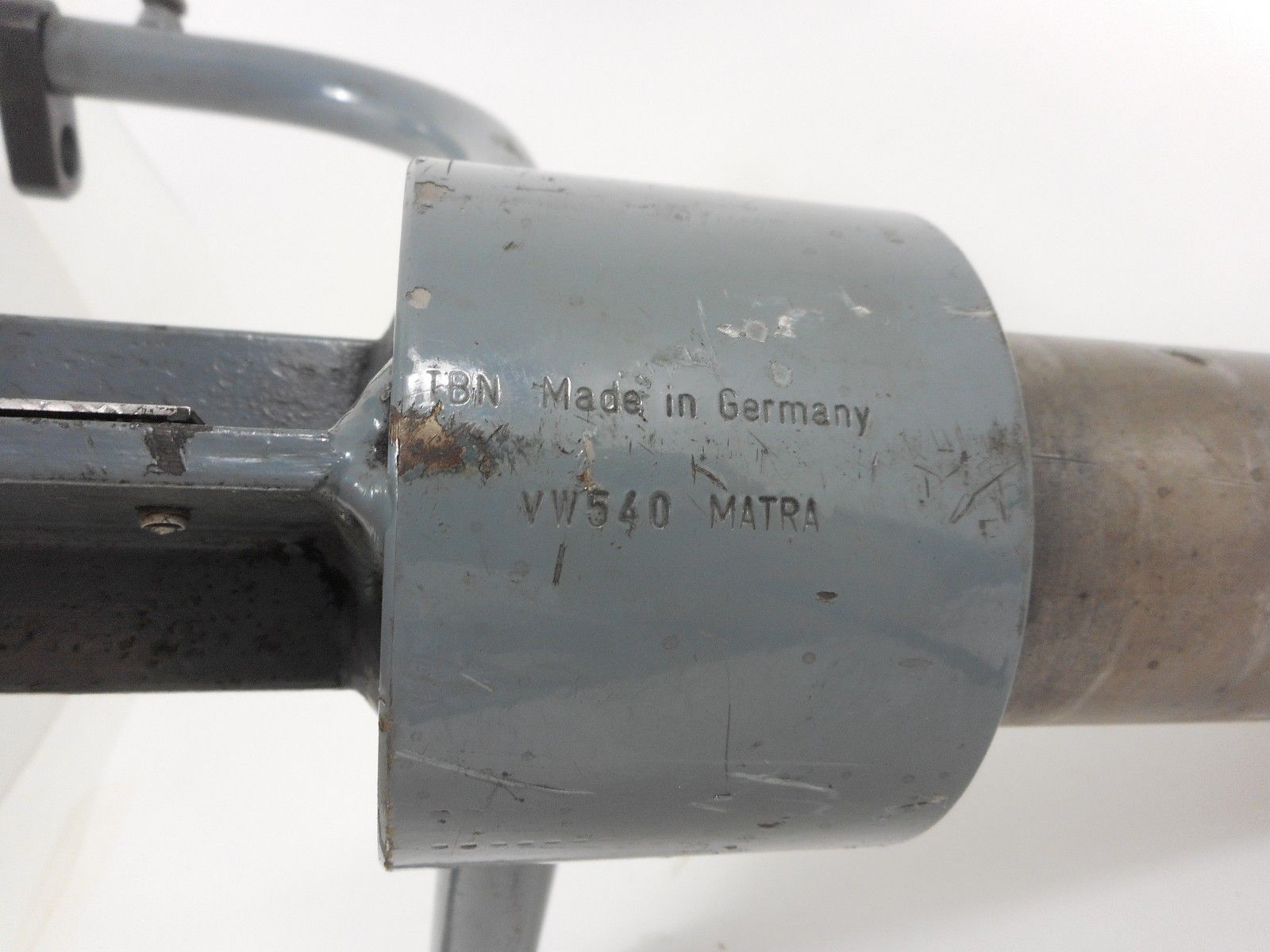

| 540 | Engine and
Transmission Support
For holding the engine and transmission during
assembly and disassembly in conjunction with VW 313 and an assembly stand
(Dasher) |
 |
| 541 | Valve Assembly
Appliance (3 pieces)
For removal and installation of the valves (Dasher) |
 |

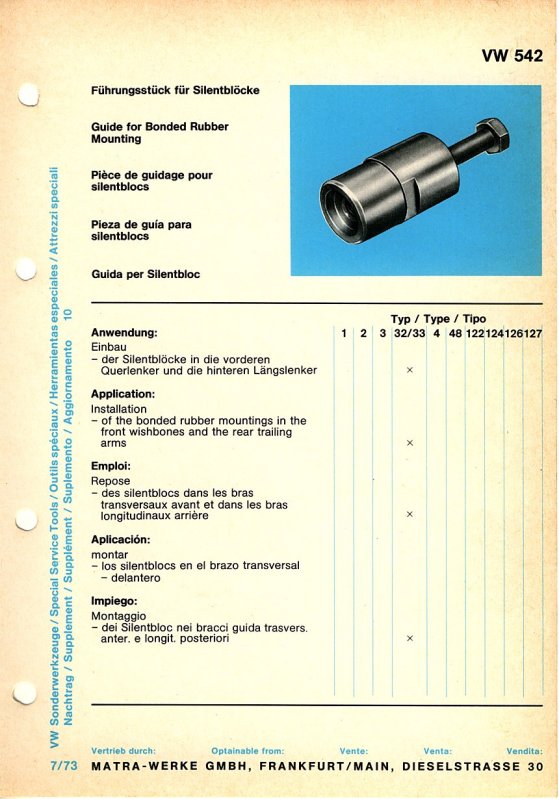

| 542 | Guide for Bonded
Rubber Mounting
For installation of the bonded rubber mountings in
the front wishbones and the rear trailing arms (Dasher) |
 |

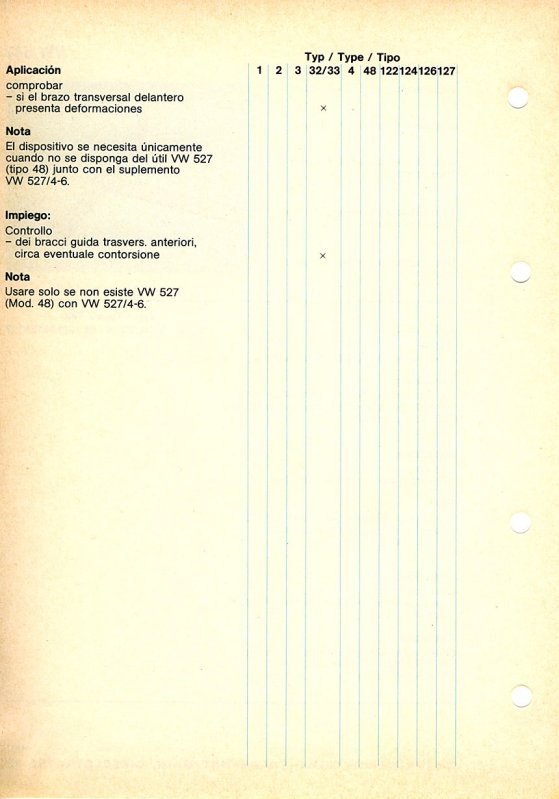

| 543 | Wishbone Checking
Appliance
For checking the front wishbones for distortion
(Dasher)
Note: only necessary if VW 527 (Type 48) with supplementary part VW
527/4-6 is not available |
  |

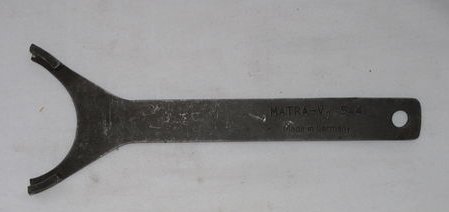

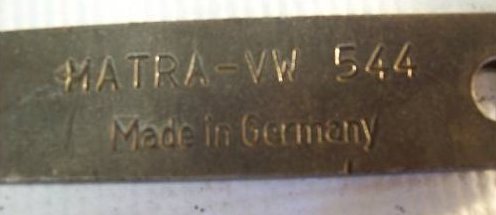

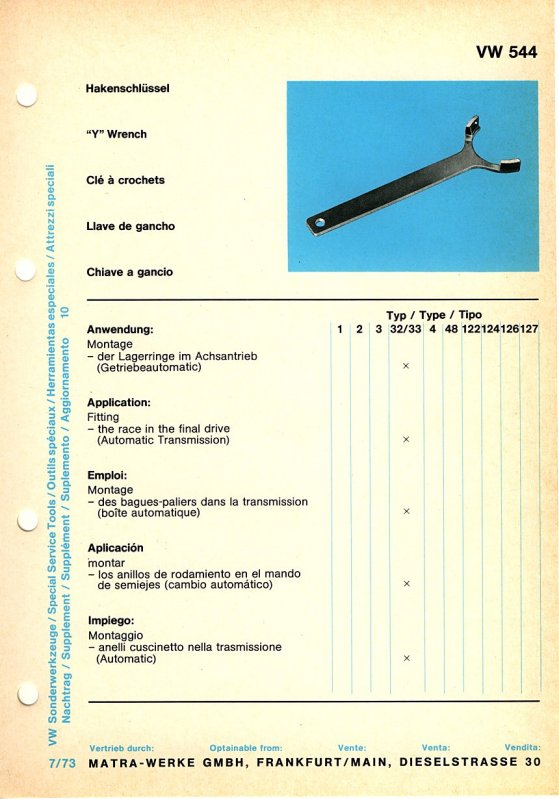

| 544 | "Y" Wrench
For fitting the race in the final drive (Dasher -
automatic transmission) |



 |

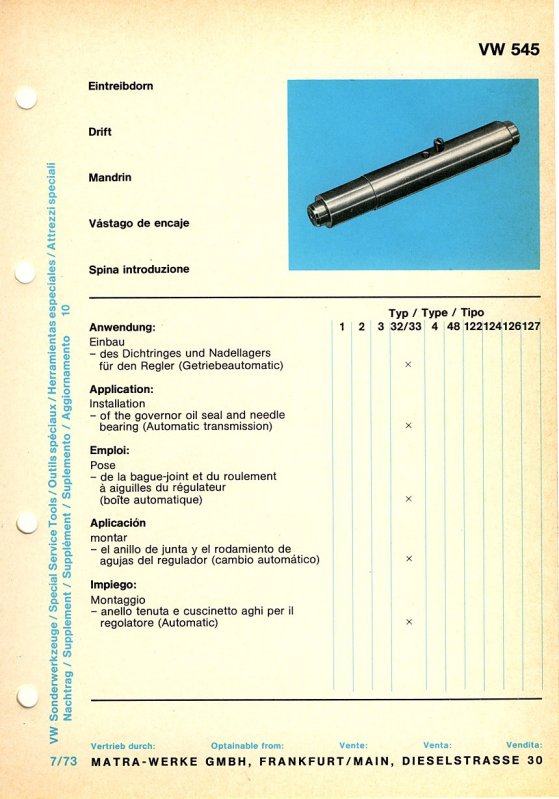

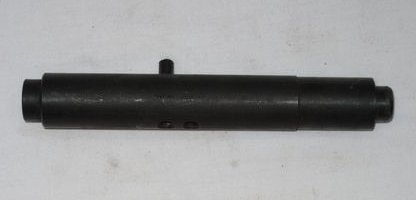

| 545 | Drift
For installation of the governor oil seal and needle
bearing (Dasher - automatic transmission) |
 |

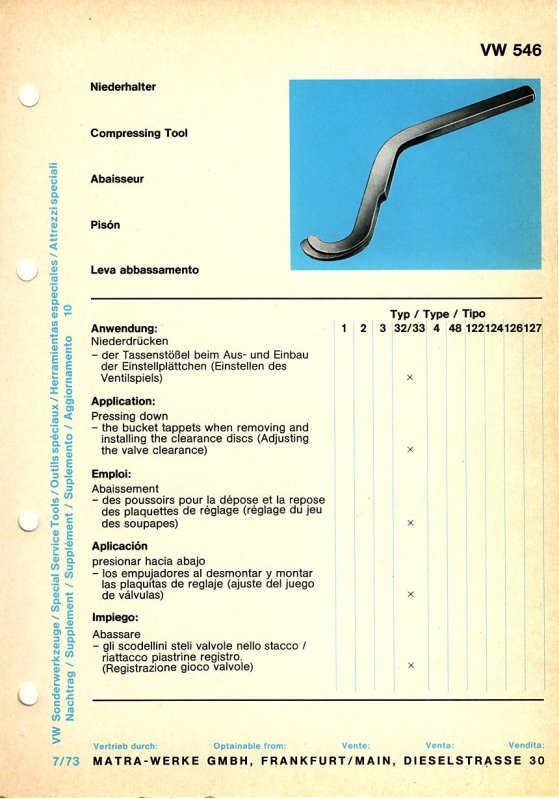

| 546 | Compressing Tool
For pressing down the bucket tappets when removing
and installing the clearance discs (adjusting the valve clearance)
(Dasher) |

 |

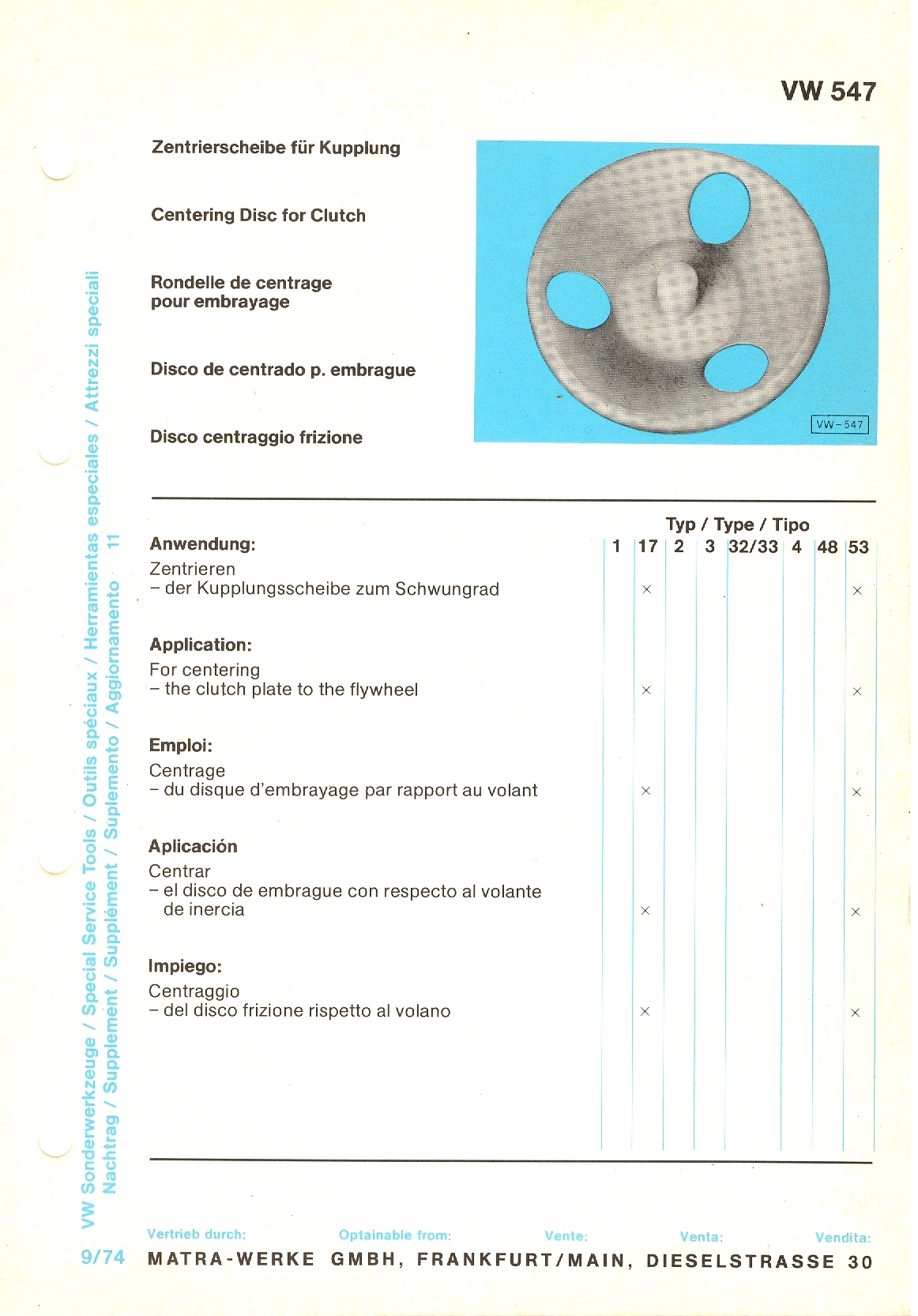

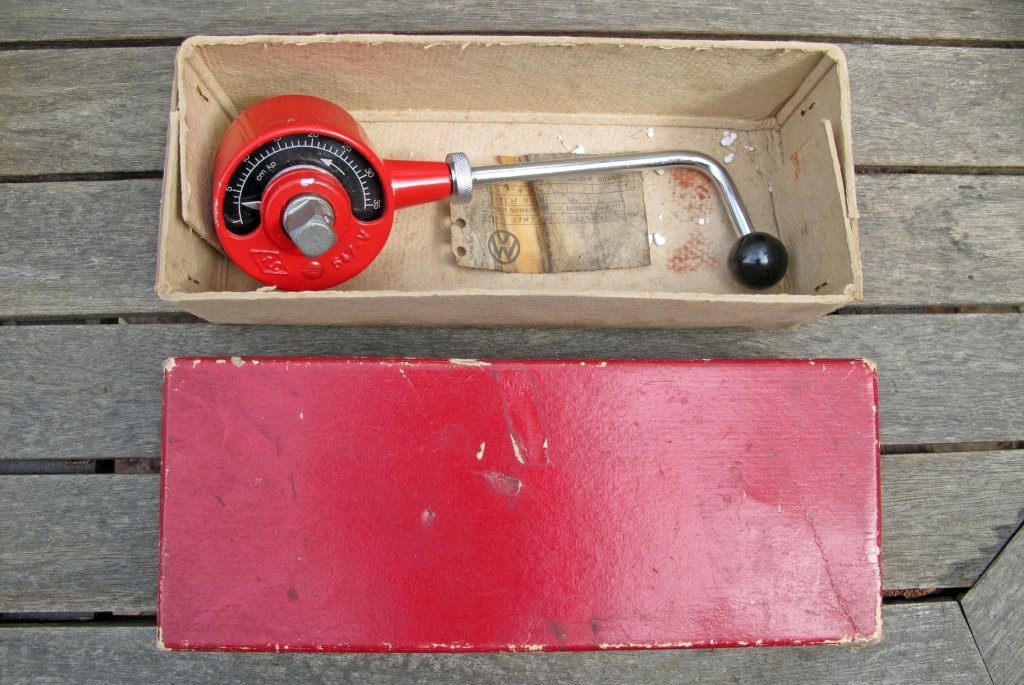

| 547 | Centering Disc
for Clutch
For centering the clutch plate to the flywheel |
 |

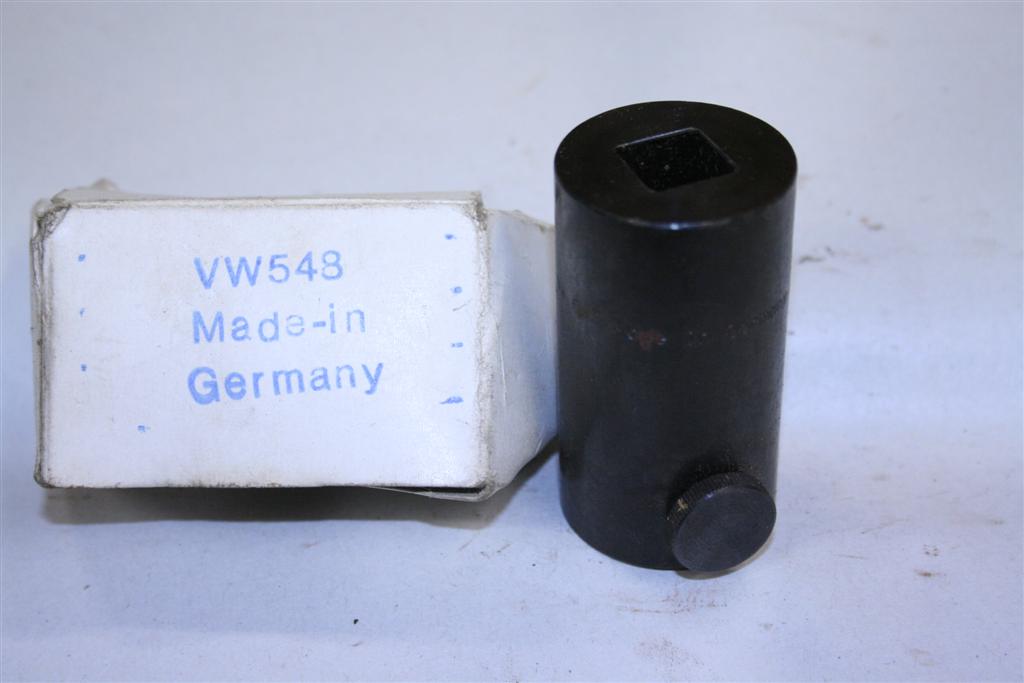

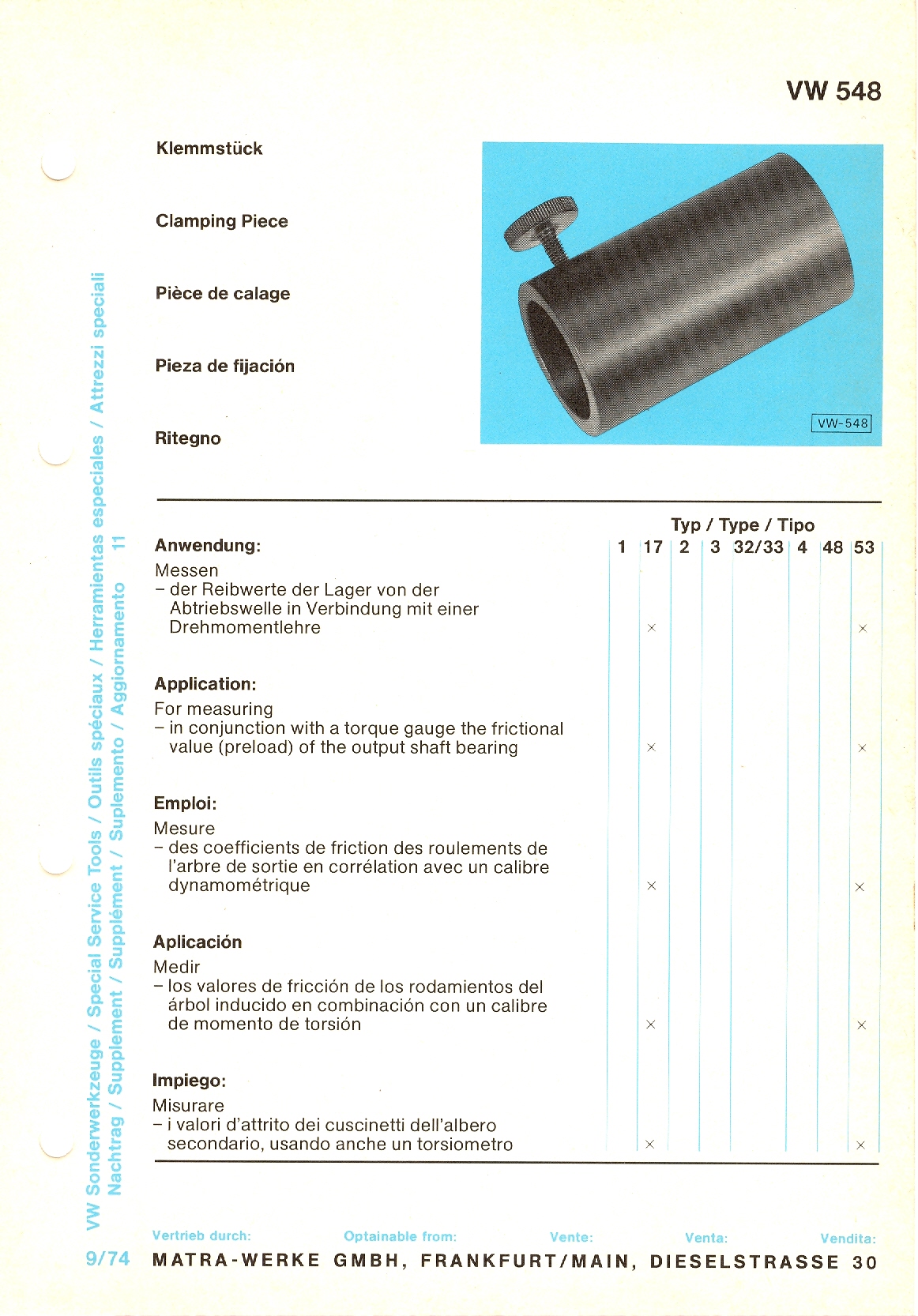

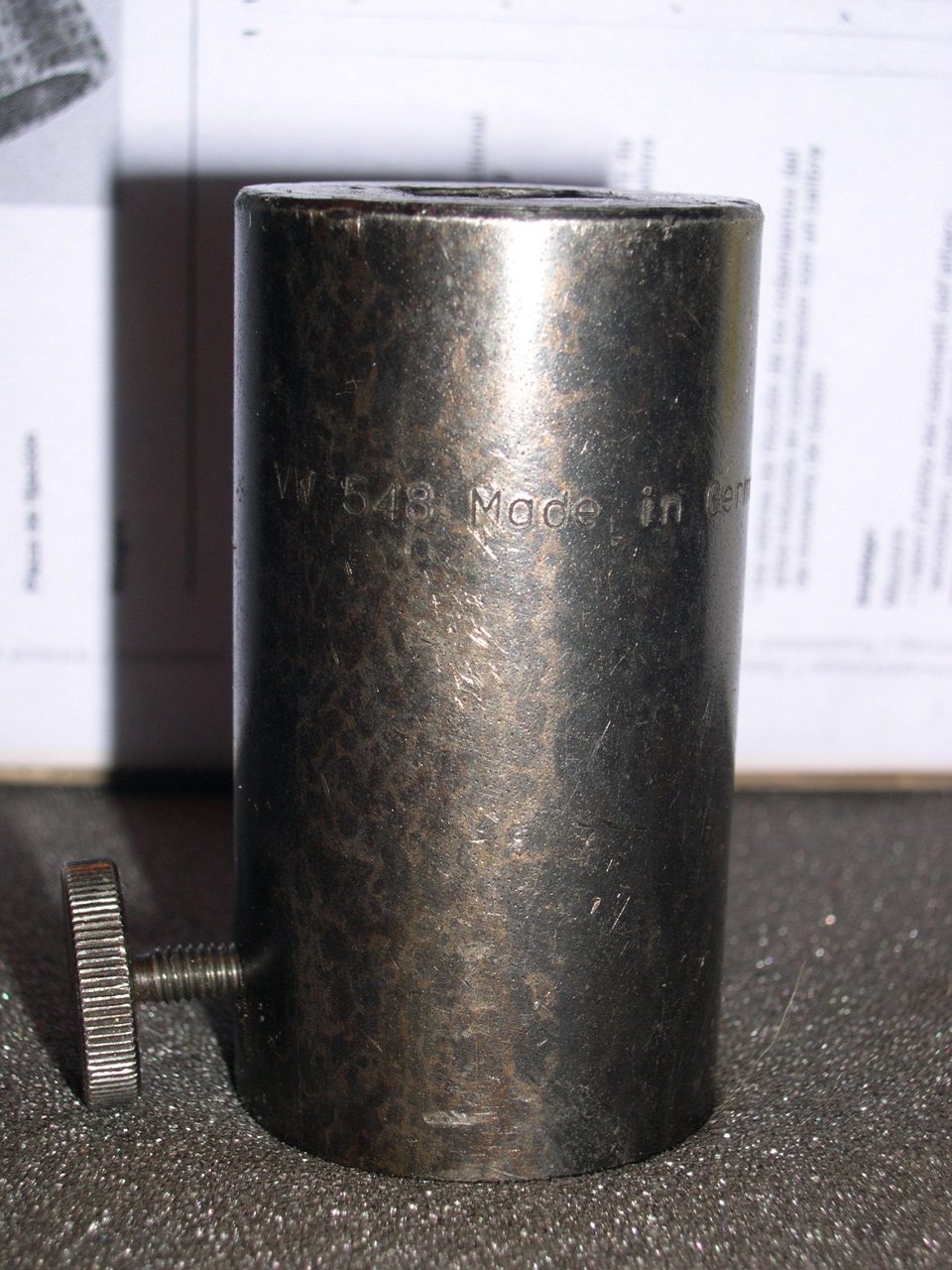

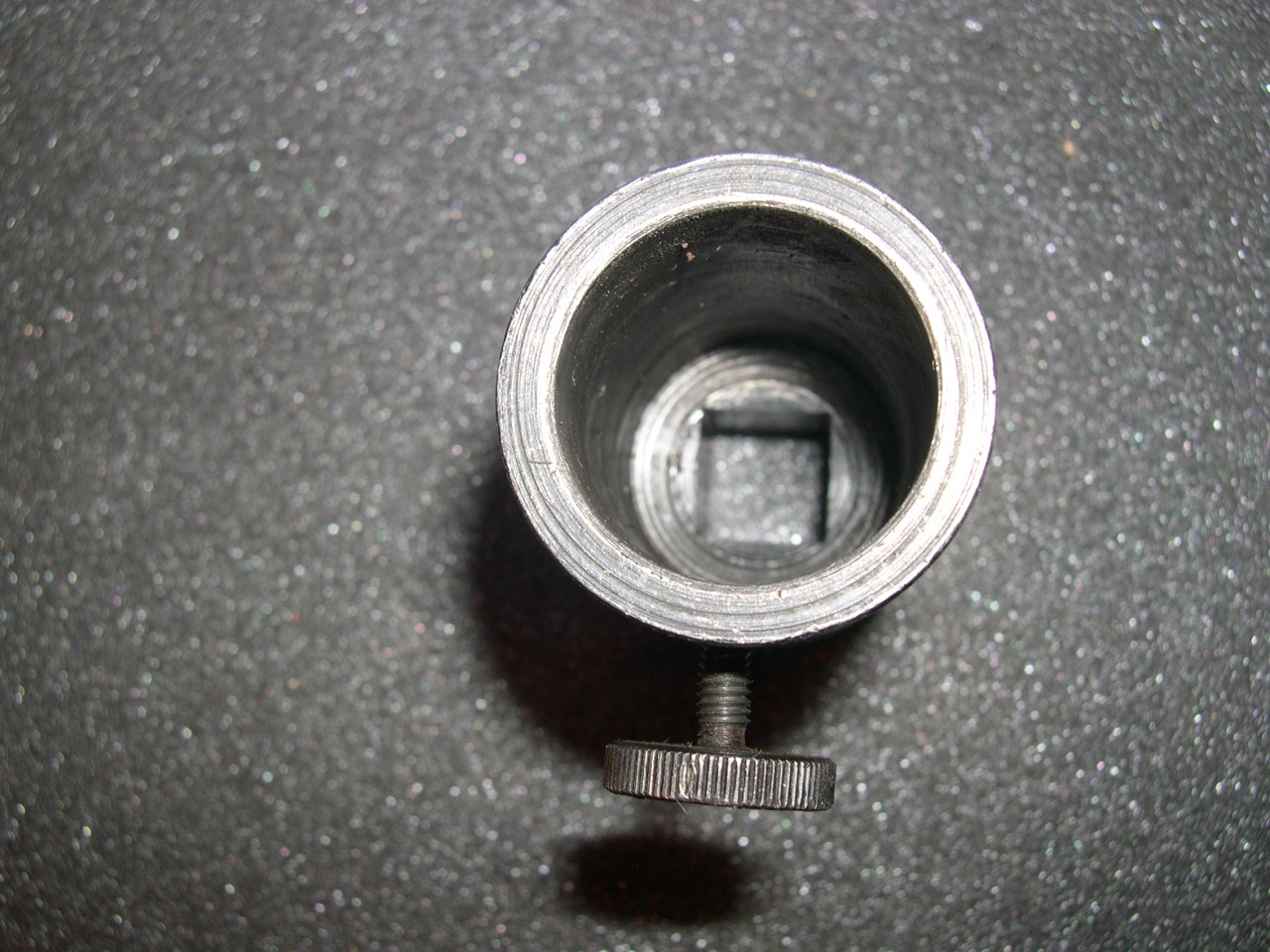

| 548 | Clamping Piece

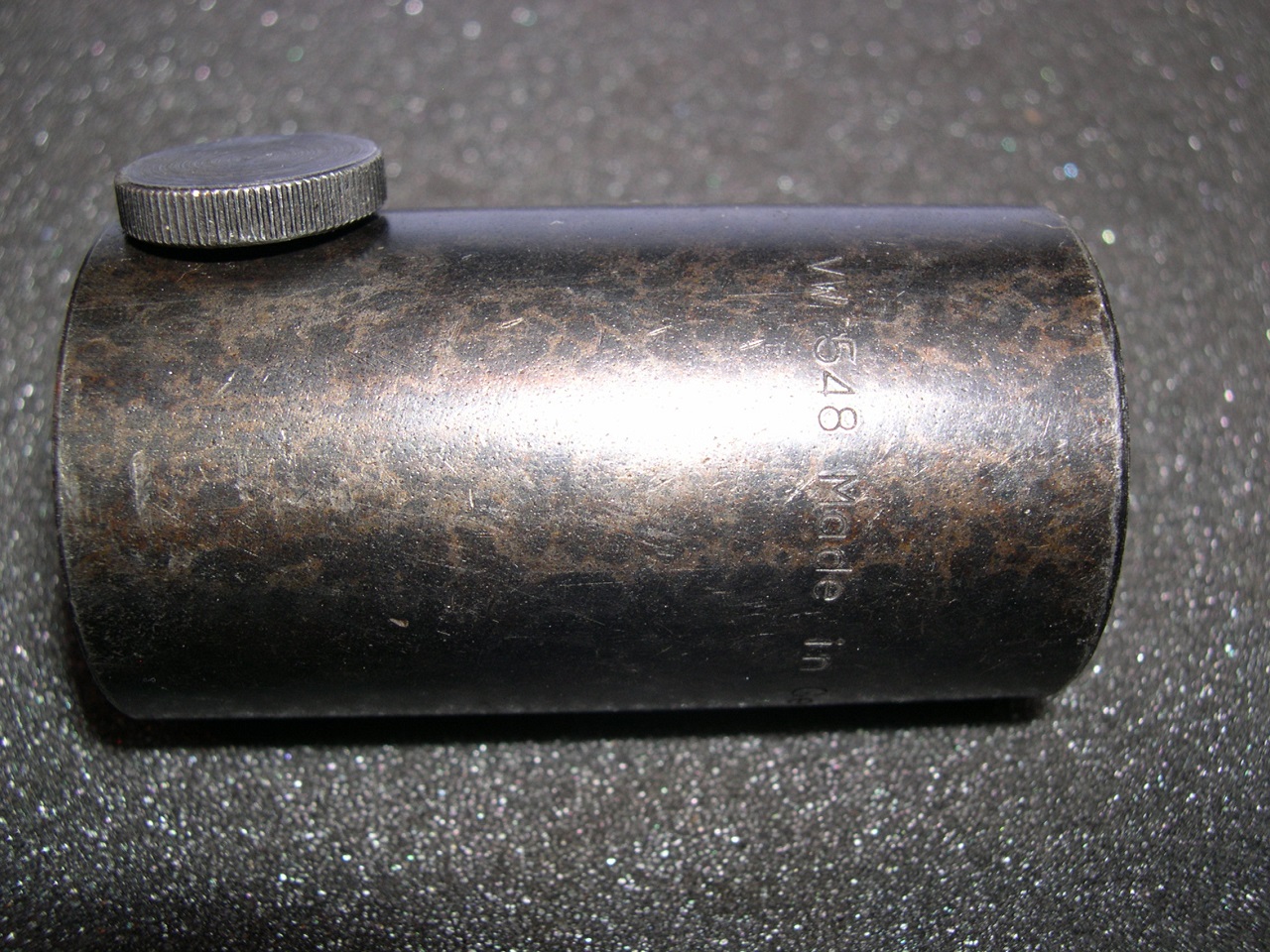

For measuring
- in conjunction with a torque gauge the frictional value (preload) of the
output shaft bearing |

 |

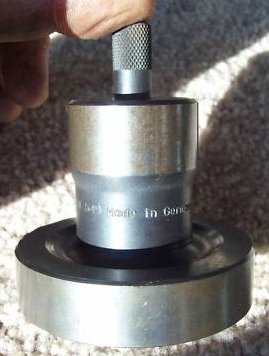

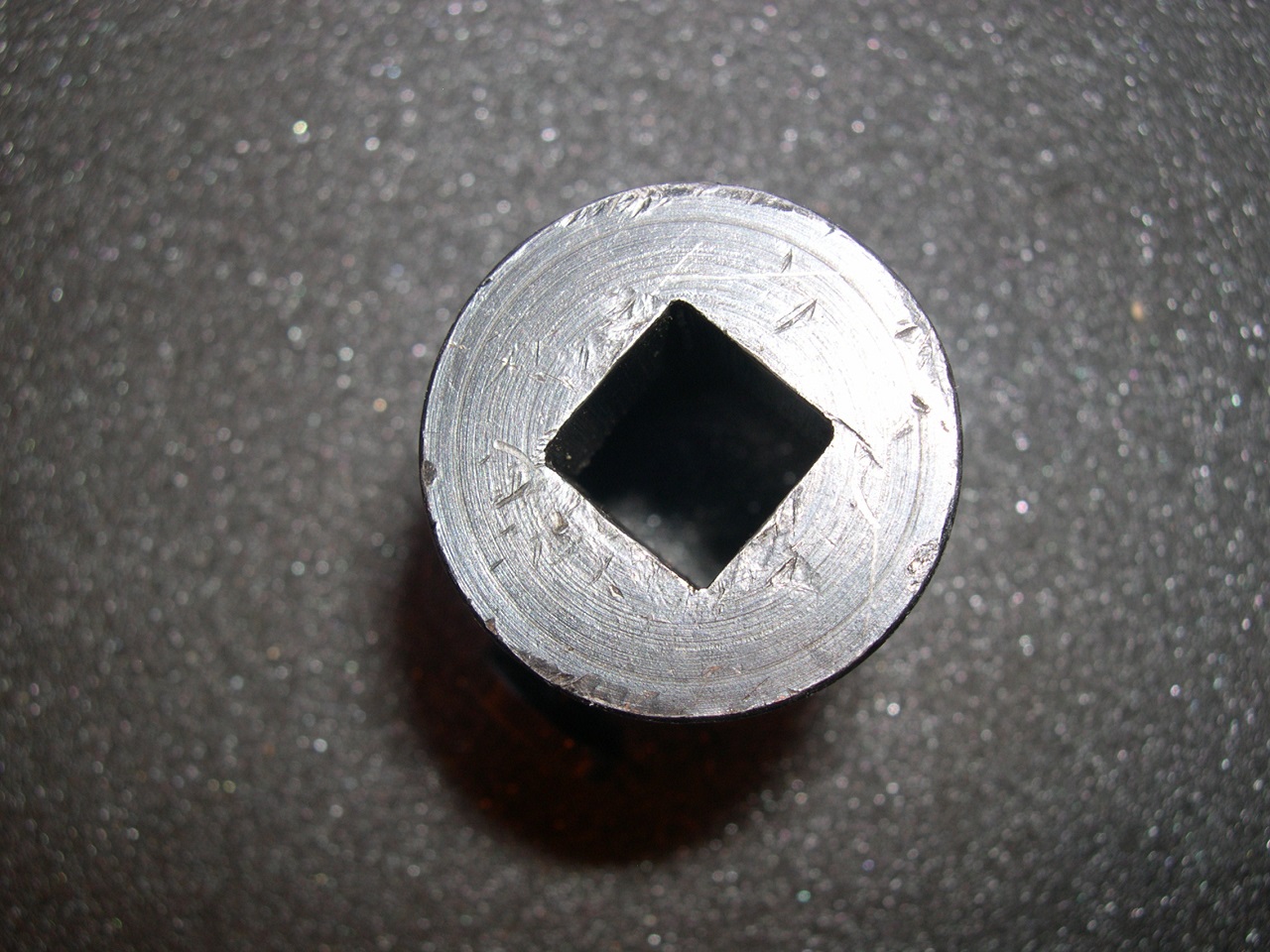

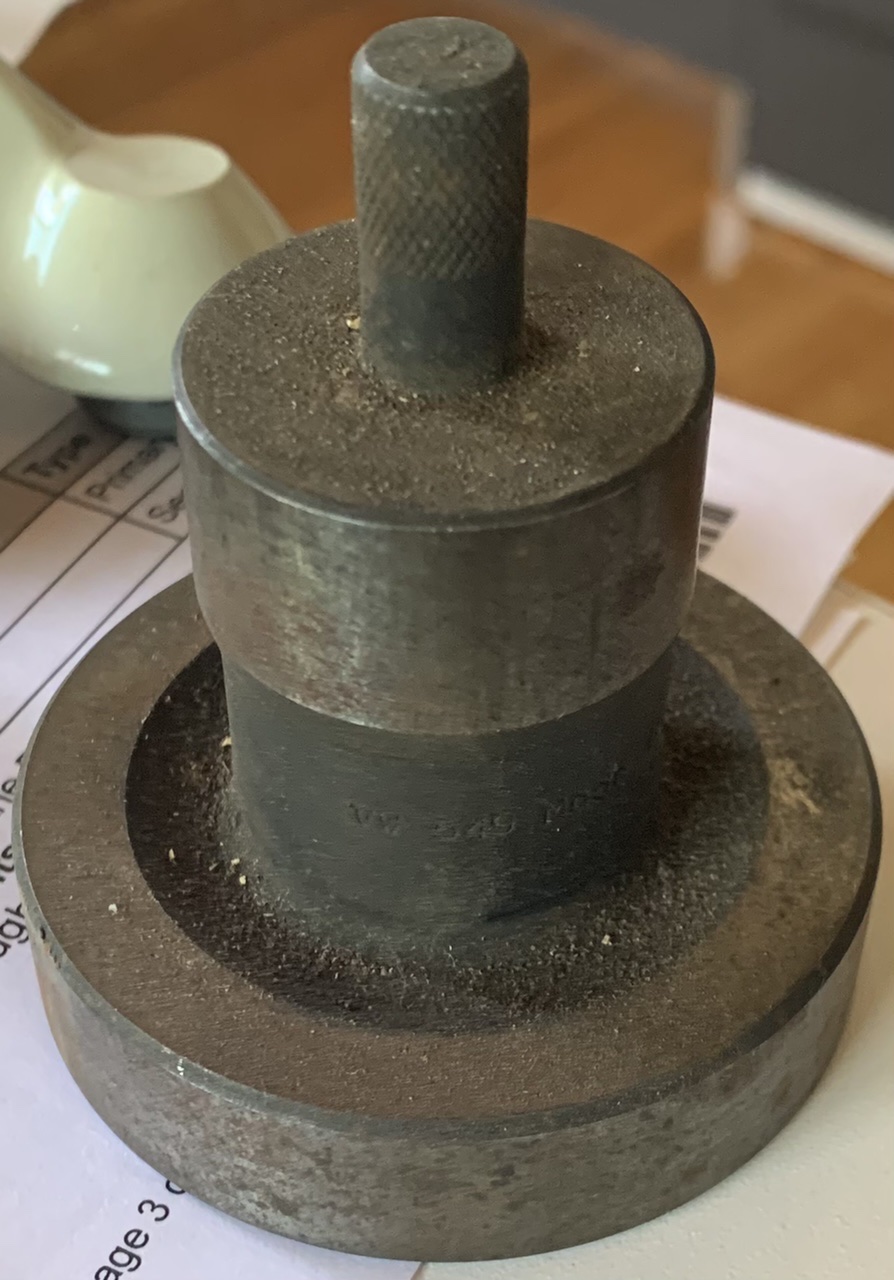

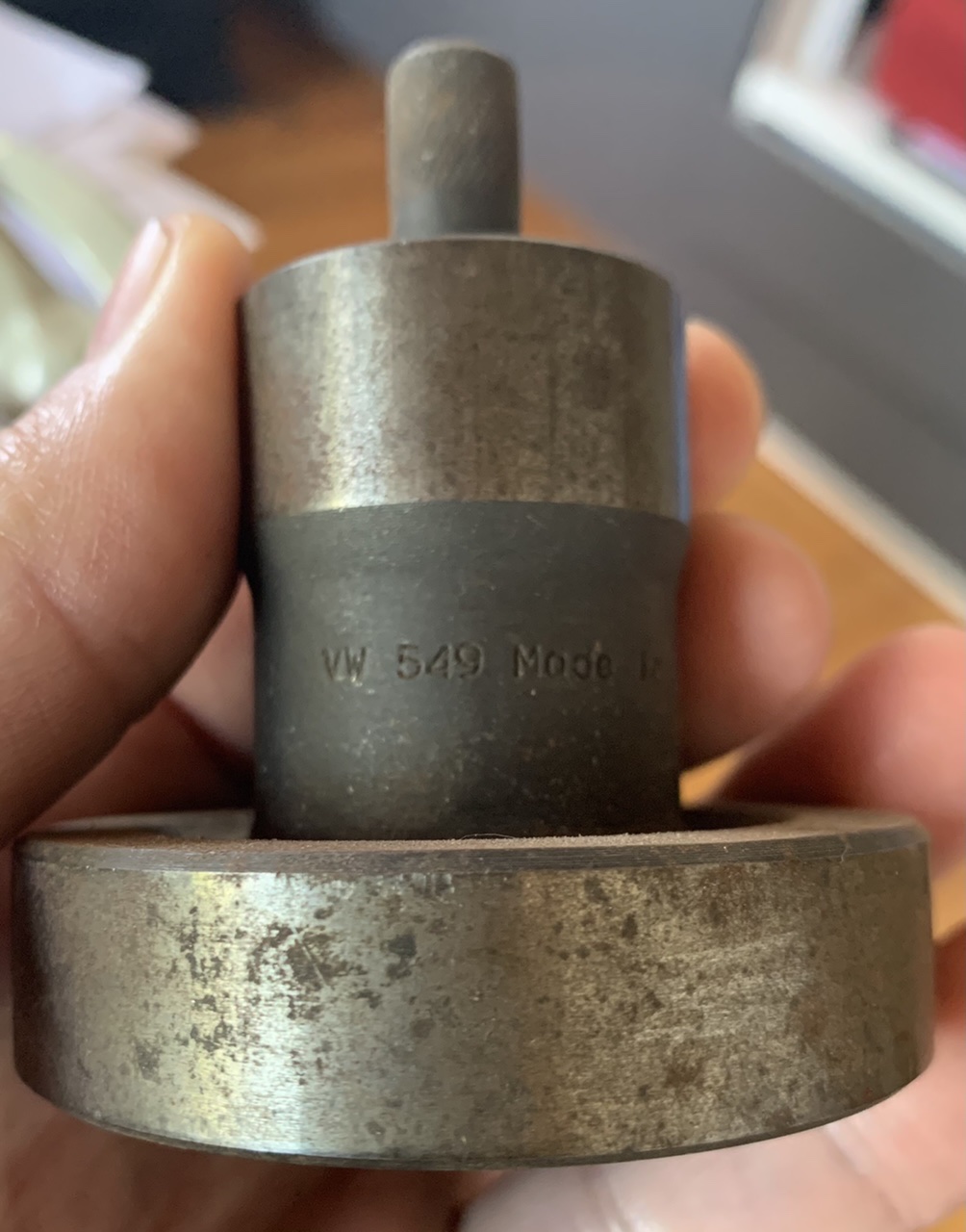

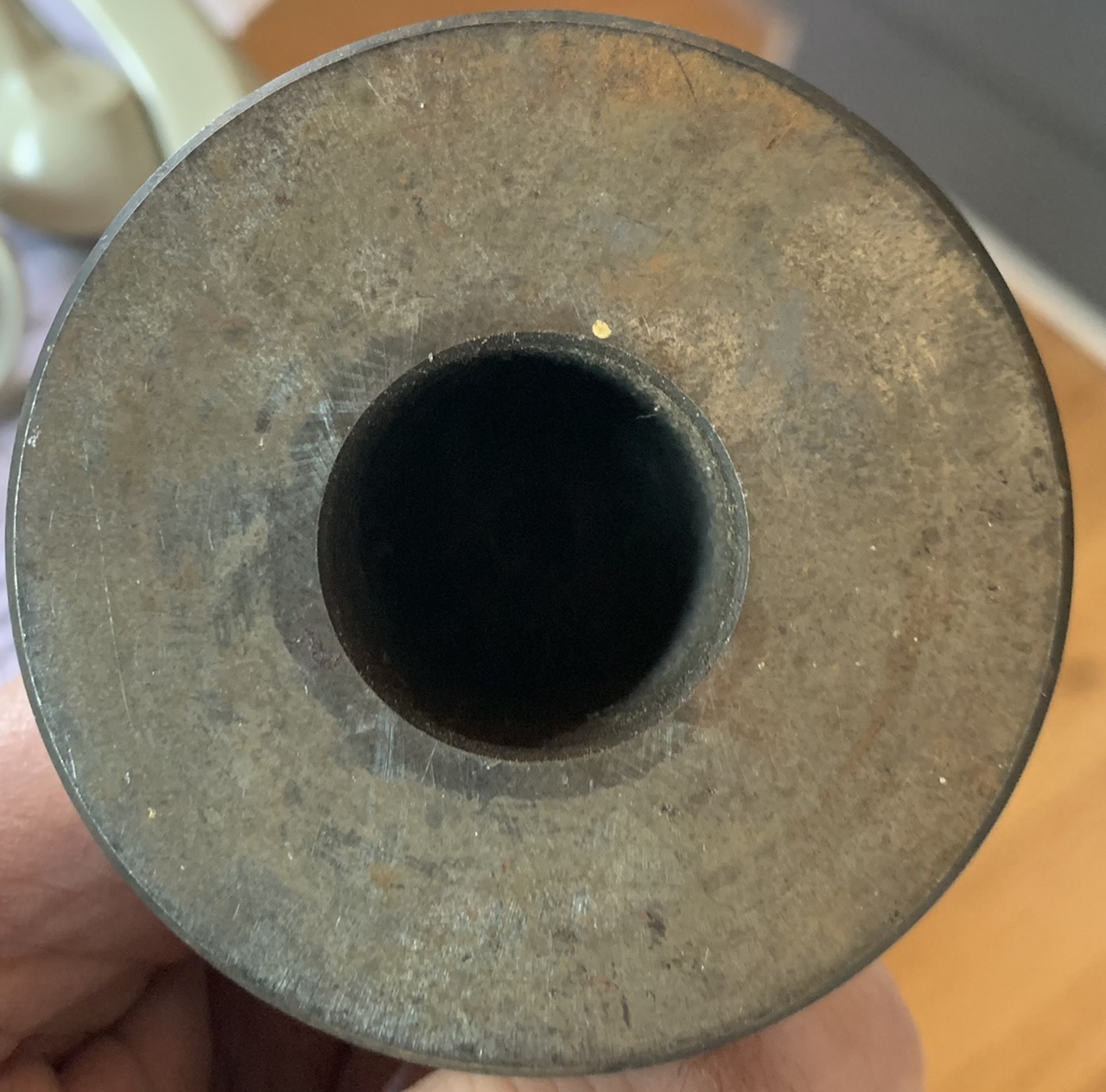

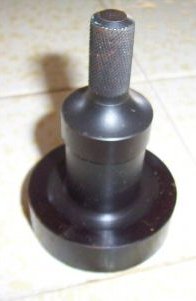

| 549 | Shim adjustment
for output shaft |
 |
| 549a | Shim adjustment
for output shaft |
 |

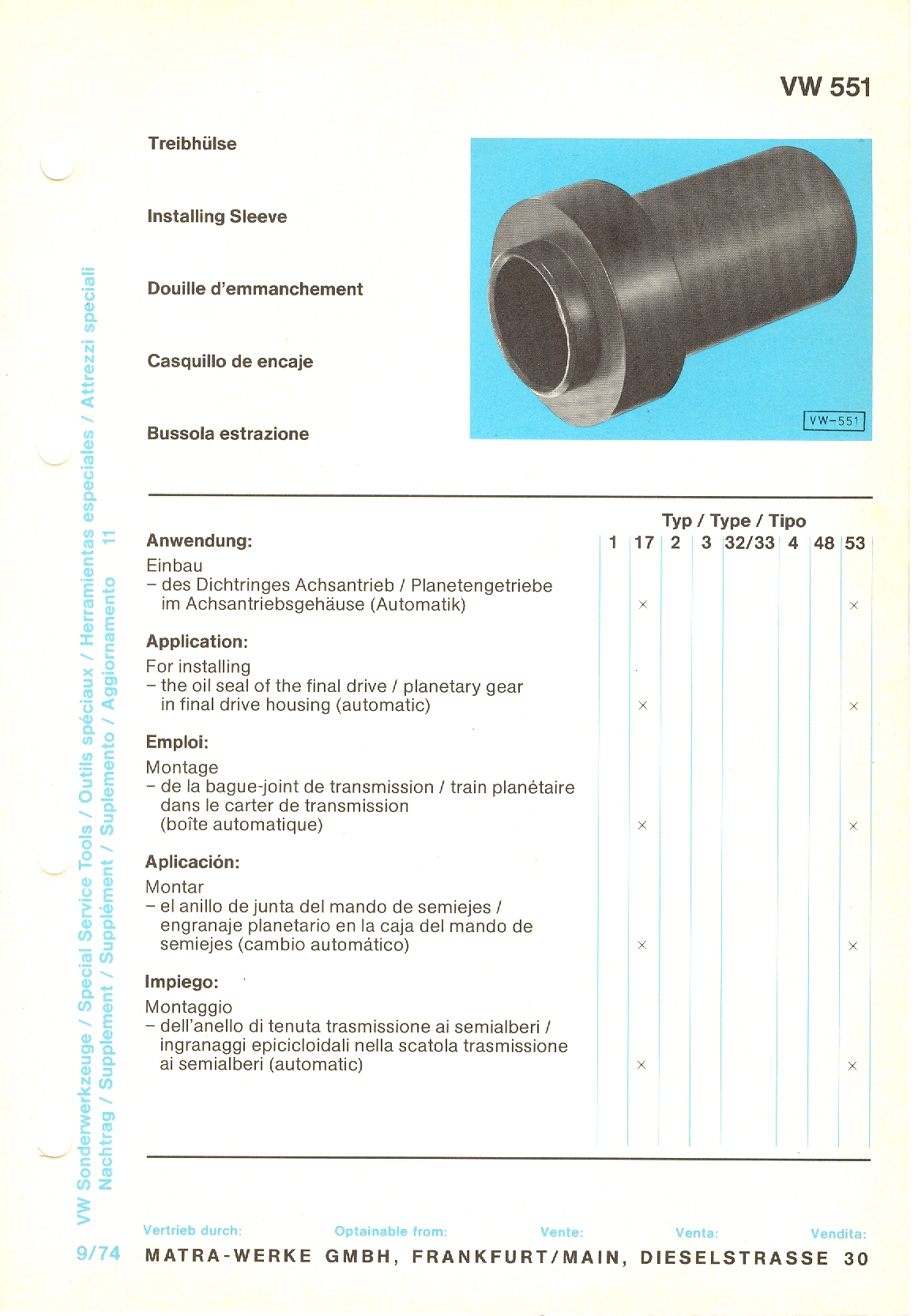

| 551 | Installing sleeve
For installing the oil seal of the final drive/planetary gear in final
drive housing (automatic) |
 |

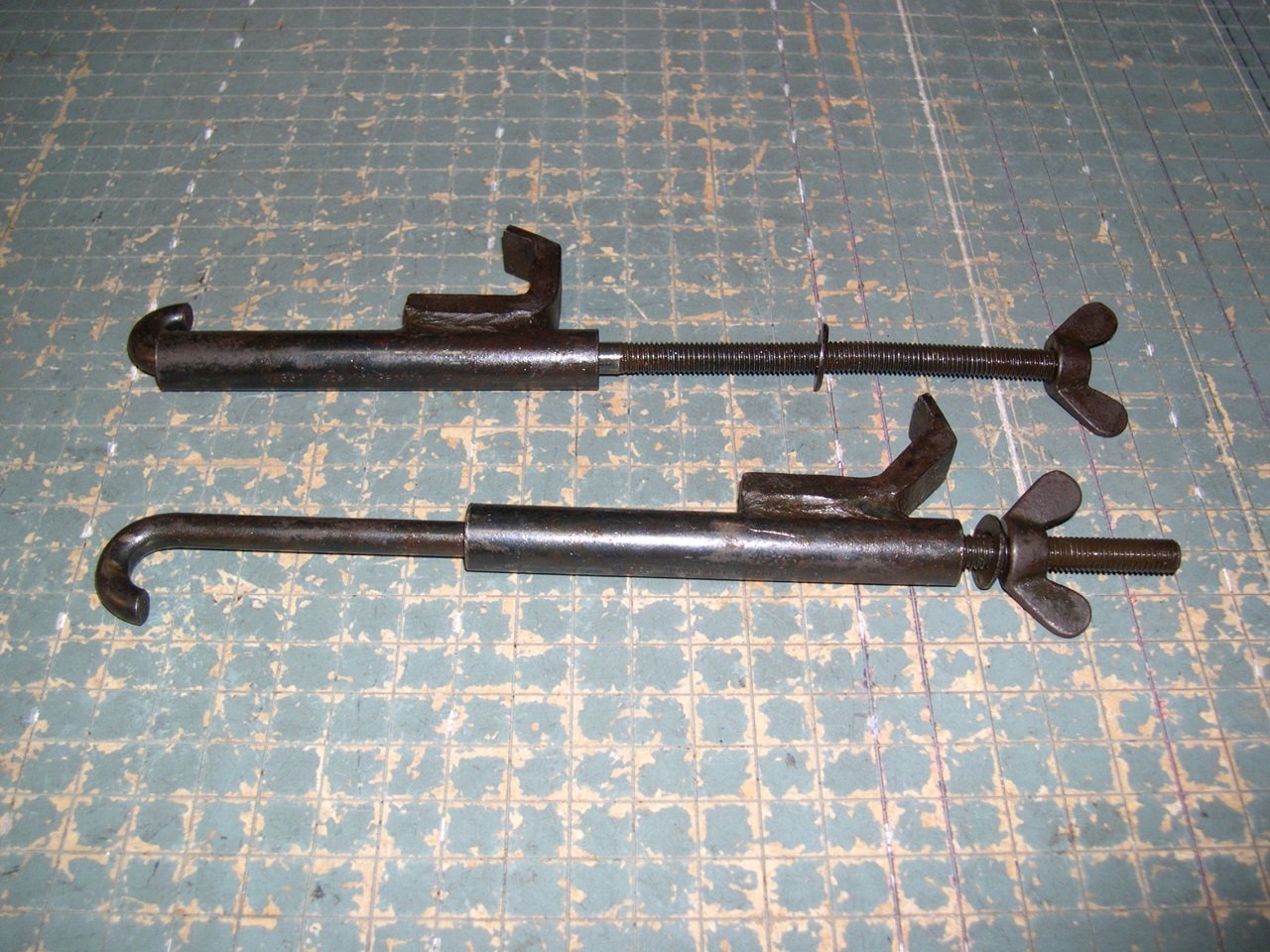

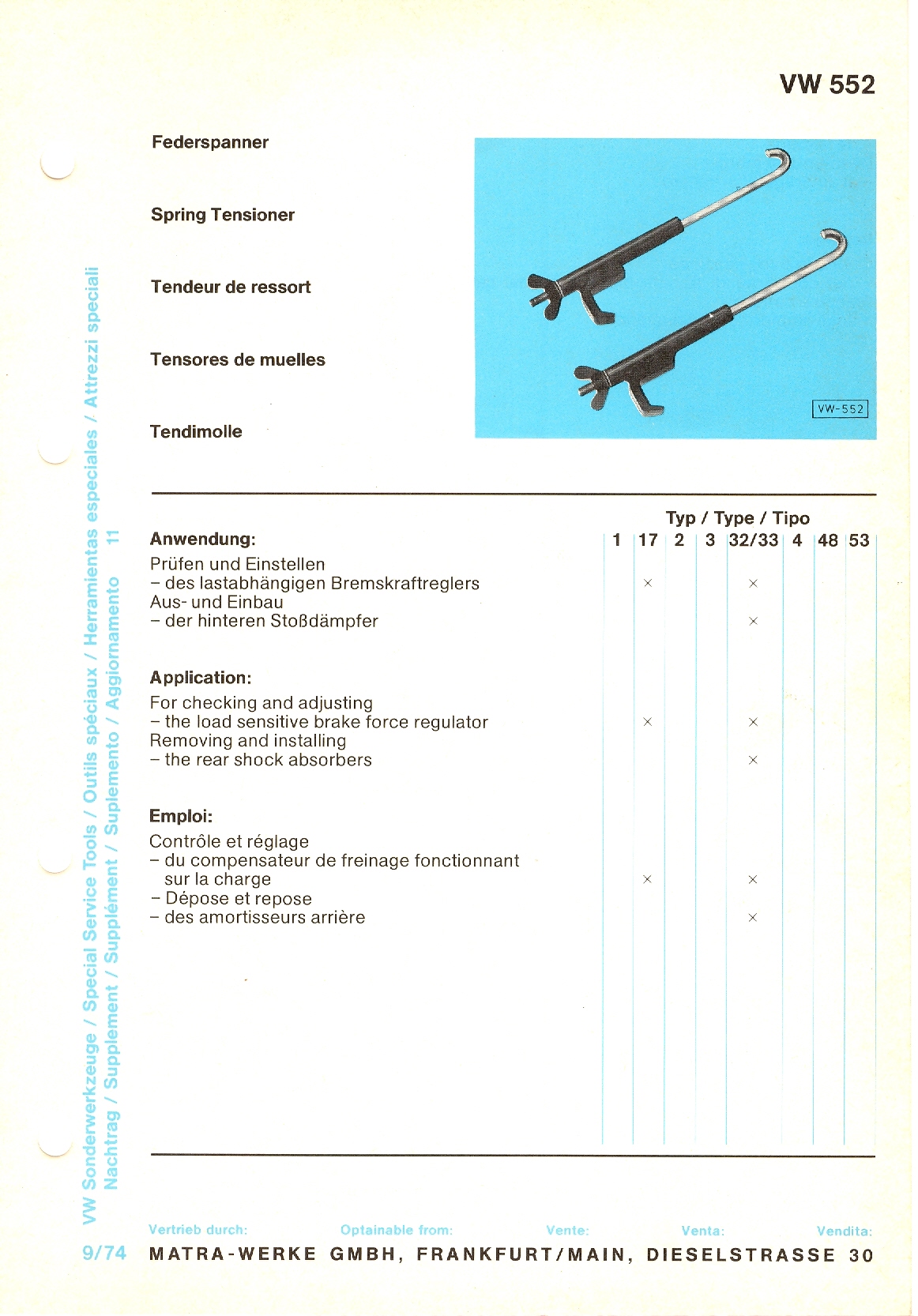

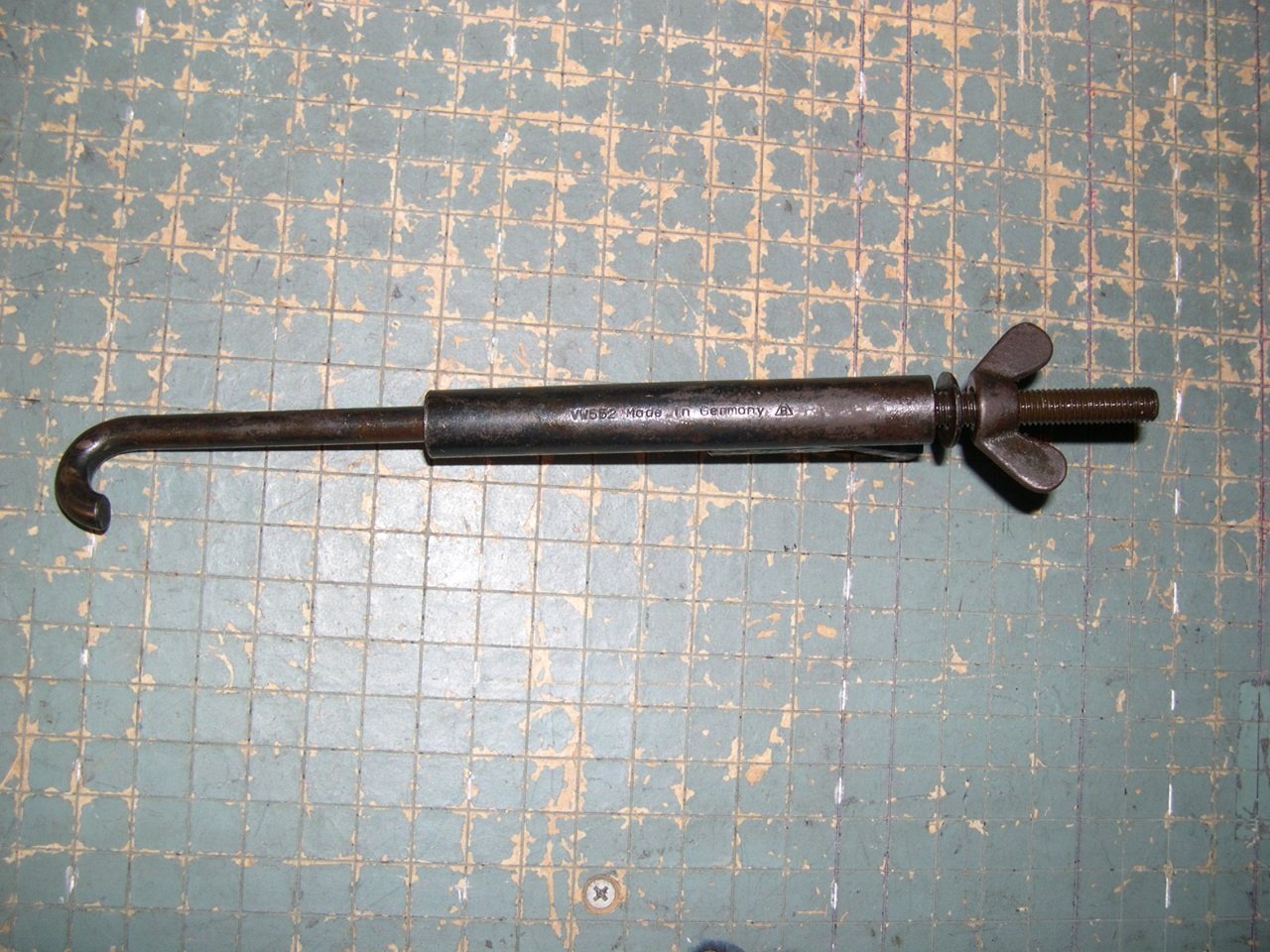

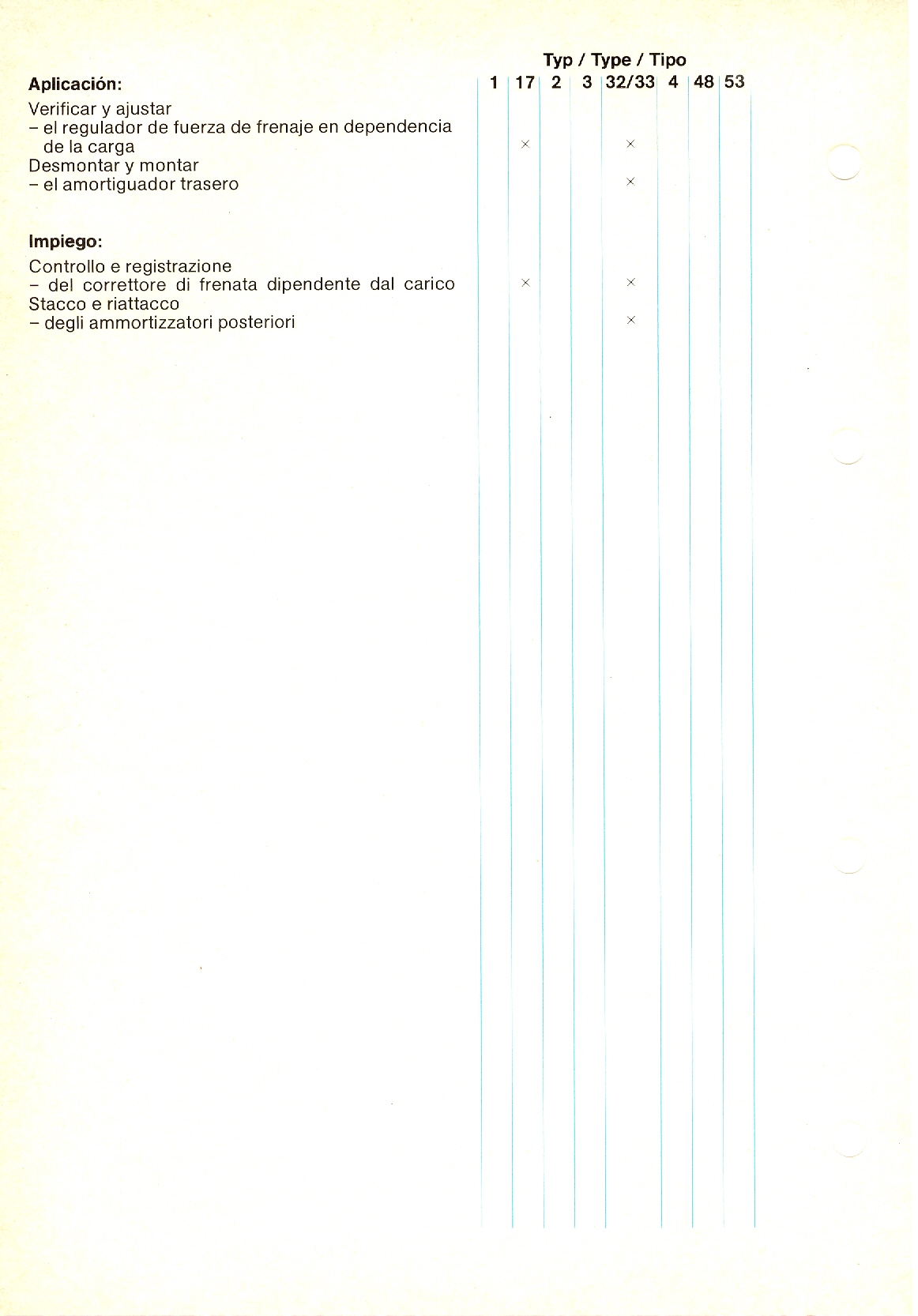

| 552 | Spring tensioner
For checking and adjusting the load sensitive brake force regulator
Removing and installing the rear shock absorbers |
  |

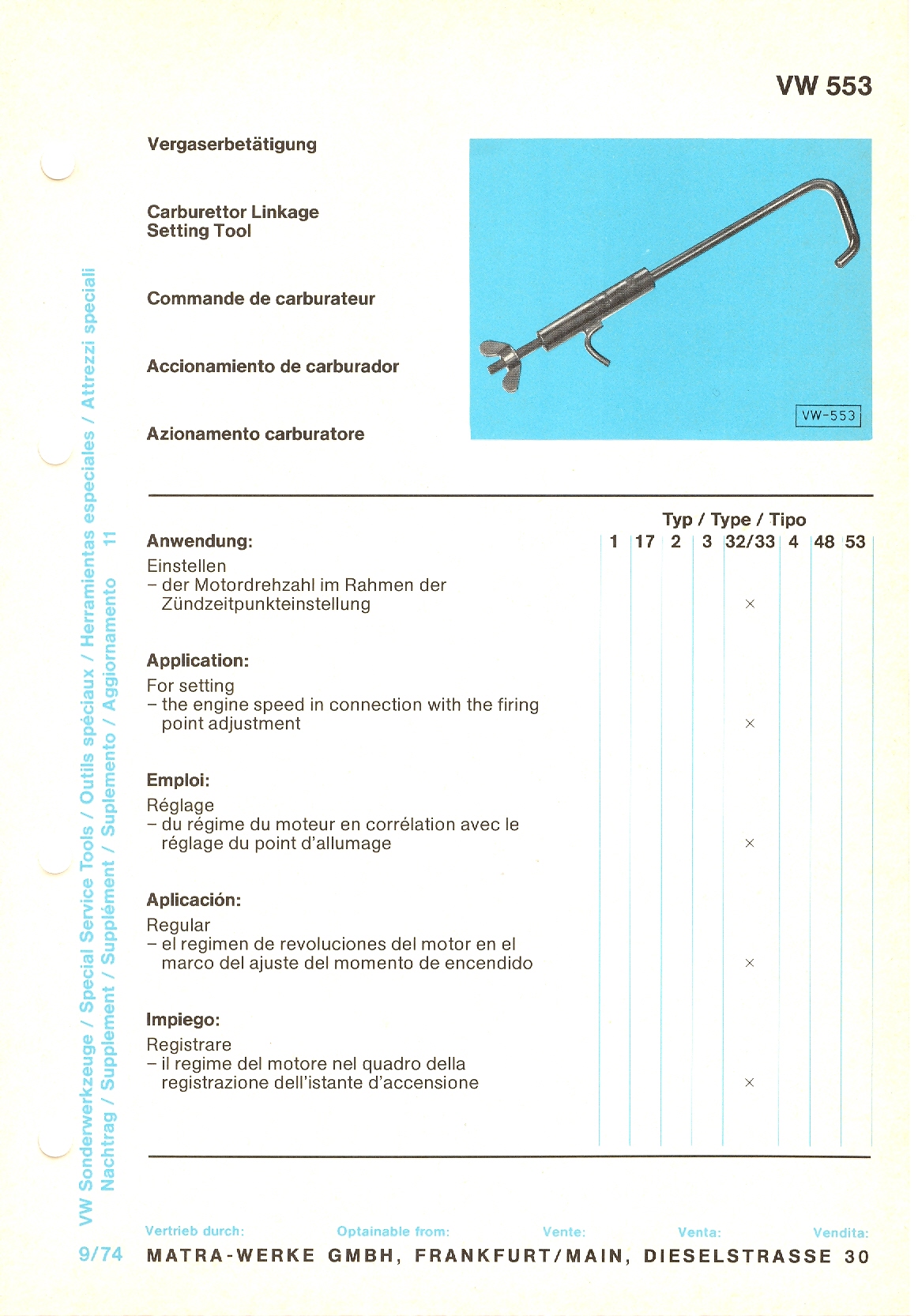

| 553 | Carburetor
Linkage Setting Tool
For setting the engine speed in conjunction with the firing point
adjustment
|
 |

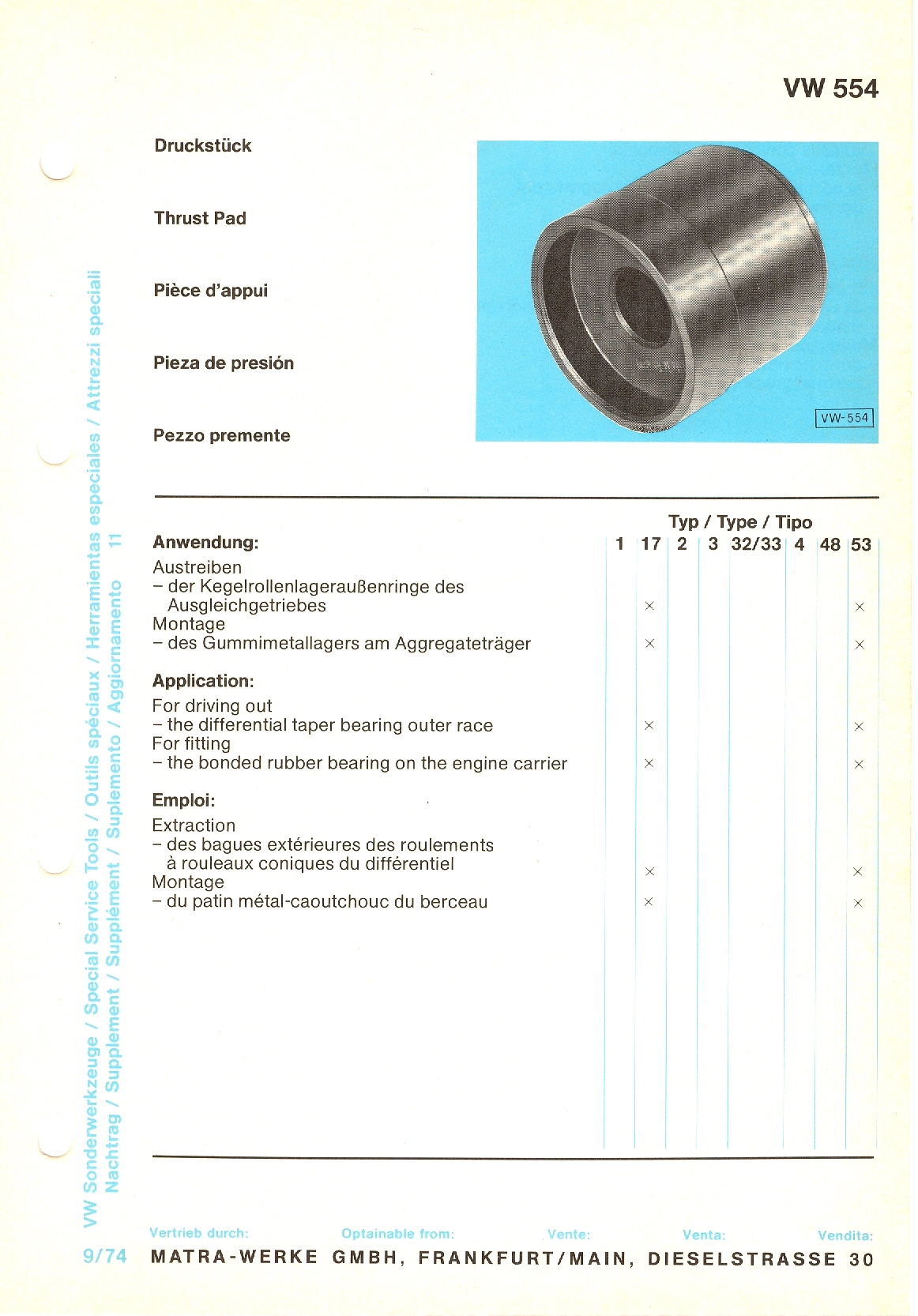

| 554 | Thrust Pad
For driving out the differential taper bearing outer race
For fitting thebonded rubber bearing on the engine carrier |
  |

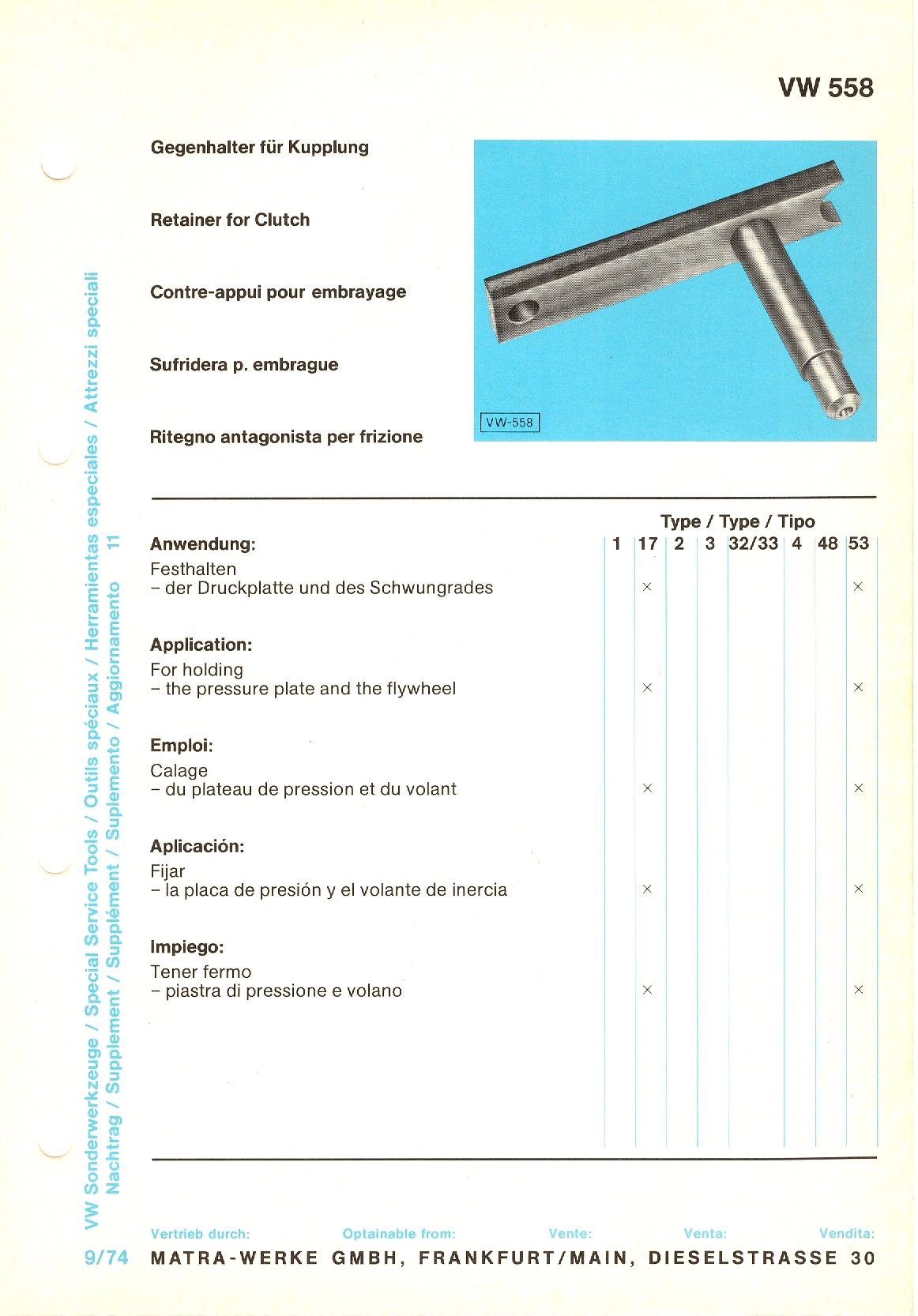

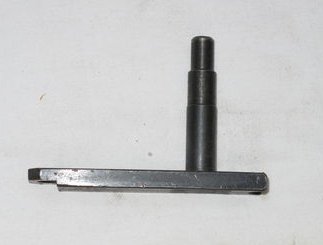

| 558 | Retainer for
Clutch
For holding the pressure plate and the flywheel |
 |
| 559 | Additional Hook
For removing and installing the engine gearbox assembly used in
conjunction with 10-207 and the Workshop crane VW 1202 |

 |
| 637/2 | Grease Cap
Remover |
 |
| 638 | Torsion Arm Bushing
Extractor
For extracting the bushing from the torsion arm |

 |
| 642 | Front End Swing
Lever Shaft Extractor
For extracting the center pin on a Bus front end |
 |
| 643 | O-Ring installer?
Possible for master cylinder rebuilding? |
 |
| 647 | Fuel Hose Clip
For preventing loss of fuel during tank removal or
fuel pump maintenance. |
 |
| 650 | Cylinder Retainer
For retaining cylinders when removing and installing
heads |
 |
| 653 | Valve Compressor
For compressing valve springs with the engine
installed. |
 |
| 655/3 | Compressor
For various compressing purposes, such as ball
joint front trailing arms after replacing ball joints, and compressing
spring plates on the rear axle when installing. |
 |
| 659/2 | Dial indicator
bracket
For meauring run-out of clutch thrust ring and
end play of crankshaft |
|
| 664 | Holding Tool
For holding differential, splitcase transmission |
 |
| 664-2 | Holding Tool
For holding differential, tunnel swingaxle
transmission |
 |
| 667 | Clutch Cable
Adjusting Tool
For adjusting the clutch cable |
 |
| 674 | Dash Eschuteon
Tool
For removing dash-mounted switches |
 |
| 690 | Bearing Tool
For installing the upper outer bearing on the driven
axle, reduction box (Type 2) |
 |
| 691 |
Type 3 tune-up tool
For checking linkage rod length and adjusting dual carbs on Type 3. |
 |
| 691? | ? |
 |
| 693 | Reduction Box Lower
Axle Bearing
Press |

 |
| 709 | Hood Spring Tool
For installing the hood springs on the Type 3 |
 |
| 769 | Outer Wheel
Bearing Tool
For checking and setting outer
wheel bearing play, front axle |
 |
| 778 | Master Cylinder
Rebuild Tool
For installing the piston seals
|
 |
| 780-1 | Ball Joint Boot
Retaining Ring Installer
Bus |
 |
| 780-2 | Ball Joint Boot
Retaining Ring Installer
Beetle, Ghia, and Type 3. |
 |
| 796 | Flex Wrench -
Mainshaft |
 |
| 803 | Oil Pump Removal
Tool
Type 411 |
 |
| 1004 | Box Wrench 10 mm
For removal and installation of single port intake manifold nuts |
 |
| 10-201 | Retainer
For locking the flywheel when undoing and tightening
the attachment screws of the clutch and flywheel (Dasher) |
 |
| 10-202 | Extractor
For extracting the needle bearing out of the
crankshaft (Dasher) |
 |
| 10-203 | Puller
For pulling in the front oil seal of the intermediate
shaft and crankshaft (Dasher) |
 |
| 10-204 | Mandrel
For pressing on the valve stem seal (Dasher) |
 |
| 10-205 | Fitting Sleeve
For fitting the crankshaft oil seal at the flywheel
end (Dasher) |
 |
| 10-207 | Engine
Suspension Chain
For removal and installation of the engine in
conjunction with the workshop crane VW 1202 (Dasher) |
 |
| 10-208 | Pliers
For removing and installing the bucket tappet
clearance discs (adjusting valve clearance) (Dasher) |
 |
| 10-212 | Assembly Tray
for Tappet Clearance Discs
For storage of the tappet clearance discs (Dasher) |
 |
| 10-218 | Pliers
For removing the valve stem seal and the valve spring
seat (Dasher) |
 |
| 10-219 | Extractor
For removing the front crankshaft oil seal (Dasher) |
 |
| 10-220 | Puller Ring
For fitting the crankshaft oil seal at the flywheel
end (Dasher) |
 |
| 10-222 | Engine Support
Bracket
For removing and installing the sump as well as the
complete engine and transmission unit including subframe (Dasher and NSU
K70) |
 |
| 30-205 | Thrust Pad
For removing and installing the outer race of the
drive pinion roller bearing (Dasher) |
  |
| 30-210 | Fitting Tool
For installing the power unit rear bonded rubber
mounting (Dasher) |
 |
| 30-211 | Support Bridge
For installation of the bearing of the drive shaft
(Dasher) |
 |
| 30-212 | Punch
For installing the oil seal in the final drive
(Dasher) |
 |
| 40-20 | Press Tool
For pressing out the taper ball bearing from the
wheel bearing housing (Dasher) |
 |
| 40-200 | Camber
Adjusting Lever
For adjusting the camber of the front wheels (Dasher) |
 |
| 40-201 | Shock Absorber
Wrench
For loosening and tightening the screw cap of the
shock absorber (Dasher) |
 |
| 40-204 | Tensioner
For pressing on the inner constant velocity joint of
the drive shaft (Dasher) |
 |
| 4435 | RPM Setting Tool
For idle adjustment |
 |
| 4436 | Transmission
alignment tool
For type 4 manual transmission |
 |
