Type 4 Wiring Diagrams
Contributions to this section are always welcome

  Instructions:

  • Right click on the diagram/key/fuse box you want to download
  • Select "Save Link As" or Save Target As" from the pop-up menu
  • Save the diagram to your hard drive, remember where you put it!
  • Open the diagram on your computer with an image program
Please Note: Some of the fuse boxes pictured in the diagrams are
rotated 180 degrees from how they actually mount in the car
For additional Wiring Diagrams info, see Electrical System (E) in the Technical Bulletins Index.
For wire sizes, also see Wiring size conversion chart - German mm to USA AWG
Also see Understanding European Wiring Diagrams from Motor Magazine

Year Diagram Key Fuse box Comments/Extras

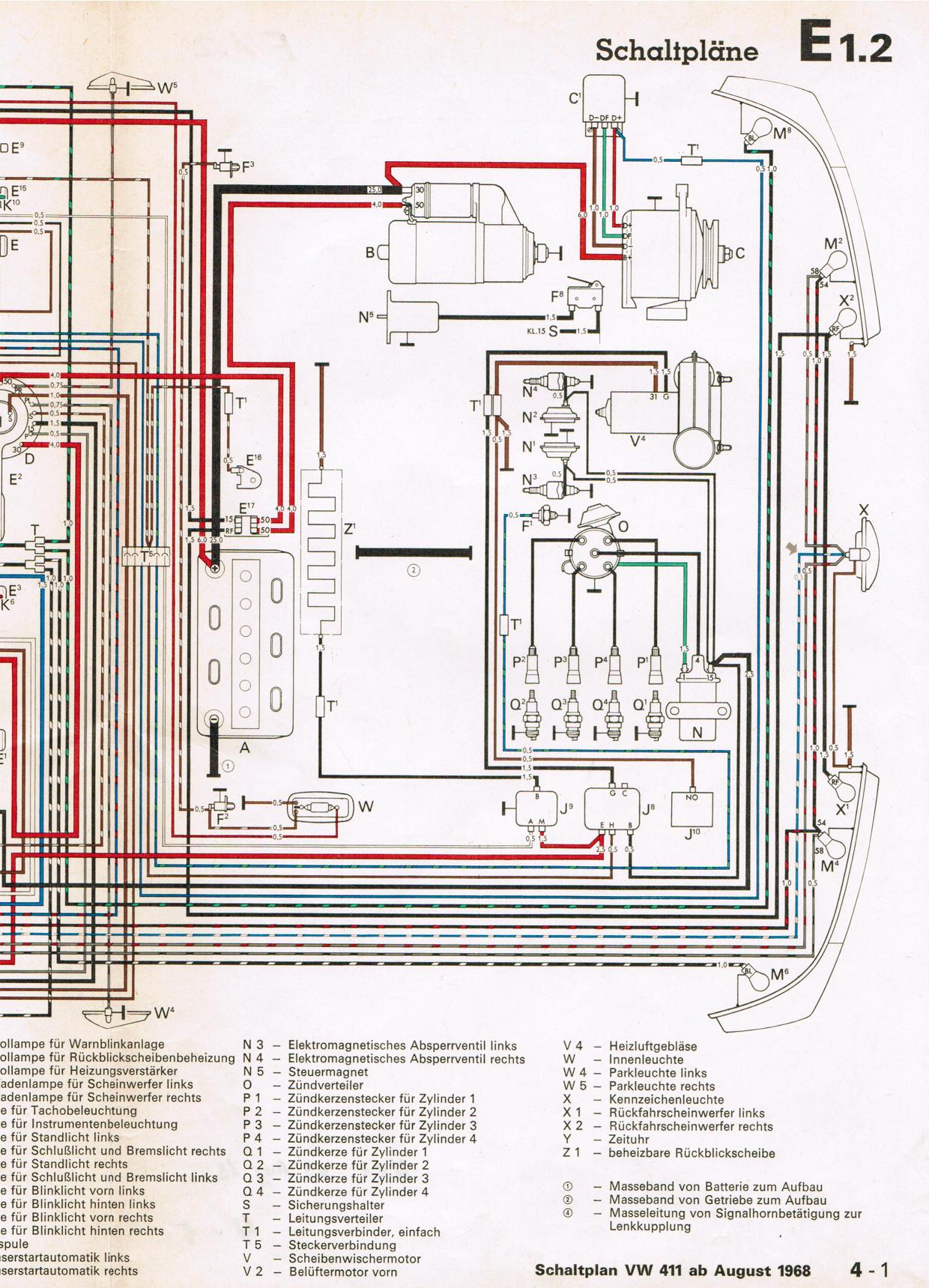

1969   411 Non-USA

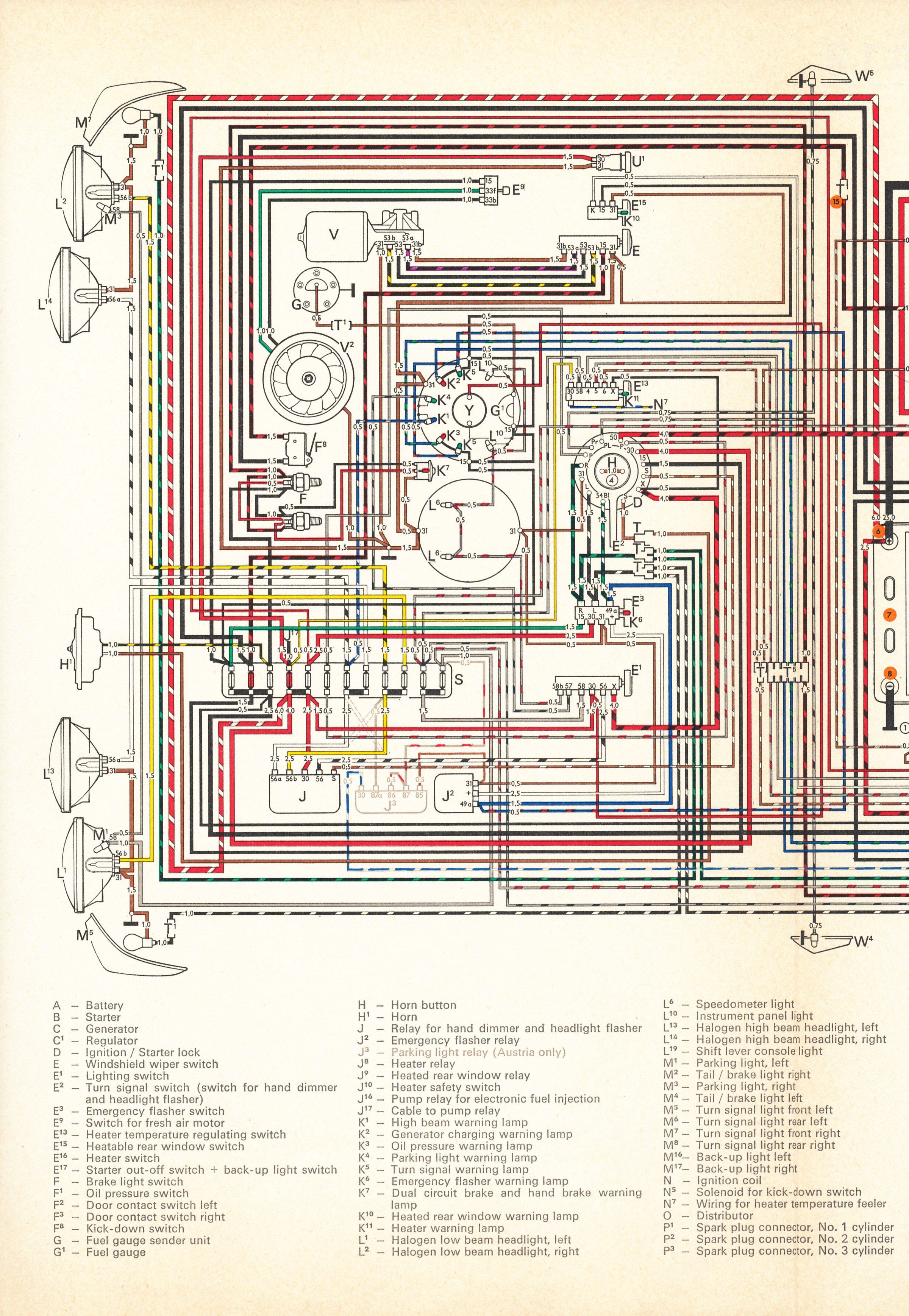

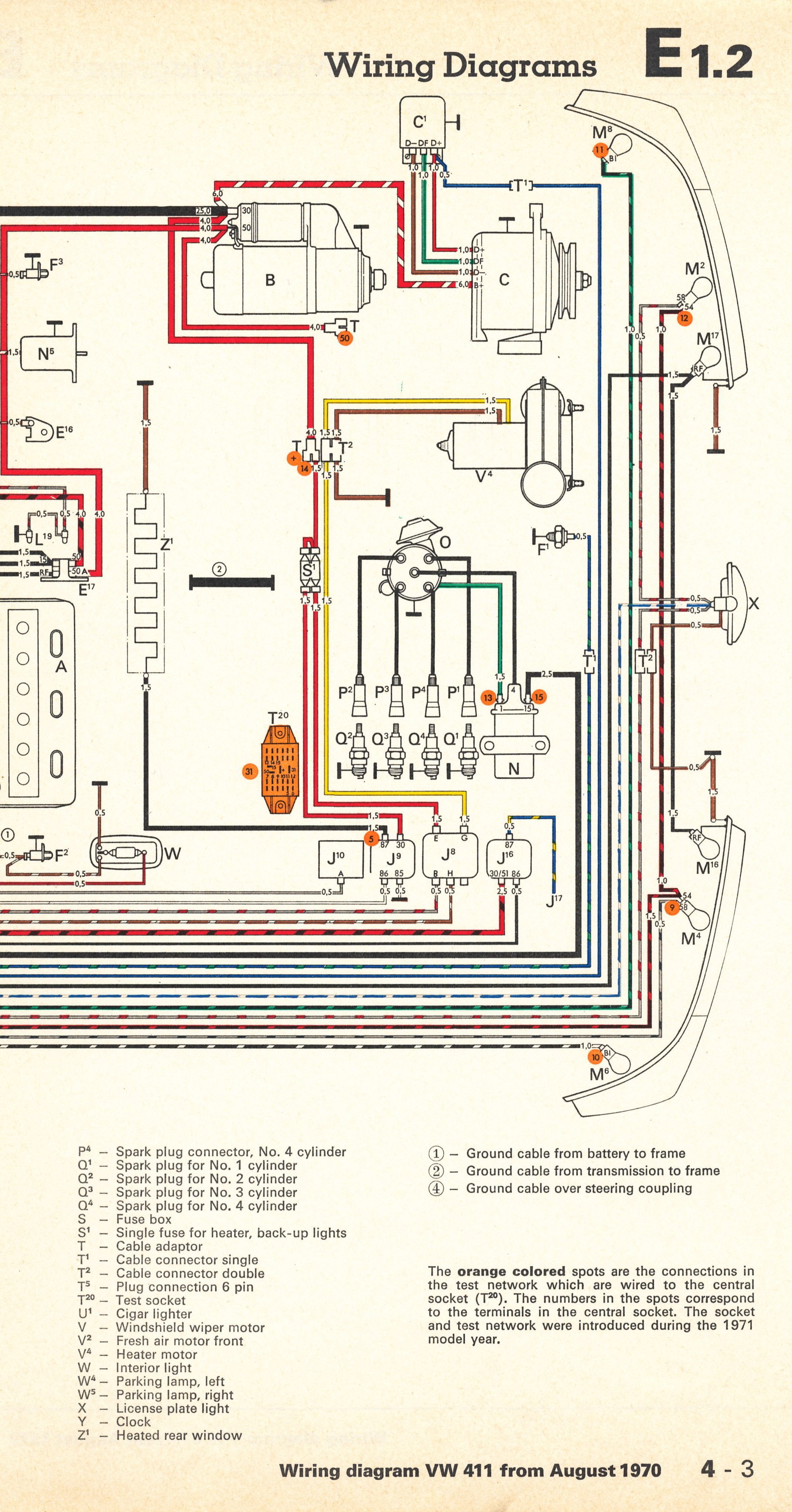

1971     411 Non-USA

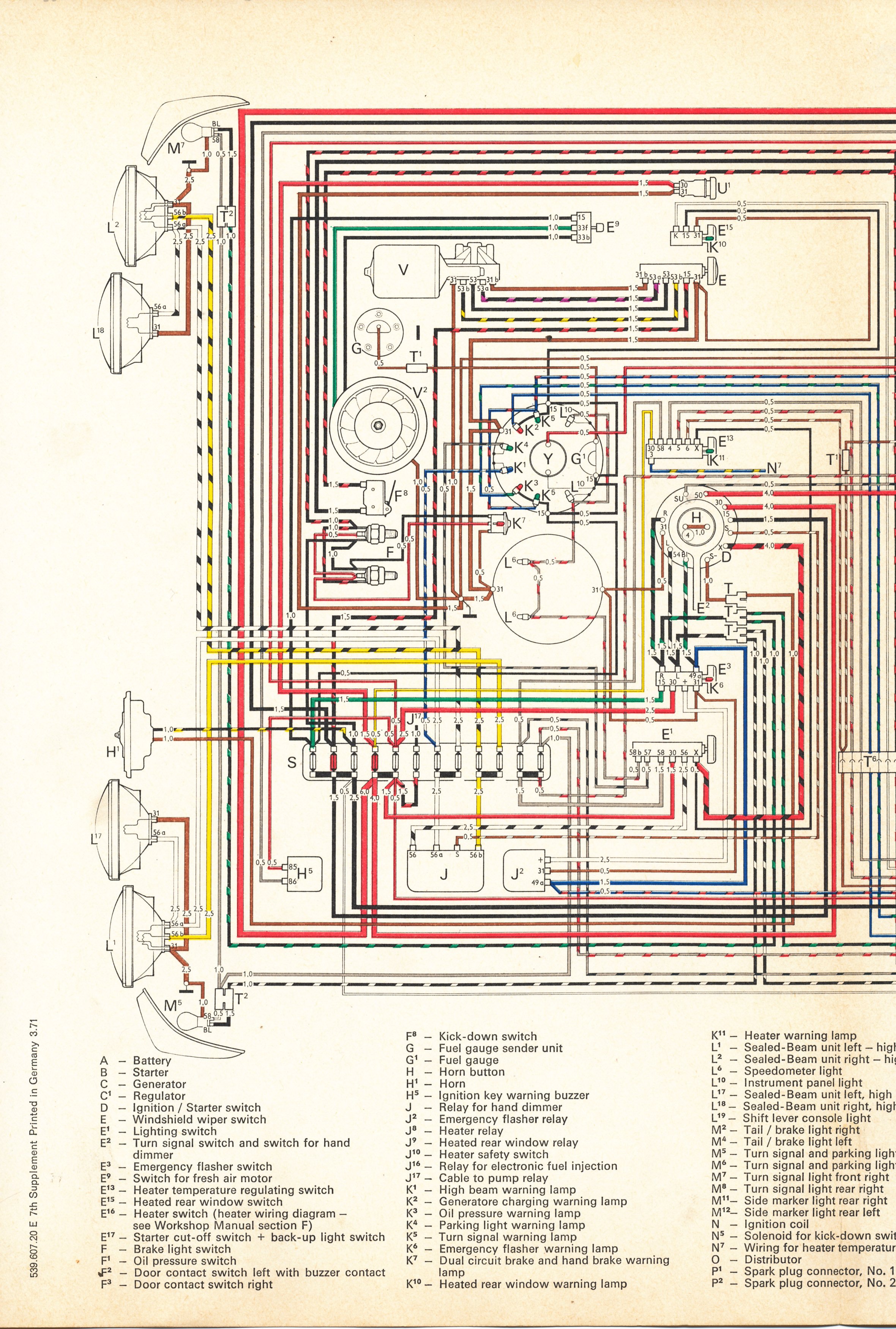

1971     411 USA
1972     411 Non-USA
1972     411 USA

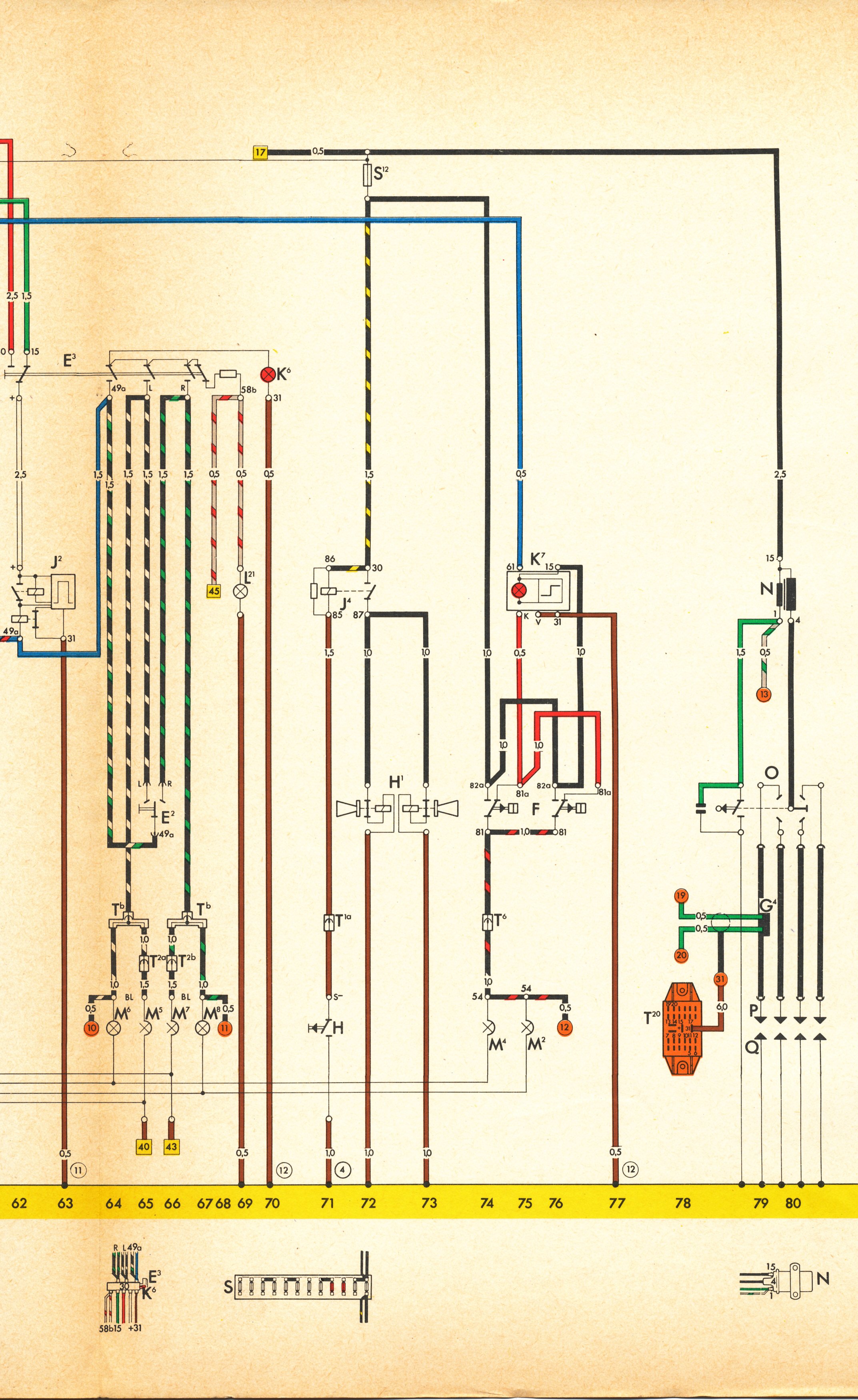

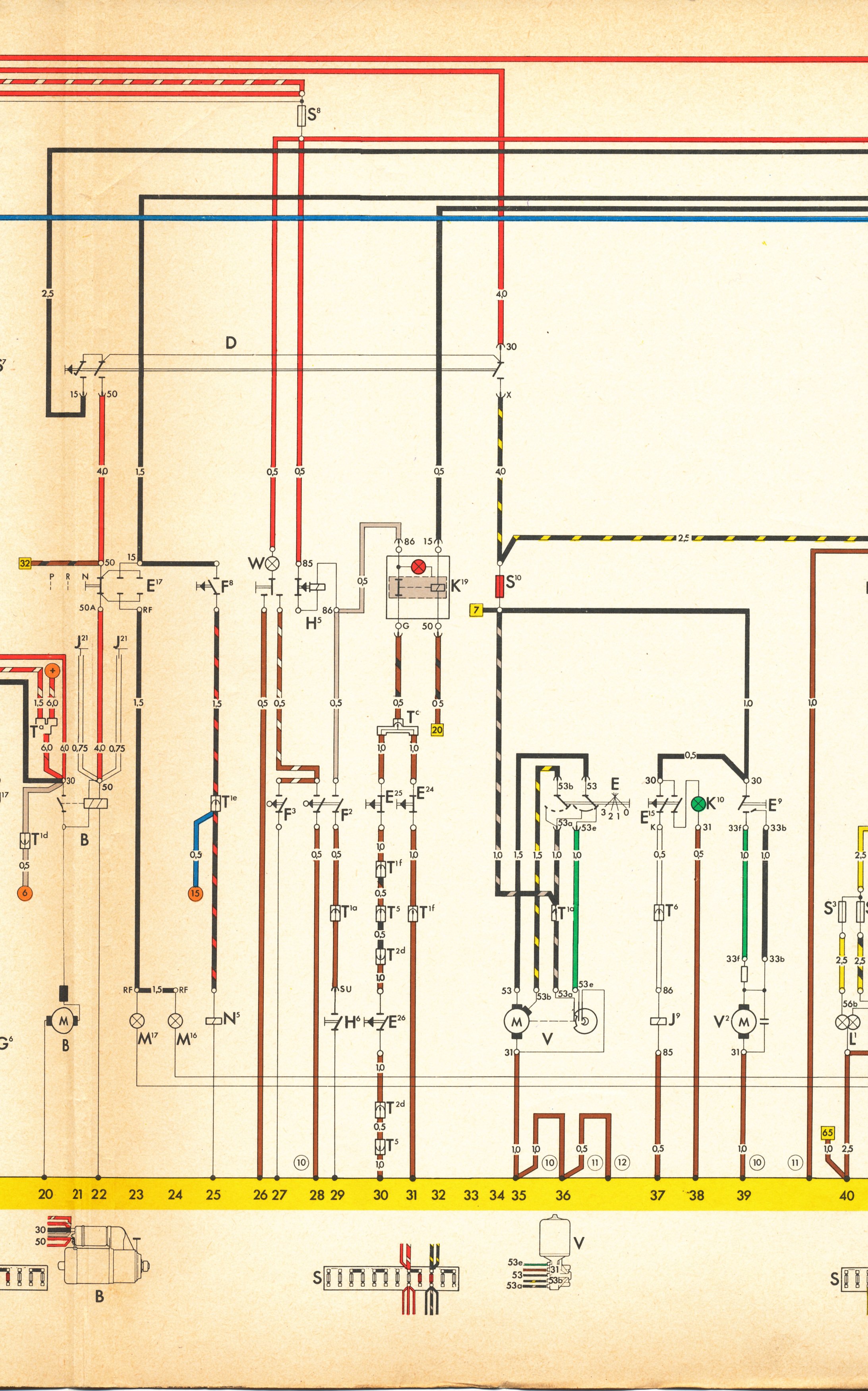

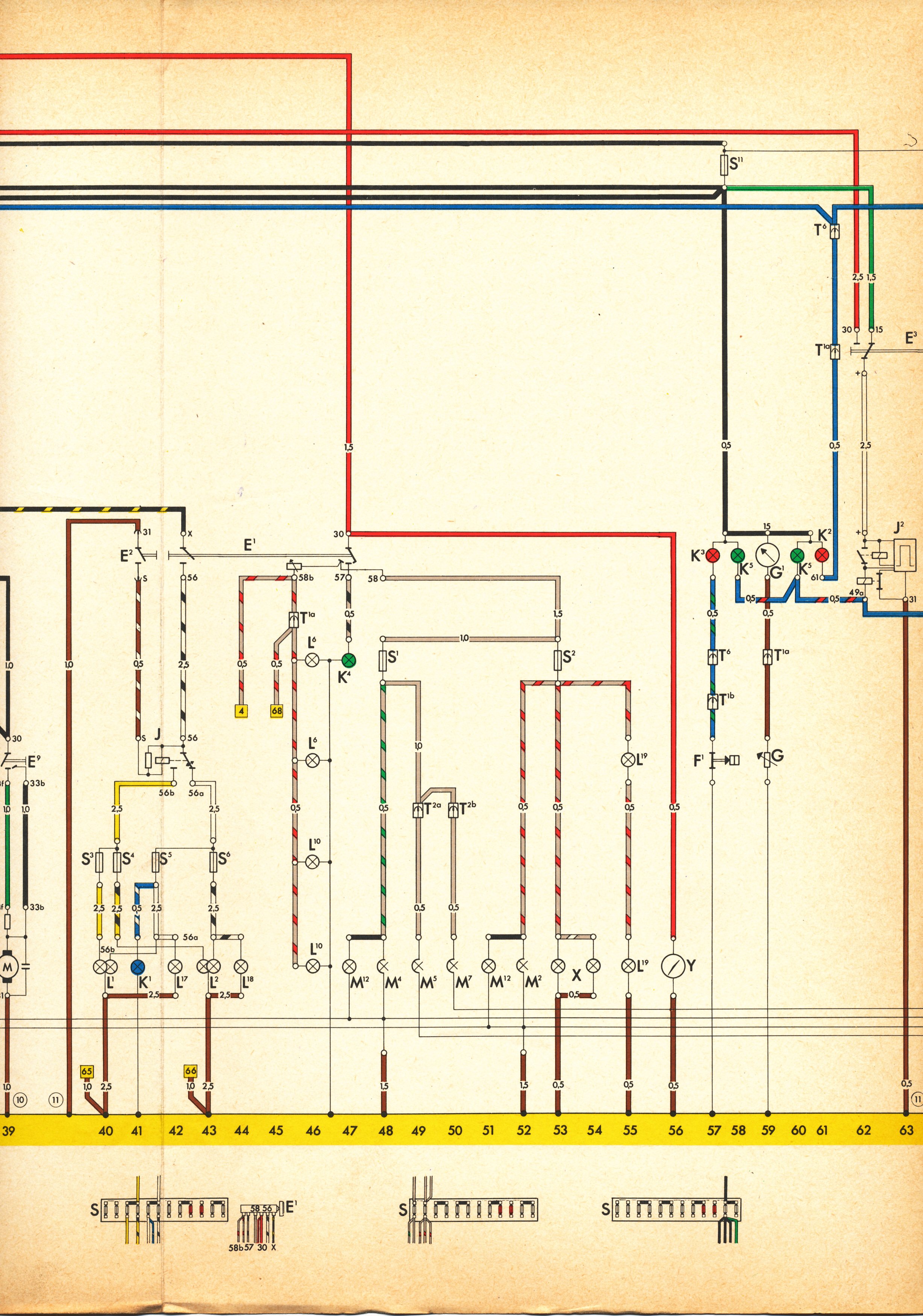

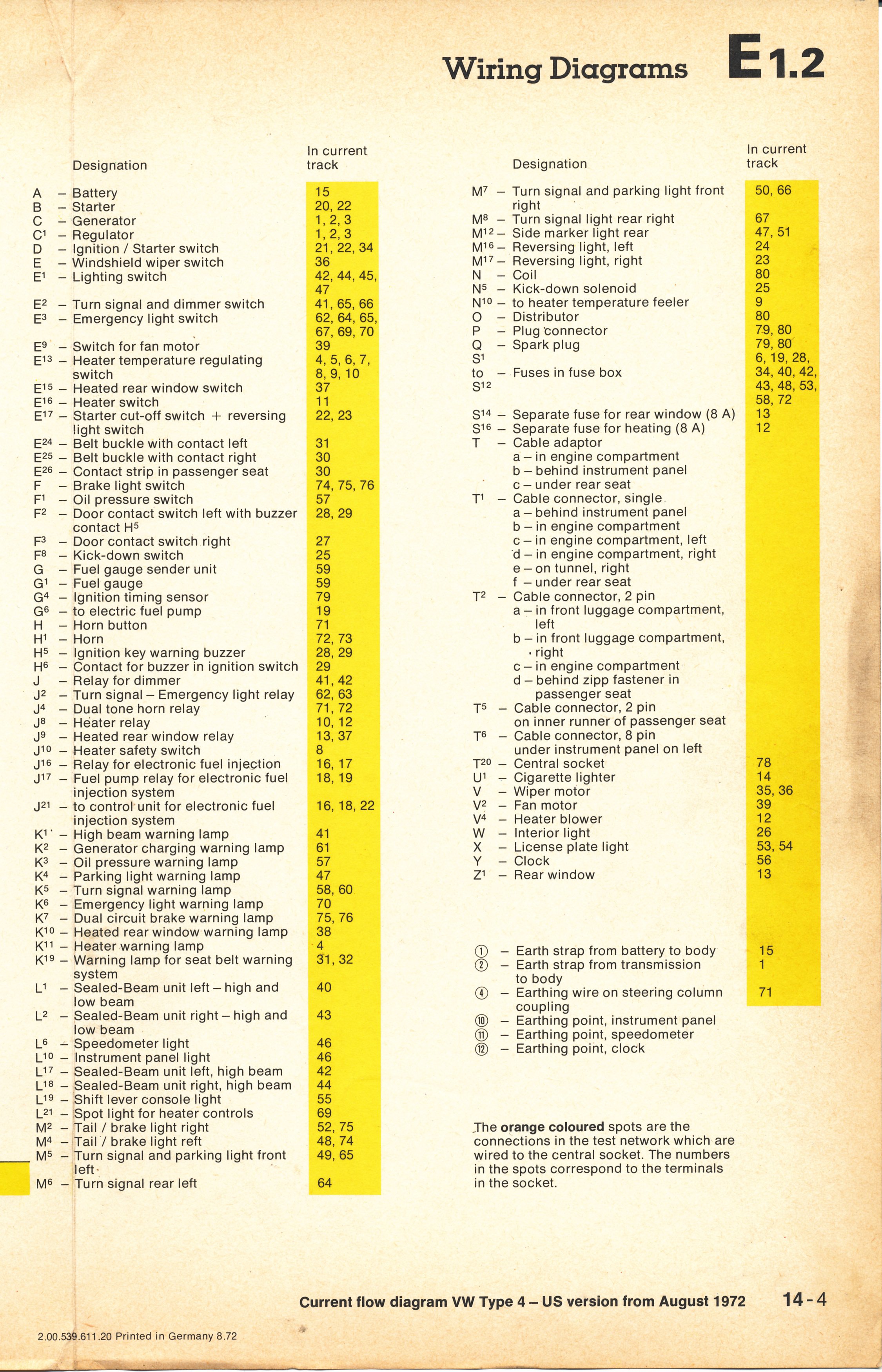

1973     Type 4 USA

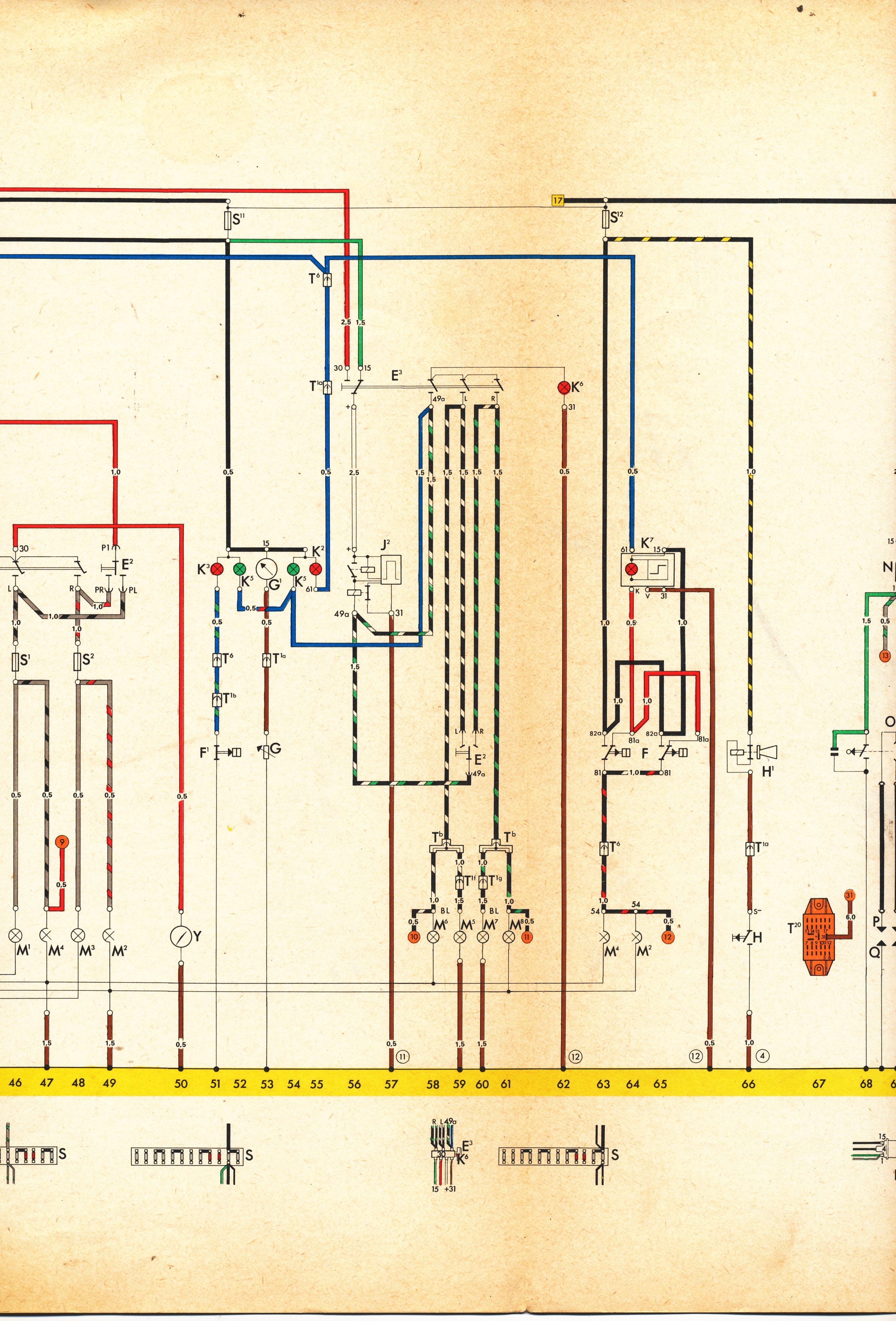

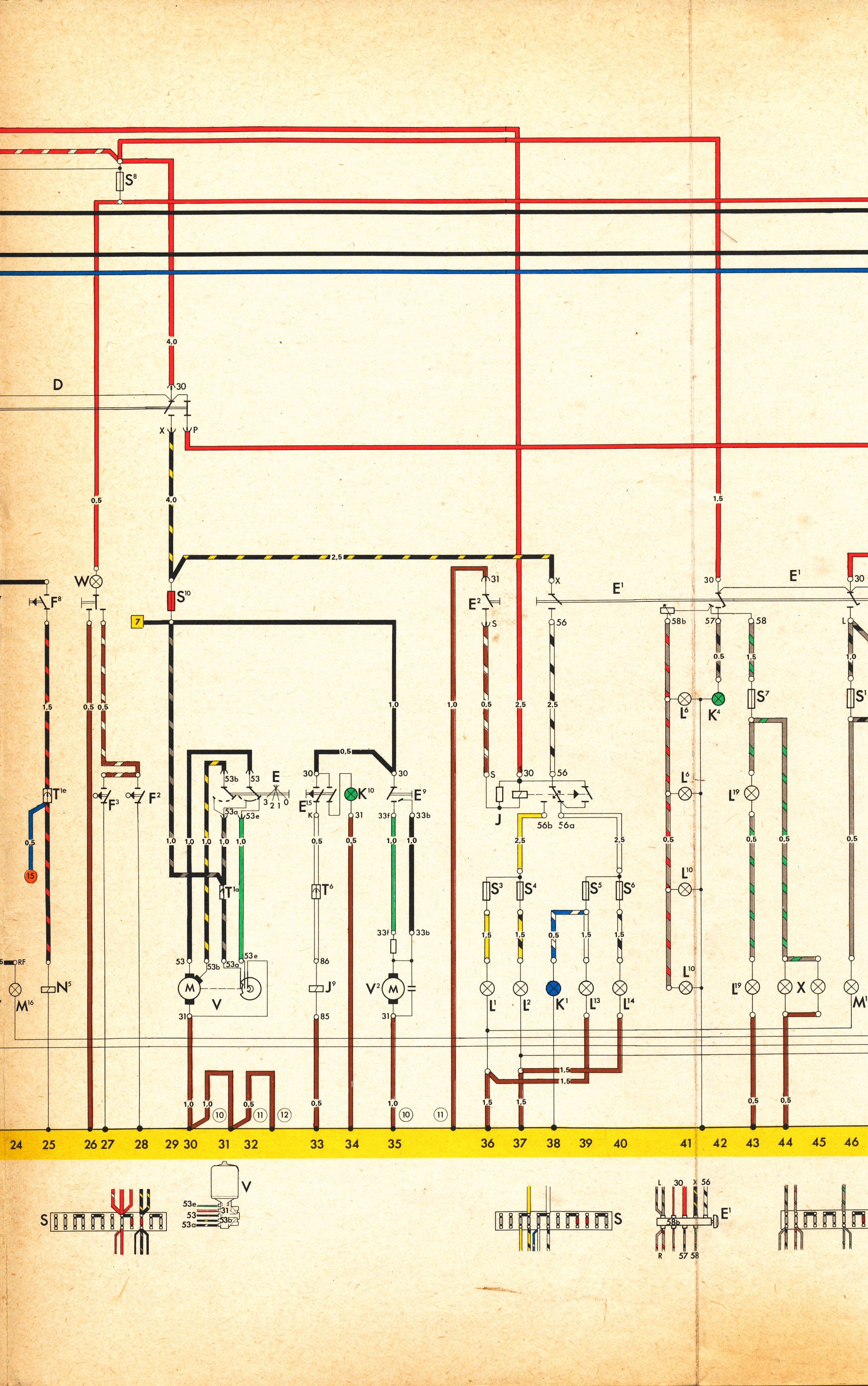

1973     412 - Current Flow

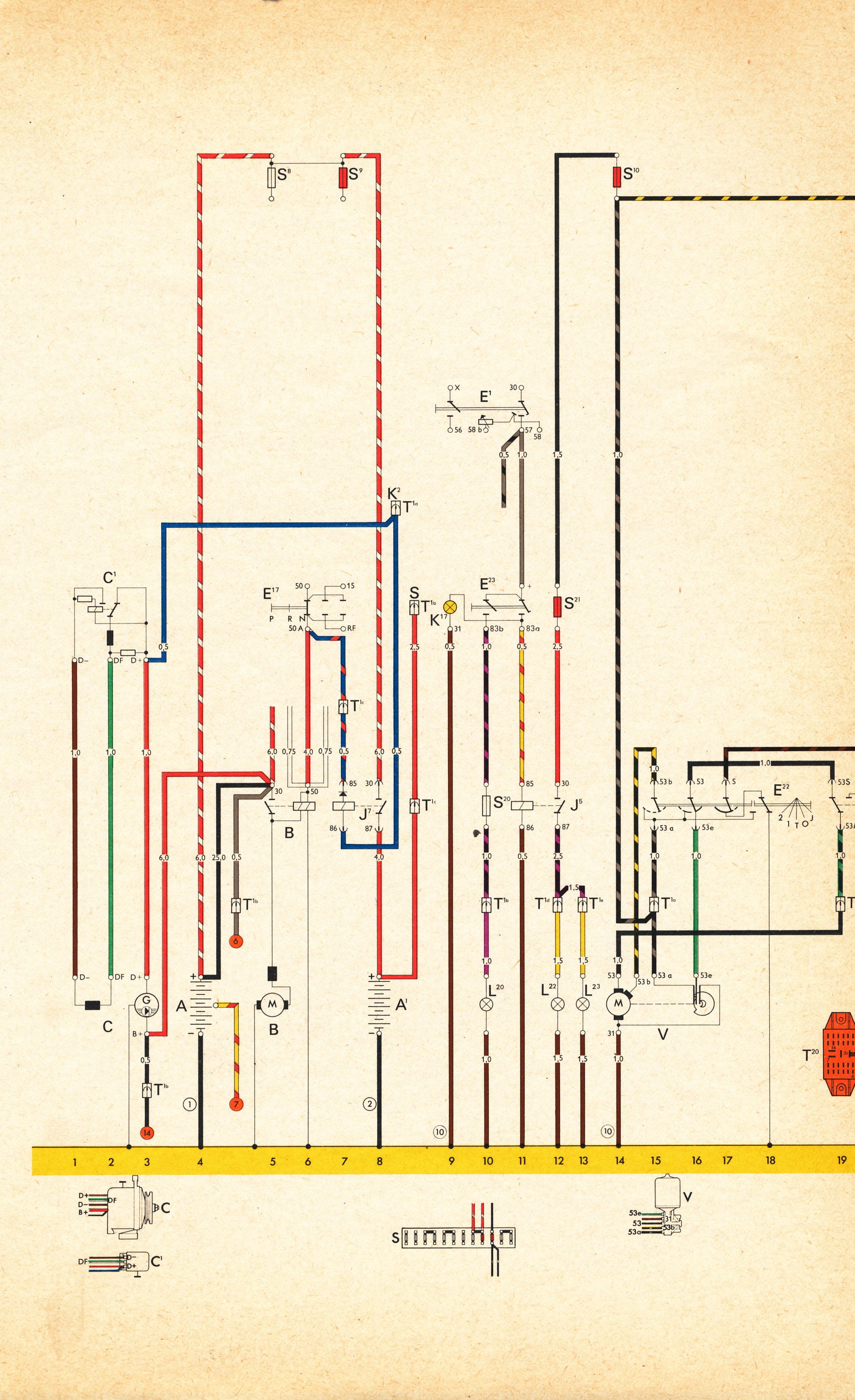

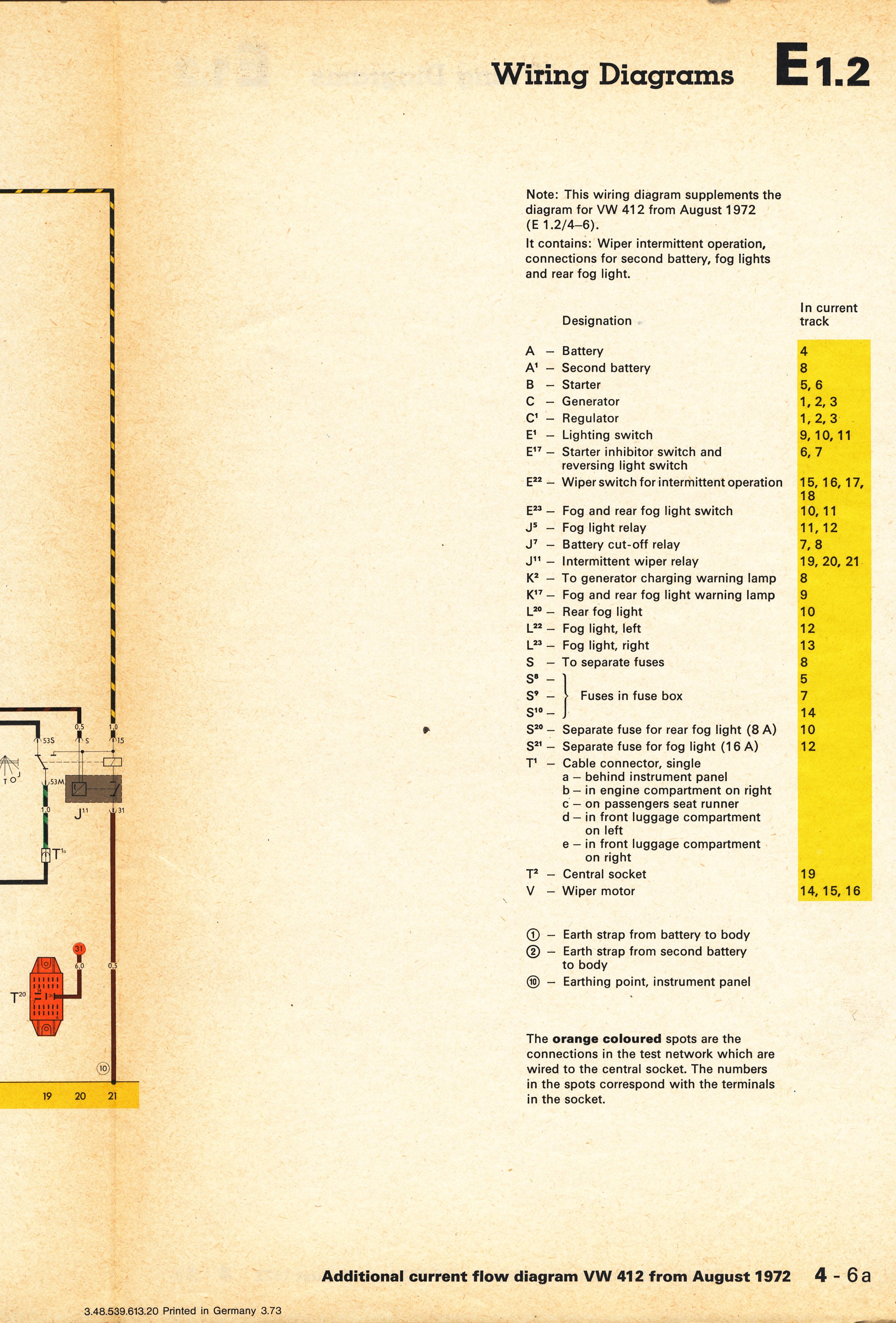

1973     412 - Additional Current Flow
