'74 - '92 Westy DLX Pop top Seal kit 3 piece Turn on always show all large photos     Ad id: 834984
Additional Photos
Click to load image
L & R arrow keys scroll through photos
30-375 packages
front
corner
rear
side
flat seal
Flat seal
joints
Seal side view
Made in USA!
New flat seal glue on
Flat seal
Kit
Kit
'74 - '92 Westy DLX Pop top Seal kit 3 piece   Price: $80 + shipping
This item ships out on Friday (except for holidays or sickness) when my part timer comes in to handle the week’s paid orders shipments.

The flat seal is different than the group photo flat seal as a new design version from me.

Description: 1974 – 1992 VW Bus Westfalia Pop top Seal with Luggage Rack SEAL and rubber flat top Seal

Part number: # 33-375

Other years ('68-'73) and styles also for SALE in the Samba classifieds too!

$80.00 (reg. $117.95 plus shipping)

USA Shipping: USPS large flat rate Box Priority $20.00
I will combine orders whenever possible in size!

Canada shipping is $40 Priority USPS


Calif. Sales tax (if you live in Calif. only): $6.60

These trim and seals are made in the USA of the highest industrial quality materials which have the proper UV stabilizers.

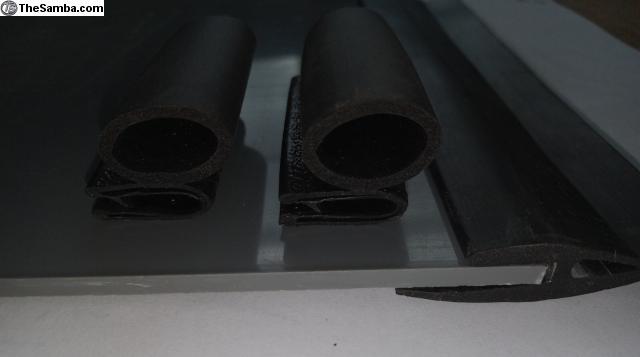

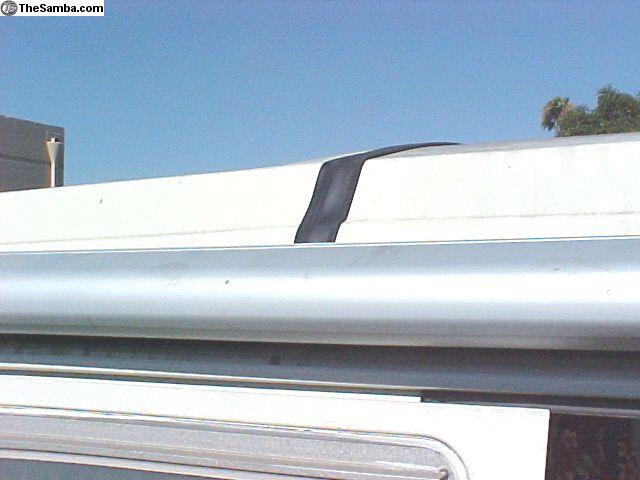

Both the luggage rack Seal (for water run off on the roof…you might will want to trim back 10” of each bulb side of this seal) and Pop top seal are packaged longer than what you need, the secret to installing these items is to push & compress them onto the fiberglass edge and not pull & stretch them on. If you compress them on, then later on they will not shrink up. There is a label with installation instructions on the back of the header cards.

Use a sharp pair of garden pruning shears to cut to fit. If while cutting it is very hard to cut, then stop and move over a 1/16” to cut between the alum inside clips.

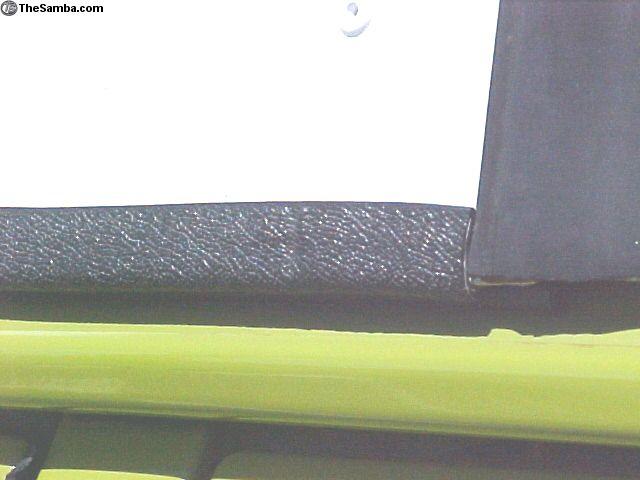

The inside gripper lip needs to be installed on the inside to hold to the rough fiberglass and the flat outer will lay flat against the gel coat surface to prevent dirt build up.

If your fiberglass top has any thin thickness spots, you can easily roll the trim or seal over your hand to make the inside alum clips to hold better in those areas….

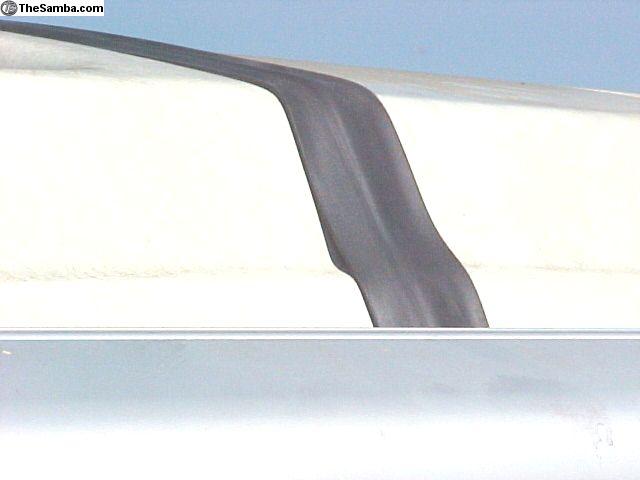

The top flat rubber seal is a new design that is thicker and better than the other ones out on the market today. Yes, you will have to use your own gasket sealant (3m / Permatex black weather strip adhesive or even clear Amazing Goop) but follow the instructions on the containers as most list to apply, let them dry a little and then put them together.

The flat rubber seal will come to ready to install but you will need to trim it down to fit your top. We also notch 1x inside for this rubber seal to overlay the bottom seal.

Separate part numbers if you just need to buy one:

33-321 Front Luggage rack SEAL 10’

33-322 Rear Pop Top seal 22’

33-350 rubber flat top seal


Copy, fill this out & paste it in the “message section” at PayPal [email protected] :

Part # 30-375
Description: ’74-’92 Bus Dlx Pop Top Seal kit
Year Bus:
Area code & Phone Number:
Any special instructions:


Thank you for buying Werksberg Products… products that work!
Made in America by Americans for the world!

_________________
Werksberg Products...products that work!
Paypal: [email protected]
M/O, or check...will be held until they clear before shipping..... In AZ now!
