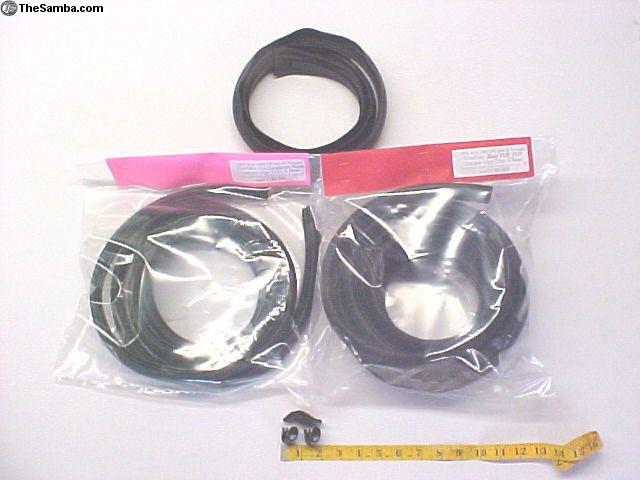

packaged photo |

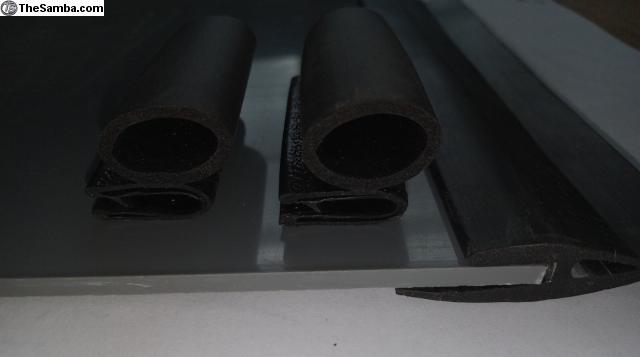

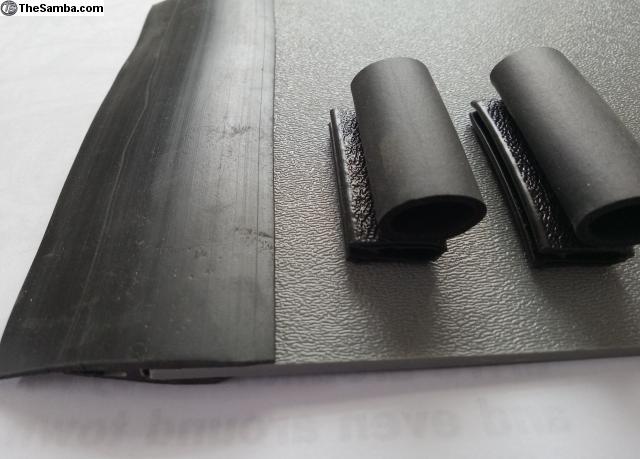

seals end veiws |

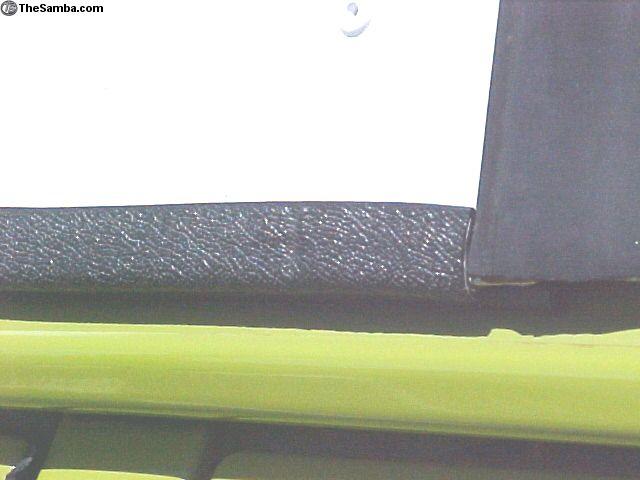

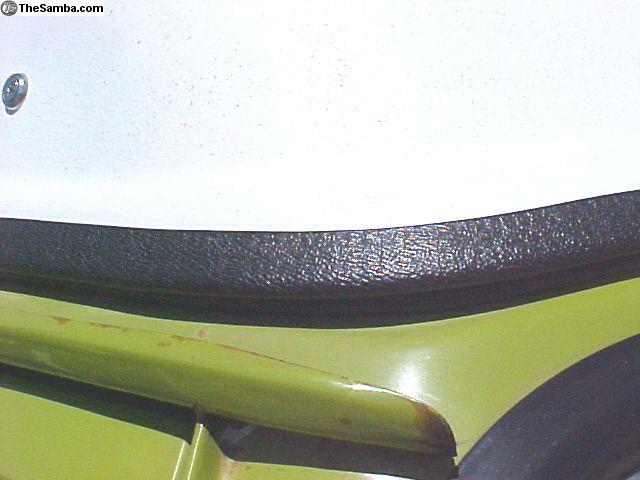

seals close up |
flat seal top |
 |
 |
 |
 |
Made in USA! |
|
|
'74 - '92 Westy Pop top Seal kit 3 piece Price: $85 + shipping
|

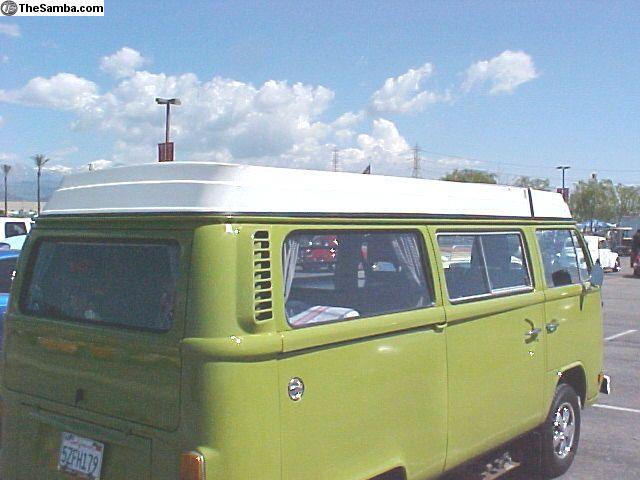

Description: 1974 – 1992 VW Bus Westfalia Pop top seal with Luggage Rack SEAL and rubber flat top seal
Part number: # 30-375
Other years ('68-'73) and other models also for SALE in the Samba classifieds too!
$85.00 (reg. $117.95 plus shipping) $$$$$$$ $101.00 shipped
USA Shipping: USPS large flat rate Box Priority $16.00
I will combine orders whenever possible in size!
Canada shipping is $40 Priority USPS
Calif. Sales tax (if you live in Calif. only): $6.60 **************
These trim and seals are made in the USA of the highest industrial quality materials which have the proper UV stabilizers.

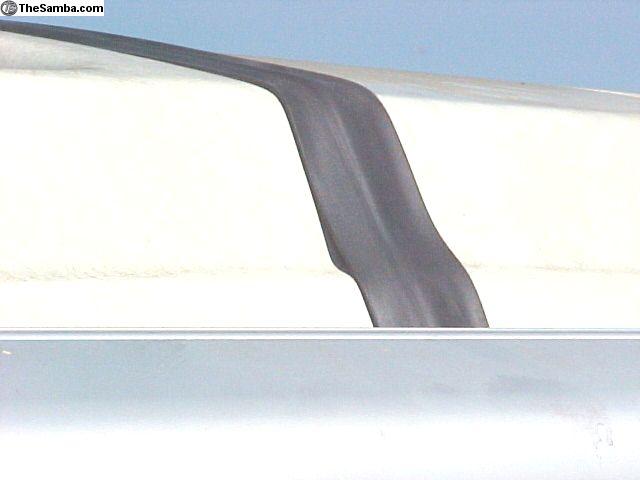

Both the luggage rack Seal (for water run off on the roof…you might will want to trim back 10” of each bulb side of this seal) and Pop top seal are packaged longer than what you need, the secret to installing these items is to push & compress them onto the fiberglass edge and not pull & stretch them on. If you compress them on, then later on they will not shrink up. There is a label with installation instructions on the back of the header cards.
Use a sharp pair of garden pruning shears to cut to fit. If while cutting it is very hard to cut, then stop and move over a 1/16” to cut between the alum inside clips.

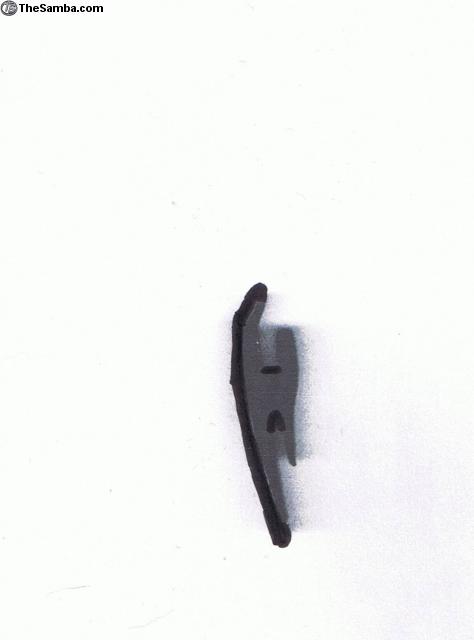

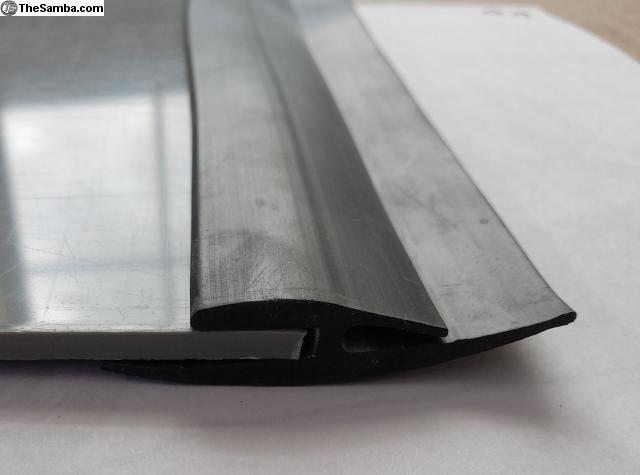

The inside gripper lip needs to be installed on the inside to hold to the rough fiberglass and the flat outer will lay flat against the gel coat surface to prevent dirt build up.
If your fiberglass top has any thin thickness spots, you can easily roll the trim or seal over your hand to make the inside alum clips to hold better in those areas….
The top flat rubber seal is a new design that is thicker and better than the other ones out on the market today. Yes, you will have to use your own gasket sealant (3m / Permatex black weather strip adhesive or even clear Amazing Goop) but follow the instructions on the containers as most list to apply, let them dry a little and then put them together.
The flat rubber seal will come to ready to install but you will need to trim it down to fit your top. We also notch 1x inside for this rubber seal to overlay the bottom seal.
Separate List prices if you just want to buy single ones:
30-321 Front Luggage rack SEAL 10’ $27.95
30-322 Rear Pop Top seal 22’ $59.95
30-350 rubber flat top seal $30
For mailed orders: $101.oo (plus Ca. sales tax if you are in Calif.)
USPS Money order or check (held until it clears the bank before shipping the order):
Werksberg Products
PO Box 931
Garden Grove, Ca. 92842-0931
Copy, fill this out & paste it in the “message section” at Paypal [email protected] :
Part # 30-375
Description: ’74-’92 Bus Pop Top Seal kit
Year Bus:
Samba name:
Area code & Phone Number:
Any special instructions:
Thank you for buying Werksberg Products….products that work!
Made in America by Americans for the world!
