'74 - '92 Westy Pop Top kit 3 piece T&S Beta Switch to pop-up ad layout What is this? | Turn on always show all large photos     Ad id: 834995
Additional Photos
Click to load image
L & R arrow keys scroll through photos

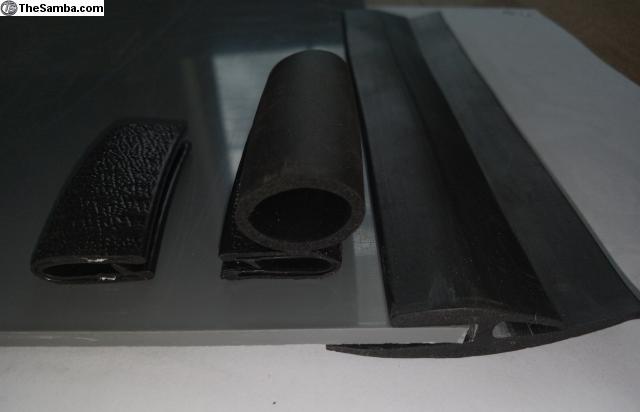

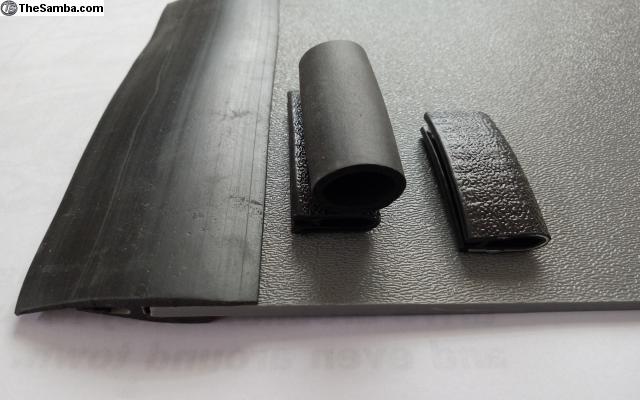

trim and seal samples
packaged photo

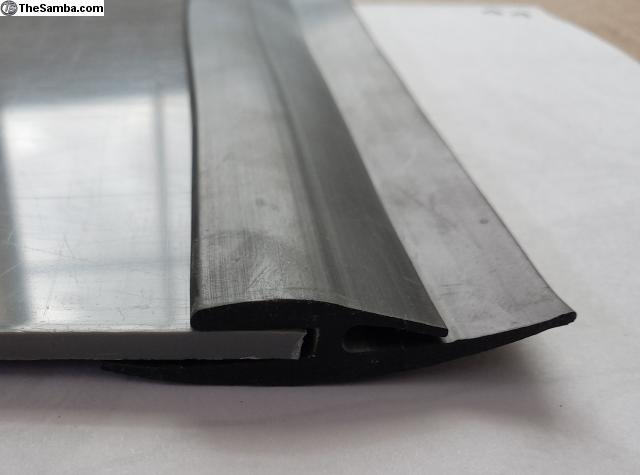

flat seal top

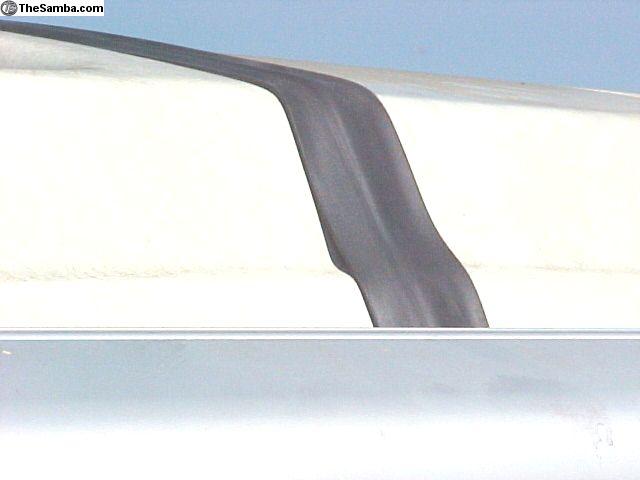

close up seal

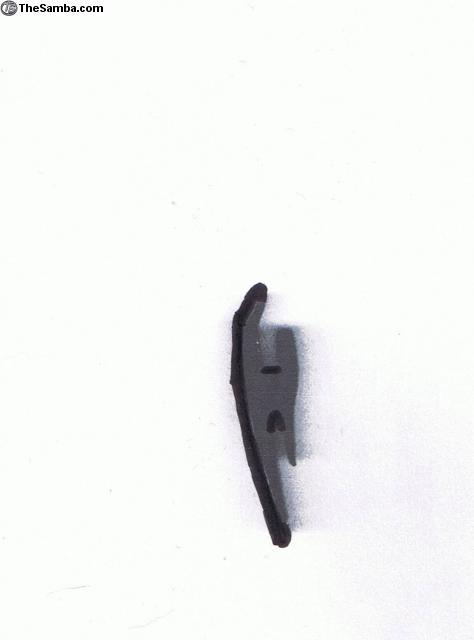

end view
corner

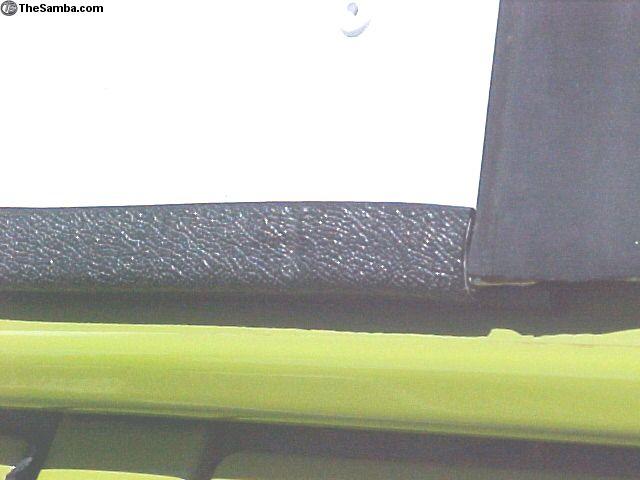

luggage rack trim end up
Made in USA!
'74 - '92 Westy Pop Top kit 3 piece T&S   Price: $80 + shipping
Description: 1974 – 1992 VW Bus Westfalia Pop Top seal with Luggage Rack Trim and rubber flat top seal

Part number: # 30-370

Other years ('68-'73) and other models also for SALE in the Samba classifieds too!

$80.00 (reg. $106.95 plus shipping) $$$$$$$$$$$ $96.00 shipped

USA Shipping: USPS large flat rate Box Priority $16.00
I will combine orders whenever possible in size!

Canada shipping is $40 Priority USPS


Calif. Sales tax (if you live in Calif. only): $6.20 ***************

These trim and seals are made in the USA of the highest industrial quality materials which have the proper UV stabilizers.

Both the luggage rack trim (for water run off on the roof…) and Pop top seal are packaged longer than what you need, the secret to installing these items is to push & compress them onto the fiberglass edge and not pull & stretch them on. If you compress them on, then later on they will not shrink up. There is a label with installation instructions on the back of the header cards.

Use a sharp pair of garden pruning shears to cut to fit. If while cutting it is very hard to cut, then stop and move over a 1/16” to cut between the alum inside clips.

The inside gripper lip needs to be installed on the inside to hold to the rough fiberglass and the flat outer will lay flat against the gel coat surface to prevent dirt build up.

If your fiberglass top has any thin thickness spots, you can easily roll the trim or seal over your hand to make the inside alum clips to hold better in those areas….

The top flat rubber seal is a new design that is thicker and better than the other ones out on the market today. Yes, you will have to use your own gasket sealant (3m / Permatex black weather strip adhesive or even clear Amazing Goop) but follow the instructions on the containers as most list to apply, let them dry a little and then put them together.
The flat rubber seal will come to ready to install but you will need to trim it down to fit your top. We also notch 1x inside for this rubber seal to overlay the bottom seal.

Separate List prices if you just need single ones:

30-320 Front Luggage rack trim 10’ $16.95

30-322 Rear Pop Top seal 22’ $59.95

30-350 rubber flat top seal $30.oo


For mailed orders: $96.00 shipped (plus Ca. sales tax if you are in Calif.)
USPS Money order or check (held until it clears the bank before shipping the order):

Werksberg Products
PO Box 931
Garden Grove, Ca. 92842-0931

Copy, fill this out & paste it in the “message section” at Paypal [email protected] :

Part # 30-370
Description: ’74-’92 Bus Pop Top Trim / Seal kit
Year Bus:
Samba name:
Area code & Phone Number:
Any special instructions:


Thank you for buying Werksberg Products….products that work!
Made in America by Americans for the world!

_________________
Werksberg Products...products that work!
Paypal: [email protected]
M/O, or check...will be held until they clear before shipping.....
