1600dp mated to swingaxle

ghallmer · Samba Member Joined: January 20, 2008 Posts: 2

i am building fiberglass buggy with 1964 pan andmatching swingaxle trans and trying to put a 1600dp engine on it im having problems with the clutch and flywheel seems the flywheel is larger do i need adifferent flywheel and clutch set up any info would help im new to the vw world thanks

Letterman7 · Posted: Sun Jan 20, 2008 1:33 pm Post subject:

You're engine is a later 12 volt motor and flywheel while your swingaxle is for a 6 volt. 6V trannys are smaller in diameter, but can be ground out to accept the larger flywheel and clutch combo. Do a search on these forums for the procedure - it's not hard. You just need to take your time. The other option is to fit an earlier flywheel (6 volt), but I'm not that familiar with what blocks will accept which flywheels. Someone will surely chime in shortly with that info.

Rick

ManxBug · Posted: Sun Jan 20, 2008 3:22 pm Post subject:

It's super easy to grind down the nubs in the transmission's bell housing. If you have an extra engine block, crank, and flywheel it's even easier to hold it up and see where it rubs. If not grind off the bottom nubs, lift your engine into place, turn the pulley a few times to make marks inside and grind down where it rubbed. (repeat).

Endoboy · Posted: Sun Jan 20, 2008 5:16 pm Post subject:

I did it on a 64 pan as well. Yes, you have to grind the bell housing. I used a Makita 4" grinder, and took my time. Take a little off, test-fit, a little more off, test-fit, etc.

You also need a new starter bushing to fit the shaft size of the 12v system, not to mention the 12v starter motor. Which gets into the whole 12v thing, as I think you'll need to do the whole 12v conversion on bulbs, relays, etc.
_________________
1970 Autodynamics Deserter Series One (gone)
-----------------------------------------------------------
"Americans can always be counted on to do the right thing...after they have exhausted all other possibilities." --- Winston Churchill

darkdune · Samba Member Joined: February 13, 2007 Posts: 615

i did this on my old motor and tranny set up, took like 20 mins, with a rotary file, be sure to change the throw out bearing while you're in there, and i used an auto stick starter.

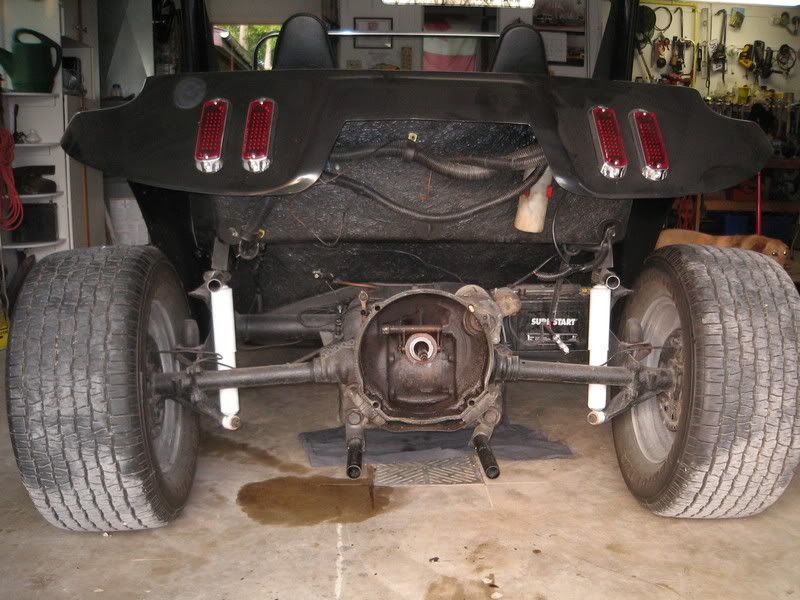

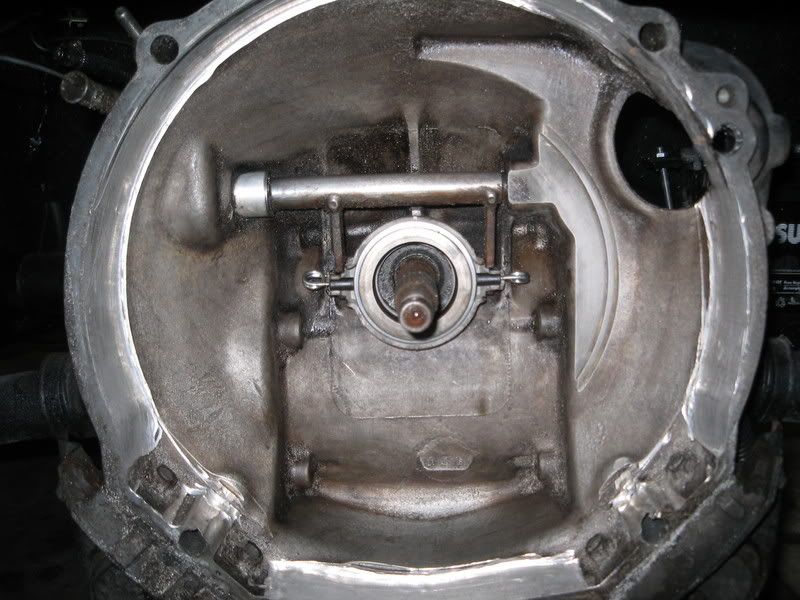

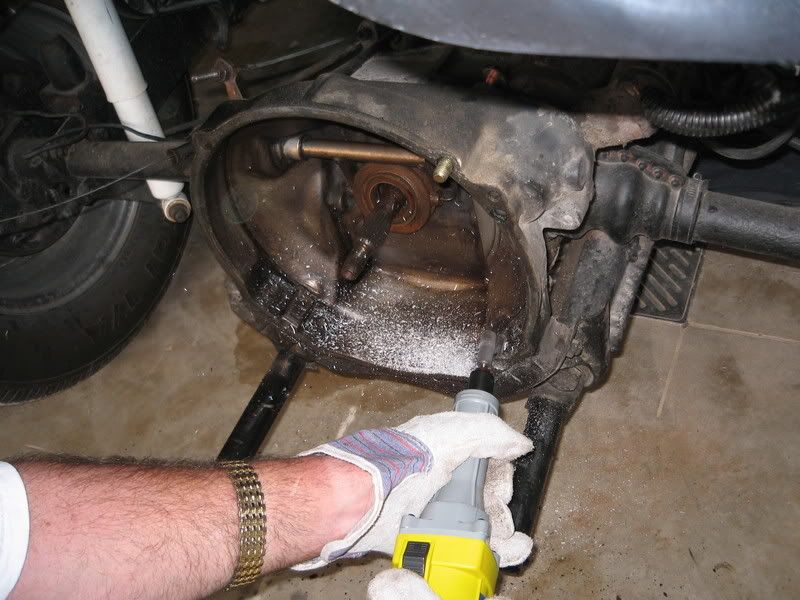

here are the pics

Image may have been reduced in size. Click image to view fullscreen.

_________________
60 percent of the time it works every time.

dan macmillan · Posted: Sun Jan 20, 2008 7:35 pm Post subject:

No need to swap to a 12v starter. The 6 volt meshes perfectly and will not burn up under normal use. It will spin the stock 1600 a little quicker.
_________________
Licensed Automotive Service Technician
Licensed Truck and Coach Technician
Licensed Heavy Duty Equipment Technician
CFC/HCFC/HFC A/C handling and installation license
Alignment specialist
66 Modified Manx,68 Kyote,74 Thing,74 Beetle, 76 Transporter,75 self made Double Cab,65 Meyers Manx,78Westy,68 Ghia, 79 Bradley GT2
Current projects:
Built for others:69 Manx Clone

RaythO · Posted: Sun Jan 20, 2008 8:44 pm Post subject:

aahhh, the memories of cleaning magnesium dust out of every crack and crevis in a 10 ft area. priceless!!!

all kidding aside. it`s easy to do just make sure you grind deep enough or as you tighten dome the motor it will lock the flywheel in place and you`ll be removing it and grinding a second time.

X2 on the 6 volt starter, no problem as long as you don`t crank for long periods of time.
_________________
Mid America Funfest, Effingham Illinois
May 31-June 1, 2008
THE buggy event of 2008. be there!!!!!

http://www.dunebuggyarchives.com/forum/forum_show.pl

mach4 · Posted: Sun Jan 20, 2008 9:39 pm Post subject:

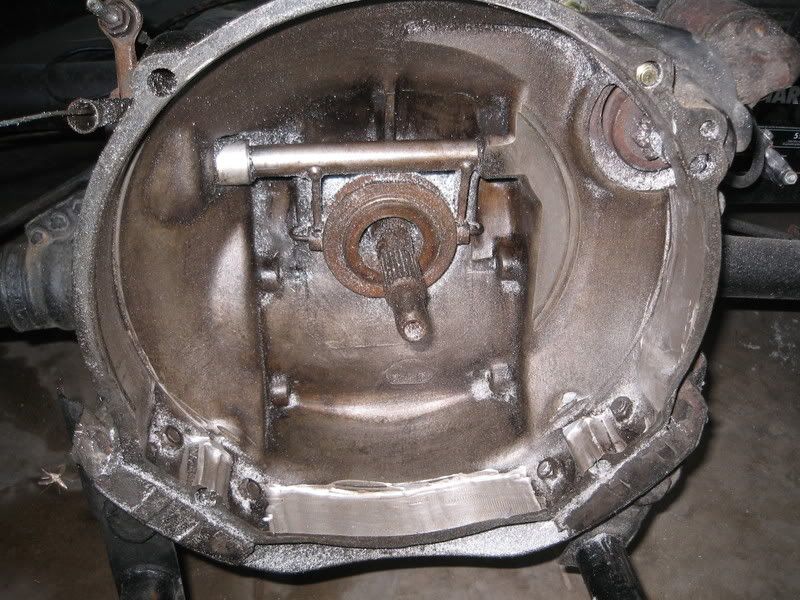

Here are another couple of shots that show the clearancing from a different angle

In fact if you go to the bottom of this page you can see some pictures of exactly where the flywheel hits the bell housing and where the clearancing needs to be done and how much.

... and yes, cleaning up all that magnesium dust is a pain.

Letterman7 · Posted: Sun Jan 20, 2008 9:47 pm Post subject:

kustoms · Samba Member Joined: November 20, 2003 Posts: 1313

USE A MASK!!!
_________________
Google this.
"Bread and Circuses"

And wondering what the heck happen to my Samba post count?!?
Tom Thompson
Tijuana Kustoms Inc. (TM)
1-516-338-8746
www.tjkustoms.com

Dale M. · Posted: Mon Jan 21, 2008 10:17 am Post subject:

Yes use mask and keep grinding build up cleaned out... its magnesium and of you hit something steel with grinding tools and create sparks it can go POOF...

I can relate to this from experience, its not fun for it to go POOF in your lap...

I also recommend the "auto stick" starter especially if you grind through into area of trans that supports starter bushing.

Dale
_________________
“Fear The Government That Wants To Take Your Guns"
"Kellison Sand Piper Roadster" For Street & Show.
"Joe Pody Sandrover" Buggy with 2180 for Autocross (Sold)
============================================================
All suggestions and advice are purely my own opinion. You are free to ignore them if you wish ...

Teeroy · Posted: Mon Jan 21, 2008 2:23 pm Post subject: 1600dp mated to swingaxle

6volt starter will not work with a 12volt 200mm flywheel!
_________________
Pres. Rivercity VW Club www.rcvwclub.org
Founder Derr Wheat Panzers (DWP)
ARR #3
www.autosportsnorthwest.org

RaythO · Posted: Mon Jan 21, 2008 3:23 pm Post subject:

^^^^ are you sure? I changed my flywheel and never changed my bushing. grabbed a starter from the pile, and bolted it on. was about sure it was a 6 volt?
_________________
Mid America Funfest, Effingham Illinois
May 31-June 1, 2008
THE buggy event of 2008. be there!!!!!

http://www.dunebuggyarchives.com/forum/forum_show.pl

Letterman7 · Posted: Mon Jan 21, 2008 3:37 pm Post subject:

RaythO · Posted: Mon Jan 21, 2008 3:39 pm Post subject:

Thanks for the info, guess I learned something today Smile

_________________
Mid America Funfest, Effingham Illinois
May 31-June 1, 2008
THE buggy event of 2008. be there!!!!!

http://www.dunebuggyarchives.com/forum/forum_show.pl

ghallmer · Samba Member Joined: January 20, 2008 Posts: 2

you guys are great thanks for getting back to me so quickly does anybody know if i could swap out the 12volt flywheel for a 6volt flywheel off a 1964 1200cc motor??

darkdune · Samba Member Joined: February 13, 2007 Posts: 615

i just grind the bel housing, if you keep the bigger flywheel, you get a bigger clutch!!

but yes, it is do able..
_________________
60 percent of the time it works every time.

Letterman7 · Posted: Mon Jan 21, 2008 8:25 pm Post subject:

Yeah, you can. You just have to check all the clearances when you mount the flywheel. Keep it 12V and grind the bellhousing. It's easier, and like DD said, you'll be able to use a larger (stronger) clutch if you need it.

R

ManxBug · Posted: Mon Jan 21, 2008 9:09 pm Post subject:

I was nervious about grinding mine too, but it really is easy.

dan macmillan · Posted: Tue Jan 22, 2008 9:17 am Post subject:

Special note on grinding the bellhousing. Be careful of sparks from nicking the tranny mount bolts. Magnesium powder is easy to ignite and almost impossible to put out the resulting fire. Water will not put it out, it will only make it worse. Magnesium fires go out with time or sand.
_________________
Licensed Automotive Service Technician
Licensed Truck and Coach Technician
Licensed Heavy Duty Equipment Technician
CFC/HCFC/HFC A/C handling and installation license
Alignment specialist
66 Modified Manx,68 Kyote,74 Thing,74 Beetle, 76 Transporter,75 self made Double Cab,65 Meyers Manx,78Westy,68 Ghia, 79 Bradley GT2
Current projects:
Built for others:69 Manx Clone
