Mike Att · Samba Member Joined: October 06, 2003 Posts: 395

Here's a few pics of what we got done while I was down at Ben's place

I got a chance to sort the small hole infront of the rear wheel that was an mot failure

I started by cutting out to solid metal
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Looking through thing's are nice and dry looking Smile

After giving the other side a quick clean I could see what I was trying to copy, nice wonky handmade Karmann panel
Image may have been reduced in size. Click image to view fullscreen.

Attewell copied panel complete with factory missing corners etc

Image may have been reduced in size. Click image to view fullscreen.

We knew the rear mounts were going to have to be relocated so I set about drilling out the spots
Image may have been reduced in size. Click image to view fullscreen.

All done

Once I gave them a quick zap and grind you would never know
Image may have been reduced in size. Click image to view fullscreen.

_________________
UK - GFK

www.gonzospartsyard.com
www.evilbens.co.uk

Mike Att · Samba Member Joined: October 06, 2003 Posts: 395

In order to run the deep 6's and 205/70's we narrowed the torsion housing by 1.5" each side

We had a trial run on a spare section Ben had laying round

Once I had removed the section Ben tacked things back together
Image may have been reduced in size. Click image to view fullscreen.

Then set about laying down some beads
Image may have been reduced in size. Click image to view fullscreen.

The trial run went perfectly so it was time for me to chop the Ghia Wink

Location lines scribed on
Image may have been reduced in size. Click image to view fullscreen.

Then I cut the f**kers off ;D
Image may have been reduced in size. Click image to view fullscreen.

Pre 67.com anyone?

While the mounts were off Ben set about re-profiling them

Image may have been reduced in size. Click image to view fullscreen.

The heater tubes were removed as they would clash with the relocated mounts, won't be needing them but the tubes have been kept just in case
Image may have been reduced in size. Click image to view fullscreen.

Housings clamped, aligned and tacked
Image may have been reduced in size. Click image to view fullscreen.

_________________
UK - GFK

www.gonzospartsyard.com
www.evilbens.co.uk

Mike Att · Samba Member Joined: October 06, 2003 Posts: 395

Then Ben laid a stack of dimes Cool

Factory looking mounts were fabricated and grafted on
Image may have been reduced in size. Click image to view fullscreen.

All done

These will help the air system lift the back end up from 3 splines a little easier
Image may have been reduced in size. Click image to view fullscreen.

Anthony had these next door at Autostyl so we just had to offer the suckers up!

Image may have been reduced in size. Click image to view fullscreen.

Not my thing but bad ass all the same ;D
_________________
UK - GFK

www.gonzospartsyard.com
www.evilbens.co.uk

Toddball · Posted: Wed Jan 13, 2010 11:21 pm Post subject:

Dude that looks F@#king Awesome. That is some cool work you have done. The deep 6ers look killer!! Twisted Evil

John Ghia · Samba Member Joined: April 13, 2004 Posts: 78

What axles will you be using?

Mike Att · Samba Member Joined: October 06, 2003 Posts: 395

Mike Att · Samba Member Joined: October 06, 2003 Posts: 395

58lolight · Posted: Thu Jan 14, 2010 5:06 pm Post subject:

Next to grelland's this is my favorite build thread right now!! Those welds are art!! This car is going to be amazing!! Thanks for sharing!

Mike Att · Samba Member Joined: October 06, 2003 Posts: 395

Ben's finished the rear body mounts off as he needed to get the Ghia shifted off the ramp

Origional mount
Image may have been reduced in size. Click image to view fullscreen.

Removed

Section cut in body
Image may have been reduced in size. Click image to view fullscreen.

Template taken of available space of new mounting area
Image may have been reduced in size. Click image to view fullscreen.

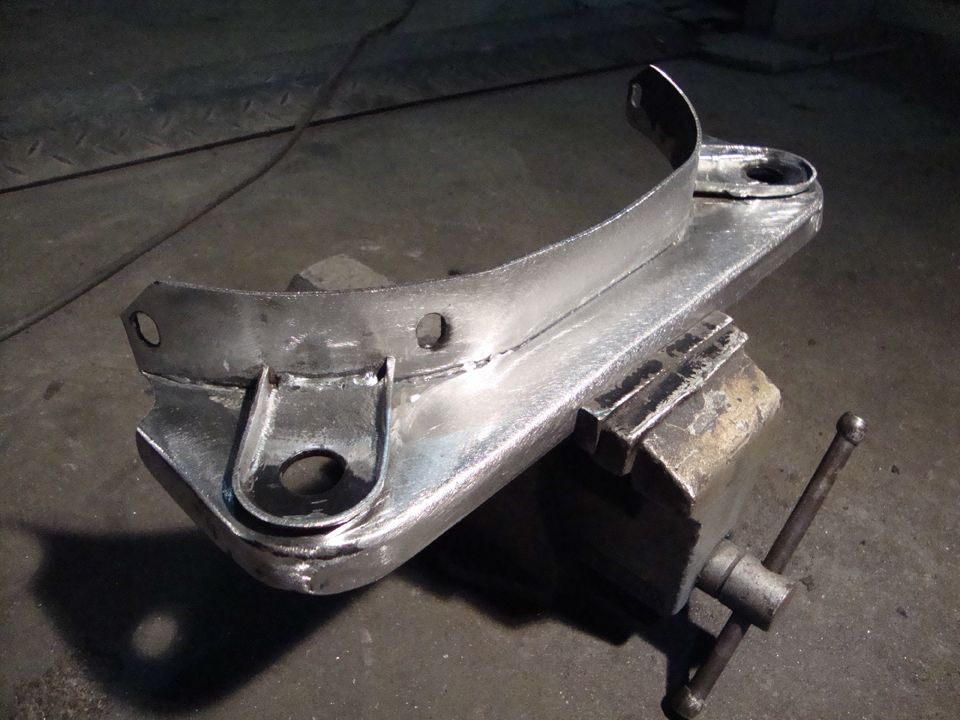

Mount with new mounting plates grafted on
Image may have been reduced in size. Click image to view fullscreen.

Return produced for rear
Image may have been reduced in size. Click image to view fullscreen.

All finished
Image may have been reduced in size. Click image to view fullscreen.

Can't get much more factory looking than that Cool

_________________
UK - GFK

www.gonzospartsyard.com
www.evilbens.co.uk

50Split · Samba Member Joined: May 19, 2000 Posts: 848 Location: 602

_________________
Quintin

Mike Att · Samba Member Joined: October 06, 2003 Posts: 395

Will update this thread properly when I get a chance

Until then..... Very Happy

_________________
UK - GFK

www.gonzospartsyard.com
www.evilbens.co.uk

50Split · Samba Member Joined: May 19, 2000 Posts: 848 Location: 602

Lookin' good so far!
_________________
Quintin

Mike Att · Samba Member Joined: October 06, 2003 Posts: 395

Thanks Q
_________________
UK - GFK

www.gonzospartsyard.com
www.evilbens.co.uk

Paul_Revere's Ghia · Posted: Wed Mar 03, 2010 1:45 pm Post subject:

very cool!! Cool

_________________
http://search.ebay.co.uk/_W0QQsassZsethnsuzie

You can now follow me on Facebook to keep up to date with my latest Artwork & Ceramics-
http://www.facebook.com/pages/Newport/Seth-Draper-Art-Ceramics/150919701594700?ref=mf

Mike Att · Samba Member Joined: October 06, 2003 Posts: 395

Just to fill in the gap

Ben's cracked on with the beam

All out
Image may have been reduced in size. Click image to view fullscreen.

After crouching infront of the car I decided that what I want is the headlight, indicator and wheel all to be inline when viewed from the front, this didn't phase Ben ;D After a few measurements it works out to be a 6.5" narrowed beam Cool

;D

Very Nice ;D
Image may have been reduced in size. Click image to view fullscreen.

Tasty

_________________
UK - GFK

www.gonzospartsyard.com
www.evilbens.co.uk

Mike Att · Samba Member Joined: October 06, 2003 Posts: 395

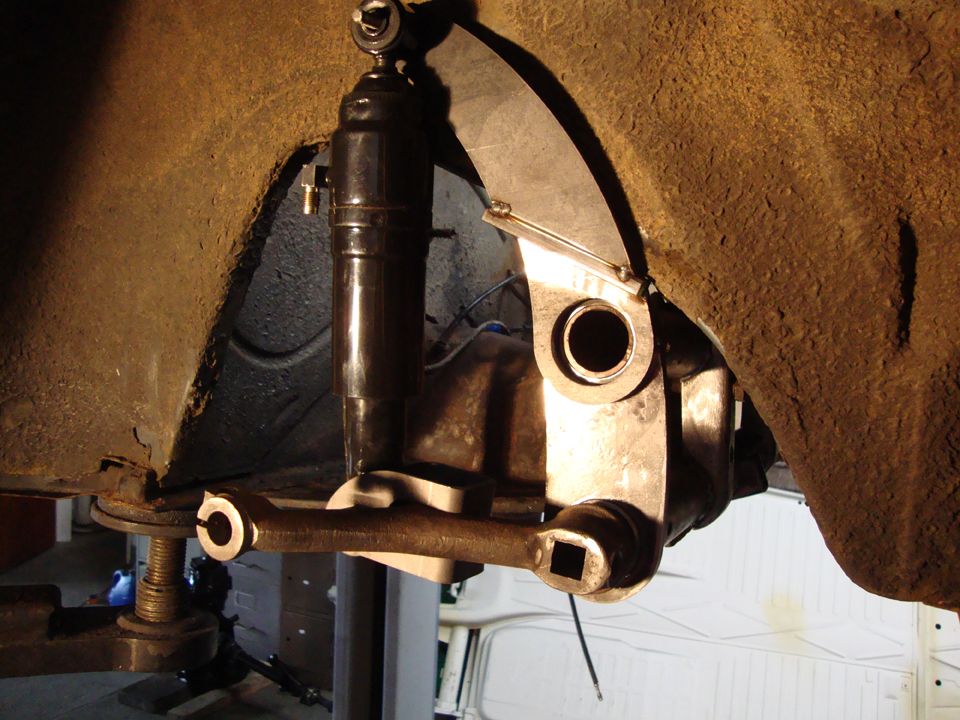

Air Shocks offered up
Image may have been reduced in size. Click image to view fullscreen.

Modded spring plates
Image may have been reduced in size. Click image to view fullscreen.

Repro Craddle
Image may have been reduced in size. Click image to view fullscreen.

Now modded by Ben into factory style raised craddle Cool

_________________
UK - GFK

www.gonzospartsyard.com
www.evilbens.co.uk

Mike Att · Samba Member Joined: October 06, 2003 Posts: 395

Ben giving thing's a touch of colour
Image may have been reduced in size. Click image to view fullscreen.

Back end all fitted up
Image may have been reduced in size. Click image to view fullscreen.

Front End going in
Image may have been reduced in size. Click image to view fullscreen.

_________________
UK - GFK

www.gonzospartsyard.com
www.evilbens.co.uk

Mike Att · Samba Member Joined: October 06, 2003 Posts: 395

Front End dropped down to check how things look ;D
Image may have been reduced in size. Click image to view fullscreen.

_________________
UK - GFK

www.gonzospartsyard.com
www.evilbens.co.uk

Mike Att · Samba Member Joined: October 06, 2003 Posts: 395

And finally the roll out Cool

F*****g pleased with how she's turned out, looks exactly like I wanted her to Cool

Hat's off to Ben for working out how to do all the mod's, great work mate!!
_________________
UK - GFK
