 Posted: Tue Mar 13, 2012 11:35 am Post subject: Roll bar heights |
 |
|
Rollbar height Original Real Manx bodied cars please.
What is your roll bar vertical height from top of stock VW tunnel?
What is your windshield vertical height from top of tunnel?
Yes I know there will be some difference depending on the laid back angle as not everyone mounts them the same. Looking for the great proportions with this question. Post a side view picture as an example if you wish.
Thanks |
|
| Back to top |
|
 |
joescoolcustoms
Samba Member
Joined: August 08, 2006
Posts: 6323
Location: West By God Virginia
|
|
| Back to top |
|
|
kustoms
Samba Member
Joined: November 20, 2003
Posts: 1703
|
| Posted: Tue Mar 13, 2012 12:40 pm Post subject: |
|
|
The windshield should be approximately 30 degrees or 60” from the back side, upper, center of the windshield frame to the center, vertical of the rear set back and the horizontal of the body. In other words, the upper edge of the rear seat.
The original roll bar from Manx came up from the floor approximately 6”. The bar is 37" tall. It was dictated by the lower bracket that mounted to the frame. The bracket and roll bar would sandwich the body.
The roll bar angle it dictated by the age of the roll bar. They changed the upper mounts. That’s why I make two tops.
The wind shield height should be 17" hood to top with out the rubber on.
_________________
Google this.
"Bread and Circuses"
And wondering what the heck happen to my Samba post count?!?
Tom Thompson
Tijuana Kustoms Inc. (TM)
1-877-338-8746
www.tjkustoms.com
Last edited by kustoms on Wed Mar 14, 2012 5:55 am; edited 1 time in total |
|
| Back to top |
|
|
Dale M.
Samba Member
Joined: April 12, 2006
Posts: 10052
Location: Just a tiny bit west of Yosemite Valley
|
| Posted: Tue Mar 13, 2012 1:17 pm Post subject: |
|
|
Roll bars should be 4-6 inches above head of tallest person seated in buggy ..... Just a generic height probable makes no sense if drivers head and passenger heads hit roll bars or stick up above them...
My front hoop of cage matches windshield height and angle, rear hoop of cage is about 3 inches above top of my CRASH HELMET when I am seated in buggy...
BUZZ WORD phrase here is SEATED IN BUGGY..... Almost any buggy will have different types of seating and that will determine how high your brain holder (skull) is above seat or where the rear hoop needs to be in relationship to everything else....
Dale
_________________
Lives his life vicariously through his own self...
1970 "Kellison Sand Piper Roadster" For Street & Show.
All suggestions and advice are purely my own opinion. You are free to ignore them if you wish ... |
|
| Back to top |
|
|
kustoms
Samba Member
Joined: November 20, 2003
Posts: 1703
|
| Posted: Tue Mar 13, 2012 1:29 pm Post subject: |
|
|
The seat's should be installed to proper height in relation to the roll bar and windshield frame, Not the other way around.
_________________
Google this.
"Bread and Circuses"
And wondering what the heck happen to my Samba post count?!?
Tom Thompson
Tijuana Kustoms Inc. (TM)
1-877-338-8746
www.tjkustoms.com |
|
| Back to top |
|
|
manxdavid
Samba Member
Joined: November 24, 2003
Posts: 1113
Location: David Jones, Chester, UK. Manxclub #678.
|
| Posted: Thu Mar 15, 2012 9:09 am Post subject: |
|
|

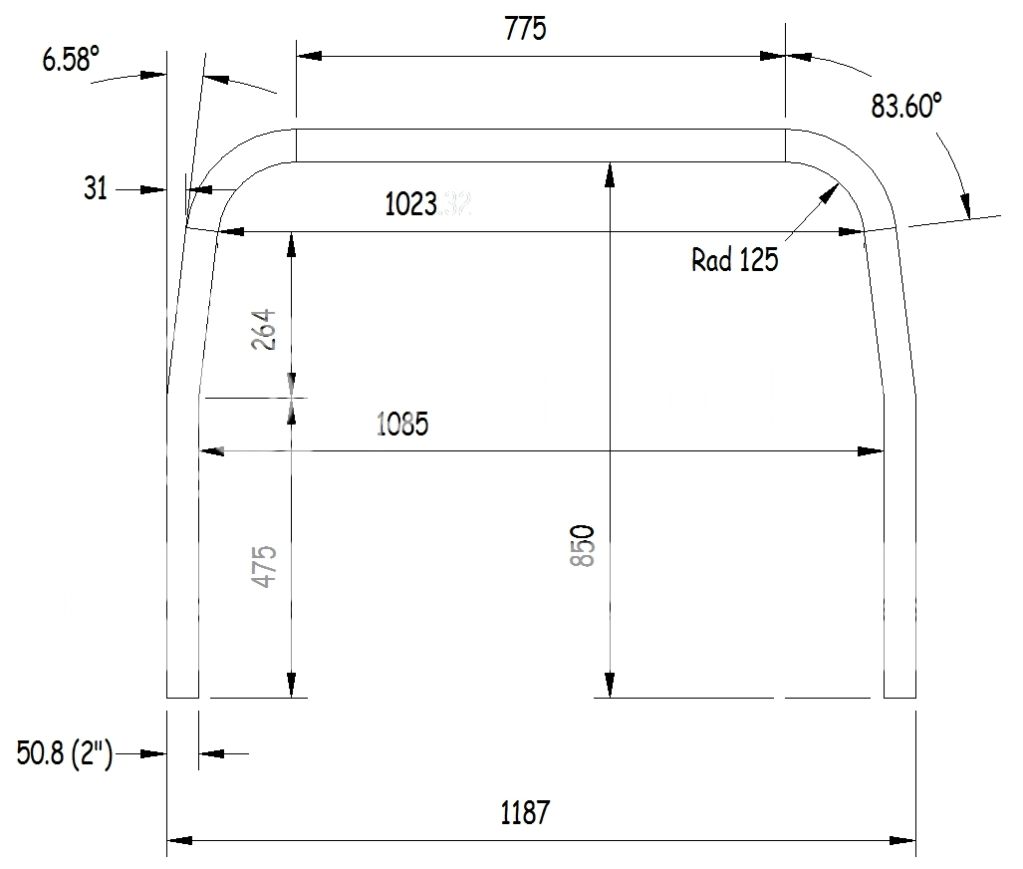

Here's the dimensions of a standard Meyers Manx roll bar (in millimeters) if that helps. The original recomendation was for it to fit at the same height and angle as the screen.
 |
|
| Back to top |
|
|
slalombuggy
Samba Member
Joined: July 17, 2010
Posts: 3717
Location: Canada 306
|
| Posted: Thu Mar 15, 2012 2:36 pm Post subject: |
|
|
| kustoms wrote: | | The seat's should be installed to proper height in relation to the roll bar and windshield frame, Not the other way around. |
The seat should be installed to the most comfortable position for the person doing most of the driving. Reaching controls and steering wheel and foot position on the pedals is far more important than matching your seat to a rollbar.
When i build my car this is the order I use.
Pedals, Seat, Steering Wheel, Shifter, Switches. then I build the roll bar or cage and rest of the car around that.
brad
_________________
BB Buggy 121.253mph @ Bonneville 2012
http://www.youtube.com/watch?v=57hMyJmIU10
Raisin cookies that look like chocolate chip cookies are the main reason I have trust issues |
|
| Back to top |
|
|
kustoms
Samba Member
Joined: November 20, 2003
Posts: 1703
|
| Posted: Thu Mar 15, 2012 3:45 pm Post subject: |
|
|
A Manx roll bar and stock windshield have only one height if installed as proscribed. This is the point as the topic is about a real Manx.
With that being said. I am curious how tall one would go with a windshield and roll cage to accommodate the seats before one thought they were to tall?
_________________
Google this.
"Bread and Circuses"
And wondering what the heck happen to my Samba post count?!?
Tom Thompson
Tijuana Kustoms Inc. (TM)
1-877-338-8746
www.tjkustoms.com |
|
| Back to top |
|
|
JamisonWorkshop
Samba Member
Joined: June 28, 2011
Posts: 114
Location: Boonsboro, MD
|
| Posted: Fri Mar 16, 2012 7:19 am Post subject: |
|
|
| kustoms wrote: | The windshield should be approximately 30 degrees or 60” from the back side, upper, center of the windshield frame to the center, vertical of the rear set back and the horizontal of the body. In other words, the upper edge of the rear seat.
The original roll bar from Manx came up from the floor approximately 6”. The bar is 37" tall. It was dictated by the lower bracket that mounted to the frame. The bracket and roll bar would sandwich the body.
The roll bar angle it dictated by the age of the roll bar. They changed the upper mounts. That’s why I make two tops.
The wind shield height should be 17" hood to top with out the rubber on. |
What would the measurement need to be to run your top?
from back of windshield to the center of roll bar (1.75" tubing).
Going to be starting cage soon and will be getting a top from you at some point.
THanks |
|
| Back to top |
|
|
kustoms
Samba Member
Joined: November 20, 2003
Posts: 1703
|
| Posted: Fri Mar 16, 2012 7:23 am Post subject: |
|
|
We make two tops. 39" or 41" From front of windshield to center of roll bar.
_________________
Google this.
"Bread and Circuses"
And wondering what the heck happen to my Samba post count?!?
Tom Thompson
Tijuana Kustoms Inc. (TM)
1-877-338-8746
www.tjkustoms.com |
|
| Back to top |
|
|
JamisonWorkshop
Samba Member
Joined: June 28, 2011
Posts: 114
Location: Boonsboro, MD
|
| Posted: Fri Mar 16, 2012 9:03 am Post subject: |
|
|
Great. Thanks,
Good to know. |
|
| Back to top |
|
|
Mike1991
Samba Member
Joined: October 06, 2011
Posts: 59
Location: Arizona
|
| Posted: Fri Mar 16, 2012 9:59 am Post subject: Roll Bar height |
|
|
Tom is correct in that if the windshield and roll bar in a stock Manx are installed correctly there is only one height for each.
I ask my question again being even more specific.
What is the vertical height from the top of the stock VW tunnel to the top of the windshield in inches?
What is the vertical height from the top of the stock VW tunnel to the top of the roll bar in inches?
[/u] |
|
| Back to top |
|
|
kustoms
Samba Member
Joined: November 20, 2003
Posts: 1703
|
| Posted: Fri Mar 16, 2012 10:13 am Post subject: |
|
|
Sorry but mine are not installed yet.
