 Posted: Sat Mar 31, 2012 3:21 pm Post subject: My Okrasa 1300 Build Thread |
 |
|
So figured I start a build thread on my engine rebuild for my 54 ragtop...
I have contracted the services of the best in the biz, Mr. Okrasa himself Joe Ruiz. What we plan to do is build a 1300 stroker engine comprised of a Wolfsburg West Okrasa kit along with Joe's 69.5mm counterweighted, balanced and hardened 8 dowell stroker crankshaft and performance camshaft.
I've chose to have Joe perform the gold chem treatment on the case along with having him rework the Wolfsburg West heads to make them function as they should.
Here you can see Joe getting delivery of the Wolfsburg West heads.
_________________
~Steven G.~
1954 117 Deluxe Sunroof
•Click Here→ My 1954 Ragtop Deluxe Build Thread
•Click Here→ My Okrasa TSV 1300 Build Thread |
|
| Back to top |
|
 |
vic
Samba Member
Joined: August 31, 2005
Posts: 1617
Location: Fontana, Califas
|
| Posted: Sat Mar 31, 2012 5:45 pm Post subject: |
|
|
Damn Steve, your not playing with the oval, this car is all business. Im contemplating on building myself a nice motor for the notch also
_________________
The Original German Folks! |
|
| Back to top |
|
|
gimmesomeshelter
Samba Member
Joined: May 08, 2004
Posts: 1119
Location: San Carlos, CA
|
| Posted: Sat Mar 31, 2012 9:54 pm Post subject: |
|
|
Steven-
May I ask what you're going to have done to your heads? Are you going to just have the ports cleaned up, or are you going for "the works" (reshaped chambers, beehive springs, titanium retainers, etc.)?
Cheers,
Paul
_________________
My dog's vet has all my car money (http://sagecenters.com/) |
|
| Back to top |
|
|
Mr. Okrasa
Samba Member
Joined: May 20, 2000
Posts: 304
Location: Newport Heights, Califa.
|
| Posted: Sat Mar 31, 2012 9:57 pm Post subject: |
|
|

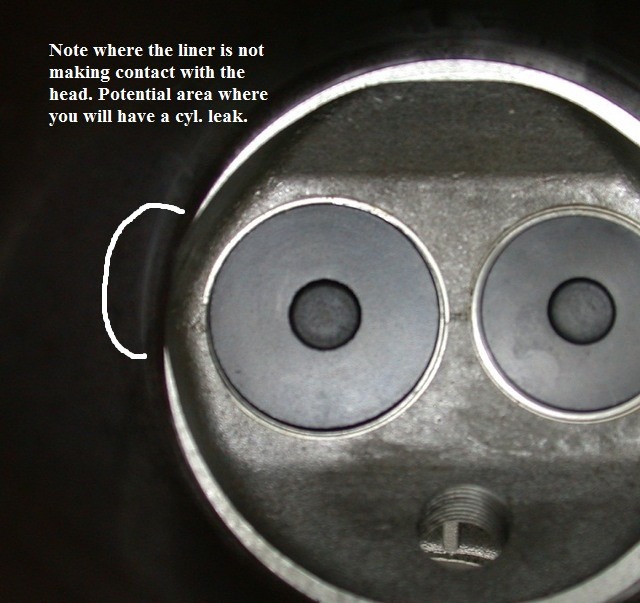

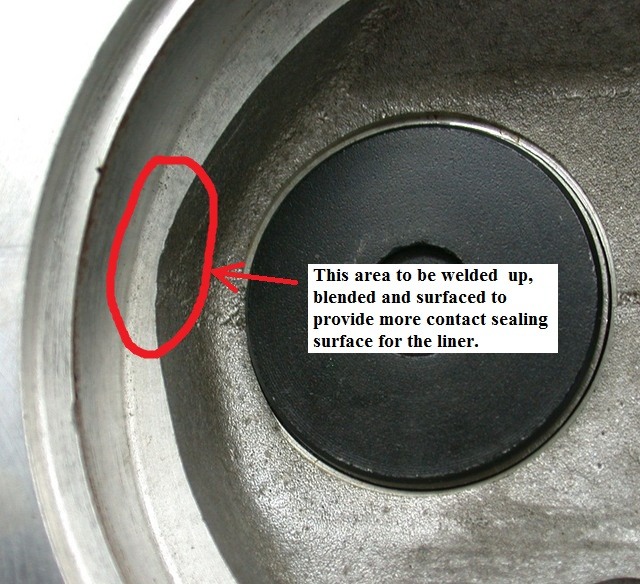

The purpose of these photos is to show where there needs to be additional welding/machinework done to
the W.West dualport 36hp head before it is installed out of the box. The aluminum shrank when it cooled
when the head was cast, thus reducing this important sealing area for the liner.
_________________
1950 Split Window 356 Coupe / #5369 / Adria Blue Metallic
1951 Split Window 356 Coupe / #10572 / Radium Green Metallic
1952 Split Window 356 Cabriolet / #10188 / Azure Blue
1959 Enzmann Spyder 506 #28
VW www.Okrasa.com
356 www.PreA356.com |
|
| Back to top |
|
|
Steven G.
Samba Member
Joined: October 07, 2004
Posts: 356
Location: So Cal Hood
|
|
| Back to top |
|
|
Brian Eis
Samba Member
Joined: January 19, 2004
Posts: 139
|
| Posted: Sun Apr 01, 2012 6:39 pm Post subject: |
|
|
| are all the WW heads like this? If a pair were not welded & surfaced, and merely bolted on out of the box, would there soon be engine trouble? |
|
| Back to top |
|
|
John Moxon
Samba Member
Joined: March 07, 2004
Posts: 8694
Location: Southampton U.K.
|
| Posted: Mon Apr 02, 2012 12:47 am Post subject: |
|
|
| Brian Eis wrote: |
| are all the WW heads like this? If a pair were not welded & surfaced, and merely bolted on out of the box, would there soon be engine trouble? |
There have been issues with the WW heads in the past but from a previous topic on the subject WW seem to be pleased to replace any head seen to be defective: http://www.thesamba.com/vw/forum/viewtopic.php?t=402541
I'm not sure what purpose it will serve to get into another p***ing match on the subject especially here, a topic to illustrate Steve G engine build for his '54 ragtop.
For that reason I've taken the unusual step of setting up a feedback thread on these repro Wolfsburg West twin port heads. If you have personal experience of these repro heads, please contribute to this new topic: http://www.thesamba.com/vw/forum/viewtopic.php?p=5953218 . They, I believe, have sold very well so there should be enough information and feedback from actual users to come to a reliable conclusion.
_________________
John.
Posted from my Apple iPhone 6 (Beta)
The VW Judson Register
My '58 Karmann Ghia
1958 Karmann Ghia Postcard Now Available
If I agreed with you we'd both be wrong. |
|
| Back to top |
|
|
Steven G.
Samba Member
Joined: October 07, 2004
Posts: 356
Location: So Cal Hood
|
|
| Back to top |
|
|
Steven G.
Samba Member
Joined: October 07, 2004
Posts: 356
Location: So Cal Hood
|
|
| Back to top |
|
|
gimmesomeshelter
Samba Member
Joined: May 08, 2004
Posts: 1119
Location: San Carlos, CA
|
| Posted: Sat Apr 21, 2012 8:54 pm Post subject: |
|
|
Hello-
Great looking badge! Is it original or a repro?
Cheers,
Paul
_________________
My dog's vet has all my car money (http://sagecenters.com/) |
|
| Back to top |
|
|
Steven G.
Samba Member
Joined: October 07, 2004
Posts: 356
Location: So Cal Hood
|
|
| Back to top |
|
|
Steven G.
Samba Member
Joined: October 07, 2004
Posts: 356
Location: So Cal Hood
|
|
| Back to top |
|
|
Steven G.
Samba Member
Joined: October 07, 2004
Posts: 356
Location: So Cal Hood
|
| Posted: Sat May 05, 2012 9:45 am Post subject: |
|
|
This week the engine case got finished getting the chem dye penetrant treatment  Also Mr. Okrasa has recieved the heads back from Clyde Berg after the welding had been done and I have attached some after pictures so you can see the difference of the extra surface area where the liner seats against the cylinder head now. I also got my OT pulley in the mail just the other day so I figured I toss a few pictures of it up as well.
Thanks Joe for all the updates and pics!
_________________
~Steven G.~
1954 117 Deluxe Sunroof
•Click Here→ My 1954 Ragtop Deluxe Build Thread
•Click Here→ My Okrasa TSV 1300 Build Thread |
|
| Back to top |
|
|
henry roberts
Samba Member
Joined: February 24, 2003
Posts: 717
Location: australia
|
| Posted: Sat May 05, 2012 7:33 pm Post subject: |
|
|
| Mr. Okrasa wrote: |
|
to me that just says "time to add 83mm p&c"
the engine is looking very nice. |
|
| Back to top |
|
|
Steven G.
Samba Member
Joined: October 07, 2004
Posts: 356
Location: So Cal Hood
|
|
| Back to top |
|
|
Steven G.
Samba Member
Joined: October 07, 2004
Posts: 356
Location: So Cal Hood
|
| Posted: Fri May 11, 2012 11:49 am Post subject: |
|
|
Here is a tough little piece to find... 54-55 generator pulley along with correct hub, washers (thick/thin) & big nut. I got lucky as the pulley is a NOS piece.
I dropped by to visit Joe this past Tuesday and was surprised to find my long block practically all done. I should have some more progress photos soon, until than here's something for your viewing pleasure!
_________________
~Steven G.~
1954 117 Deluxe Sunroof
•Click Here→ My 1954 Ragtop Deluxe Build Thread
•Click Here→ My Okrasa TSV 1300 Build Thread |
|
| Back to top |
|
|
Steven G.
Samba Member
Joined: October 07, 2004
Posts: 356
Location: So Cal Hood
|
| Posted: Sat May 12, 2012 9:27 am Post subject: |
|
|
Joe sent me these awesome update photos last night of the long block build. I am VERY impressed with the build and progress. Joe used his own Mr.Okrasa 69.5mm counterweighted, balanced, hardend, 8 dowell stroker crankshaft with nitrided journals and performance grind 36hp camshaft in the build. It's all begining to take form now!
_________________
~Steven G.~
1954 117 Deluxe Sunroof
•Click Here→ My 1954 Ragtop Deluxe Build Thread
•Click Here→ My Okrasa TSV 1300 Build Thread |
|
| Back to top |
|
|
Mr. Motorhead
Mad Scientist
Joined: January 06, 2004
Posts: 539
Location: Practitioner of 36hp alchemy
|
| Posted: Sat May 12, 2012 12:41 pm Post subject: |
|
|
| Steven G. wrote: |
Joe used his own Mr.Okrasa 69.5mm counterweighted, balanced, hardend, 8 dowell stroker crankshaft.
|
Are those the welded cranks that DPR makes out of a stock crank? They always balance and run nice, the work is top shelf. I've never had a problem with any DPR welded stroker crank.
_________________
30 years experience in the sales of new and used auto parts!
36 horsepower parts for sale at http://www.aircooledresearch.com/
Or the new site at http://www.bugparts.com
Check out the Bonneville project:
http://aircooledresearch.com/docs/thebonnevilleproject.html#
"All limitations are self imposed."
Some Chinese guy |
|
| Back to top |
|
|
gimmesomeshelter
Samba Member
Joined: May 08, 2004
Posts: 1119
Location: San Carlos, CA
|
| Posted: Sat May 12, 2012 5:32 pm Post subject: |
|
|
Hello-
I seem to remember that Mr. O' sand seals his cases. Are you going to do this with yours?
Cheers,
Paul
_________________
My dog's vet has all my car money (http://sagecenters.com/) |
|
| Back to top |
|
|
Steven G.
Samba Member
Joined: October 07, 2004
Posts: 356
Location: So Cal Hood
|
| Posted: Sat May 12, 2012 6:48 pm Post subject: |
|
|
| Mr. Motorhead wrote: |
| Steven G. wrote: |
Joe used his own Mr.Okrasa 69.5mm counterweighted, balanced, hardend, 8 dowell stroker crankshaft.
|
Are those the welded cranks that DPR makes out of a stock crank? They always balance and run nice, the work is top shelf. I've never had a problem with any DPR welded stroker crank. |
I'll have to ask Joe the next time I see him unless he runs by this thread and decides to chime in, but I'm pretty sure it's not (I could be wrong however)!
_________________
~Steven G.~
1954 117 Deluxe Sunroof
•Click Here→ My 1954 Ragtop Deluxe Build Thread
•Click Here→ My Okrasa TSV 1300 Build Thread
Last edited by Steven G. on Sat May 12, 2012 6:51 pm; edited 1 time in total |
|
