| View previous topic :: View next topic |
| Author |
Message |
Steven G.
Samba Member
Joined: October 07, 2004
Posts: 356
Location: So Cal Hood
|
 Posted: Sat May 12, 2012 6:50 pm Post subject: |
 |
|
| gimmesomeshelter wrote: | Hello-
I seem to remember that Mr. O' sand seals his cases. Are you going to do this with yours?
Cheers,
Paul |
I am not, I haven't had the best luck using them in the past and I am certainly not doing anything that would warrant the need for one so I'll be going old school and running the oil slinger on the OT pulley.
_________________
~Steven G.~
1954 117 Deluxe Sunroof
•Click Here→ My 1954 Ragtop Deluxe Build Thread
•Click Here→ My Okrasa TSV 1300 Build Thread |
|
| Back to top |
|
 |
Mr. Okrasa
Samba Member
Joined: May 20, 2000
Posts: 303
Location: Newport Heights, Califa.
|
| Posted: Sun May 13, 2012 1:20 pm Post subject: |
|
|
| Mr. Motorhead wrote: | | Steven G. wrote: | Joe used his own Mr.Okrasa 69.5mm counterweighted, balanced, hardend, 8 dowell stroker crankshaft.
|
Are those the welded cranks that DPR makes out of a stock crank? They always balance and run nice,
the work is top shelf. I've never had a problem with any DPR welded stroker crank. |
I also agree that the crankshafts coming out of Jose's DPR shop are top notch quality! My "Personal" machinest is
just as good and known him for about 25 years now. Never had any issues. Cheers! Mr. Okrasa
_________________
1950 Split Window 356 Coupe / #5369 / Adria Blue Metallic
1951 Split Window 356 Coupe / #10572 / Radium Green Metallic
1952 Split Window 356 Cabriolet / #10188 / Azure Blue
1959 Enzmann Spyder 506 #28
VW www.Okrasa.com
356 www.PreA356.com |
|
| Back to top |
|
|
Rich's 50
Samba Member
Joined: February 18, 2004
Posts: 10117
Location: Beaumont.....GFK's
|
| Posted: Sun May 13, 2012 9:04 pm Post subject: |
|
|
Well done Joe and Steve.....
_________________
FOLK'S THOUGHT YOU KNEW.......... |
|
| Back to top |
|
|
Mr. Okrasa
Samba Member
Joined: May 20, 2000
Posts: 303
Location: Newport Heights, Califa.
|
| Posted: Sun May 13, 2012 9:28 pm Post subject: |
|
|
| gimmesomeshelter wrote: | Hello-
I seem to remember that Mr. O' sand seals his cases. Are you going to do this with yours?
Cheers,
Paul |
Hi Paul,
I usually sand seal these "big" stroker engine blocks only at the customers request or if I believe it is going to be used at a consistant high RPM use. In this particular case, the owner is going to use a cast iron pulley and when these pulleys are cut for the sand seal, they get "thin" around the neck and actually had a couple of them fracture already. Cheers! Mr. Okrasa
_________________
1950 Split Window 356 Coupe / #5369 / Adria Blue Metallic
1951 Split Window 356 Coupe / #10572 / Radium Green Metallic
1952 Split Window 356 Cabriolet / #10188 / Azure Blue
1959 Enzmann Spyder 506 #28
VW www.Okrasa.com
356 www.PreA356.com |
|
| Back to top |
|
|
Steven G.
Samba Member
Joined: October 07, 2004
Posts: 356
Location: So Cal Hood
|
|
| Back to top |
|
|
big-luke
Samba Member
Joined: January 14, 2011
Posts: 228
Location: claremont, california
|
| Posted: Sun Jul 22, 2012 12:29 pm Post subject: |
|
|
nice bouncer steve wheres the radiator go?
_________________
LoW_BALLERs
Internationally known, locally respected. |
|
| Back to top |
|
|
ThreeSpeed
Samba Member
Joined: June 25, 2006
Posts: 286
Location: Bowen Island, B.C.
|
| Posted: Sun Jul 22, 2012 9:10 pm Post subject: |
|
|
Looking great.
What exhaust set-up will you run on this?
Trevor
_________________
1959 lowlight Ghia |
|
| Back to top |
|
|
Mr. Okrasa
Samba Member
Joined: May 20, 2000
Posts: 303
Location: Newport Heights, Califa.
|
| Posted: Thu Dec 06, 2012 1:48 am Post subject: |
|
|

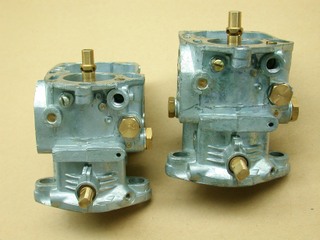

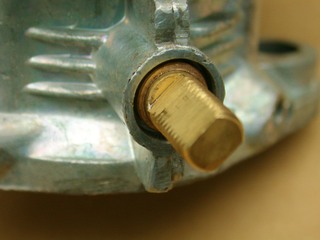

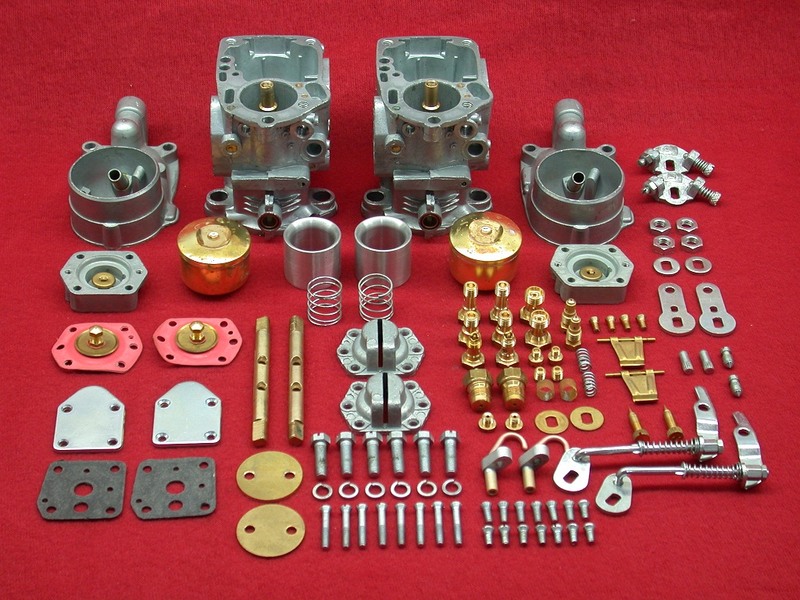

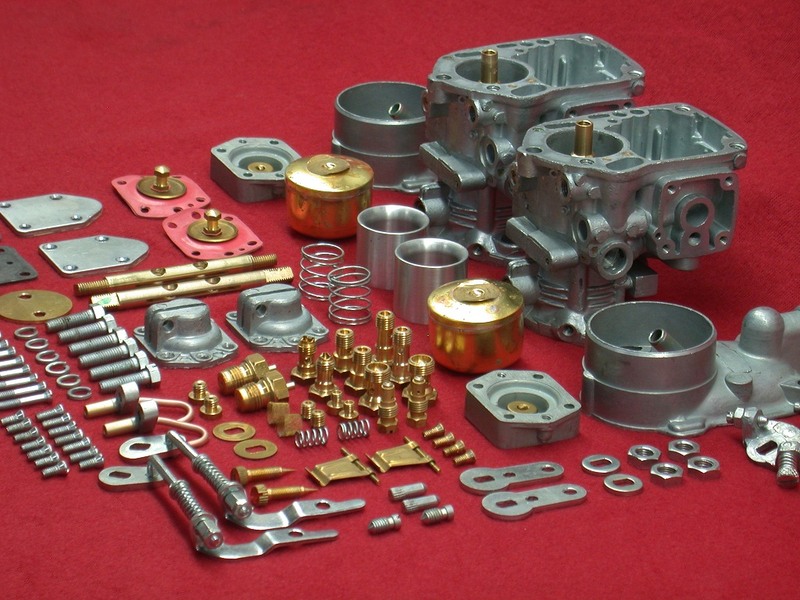

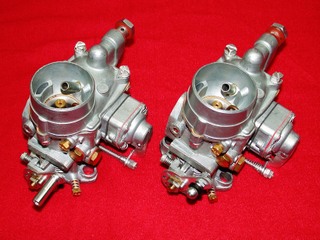

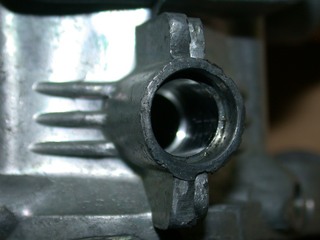

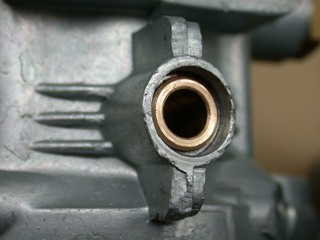

Took apart the carbs now. Rebushed, re-jetted and correct venturi's. Enjoy! Mr. Okrasa


_________________
1950 Split Window 356 Coupe / #5369 / Adria Blue Metallic
1951 Split Window 356 Coupe / #10572 / Radium Green Metallic
1952 Split Window 356 Cabriolet / #10188 / Azure Blue
1959 Enzmann Spyder 506 #28
VW www.Okrasa.com
356 www.PreA356.com |
|
| Back to top |
|
|
DONGKG
The Araneta Boys
Joined: August 28, 2006
Posts: 4841
Location: Cainta, Rizal, Philippines, "A Certified Type 3 and Karmann Ghia Maniac"
|
|
| Back to top |
|
|
Rich's 50
Samba Member
Joined: February 18, 2004
Posts: 10117
Location: Beaumont.....GFK's
|
| Posted: Fri Dec 07, 2012 8:58 am Post subject: |
|
|
What he said ^^^^^^^
_________________
FOLK'S THOUGHT YOU KNEW.......... |
|
| Back to top |
|
|
Rwoodshvac
Samba Member
Joined: March 21, 2010
Posts: 179
Location: VA
|
| Posted: Wed Dec 12, 2012 7:03 pm Post subject: |
|
|
Wow I love the pics of. The carbs
_________________
57 Ragtop Semaphore Sedan
Vinatage Speed build
48 Aluminum Case
Porsche 356 B Crankshaft 74mm
Porsche 356 B Rods
Shasta Cylinders with JE Pistons 80mm
WW Okrasa Heads worked by Ron Chuck
34 Pbic Carbs rebushed by Mr Okrasa
Custom Okrasa Intakes enlarged to 34mm
Gene Burg Sump
Fram bypass Filter with Oil Cooler |
|
| Back to top |
|
|
Mr. Okrasa
Samba Member
Joined: May 20, 2000
Posts: 303
Location: Newport Heights, Califa.
|
| Posted: Tue Dec 18, 2012 12:12 pm Post subject: Fuel Line: Repop vs. Okrasa |
|
|
| Rwoodshvac wrote: | | Wow I love the pics of. The carbs |

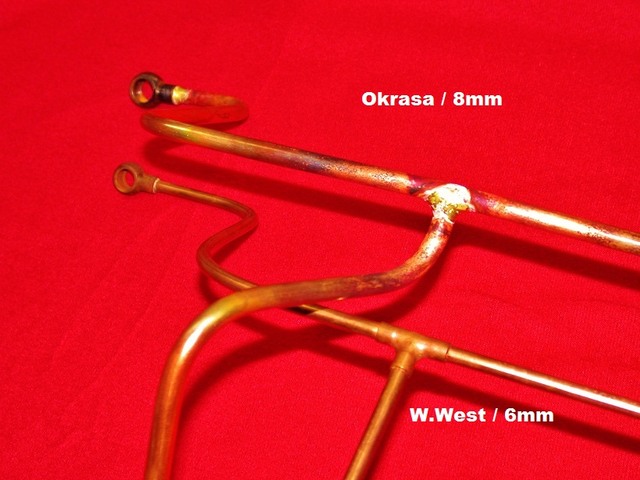

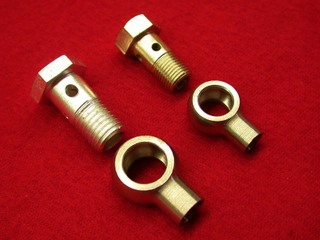

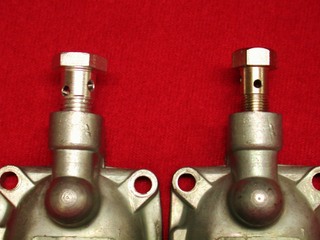

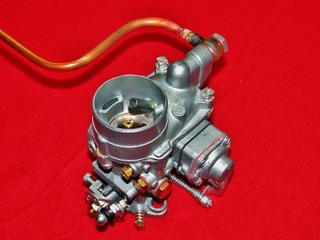

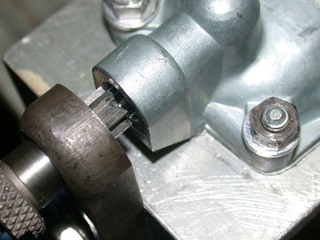

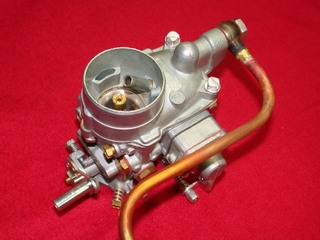

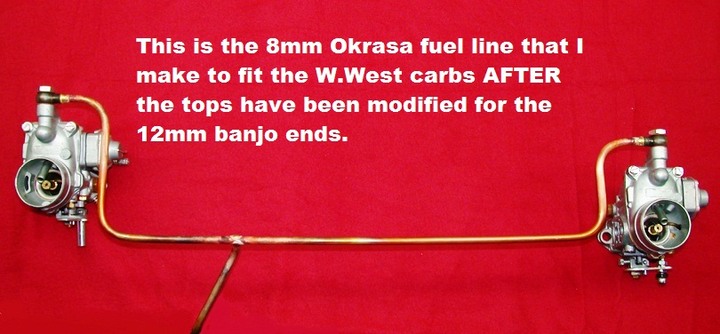

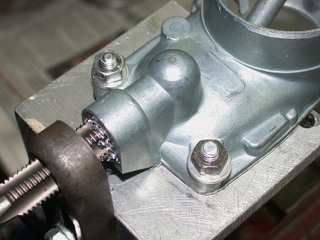

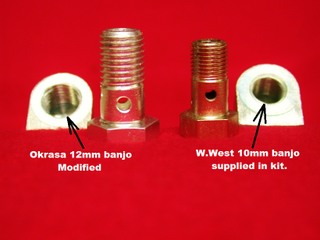

Steve wanted to change directions with the supplied W.West 6mm fuel line to the original 8mm Okrasa type as used on my engines. The fuel line supplied in the W.West kit uses 10mm banjo/6mm fuel line. As per original Okrasa, the line should be 12mm banjo/8mm fuel line. The carbs in the W.West kit dont allow to use the larger/original Okrasa fuel line UNLESS they are machined at the fuel inlet connection. I made up some tooling so I can "modify" the carb tops to original 12mm fuel inlet specifications. Now you can run the original looking Okrasa 8mm fuel line and give your engine an "original Okrasa" look rather than an aftermarked/reproduction look. Enjoy photos! Mr. Okrasa




_________________
1950 Split Window 356 Coupe / #5369 / Adria Blue Metallic
1951 Split Window 356 Coupe / #10572 / Radium Green Metallic
1952 Split Window 356 Cabriolet / #10188 / Azure Blue
1959 Enzmann Spyder 506 #28
VW www.Okrasa.com
356 www.PreA356.com |
|
| Back to top |
|
|
Steven G.
Samba Member
Joined: October 07, 2004
Posts: 356
Location: So Cal Hood
|
| Posted: Wed Dec 19, 2012 10:17 pm Post subject: |
|
|
| ThreeSpeed wrote: | Looking great.
What exhaust set-up will you run on this?
Trevor |
Thanks for the compliment, Joe is truly a master in the art of vintage engine building. I plan to run the Abarth exhaust which Joe says he will modify to fit the wider apart heads due to the stroker setup.
_________________
~Steven G.~
1954 117 Deluxe Sunroof
•Click Here→ My 1954 Ragtop Deluxe Build Thread
•Click Here→ My Okrasa TSV 1300 Build Thread |
|
| Back to top |
|
|
Steven G.
Samba Member
Joined: October 07, 2004
Posts: 356
Location: So Cal Hood
|
| Posted: Wed Dec 19, 2012 10:20 pm Post subject: Re: Fuel Line: Repop vs. Okrasa |
|
|
| Mr. Okrasa wrote: | | Rwoodshvac wrote: | | Wow I love the pics of. The carbs |
Steve wanted to change directions with the supplied W.West 6mm fuel line to the original 8mm Okrasa type as used on my engines. The fuel line supplied in the W.West kit uses 10mm banjo/6mm fuel line. As per original Okrasa, the line should be 12mm banjo/8mm fuel line. The carbs in the W.West kit dont allow to use the larger/original Okrasa fuel line UNLESS they are machined at the fuel inlet connection. I made up some tooling so I can "modify" the carb tops to original 12mm fuel inlet specifications. Now you can run the original looking Okrasa 8mm fuel line and give your engine an "original Okrasa" look rather than an aftermarked/reproduction look. Enjoy photos! Mr. Okrasa
|
Joe, I am speechless with the build! It put a huge smile on my face at a time that I really needed it most.
I can't wait to see more updates, I'm super excited about it!
_________________
~Steven G.~
1954 117 Deluxe Sunroof
•Click Here→ My 1954 Ragtop Deluxe Build Thread
•Click Here→ My Okrasa TSV 1300 Build Thread |
|
| Back to top |
|
|
djway3474
Samba Member
Joined: August 19, 2011
Posts: 488
Location: Inland Empire CA
|
| Posted: Thu Dec 20, 2012 2:08 am Post subject: Re: Fuel Line: Repop vs. Okrasa |
|
|
| Mr. Okrasa wrote: | | Rwoodshvac wrote: | | Wow I love the pics of. The carbs |
Steve wanted to change directions with the supplied W.West 6mm fuel line to the original 8mm Okrasa type as used on my engines. The fuel line supplied in the W.West kit uses 10mm banjo/6mm fuel line. As per original Okrasa, the line should be 12mm banjo/8mm fuel line. The carbs in the W.West kit dont allow to use the larger/original Okrasa fuel line UNLESS they are machined at the fuel inlet connection. I made up some tooling so I can "modify" the carb tops to original 12mm fuel inlet specifications. Now you can run the original looking Okrasa 8mm fuel line and give your engine an "original Okrasa" look rather than an aftermarked/reproduction look. Enjoy photos! Mr. Okrasa
|
Are the 12 MM banjos the size used on the glass filters? If so where does one get them I have been holding back picking up a glass filter as I heard it was VERY hard to find the fittings. |
|
