 Posted: Tue Jun 05, 2012 5:09 pm Post subject: Rebuilding '67 Handles |
 |
|
I've read here that there's an article in either VWTrends or HotVWs from a few years back that detail how to rebuild the door handles of a '67 bug.. Does anyone know what month/year issue I should order? That I haven't found...
_________________
Marius Strom http://www.marius.org/
Otto: 1988 Vanagon Syncro Westy Camper w/Vanistan 2.2WBX
Felix: 1967 Deluxe Beetle |
|
| Back to top |
|
 |
67 Florida Deluxe
Samba Purist
Joined: June 21, 2005
Posts: 6223
Location: Gainesville and St. Petersburg, Florida
|
| Posted: Tue Jun 05, 2012 7:14 pm Post subject: |
|
|
I dont even know why one would do that. What are you trying to accomplish?
_________________
Wanted:
Atlas Motors and Brundage Motors license plate frames.
A few of my toys |
|
| Back to top |
|
|
mariusstrom
Samba Member
Joined: March 29, 2010
Posts: 652
Location: Bellevue, WA
|
| Posted: Tue Jun 05, 2012 8:04 pm Post subject: |
|
|
| 67 Florida Deluxe wrote: | | I dont even know why one would do that. What are you trying to accomplish? |
The locking/unlocking mechanisms with the keys are a bit janky. Need to lift on the driver's side key to get the mechanism to move, and have to turn the key 3-4 times to get the lock to pop. Hoping to get that all resolved.
_________________
Marius Strom http://www.marius.org/
Otto: 1988 Vanagon Syncro Westy Camper w/Vanistan 2.2WBX
Felix: 1967 Deluxe Beetle |
|
| Back to top |
|
|
67 Florida Deluxe
Samba Purist
Joined: June 21, 2005
Posts: 6223
Location: Gainesville and St. Petersburg, Florida
|
| Posted: Tue Jun 05, 2012 8:11 pm Post subject: |
|
|
| mariusstrom wrote: | | 67 Florida Deluxe wrote: | | I dont even know why one would do that. What are you trying to accomplish? |
The locking/unlocking mechanisms with the keys are a bit janky. Need to lift on the driver's side key to get the mechanism to move, and have to turn the key 3-4 times to get the lock to pop. Hoping to get that all resolved. |
This is common. The easiest fix is just to swap the handles. Put left door handle on right door and vice versa. They are interchangeable. When you swap, you essentially get a "new" paddle (the device that pushes up the door lock when you twist the key). This is the unworn underside of the paddle from the opposite door.
Problem solved in less than 10 minutes.
_________________
Wanted:
Atlas Motors and Brundage Motors license plate frames.
A few of my toys |
|
| Back to top |
|
|
kevhum
Samba Member
Joined: April 05, 2008
Posts: 556
Location: State of Jefferson
|
|
| Back to top |
|
|
manfang
Samba Member
Joined: January 31, 2011
Posts: 22
|
| Posted: Tue Jun 05, 2012 9:43 pm Post subject: |
|
|

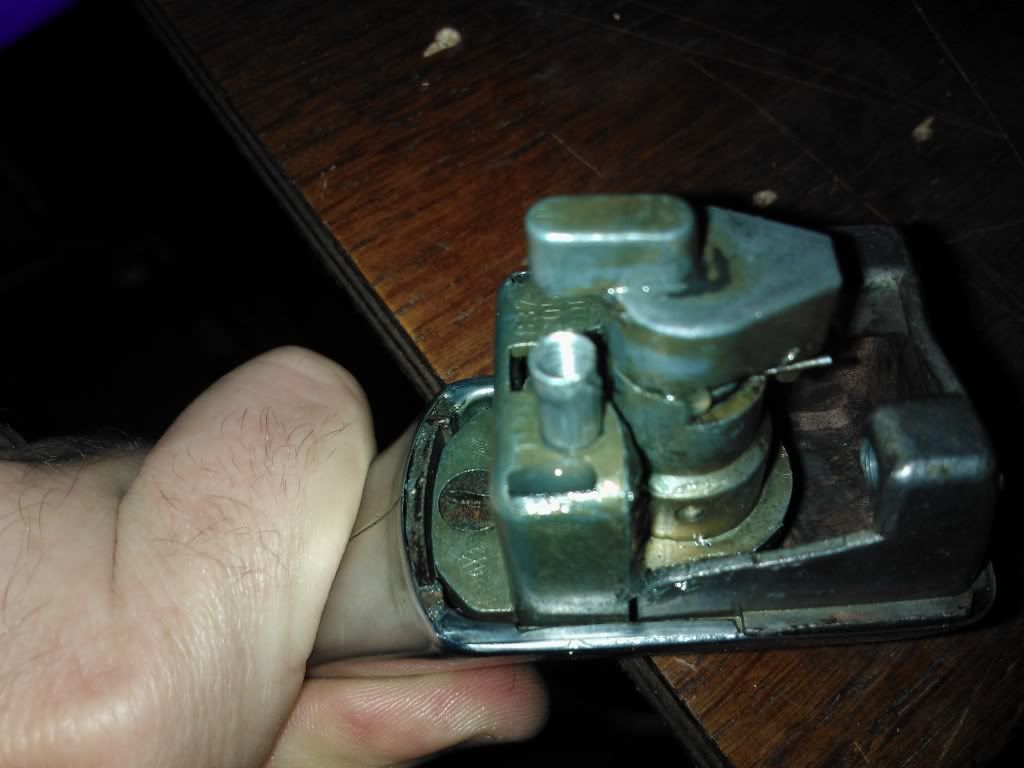

I followed that write-up and now both locks work like a champ.
$.50 standoff from the hardware store.
Tap the hole
File it flush
Good as new
 |
|
| Back to top |
|
|
mariusstrom
Samba Member
Joined: March 29, 2010
Posts: 652
Location: Bellevue, WA
|
|
| Back to top |
|
|
crvc
Samba Member
Joined: April 28, 2004
Posts: 1017
|
| Posted: Wed Jun 06, 2012 8:03 am Post subject: |
|
|
For those who aren't that mechanical, '67 lock mechanisms can't be found. Instead later year mechanisms can be used but you have to cut off a section to make it fit. I did it on my '67.
crvc |
|
| Back to top |
|
|
6Kabrio7
Samba Member
Joined: July 22, 2006
Posts: 2001
Location: California
|
| Posted: Wed Jun 06, 2012 8:39 am Post subject: |
|
|
Or you can send your handle to Gabriel..He repaired one of my 67 handles.
http://www.thesamba.com/vw/forum/viewtopic.php?t=54110
_________________
67 Convertible July 67 Yukon Yellow
67 Sedan May 67 Zenith blue
VVWCA member since 2007 |
|
| Back to top |
|
|
mariusstrom
Samba Member
Joined: March 29, 2010
Posts: 652
Location: Bellevue, WA
|
| Posted: Mon Jun 11, 2012 9:47 pm Post subject: |
|
|
I'm mostly through this and will take some good photos and try to do a writeup on this project tomorrow. One of my O-rings between the thumb-button and the mechanism is shot - does anyone know the dimensions/replacement info for this ring? ETKA just says NLA for it (MG:8 SG:37 Ill:94-00 POS 33 for those that want to see it in ETKA).
I'm planning to take the one good (but really brittle) ring up to Tacoma Screw, but would appreciate it if someone knows the right dimensions so I can be armed with some advance knowledge.
_________________
Marius Strom http://www.marius.org/
Otto: 1988 Vanagon Syncro Westy Camper w/Vanistan 2.2WBX
Felix: 1967 Deluxe Beetle |
|
| Back to top |
|
|
smitty24
Samba Member
Joined: April 28, 2008
Posts: 2186
Location: Salem, Oregon
|
| Posted: Tue Jun 12, 2012 11:49 am Post subject: |
|
|
| ^ did you ever find your matching ignition, or just decided it was easier to rebuild what you already had? |
|
| Back to top |
|
|
mariusstrom
Samba Member
Joined: March 29, 2010
Posts: 652
Location: Bellevue, WA
|
| Posted: Tue Jun 12, 2012 1:17 pm Post subject: |
|
|
| smitty24 wrote: | | ^ did you ever find your matching ignition, or just decided it was easier to rebuild what you already had? |
So far finding it easier to rebuild what I have. It's not difficult at all, and I think I'll solve a lot of my issues by putting the guide pins back (both of mine were missing, but the springs were there!)
The other thing that this has led me to realize is that a lot of the locking mechanisms is outside of the control of the handle. There's a latching mechanism in the door, and my passenger one has previous-owner paint on it. Ugh. So it's sticky, and I'll have to fix that.
_________________
Marius Strom http://www.marius.org/
Otto: 1988 Vanagon Syncro Westy Camper w/Vanistan 2.2WBX
Felix: 1967 Deluxe Beetle |
|
