need help on my 68

kaantuu68 · Posted: Tue Jul 03, 2012 8:01 pm Post subject: need help on my 68

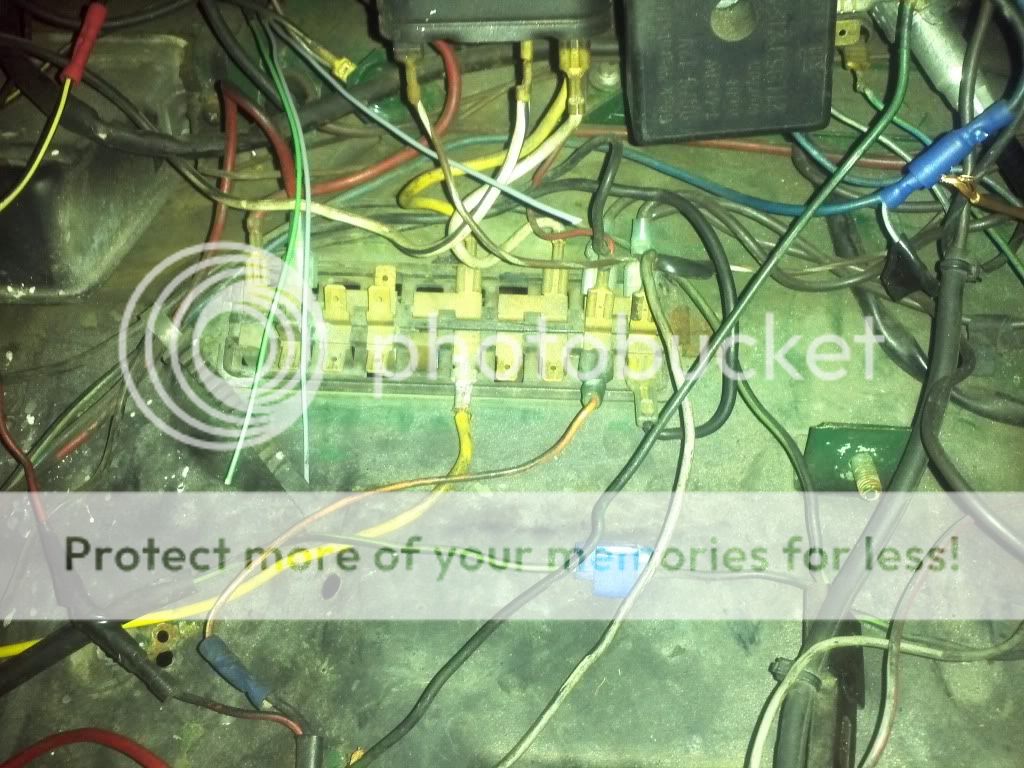

Okay im having some trouble trying to make my lights work,i just figure out the turn signals (front ones) back ones only work when i step on the brakes,i found the cables coming from the lights gray/black gray/red ithink and the diagram says it goes plugged somewhere but i have no idea where and a black and red cable,any help would be aprecciated

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

jzjames · Posted: Tue Jul 03, 2012 9:55 pm Post subject:

It looks like your wiring has been messed with big time, and it would be awful difficult for anybody on here to be able to decipher it.

Get some help from a Beetle person and try to return it to the stock wiring. Thats the best advice from here. Good luck

drew8372 · Posted: Wed Jul 04, 2012 4:18 am Post subject:

I just did all my wiring on my 68. I was too cheap to buy a new harness so i printed out a diagram and just followed every wire. it took probably 8 hours of thinking and drinking over a week to get all the lights working right.......but from your pictures your wires are messed up you should have a lot more plugged into the fuse box... you might want a new harness if your not good at figuring it out yourself

candymustang66 · Samba Member Joined: April 24, 2012 Posts: 2353

looks like 1/2 is missing

and those blue fuses are wrong an that fuse block is custom.

the rear wiring is under the tar boards. left and right ,and
revers is under the front board. and fuse for same.
the drawings in the TAB above, called Technical are dead accurate. for 68.

my 68 is stock ,exect I have power strop for #15 Ignition feed.
lighting is stock and you can see it al here.

Image may have been reduced in size. Click image to view fullscreen.

_________________
close to for sale time. very close. by summers end.
just finished front end rebuild and Ghia discs (nice)

kaantuu68 · Posted: Wed Jul 04, 2012 8:20 am Post subject:

I kinda figured i have to rewire when isaw all those wires taped up lol but most of the wires are there,they just cutted like the tail light wires are cutted so idont know where they go,igot the head lights working and turnsignals,front ones(back only work when i hit the brake) brake lights work,so im guessing im buying me a 12 pack and figure out where they go lol

kaantuu68 · Posted: Fri Jul 06, 2012 8:02 pm Post subject:

Okay i got my lights working but now i ran to a little problem,one tailight is brighter than the other one and the dimmer one when ever i hit the brake it turns off,idont have the turn signal switch on it,im going to get it tomorrow,i was thinking maybe ineed to have all the lights working first and maybe thats why it does that or anybody had this problem before?

Q-Dog · Posted: Sat Jul 07, 2012 3:21 am Post subject:

76VwBug1600 · Posted: Sat Jul 07, 2012 3:26 am Post subject: mine

I just did all of the wiring on my 76 if its any help i wired my 1 and 2 fuses left and right on the bug.. So persay #1 was my left light and back left light make sure you have it grounded solid or you'll make a mess of trying to figure things out. I forgot to ground mine the first 3 times i messed with it. Felt goofy

http://www.thesamba.com/vw/archives/info/wiringt1.php

i used that
and some good help for people on here.

candymustang66 · Samba Member Joined: April 24, 2012 Posts: 2353

A VOLT DROP can occur at either end and a quick check with a voltmeter
solves that question, each time. but it's the grounds are bad.
max drop is 0.5v (generic rules)

tail lights
the connector is under the L/R tar boards
this connector, feeds, PARK , brake, blink and REV to the lamps
the lamp grounds are not FED.
it is uses the body.
at 3 places.
the aluminized reflector. under the lens has screws to the tail housing
casing.
then the casing is grounded with the 8mm head nuts to the fender
then the fender is grounded to the body 9-10 times. with bolts.

first clean the reflector grounds, then he shell to body grounds.

or run new ground wire from the reflector back to the body
and ground the other end there. solving it for ever. (sil grease at junctions)
Image may have been reduced in size. Click image to view fullscreen.

_________________
close to for sale time. very close. by summers end.
just finished front end rebuild and Ghia discs (nice)

kaantuu68 · Posted: Sat Jul 07, 2012 8:41 am Post subject:

That what i was thinking on doing,ground a cable because the tail light on the bolts are rusted so im guessing its not making good ground,i have another pair of tailight im going to check if its that,thanks for the help Smile

candymustang66 · Samba Member Joined: April 24, 2012 Posts: 2353

you can measure that error!

a VM in hand (volt meter)

2vdc scale (lowest)

black lead to battery minus lug (yes, battery)
red test lead to the tail reflector shell.
a ground to ground test !

key on
blinks on or or worse BRAKES ON.

0v is perfect.
.5v is spec
more is bad ground

takes all of 5min to measure any voltage drops.
ending the mystery.
