PostPosted: Sat Sep 05, 2015 1:31 pm    Post subject: Question about Beige/Tan cabinet laminate Reply with quote

GW sells cabinet laminate to fix up the cabinets as seen here http://www.gowesty.com/ec_view_details.php?id=4336&category_id=&category_parent_id=

It says on that page that the tan only works for model years 85+

Did VW really change the interior tan cabinet color or is GW just trying to keep the early model years down as usual or am I missing something?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ALIKA T3
Samba Member


Joined: July 30, 2009
Posts: 6304
Location: Honolulu,Hawaii and France
ALIKA T3 is offline

PostPosted: Sat Sep 05, 2015 2:13 pm    Post subject: Reply with quote

I have an 1983/84 with that tan color....

Older vans often had the fake wood looking stuff.
_________________
Silicone Steering Boots and 930 Cv boots for sale in the classifieds.
Syncro transmission upgrade parts in the Classifieds.
Subaru EJ22+UN1 5 speed transmission
http://www.thesamba.com/vw/forum/viewtopic.php?t=416343
Syncro http://www.thesamba.com/vw/forum/viewtopic.php?t=4...num+gadget
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kalispell365
Samba Member


Joined: April 01, 2010
Posts: 889
Location: PNW
kalispell365 is offline

PostPosted: Sat Sep 05, 2015 2:42 pm    Post subject: Reply with quote

Alika is correct, that started in 1983.
_________________
1983 Diesel Vanagon Westfalia chassis with Subaru 2.2l
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
crazyvwvanman
Samba Member


Joined: January 28, 2008
Posts: 9889
Location: Orbiting San Diego
crazyvwvanman is offline

PostPosted: Sat Sep 05, 2015 4:18 pm    Post subject: Reply with quote

Actually it started during late 81 models. Just look at the Samba classified and you can find them there in some 81 Westies. I think all 82 came beige/tan. My 5 all did.

Mark


kalispell365 wrote:
Alika is correct, that started in 1983.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
OddN
Samba Member


Joined: August 19, 2010
Posts: 690
Location: Northern Norway
OddN is offline

PostPosted: Sat Sep 05, 2015 4:49 pm    Post subject: Reply with quote

Model year 82 started late 81 and had that beige laminate. Same with the vertical brown/green striped seat covers. Earlier wood grain laminate models had the horisontal shorter stripe seat cover.
_________________
1991 VW Multivan syncro 1,9 TD
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Fiddlestyx
Samba Member


Joined: July 08, 2015
Posts: 401
Location: Texas
Fiddlestyx is offline

PostPosted: Sat Sep 05, 2015 5:53 pm    Post subject: Reply with quote

I have an 83 aircooled with the vertical brown/green striped seats.

So, this should work with my van correct?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
crazyvwvanman
Samba Member


Joined: January 28, 2008
Posts: 9889
Location: Orbiting San Diego
crazyvwvanman is offline

PostPosted: Sat Sep 05, 2015 6:44 pm    Post subject: Reply with quote

It doesn't matter what your seats are.
There are 3 colors of cabinet face.

80-81 brown "wood grain"
81-87 tan/beige
87-91 grey/gray

Mark



Fiddlestyx wrote:
I have an 83 aircooled with the vertical brown/green striped seats.

So, this should work with my van correct?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Fiddlestyx
Samba Member


Joined: July 08, 2015
Posts: 401
Location: Texas
Fiddlestyx is offline

PostPosted: Sun Sep 06, 2015 6:34 am    Post subject: Reply with quote

crazyvwvanman wrote:
It doesn't matter what your seats are.
There are 3 colors of cabinet face.

80-81 brown "wood grain"
81-87 tan/beige
87-91 grey/gray

Mark



That's the exact info I was looking for, thanks.
Thanks to everyone else too.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jerryherb
Samba Member


Joined: October 30, 2015
Posts: 205

jerryherb is offline

PostPosted: Mon Jun 27, 2016 6:33 pm    Post subject: Re: Question about GW cabinet laminate (tan) Reply with quote

does anyone know a source OTHER than the sold out GW shop? like a big box brand or online store?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
westyventures
Samba Member


Joined: December 29, 2004
Posts: 2305
Location: Oregon Outback
westyventures is offline

PostPosted: Tue Jun 28, 2016 12:04 am    Post subject: Re: Question about GW cabinet laminate (tan) Reply with quote

jerryherb wrote:
does anyone know a source OTHER than the sold out GW shop? like a big box brand or online store?


It's Pionite ST617. I have a couple rolls I bought online.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Instagram Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Tue Jun 28, 2016 4:06 pm    Post subject: Re: Question about Beige/Tan cabinet laminate Reply with quote

If you can't find laminate, I had Home Depot color shoot me a cabinet door and mixed up a darn near perfect color match!

The post from my build thread......

djkeev wrote:
I'm building a shelf behind the passenger seat.
I want it to look like it belongs hence it should be Westfalia Beige.
Done properly, I'd source some Formica/Wilson laminate.

I'm not sure if it going to be permanent or if I'll even like it when complete so I'm just going to make it out of Birch Plywood and paint it to blend.

I took the small door to Home Depot and had it color computer matched.

I chose "Eggshell" to mimic the sheen and here is the result.

I painted a piece of cardboard as a color test......
Pretty darn good!
Color varies due to photography light conditions but consistently matches.......

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Oooops. Upside Down! Embarassed


Image may have been reduced in size. Click image to view fullscreen.


This one with full late afternoon sun you need to study the photo to pick out the paint chip!
Image may have been reduced in size. Click image to view fullscreen.

Dave

_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
bjrogers86auto
Samba Member


Joined: March 26, 2009
Posts: 1375
Location: Halifax, N.S.
bjrogers86auto is offline

PostPosted: Tue Jun 28, 2016 4:29 pm    Post subject: Re: Question about Beige/Tan cabinet laminate Reply with quote

Formica "Desert Beige" is way less expensive and as close a match as the Pionite.

How close? So close my Mother asked which part was new? You can see my cabinet build in my pictures.

Brian
_________________
86 Vanagon GL Westfalia 2.1
18 Nissan Frontier Pro 4X
19 Honda Civic Hatchback

A little rudeness and disrespect can elevate a meaningless interaction to a battle of wills and add drama to an otherwise dull day. Calvin and Hobbes.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
westyventures
Samba Member


Joined: December 29, 2004
Posts: 2305
Location: Oregon Outback
westyventures is offline

PostPosted: Tue Jun 28, 2016 5:03 pm    Post subject: Re: Question about Beige/Tan cabinet laminate Reply with quote

bjrogers86auto wrote:
Formica "Desert Beige" is way less expensive and as close a match as the Pionite.

How close? So close my Mother asked which part was new? You can see my cabinet build in my pictures.

Brian


I've used both. The Formica has more yellow tint, the Pionite a shade lighter tan but closer IMO.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Instagram Gallery Classifieds Feedback
rmcd
Samba Member


Joined: October 29, 2010
Posts: 1348
Location: PNW - its a dry rain.
rmcd is offline

PostPosted: Tue Nov 17, 2020 9:08 pm    Post subject: Re: Question about Beige/Tan cabinet laminate Reply with quote

I am re laminating my kitchen cabinet to match the rest of the tan/beige cabinets. I bought from the guy in the classifieds who provided me with the wrong color of laminate. Apparently I’m the only person to complain in four years.

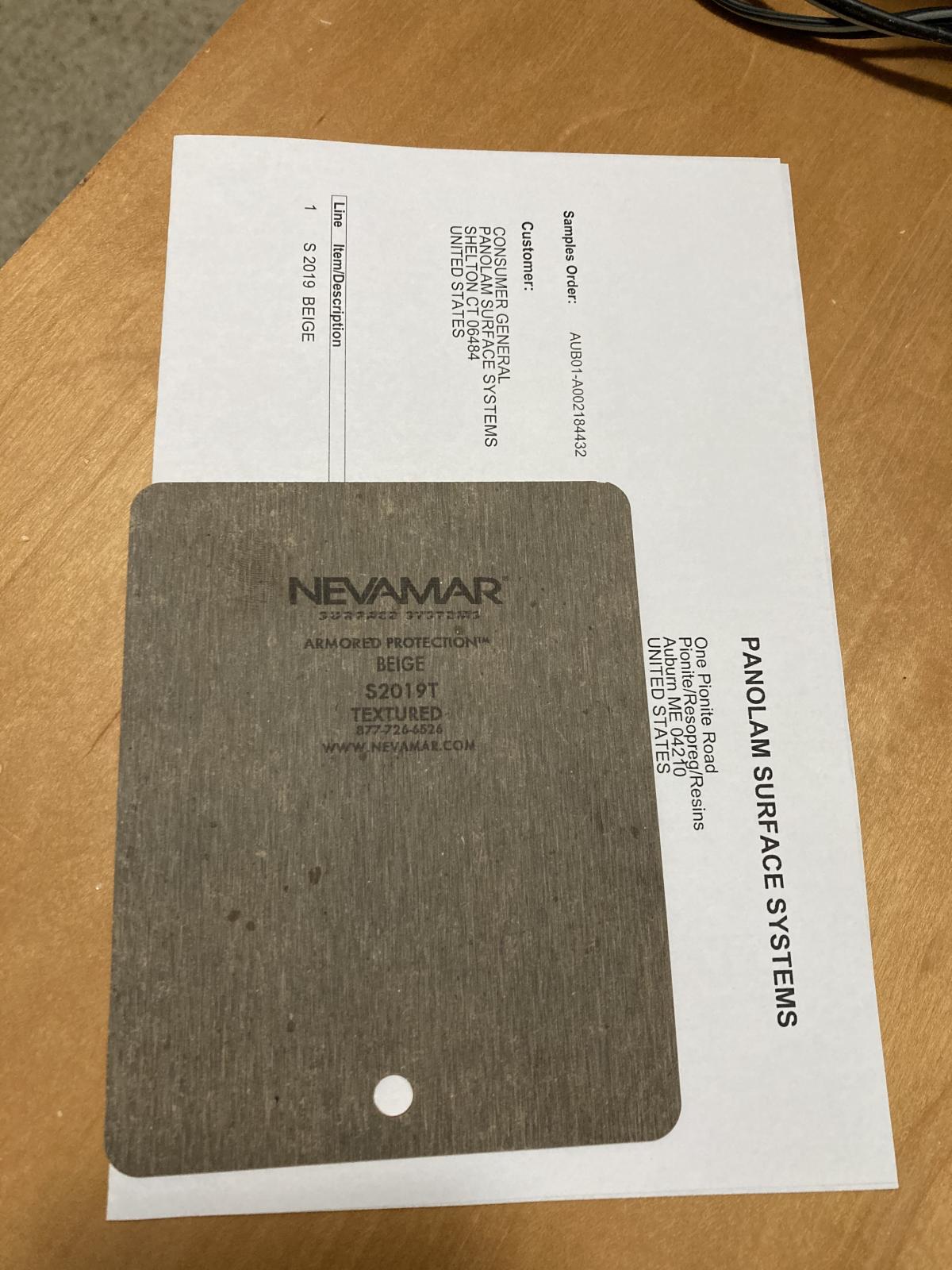

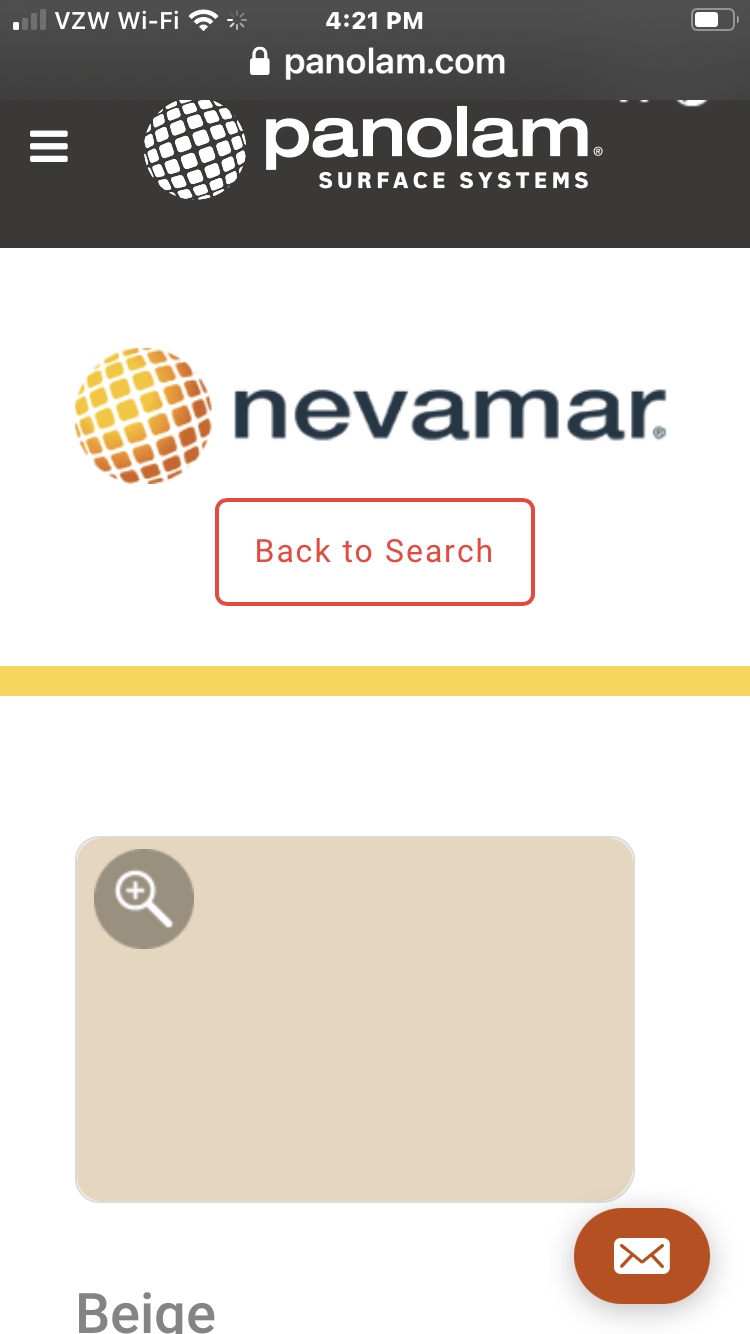

So I have hunted down examples of Formica and Pionite laminate for all to see and order correctly in the future.

On the left is what is provided by the samba member.
In the middle is Pionite st617.
On the right is Formica desert beige in #58 matte finish.

Image may have been reduced in size. Click image to view fullscreen.


I like the Formica the best.

More information about each.

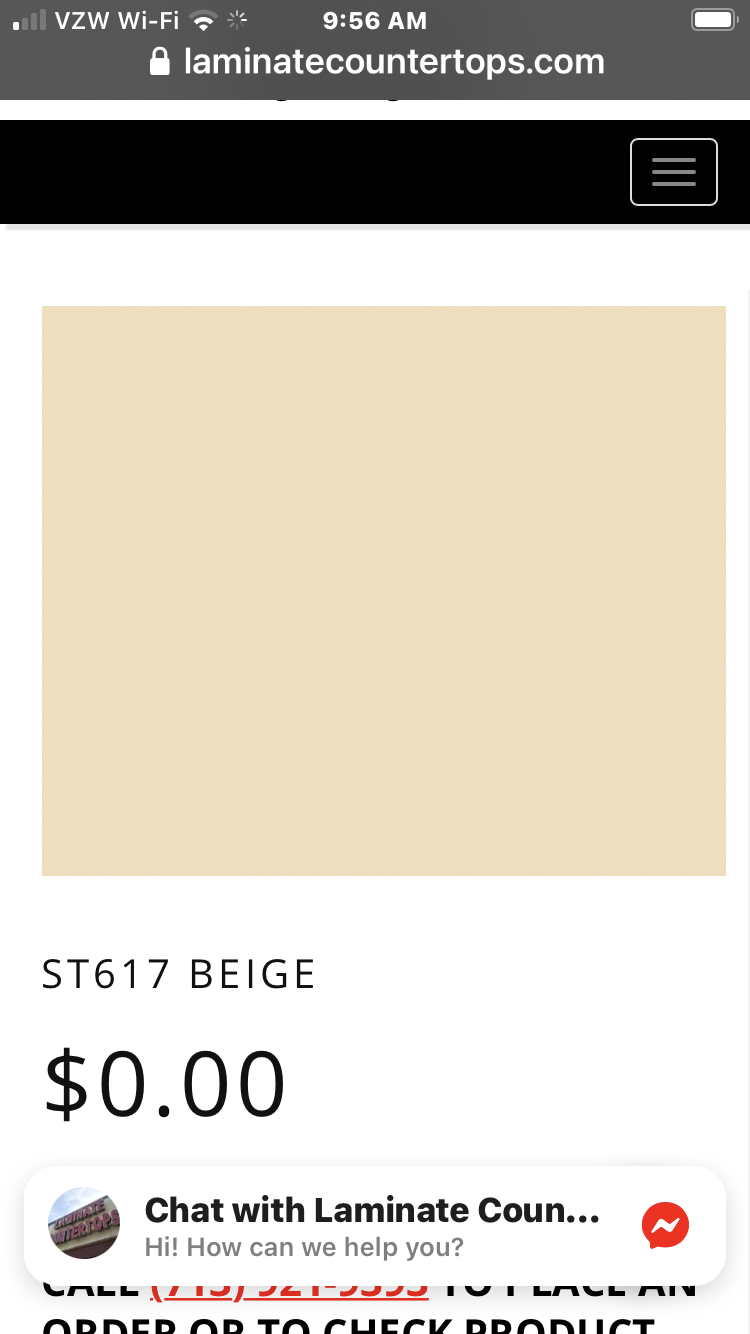

Westy westfalia laminate color samples Pionite st617
I’ve read here that this is what GoWesty sells as part of their fridge replacement. Maybe someone can confirm?

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

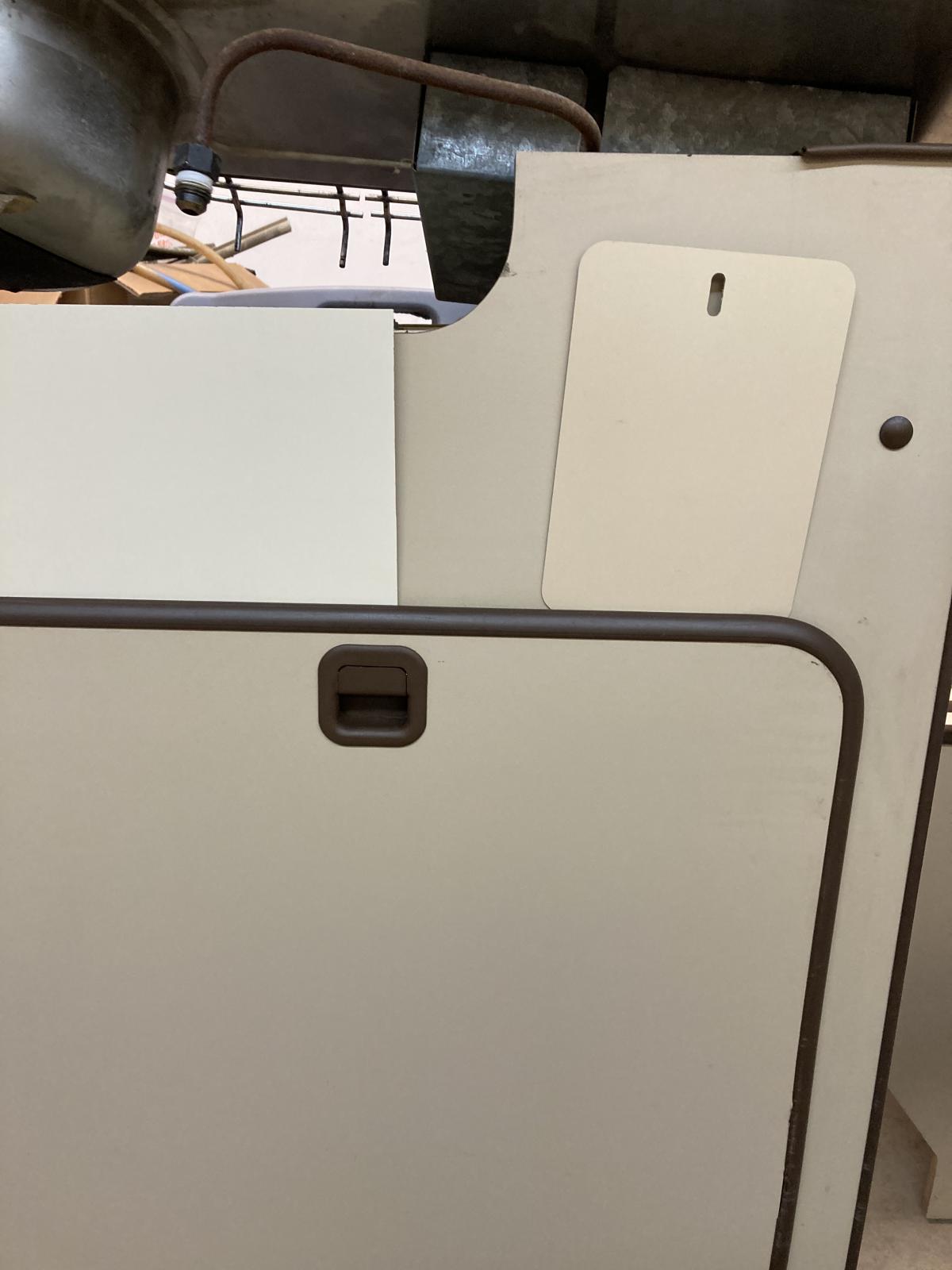

And the Pionite money shot.
Image may have been reduced in size. Click image to view fullscreen.

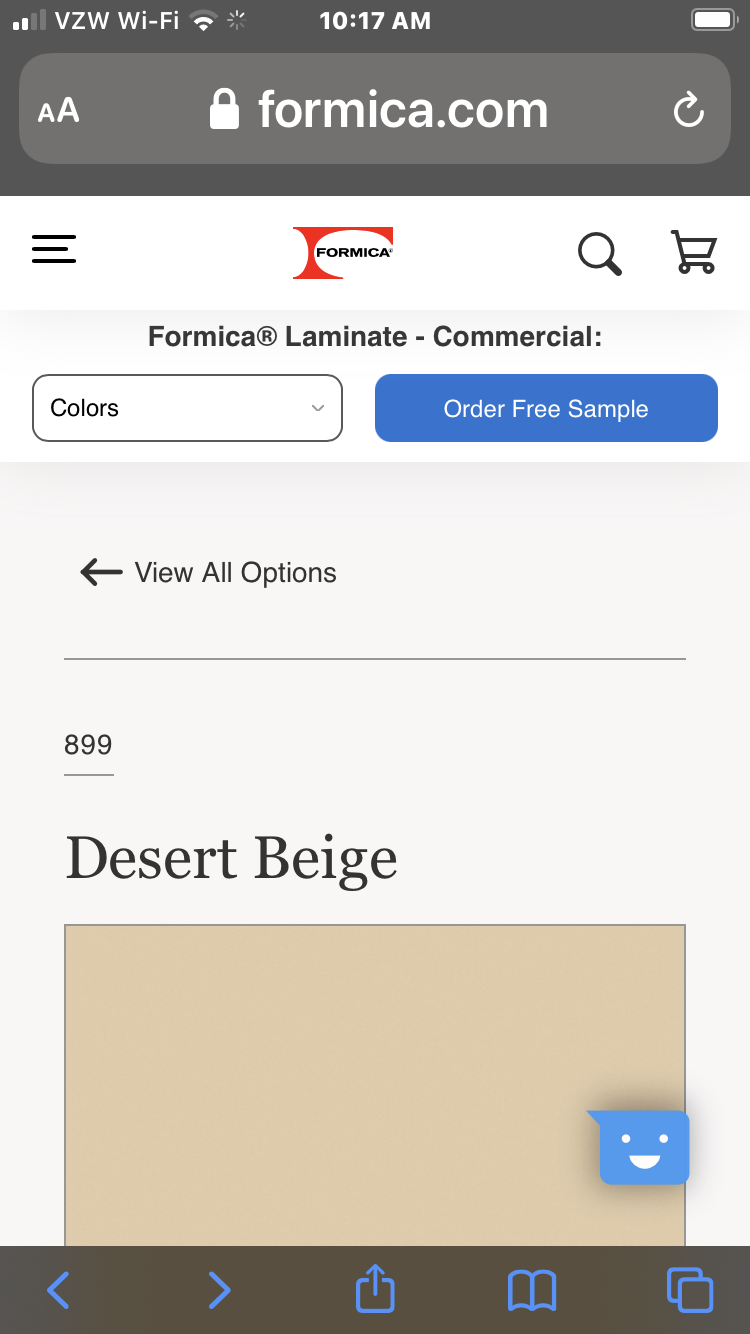

Westy westfalia laminate color samples Formica

Image may have been reduced in size. Click image to view fullscreen.


The Formica money shot.
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
VW LT40 build. Like a Vanagon but 30% larger in every direction and 40% slower even in metric.
https://www.thesamba.com/vw/forum/viewtopic.php?t=749359&highlight=


Last edited by rmcd on Wed Nov 18, 2020 5:17 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Jake de Villiers
Samba Member


Joined: October 24, 2007
Posts: 5911
Location: Tsawwassen, BC
Jake de Villiers is offline

PostPosted: Wed Nov 18, 2020 9:09 am    Post subject: Re: Question about Beige/Tan cabinet laminate Reply with quote

You might want to compare them under outdoor light, preferably overcast.

From your pix I like the Formica Desert Beige colour best.
_________________
'84 Vanagon GL 1.9 WBX
'86 Westy Weekender Poptop/2.5 Subaru/5 Speed Posi/Audi Front Brakes/16 x 7 Mercedes Wheels - answers to 'Dixie'
@jakedevilliersmusic1
http://sites.google.com/site/subyjake/mydixiedarlin%27
www.crescentbeachguitar.com
www.thebassspa.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Instagram Gallery Classifieds Feedback
rmcd
Samba Member


Joined: October 29, 2010
Posts: 1348
Location: PNW - its a dry rain.
rmcd is offline

PostPosted: Wed Nov 18, 2020 5:20 pm    Post subject: Re: Question about Beige/Tan cabinet laminate Reply with quote

Yea. Lighting sucked on these. Mix of different florescence bulbs.
I tried flat on the cabinet versus vertical to get some colors to develop a bit differently.

I don't think any match, but the Formica is the closest.
_________________
VW LT40 build. Like a Vanagon but 30% larger in every direction and 40% slower even in metric.
https://www.thesamba.com/vw/forum/viewtopic.php?t=749359&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
wbailey2112
Samba Member


Joined: October 02, 2015
Posts: 482
Location: Grove City, OH
wbailey2112 is offline

PostPosted: Thu Nov 19, 2020 5:51 am    Post subject: Re: Question about Beige/Tan cabinet laminate Reply with quote

Based on your photos I also like the Formica over the other two. Keep in mind though that even if you could find the exact OEM laminate in the original color the odds of it matching 40 year old laminate that has been exposed to the sun and general wear and tear is slim to none.

As for the computer color matching of the color for paint, I took one of my tables to my local Sherwin Williams for a match so I could paint the front bed board (the original wall paper on it was shot) and the replacement panels that I fabbed for the hatch and slider out of MDF bead board. The match was near perfect. Now I just need to get around to painting the other interior panels that are not covered in laminate.
_________________
'74 Thing
'83 Westfalia
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page 1 of 1


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
