PostPosted: Wed Feb 02, 2005 5:23 pm    Post subject: alternator wiring ? Reply with quote

hey i just got my new engine last night and threw it in. The question i have is that on the old alternator or generator(i'm assuming its a generator due the the different diameter from front to back)has a plug labeled D+ and a B+. The new engine i picked up has a alternator which has a D+ and a DF. I believe the F means field but not sure how to hook it up. Being a newenginei don'twant to take any chances.
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
65VDUB
Samba Member


Joined: January 03, 2005
Posts: 41
Location: Mesa, AZ
65VDUB is offline

PostPosted: Wed Feb 02, 2005 7:09 pm    Post subject: Reply with quote

have you taken out the regulator from the system??
Back to top
View user's profile Send private message AIM Address MSN Messenger Classifieds Feedback
Stan Monterrosa
Samba Member


Joined: April 16, 2004
Posts: 75
Location: Granada Hills, CALI-4-NIA
Stan Monterrosa is offline

PostPosted: Wed Feb 02, 2005 11:23 pm    Post subject: Reply with quote

carefull now! if u don't connect it right you'll burn the alternator! I'd tell ya how i hooked up mine and burned it, then bought a new one and hooked it up right......... but right now i'm much too drunk!!! LOL Embarassed Twisted Evil
_________________
What???
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vdubdan65
Samba Member


Joined: December 29, 2004
Posts: 118
Location: Santa Barbara, CA
vdubdan65 is offline

PostPosted: Thu Feb 03, 2005 12:11 am    Post subject: Reply with quote

what type alternator is it? #, if it has a built in regulator then take your old one out. I recently upgraded to an alternator recently and simply followed the wire to my starter, and another to my ignition. It depends also where your regulator was mounted, if its under the seat your gonna have to re-do the connections there. Just follow the wires back or get a wiring diagram and it should be a piece of cake, although follow Stan's advice.

I'll have to check out the wiring on mine to tell you which wire connects to the DF, but let me know if what type of alternator were dealing with.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DRAGRACR
Samba Member


Joined: December 01, 2004
Posts: 47

DRAGRACR is offline

PostPosted: Thu Feb 03, 2005 8:00 am    Post subject: I need to know also...... Reply with quote

I am doing the same conversion. I am changing from a generator to an alternator. How do I know if it has the built in regulator??
Back to top
View user's profile Send private message Gallery Classifieds Feedback
keifernet
Samba Search & Rescue


Joined: May 11, 2002
Posts: 19610
Location: Samba Center for Behavioral Science
keifernet is offline

PostPosted: Thu Feb 03, 2005 8:13 am    Post subject: Reply with quote

Here are a few old threads that may help.

Bosch AL-82 (X or N) has the built in regualtor.
Bosch AL-78 has the 3 prong plug in on the alt and regulator under the rear seat
Generators 6V has reg on top...12V under rear seat. When you switch to the AL 82 you bypass the regulator.

http://www.thesamba.com/vw/forum/viewtopic.php?t=98398&highlight=al82

http://www.thesamba.com/vw/forum/viewtopic.php?t=83340&highlight=al82

http://www.thesamba.com/vw/forum/viewtopic.php?t=44475&highlight=al82
_________________
my seller feedback
rebuilt carb info = for sale

"STFU Polly and go eat a cracker!" 12-21-2012.... can't wait!
Back to top
View user's profile Send private message Send e-mail MSN Messenger Gallery Classifieds Feedback
Kratos
Samba Member


Joined: January 28, 2005
Posts: 44

Kratos is offline

PostPosted: Thu Feb 03, 2005 8:24 am    Post subject: Reply with quote

Im also going to get rid of my generator and put in a alternator this weekend.
Back to top
View user's profile Send private message Classifieds Feedback
DRAGRACR
Samba Member


Joined: December 01, 2004
Posts: 47

DRAGRACR is offline

PostPosted: Thu Feb 03, 2005 8:25 am    Post subject: Reply with quote

keifernet wrote:
Here are a few old threads that may help.

Bosch AL-82 (X or N) has the built in regualtor.
Bosch AL-78 has the 3 prong plug in on the alt and regulator under the rear seat
Generators 6V has reg on top...12V under rear seat. When you switch to the AL 82 you bypass the regulator.

http://www.thesamba.com/vw/forum/viewtopic.php?t=98398&highlight=al82

http://www.thesamba.com/vw/forum/viewtopic.php?t=83340&highlight=al82

http://www.thesamba.com/vw/forum/viewtopic.php?t=44475&highlight=al82


Thank you for the info!!!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kakarottt
Samba Member


Joined: December 05, 2003
Posts: 723
Location: Hazard county, Maryland
kakarottt is offline

PostPosted: Thu Feb 03, 2005 3:31 pm    Post subject: Reply with quote

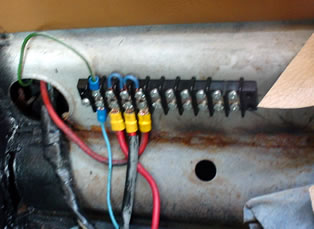

if it's any help, here is what my wiring looks like for my al-82

Image may have been reduced in size. Click image to view fullscreen.
Back to top
