a1steaksauce
Samba Member
Joined: September 23, 2010
Posts: 188
|
 Posted: Sat Apr 14, 2012 11:09 pm Post subject: |
 |
|
| Stuartzickefoose wrote: | tub dub.
WAY COOL! i want to do this to mine ....someday..... |
seeing all these cute little tubs with people tucking 15/14in rims is making me regret my decision to rock some 17's which require some huge tubs for suspension travel
here's a good shot showing how large of a tub i'm rocking...you can see how it sits in relation to the vin plate:
it literally sat dead level with the rivets holding the plate on. i ended up moving the plate up a few inches before welding the tub in place.
all done.
 |
|
| Back to top |
|
 |
HighTopBay
Samba Member
Joined: March 21, 2010
Posts: 309
Location: Port Richey
|
| Posted: Sun Apr 15, 2012 12:49 pm Post subject: |
|
|
 wow them are big. giggity.
well got a little bit done today, work doesnt leave much time for progress.... and since its sunday, I couldn't go anywhere that sells pieces of sheet metal large enough to start welding the tubs in so instead I made cardboard templates. I'm just going to play it by ear for the top piece.
and cutting it close to the door....
_________________
Louis DePaolis |
|
| Back to top |
|
|
67T1
Samba Member
Joined: September 30, 2007
Posts: 465
Location: Eh-SPAIN
|
| Posted: Sun Apr 15, 2012 1:30 pm Post subject: |
|
|
I've been wanting to get my DC tubbed out bad, but I'll wait a little longer. HighTopBay, always digg your ride. After looking at your pix of your cut compared to A1steaksauce's pix above yours, they look a little narrow. Are you seats going to sit on there alright after your done? Regardless, can't wait to see your end product. Good luck with the progress!
_________________
'67 Bug
'71 Bay Double Cab |
|
| Back to top |
|
|
HighTopBay
Samba Member
Joined: March 21, 2010
Posts: 309
Location: Port Richey
|
| Posted: Sun Apr 15, 2012 1:58 pm Post subject: |
|
|
The actual tub section will go in a little further than the cut out section and then the inner seat rail/mount will be raised with some 3" box tubing that way the inner rail and outer rail will be all the same height. The front/top corners will also be rounded off, not 90* angles. And thanks for the kind words!
_________________
Louis DePaolis |
|
| Back to top |
|
|
67T1
Samba Member
Joined: September 30, 2007
Posts: 465
Location: Eh-SPAIN
|
| Posted: Sun Apr 15, 2012 3:52 pm Post subject: |
|
|
Nice. Can't wait to see the end product!
_________________
'67 Bug
'71 Bay Double Cab |
|
| Back to top |
|
|
a1steaksauce
Samba Member
Joined: September 23, 2010
Posts: 188
|
| Posted: Sun Apr 15, 2012 5:12 pm Post subject: |
|
|
my tubs are very deceiving....but you're right i did push them way out to get me as much turning radius as i could.
i put a nice fat angle in them to interfere with the doors as little as possble, don't mind the wet primer:
and how much i had to tub my doors to accommodate them:
i can go full lock and my turning radius is fantastic. but again, if i was running smaller rims i wouldn't be having all these issues to work around |
|
| Back to top |
|
|
HighTopBay
Samba Member
Joined: March 21, 2010
Posts: 309
Location: Port Richey
|
| Posted: Sun Apr 15, 2012 5:54 pm Post subject: |
|
|
Im thinking i can leave the door alone, narrow enough i think 4" king pin beam and 165 55 14 tires on stock wheels. leaves a little less to worry about lol
_________________
Louis DePaolis |
|
| Back to top |
|
|
a1steaksauce
Samba Member
Joined: September 23, 2010
Posts: 188
|
| Posted: Sun Apr 15, 2012 6:08 pm Post subject: |
|
|
| HighTopBay wrote: | | Im thinking i can leave the door alone, narrow enough i think 4" king pin beam and 165 55 14 tires on stock wheels. leaves a little less to worry about lol |
yeah you're good. i've got 205/40R17's to worry about |
|
| Back to top |
|
|
1vwdog
Samba Member
Joined: March 16, 2004
Posts: 282
Location: Poulsbo WA
|
| Posted: Mon Apr 16, 2012 8:22 pm Post subject: |
|
|
Is there a lower profile tire that is reinforced sidewall similar to the stock or Hannock? I have a Westy that I lowered and want to find a lower profile tire.
_________________
71 Chianti Westy |
|
| Back to top |
|
|
a1steaksauce
Samba Member
Joined: September 23, 2010
Posts: 188
|
| Posted: Mon Apr 16, 2012 9:21 pm Post subject: |
|
|
| 1vwdog wrote: | | Is there a lower profile tire that is reinforced sidewall similar to the stock or Hannock? I have a Westy that I lowered and want to find a lower profile tire. |
poke around on tirerack.com that's where i got mine from. they have a handy feature that allows you to filter tires by weight rating.
if you're a late westy you want a XL 94 load rated tire. will more than handle the GVWR of a westy.
there's plenty of low profile tires in that weight rating as well. |
|
| Back to top |
|
|
1vwdog
Samba Member
Joined: March 16, 2004
Posts: 282
Location: Poulsbo WA
|
| Posted: Tue Apr 17, 2012 8:15 am Post subject: |
|
|
They don't let you select a bus, type II, van, etc.
_________________
71 Chianti Westy |
|
| Back to top |
|
|
a1steaksauce
Samba Member
Joined: September 23, 2010
Posts: 188
|
| Posted: Tue Apr 17, 2012 4:46 pm Post subject: |
|
|
| 1vwdog wrote: | | They don't let you select a bus, type II, van, etc. |
go by tire size then.
i never look for tires on their site based off the vehicle. |
|
| Back to top |
|
|
BDubVdub
Samba Member
Joined: October 11, 2006
Posts: 585
|
| Posted: Tue Apr 17, 2012 6:51 pm Post subject: |
|
|

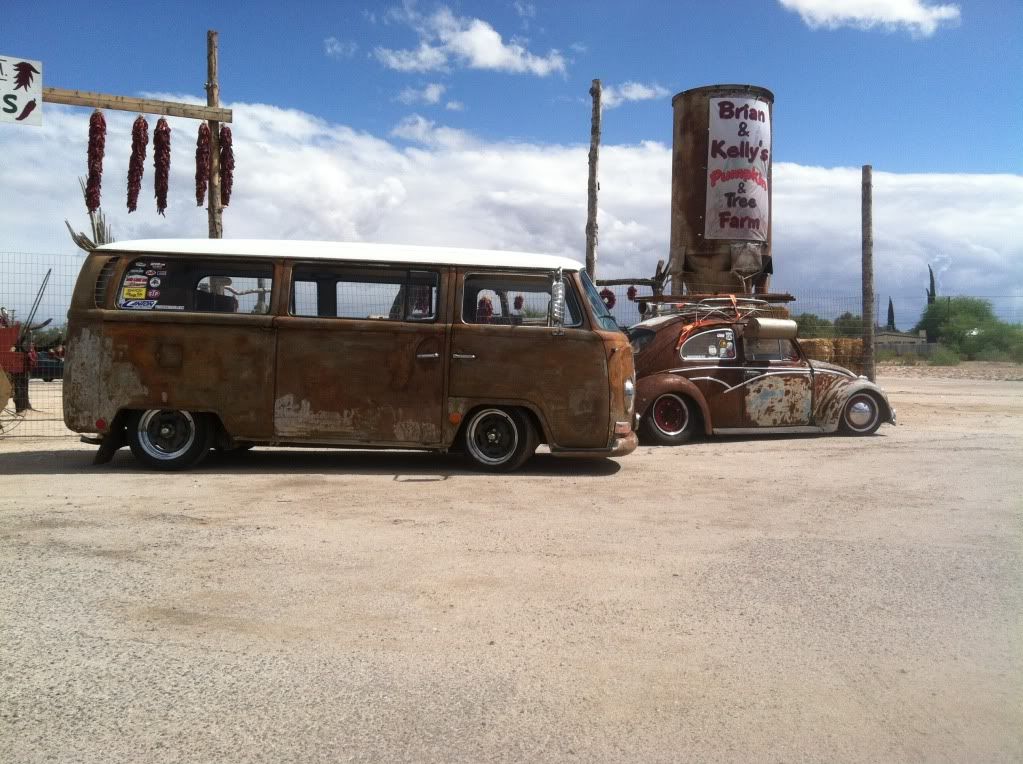

Here's my 68 and 61 Bug
 |
|
| Back to top |
|
|
BDubVdub
Samba Member
Joined: October 11, 2006
Posts: 585
|
| Posted: Tue Apr 17, 2012 6:56 pm Post subject: |
|
|
| HighTopBay wrote: | wow them are big. giggity.
|
I see a TN plate under that mat. Where abouts? Thought Port Richey was in FL? |
|
| Back to top |
|
|
HighTopBay
Samba Member
Joined: March 21, 2010
Posts: 309
Location: Port Richey
|
| Posted: Tue Apr 17, 2012 10:09 pm Post subject: |
|
|
^ I am in port richey, fl. I just have a random collection of out of state tags that I keep around for emergency metal patches lol. Whats the set-up/specs on the '68? Looks good!
_________________
Louis DePaolis |
|
| Back to top |
|
|
Notvanity
Samba Member
Joined: March 30, 2011
Posts: 51
Location: Russian Federation Moscow
|
|
| Back to top |
|
|
BDubVdub
Samba Member
Joined: October 11, 2006
Posts: 585
|
| Posted: Wed Apr 18, 2012 5:32 am Post subject: |
|
|
| HighTopBay wrote: | | ^ I am in port richey, fl. I just have a random collection of out of state tags that I keep around for emergency metal patches lol. Whats the set-up/specs on the '68? Looks good! |
Ahhhh...gotcha. The 68 has a 4" narrowed scratch built beam by me and a friend. Rear has 4.5" drop plates and is currently getting notched. |
|
| Back to top |
|
|
autohaus
Samba Member
Joined: May 27, 2002
Posts: 365
Location: Cuzorn France
|
| Posted: Wed Apr 18, 2012 1:33 pm Post subject: |
|
|
front narrowed beam ball joint by Vintage Autohaus
dropped spindle ball joint by Vintage Autohaus
front tyres 165/50/15
rear adjustable plates by Vintage Autohaus
rear tyres 185/65/15
_________________
_________________
www.vintageautohaus.com
FRENCHVWMAFIA MEMBER
do not forget, only the mountains do not meet |
|
| Back to top |
|
|
HighTopBay
Samba Member
Joined: March 21, 2010
Posts: 309
Location: Port Richey
|
| Posted: Wed Apr 18, 2012 2:26 pm Post subject: |
|
|
Here we go!
Frame tacked in place.(The excess metal inside the edges will be trimmed off eventually)
All closed up
I'll grind down the excess weld and finish em up real nice
now to do it one more time on the other side......
_________________
Louis DePaolis |
|
| Back to top |
|
|
BDubVdub
Samba Member
Joined: October 11, 2006
Posts: 585
|
| Posted: Wed Apr 18, 2012 3:17 pm Post subject: |
|
|
| Sick!!! |
|
