Repair of 61 standard rear corners

Mitch Case

So it begins another project. This bus has had its rear corners removed by the previous owner after it was hit hard in the rear. I would like to share my progress as it comes along let me know what you think this is day one and not much got done.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

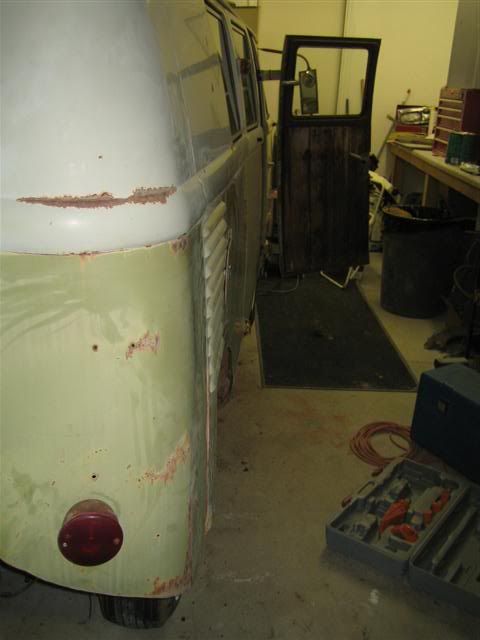

The bus was hit hard enough that it bowed both qtr panels just infront of the rear fresh air vents its difficult to see in the pictures. Time will show more of the extent of the damage.
Image may have been reduced in size. Click image to view fullscreen.

The white picture is what it should look like.

66busman · Posted: Sat Dec 15, 2007 12:34 am Post subject:

Damn, I've never seen anyone trim the corners like that...good luck with your project, looks like you'll need it.
_________________
'66 SO-42
'86 Hilux

Campy · Posted: Sat Dec 15, 2007 1:07 am Post subject:

That bus body must have been whacked pretty hard to cause that much damage. It looks like you will be getting complete corner panels. He hacked it so he could drive it but, unfortunately, he cut off the bottom of the rear pillars. Good luck with it.

StockNazi · Samba Member Joined: June 18, 2004 Posts: 3075

you need to at least look for both rear quarter sections from the beltline down and up to the vent setions on the sides. look for some og donar metal. looks like the cut the engine surround metal too. that section is also spoted on, as is the inner luggage area metal that looks bent. if you can weld, take your time and line everything up right. from what i can see in the pics you posted it looks like a good project otherwise.
_________________
WANTED:
westfalia privy tent poles (any condition)
58 westy cabinet knobs and latch hardware
sloper westy rack

36hp and 40hp NOS parts
splitcase transmission NOS parts

Mitch Case · Posted: Sat Dec 15, 2007 9:03 am Post subject:

Yes I have a 62 for a doner I am planning on cutting from the belt line down on the driver side and the whole corner to the roof on the passenger side. The 62 has the engine compartment metal that I need I will post some more pictures after the weekend. Cut weld repeat is going to be the plan.

vwbusbusvw · Last edited by vwbusbusvw on Tue Jan 22, 2008 4:03 pm; edited 1 time in total

cage66 · Posted: Sat Dec 15, 2007 12:24 pm Post subject:

That shit looks fine just needs a good buffing and it will be perfect

This is My bus, Mitch is doing the work on it I am going to help any way I can
Im sure it will end up real nice whene hes done
Then I will start lowering this bitch
_________________
Click to view image

BarryL · Posted: Sat Dec 15, 2007 7:30 pm Post subject:

Sheesh. That may be the spazziest looking rear end I've ever seen. It's strange how that got bent like that inside. Keep up the progress reports. The picture of the girl is just plain wrong. I hope I don't have a nightmare tonight.

obus · Posted: Sat Dec 15, 2007 7:37 pm Post subject:

nice! another mango bus. good luck on the rewelding!
_________________

vw7266 · Posted: Sat Dec 15, 2007 9:25 pm Post subject:

part it out i need the doglegs... Laughing

_________________
aka: Brad

cage66 · Posted: Sat Dec 15, 2007 9:32 pm Post subject:

May be able to get them off the 62 but thats up to Mitch its his
_________________
Click to view image

Mitch Case · Posted: Mon Dec 17, 2007 5:59 pm Post subject: Day 3

I picked up the parts bus today and did some more work on the standard
Image may have been reduced in size. Click image to view fullscreen.

It was a bit tricky but I got it loaded with no wheels
Image may have been reduced in size. Click image to view fullscreen.

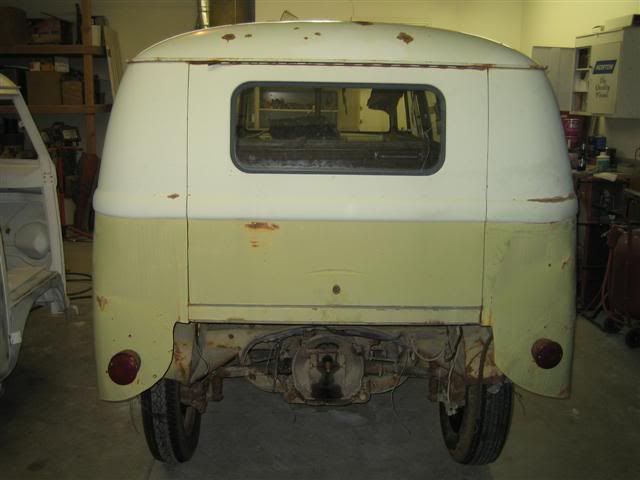

The belt line by the rear hatch was bent in 1 inch on both sides and the rear hatch was bowed like a taco. I used a 4 ton porta power and some wood blocks and pushed it back to a respectible shape.
Image may have been reduced in size. Click image to view fullscreen.

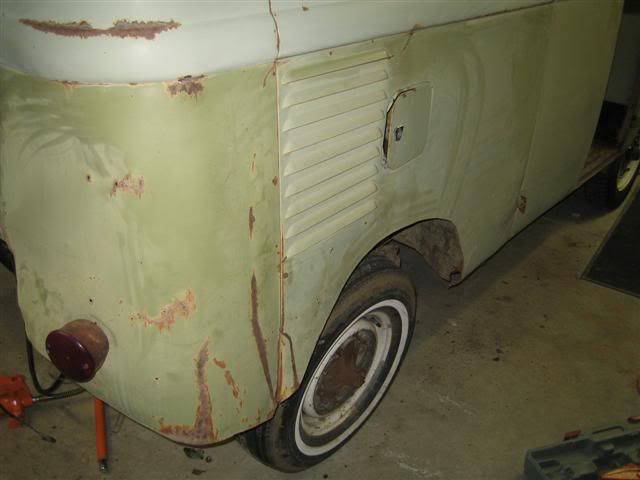

The rear corners will work out well I may change the passenger side qtr
Image may have been reduced in size. Click image to view fullscreen.

new hatch

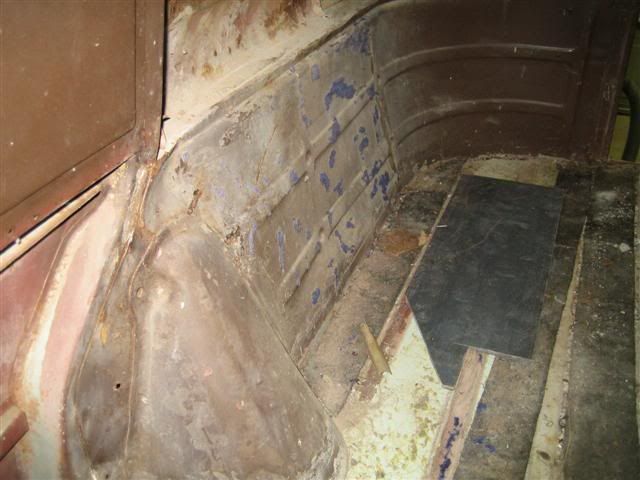

The floor above the engine turned out well and the passenger qtr inner and outer are turning out well
Image may have been reduced in size. Click image to view fullscreen.

Mitch Case · Posted: Mon Dec 17, 2007 6:15 pm Post subject:

[

Mitch Case · Posted: Mon Dec 17, 2007 6:16 pm Post subject:

Mitch Case · Posted: Mon Dec 17, 2007 6:16 pm Post subject:

edited

Ian · Posted: Mon Dec 17, 2007 6:37 pm Post subject:

Hey man can you put a return space between each picture. This thread is hell to try and view.
_________________
Love and Good Roads!!
SCANLESS

Mitch Case · Posted: Tue Dec 18, 2007 11:33 pm Post subject: Day 3 in the garage

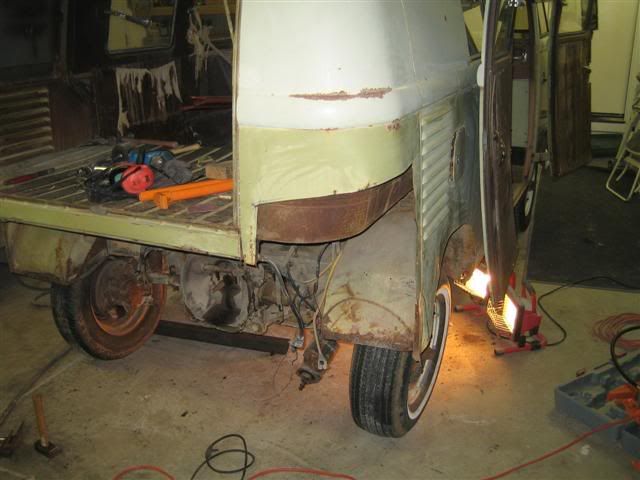

A few last pushes and the rear hatch is alighned with the opening of the bus. Tonight myself and chase were able to take off the driver side corner and begin preping the sheet metal to test fit the new corner. I still havent decided to put on the whole passenger qtr or to splice it in what do you think?
Image may have been reduced in size. Click image to view fullscreen.

I also took out the inner braceing on the driver side the new one will be a lot better than trying to fix the bent up old one.
Image may have been reduced in size. Click image to view fullscreen.

BarryL · Posted: Wed Dec 19, 2007 9:05 am Post subject:

A lot of effort and work. It looks like you were able to get the tweak out of the passenger inner too. Is it warm inside your work area? Keep it up.

hugheseum · Posted: Wed Dec 19, 2007 9:12 am Post subject:

port-a-power,push the inner damage out,then look at it again,or take it to someone who knows how to repair damage,look for the oldest guy in a bodyshop,they used to fix alot more cars than just cut and paste,best of luck
_________________
www.vintagemotorsportsor.com

looking for.....

-early or mid 52 bus wheels
-thru 53? bus hornbutton
-any pre 1930s era motorsycles absolutely any condition
-genuine dinosaur fossils

Mitch Case · Posted: Wed Dec 19, 2007 9:15 am Post subject:

Its not real cold I have a small space heater, but you don,t want it to warm either.
