PostPosted: Sun Jan 27, 2008 5:01 pm    Post subject: VW Tri-Power Reply with quote

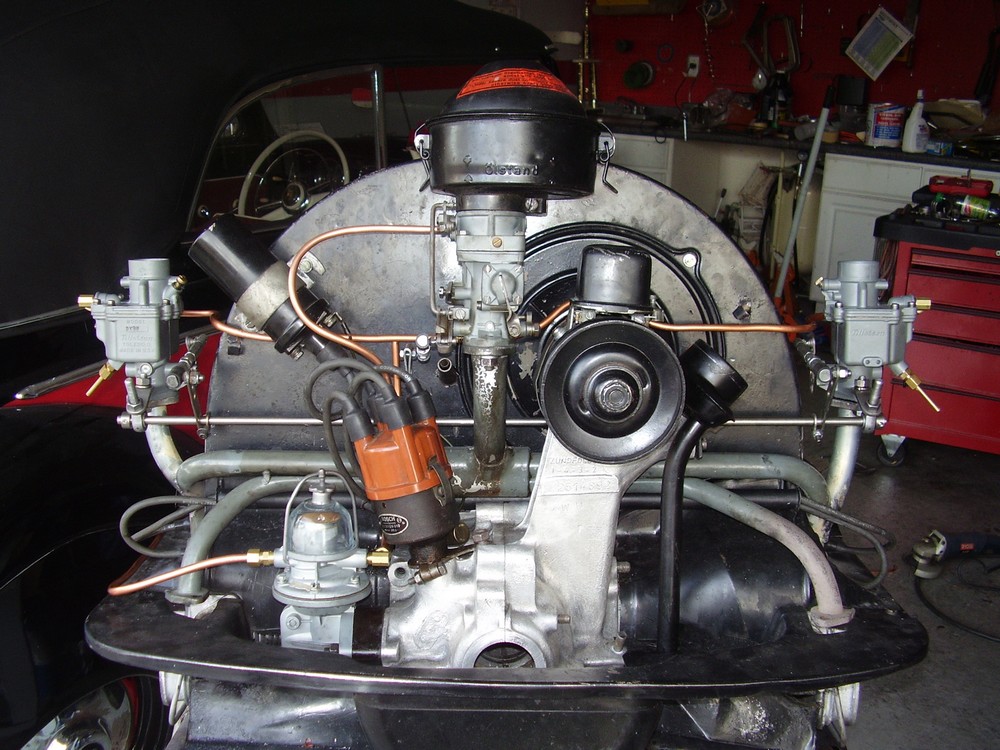

Not sure how many are out there but here is a little preview of what my engine is looking like...

Image may have been reduced in size. Click image to view fullscreen.


Still in the mock-up stage, just finished running the fuel lines and completed the linkage. Now it's time to take it all apart , start sandblasting, and paint everything.
_________________
1957 Karmann Kabriolet "Franky"
1957 Allstate trailer


Last edited by Ninamashr on Fri Oct 31, 2008 8:21 am; edited 4 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sconord
Samba Member


Joined: February 22, 2005
Posts: 704
Location: Dallas Texas
sconord is offline

PostPosted: Sun Jan 27, 2008 5:28 pm    Post subject: Reply with quote

I am not sure if it will work or not, But it looks cool as hell!!!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32432
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Sun Jan 27, 2008 5:39 pm    Post subject: Reply with quote

Hi,

I agree, it looks really "cool" but I am not understanding the principle behind the arrangement.

Could you enlighten us about the theory of fuel atomization and distribution it is based upon?

1 carb goes to all 4 cyl
1 carb goes to 2 cyl
1 carb goes to the other 2 cyl

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Ninamashr
Samba Member


Joined: October 12, 2005
Posts: 1400
Location: City of Round Rock in the Great State of Texas
Ninamashr is offline

PostPosted: Sun Jan 27, 2008 6:05 pm    Post subject: Reply with quote

djkeev wrote:
Hi,

I agree, it looks really "cool" but I am not understanding the principle behind the arrangement.

Could you enlighten us about the theory of fuel atomization and distribution it is based upon?

1 carb goes to all 4 cyl
1 carb goes to 2 cyl
1 carb goes to the other 2 cyl

Dave


The center carb is for startup, low to mid range, it has a high air correction jet, .225, so it leans out at high rpm's. The side carbs, Tillotsons, work like vacuum secondaries, they are shut down during low to mid rpm's but open via a spring loaded center linkage, at higher rpm's. Tillotsons have a 25mm venturis and an adjustable jet which makes them perfect for this use.
_________________
1957 Karmann Kabriolet "Franky"
1957 Allstate trailer
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Lidpainter
Samba Anti-Hero


Joined: January 21, 2004
Posts: 2045
Location: 41.77 | -83.56
Lidpainter is offline

PostPosted: Sun Jan 27, 2008 6:53 pm    Post subject: Reply with quote

Triple carburaton is tough to tune. Had a Tri-Power GTO and although nothing can match the cool factor, a single 4 barrel performed better. You may find that a larger single carb or a pair of carbs would work better. It does look cool though.
_________________
EverettB wrote:
Thanks, time to bulk up on meat!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ninamashr
Samba Member


Joined: October 12, 2005
Posts: 1400
Location: City of Round Rock in the Great State of Texas
Ninamashr is offline

PostPosted: Sun Jan 27, 2008 8:07 pm    Post subject: Reply with quote

Pontiac Tri-powers had Rochester 2 bbl's I think, but they had thier jetting preset. What's good about these Tillotson's is the adjustable jet, I can blend how much fuel is added at the higher rpm. Should help with the tuning. Smile
_________________
1957 Karmann Kabriolet "Franky"
1957 Allstate trailer
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Corwin
Samba Member


Joined: March 29, 2007
Posts: 798

Corwin is offline

PostPosted: Mon Jan 28, 2008 3:39 pm    Post subject: Reply with quote

I get that it's unique but wouldn't you be able to get more power out of dual carbs? Or are you just seeing if you can make it work?

I just can't imagine you'll be able to get any benefit out of this. Plus I also can't imagine you can get a smooth transition during acceleration, changing from the single carb to the dual carbs...

Confused
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ninamashr
Samba Member


Joined: October 12, 2005
Posts: 1400
Location: City of Round Rock in the Great State of Texas
Ninamashr is offline

PostPosted: Mon Jan 28, 2008 8:21 pm    Post subject: Reply with quote

Corwin wrote:
I get that it's unique but wouldn't you be able to get more power out of dual carbs? Or are you just seeing if you can make it work?

I just can't imagine you'll be able to get any benefit out of this. Plus I also can't imagine you can get a smooth transition during acceleration, changing from the single carb to the dual carbs...

Confused


Corwin, you're right I can probrably make more power out of a straight dual carb set-up, but, I look at it as a unique challenge. It's viable only because of the Tillotsons. Before taking my engine out I tested different air correction jets and found out a .225 ac jet on the center carb starves the engine at about 1800 rpm. I then have to adjust the center linkage spring to open up the Tillotsons at around 1600 rpm. To maintain a smooth transition I then have to adjust the Tillotson jets to make up for the high rpm starvation of the center carb.
Don't get me wrong, I know it will take time to get it running right with alot of trial and error, but I think it will be worth it, after all, how many Tri-Powers do you see running around? Besides if it fails, then all I have to do is change to a stock intake and drive away. Wink
_________________
1957 Karmann Kabriolet "Franky"
1957 Allstate trailer


Last edited by Ninamashr on Mon Jan 28, 2008 8:23 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Corwin
Samba Member


Joined: March 29, 2007
Posts: 798

Corwin is offline

PostPosted: Mon Jan 28, 2008 8:23 pm    Post subject: Reply with quote

That's cool, I give you tone of credit for trying it - it definitely is unique. Just wasn't sure on the why part. Lol.
Very Happy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ninamashr
Samba Member


Joined: October 12, 2005
Posts: 1400
Location: City of Round Rock in the Great State of Texas
Ninamashr is offline

PostPosted: Mon Jan 28, 2008 8:29 pm    Post subject: Reply with quote

Corwin wrote:
That's cool, I give you tone of credit for trying it - it definitely is unique. Just wasn't sure on the why part. Lol.
Very Happy


I appreciate it Corwin, it's all about having a little fun. Hey!!! maybe I should turn a Heb into a drag car.... Confused never mind Laughing
_________________
1957 Karmann Kabriolet "Franky"
1957 Allstate trailer
Back to top
View user's profile Send private message Gallery Classifieds Feedback
john7
Samba Member


Joined: August 06, 2003
Posts: 1542
Location: Garden grove ca
john7 is offline

PostPosted: Mon Jan 28, 2008 11:28 pm    Post subject: Reply with quote

i saw a set up exactly like that at pomona swapmeet about 13 years ago. of course it wasnt for sale but it was in the swap booth anyways
_________________
Jesus Saves

Slot Mag King!
I accept Paypal, CASH, GOLD, SILVER, COINS, GUNS & money orders.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Ninamashr
Samba Member


Joined: October 12, 2005
Posts: 1400
Location: City of Round Rock in the Great State of Texas
Ninamashr is offline

PostPosted: Tue Jan 29, 2008 6:31 am    Post subject: Reply with quote

john7 wrote:
i saw a set up exactly like that at pomona swapmeet about 13 years ago. of course it wasnt for sale but it was in the swap booth anyways


wow that's cool! that's makes 3 that I know of Surprised
_________________
1957 Karmann Kabriolet "Franky"
1957 Allstate trailer
Back to top
View user's profile Send private message Gallery Classifieds Feedback
25horseboxer
Samba Member


Joined: July 02, 2006
Posts: 210

25horseboxer is offline

PostPosted: Tue Jan 29, 2008 8:35 am    Post subject: Reply with quote

The long runner of the single carb intake, provides the low end torque that 2 barrels that no short intake dual carbs can provide. Nice set-up.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ninamashr
Samba Member


Joined: October 12, 2005
Posts: 1400
Location: City of Round Rock in the Great State of Texas
Ninamashr is offline

PostPosted: Tue Jan 29, 2008 12:30 pm    Post subject: Reply with quote

25horseboxer wrote:
The long runner of the single carb intake, provides the low end torque that 2 barrels that no short intake dual carbs can provide. Nice set-up.


I did'nt know that. It's almost the best of both worlds, we'll see.
_________________
1957 Karmann Kabriolet "Franky"
1957 Allstate trailer
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ninamashr
Samba Member


Joined: October 12, 2005
Posts: 1400
Location: City of Round Rock in the Great State of Texas
Ninamashr is offline

PostPosted: Tue Feb 12, 2008 4:47 pm    Post subject: Reply with quote

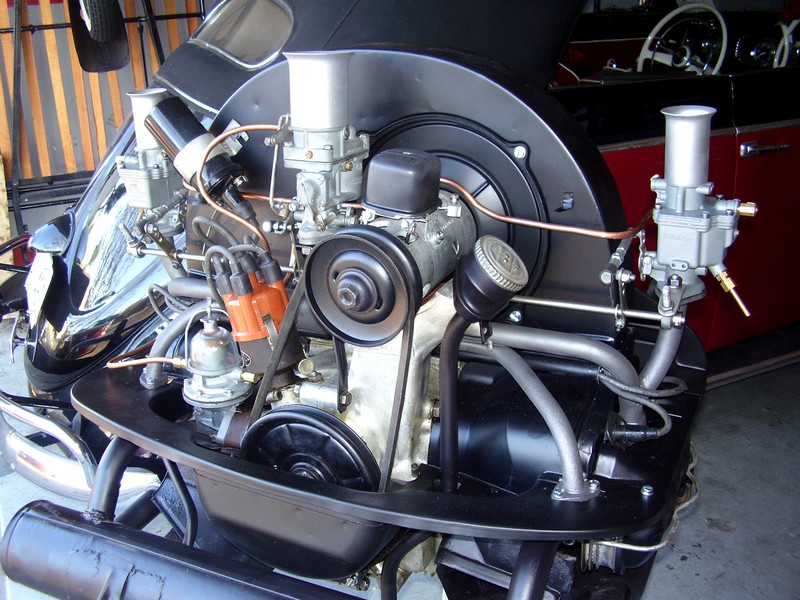

Just finished rebuilding my engine so here it is. I'm installing it tonight or tommorrow! Laughing

I like...
Image may have been reduced in size. Click image to view fullscreen.


definatley oldspeed... I love those stacks!!
Image may have been reduced in size. Click image to view fullscreen.


gonna have fun synchronizing Wink
Image may have been reduced in size. Click image to view fullscreen.

_________________
1957 Karmann Kabriolet "Franky"
1957 Allstate trailer
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sconord
Samba Member


Joined: February 22, 2005
Posts: 704
Location: Dallas Texas
sconord is offline

PostPosted: Tue Feb 12, 2008 5:05 pm    Post subject: Reply with quote

PREDICTION:

75% chance that it is too rich and will flood out
20% it will be too hard to tune
5% it will work and I will owe an appology for lack of faith


either way, that engine looks very nice.

Not a flame, just a mythbusters type prediction. All in good fun Very Happy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ninamashr
Samba Member


Joined: October 12, 2005
Posts: 1400
Location: City of Round Rock in the Great State of Texas
Ninamashr is offline

PostPosted: Tue Feb 12, 2008 5:11 pm    Post subject: Reply with quote

sconord wrote:
PREDICTION:

75% chance that it is too rich and will flood out
20% it will be too hard to tune
5% it will work and I will owe an appology for lack of faith


either way, that engine looks very nice.

Not a flame, just a mythbusters type prediction. All in good fun Very Happy


75% chance that it is too rich and will flood out... Air correction jet leans center carb out at 1500 rpm, not a chance.
20% it will be too hard to tune... maybe but the adjustable jets on the Tillotsons will help out
5% it will work and I will owe an appology for lack of faith... One out of three ain't bad.. Laughing

thx sconord, I think it looks nice to!
_________________
1957 Karmann Kabriolet "Franky"
1957 Allstate trailer
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Splitdog
Samba Split Personality


Joined: February 16, 2004
Posts: 4124
Location: Planet VW
Splitdog is offline

PostPosted: Tue Feb 12, 2008 10:18 pm    Post subject: Reply with quote

What determines when the dual carbs kick in?
_________________
CH³NO²

Z = z² + C

Der Blitzkrieg Kafers

#notacallooker
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Ninamashr
Samba Member


Joined: October 12, 2005
Posts: 1400
Location: City of Round Rock in the Great State of Texas
Ninamashr is offline

PostPosted: Wed Feb 13, 2008 5:31 am    Post subject: Reply with quote

Splitdog wrote:
What determines when the dual carbs kick in?


The spring on the center linkage arm. The tighter you adjust the sooner it kicks in or looser the later it kicks in, then the amount of fuel is metered through the adjustable jets in the Tillotsons.
_________________
1957 Karmann Kabriolet "Franky"
1957 Allstate trailer
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Richard Roth
Samba Member


Joined: April 03, 2004
Posts: 952

Richard Roth is offline

PostPosted: Wed Feb 13, 2008 2:30 pm    Post subject: Reply with quote

john7 wrote:
i saw a set up exactly like that at pomona swapmeet about 13 years ago. of course it wasnt for sale but it was in the swap booth anyways


I have original versions of both the 36 and 40 hp models.
_________________
The problem with reality is that there's no background music !

1966 Empi GTV MKIV
1954 Kabriolett Beetle
1953 Porsche 356 1500S
1957 Cable brake standard model
1962 cable brake standard model
1956 23 window Samba
1960 Austin Healey 3000
1961 Corvair Greenbrier
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vintage Speed All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4, 5, 6  Next
Page 1 of 6


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
