Three-Point Retractable Seat Belts - Help!
Forum Index -> Ghia Share: Facebook Twitter
Reply to topic
Print View
View previous topic :: View next topic
Author Message
supercharged
Samba Member


Joined: February 14, 2007
Posts: 117
Location: Texas
supercharged is offline

PostPosted: Mon Jul 06, 2009 9:43 am    Post subject: Three-Point Retractable Seat Belts - Help! Reply with quote

I have a 1971 Ghia with the stock three-point non-retractable seat belts.
Besides their questionable ability to actually save my life in an accident they are a major pain in the rear end. Mad

I have looked at retractable belts that are either from Beetles and generic retrofit belts and they all have the retraction mechanism mounted at the shoulder point and appear too large to mount in the current KG belts location. Confused

Are there any retractable belts that have the mechanism at the bottom or better yet, something designed to fit in a KG?

Shocked
_________________
Scottsman
"Scottish by birth, American by law,
Texan by the grace of God"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EPETREA Premium Member
Samba Member


Joined: September 07, 2007
Posts: 298
Location: DFW TX
EPETREA is offline

PostPosted: Mon Jul 06, 2009 9:51 am    Post subject: Reply with quote

If I understand you correctly, your recoil/retractor is mounted on the post at shoulder level??? if so, then I think a po must have put it there in error. I have a 74 with the retractors mounted where your arm/hand would naturally rest(for lack of a better term) I do seem to think that I have seen in an older KG owerns manual that they are supposed to be mounted at floor level behind seat. This would also explain why my retractor has way too much webbing on it. Hopefully someone else will have some input as well. hope this helps.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Airhead
Samba Member


Joined: July 14, 2004
Posts: 393
Location: Sheffield, United Kingdom
Airhead is offline

PostPosted: Mon Jul 06, 2009 10:36 am    Post subject: Reply with quote

When I replaced the belts on my car the inertia reels (retraction mechanisms) are located at the side of the seats

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

I got my belts from VW Heritage here in the UK http://www.vwheritage.com/vwh/VW-Beetle-Parts/Interior/Seat-Belts/?templateID=vwh

Airhead
Back to top
View user's profile Send private message Gallery Classifieds Feedback
supercharged
Samba Member


Joined: February 14, 2007
Posts: 117
Location: Texas
supercharged is offline

PostPosted: Mon Jul 06, 2009 12:22 pm    Post subject: Reply with quote

I must not have been clear. No my current belts look like this:
Image may have been reduced in size. Click image to view fullscreen.

So it seems I could buy a 1974 type belt and it may work.
_________________
Scottsman
"Scottish by birth, American by law,
Texan by the grace of God"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
InSaNeBoY
Samba Member


Joined: May 27, 2004
Posts: 313
Location: Topsham, ME
InSaNeBoY is offline

PostPosted: Mon Jul 06, 2009 1:10 pm    Post subject: Reply with quote

Airhead wrote:
When I replaced the belts on my car the inertia reels (retraction mechanisms) are located at the side of the seats

Image may have been reduced in size. Click image to view fullscreen.


that's not the correct location, at least for a '74 retractor is bolted on the carpeted piece by the rear seat. and the inertia reel is parallel to the side of the car, not perpendicular as you have it.
_________________
2003 VW Passat wagon
1998 Dodge Dakota (for sale, to buy another VW)

*ghialess*
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Airhead
Samba Member


Joined: July 14, 2004
Posts: 393
Location: Sheffield, United Kingdom
Airhead is offline

PostPosted: Mon Jul 06, 2009 1:14 pm    Post subject: Re: Three-Point Retractable Seat Belts - Help! Reply with quote

supercharged wrote:
I have a 1971 Ghia with the stock three-point non-retractable seat belts.
Besides their questionable ability to actually save my life in an accident they are a major pain in the rear end. Mad

I have looked at retractable belts that are either from Beetles and generic retrofit belts and they all have the retraction mechanism mounted at the shoulder point and appear too large to mount in the current KG belts location. Confused

Are there any retractable belts that have the mechanism at the bottom or better yet, something designed to fit in a KG?
Shocked


You asked if there was any retractable (inertia reel) seatbelts with the mechanism at the bottom, yes there is they're like mine, the retraction mechanism goes to the bottom, none of them are at shoulder height!, you may find that the 1974 year belts were also static, please dont even contemplate buying secondhand seat belts - they wont save your life Shocked
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Airhead
Samba Member


Joined: July 14, 2004
Posts: 393
Location: Sheffield, United Kingdom
Airhead is offline

PostPosted: Mon Jul 06, 2009 1:21 pm    Post subject: Reply with quote

InSaNeBoY wrote:




that's not the correct location, at least for a '74 retractor is bolted on the carpeted piece by the rear seat. and the inertia reel is parallel to the side of the car, not perpendicular as you have it.


I dont care wether its correct or not, all that I know is its safe and will stop me going head first through the windshield in the unfortunate event of an accident
Back to top
View user's profile Send private message Gallery Classifieds Feedback
70coupyel
Samba Member


Joined: September 06, 2006
Posts: 1334
Location: So.Cal
70coupyel is offline

PostPosted: Mon Jul 06, 2009 6:58 pm    Post subject: Reply with quote

Superchargered
I did my seat belts 2 years ago. Easy to find 3 points belts to fit our late Ghia's. Look at my pic's here:
http://www.thesamba.com/vw/forum/viewtopic.php?p=2656995&highlight=#2656995
Hope this all helps you out.
_________________
TheAndante wrote:
Saying that specs are different than dimensions doesn't make sense. Porsche specs/VW specs/engineering specs are nothing but a series of dimensions,sizes,percentages,measurements, etc.

http://www.thesamba.com/vw/forum/viewtopic.php?t=338946&highlight=
70 KG Coup
83 Westy Waterboxer
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Kaygee
Samba Member


Joined: May 30, 2007
Posts: 131
Location: Northern PA
Kaygee is offline

PostPosted: Mon Jul 06, 2009 8:56 pm    Post subject: Reply with quote

I swapped in aftermarket retract belts that I bought on eBay. They turned out to be from Autoloc.
http://www.thehoffmangroup.com/autoloc/product.lasso?prodinc=seatbelts
My only complaint is that the upper mounting point in the Ghia is so low that it slips off my shoulder and I have to keep pulling it back up like a chick adjusting her bra strap. It was worse with the OG non-retracs. The little tension from the retrac helps to keep it in place.
Back to top
View user's profile Send private message Classifieds Feedback
supercharged
Samba Member


Joined: February 14, 2007
Posts: 117
Location: Texas
supercharged is offline

PostPosted: Tue Jul 21, 2009 4:10 pm    Post subject: Here I go Reply with quote

So I received my 3-point retractable seat belts and there are three attachment points and my old non-retractable belts only mounted in two locations (on floor near seat and up near rear window).

So I assume I will have to mount the new belt as shown by Airhead's photo. If this is incorrect - I hope someone steers me right!

Image may have been reduced in size. Click image to view fullscreen.
_________________
Scottsman
"Scottish by birth, American by law,
Texan by the grace of God"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
scottz
Samba Member


Joined: April 13, 2008
Posts: 328
Location: Bellingham, WA
scottz is offline

PostPosted: Tue Jul 21, 2009 4:59 pm    Post subject: Reply with quote

Yes, Airhead has them mounted correctly. But you should need an "L" shaped bracket to mount the retractor reel on floor behind seat near the door opening. Like this:
http://www2.cip1.com/PhotoGallery.asp?ProductCode=C26%2D857%2D024

Other brackets will work but they need to be strong enough! Hope that helps.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
wolfgang klinkert
Samba Member


Joined: March 04, 2009
Posts: 211
Location: NRW - Germany
wolfgang klinkert is offline

PostPosted: Wed Jul 22, 2009 6:15 am    Post subject: Reply with quote

I have retractable belts im my '73 Karmann Ghia, which were directly ordered from factory by the first owner of my Ghia, when he bought the car. Cool

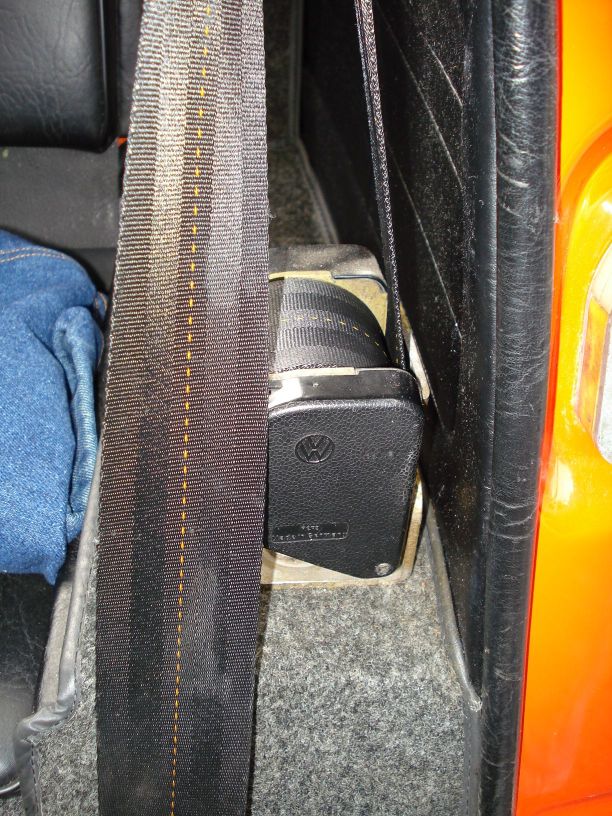

Here you can see the position of the ORIGINAL "mounting point" beside of the rear bench:


Image may have been reduced in size. Click image to view fullscreen.

Please find another photo here:

Arrow http://images3.bilder-speicher.de/show.php?type=image_800&id=09022618790151
_________________
With cordial "Karmann Ghia"-greetings from Germany
(O = i = O) ~~~ Wolfgang Klinkert ~~~ (O = i = O)
[Member of "Karmann Ghia IG Lippe in NRW"]


Last edited by wolfgang klinkert on Thu Jul 23, 2009 2:22 am; edited 1 time in total
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
boat_builder
Samba Member


Joined: July 19, 2007
Posts: 591
Location: Republic of Ireland
boat_builder is offline

PostPosted: Thu Jul 23, 2009 2:17 am    Post subject: Reply with quote

I took out my old lobster claw seat belts and put in new retractable ones from VW Heritage. Imounted the retract unit on the floor pan with the existing bolt. Works fine and I'm pretty sure its safe.
Back to top
View user's profile Send private message Classifieds Feedback
ruschejj72
Samba Member


Joined: May 11, 2009
Posts: 38
Location: Greenwood, SC
ruschejj72 is offline

PostPosted: Thu Jul 23, 2009 5:16 am    Post subject: Reply with quote

I would bet that the '71 and earlier mounting procedure is different than the '72 and later.

My '72 has the mount exactly like wolfgang's. Great pics.

I looked up getting new ones, $199! Wow. I'll be shopping around for sure.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vwairheads
Samba Member


Joined: March 26, 2007
Posts: 680
Location: chula vista
vwairheads is offline

PostPosted: Thu Jul 23, 2009 8:22 am    Post subject: Reply with quote

please post a picture for 71 and 71 models
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ruschejj72
Samba Member


Joined: May 11, 2009
Posts: 38
Location: Greenwood, SC
ruschejj72 is offline

PostPosted: Thu Jul 23, 2009 9:43 am    Post subject: Reply with quote

I know it's not a '71 pic, but 70coupyel has some good pics of his '70 (could be hers?). Prob the same
