Cheap Child's Cot Alternative
Page: Previous  1, 2, 3, 4  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
bac914
Samba Member


Joined: August 11, 2008
Posts: 112
Location: Denver
bac914 is offline

PostPosted: Sat May 08, 2010 5:10 pm    Post subject: Reply with quote

I also like the idea of the bed above the rear bed...I can see that would be very useful. If we have a 4th kid, I'll have to build one of those as that is the last location for another bed. I guess I could do the same pvc cot kind of construction and then figure out how to mount it between the closet and the window....probably not that challenging.

My 3 year old hasn't slept in it yet, but the 6 year old has a number of times. My kids will sleep anywhere if you describe how cool it is...and how it isn't their bed. But each one is different.

Brian.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
joetiger Premium Member
Samba Member


Joined: January 27, 2005
Posts: 2378
Location: denver
joetiger is offline

PostPosted: Mon May 17, 2010 6:26 am    Post subject: Reply with quote

I got to see bac914's hammock firsthand yesterday at VWOTG. Coolest mod I saw all day. Mrs. bac914 was nice enough to show me how it was built, and the kids demonstrated. It was good to see it in action; I had one of my daughters with me and wanted to see if she'd be okay with sleeping on one. She loved it. Thanks!
_________________
Joe T.
'85 Wolfsburg Westfalia/Subie 2.2 "Tatanka"
2003 Beetle

"Still, it's good to be afield."--VWagabond
Back to top
View user's profile Send private message Gallery Classifieds Feedback
The Salt
Samba Member


Joined: April 27, 2010
Posts: 224
Location: Salt Lake
The Salt is offline

PostPosted: Fri May 28, 2010 8:39 am    Post subject: Reply with quote

Do you have the dimensions for this? What a great idea!

I saw these.... Do you think they are related? http://www.justkampers.com/shop/type_25/mounting-b...12578.html
_________________
88 Wolfsburg Edition Weekender
Back to top
View user's profile Send private message Classifieds Feedback
Classicvibe
Samba Member


Joined: August 03, 2009
Posts: 730
Location: Salt Lake City
Classicvibe is offline

PostPosted: Fri May 28, 2010 10:11 pm    Post subject: Reply with quote

I am not sure why people are not freaking over that rear elevated bed, cuz I think that is just amazing and ingenious. Need to rework my cabinet a bit, but it blows anyway. Can you convert that space on the fly once you arrive, store it easily and safely, not feel clustered...need to think more, but massive props on that!
_________________
On a mission, the destination is just an excuse.

Syncro Solstice 2016...you goin?

1986.5 Wolfsburg Westfalia Weekender Poptop Syncro
Back to top
View user's profile Send private message Gallery Classifieds Feedback
The Salt
Samba Member


Joined: April 27, 2010
Posts: 224
Location: Salt Lake
The Salt is offline

PostPosted: Sat May 29, 2010 6:38 am    Post subject: Reply with quote

I wonder if regular Closet hangers would work...

Image may have been reduced in size. Click image to view fullscreen.
_________________
88 Wolfsburg Edition Weekender
Back to top
View user's profile Send private message Classifieds Feedback
The Salt
Samba Member


Joined: April 27, 2010
Posts: 224
Location: Salt Lake
The Salt is offline

PostPosted: Sat May 29, 2010 6:42 am    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.
_________________
88 Wolfsburg Edition Weekender
Back to top
View user's profile Send private message Classifieds Feedback
guavajelly
Samba Member


Joined: April 30, 2007
Posts: 56
Location: MI>MN>CA>WI>KS>ME
guavajelly is offline

PostPosted: Sat May 29, 2010 9:11 am    Post subject: Reply with quote

Classicvibe wrote:
I am not sure why people are not freaking over that rear elevated bed, cuz I think that is just amazing and ingenious. Need to rework my cabinet a bit, but it blows anyway. Can you convert that space on the fly once you arrive, store it easily and safely, not feel clustered...need to think more, but massive props on that!


yes!

finally a sleep space for our 5 month old.
_________________
83 a/c westy
Past:
71 fastback
66 squareback
Back to top
View user's profile Send private message Gallery Classifieds Feedback
The Salt
Samba Member


Joined: April 27, 2010
Posts: 224
Location: Salt Lake
The Salt is offline

PostPosted: Sun May 30, 2010 7:57 pm    Post subject: Reply with quote

All done. Project total was about $20.

Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
_________________
88 Wolfsburg Edition Weekender
Back to top
View user's profile Send private message Classifieds Feedback
ashafer
Samba Member


Joined: May 01, 2010
Posts: 79
Location: Denver, CO 80205
ashafer is offline

PostPosted: Sat Jun 05, 2010 9:18 pm    Post subject: Reply with quote

I decided to go ahead and make one of these as well! My total costs ran around $35, as I didn't have spare fabric laying around. I decided to use some canvas/duck cloth material I picked up at the fabric store. I also made mine a little less heavy-duty, as I don't have kids and will mostly be using it as a gear loft when camping for a few days. I usually end up piling the seats full of stuff - this will be much better!

Image may have been reduced in size. Click image to view fullscreen.

We've got 4 dogs, and I also figured the smaller two might even like to sleep up there...a little dog hammock. Here's Oscar trying it out...

Image may have been reduced in size. Click image to view fullscreen.

After setting it up for the first time, I realized I had some spare fabric leftover and decided to make a little pocket that hangs down from the middle. It should be great for holding the ole' iPod, sunglasses, knife, etc...

Image may have been reduced in size. Click image to view fullscreen.

The best part of the project was breaking out the GF's sewing machine, ha. Never thought I'd be sewing on the weekend....

Cheers for the great idea!
Back to top
View user's profile Send private message Classifieds Feedback
TopBud
Samba Member


Joined: February 28, 2004
Posts: 858
Location: Flagstaff AZ
TopBud is offline

PostPosted: Sat Jun 05, 2010 9:45 pm    Post subject: Reply with quote

I have a child's cot in my 74. I do not have any kids and my passenger seat spins around, so I never use it. I once camped with my brother, his 2 kids, my lady and 2 dogs. I set up the hammock and had the front curtains all set up. My nephew slept up there and loved it, it was like his little "fort."
I love the little bed by mikey9.
The Salt- the bay windows use those clamps. you can find them in the classified section for bays.
http://www.thesamba.com/vw/classifieds/search.php?...ton=Search
Great ideas. Keep them coming
_________________
86 SYNCRO
71 bug
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mmmdiesel
Samba Member


Joined: February 18, 2005
Posts: 148
Location: Fort Langley, BC
mmmdiesel is offline

PostPosted: Sun Jun 13, 2010 9:24 pm    Post subject: Reply with quote

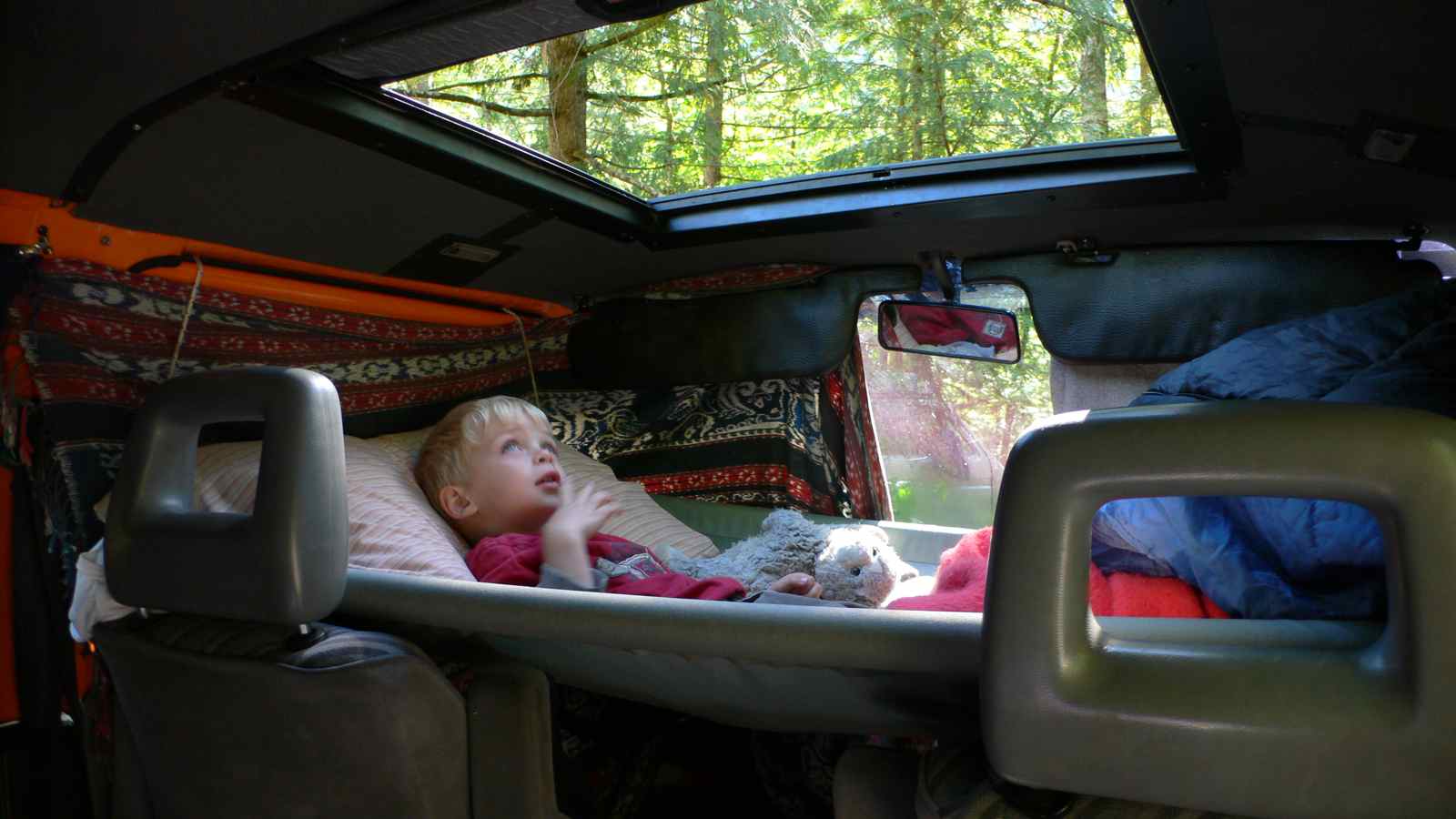

Here's some pics of mine in use.
Image may have been reduced in size. Click image to view fullscreen.
The only problem is deciding who gets to sleep in the cot.
Image may have been reduced in size. Click image to view fullscreen.
_________________
'91 Syncro Multivan 1.9 Tdi AHU front and rear diff locks
.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dhaavers
Samba Member


Joined: March 19, 2010
Posts: 4269
Location: NE MN (http://g.co/maps/zt72q)
dhaavers is offline

PostPosted: Sun Jun 13, 2010 9:30 pm    Post subject: Reply with quote

mmmdiesel wrote:
Here's some pics of mine in use.
Image may have been reduced in size. Click image to view fullscreen.
The only problem is deciding who gets to sleep in the cot.
Image may have been reduced in size. Click image to view fullscreen.


Those pics are priceless - made me smile! (Both mine are teenagers...seems like a looooong time ago...) Good for you for starting the van years early!
_________________
86 White Westy Weekender
"The WonderVan"


Last edited by dhaavers on Sun Jun 13, 2010 9:33 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
carterzest
Samba Member


Joined: January 22, 2008
Posts: 3866
Location: Eagle, ID/Sun Valley, ID
carterzest is offline

PostPosted: Sun Jun 13, 2010 9:32 pm    Post subject: Reply with quote

mmmdiesel wrote:
Here's some pics of mine in use.
Image may have been reduced in size. Click image to view fullscreen.
The only problem is deciding who gets to sleep in the cot.
Image may have been reduced in size. Click image to view fullscreen.

I love it, but, like someone else said, I love the swivel seat more than the space. I am looking into the rear shelf idea (brilliant Mikey9!) but the kids are growing quick and next summer they will be relegated to the top bunk! Cool Once they are up there, there will still be several years of the ability to store the extra "in the way" gear up top as they are short. With the rear shelf idea though, it would still be useable as a cargo shelf and especially, guitar shelf as I always bring one or two of those and they tend to get in the way lots, especially when the rains come Razz I also like the idea of the tent to put the extra stuff in at camp proposed by 1621 in another thread.... Idea
Beautiful kids!
_________________
Happiness=Portland, Oregon in the rearview mirror!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Volksaholic
Samba Member


Joined: December 26, 2005
Posts: 1771
Location: Salt Lake City, Utah, USA
Volksaholic is offline

PostPosted: Sun Jun 13, 2010 9:53 pm    Post subject: Reply with quote

DAIZEE wrote:
Way way way way back in the bus days they had a cot for the front. I don't know what it looked like but I've heard about it. Yours is marvelous and innovative


I had one of those in my '73 Weekender. It was 2 pieces of galvanized channel steel, about 1/2" by 1/2" if memory serves, with the ends flattened out and made into hooks. These fit into little metal brackets that were screwed to the A and B pillars. The canvas slipped over the two long bars, just like this PVC design, but there was no bar running side to side. It was just a snug enough fit to keep it taught.

Quote:
How hard is it to convince your 3 year old to sleep in it?
I'd make one if I knew he would take to it.


My kids LOVED to sleep in the Weekender cot, and as Bac says, it makes great day storage (not to mention you've got all the storage on the seats and floor underneath. When we weren't using ours for kids I would stuff the clothes bags and pillows & such on top to get them out of the way during the day. Guitars, mandolins, banjos, & fiddles went underneath... provided insulation and kept them out of the sun.

Nice design... looks like your little girl is a happy camper!


Paul
_________________
1988 Wolfsburg Edition, 2001 Subaru EJ251
Back to top
View user's profile Send private message Gallery Classifieds Feedback
WW_Victoria
Samba Member


Joined: October 03, 2008
Posts: 91
Location: Victoria
WW_Victoria is offline

PostPosted: Mon Jun 14, 2010 7:08 am    Post subject: Reply with quote

There are some AWESOME setups here... here is my simple set up.
1/2 inch ply, plenty strong, with ~1 1/2 inch foam on top - covered in fabric. the length of the bed is the same as the width of the rear bed so it can be stored there.. Simple screw in leg to give it support - that and sitting on the seats. only trick part was the notch around the gear shift - not hard to cut and my partner did the sewing... Kid loves his VW bed... lots of head room so he hangs out there quite a bit, reading and playing.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
_________________
------------------------
Aoristspilia - 1985 Westfalia 1.9 lt AAZ td

past rides...
1972 Westfalia
1974 Bus - RIP
1969 auto stick beetle - The "Dolphin" bug
Back to top
View user's profile Send private message Gallery Classifieds Feedback
VanWilder
Samba Member


Joined: October 09, 2009
Posts: 1350
Location: PDX-Weird Town, USA
VanWilder is offline

PostPosted: Mon Jun 28, 2010 10:30 pm    Post subject: Reply with quote

"mmmdiesel", Your example of the cot in use is why we all go camping and have for all of our lives. To see the little ones truly enjoy themselves. They look so peaceful looking through the Sun roof. Ok, I give props back to "bac914" for inventing this thing?. When I saw this I had to make one and it has become one of the most valuable items that we carry. Our dogs and guitars sleep on it and make life very simple with them there.,,, I made mine out of parachute nylon and added a little something to hold the cot up so I you can open the doors and the cot stays in place. Simple rope harness going across the top to each end piece holding them up.
I now sell this after market "Rope Harness" for only $19.95. Please let me know if you need them ,, free shipping. Ne 1? Ne1? Laughing
Image may have been reduced in size. Click image to view fullscreen.

We also use small bungies to tie the ropes to the head rest to stabilize it for the dogs Very Happy
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
_________________
VW
________________________
"83.5" Vanagon GL Air cooled "VanWilder"
VanWilder has given back to me more then I could ever put into it September 22, 2010
Malama Ka `AinaŚ"Respect the Land"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ashafer
Samba Member


Joined: May 01, 2010
Posts: 79
Location: Denver, CO 80205
ashafer is offline

PostPosted: Thu Jul 01, 2010 1:08 am    Post subject: Reply with quote

The only negative I've found from using this setup is horrible access to the stereo and cigarette lighter. It was frustrating to try and reach under the thing over and over again!

Looks like yet another reason I need that nice new shiny stereo with a remote and maybe a few extra 12V receptacles. Idea

Kudos on the trick to keep the doors open BTW. Very Happy
Back to top
View user's profile Send private message Classifieds Feedback
thewump
Samba Member


Joined: June 15, 2008
Posts: 204
Location: Denver
thewump is offline

PostPosted: Tue Jul 27, 2010 9:33 am    Post subject: Reply with quote

I saw the hammock at the start of this thread in a Colorado show, and was inspired to build one, but modify so that it is stowable. I have another thread on here.. didn't realize that this one existed so this is a bit of a repost, but good to have everything in one place.

By building 54 inches long when broken down, this tucks neatly in the pop top housing when not being used and is completely out of the way.

Here's a couple of pics, but more pics and dimensions and basic instructions along with more pics here:

http://picasaweb.google.com/gnoshmepics/VanagonProjects#

In testing:

Image may have been reduced in size. Click image to view fullscreen.

Stored:

Image may have been reduced in size. Click image to view fullscreen.


In a nutshell:

1.25 inch Schedule 40 pipe
2x 50 inch sides
2x 24 inch ends
Corners made out of Ts with one leg cut off, and a slice for the strap to go through
Corners attached to long sides with screws to allow canvas removal for laundry
Routing of straps done so weight on hammock holds end pieces in place
Hang heigth 13 inches.
Hanger "ends" are 3/4 inch pipe with slits cut in them for the straps - then a knot inside.

Cost $25.
Time taken 3 hours.
Time it would take me again 90 minutes assuming the sewing machine is in a good mood.

Best

K
_________________
87 Weekender
Back to top
View user's profile Send private message Classifieds Feedback
abacus1980
Samba Member


Joined: April 17, 2008
Posts: 1
Location: Cambridge, Ontario
abacus1980 is offline

PostPosted: Mon Aug 02, 2010 6:58 pm    Post subject: Reply with quote

Thanks for the great idea! this really made our holiday in temagami ontario canada. Consider it 6 month old approved! Elliott slept better in the cot than at home, he let us sleep in regularly. a wool blanket underneath him kept him warm in 7 deg Celcius nights.

now i want to replace the crib Shocked

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Classifieds Feedback
r1100rta
Samba Member


Joined: December 05, 2010
Posts: 3
Location: Portland, Oregon
r1100rta is offline

PostPosted: Tue Jan 31, 2012 10:00 am    Post subject: Kudos Reply with quote

Well done? I am thinking bunk bed with the cot on top and the half inch plywood bed on the bottom? Anyone have issues with paint or torn door rubber? I am thinking the cargo strap material would be a little more gentle on the van. Thoughts?
Back to top
View user's profile Send private message Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3, 4  Next
Page 2 of 4


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2015, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
