 Posted: Mon Nov 29, 2010 3:10 pm Post subject: |
 |
|

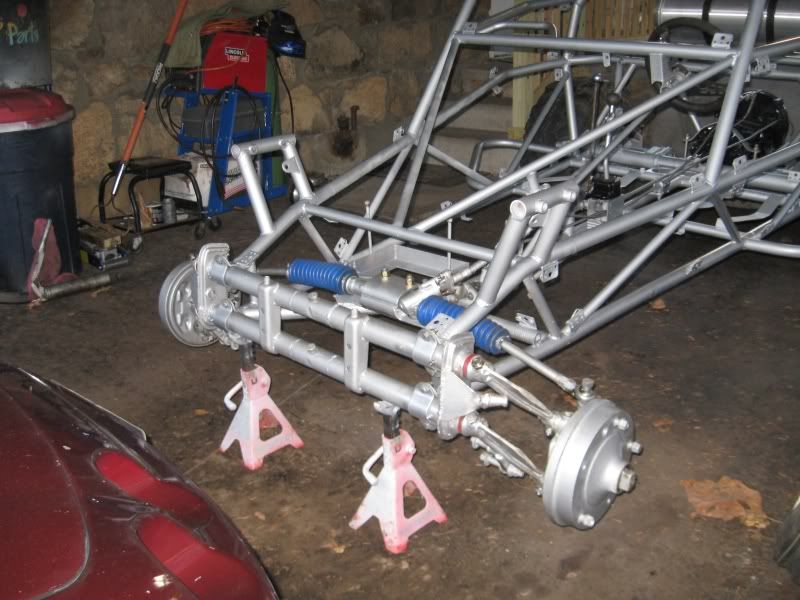

Thanks Ghost, I've been watching yours..awesome rail. I finished putting the front end together.
_________________
1969 Empi Imp #1325
Sandrail
1971 Baja
1986 Jeep CJ7
2002 Mustang GT |
|
| Back to top |
|
 |
DirtGhost
Samba Member
Joined: September 19, 2007
Posts: 524
Location: Greensboro,NC
|
|
| Back to top |
|
|
tdrrally
Samba Member
Joined: January 05, 2011
Posts: 93
Location: charleston,wv.
|
| Posted: Sat Feb 12, 2011 12:24 pm Post subject: |
|
|
| any updates? |
|
| Back to top |
|
|
towd
Samba Member
Joined: June 20, 2005
Posts: 2463
|
| Posted: Sat Feb 12, 2011 2:00 pm Post subject: |
|
|
I'm sure this rail build is a done deal by now,,
he has t 3 rear brakes, any of you with this type t 3 brakes ( two piece) and boxed IRS arms,,, for maybe 100 bucks more you can con
vert to rear disc ...
by simply buying mid 80's Mercedes rear disc... the vw hub needs to be turned down just a hair, then it drops in the mer disc / rotor ... 3 lug holes will line up the 4th needs to be redrilled..
Then pick a floating caliper. I use Honda 3 rd gen fronts, which means 86 to 89.. but these can be any brand caliper, just be sure they match the acrh of the rotor..
a guy could use mercedes calipers but there huge.. |
|
| Back to top |
|
|
EMPIImp69
Samba Member
Joined: April 17, 2006
Posts: 2827
Location: Dirty Jersey
|
| Posted: Mon Feb 21, 2011 3:49 pm Post subject: |
|
|
| tdrrally wrote: | | any updates? |
Not too much since I don't have a warm garage to work in. I am wrapping up the motor, I just need a new or decent used alternator or generator to put in. Once it warms up again, I will be back at it again and hopefully have it finished up soon.
_________________
1969 Empi Imp #1325
Sandrail
1971 Baja
1986 Jeep CJ7
2002 Mustang GT |
|
| Back to top |
|
|
DirtGhost
Samba Member
Joined: September 19, 2007
Posts: 524
Location: Greensboro,NC
|
|
| Back to top |
|
|
EMPIImp69
Samba Member
Joined: April 17, 2006
Posts: 2827
Location: Dirty Jersey
|
| Posted: Mon Feb 21, 2011 4:58 pm Post subject: |
|
|

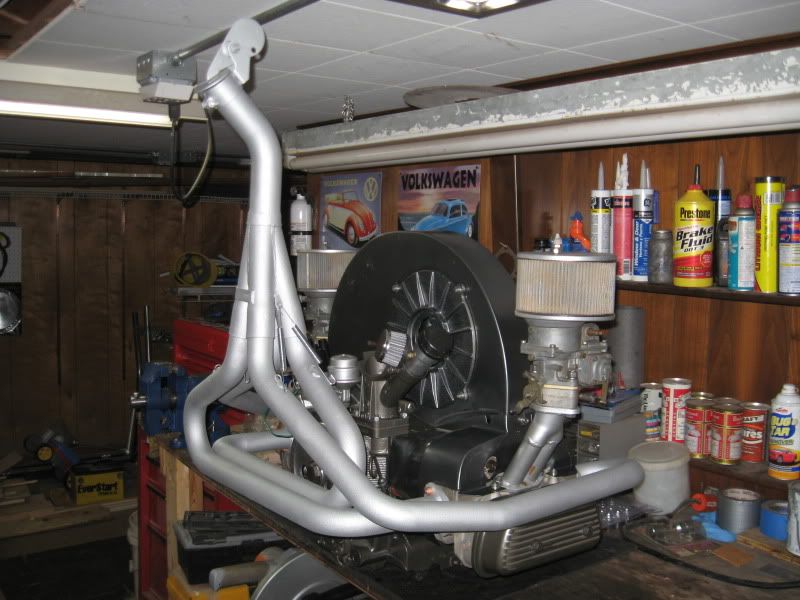

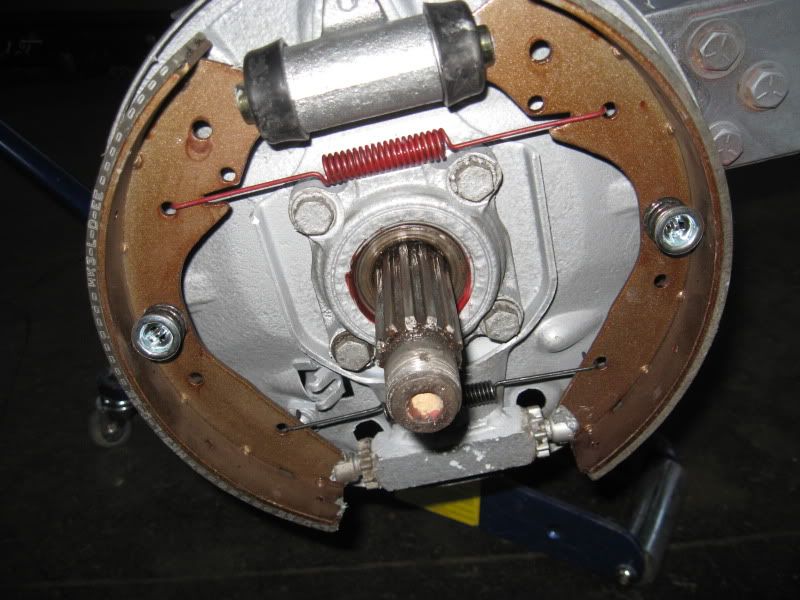

Yea nothing crazy. Tapped case and oil pump for full flow. Rebuilt stock heads, stock cam, 87mm Cima/Mahle pistons and barrels and dual Kads with S&S exhaust. Towd, I put in some new T3 rear shoes and wheel cylinders. The spring kit was from a Jeep  Couldn't find ones for T3s  I need to make this thing cheap to the street..I mean dirt
_________________
1969 Empi Imp #1325
Sandrail
1971 Baja
1986 Jeep CJ7
2002 Mustang GT
Last edited by EMPIImp69 on Thu Feb 24, 2011 7:14 pm; edited 1 time in total |
|
| Back to top |
|
|
carlos_magnum
Samba Member
Joined: April 21, 2009
Posts: 475
|
| Posted: Wed Feb 23, 2011 8:28 pm Post subject: |
|
|
| Looking great. Nice job. |
|
| Back to top |
|
|
riNR
Samba Member
Joined: June 28, 2006
Posts: 1213
Location: Whitby, Ontario, Canada
|
| Posted: Thu Feb 24, 2011 2:35 pm Post subject: |
|
|
| That's really coming along nicely. That's actually a pretty good looking frame if it is home built. |
|
| Back to top |
|
|
EMPIImp69
Samba Member
Joined: April 17, 2006
Posts: 2827
Location: Dirty Jersey
|
| Posted: Thu Feb 24, 2011 7:02 pm Post subject: |
|
|
Thanks guys, I want to get cracking soon on it again. I chucked the crusty old guages that were in the little dash panel and I just fitted in some cheap guages. They are like the HF ones that change colors. Got them for $5ea. at a show in Allentown, PA. Im going to paint the panel soon too. They're kinda cool.. atleast I think so  .
_________________
1969 Empi Imp #1325
Sandrail
1971 Baja
1986 Jeep CJ7
2002 Mustang GT |
|
| Back to top |
|
|
EMPIImp69
Samba Member
Joined: April 17, 2006
Posts: 2827
Location: Dirty Jersey
|
| Posted: Sat Feb 26, 2011 2:06 pm Post subject: |
|
|

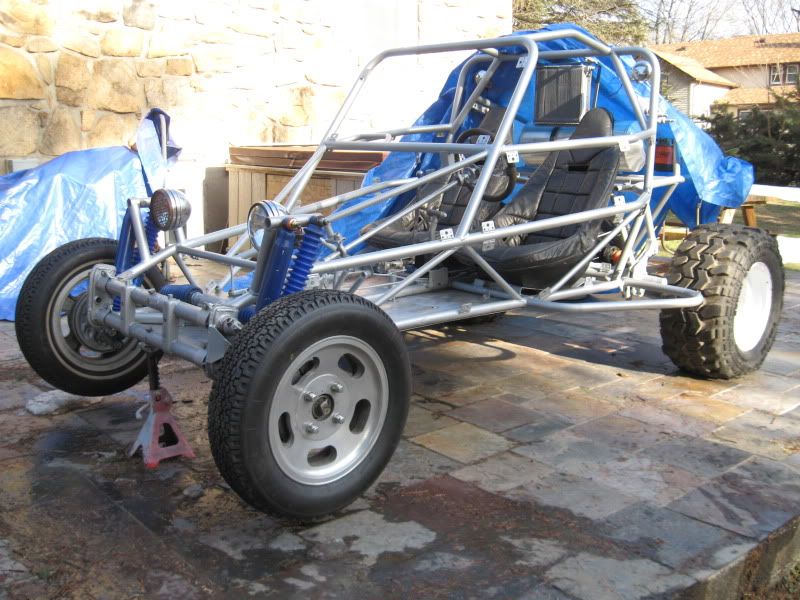

Put in the seats and floor today. Also got the front shocks on. One pair had to go upside down  , otherwise they hit against each other.
_________________
1969 Empi Imp #1325
Sandrail
1971 Baja
1986 Jeep CJ7
2002 Mustang GT |
|
| Back to top |
|
|
quadrazer
Samba Member
Joined: April 11, 2010
Posts: 293
Location: Castalia, Ohio
|
| Posted: Sun Feb 27, 2011 8:53 am Post subject: |
|
|
| EMPIImp69 wrote: | Also got the front shocks on. One pair had to go upside down , otherwise they hit against each other.
|
Just a tip here, but if you run the shocks upside down, the piston rod end seal is now facing up and will not be saturated with oil as it should be. That will lead to an early failure of the seal, and the shock itself. You may want to reconsider that type of mounting.
I like the frame setup you have!  Looking good!
_________________
I DID wash my hands....the rest is 'built-in' dirt!
My build: http://www.thesamba.com/vw/forum/viewtopic.php?t=409845 |
|
| Back to top |
|
|
EMPIImp69
Samba Member
Joined: April 17, 2006
Posts: 2827
Location: Dirty Jersey
|
| Posted: Sun Feb 27, 2011 11:16 am Post subject: |
|
|
| quadrazer wrote: | | EMPIImp69 wrote: | Also got the front shocks on. One pair had to go upside down , otherwise they hit against each other.
|
Just a tip here, but if you run the shocks upside down, the piston rod end seal is now facing up and will not be saturated with oil as it should be. That will lead to an early failure of the seal, and the shock itself. You may want to reconsider that type of mounting.
I like the frame setup you have! Looking good! |

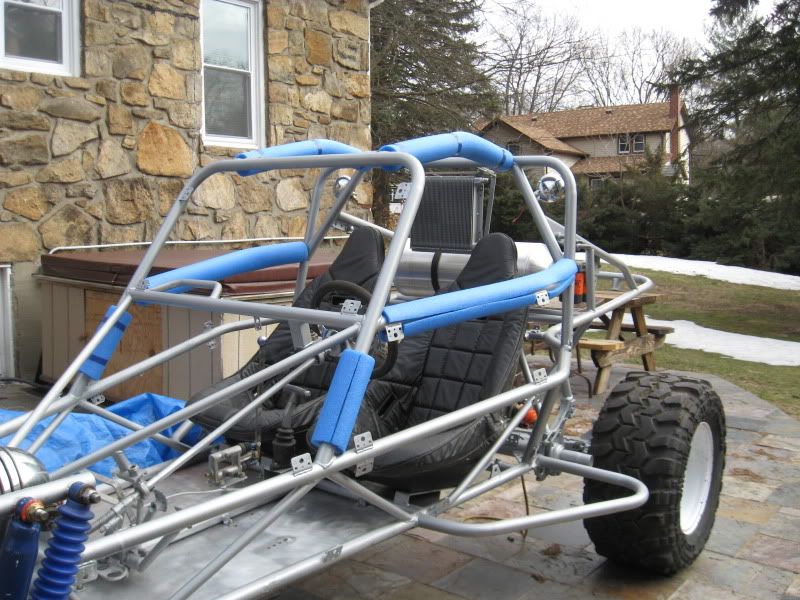

Yea I know, your def. right. The PO actually had all 4 of the original front shocks upside down. I am going to look for 2 skinny shocks with the correct amount of travel and swap these out. Thanks, it is a shorter than normal frame, but..today I added some rollbar padding. I might get 2 more pieces for the middle bars on the sides.
_________________
1969 Empi Imp #1325
Sandrail
1971 Baja
1986 Jeep CJ7
2002 Mustang GT |
|
| Back to top |
|
|
EMPIImp69
Samba Member
Joined: April 17, 2006
Posts: 2827
Location: Dirty Jersey
|
| Posted: Thu Mar 03, 2011 6:45 pm Post subject: |
|
|

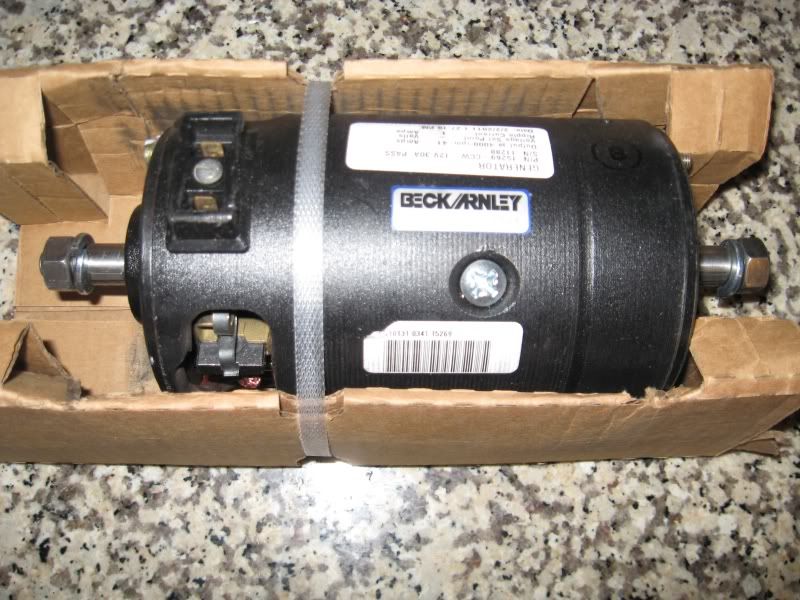

Got a rebuilt generator. Will prolly throw it in this weekend.
_________________
1969 Empi Imp #1325
Sandrail
1971 Baja
1986 Jeep CJ7
2002 Mustang GT |
|
| Back to top |
|
|
DirtGhost
Samba Member
Joined: September 19, 2007
Posts: 524
Location: Greensboro,NC
|
|
| Back to top |
|
|
Tim H
Samba Member
Joined: July 14, 2010
Posts: 3
Location: Madison heights Michigan
|
| Posted: Fri Mar 04, 2011 4:43 pm Post subject: |
|
|
| EMPII how thick is the floor pan material you used? |
|
| Back to top |
|
|
wbrown45
Samba Member
Joined: July 08, 2008
Posts: 1100
Location: ada, ok
|
| Posted: Fri Mar 04, 2011 4:47 pm Post subject: |
|
|
Very cool looking! If you had a mohawk and a little feral kid running around it you would fit right in with good old Max.
_________________
OK Thang |
|
| Back to top |
|
|
JonF
Samba Member
Joined: December 16, 2005
Posts: 2070
Location: Oklahoma
|
| Posted: Fri Mar 04, 2011 5:00 pm Post subject: |
|
|
i ended up having to reuse my old springs on my type 3 rear brakes. all of the spring kits i have found for a type 3 are wrong. hell one of the parts houses i called and had them pull the kit and look at it and all it was was hold down springs.
| EMPIImp69 wrote: | I put in some new T3 rear shoes and wheel cylinders. The spring kit was from a Jeep Couldn't find ones for T3s.
|
_________________
68 bug 1600sp 30/31
68 baja 1600sp 010 32ndix
when wishing for a type 2 make sure to include vw in the wish so its not diabetes you end up with! |
|
| Back to top |
|
|
TC/TeamEvil
Samba Member
Joined: February 16, 2004
Posts: 1616
|
| Posted: Sat Mar 05, 2011 9:16 am Post subject: |
|
|
LOVE the exhaust that you chose ! ! Where did you get the flapper for the end of the zoom tube? I have a turn out on mine right now and use a temporary rain plug but a flapper plate like yours would be perfect since it could stay there all of the time.
Thanks !
TC |
|
| Back to top |
|
|
EMPIImp69
Samba Member
Joined: April 17, 2006
Posts: 2827
Location: Dirty Jersey
|
| Posted: Sat Mar 05, 2011 11:11 am Post subject: |
|
|
| Tim H wrote: | | EMPII how thick is the floor pan material you used? |
As thick as a big roadsign..since that is what it was. The PO must have jacked one somewhere since the writing is all sanded away on the bottom.
TC, the exhaust flapper is like the ones uses on Caterpillars. I hear they can be loud and clanky though.
http://roguefabrication.com/Work.aspx
