surfer459
Samba Member
Joined: April 24, 2008
Posts: 80
Location: Texas
|
 Posted: Sat Mar 19, 2011 9:22 pm Post subject: |
 |
|
| Westy Steve wrote: | I think its cool. I'd try to make it nicer and keep it. When a ragtop is open and it makes that accordian shape in the back, it has a pretty nifty look to it. A bonus is that you can open them at a traffic light and close them in 2 seconds if it starts to rain. On my ragtop beetle, I didn't even have to stop. I'd wait until it started to sprinkle, reach back, and slam it home. Can't reach back on a bus, but I think you'd find you'd use it more if you could keep it working. Just my two cents, FWIW.
Steve |
It just seems to be of poor quality. Now if I could find one that would fit the roof corectly I would jump all over it. |
|
| Back to top |
|
 |
surfer459
Samba Member
Joined: April 24, 2008
Posts: 80
Location: Texas
|
| Posted: Mon Mar 21, 2011 3:47 pm Post subject: |
|
|
| Removed the front seats before work to prepare for tubing the front. The driver side seat was a pain!!! |
|
| Back to top |
|
|
surfer459
Samba Member
Joined: April 24, 2008
Posts: 80
Location: Texas
|
| Posted: Sat Mar 26, 2011 6:55 am Post subject: |
|
|
Well I have some pics of the front tub work. Just welded in some 14 gauge steel, and yes I know my welds suck! Soon I will have a plasma cutter to clean up some of the excess metal on the back of the tub, I chose to leave it until then.
On a side note I recieved my air tank so I'm setting up the air lines etc. for the rear bags. She will be alive soon!

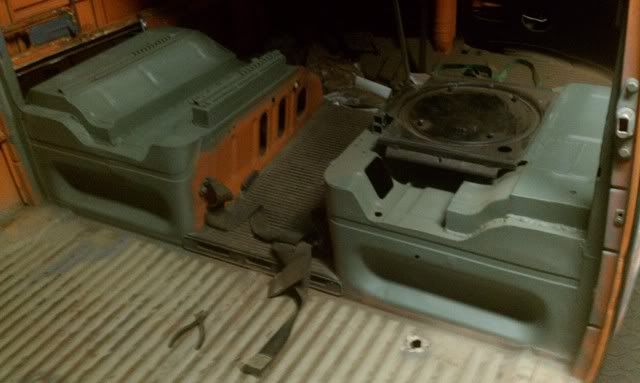

Top section cut out for the tub work
Two inch plates welded to the front and rear
The almost finished product, I still need to grind some more and clean up some stuff.
Pic of the seat bracket, shows where you need to drill to remove the spot welds
Box I made for the other seat bracket, ugly welds you can see here

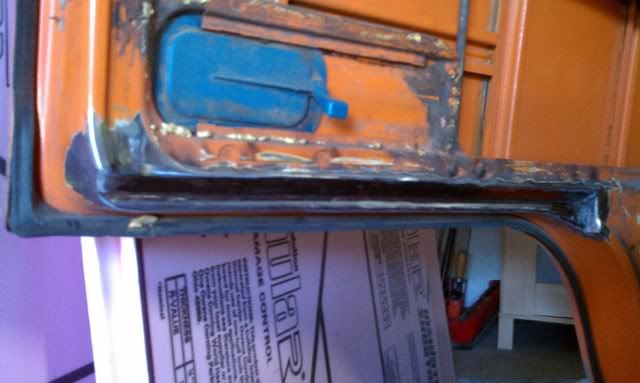

A pic of the door cut out I had to make to fit over the tub. It has on piece welded to rebuild the door metal. Soon enough I will finish welding the rest but need a plasma cutter first the get the cuts nice.
 |
|
| Back to top |
|
|
surfer459
Samba Member
Joined: April 24, 2008
Posts: 80
Location: Texas
|
| Posted: Mon Mar 28, 2011 9:28 am Post subject: |
|
|
| Well all the rear air ride is done. Compressor tank and lines are ran and working well. It raises the rear from low to stock height in about a second, sweet! A lot of work but well worth it for someone who wants to ride low but not tear up there bus. Once all the lines are set where I want them exactly and its cleaned up i'll snap some pics. |
|
| Back to top |
|
|
Collie
Samba Member
Joined: April 03, 2006
Posts: 1100
Location: Virginia
|
| Posted: Mon Mar 28, 2011 2:46 pm Post subject: |
|
|
| Looking forward to it!!!! |
|
| Back to top |
|
|
notchboy
Samba Member
Joined: April 27, 2002
Posts: 11303
Location: Seattle WA
|
| Posted: Mon Mar 28, 2011 4:20 pm Post subject: |
|
|
You gona make a vid of this beasts suspension in action? That would be very interesting to see.
_________________
Jason "notchboy" Weigel
1963 Pearl White Sunroof Notch
1964 T34 S Convertible
1974 Westfalia Hardtop Campmobile
1977 Westfalia Camper pop-top
the1500club.com
TOOB Member #5 |
|
| Back to top |
|
|
Jalabert
Samba Member
Joined: December 06, 2005
Posts: 345
Location: On the coast in NZ, somewhere...
|
| Posted: Mon Mar 28, 2011 5:46 pm Post subject: |
|
|
| surfer459 wrote: | | Westy Steve wrote: | I think its cool. I'd try to make it nicer and keep it. When a ragtop is open and it makes that accordian shape in the back, it has a pretty nifty look to it. A bonus is that you can open them at a traffic light and close them in 2 seconds if it starts to rain. On my ragtop beetle, I didn't even have to stop. I'd wait until it started to sprinkle, reach back, and slam it home. Can't reach back on a bus, but I think you'd find you'd use it more if you could keep it working. Just my two cents, FWIW.
Steve |
It just seems to be of poor quality. Now if I could find one that would fit the roof corectly I would jump all over it. |
http://www.parisbeetles.co.uk/bus%20sunroofs.htm
Have a good rep, as far as I'm aware...
_________________
http://thickrubber.blogspot.com/ Writing, Surfing, and Exploring NZ's deep south by VW... |
|
| Back to top |
|
|
Westy Steve
Samba Member
Joined: February 25, 2006
Posts: 736
|
| Posted: Mon Mar 28, 2011 9:44 pm Post subject: |
|
|
Those look really good. I'd have a hard time hacking a bus, but if I had a bus that was already hacked or a factory sunroof that I couldn't find parts for, I'd be sorely tempted...
_________________
I love my Bay Westy!
'74 Westy
'62 Beetle Ragtop |
|
| Back to top |
|
|
guanella74
Samba Member
Joined: March 13, 2009
Posts: 345
Location: Boulder, CO
|
| Posted: Mon Mar 28, 2011 9:54 pm Post subject: |
|
|
Dude this build is sick! Get some video on here of the new setup!
_________________
- Travis & Laura
1974 Volkswagen Campmobile Westy
2000cc, stock AMC heads, solid lifters, engine completely rebuilt ~17K ago (as of July 2011).
Dual Weber IDF 40 Carbs: Currently jetted at 120 mains, 50 idles, 200 air, F11 tubes.
EMPI Extractor Exhaust, stock heat shield in place.
JFUD 021 905 205P SVDA Distributor w/Petronix
MGL Avionics All-in-One Gauge (CHTs, etc)
Orange Plaid, baby! |
|
| Back to top |
|
|
surfer459
Samba Member
Joined: April 24, 2008
Posts: 80
Location: Texas
|
| Posted: Tue Mar 29, 2011 7:24 am Post subject: |
|
|
I was going to try and wait till the engine is back in and all the stuff is cleaned up for a vid but I might have to do one premature. I did take a couple of pics with the rear aired down and then aired up! It is of course going to be much lower when the weight of the engine is back, wish the new one would hurry up and show up!

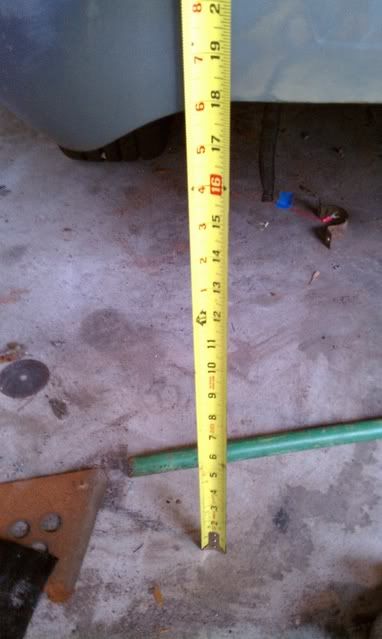

No air running just on the rear torsion bars and shocks without the engine weight at 14"
Bags aired up with 100 PSI at 18". I need a better camera and a budy to come by and take some wider shots while I air it up and down to get a better ided. 4" of difference is plenty to save my engine from speed bumps and my driveway! Tired of sparks and scraping!
 |
|
| Back to top |
|
|
surfer459
Samba Member
Joined: April 24, 2008
Posts: 80
Location: Texas
|
| Posted: Sun Apr 03, 2011 10:32 pm Post subject: |
|
|
Still no video of the bags, should get one soon. Did finish the tubs on the driver and pasenger side though. I have them cleaned up and finished, now for the pics.
Pasenger side cut out
The rear plate I made with my new plasma cutter! Love new tools
Pic with everything done and the seat bracket welded back in.
 |
|
| Back to top |
|
|
notchboy
Samba Member
Joined: April 27, 2002
Posts: 11303
Location: Seattle WA
|
| Posted: Mon Apr 04, 2011 5:11 am Post subject: |
|
|
How tall are you? If I did that to a bus Id have to cut a hole in the roof for my head
_________________
Jason "notchboy" Weigel
1963 Pearl White Sunroof Notch
1964 T34 S Convertible
1974 Westfalia Hardtop Campmobile
1977 Westfalia Camper pop-top
the1500club.com
TOOB Member #5 |
|
| Back to top |
|
|
surfer459
Samba Member
Joined: April 24, 2008
Posts: 80
Location: Texas
|
| Posted: Mon Apr 04, 2011 9:56 pm Post subject: |
|
|
| notchboy wrote: | | How tall are you? If I did that to a bus Id have to cut a hole in the roof for my head |
I'm five foot ten inches tall. I mocked up everything before and I have a few inches of clearance. I have put both seats back in to test and the few inches of clearance is still there. Plus, I want to be nice and low. I'm willing to sacrafice a little head room. |
|
| Back to top |
|
|
surfer459
Samba Member
Joined: April 24, 2008
Posts: 80
Location: Texas
|
| Posted: Tue Apr 05, 2011 4:41 pm Post subject: |
|
|

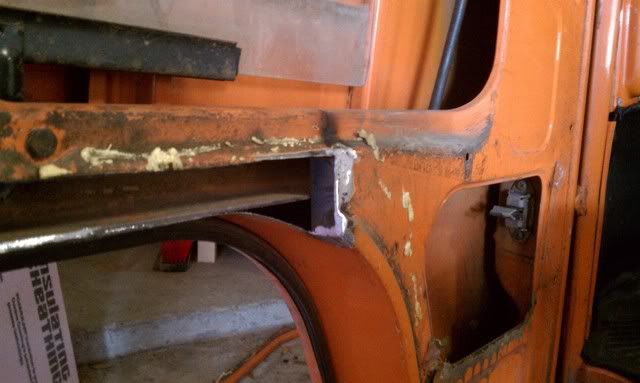

Finished boxing in the driver side door cut out. Its fits nicely around the tub and after a little cleaning up will be ready for paint.
Last edited by surfer459 on Tue Apr 05, 2011 9:24 pm; edited 1 time in total |
|
| Back to top |
|
|
Brionp
Samba Member
Joined: March 18, 2009
Posts: 394
|
| Posted: Tue Apr 05, 2011 8:43 pm Post subject: |
|
|
| I'm Impressed. If you are into it, nothing looks as nice as a slammed Bay. Not even a Split. |
|
| Back to top |
|
|
surfer459
Samba Member
Joined: April 24, 2008
Posts: 80
Location: Texas
|
| Posted: Tue Apr 05, 2011 9:22 pm Post subject: |
|
|
| Brionp wrote: | | I'm Impressed. If you are into it, nothing looks as nice as a slammed Bay. Not even a Split. |
I agree, I'm partial to slammed Bays. The cool thing about the build is it has improved my welding ten fold and I'm not afraid to chop into anything anymore. I'm much more confident in my skills  |
|
| Back to top |
|
|
ecvwfan
Samba Member
Joined: September 15, 2006
Posts: 107
Location: wherever the voices tell me to go!
|
| Posted: Tue Apr 05, 2011 10:04 pm Post subject: |
|
|
| surfer459 wrote: | | The cool thing about the build is it has improved my welding ten fold and I'm not afraid to chop into anything anymore. I'm much more confident in my skills |
Good for you. Keep up the good work. Look forward to see the vid of the air ride in action. |
|
| Back to top |
|
|
surfer459
Samba Member
Joined: April 24, 2008
Posts: 80
Location: Texas
|
| Posted: Fri Apr 08, 2011 5:49 pm Post subject: |
|
|
Stupid engine did not show up today  . Ruined weekend off now! |
|
| Back to top |
|
|
surfer459
Samba Member
Joined: April 24, 2008
Posts: 80
Location: Texas
|
| Posted: Thu Apr 14, 2011 5:17 am Post subject: |
|
|
Made an electrolisis set up to clean up rusted engine tins etc.
Finally got my new engine!!!
I will start the engine build today. Btw, my cooler fan has one missing blade, do I need to replace it? |
|
| Back to top |
|
|
dasdachshund
Samba Member
Joined: March 29, 2010
Posts: 491
Location: Vancouver, WA USA
|
| Posted: Thu Apr 14, 2011 10:50 am Post subject: |
|
|
| surfer459 wrote: |
|
Looks like your cooking shrimp!
-dasdachshund |
|
