Rear Windows with plastic vents
Page: 1, 2, 3  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Cold Steel
Samba Member


Joined: March 11, 2010
Posts: 587

Cold Steel is offline

PostPosted: Fri Aug 05, 2011 1:04 pm    Post subject: Rear Windows with plastic vents Reply with quote

Is this molded into the window. Can you take off the plastic piece and leave the window in? I would love to know more about these things or if you have pictures of these when open. I want to change the filter but now I am very curious to the construction of these things.
_________________
91 Syncro
I am a samba thread just waiting to happen!
"Advanced Syncroist"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SteveVanB
Samba Member


Joined: June 01, 2008
Posts: 1645
Location: This side of Daytona
SteveVanB is offline

PostPosted: Fri Aug 05, 2011 4:18 pm    Post subject: Reply with quote

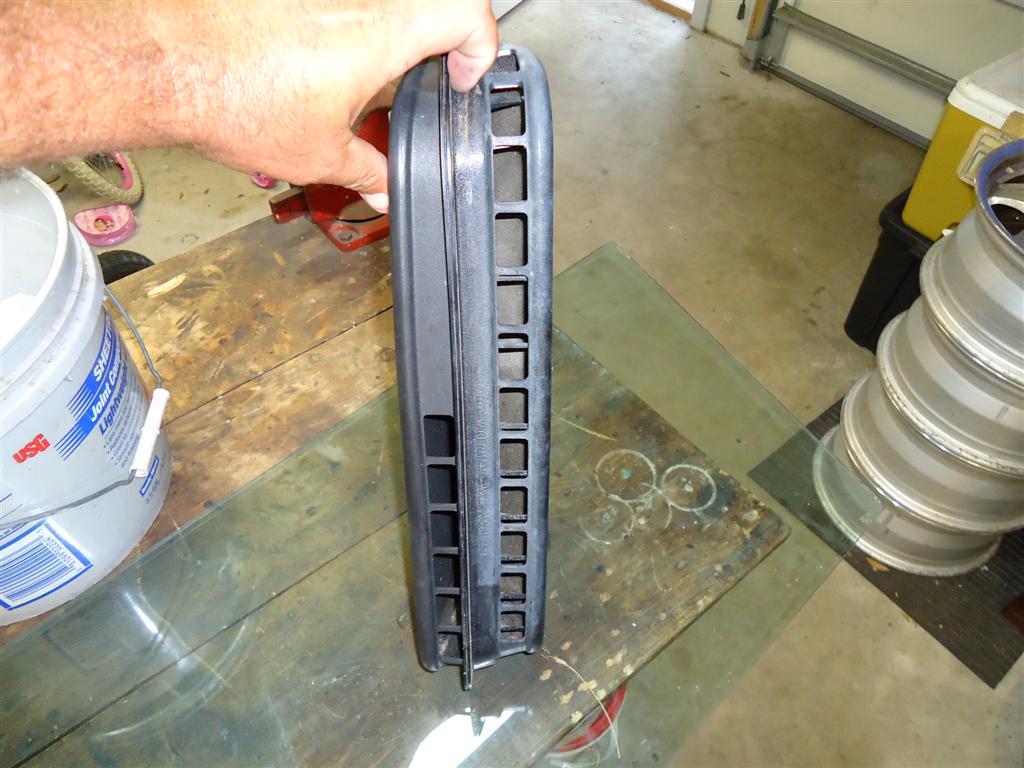

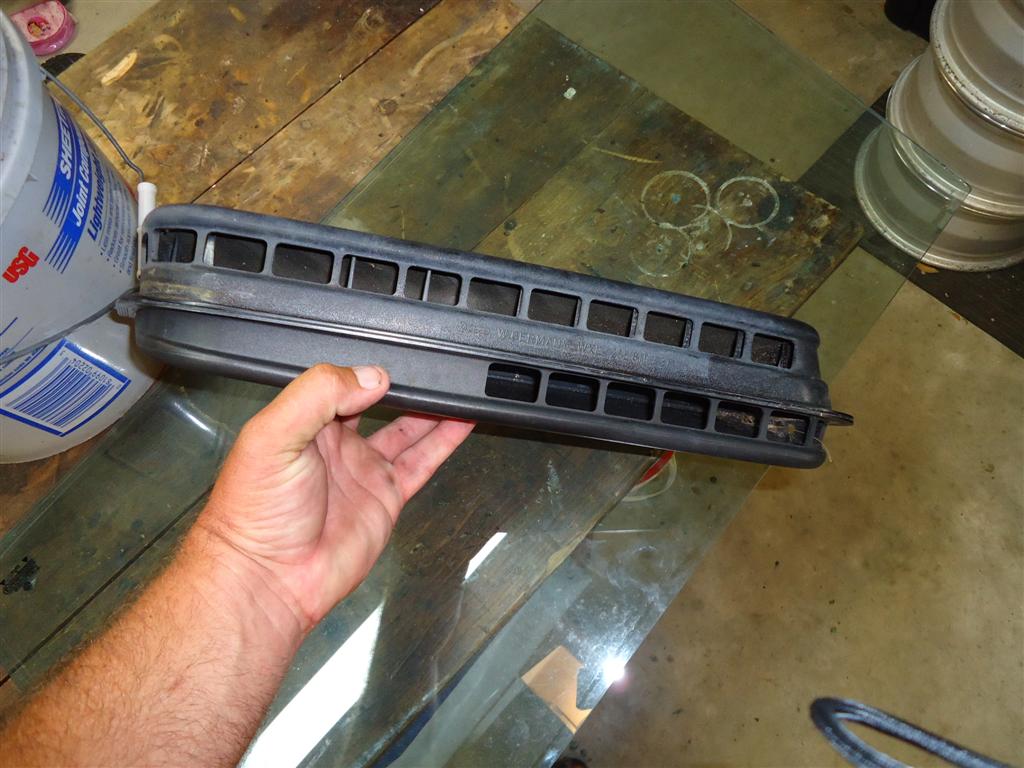

The plastic piece replaces the section of glass that was "removed". You can't take it out without leaving a hole where the vent would be.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
91 CARAT


Last edited by SteveVanB on Fri Aug 05, 2011 5:08 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
GrindGarage
Samba Member


Joined: October 14, 2008
Posts: 710
Location: Ocean City, NJ
GrindGarage is offline

PostPosted: Fri Aug 05, 2011 4:27 pm    Post subject: Reply with quote

there is a filter in there???? I never bothered to look.

Maybe use compressed air from the inside to blow out any dirt / dust?
_________________
-cliff

91 Vanagon AUTO
97 Single Port EJ22 all smallcar.com
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
SteveVanB
Samba Member


Joined: June 01, 2008
Posts: 1645
Location: This side of Daytona
SteveVanB is offline

PostPosted: Fri Aug 05, 2011 4:38 pm    Post subject: Reply with quote

It's almost always some sort of dried up foam. Stuff turns to dust if you look at it wrong.
_________________
91 CARAT
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
windnsea
Samba Member


Joined: May 07, 2008
Posts: 424
Location: Pasadena, CA
windnsea is offline

PostPosted: Fri Aug 05, 2011 5:24 pm    Post subject: Reply with quote

If you can find some fluorosilicone open celled foam, it will last indefinitely - even in direct sunlight. I have used this for several applications since the mid-1980's, and it is fantastic. Seat cushions that never fatigue or crumble, etc.

One unfortunate thing about though, if you can find a source it is not cheap at all!

btw, I'm jealous - I've been looking for a pair of those rear windows for my 83 1/2 Vanagon for a while now!

Gary
Back to top
View user's profile Send private message Classifieds Feedback
Cold Steel
Samba Member


Joined: March 11, 2010
Posts: 587

Cold Steel is offline

PostPosted: Sat Aug 06, 2011 3:55 pm    Post subject: Reply with quote

SteveVanB wrote:
The plastic piece replaces the section of glass that was "removed". You can't take it out without leaving a hole where the vent would be.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Oh man that is awesome thanks for posting those pictures!!!
So do you just cut the new foam in strips and stuff it in there?

I know of a place that has those rear windows Dancing pm if your interested.

These windows are great. if you dont have them and you try and close the door it wont unless you SLAM it. The air in the van rejects the door when you try and close it. I guess to much air is in it or my brain...whatever Rolling Eyes
_________________
91 Syncro
I am a samba thread just waiting to happen!
"Advanced Syncroist"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tarandusVDub
Samba Member


Joined: August 27, 2010
Posts: 1649
Location: Between Here and There
tarandusVDub is offline

PostPosted: Tue Jun 05, 2012 6:02 pm    Post subject: Reply with quote

So from this thread it sounds like these windows will work on older windows ~ I thought they did not?! Has anyone successfully replaced their solid windows with vents, and was it worth it?
_________________
1990 Syncro 16" DoppleKabine 2.1 DJ 112i
________________________
Sold: 1972 Bay Campmobile; 1984 Westy, base model, 2WD.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
crazyvwvanman
Samba Member


Joined: January 28, 2008
Posts: 9889
Location: Orbiting San Diego
crazyvwvanman is offline

PostPosted: Tue Jun 05, 2012 6:42 pm    Post subject: Reply with quote

Either of those rear side window setups will swap with either early or late vans. Keep in mind that different years can have different colors of glass so mixing glass can result in a mismatch.

Mark

tarandusVDub wrote:
So from this thread it sounds like these windows will work on older windows ~ I thought they did not?! Has anyone successfully replaced their solid windows with vents, and was it worth it?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tarandusVDub
Samba Member


Joined: August 27, 2010
Posts: 1649
Location: Between Here and There
tarandusVDub is offline

PostPosted: Tue Jun 05, 2012 7:27 pm    Post subject: Reply with quote

thanks Crazy. So, to those that have done this, is the added ventilation worth the effort/cost?
_________________
1990 Syncro 16" DoppleKabine 2.1 DJ 112i
________________________
Sold: 1972 Bay Campmobile; 1984 Westy, base model, 2WD.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
squeegee_boy
Samba Member


Joined: April 27, 2008
Posts: 758
Location: Langley, BC, Canada
squeegee_boy is offline

PostPosted: Tue Jun 05, 2012 7:37 pm    Post subject: Reply with quote

tarandusVDub wrote:
thanks Crazy. So, to those that have done this, is the added ventilation worth the effort/cost?


Yes. It really lets the air circulate better, especially for people in the back seat.

Robyn
_________________
1984 FrankenSyncro Westy. EJ25 RMW kit
1971 Super Beetle with an EJ22. Oh yes. Daily driver
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tarandusVDub
Samba Member


Joined: August 27, 2010
Posts: 1649
Location: Between Here and There
tarandusVDub is offline

PostPosted: Tue Jun 05, 2012 7:51 pm    Post subject: Reply with quote

If you have the filters can you trim the window glass to match, or do you have to have the whole window as a unit?
_________________
1990 Syncro 16" DoppleKabine 2.1 DJ 112i
________________________
Sold: 1972 Bay Campmobile; 1984 Westy, base model, 2WD.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
syncrodoka
Samba Member


Joined: December 27, 2005
Posts: 11997
Location: Santa Cruz, CA
syncrodoka is offline

PostPosted: Tue Jun 05, 2012 7:57 pm    Post subject: Reply with quote

Since the glass is tempered cutting it isn't a option.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tarandusVDub
Samba Member


Joined: August 27, 2010
Posts: 1649
Location: Between Here and There
tarandusVDub is offline

PostPosted: Tue Jun 05, 2012 7:59 pm    Post subject: Reply with quote

Ah, learned something today! thanks!
_________________
1990 Syncro 16" DoppleKabine 2.1 DJ 112i
________________________
Sold: 1972 Bay Campmobile; 1984 Westy, base model, 2WD.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Kopasz
Samba Member


Joined: August 15, 2008
Posts: 241
Location: Portland, OR
Kopasz is offline

PostPosted: Tue Jun 05, 2012 8:54 pm    Post subject: Reply with quote

i picked up a new set of all 4 side windows from a 90 or 91 about a year ago and I am about to install them into my van this week. I removed all the nasty foam insert crud, cleaned them out with compressed air and rinsed them thoroughly.

I would like to replace the foam also but there is no way these things are coming apart to insert a new foam, so the only way I can imagine doing it would be to fish in some new foam. Anybody have experience with this and suggestions on how to do it so you don't go insane?
_________________
adam

'87 Wolfsburg Weekender, Bostig Zetec

The rehabilitation of my Van can be found here: http://www.thesamba.com/vw/forum/viewtopic.php?p=5949024#5949024
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Syncrozilla
Samba Member


Joined: September 11, 2004
Posts: 772
Location: Santa Barbara
Syncrozilla is offline

PostPosted: Tue Jun 05, 2012 9:21 pm    Post subject: Reply with quote

Here's an article that has some info on those vents http://www.gowesty.com/library_article.php?id=311
_________________
Please do not message me on TheSamba. Use my email, [email protected]
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Kopasz
Samba Member


Joined: August 15, 2008
Posts: 241
Location: Portland, OR
Kopasz is offline

PostPosted: Tue Jun 05, 2012 9:49 pm    Post subject: Reply with quote

Syncrozilla wrote:
Here's an article that has some info on those vents http://www.gowesty.com/library_article.php?id=311


Sweet. Thanks Syncrozilla.
_________________
adam

'87 Wolfsburg Weekender, Bostig Zetec

The rehabilitation of my Van can be found here: http://www.thesamba.com/vw/forum/viewtopic.php?p=5949024#5949024
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
BillM
Samba Member


Joined: June 18, 2004
Posts: 1381
Location: Stonington,CT
BillM is offline

PostPosted: Wed Jun 06, 2012 3:43 am    Post subject: Reply with quote

Adam I have an 87 and like you have the parts to add the
rear vents. I also plan to install the gaskets between the
front door/a pillar. I am in the same predicament with replacing
the foam in the rear plastic vents. I don't know what to use,
where to get it or how I am going to get it in there. If you
figure something out please let me know.
_________________
Bill M
87 Westy
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
zippyslug31
Samba Member


Joined: July 20, 2007
Posts: 799
Location: Central Oregon
zippyslug31 is offline

PostPosted: Wed Jun 06, 2012 7:54 am    Post subject: Reply with quote

Now for the bad news for anybody looking to "upgrade" to this type of rear window: installing them is a royal pain.

For those who know the fishing/weed-whacker line "trick" (for seating the seal) I'm told that starting from the back and getting the plastic part seated first is key. I tried this and still had hella time. Truly frustrating procedure!
_________________
previous:
'80 westy
current:
'90 syncro westy 2.5L subi, triple knob, 16" wheels.
'84 sunroof van, 2.1L motor.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
joetiger Premium Member
Samba Member


Joined: January 27, 2005
Posts: 5062
Location: denver
joetiger is offline

PostPosted: Wed Jun 06, 2012 8:21 am    Post subject: Reply with quote

I had a shop install mine and the tech cussed a blue streak the entire time. He said that the spot at the top where the window meets the plastic is a complete b*tch to deal with.

The airflow is definitely better with them in. You can feel the air going past you in the front seat, as opposed to sucking straight down to the old door vents. My rear passengers have commented that they appreciate the airflow as well.

As far as the foam stuff, mine was dust. I read somewhere (this morning has been wasted looking for the thread or post from the Vanagon archive) that somebody used those foam cleaning pads as a replacement and just stuffed them in, but I can't seem to find the story. Maybe I'm just making it up...
_________________
Joe T.

'86 NAHT Vanagon GL Syncro/ supercharged ABA 2.0 "Pigpen"
'04 GTI 1.8T
'04 Golf R32

"get metaphysical with it. if it's simply a means to get to and from places, it will let you down. if it becomes your zen, it can't fail you." -dabaron

"Still, it's good to be afield."--VWagabond

Available Now! Vanagon to Louisiana--A Two-Lane Reckoning Through Past and Present

www.josephtrussell.com
Back to top
View user's profile Send private message Visit poster's website Instagram Gallery Classifieds Feedback
berkeleyjack
Samba Member


Joined: April 27, 2012
Posts: 175
Location: Northern California
berkeleyjack is offline

PostPosted: Wed Jun 06, 2012 8:39 am    Post subject: Reply with quote

Mine are also missing the foam, so I'm interested in hearing what others have done to replace it.
_________________
All-grain homebrewer with a 1990 Vanagon Carat.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3  Next
Page 1 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
