Tijuana Toms new ManxII build. (Inside 6 months)

kustoms · Samba Member Joined: November 20, 2003 Posts: 1708

This has been a busy week for the Manx. I have not updated as I am in kind of a rush to get the body in paint. I managed to get all the holes filled with resin and glass. I also used “AEROSIL” a suspension additive that turns resin in to paste. I am able to spread it like filler but it is as strong as the glass. I also fit the rear wall. I used 2” aluminum angel and trimmed 1” off the lower and riveted them together this will be padded and covered in leather. I had to move the hinges back on the rear deck as it was hitting the body when opened. I then set the lock up. I changed up the location as I think it would screw up the visuals of the deck. I had to make a custom arm and made a hole in the body for it to work. I will be making a garnish out of aluminum to dress it up. I will also be making a receiver box for the lower part to finish it off.
I managed to get most of the work done on the tank and filler. It still need some work but I do not need the body for that.
I also plumed the brakes. I started with “Ni Copp” line this is nickel/ copper. This line allows me to polish is like stainless and will stay that way. It is awesome stuff.
I had custom plugs made and welded in for the seat belts by a friend of mine who does extreme welding. As a safety item I would rather have him do it, besides my TIG is stuck behind the woody.
I am sure I missed something. I will post if I remember.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

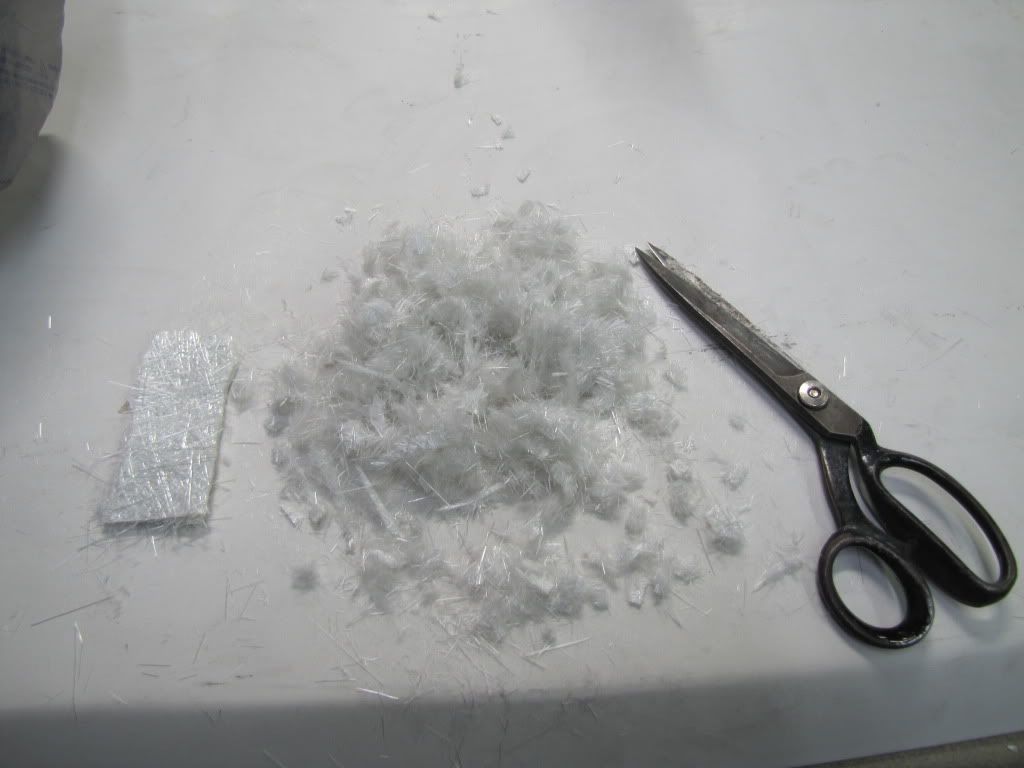

Made my own chop.
Image may have been reduced in size. Click image to view fullscreen.

_________________
Google this.
"Bread and Circuses"

And wondering what the heck happen to my Samba post count?!?
Tom Thompson
Tijuana Kustoms Inc. (TM)
1-877-338-8746
www.tjkustoms.com

kustoms · Samba Member Joined: November 20, 2003 Posts: 1708

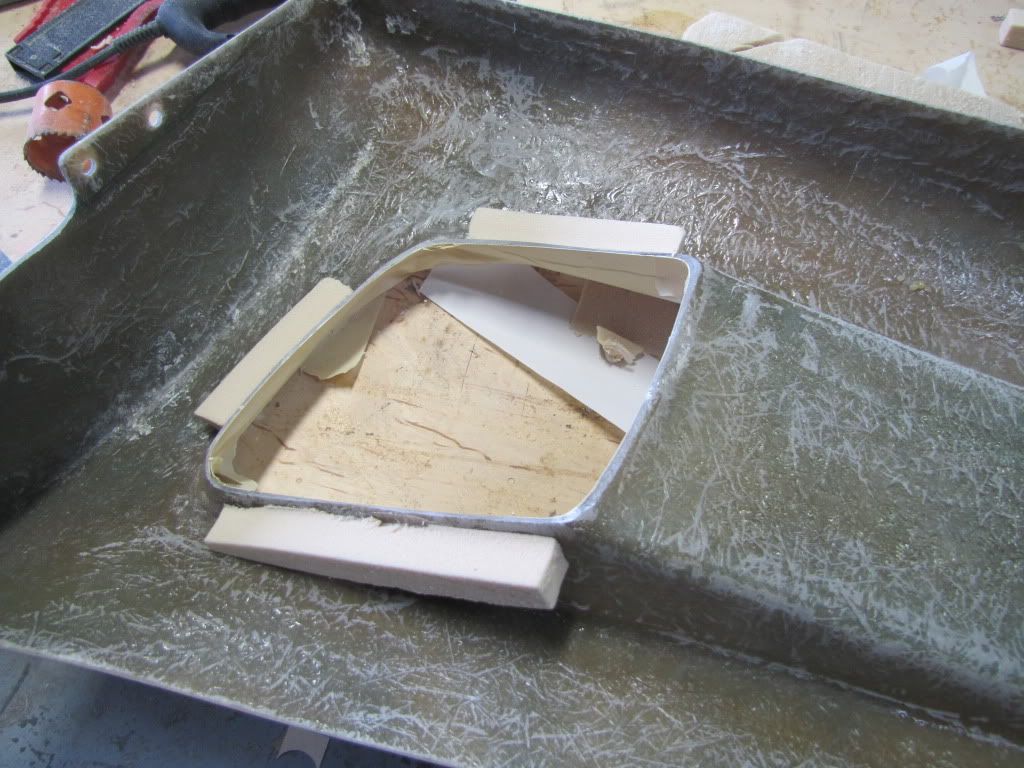

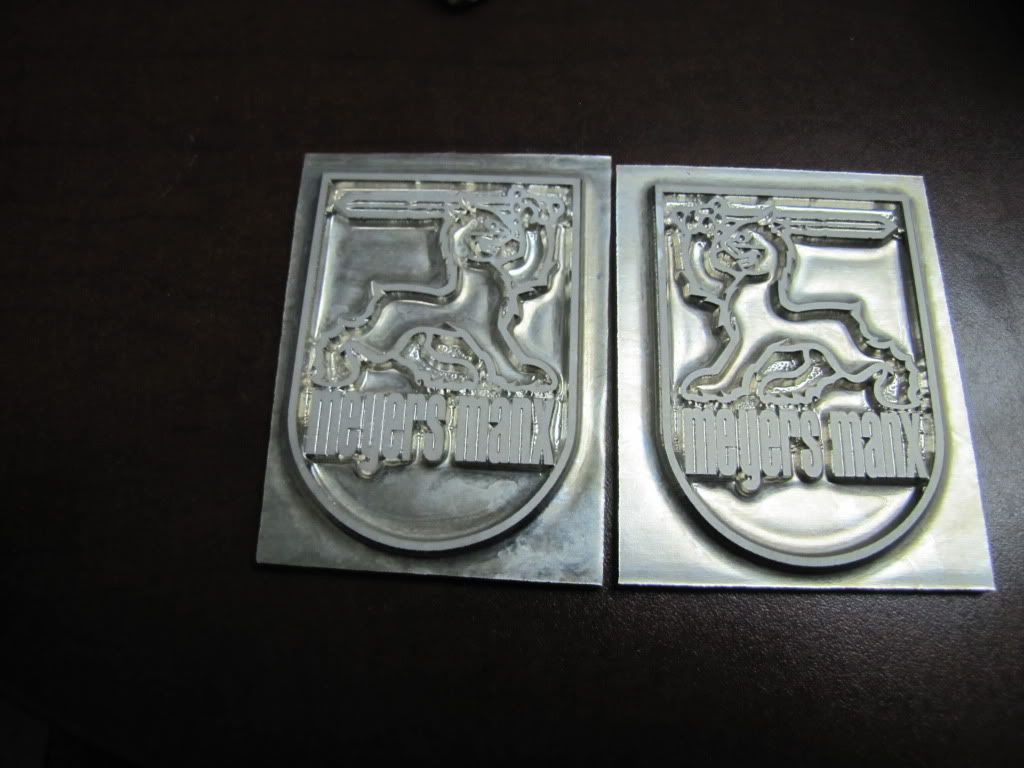

Here are some changes I am making to the pods. Although the pods are kool, I find the vent hole (For lack of a better term.) falls short. I wanted to give them a more refined and completed look. I have also had directional badges made that will be counter sunk in to the glass. They will also be painted by John to match the front and rear. Yes, the will be trimed.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Google this.
"Bread and Circuses"

And wondering what the heck happen to my Samba post count?!?
Tom Thompson
Tijuana Kustoms Inc. (TM)
1-877-338-8746
www.tjkustoms.com

Glenn · Posted: Wed Apr 11, 2012 6:18 am Post subject:

Very cool Tom. Looks like you had a lot of night dreaming about what to do next after Rainbow Bright hit the fence.

Seem to be paying off and this is more "Kustom" Wink

_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
HBB/RW
www.DasVolks.com
Long Island's Aircooled Club

joescoolcustoms · Posted: Wed Apr 11, 2012 6:40 am Post subject:

I like the ideas Tom, they will look great when done. If you come far enough South and I come far enough North, I hope to see it in person some day.
_________________
The closer your tattoos are to your body holes, the crazier you are.

Looks like it was painted with a live chicken,polished with a brick and buffed with a pine cone

Member of Wagenfolks
http://images.thesamba.com/vw/gallery/pix/870707.jpg
http://www.thesamba.com/vw/forum/viewtopic.php?t=479740

Hot Air · Posted: Wed Apr 11, 2012 11:08 am Post subject:

Tom, what is the material you use to sculp/make the vent pieces ?
Very nice , you are correct they are too plain in that area.
_________________
73' Bug
65' Fiberglass Buggy : Spoiler by Desert Fox
2001 Golf

kustoms · Samba Member Joined: November 20, 2003 Posts: 1708

vincent9993 · Posted: Wed Apr 11, 2012 3:00 pm Post subject:

Looking good Tom, France thinks your paint may still be wet when you bring it to Carlisle... lol.

kustoms · Samba Member Joined: November 20, 2003 Posts: 1708

kustoms · Samba Member Joined: November 20, 2003 Posts: 1708

Check this out! Dancing

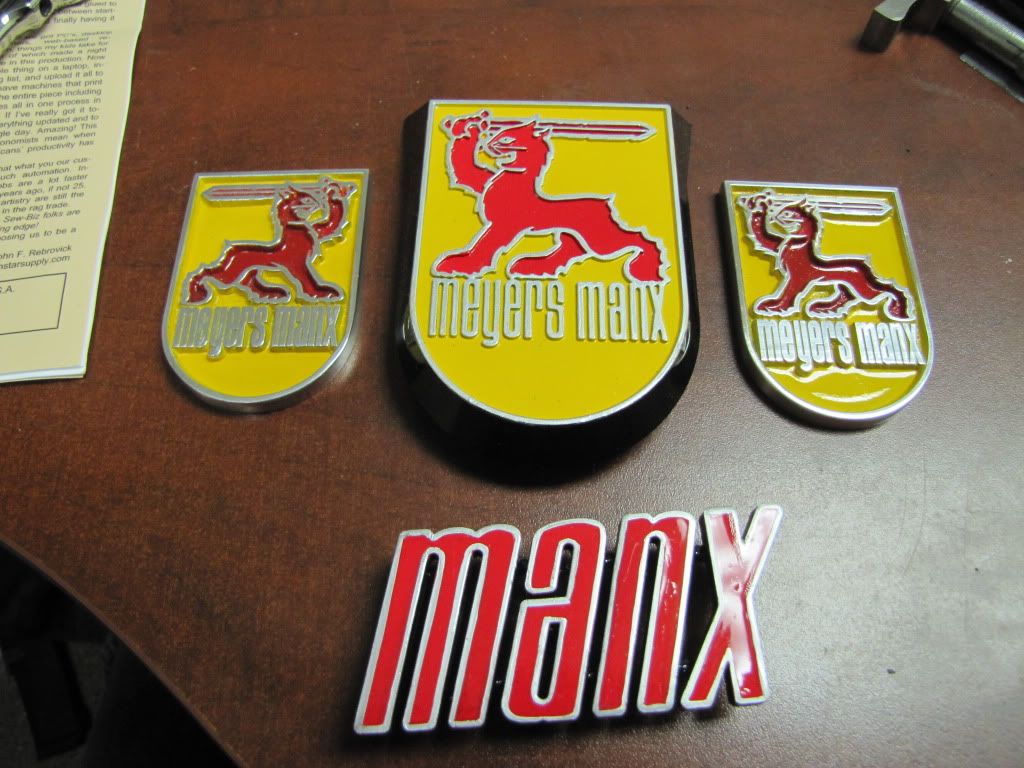

John cleaned and painted the side badges. How awsome is that?!

Image may have been reduced in size. Click image to view fullscreen.

_________________
Google this.
"Bread and Circuses"

And wondering what the heck happen to my Samba post count?!?
Tom Thompson
Tijuana Kustoms Inc. (TM)
1-877-338-8746
www.tjkustoms.com

Roys_Big_Toys · Posted: Fri Apr 13, 2012 3:23 pm Post subject:

Tom, they look awesome!! Hopefully, I will get to see them in Carlisle.
_________________
I'd rather be an hour early than 5 minutes late. (Mine)
"Socialism only works in two places: Heaven where they don't need it and hell where they already have it." -Ronald Reagan
Original Meyers Manx
Original Meyers Manx Tow'd
Original 2 sided Meyers Manx Dealership sign. (The Only one known to exist)
Meyers Manx Surf Board #1 0f #100
Custom Meyers Manx Cornhole game

SiggyManx#33 · Posted: Sat Apr 14, 2012 5:01 am Post subject:

BL3Manx · Posted: Sun Apr 15, 2012 8:30 pm Post subject:

73SpeedBuggy · Posted: Mon Apr 16, 2012 3:58 am Post subject:

kustoms · Samba Member Joined: November 20, 2003 Posts: 1708

kustoms · Samba Member Joined: November 20, 2003 Posts: 1708

Unfortunately, due to a bit of a family emergency over the weekend I was not able to get the body to Dominic for paint.
Saturday and Sunday I was supposed to make the side veins and badge recesses. It took a good part of the day to make the veins out of urethane foam. I managed to get them both done and the first coat of Plaster of Paris on to refine them. At this point before the plaster curses completely I was supposed to sponge sand the shape but at this point I was called away.
Sunday I managed to escape a couple of hours and make the recesses. I now have to hard sand the Plaster of Paris. This is going to take some time.
Sadly the events of this weekend pushed my already strained schedule too far. I really do not think the buggy will be completed for the show. However if it is far enough along I will bring it to show what has been done.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Google this.
"Bread and Circuses"

And wondering what the heck happen to my Samba post count?!?
Tom Thompson
Tijuana Kustoms Inc. (TM)
1-877-338-8746
www.tjkustoms.com

Tom_Kathleen · Posted: Tue Apr 17, 2012 8:47 am Post subject:

Tom - sorry to hear your car may not be ready for Carlilse, but bring it anyway, just like the Imp a few years ago, it was under "Kustomstruction" if I remember.

Don't take this the wrong way, but you probably shouldn't blame a family "issue" near the end of a project, for missing the deadline. You (we) need family support for these crazy time consuming, expensive hobbies. It reminds me of when I worked in the Aerospace industry and they missed a deadline on an expensive part. They would blame the people at the end of the process, forgetting the late start or not wanting to pay OT or working on another part in the middle of the process which was the real problem. Sometimes it was just a unrealistic expectation on how long it would take to make the part.

We will save you a ride for the cruise (if we finish the Manxter), but Kathleen says you and the camera have to stay inside the car this time when it is moving. Besides, the deadline has not passed yet, so you still may make it. Tom
_________________
Manxter #16, 1962 Manx & Kick-Out SS #16 (WIP)
Manx Club, CVA, SCCA & RBC

kustoms · Samba Member Joined: November 20, 2003 Posts: 1708

I have had this project scheduled almost to the last minute based on the other buggies we build. Unfortunately, not going to paint this week was a real problem.
BTW’ this was the emergency. It’s my 18 year olds car. The other car ran a red light. Needless to say, dealing with this takes up a lot of time.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Google this.
"Bread and Circuses"

And wondering what the heck happen to my Samba post count?!?
Tom Thompson
Tijuana Kustoms Inc. (TM)
1-877-338-8746
www.tjkustoms.com

jspbtown · Samba Member Joined: January 27, 2004 Posts: 2801

Intact windshield suggests no head banging going on. Thats good.

Watching my 17 year old son go off each morning still gives me the rumbly belly.

Hope he/she is OK.

kustoms · Samba Member Joined: November 20, 2003 Posts: 1708

Both her and her friend did get pretty hurt but should be fine in time.
_________________
Google this.
"Bread and Circuses"

And wondering what the heck happen to my Samba post count?!?
Tom Thompson
Tijuana Kustoms Inc. (TM)
1-877-338-8746
www.tjkustoms.com
