New guys buggy project!

pallen · Posted: Sat Mar 17, 2012 8:51 pm Post subject:

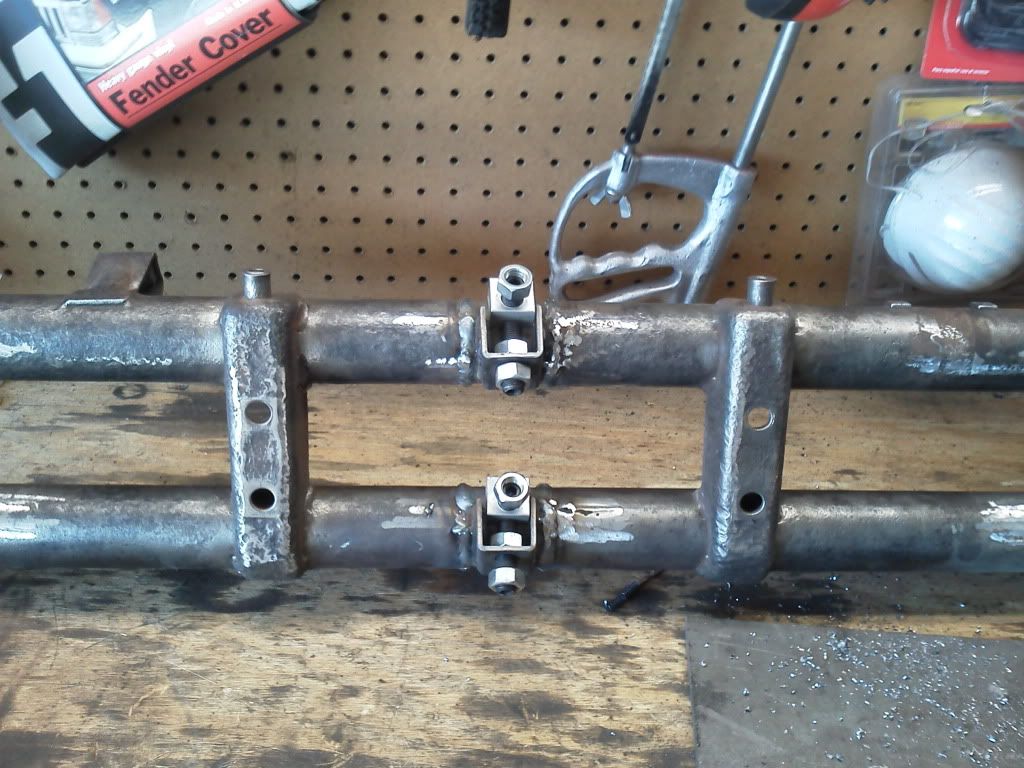

Got the adjusters installed...

Image may have been reduced in size. Click image to view fullscreen.

pallen · Posted: Sun Mar 18, 2012 7:36 pm Post subject:

Some more bracing and they catch the seat bolts.. maybe a little over kill but Im ok with it!, I need to figure out a good way to mount the belt mounts. Just like the seats, I don't want to just weld them directly to the 14 gauge floor.

Image may have been reduced in size. Click image to view fullscreen.

pallen · Posted: Mon Mar 19, 2012 6:02 pm Post subject:

Got the seat belt mounts burned in.... Im just about ready to prep and paint...

Image may have been reduced in size. Click image to view fullscreen.

Im looking at getting these for belts... thoughts?

http://southwestspeed.com/?sec=view_part&id=6419

pallen · Posted: Wed Mar 21, 2012 5:54 pm Post subject:

Gas tanks....

Mine needs clearenced and a new nipple installed because mine rusted out but I guess it needs one installed in a different place due to the angle its at now.

Image may have been reduced in size. Click image to view fullscreen.

So i need to find a weld in nipple and attempt to patch up the tank....
Any body know of where to get somthing? been searching with out much luck.

Next to mount it I came up with this simple approach using angle iron, any reason not to do this??

Image may have been reduced in size. Click image to view fullscreen.

joescoolcustoms · Posted: Wed Mar 21, 2012 7:04 pm Post subject:

pallen · Posted: Fri Mar 23, 2012 7:05 pm Post subject:

Craigslist find!
Image may have been reduced in size. Click image to view fullscreen.

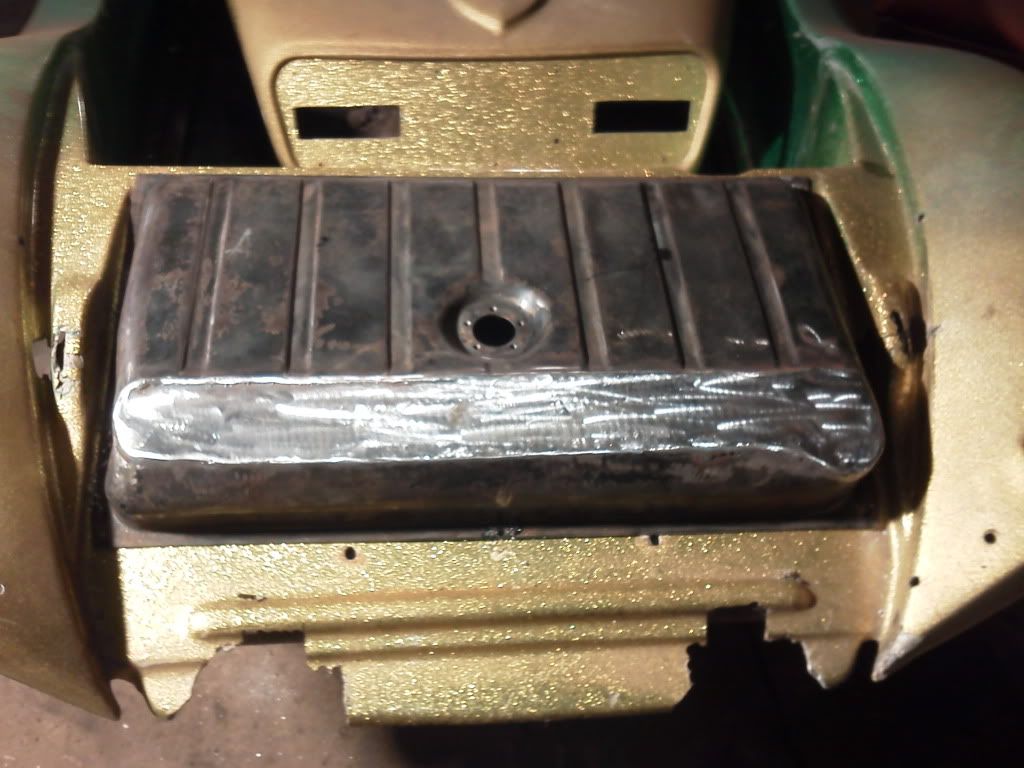

Made the tank mount, I didn't full box it because the top peice would of had to be coped around the bulkhead, I think this should suffice, the previous owner just had the tank floating in the fiberglass Shocked

Yes I know theres no filler, need to order one, 15 dollars insteadof trying to cut out the old one....

Image may have been reduced in size. Click image to view fullscreen.

pallen · Posted: Thu Mar 29, 2012 5:35 pm Post subject:

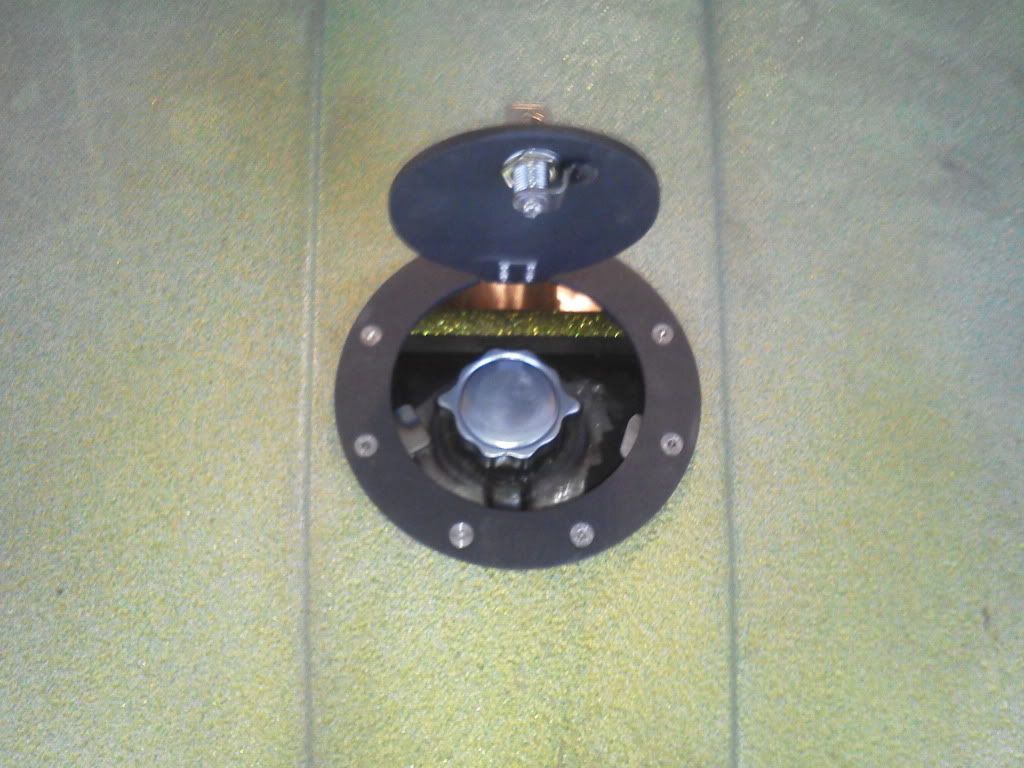

Did some stuff...

Image may have been reduced in size. Click image to view fullscreen.

GTBRADLEY · Posted: Fri Mar 30, 2012 3:18 am Post subject:

Looks great. The only thing you'll have to watch out for is spilling gas. If you spill just a little taking the hose out you will definetly smell it in the cockpit Shocked

_________________
Brian B
1973 Surfer GT Boat
1966 Thunder Bug Buggy-current project
1949 Dodge Coronet-retirement project
that is family owned since new

pallen · Posted: Fri Mar 30, 2012 5:31 am Post subject:

I guess then I would just have to drive really fast to flush out the smell... Very Happy

pallen · Posted: Sat Mar 31, 2012 7:34 pm Post subject:

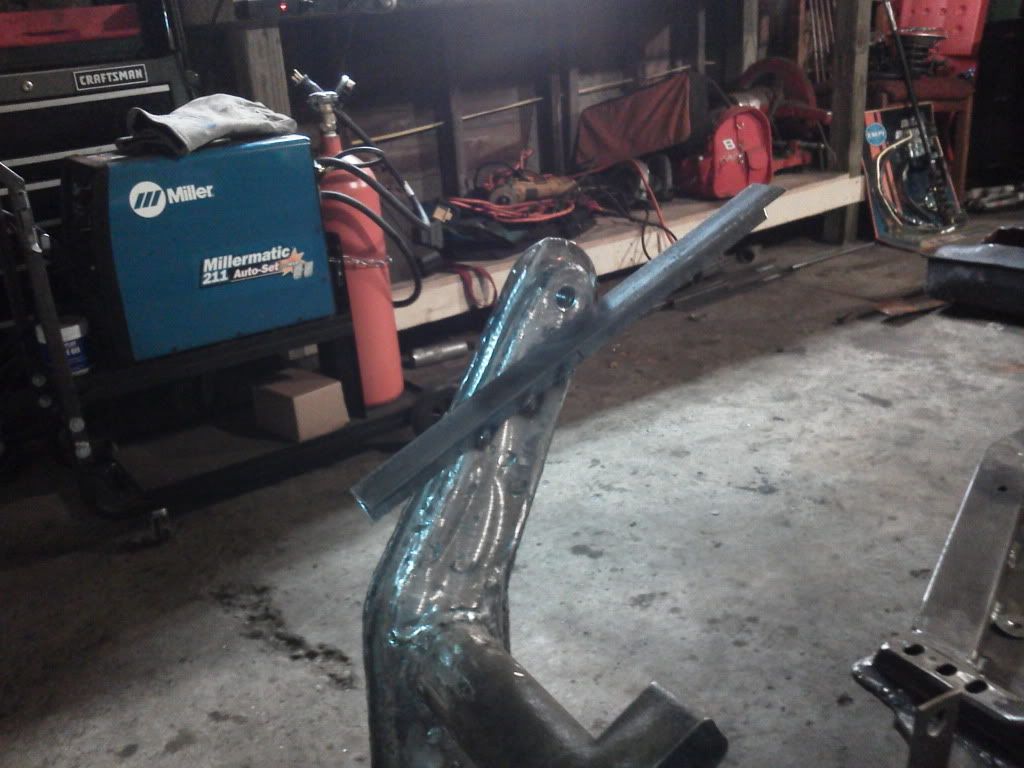

Rear support...

Image may have been reduced in size. Click image to view fullscreen.

Top plates that the cage will be welded to..
Image may have been reduced in size. Click image to view fullscreen.

had to cut up the entire cage to refit it to my new pans....

Image may have been reduced in size. Click image to view fullscreen.

GTBRADLEY · Posted: Sun Apr 01, 2012 8:12 am Post subject:

Believe me when I say the smell follows you around once you've been sitting in it for a few miles Shocked

pallen · Posted: Sun Apr 01, 2012 5:52 pm Post subject:

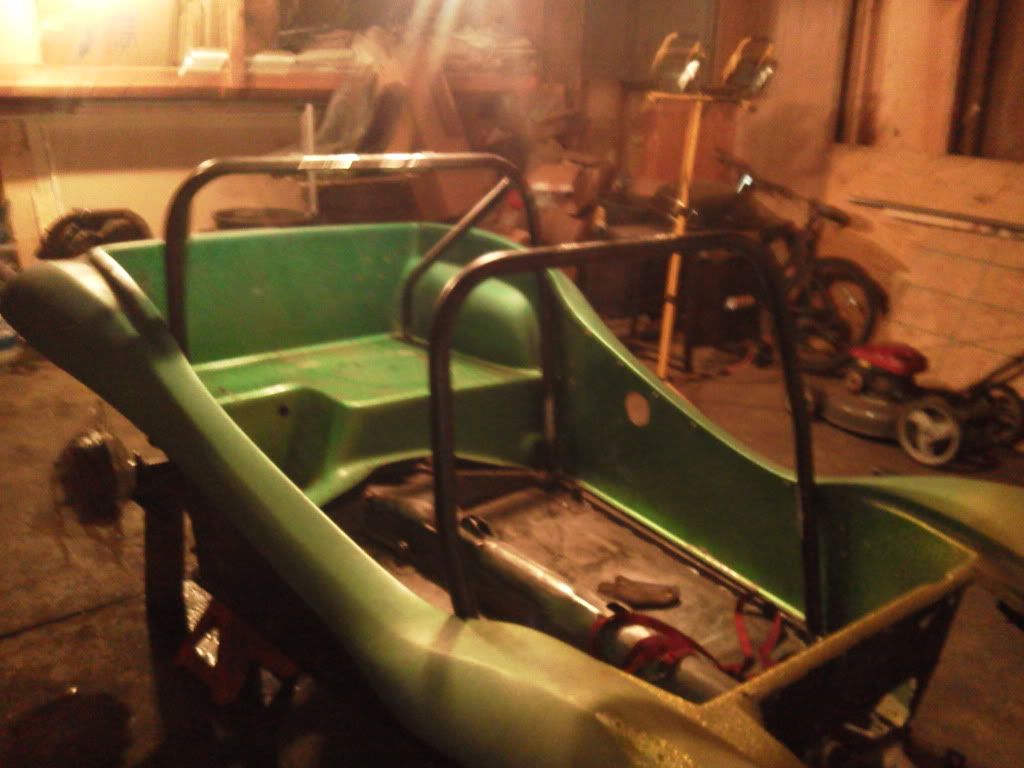

The "reassembled" cage... I plan on adding in a bar under the dash area and one in the back for the sholder harnesses to bolt to.

Image may have been reduced in size. Click image to view fullscreen.

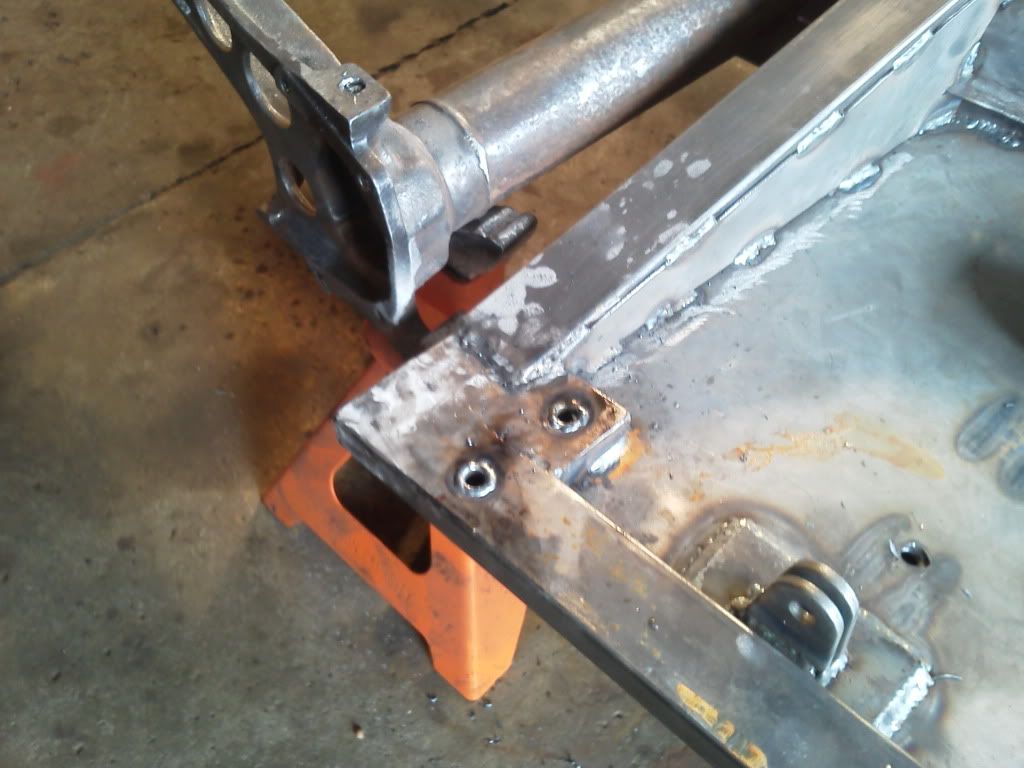

Crush sleeves at the cage mounts...

Image may have been reduced in size. Click image to view fullscreen.

pallen · Posted: Wed Apr 04, 2012 6:11 pm Post subject:

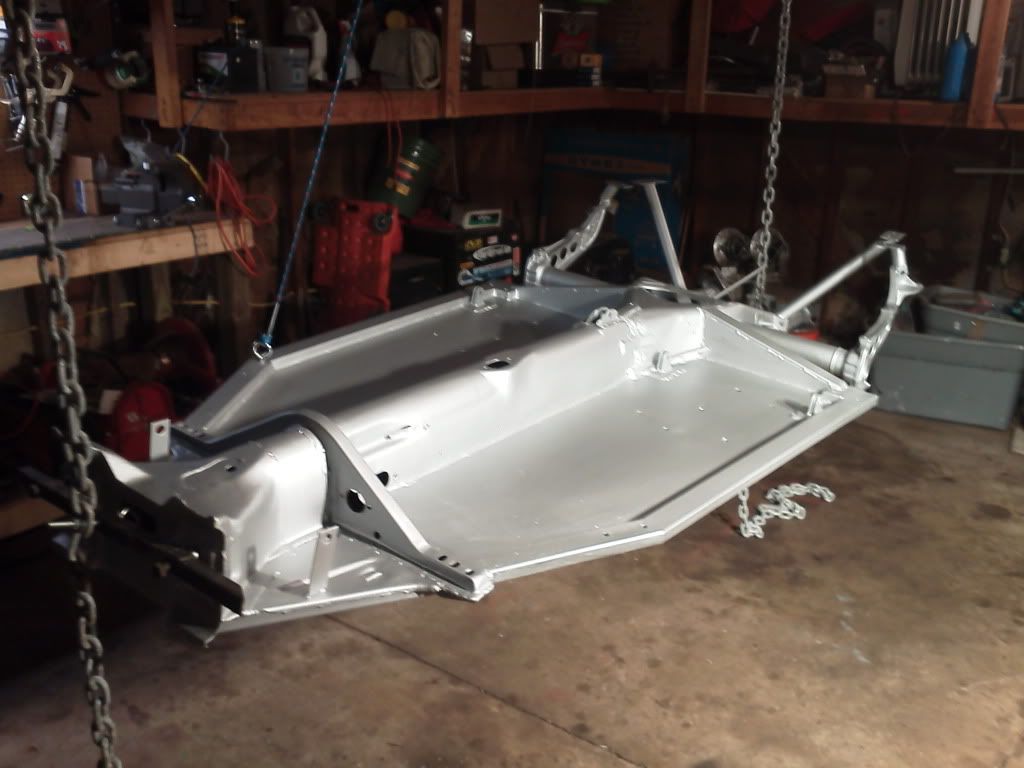

First coat of primer down....

Image may have been reduced in size. Click image to view fullscreen.

joescoolcustoms · Posted: Wed Apr 04, 2012 6:26 pm Post subject:

Looks really nice!

I have gotta get this Baja completed so I can work on the buggy.
_________________
The early bird might get the worm, but the second mouse gets the cheese.

Looks like it was painted with a live chicken,polished with a brick and buffed with a pine cone

Member of Wagenfolks
http://images.thesamba.com/vw/gallery/pix/870707.jpg
http://www.thesamba.com/vw/forum/viewtopic.php?t=479740

pallen · Posted: Thu Apr 05, 2012 5:34 am Post subject:

Thanks! Whats this baja your working on? another bug?

joescoolcustoms · Posted: Thu Apr 05, 2012 6:02 am Post subject:

pallen · Posted: Fri Apr 06, 2012 11:44 am Post subject:

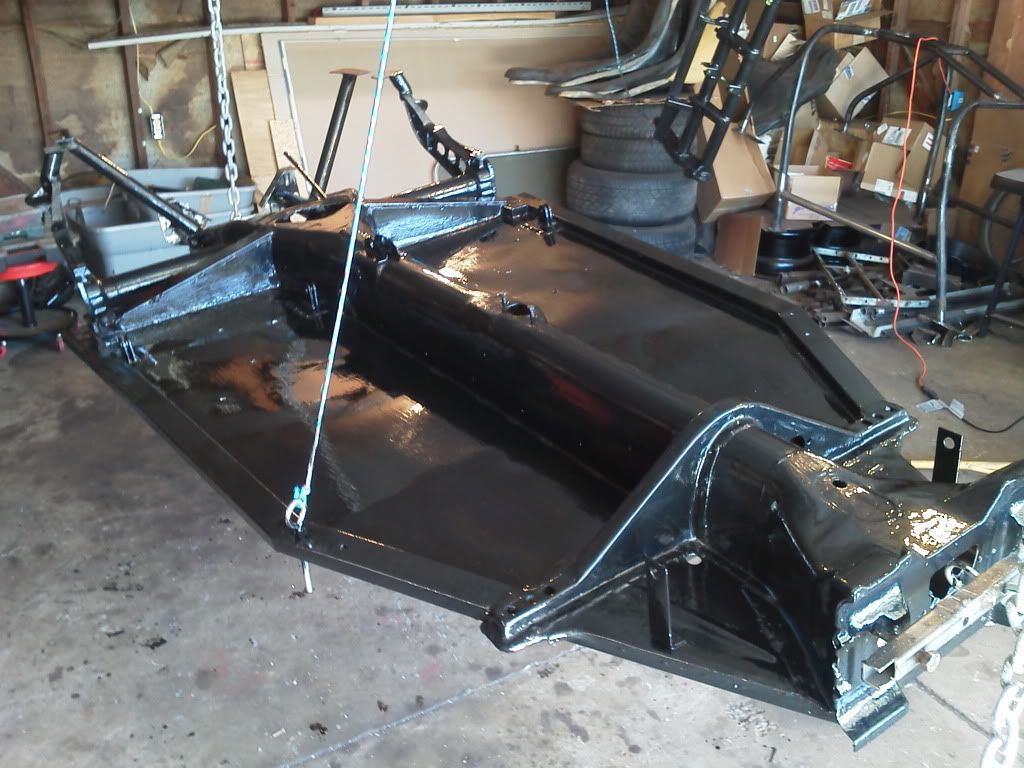

Painted!
Can't wait to start puttting it back together...

Image may have been reduced in size. Click image to view fullscreen.

pallen · Posted: Sat Apr 07, 2012 8:13 pm Post subject:

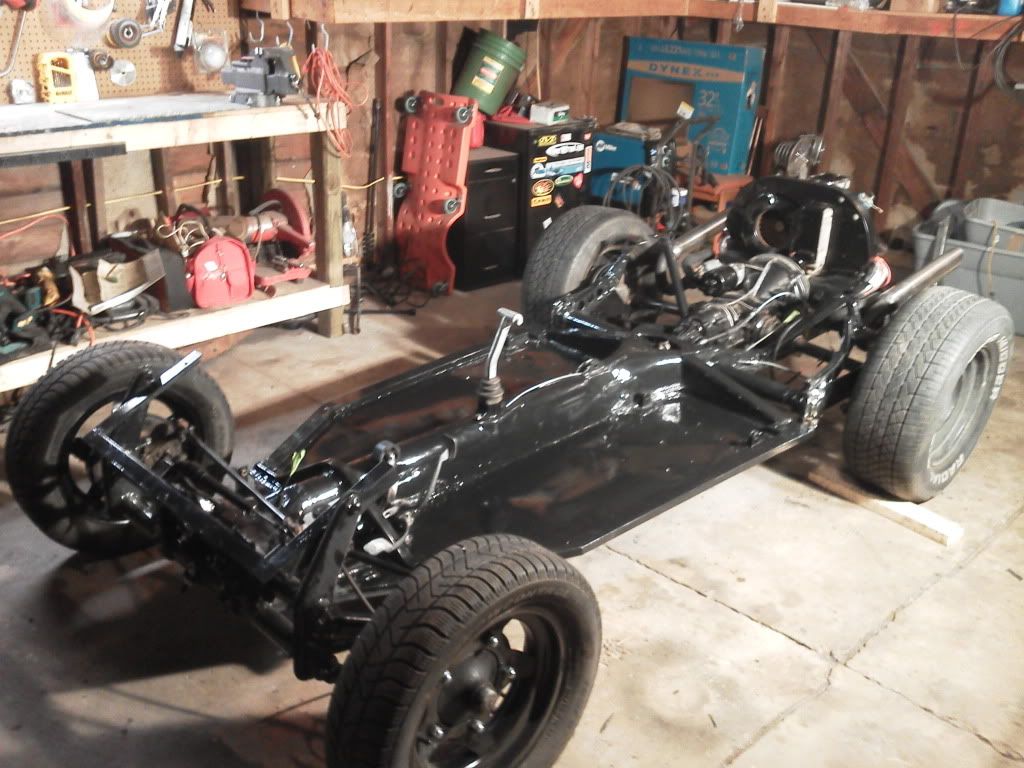

Roller!

pallen · Posted: Mon Apr 09, 2012 6:34 pm Post subject:

So I wont be resusing the front wheel cylinders....

Image may have been reduced in size. Click image to view fullscreen.

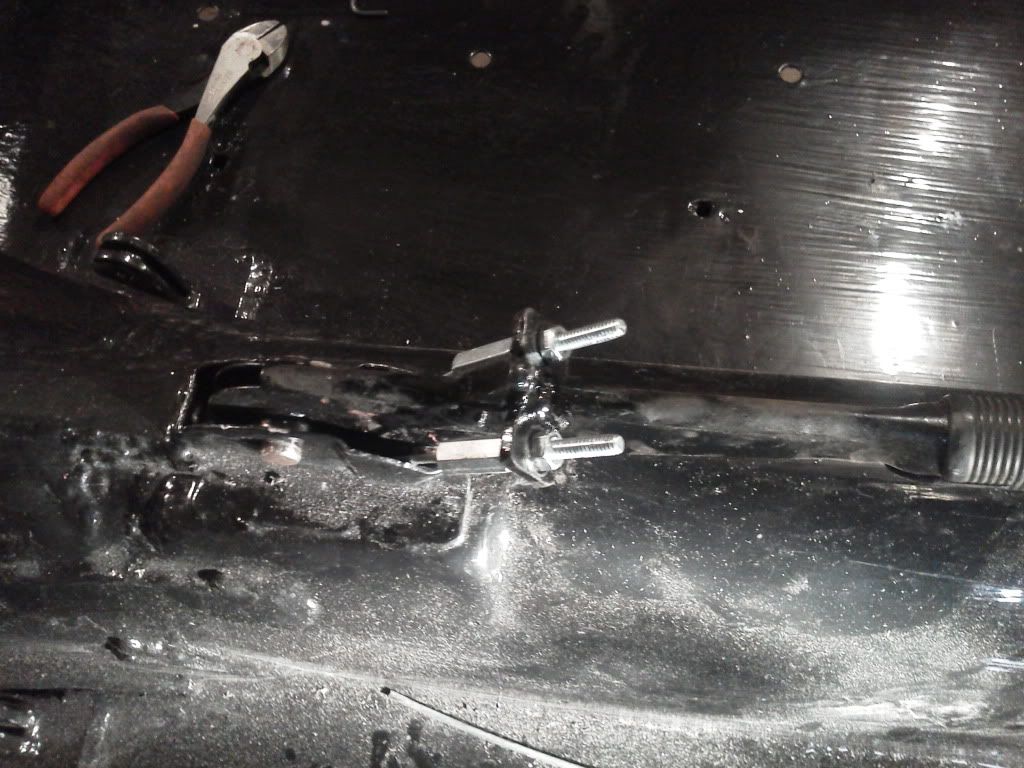

Got the ebrakes shortend and hooked up, I didnt have the top peice so I made it... they will probably need shortened more but I will wait till I have them bleed and adjusted first.

Image may have been reduced in size. Click image to view fullscreen.

pallen · Posted: Thu Apr 12, 2012 10:21 am Post subject:

Heres my first ever attempt working with fiberglass, so I figured I would start on the dash Laughing

My backboard wasnt completley tight so the FG sagged a bit, so it took a few more times, I also did the back side...

Image may have been reduced in size. Click image to view fullscreen.

It has a very light coat of bondo to fill the minor imperfections, I have read about the possibility of shrinkeage with using lots of it.
