 Posted: Thu Mar 22, 2012 4:34 pm Post subject: Suggestions on fixing this crack |
 |
|
Just got back from putting on some early spring miles and gave the buggy a once over and found a crack in the body.
I'm new to fiberglass reinforcement / repair and wanted to show you guys what I found and see what you would suggest.
There is a lack of support across across the front kick panel to the floor (no attachment points) and I am guessing that is what initially has caused the crack but that's just my first thoughts.

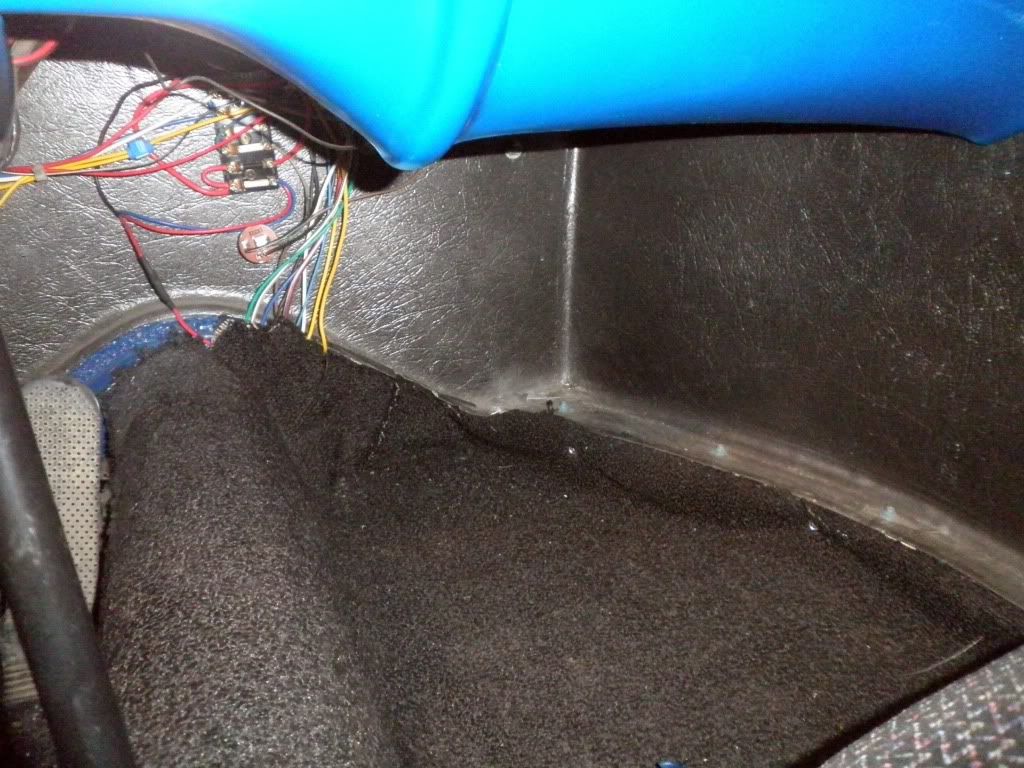

Crack is right in the corner, along the bottom.
How would you approach this?
Thanks as always,
pen
 |
|
| Back to top |
|
 |
GTBRADLEY
Samba Member
Joined: February 27, 2009
Posts: 580
Location: Katy Texas
|
| Posted: Thu Mar 22, 2012 5:04 pm Post subject: |
|
|
I wouldnt even worry about it. Leave it till the next rebuild
_________________
Brian B
1973 Surfer GT Boat
1966 Thunder Bug Buggy-current project
1949 Dodge Coronet-retirement project
that is family owned since new |
|
| Back to top |
|
|
pen
Samba Member
Joined: July 18, 2011
Posts: 32
Location: NE Pa
|
| Posted: Thu Mar 22, 2012 5:13 pm Post subject: |
|
|
I figured it happened because of not being secured properly from the start. Buggy only has maybe 1200-1500 miles on it since being set last time.
I can see movement in this area of the crack when I hit a bump.
pen |
|
| Back to top |
|
|
Dale M.
Samba Member
Joined: April 12, 2006
Posts: 10074
Location: Just a tiny bit west of Yosemite Valley
|
| Posted: Thu Mar 22, 2012 5:39 pm Post subject: |
|
|
Keep a eye on it if it does not get worse don't worry about it....
IF it does get worse, you will probably have to grind out (feather edge) area of crack and lay in fresh mat and resin till you have build up to consistency of original layup.... IF possible wait till next rebuild or major "fix up session" some winter....
Dale
_________________
Lives his life vicariously through his own self...
1970 "Kellison Sand Piper Roadster" For Street & Show.
All suggestions and advice are purely my own opinion. You are free to ignore them if you wish ... |
|
| Back to top |
|
|
pen
Samba Member
Joined: July 18, 2011
Posts: 32
Location: NE Pa
|
| Posted: Thu Mar 22, 2012 5:54 pm Post subject: |
|
|
Are cracks like these pretty common even w/ a good installation? Or is it usually a sign of something else in the build lacking?
pen |
|
| Back to top |
|
|
jspbtown
Samba Member
Joined: January 27, 2004
Posts: 2735
|
| Posted: Thu Mar 22, 2012 6:09 pm Post subject: |
|
|
| Stock floors? |
|
| Back to top |
|
|
didget69
Samba Member
Joined: July 22, 2004
Posts: 2806
Location: Capital, North Carolina
|
| Posted: Thu Mar 22, 2012 6:35 pm Post subject: |
|
|
Probably a combination of factors... fiberglass is thin in the area in question, chassis flex, body under stress where it is fastened to pan, etc...
Leave it until the next rebuild -
bryan
_________________
Internet listed credentials impress no one but Mom... |
|
| Back to top |
|
|
pen
Samba Member
Joined: July 18, 2011
Posts: 32
Location: NE Pa
|
| Posted: Thu Mar 22, 2012 6:41 pm Post subject: |
|
|
| jspbtown wrote: | | Stock floors? |

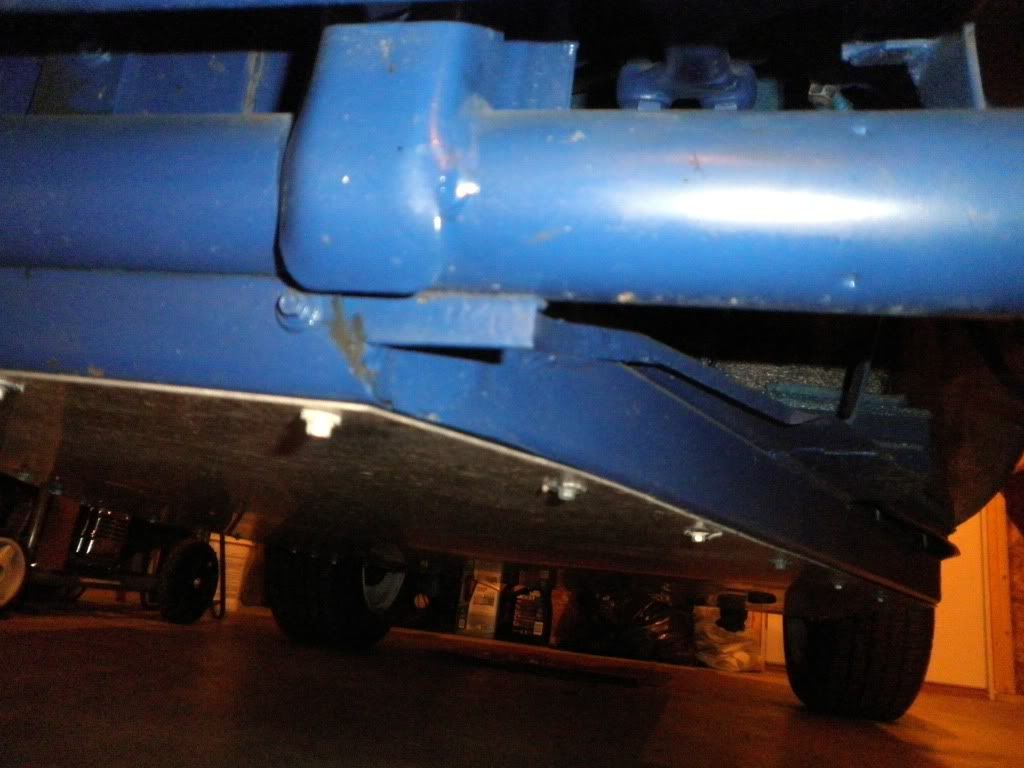

Yes, but it looks like the the builder added some 2 inch square stock and some wood also. Wood is only as wide as the bottom flange on the body. Guessing it was added to raise the height. The square stock doesn't look stock to me, but I don't know shit from shinola yet, just learning these things. (reading though this forum every day, but it takes time)
Have had toys for years but never a custom build like a buggy (always near stock stuff) so I'm really green here. Here's what I'm looking at, you guys are the "doc's" that can tell me if what I'm seeing is malignant or not.
Thanks
 |
|
| Back to top |
|
|
Dale M.
Samba Member
Joined: April 12, 2006
Posts: 10074
Location: Just a tiny bit west of Yosemite Valley
|
| Posted: Thu Mar 22, 2012 7:17 pm Post subject: |
|
|
From body down it looks like...
BODY
3/4 WOOD SPACER
VW PAN (lip)
SQUARE STOCK STIFFENER..
Would not worry about silly little crack...
Dale
_________________
Lives his life vicariously through his own self...
1970 "Kellison Sand Piper Roadster" For Street & Show.
All suggestions and advice are purely my own opinion. You are free to ignore them if you wish ... |
|
| Back to top |
|
|
dan macmillan
Samba Member
Joined: October 19, 2003
Posts: 3069
Location: Northern Ontario, Canada
|
| Posted: Fri Mar 23, 2012 3:37 am Post subject: |
|
|
Part of your problem is the bolts used to hold the body down. Looks like you have sheet metal screws with no real washer support going down through the body and the same thing holding the floor up to the pan rail. You need actual bolts that pass through eveything with large diameter washers against the fiberglss lip and lower pan. Good idea to use nuts with the built in nylon lock so they can be set tight but not so tight they crack anything and won't loosen off.
As for the crack. After you properly secure the body, drill a hole at the end of the crack to stop it, grind the crack to open it up and grind along the crack to roughen the top surface and taper it into the crack. Cut some glass strips to fit the area. You don't want the weave of all strips going in the same direction. Mix some resin and apply a coat, followed by cloth/resin/cloth/resin etc.
_________________
Licensed Automotive Service Technician
Licensed Truck and Coach Technician
Licensed Heavy Duty Equipment Technician
CFC/HCFC/HFC A/C handling and installation license
Alignment specialist
66 Modified Manx,68 Kyote,74 Thing,74 Beetle, 76 Transporter,75 self made Double Cab,65 Meyers Manx,78Westy,68 Ghia, 79 Bradley GT2
Current projects:
Built for others:69 Manx Clone |
|
| Back to top |
|
|
pen
Samba Member
Joined: July 18, 2011
Posts: 32
Location: NE Pa
|
| Posted: Fri Mar 23, 2012 5:42 am Post subject: |
|
|
| dan macmillan wrote: | Part of your problem is the bolts used to hold the body down. Looks like you have sheet metal screws with no real washer support going down through the body and the same thing holding the floor up to the pan rail. You need actual bolts that pass through eveything with large diameter washers against the fiberglss lip and lower pan. Good idea to use nuts with the built in nylon lock so they can be set tight but not so tight they crack anything and won't loosen off.
As for the crack. After you properly secure the body, drill a hole at the end of the crack to stop it, grind the crack to open it up and grind along the crack to roughen the top surface and taper it into the crack. Cut some glass strips to fit the area. You don't want the weave of all strips going in the same direction. Mix some resin and apply a coat, followed by cloth/resin/cloth/resin etc. |
\
Thanks. The screws that were used are metal roofing screws! The rubber washers on those screws were a nice idea, but changing them out to what you mention is on my to-do list.
Thanks for all the suggestions everyone
pen |
|
| Back to top |
|
|
dan macmillan
Samba Member
Joined: October 19, 2003
Posts: 3069
Location: Northern Ontario, Canada
|
| Posted: Fri Mar 23, 2012 5:57 am Post subject: |
|
|
Thought that is what they were. If you used them because of the rubber seal just put some silicone under the washers. I use a minimum of 5/16 bolt sometimes a 3/8 and fender washers.
http://www.noahsboatbuilding.com/items.asp?Cc=Washers_FEN&Tp=&iTpStatus=1
_________________
Licensed Automotive Service Technician
Licensed Truck and Coach Technician
Licensed Heavy Duty Equipment Technician
CFC/HCFC/HFC A/C handling and installation license
Alignment specialist
66 Modified Manx,68 Kyote,74 Thing,74 Beetle, 76 Transporter,75 self made Double Cab,65 Meyers Manx,78Westy,68 Ghia, 79 Bradley GT2
Current projects:
Built for others:69 Manx Clone |
|
| Back to top |
|
|
Dale M.
Samba Member
Joined: April 12, 2006
Posts: 10074
Location: Just a tiny bit west of Yosemite Valley
|
| Posted: Fri Mar 23, 2012 8:46 am Post subject: |
|
|
Dan is correct ... The screws are not good.... I missed those... Minimally 5/16 grade five bolts and fender washers.... Drill all the way though all layers and use nyloc nuts because you have so many compression areas you will never keep standard lockwasher and nut tight....
Dale
_________________
Lives his life vicariously through his own self...
1970 "Kellison Sand Piper Roadster" For Street & Show.
All suggestions and advice are purely my own opinion. You are free to ignore them if you wish ... |
|
| Back to top |
|
|
jspbtown
Samba Member
Joined: January 27, 2004
Posts: 2735
|
| Posted: Fri Mar 23, 2012 9:36 am Post subject: |
|
|
| Not to side track the discussion but.....that wiring. Oh my goodness. |
|
| Back to top |
|
|
pen
Samba Member
Joined: July 18, 2011
Posts: 32
Location: NE Pa
|
| Posted: Fri Mar 23, 2012 10:10 am Post subject: |
|
|
| jspbtown wrote: | | Not to side track the discussion but.....that wiring. Oh my goodness. |
I hear you! As a side note, I didn't do this build. Just trying to make it right from here bit by bit.
I have wanted one of these things for years. This one popped up locally so I bought it.
I figured the hassle of dealing w/ people over the phone and traveling to check out a buggy, plus the cost of travel and transport, wasn't worth the hassle of trying to find the perfect buggy. I'd rather spend my time working on this one.
pen |
|
| Back to top |
|
|
jspbtown
Samba Member
Joined: January 27, 2004
Posts: 2735
|
| Posted: Fri Mar 23, 2012 10:42 am Post subject: |
|
|
Hey..I get ya. It looks like a great start and a solid buggy. It shouldn't take much to get it real nice.
Bad wiring is just a pet peeve of mine. |
|
