 Posted: Sat May 07, 2011 10:44 am Post subject: How to cut a '56 so you can hot rod it ---- |
 |
|
Well , I started with a '56 that had been hit and chitly repaired both front and rear --

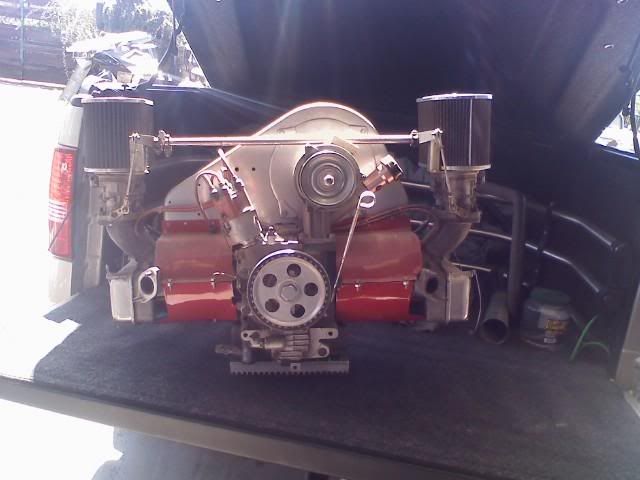

Then dug a engine out from the way back machine
rebuilt the engine using new-er parts -- old 90mm Pauter crank
New J&E 4" pistons
finishing off the angle ports
A little nip here and there and lo and behold
Putting things here and there -- want everything in the engine bay turbo/inner cooler and EFI -- trying to figure out the efi wiring here
almost done
and after 2+ years
http://www.youtube.com/watch?v=GHeSk9P3Ps0
Went down to Shear Speed in Escondido and was planning on putting it on the dyno -- After chasing a oil leak and then doing a lot of baseline tuning Bill found a vacuum leak in the intake below the TB ------ CHIT CHIT CHIT ----- so didn't get it on the rollers, but the car is diffently driveable (it would hardly idle before Bill got a hold of it) -- Rolled into it behind Billy's place and it came up on boost for the first time -- can you say Y E A H B U D D Y -- The 165's didn't stand a chance
I drove it to the local car show/ cruise last night for a little while -- drove it down with the apron and rear lid off, just to show it off, -- -- Boy it was loud LOL -- Got the interest of all the V8 guys -- Especially since it is only a 1300 hee hee
Quote of the evening -- "That 1300 won't even being to spin THAT turbo up!!!!" LMAO |
|
| Back to top |
|
 |
tstracy39
Samba Member
Joined: May 14, 2008
Posts: 3244
Location: West Philadelphia, PA
|
| Posted: Sat May 07, 2011 1:23 pm Post subject: Re: How to cut a '56 so you can hot rod it ---- |
|
|
| Fiatdude wrote: | Then dug a engine out from the way back machine
|
Your lower tins are on backwards. Also, that style shroud is notoriously inefficient at cooling the engine, doesn't even have air vanes inside to direct the cooling air into the tins. Not trying to be a dick, just wouldn't want to see the high-end parts in this engine get overheated and seized up.
_________________
Check my classifieds for kewl gauges:
http://www.thesamba.com/vw/classifieds/search.php?username=tstracy39
| EverettB wrote: | | I like your fork. |
|
|
| Back to top |
|
|
Dave
Samba Elder
Joined: July 11, 2002
Posts: 2230
Location: Where the Redwoods meet the Sea
|
| Posted: Sat May 07, 2011 2:34 pm Post subject: |
|
|
aaah yes, the old "Cruisin' Grand"... spent many a Friday night there... at one time, they told me my 57 sunroof, with a 2017, IDAs, real Raders, EMPI GTV wheel, Berg signature shifter, etc etc wasn't welcome there... I pointed out that since they had always said "Pre-1964 autos, trucks, and motorcycles", that I WAS going to stay, unless they kicked out all the PT Cruisers and post-1964 Corvettes that abounded , and all the Import Tuner cars that always hung out on the corner of Grand and Kalmia... I understand the Steve Waldron, the dickhead who tried to keep me out, no longer runs the show there.... GOOD.
Tell Bill Shear hello for me. Is Toby's purple Super Street car still there next to the dyno? I don't recall seeing that thing move in quite a few years....
_________________
2003 Samba Chummie Winner- Best Story
"Those that matter, don't mind,
and those that mind, don't matter" |
|
| Back to top |
|
|
Fiatdude
Samba Member
Joined: April 20, 2009
Posts: 300
Location: 909
|
| Posted: Sat May 07, 2011 3:31 pm Post subject: Re: How to cut a '56 so you can hot rod it ---- |
|
|
| tstracy39 wrote: | | Fiatdude wrote: | Then dug a engine out from the way back machine
|
Your lower tins are on backwards. Also, that style shroud is notoriously inefficient at cooling the engine, doesn't even have air vanes inside to direct the cooling air into the tins. Not trying to be a dick, just wouldn't want to see the high-end parts in this engine get overheated and seized up. |
When we first put those tins on there they didn't want to fit the other way -- but I've got some maintenance items to check so I do a retry on them -- and who says there isn't some alumimun sheet welded inside there to direct the air????? It is the only style fan shroud that mates up to that tin I can find -- any suggestions???/
Bill's shop has moved to escondido in the last year -- but the purple car is still there -- and I'll be seeing him soon for the second attempt at the dyno and I'll say Hi for you |
|
| Back to top |
|
|
Fiatdude
Samba Member
Joined: April 20, 2009
Posts: 300
Location: 909
|
|
| Back to top |
|
|
Fiatdude
Samba Member
Joined: April 20, 2009
Posts: 300
Location: 909
|
| Posted: Fri May 13, 2011 4:43 pm Post subject: |
|
|
Well -- -- Is it a sleeper????
 |
|
| Back to top |
|
|
DStewart
Samba Member
Joined: April 25, 2008
Posts: 75
Location: Dayton, Nv
|
| Posted: Tue May 17, 2011 1:15 pm Post subject: |
|
|
Total sleeper, right up until you start it.....lol. Looks great, sounds better......
_________________
61 Bug....Black on red. |
|
| Back to top |
|
|
earthquake
Samba Member
Joined: January 10, 2008
Posts: 2013
Location: LAS VEGAS, NEVADA "SIN CITY"
|
| Posted: Tue May 17, 2011 6:13 pm Post subject: |
|
|
I was waiting for it to suck up that shop rag, I wonder if it would have came out of the turbo after going through the motor!
Casey
_________________
74 CLASS 11 LOOK-A-LIKE
65 pan [I haven't decided what to do with it]
69 DUNE BUGGY
79 INTERNATIONAL SCOUT II
05 SCION XB SERIES RELEASE 2[#437]
Some where in Kenya, A village is missing its Idiot!
"If you put the federal government in charge of the Sahara Desert, there would be a shortage of sand in 5 years" |
|
| Back to top |
|
|
Fiatdude
Samba Member
Joined: April 20, 2009
Posts: 300
Location: 909
|
| Posted: Wed May 25, 2011 8:42 pm Post subject: OvalHolio |
|
|
Another chitty day at the dyno -- for some reason the pushrod tubes on the 1-2 started puking BAD -- Billy said "we can work through this" -- so we throw it onto the dyno and start making a few pulls each time adding more rpm and more fuel (it was a little lean LOL) and got it up to about 4500 rpm and 12-13 lbs boost and massaging the VE table to keep it "right" and on the last pull blew out a exhaust gasket on #1 cylinder -- -- CHIT CHIT CHIT CHIT -- -- -- Billy is thinking that the engine is growing so much that it is torquing the flanges and causing it to leak/blow out -- final results well over 300 HP and a few more to find as it gets fine tuned -- Bill thought we could of had it dialed-in within another hour if .. ... ....
As Always Bill at SHEAR SPEED Escondido CA is the man -- The Mad Tuner LMAO -- Next time I'll bring the 24 pack so we don't run out of Beer |
|
| Back to top |
|
|
Fiatdude
Samba Member
Joined: April 20, 2009
Posts: 300
Location: 909
|
| Posted: Wed May 25, 2011 10:11 pm Post subject: |
|
|
| earthquake wrote: | I was waiting for it to suck up that shop rag, I wonder if it would have came out of the turbo after going through the motor!
Casey |
Can you say LINT LOL --- It was the exhaust blowing down that was causing that rag to move --- It would of been so cool if it was the turbo sucking that much air LMAO |
|
| Back to top |
|
|
Hotrodvw
Samba Member
Joined: July 06, 2004
Posts: 6025
Location: Orygun
|
| Posted: Wed May 25, 2011 10:45 pm Post subject: |
|
|
Nice work Harold! Can't wait to see that thing at Sac!
_________________
'67 Sunroof
Eric
78x94 with IDA's....oober fun
Horsepower is an addiction........Addictions cost lots of money!
Hose & Fittings |
|
| Back to top |
|
|
Fiatdude
Samba Member
Joined: April 20, 2009
Posts: 300
Location: 909
|
| Posted: Wed May 25, 2011 11:00 pm Post subject: |
|
|
Can't go to SAC --- I've got an 80th Birthday party to go to -- My father-in-law, who is one of the greatest guys I've ever met, is celebrating and I won't miss it for anything in the world.
So will be at Nick's friday night of Classic weekend -- don't know if I'll go to the classic |
|
| Back to top |
|
|
Fiatdude
Samba Member
Joined: April 20, 2009
Posts: 300
Location: 909
|
| Posted: Tue May 31, 2011 3:00 pm Post subject: |
|
|
 |
|
| Back to top |
|
|
seanboy69
Samba Member
Joined: October 22, 2008
Posts: 1107
Location: Templeton PA
|
| Posted: Wed Jun 01, 2011 4:15 am Post subject: How to cut a '56 so you can hot rod it ---- |
|
|
WICKED!!!!!!
_________________
In a sea of american muscle there is alittle bug hiding in the corner...
Oh, and I am 39 years old.....I am supposed to know better......ha!!!
1956 oval ragtop
1962 baha
2276 in progress |
|
| Back to top |
|
|
Sigurd
Samba Member
Joined: April 18, 2006
Posts: 2515
Location: Rockford, IL
|
| Posted: Wed Jun 01, 2011 7:08 am Post subject: |
|
|
| That green tank in the upper-left of the bay is water/meth injection, correct? |
|
| Back to top |
|
|
VWLooseNuts
Samba Member
Joined: August 09, 2007
Posts: 378
Location: PNW.
|
|
| Back to top |
|
|
bugnut68
Samba Member
Joined: June 10, 2003
Posts: 3951
Location: Lakeview, OR
|
| Posted: Wed Jun 01, 2011 10:16 am Post subject: |
|
|
Nice work, Fiatdude!  |
|
| Back to top |
|
|
RockCrusher
Samba Member
Joined: August 03, 2010
Posts: 4603
Location: Parkesburg, PA
|
| Posted: Wed Jun 01, 2011 10:23 am Post subject: |
|
|
| bugnut68 wrote: | | Nice work, Fiatdude! |
yeah.....or should we start calling you VWdude?
_________________
[email protected] Please use email for all general inquiries.
I will be happy to speak to anyone who has a serious inquiry (meaning real potential business for RC enterprises) or a parts order. Due to machining noise causing missed calls all calls will be returned promptly.
610-800-0569 (voice mail is Total Home Media.....soon to be changed) |
|
| Back to top |
|
|
Fiatdude
Samba Member
Joined: April 20, 2009
Posts: 300
Location: 909
|
| Posted: Wed Jun 01, 2011 4:41 pm Post subject: |
|
|
Thanks guys for the compliments
| Sigurd wrote: | | That green tank in the upper-left of the bay is water/meth injection, correct? |
That's the fluid tank for the inner-cooler -- it was working real well on the dyno -- dropping the charge temp about 40* -- it has a radiator(oil cooler) mounted under the car -- it is controled by the EFI, circulation pump comes on at +.1 lbs of boost and stays on until the rpms drop below 2000
The car has been nicked-named Ovalholio by some friends -- but I'll probably stick with Fiatdude in honor of my former little blue car -- Had to sell it to stay married, was the right choice but still miss it LOL
My son is graduating from High School Friday night and we have a big party planned for all day Saturday -- So Starting Sunday gonna pull the engine and disassemble/reassemble it and check for any problems and then new engine mounts and rebuild the front beam and try to have everything done so it can be at Nicks by noon on Friday -- Going to have to bust some serious butt and hope I don't find any problems |
|
| Back to top |
|
|
Fiatdude
Samba Member
Joined: April 20, 2009
Posts: 300
Location: 909
|
| Posted: Sat Jun 04, 2011 5:47 pm Post subject: |
|
|
| Well -- It looks like Nicks is out -- Got work the first part of this week, so that lets out the teardown and rebuild before Friday -- might even have to work Friday -- this work stuff sucks LOL |
|
