Joined: November 22, 2009 Posts: 120 Location: Ukraine
Posted: Tue May 15, 2012 1:39 pm Post subject: 1303S from Ukraine-slow build
Hi everyone!

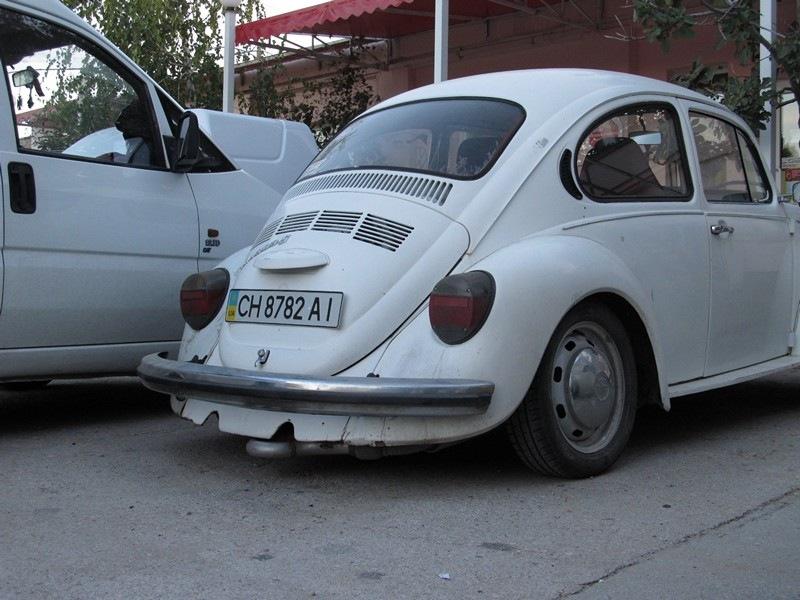

My name is Mike, i'm from Sevastopol, Ukraine and this is my '73 Super.
Repainted (temporary) wheels, made in China hubcups, new rubber... This is what made it look much better This is the only changes in exterior that i made now.
Body is rusty as always and hacked-someone welded the body to the chassis where the heater channels are, the pans are made of a plate steel.
The frame head is so rusty that i can put three fingers inside
to be continued... _________________ '73 1303
'07 Golf TDI
Nice bug! The rust don't look to bad. I got a couple good friends from the Ukraine _________________ ~Tim~
Own now. 1973 bright green standard Beetle daliy driver
Owned. 1977 yellow AMC Gremlin
1974 Lincoln Continental mark IV
1986 4X4 Nissan pickup
Joined: November 22, 2009 Posts: 120 Location: Ukraine
Posted: Thu May 17, 2012 12:44 pm Post subject:
The engine.
When i bought the car it was in "running" condition. The engine started and worked noisy but for me (total noob in aircooled VWs in that time) it looked OK. Oil lamp blinked on idle when engine became hot. Anyway, we had a good time in 2010, participating in "Autoexotica" show that was in my town, and we made a nice 500+km trip around Crimea.
Joined: November 22, 2009 Posts: 120 Location: Ukraine
Posted: Thu May 17, 2012 1:05 pm Post subject:
After that in the end of 2010 started a problems, one after another. The first was the generator that gave up the ghost and was changed with a made-in-China alternator, after that it was overheating and crazy oil leak. Oil leak was strange because it doesn't leaked much when the engine was running and after it stops it leaked like a rain! Changing a crankshaft seal doesn't helped much. So i decided to overhaul an engine. _________________ '73 1303
'07 Golf TDI
Joined: November 22, 2009 Posts: 120 Location: Ukraine
Posted: Thu May 17, 2012 11:45 pm Post subject:
It was a shock for me when I learned that it was almost 1mm wear at crankshaft bearings, so after i stoped the engine the crankshaft fell down and oil leaked through the seal.
Now i know the source of noise!!
Now the engine has 1776 cylinders, Engle 110 cam and single port heads with Pict 34 carb
I can't find a set of DP heads around me, VW Bug is so rare here, no parts on a junkyards.[/url] _________________ '73 1303
'07 Golf TDI
Joined: November 22, 2009 Posts: 120 Location: Ukraine
Posted: Fri May 18, 2012 12:31 am Post subject:
The goal of a build is a Germanlook, of course. I like to drive fast, no i'm not a racer or something, but just like when the car do what it was made for... Drive. There will be no "slamming", just lowering for the perfect steering.
First step on the way to Germanlooker is Recaro seats I love Recaros, i had them on my prev. toy- '89 Cabriolet for a 5 years.
Now i got a set of Recaros, installed one to the drivers side, too high...
Joined: November 22, 2009 Posts: 120 Location: Ukraine
Posted: Sun Jun 24, 2012 9:25 am Post subject:
I found that all glass on my 1303 has the VW sign, so it was installed in the factory or in the dealership some day. But what is strange is that the glass has different stamps. The windshield stamp says "Sigla", it is normal that 28 years old car has not original windshield.
Other glasses have "Duro-Glass D 85" stamps:
Also i have glasses with "Sekurit-1 D 89":
And one glass has "Delodour D-93" stamp:
I think that "D" with a number maybe are a date stamps? Why i have glasses from 4 manufacturers on my car, what you think? _________________ '73 1303
'07 Golf TDI
Joined: November 22, 2009 Posts: 120 Location: Ukraine
Posted: Fri Jul 27, 2012 1:36 pm Post subject:
Cars are made to be driven. So me with my wife and a son went to a "little" 1800km (forth and back) trip from my native town Sevastopol to Kiev to annual Ukrainian VW Fest. (I even made "isofix" mount for the child seat in the back).
We had a lot of fun! It was a first long run on my Bug.
These cars are so rare here in Ukraine, there was only two bugs on the Fest, mine and another one. Here are the couple of fotos from the fest: http://electrosila.info/archives/2668
On the back trip i revved too much and blowed an oil line to the external oil filter. Lost all oil, it's good that it was a gas station nearby. I fixed oil line, bought some oil and made it home. Good times.
Joined: November 22, 2009 Posts: 120 Location: Ukraine
Posted: Sat Jul 28, 2012 3:09 am Post subject:
The engine is 1776cm now. And it has a engle 110 cam with aftermarket gear. The noise is not too bad, but my buddy's stock 1200 sounds quiter. _________________ '73 1303
'07 Golf TDI
Joined: November 22, 2009 Posts: 120 Location: Ukraine
Posted: Fri Sep 14, 2012 1:17 pm Post subject:
TequilaSunSet wrote:
Beautiful view!!
Much better in person, believe me!

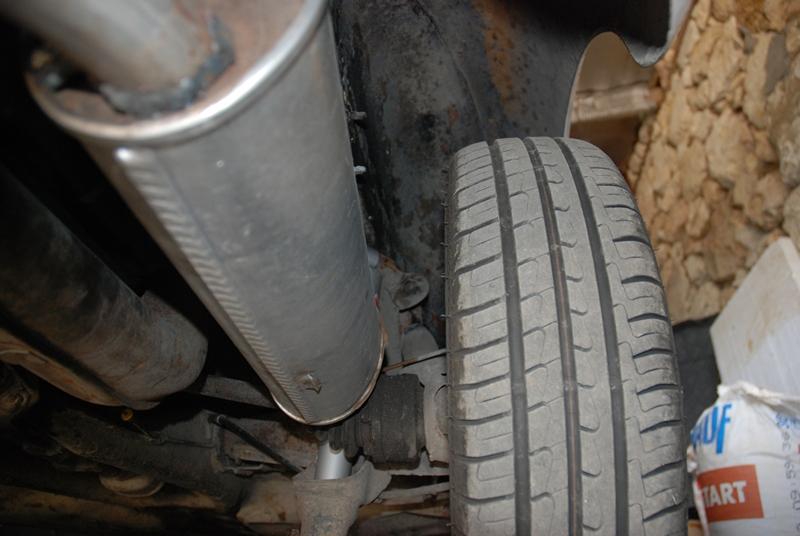

Some news regarding my exhaust. I completely tired of my "fatboy" muffler and decided to make a quiet hide away exhaust. It's an old news to be honest - it was made before the long trip to Kiev. Guys made a new setup using a muffler from some 1.7 (?) Seat. The muffler have inlet and outlet pipe on one side and that's good. See the end result:
Joined: November 22, 2009 Posts: 120 Location: Ukraine
Posted: Sat Sep 15, 2012 2:17 pm Post subject:
Finally my front adjustable struts arrived . I wanted a Topline ones but bought EMPI from JP Group, because shipping price from USA to Ukraine is making me cry
We decided to start lowering from the rear end. Turned 2 splines (inner) for the first time, were not satisfied and then turned it one more spline... And that was too much-the car now lies on a bumpstops
Now i want to return it one spline up, but it's a pain to disassemble and assemble it all every time. I want to buy adjustable spring plates, i need a new spring plates anyway because one of mine is welded (repaired?) for some reason. Where i can buy adjustable spring plates for Super Beetle? Please help! _________________ '73 1303
'07 Golf TDI
Joined: November 22, 2009 Posts: 120 Location: Ukraine
Posted: Mon Sep 17, 2012 10:37 am Post subject:
Bashr52 wrote:
Nothing special about the rear of a super. Any STD IRS adjustable plate will work.
Thanks! You're the first who answered my question, not only here on other places too. Everyone thinks that the question is too dumb to give an answer _________________ '73 1303
'07 Golf TDI
