PostPosted: Tue May 15, 2012 11:38 pm    Post subject: My Manxter 2+2 Build Thread Reply with quote

I've never started a build thread yet, and thought it was about time. Figure I'll jump right in to where I currently am. Thanks to all of those who have answered my PM's and helped with the posts of your builds. They really do help.

The dream was a 3 year build with my 13 year old son in our 3 car garage. And tonight he and his 11 year old brother actually helped for once! It was nice spending some time with them!

Tonight was a productive night. Offspring channel on Pandora, and jamming through the work. I know how everyone here likes pics, so here's a few....

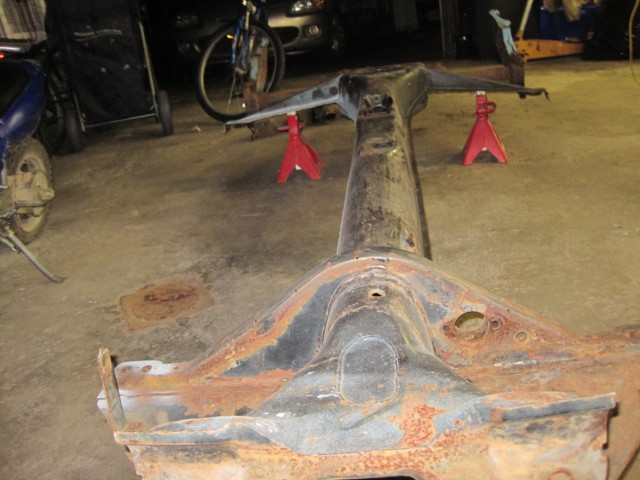

We started a year ago last fall with a tunnel that was given to us. Long story, but it took me over a 1 1/2 years to get the title.

Image may have been reduced in size. Click image to view fullscreen.

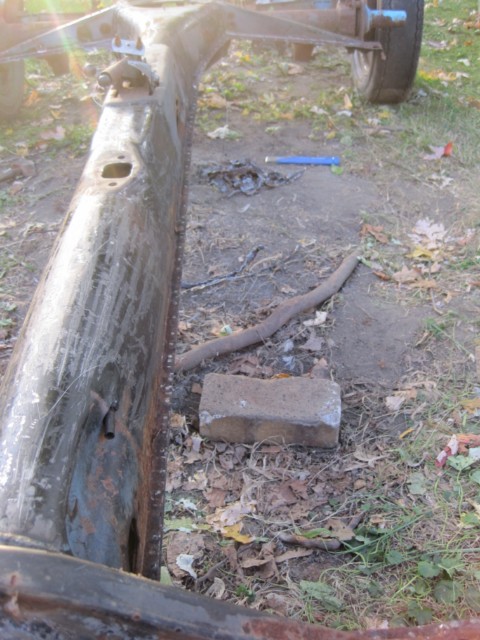

We stripped it down using a hammer & cold chisel. Yes, eye protection was worn.

Image may have been reduced in size. Click image to view fullscreen.

Stripped down to nothing. Only 3 stitches at 1AM one time, while getting the gas line out. Nothing like waking the misses from a deep sleep to tell her you're going to the ER.

Image may have been reduced in size. Click image to view fullscreen.

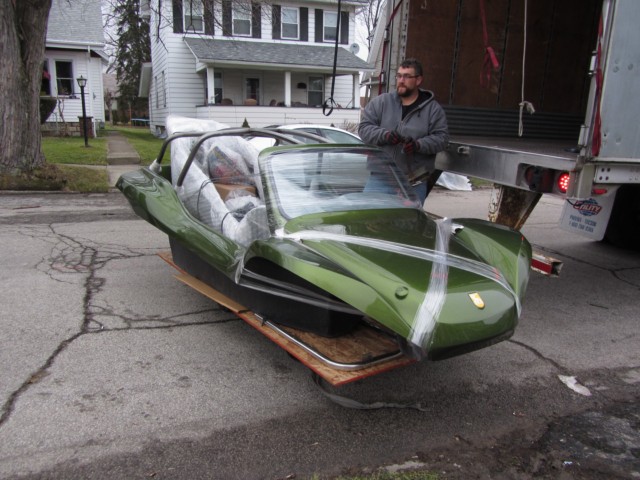

The body was delivered last February by Stewart Transportation. Luckily no snow then.

Image may have been reduced in size. Click image to view fullscreen.

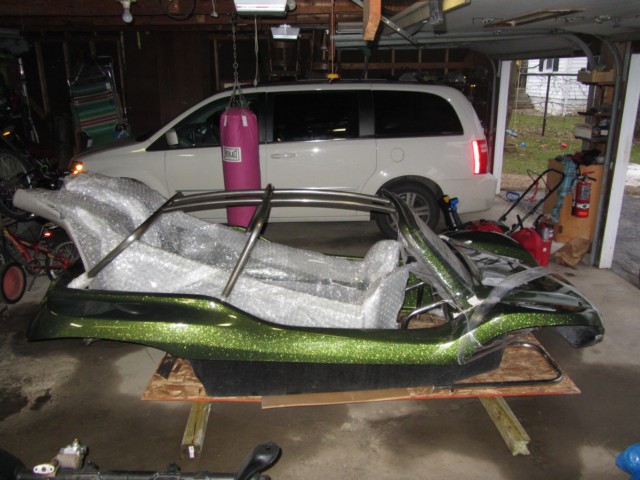

All tucked away next to the family truckster.

Image may have been reduced in size. Click image to view fullscreen.

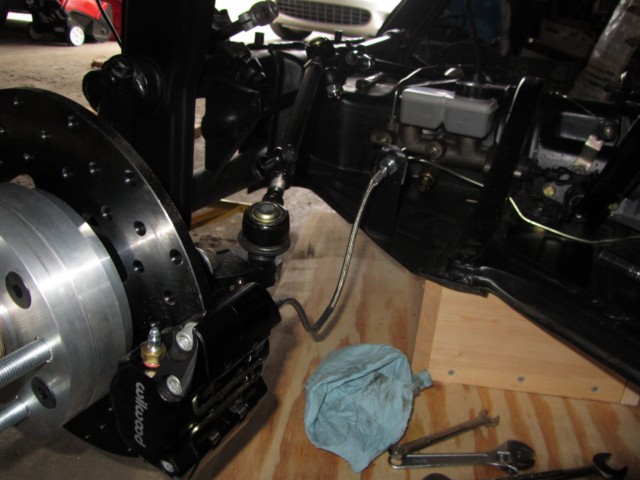

Major milestone, brakes installed & bled.

Image may have been reduced in size. Click image to view fullscreen.

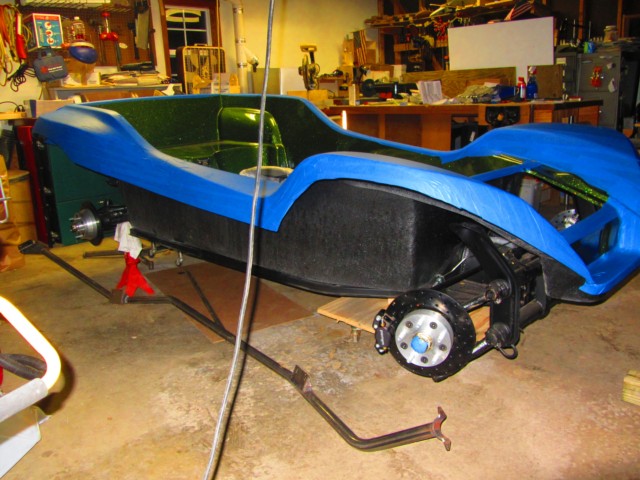

Blue tape to try to protect the finish from kids.....

Image may have been reduced in size. Click image to view fullscreen.

Momo Nero steering wheel. Had the wind taken out of my sails when my wife asked why I would buy a NERD steering wheel.

Image may have been reduced in size. Click image to view fullscreen.

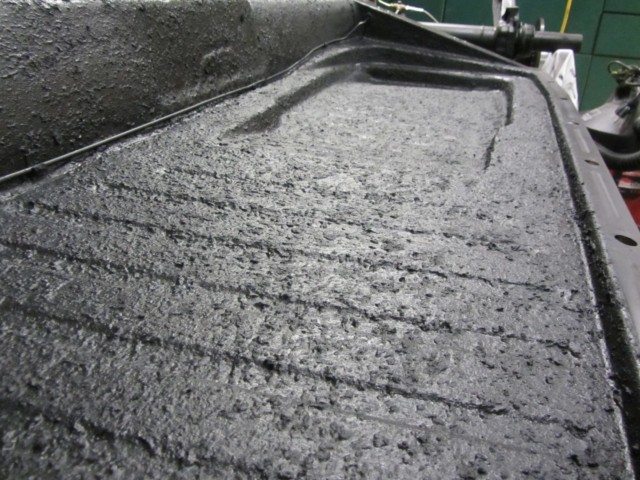

Rolled on Duplicolor Bed Liner, with Kevlar no doubt. Rolling Eyes Sixty bucks for the gallon. Turned out okay after 5 coats.

Image may have been reduced in size. Click image to view fullscreen.

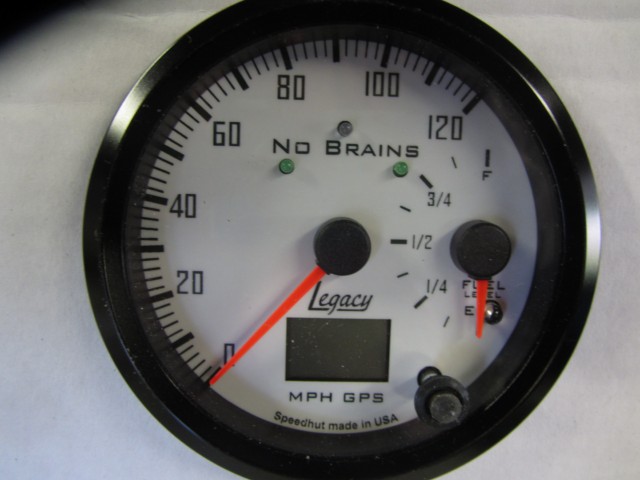

Speedhut Legacy gauges. I like them a lot. GPS and no messing with a speedo cable and regearing it since the front tires won't be stock size.

Image may have been reduced in size. Click image to view fullscreen.

Tonight's whirlwind pics:

Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.

I think I should be done next summer, 1 year ahead of schedule. If I had the money I could punch it out now, but alas we have other bills to pay and vacations to take.

Thanks for looking and I'm looking forward to meeting those of you that will be at Carlisle this weekend.

Scott

Scott
Back to top
View user's profile Send private message Gallery Classifieds Feedback
73SpeedBuggy
Samba Member


Joined: July 11, 2006
Posts: 891
Location: Warminster, PA
73SpeedBuggy is offline

PostPosted: Wed May 16, 2012 4:44 am    Post subject: Reply with quote

About time you started a thread! Looking good so far. However, now that you said it, I can't unsee "NERD" on your steering wheel.
_________________
Manxter #39 on a 1971 Pan
Turbo-charged Subaru EJ25D (DOHC)
http://www.cardomain.com/ride/3923620/1971-volkswagen-beetle#

-Adam
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Buggybob1
Samba Member


Joined: August 08, 2006
Posts: 34

Buggybob1 is offline

PostPosted: Sat May 19, 2012 8:45 pm    Post subject: Reply with quote

nice manxter Scott, I really like the metal flake green color.
I built Manxter #90
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
clonebug
Samba Member


Joined: January 29, 2005
Posts: 1300
Location: NW Washington
clonebug is offline

PostPosted: Sun May 20, 2012 6:41 am    Post subject: Reply with quote

X2 on the beautiful green color.

Green has been my favorite color and I would love to paint my buggy a green like that!!! Crying or Very sad
_________________
vwracerdave wrote:

Take a good long look in the mirror and report back on what you see.



My Megasquirt Fuel Injection Turbo Buggy Build
(Now with Water/Alcohol Injection)
Upgraded to MS-2 Extra direct fire wasted spark

http://www.shoptalkforums.com/viewtopic.php?f=3&t=127936
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
greg mgm
Samba Member


Joined: October 07, 2004
Posts: 586
Location: Pine Cove/ IdyllwildCA
greg mgm is offline

PostPosted: Sun May 20, 2012 7:49 am    Post subject: Reply with quote

Nice! Love the color. I plan to use a Speedhut gauge also.
Why is yours showing 5 mph?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sbussard
Samba Member


Joined: April 19, 2011
Posts: 347
Location: Pittsburgh, PA (near enough)
sbussard is offline

PostPosted: Sun May 20, 2012 10:53 am    Post subject: Reply with quote

Thanks for the compliments on color. I carried the paint chip chart around for over a month before narrowing a color down to a few. My wife picked the final color and we can't be happier with it. The pictures don't do it justice. I can't wait to the point where I can remove the blue painter's tape and see it all again. Very Happy

Adam - I can't "unsee" NERD either, but it's fitting and I'll drive it with pride. Cool

greg mom - the gauge was still in the box when I took the picture. I never noticed it showed 5 mph until you mentioned it. Strange that I looked right over that, how could I miss that. I'm hoping that once power is applied to it that it will sort itself out, but now you have me wondering.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
greg mgm
Samba Member


Joined: October 07, 2004
Posts: 586
Location: Pine Cove/ IdyllwildCA
greg mgm is offline

PostPosted: Thu May 24, 2012 7:50 am    Post subject: Reply with quote

Any chance you wired the speedo up yet? Looking to see how it's working out.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
nightmanx11
Samba Member


Joined: November 15, 2007
Posts: 532
Location: Downstate Illinois
nightmanx11 is offline

PostPosted: Thu May 24, 2012 8:12 am    Post subject: Reply with quote

The speedo in our KickOut is also a Speedhut GPS. Out of the box it read 5 mph. I set it up in my pickup and as soon as it figured out where it was in relation the the various satellites all was well.

After installing it in the KickOut and leaving it sit for several months the speedo started to show 5 MPH again. I hooked the battery up and in about 20 minutes it sorted itself out again.

I think you are worrying about a problem that does not exist.

The speedo in the KickOut is more accurate than the factory speedo in my truck. It is going to be great not to have to find adapters for various tire sizes, and all the other problems that go with a speedo in a kit car.
_________________
"IN GOD WE TRUST"
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
boomerang
Samba Member


Joined: January 26, 2012
Posts: 104
Location: Texas / Kansas
boomerang is offline

PostPosted: Thu May 24, 2012 9:08 am    Post subject: Reply with quote

Love that color. We have a Speedhut GPS speedometer in my wife's buggy. Works great.
Image may have been reduced in size. Click image to view fullscreen.
_________________
It's here
http://DuneBuggyGolfCarts.com
Back to top
View user's profile Send private message Visit poster's website Facebook Twitter Gallery Classifieds Feedback
sbussard
Samba Member


Joined: April 19, 2011
Posts: 347
Location: Pittsburgh, PA (near enough)
sbussard is offline

PostPosted: Thu May 24, 2012 2:02 pm    Post subject: Reply with quote

greg mgm wrote:
Any chance you wired the speedo up yet? Looking to see how it's working out.


Once I applied voltage it went right to zero and stayed there.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
greg mgm
Samba Member


Joined: October 07, 2004
Posts: 586
Location: Pine Cove/ IdyllwildCA
greg mgm is offline

PostPosted: Thu May 24, 2012 3:55 pm    Post subject: Reply with quote

Perfect! Going to get a speedo/tach when I get a chance.
Looking forward to your progress pics.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sbussard
Samba Member


Joined: April 19, 2011
Posts: 347
Location: Pittsburgh, PA (near enough)
sbussard is offline

PostPosted: Sun Jun 03, 2012 5:15 am    Post subject: Reply with quote

Slow moving, but still going forward. I'm sure most of you have been in the same situation. Kids and work eat up most of my time, and what is left over is devoted to the buggy. I'll get enough sleep when it's done. I'm still waiting for the powder coater to get the main bars done and back to me, so I've been trying to keep busy with little things and gathering supplies.

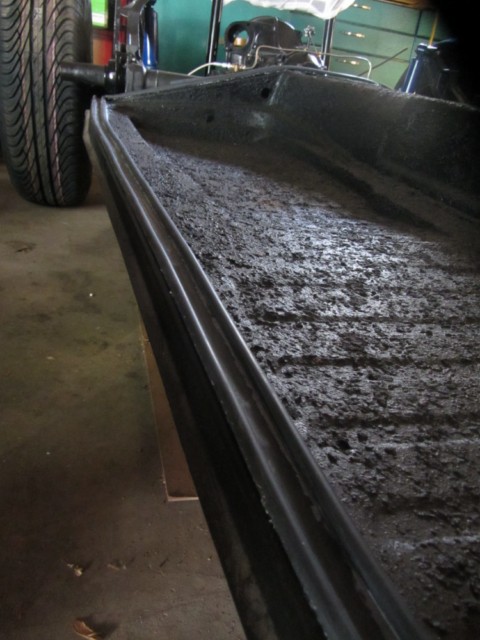

I got the body pan gasket put down with 3M weatherstrip adhesive. Worked great!

Image may have been reduced in size. Click image to view fullscreen.

Also got my "cheap" rims and tires mounted. They are not what I want for the final, but I've run out of funds for now. 15 inch steel rims that were given to me. I had them sandblasted & painted. They cleaned up fairly good. General tires from Tirebuyer.com, the only place I could find 235/70R15. She's a roller now.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

I made sure I had all the bolts, washers, etc for the steering rag joint. Can't do much more until I get the cage back and see where the column will land.

Image may have been reduced in size. Click image to view fullscreen.

Thanks for looking,
Scott
Back to top
View user's profile Send private message Gallery Classifieds Feedback
73SpeedBuggy
Samba Member


Joined: July 11, 2006
Posts: 891
Location: Warminster, PA
73SpeedBuggy is offline

PostPosted: Sun Jun 03, 2012 5:35 am    Post subject: Reply with quote

What's the delay at the powder coater? I'd never have recommended him if it had taken anywhere near this long when he did my rollbar.
_________________
Manxter #39 on a 1971 Pan
Turbo-charged Subaru EJ25D (DOHC)
http://www.cardomain.com/ride/3923620/1971-volkswagen-beetle#

-Adam
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sbussard
Samba Member


Joined: April 19, 2011
Posts: 347
Location: Pittsburgh, PA (near enough)
sbussard is offline

PostPosted: Sun Jun 03, 2012 10:46 am    Post subject: Reply with quote

73SpeedBuggy wrote:
What's the delay at the powder coater? I'd never have recommended him if it had taken anywhere near this long when he did my rollbar.


I think I sent him on a fool's errand. I bought a billet aluminum steering column bracket and asked him to weld it to the roll bars before powder coating, along with welding in the seat belt bungs. It wasn't until I started talking to friends this weekend that I've discovered aluminum & steel can not be welded together. A few quick google searches tell the same story.

When I dropped it off, he said "no problem" but I think that has been his holdup. I plan on calling or stopping by his shop tomorrow to talk to him about it. I'm thinking I need a steel bracket welded up and then bolt the aluminum to that. All of the other parts other than the main bars I have back from him and they look great.

I'd still go back to him in the future, but I wish I had the main bars back now. I'm pretty much at a standstill without them

Scott
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sbussard
Samba Member


Joined: April 19, 2011
Posts: 347
Location: Pittsburgh, PA (near enough)
sbussard is offline

PostPosted: Thu Jul 05, 2012 8:51 am    Post subject: Reply with quote

I finally got the main bars back from the powdercoater. They turned out great also.

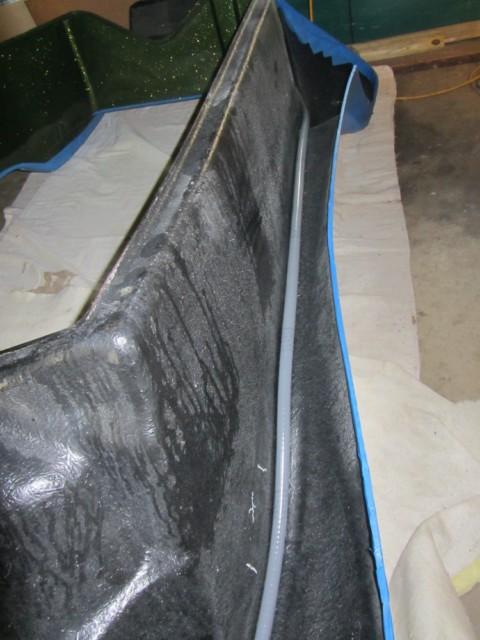

In the mean time, I glassed in some 3/4 inch conduits from front to back. This is my first time trying to use fiberglass. and over all it turned out ok. Most of my work will be hidden either by the roll bars or the side pods, so I'm not too concerned with how bumpy it is.

I hot glued the conduit down first with a HiPURformer glue gun. Probably overkill to just tack it in place, but I've had my eye on this gun for a few years now and this was a prime opportunity to buy it. The glue bonded so well I had thought about not glassing them in at all. But I was concerned that flex over time might not hold it.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

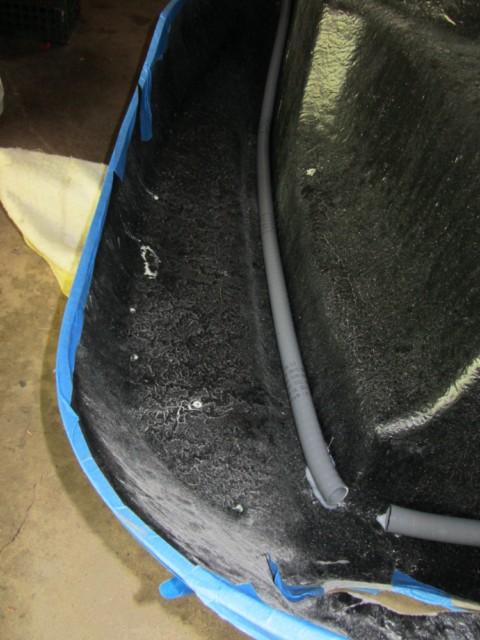

I used Tiger hair to fill in the gaps. Worked ok, but lumpy. I could have sanded before doing the glass cloth, but being that it will be hidden I didn't. Also it would have needed to be hand sanded in most places since there wasn't room to get the die sander into the tight spots.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Glass cloth laid over the tiger hair. I found that I should have wetted the bottom before laying down the cloth to get it wetter. Where I didn't do that I had air pockets beneath the cloth.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

And final product after rattle canning it with what I had, high gloss. I plan on getting a can of flat black to make it blend in a little better.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

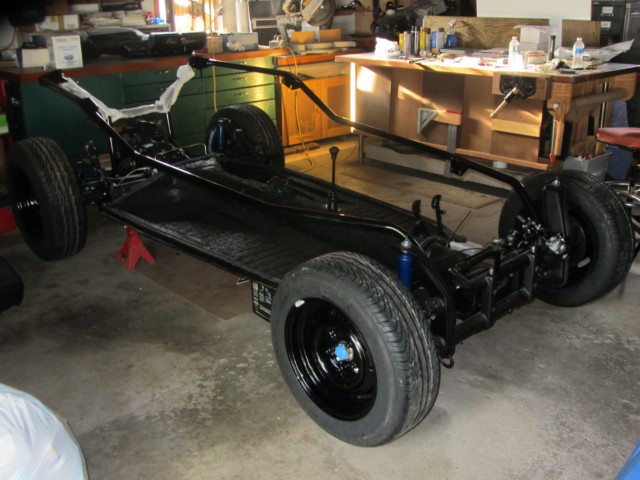

And the chassis is now a full roller! First time out of the garage this summer. I'm ahead of my self-imposed schedule. I planned on having it rolling at the end of summer. Time to start bolting the body to chassis next and getting the steering column installed.

Image may have been reduced in size. Click image to view fullscreen.

Thanks for looking.

Scott


Last edited by sbussard on Thu Jul 05, 2012 6:35 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
greg mgm
Samba Member


Joined: October 07, 2004
Posts: 586
Location: Pine Cove/ IdyllwildCA
greg mgm is offline

PostPosted: Thu Jul 05, 2012 12:30 pm    Post subject: Reply with quote

That is going to be a very nice buggy!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
73SpeedBuggy
Samba Member


Joined: July 11, 2006
Posts: 891
Location: Warminster, PA
73SpeedBuggy is offline

PostPosted: Sun Jul 08, 2012 7:19 pm    Post subject: Reply with quote

Lookin' good Scott!
_________________
Manxter #39 on a 1971 Pan
Turbo-charged Subaru EJ25D (DOHC)
http://www.cardomain.com/ride/3923620/1971-volkswagen-beetle#

-Adam
Back to top
View user's profile Send private message Gallery Classifieds Feedback
wvmedic
Samba Member


Joined: July 30, 2008
Posts: 95
Location: Bluefield. VA
wvmedic is offline

PostPosted: Fri Aug 03, 2012 6:02 am    Post subject: Reply with quote

Any updates. I sent you a pm.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sbussard
Samba Member


Joined: April 19, 2011
Posts: 347
Location: Pittsburgh, PA (near enough)
sbussard is offline

PostPosted: Fri Aug 03, 2012 7:57 pm    Post subject: Reply with quote

wvmedic - I sent you a pm back.

As for updates, I bolted the body to the chassis today!! What a PIA, nothing lined up. I also got the main bars bolted down to the floor, but not to the side roll bars. Wife has the camera out of town for the weekend, so I'll post pics when she gets back.

I also now have all of the parts to finish the steering. I bought a 5/8"-36 spline stub from Chirco (part number CPR953103S) The neighbor helped me out. He took a factory VW steering adapter (the male one that bolts to the rag joint), cut off the spline on it (I think it's 16mm-60 spline?) drilled out the base, and welded on the 5/8"-36 spline. Should work like a dream, mate that to a u-joint, and then to a Flaming River column.

Only stumbling block to getting the steering 100% complete is drilling that 1 3/4" hole in the front firewall to put the column in....

I'm scared to punch that hole! Cool

Scott
Back to top
View user's profile Send private message Gallery Classifieds Feedback
wvmedic
Samba Member


Joined: July 30, 2008
Posts: 95
Location: Bluefield. VA
wvmedic is offline

PostPosted: Sun Aug 05, 2012 8:27 pm    Post subject: Reply with quote

Yeah, I'm sure I'll feel the same way about cutting a hole in that new fiberglass. Good luck. Got your pm. Looking forward to your pics. What about those little cracks?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Kit Car/Fiberglass Buggy All times are Mountain Standard Time/Pacific Daylight Savings Time
Goto page 1, 2, 3 ... 10, 11, 12  Next
Jump to:
Page 1 of 12


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2013, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
