 Posted: Wed Jun 06, 2012 4:36 pm Post subject: 72 Baja Build |
 |
|
Finally got a beetle. Paid $1500 for it and parked it to plan my baja build.

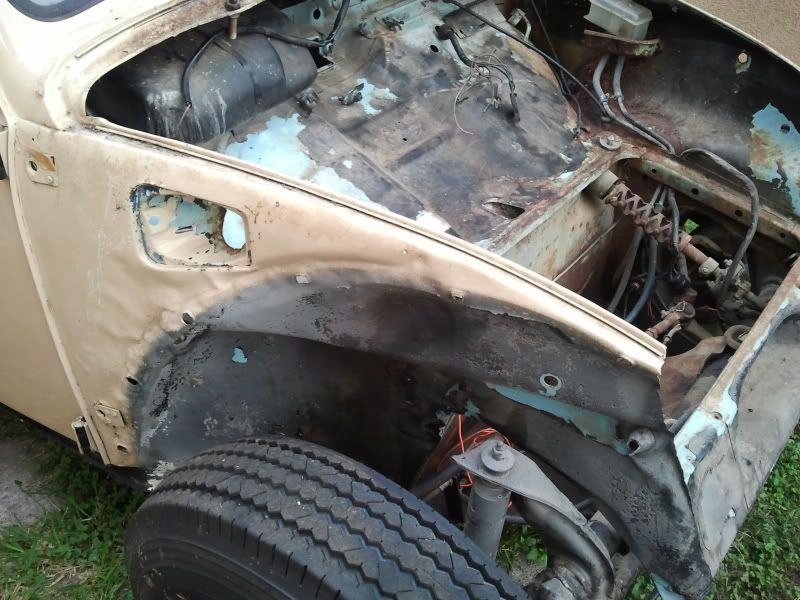

Have been lurking the site and found alot of great info. It's rust free body with some small holes in the pan and a one piece front. I want to cut the front better,install a full cage and front tubes for the front clip to attach to and front tube stinger. Probably replace pans(still not sure) and any other suggestions. I took all the wiring out as it was hacked to pieces.
Hello all
 |
|
| Back to top |
|
 |
ZARJDR
Samba Member
Joined: October 27, 2008
Posts: 968
Location: Eureka, Ca
|
| Posted: Wed Jun 06, 2012 5:55 pm Post subject: |
|
|
Congratulations on your purchase, and welcome to The Samba. The guys
here on the offroad forum are truly a great help!
_________________
92 F-150 4x4 92 KX250 83 IT490 92 LT250 06 Raptor DP1600 Sandrail |
|
| Back to top |
|
|
Constantine
Samba Member
Joined: August 19, 2009
Posts: 48
Location: Odem Texas
|
| Posted: Wed Jun 06, 2012 6:01 pm Post subject: |
|
|
| ZARJDR wrote: | Congratulations on your purchase, and welcome to The Samba. The guys
here on the offroad forum are truly a great help! |
Thanks and really looking forward to the build and I am wanting to go to run it in a desert next year. |
|
| Back to top |
|
|
pafree
Samba Member
Joined: August 16, 2005
Posts: 2180
Location: dayton, the one in texas
|
| Posted: Wed Jun 06, 2012 9:36 pm Post subject: Re: 72 Baja Build |
|
|
| Constantine wrote: | any other suggestions. I took all the wiring out as it was hacked to pieces.
] |
looks like a good start. rewire it, get it running and stopping and have some fun. make a list of things you would like to do and plan downtime periods between having fun so you don't have a on going, non running project.
_________________
1972 vw hunting truggy
sand it, fill it, paint it, throw some mud on it and then baja it. |
|
| Back to top |
|
|
dustymojave
Samba Member
Joined: January 07, 2007
Posts: 952
Location: Mojave Desert, California
|
| Posted: Wed Jun 06, 2012 10:30 pm Post subject: |
|
|
You say you want to cut the front of the body cleaner.
I suggest that until you get the full roll cage installed and braces from the cage A pillars to the door hinge mounts, that you leave as much of the front 1/4 panels as you can. At least cut no farther back than the fender bolt hole just ahead of the gas filler. You want some metal in there to support your doors so they don't sag. And you'll still need something to support the gas filler neck.
_________________
Richard
A.R.T.S. Tech Inspection MORE/MDR
Bajas, Fiberglass Buggies and Rails built in the Mojave Desert
SoCalBajas Member |
|
| Back to top |
|
|
Constantine
Samba Member
Joined: August 19, 2009
Posts: 48
Location: Odem Texas
|
| Posted: Thu Jun 07, 2012 5:00 am Post subject: Re: 72 Baja Build |
|
|
| pafree wrote: | | Constantine wrote: | any other suggestions. I took all the wiring out as it was hacked to pieces.
] |
looks like a good start. rewire it, get it running and stopping and have some fun. make a list of things you would like to do and plan downtime periods between having fun so you don't have a on going, non running project. |
Sounds like good advice. |
|
| Back to top |
|
|
Constantine
Samba Member
Joined: August 19, 2009
Posts: 48
Location: Odem Texas
|
| Posted: Thu Jun 07, 2012 5:01 am Post subject: |
|
|
| dustymojave wrote: | You say you want to cut the front of the body cleaner.
I suggest that until you get the full roll cage installed and braces from the cage A pillars to the door hinge mounts, that you leave as much of the front 1/4 panels as you can. At least cut no farther back than the fender bolt hole just ahead of the gas filler. You want some metal in there to support your doors so they don't sag. And you'll still need something to support the gas filler neck. |
Yeah I agree and have been looking at cage options. |
|
| Back to top |
|
|
Constantine
Samba Member
Joined: August 19, 2009
Posts: 48
Location: Odem Texas
|
| Posted: Mon Jun 11, 2012 6:16 pm Post subject: |
|
|
Ok so I went to my local u pull it yard today to look for a front wiring harness and didn't find the harness but did stumble upon this find.
First Beetle parts purchase, LOL
_________________
72 Beetle Baja |
|
| Back to top |
|
|
pafree
Samba Member
Joined: August 16, 2005
Posts: 2180
Location: dayton, the one in texas
|
| Posted: Mon Jun 11, 2012 7:08 pm Post subject: |
|
|
| Constantine wrote: | | Ok so I went to my local u pull it yard today to look for a front wiring harness] |
you can get spools and 30 foot sections of wire in different gauges and colors from Home Depot that is used for trailer lighting. Dale M (on here) has lots and lots of beautiful wiring diagrams that i have used to wire street, off road and trikes. Harbor Freight sells wire connectors, heat shrink and wire (not as good as Home Depot) to help you along. get you a good marine grade fuse box and get busy. stock VW wiring is confusing. by making it simple and doing it yourself then you will know how to fix electrical problems when they come up.
here is a example of one of his diagrams:
_________________
1972 vw hunting truggy
sand it, fill it, paint it, throw some mud on it and then baja it. |
|
| Back to top |
|
|
Constantine
Samba Member
Joined: August 19, 2009
Posts: 48
Location: Odem Texas
|
| Posted: Mon Jun 11, 2012 7:50 pm Post subject: |
|
|
The engine harness is good and I have good wiring all the way to where it goes through the firewall
_________________
72 Beetle Baja |
|
| Back to top |
|
|
Constantine
Samba Member
Joined: August 19, 2009
Posts: 48
Location: Odem Texas
|
| Posted: Wed Jun 13, 2012 5:16 pm Post subject: |
|
|
[quote="pafree"] | Constantine wrote: | | Ok so I went to my local u pull it yard today to look for a front wiring harness] |
you can get spools and 30 foot sections of wire in different gauges and colors from Home Depot that is used for trailer lighting. Dale M (on here) has lots and lots of beautiful wiring diagrams that i have used to wire street, off road and trikes. Harbor Freight sells wire connectors, heat shrink and wire (not as good as Home Depot) to help you along. get you a good marine grade fuse box and get busy. stock VW wiring is confusing. by making it simple and doing it yourself then you will know how to fix electrical problems when they come up.
How do I find the other diagrams. I tried to search for them?
_________________
72 Beetle Baja |
|
| Back to top |
|
|
pafree
Samba Member
Joined: August 16, 2005
Posts: 2180
Location: dayton, the one in texas
|
|
| Back to top |
|
|
Constantine
Samba Member
Joined: August 19, 2009
Posts: 48
Location: Odem Texas
|
| Posted: Thu Jun 14, 2012 3:28 pm Post subject: |
|
|
Thanks printed out some and going to tackle it myself.
_________________
72 Beetle Baja |
|
| Back to top |
|
|
wbrown45
Samba Member
Joined: July 08, 2008
Posts: 1100
Location: ada, ok
|
| Posted: Thu Jun 14, 2012 3:52 pm Post subject: |
|
|
| Constantine wrote: | Ok so I went to my local u pull it yard today to look for a front wiring harness and didn't find the harness but did stumble upon this find.
First Beetle parts purchase, LOL
|
That is a cool oil cooler housing, but you are going to run hotter oil temp. with a non-doghouse oil cooler. The doghouse cooler is a flat plate design that is much more efficient that the tube type coolers. The aftermarket flat plate (Mesa type) coolers that are not on the fan shroud will not have air flow at slow speeds. It would be good for an extra cooler housing if you keep the stock cooler.
_________________
OK Thang |
|
| Back to top |
|
|
Constantine
Samba Member
Joined: August 19, 2009
Posts: 48
Location: Odem Texas
|
| Posted: Thu Jun 14, 2012 5:36 pm Post subject: |
|
|
I was going to check and see if I have the stock one in it also? It has a cooler mounted on the back when I bought it?
_________________
72 Beetle Baja |
|
| Back to top |
|
|
AEH
Samba Member
Joined: October 16, 2011
Posts: 286
Location: Fort Smith, AR
|
| Posted: Thu Jun 14, 2012 7:43 pm Post subject: |
|
|
I have a good front harness I just pulled out of a 72 front clip. Still hooked up to the fuse block. If you Want it and will pay the shipping you can have it. Should go in a 10$ flat rate box. I think the headlight plugs are cut off but other than that it should all be there.
The front is what's up front around the dash. I also have the steering Collum leads
_________________
My 72 Baja http://www.thesamba.com/vw/forum/viewtopic.php?t=492102
My EFI Thread http://www.thesamba.com/vw/forum/viewtopic.php?t=500337 |
|
| Back to top |
|
|
Constantine
Samba Member
Joined: August 19, 2009
Posts: 48
Location: Odem Texas
|
| Posted: Thu Jun 14, 2012 8:29 pm Post subject: |
|
|
| AEH wrote: | I have a good front harness I just pulled out of a 72 front clip. Still hooked up to the fuse block. If you Want it and will pay the shipping you can have it. Should go in a 10$ flat rate box. I think the headlight plugs are cut off but other than that it should all be there.
The front is what's up front around the dash. I also have the steering Collum leads |
That would be awesome I would be glad to. Just give me your info.
Thanks
_________________
72 Beetle Baja |
|
| Back to top |
|
|
AEH
Samba Member
Joined: October 16, 2011
Posts: 286
Location: Fort Smith, AR
|
|
| Back to top |
|
|
Constantine
Samba Member
Joined: August 19, 2009
Posts: 48
Location: Odem Texas
|
| Posted: Fri Jun 15, 2012 12:14 pm Post subject: |
|
|
PMed you Thanks
_________________
72 Beetle Baja |
|
| Back to top |
|
|
wbrown45
Samba Member
Joined: July 08, 2008
Posts: 1100
Location: ada, ok
|
| Posted: Fri Jun 15, 2012 1:29 pm Post subject: |
|
|
| Constantine wrote: | | I was going to check and see if I have the stock one in it also? It has a cooler mounted on the back when I bought it? |
I looked at your photo and you have an external cooler. I cannot see if you have the stock shroud, but if you do then you will have the doghouse. Are there two outlets, about 2" dia. on the side of the fan shroud. These would be going to the heater boxes. The doghouse cooler is located in a small housing on the backside of the shroud. A doghouse, though smaller than your cooler, has more cooling surface area due to its flat plate design. Plus, the cooling fan pushes air over the cooler even when the bug is not moving.
