 Posted: Sun Jun 24, 2012 6:52 pm Post subject: Gearbox drive flange circlip removal. |
 |
|
I'm trying to change the drive flange seals on the gearbox (091). Is there an easy way to remove the circlip that holds the flange on? The clip doesn't have the 'eyes' that other circlips have. Is there a special tool for these?
_________________
1976 Sage Green Westfalia Deluxe
freshly built 2.0L FI GD motor as of 07/12 |
|
| Back to top |
|
 |
Desertbusman
Samba Member
Joined: June 03, 2005
Posts: 13062
Location: Arizona
|
| Posted: Sun Jun 24, 2012 7:04 pm Post subject: |
|
|
Man I fought that a long time and didn't get anywhere. For the first time ever went and bought a snap ring plier different than the simple basic assortment I had. Sears had it. It has kind of like a flat paddle surface instead of points. The paddle surface is serrated so it won't slip. Works fantastic. 4 seconds and done.
_________________
The best thing that anyone can do for their Bay is get the Volkswagen of America Official Service Manual published by Robert Bentley. Without it the bus is pretty much doomed.
| 73kombi wrote: | | when that red light goes on, you have to make a choice. |
| Amskeptic wrote: | I am not answering that.
Respectfully,
GoBuyABentley |
71 Superbug
71 Westy |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 23879
Location: Surrey B.C. Canada, Land of the giant flying moose!
|
| Posted: Sun Jun 24, 2012 7:18 pm Post subject: |
|
|
You need flat tip retaining ring pliers, Princess auto used to sell them but I can't find an example on thier website.
_________________
Rust NEVER sleeps and stock never goes out of style.
Wanted, 68-73 westy OG plaid curtains, singles OK. |
|
| Back to top |
|
|
AB westy nut
Samba Member
Joined: June 01, 2010
Posts: 799
Location: Calgary, Alberta
|
| Posted: Sun Jun 24, 2012 7:22 pm Post subject: |
|
|
Thanks gents. I'll have a look at the local hardware store.
_________________
1976 Sage Green Westfalia Deluxe
freshly built 2.0L FI GD motor as of 07/12 |
|
| Back to top |
|
|
SGKent
Samba Member
Joined: October 30, 2007
Posts: 17540
Location: State Capitol CA (Sacramento)
|
| Posted: Sun Jun 24, 2012 7:28 pm Post subject: |
|
|
probably something like this. Sears has them.
 |
|
| Back to top |
|
|
AB westy nut
Samba Member
Joined: June 01, 2010
Posts: 799
Location: Calgary, Alberta
|
| Posted: Wed Jun 27, 2012 7:39 pm Post subject: |
|
|

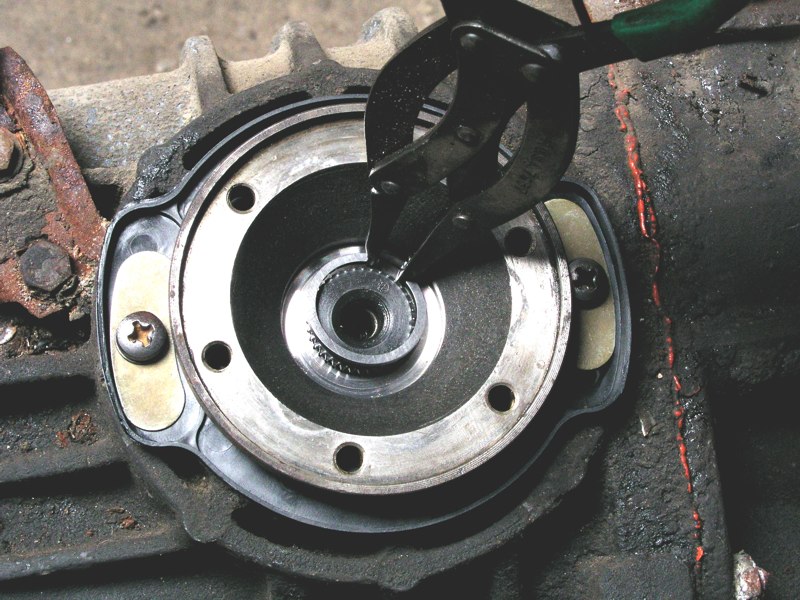

Ok fellas, I picked up this exact tool today and although it was a tight fit to get the tool in there I did manage to get the first retaining clip off. However, I bent it pretty good which leads me to believe that it's a softer metal than the spring steel I'm used to seeing for circlips. Anyway, that leads me to my next question: are these retaining clips available anymore? Bentley says to replace them but I can't imagine where I might find them. Has anyone else sourced them?
_________________
1976 Sage Green Westfalia Deluxe
freshly built 2.0L FI GD motor as of 07/12 |
|
| Back to top |
|
|
germansupplyscott
Samba Member
Joined: May 22, 2004
Posts: 5853
Location: toronto
|
|
| Back to top |
|
|
skills@eurocarsplus
Samba Member
Joined: January 01, 2007
Posts: 3960
Location: sticksville, ct.
|
| Posted: Wed Jun 27, 2012 7:45 pm Post subject: |
|
|
usually they come with a seal kit. if you are in a bind, i could mail some to you
_________________
| VWsArent4Hippies wrote: | | Whenever I click on the baywindow forum I feel like I'm entering a place where most people have no sense of reality |
| schell '59 wrote: | | The honor system works for boy scouts..not in real business |
| modok wrote: | | It was in the instructions back when stuff came with instructions |
| curtis4085 wrote: | | as most your information you give is crap anyway |
| bugger101 wrote: |
skills, you never win with cheap vw people |
|
|
| Back to top |
|
|
Wildthings
Samba Member
Joined: March 13, 2005
Posts: 19941
|
| Posted: Wed Jun 27, 2012 7:58 pm Post subject: |
|
|
| I have had good luck with just bending them back to their original shape using a vise. You don't want to expand them anymore than necessary when taking them off or putting them back on. |
|
| Back to top |
|
|
GusC2it
Samba Member
Joined: June 23, 2005
Posts: 1363
Location: Orlando, Florida, USA
|
| Posted: Wed Jun 27, 2012 8:18 pm Post subject: |
|
|
| Desertbusman wrote: | | Man I fought that a long time and didn't get anywhere. For the first time ever went and bought a snap ring plier different than the simple basic assortment I had. Sears had it. It has kind of like a flat paddle surface instead of points. The paddle surface is serrated so it won't slip. Works fantastic. 4 seconds and done. |
How ever did you remove the CS cir clip that holds the gear on? Those plyers are a basic VW tool.
_________________
75 type 2 http://gusc1.tripod.com/1975vwtype2
Old vices have now been upgraded to bad habits.
http://www.facebook.com/pages/VW-Wild-Weekend-2011-St-Pete-Fl/197064760336111 |
|
| Back to top |
|
|
AB westy nut
Samba Member
Joined: June 01, 2010
Posts: 799
Location: Calgary, Alberta
|
| Posted: Wed Jun 27, 2012 8:27 pm Post subject: |
|
|
Thanks Scott. I did search your site before posting this but didn't think to call them 'rings'!
_________________
1976 Sage Green Westfalia Deluxe
freshly built 2.0L FI GD motor as of 07/12 |
|
| Back to top |
|
|
AB westy nut
Samba Member
Joined: June 01, 2010
Posts: 799
Location: Calgary, Alberta
|
| Posted: Wed Jun 27, 2012 9:37 pm Post subject: |
|
|
| skills@eurocarsplus wrote: | | usually they come with a seal kit. if you are in a bind, i could mail some to you |
Thanks for the offer but I just ordered a couple from GS with the hope that they'll arrive Tuesday, just in time for my week off/engine & gearbox installathon.
_________________
1976 Sage Green Westfalia Deluxe
freshly built 2.0L FI GD motor as of 07/12 |
|
| Back to top |
|
|
Desertbusman
Samba Member
Joined: June 03, 2005
Posts: 13062
Location: Arizona
|
| Posted: Wed Jun 27, 2012 10:30 pm Post subject: |
|
|
| GusC2it wrote: | | How ever did you remove the CS cir clip that holds the gear on? Those plyers are a basic VW tool. |
3 times pulling crank gears I used the wrong type but they did work. The spread opening type with the 2 round pins. The pins straight on and not from the side of the cir clip. A real bitch but it finally worked. Can't approach the clip in that direction with the trans flange. That's the only one on the entire bus where the crude method didn't work. But they are all going to be so much easier in the future.
_________________
The best thing that anyone can do for their Bay is get the Volkswagen of America Official Service Manual published by Robert Bentley. Without it the bus is pretty much doomed.
| 73kombi wrote: | | when that red light goes on, you have to make a choice. |
| Amskeptic wrote: | I am not answering that.
Respectfully,
GoBuyABentley |
71 Superbug
71 Westy |
|
| Back to top |
|
|
GusC2it
Samba Member
Joined: June 23, 2005
Posts: 1363
Location: Orlando, Florida, USA
|
| Posted: Thu Jun 28, 2012 9:57 am Post subject: |
|
|
| Desertbusman wrote: | | GusC2it wrote: | | How ever did you remove the CS cir clip that holds the gear on? Those plyers are a basic VW tool. |
3 times pulling crank gears I used the wrong type but they did work. The spread opening type with the 2 round pins. The pins straight on and not from the side of the cir clip. A real bitch but it finally worked. Can't approach the clip in that direction with the trans flange. That's the only one on the entire bus where the crude method didn't work. But they are all going to be so much easier in the future. |
Another interesting use of that tool is you can use it to reach in and grab the distributer drive pinion and pull it out.
_________________
75 type 2 http://gusc1.tripod.com/1975vwtype2
Old vices have now been upgraded to bad habits.
http://www.facebook.com/pages/VW-Wild-Weekend-2011-St-Pete-Fl/197064760336111 |
|
| Back to top |
|
|
Desertbusman
Samba Member
Joined: June 03, 2005
Posts: 13062
Location: Arizona
|
| Posted: Thu Jun 28, 2012 10:00 am Post subject: |
|
|
Then I won't need my special wood dowel in my bus specialty tool collection
_________________
The best thing that anyone can do for their Bay is get the Volkswagen of America Official Service Manual published by Robert Bentley. Without it the bus is pretty much doomed.
| 73kombi wrote: | | when that red light goes on, you have to make a choice. |
| Amskeptic wrote: | I am not answering that.
Respectfully,
GoBuyABentley |
71 Superbug
71 Westy |
|
| Back to top |
|
|
chazz79
Samba Member
Joined: August 15, 2008
Posts: 1845
Location: ohio
|
|
| Back to top |
|
|
AB westy nut
Samba Member
Joined: June 01, 2010
Posts: 799
Location: Calgary, Alberta
|
| Posted: Thu Jun 28, 2012 10:06 am Post subject: |
|
|
| chazz79 wrote: | | Did you use the tool to push the drive flange in first? It's not very hard to make and without it you will destroy those clips everytime. |
Can you clarify this?
_________________
1976 Sage Green Westfalia Deluxe
freshly built 2.0L FI GD motor as of 07/12 |
|
| Back to top |
|
|
Wildthings
Samba Member
Joined: March 13, 2005
Posts: 19941
|
| Posted: Thu Jun 28, 2012 10:11 am Post subject: |
|
|
| GusC2it wrote: |
Another interesting use of that tool is you can use it to reach in and grab the distributer drive pinion and pull it out. |
That has been my tool of choice for this job for decades. A dowel works find as well. |
|
| Back to top |
|
|
AB westy nut
Samba Member
Joined: June 01, 2010
Posts: 799
Location: Calgary, Alberta
|
| Posted: Thu Jun 28, 2012 10:35 am Post subject: |
|
|
Found this handy web page for the 020 transaxle.
http://www.brokevw.com/020flange.html
I don't have my Bentley handy - does the 091 have the springs behind the flanges?
_________________
1976 Sage Green Westfalia Deluxe
freshly built 2.0L FI GD motor as of 07/12 |
|
| Back to top |
|
|
Dougy Dee
Samba Member
Joined: August 21, 2004
Posts: 667
Location: Niagara Region, CANADA
|
| Posted: Thu Jun 28, 2012 2:10 pm Post subject: |
|
|
The 091 has a spring washer located just under the circlip. 002, 3 and 5 rib have the split ring located under the drive flange.
On an 091 I get the circlip started then fit an appropriate sized socket over the output shaft. Use a hammer to smack the socket. This will compress the washer and seat the circlip in place. Piece of cake.
I usually grind the bills on the circlip pliers to fit the confined space in the drive flange. Makes the job quicker/easier. |
|
