How to replace cup holders - a pictoral
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9800
Location: San Diego
r39o is offline

PostPosted: Sun Mar 17, 2013 4:28 pm    Post subject: How to replace cup holders - a pictoral Reply with quote

How to replace cup holders in a Carat / Weekender / Multivan

Tools:
Drill - 1/8. 3/16, 1/4 all can work *IF* you are careful (see below)
Little Vise Grips will help
Small punch
Small hammer
Pop Rivet tool and aluminum Pop rivets (size tbd until I find the box!)
DO NOT USE BIG SCREWS TO HOLD CUP HOLDERS INTO PLASTIC!

For front passenger seat pedestal mounted (next post):
Screwdriver (for front) and 6 #8 x 3/4 counter-sunk sheet metal screws (wood screw can work too.)

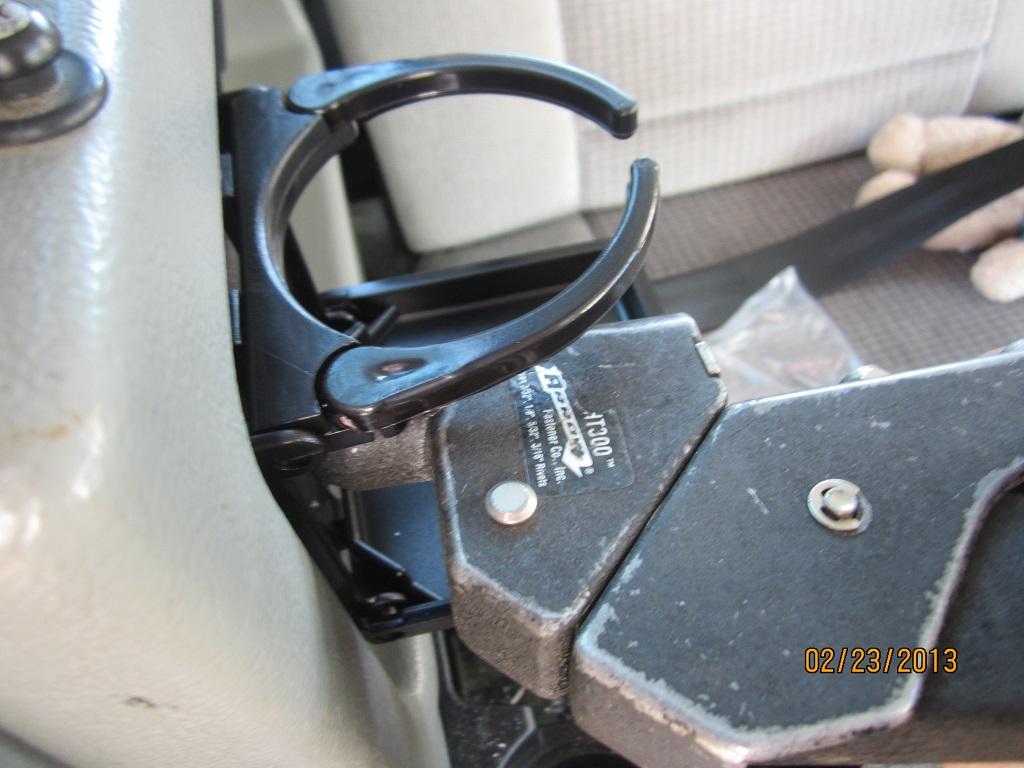

Typical broken cup holder:
Image may have been reduced in size. Click image to view fullscreen.

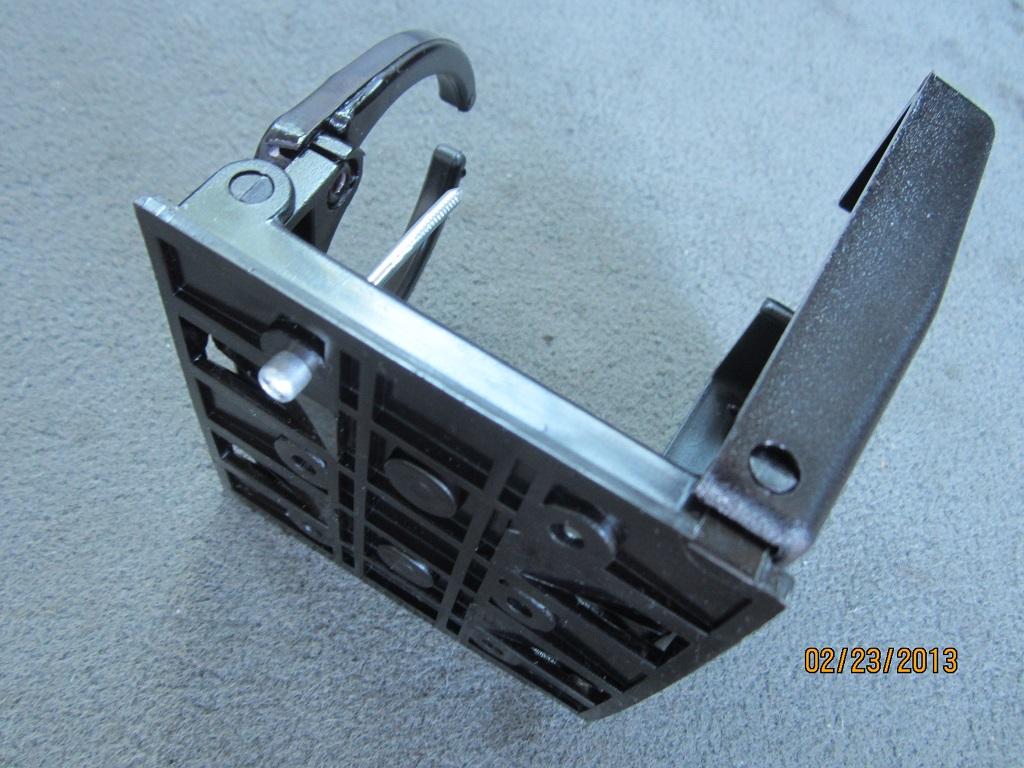

Make sure replacement cup holder will work (mine do):
Image may have been reduced in size. Click image to view fullscreen.


Use some thing to catch debris (I like my $5 Wallmart special...)
Image may have been reduced in size. Click image to view fullscreen.


Drill rivet heads off at an angle. Important do this sideways about 15 degrees...just get the head off and do NOT drill into the plastic!
DO NOT DRILL OUT RIVETS! They get HOT. They spin. The holes get bigger. You do NOT want to make holes bigger!
DO NOT USE BIG SCREWS TO HOLD CUP HOLDERS INTO PLASTIC!
Image may have been reduced in size. Click image to view fullscreen.


The left over ends of rivets
Image may have been reduced in size. Click image to view fullscreen.


You may have to squeeze and twist the old rivets. Careful not to make holes bigger!
Image may have been reduced in size. Click image to view fullscreen.


The prize! Ends of old rivets. You may need to use a punch too.
Image may have been reduced in size. Click image to view fullscreen.


Ready. Note the one hole on the left is a bit bigger - my mistake! BE CAREFUL!
Image may have been reduced in size. Click image to view fullscreen.


Be sure to line the rivets up before tightening.
DO NOT USE BIG SCREWS TO HOLD CUP HOLDERS INTO PLASTIC!
Image may have been reduced in size. Click image to view fullscreen.


Install!
DO NOT USE BIG SCREWS TO HOLD CUP HOLDERS INTO PLASTIC!
Image may have been reduced in size. Click image to view fullscreen.


Another mistake! You must be sure the holder the rivet are pressed all the way in!
Image may have been reduced in size. Click image to view fullscreen.


DONE....
Image may have been reduced in size. Click image to view fullscreen.


Left overs. You need to catch the shavings and bits so you do not have to clean so much....
Image may have been reduced in size. Click image to view fullscreen.


DO NOT USE BIG SCREWS TO HOLD CUP HOLDERS INTO PLASTIC!
_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!

1990 Multivan EJ 22, Rancho trans 0.82 4th, Small Car front AC, CLKs w/ 215/65-16, homemade big brakes 303mm, Konis, Recaros, etc....

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)


Last edited by r39o on Sun Mar 17, 2013 4:43 pm; edited 4 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dhaavers
Samba Member


Joined: March 19, 2010
Posts: 7717
Location: NE MN (tinyurl.com/dhaaverslocation)
dhaavers is offline

PostPosted: Sun Mar 17, 2013 5:49 pm    Post subject: Reply with quote

Why no screws? That's how mine came from the PO... Rolling Eyes
_________________
86 White Westy Weekender
"The WonderVan"

<EDITED TO PROTECT INNOCENT PIXELS>
Back to top
View user's profile Send private message Gallery Classifieds Feedback
shadetreetim
Samba Member


Joined: January 10, 2011
Posts: 1994
Location: Riverside, California
shadetreetim is offline

PostPosted: Sun Mar 17, 2013 6:05 pm    Post subject: Reply with quote

dhaavers wrote:
Why no screws? That's how mine came from the PO... Rolling Eyes


Front cupholders are screwed in, back ones are riveted from the factory on my Carat. Screws in the plastic can enlarge the holes, may become loose over time. I had a rear cup holder held on by screws that I was able to go back and rivet successfully. It used to flop around with the screws, now its secured tightly to the wall.

Here's the rivets I used on mine when I replaced a few the other day..
Image may have been reduced in size. Click image to view fullscreen.


Walt's advice on aligning all three is accurate. Embarassed On my first one I compressed the first two rivets and then had a heck of a time getting the third one in. The next one went quick because I inserted all three before compressing any. Before I compressed I pushed the holder tight against the wall and pressed in on my rivet tool to make sure rivets seated well.
_________________
Tim Potts

Doing my best every time I drive it to dispel the myth these Vanagons have to be slow!


'89 Vanagon Bluestar/Country Homes 1.8T & .77 4th
'74 Jeep CJ5
Back to top
View user's profile Send private message Gallery Classifieds Feedback
goffoz
Samba Member


Joined: May 09, 2007
Posts: 1486

goffoz is offline

PostPosted: Sun Mar 17, 2013 7:18 pm    Post subject: Reply with quote

Shameless merchant- zing-zing Shame on you
BTW the link I supplied. are US made and adjustable and cheaper
Is this on topic?
Maybe, You are why TK is so quiet...I miss his raves
Back to top
View user's profile Send private message Gallery Classifieds Feedback
whynotvw
Samba Member


Joined: May 04, 2004
Posts: 1322

whynotvw is offline

PostPosted: Sun Mar 17, 2013 7:54 pm    Post subject: Reply with quote

thanks for the how to pictures. I just drilled mine all the way through and then installed a larger rivets that fit snugly. No need to mess with pulling the old rivets out. I made sure I found factory used ones then the cheap new ones. I replaced three of them and they all look good.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Steelhead
Samba Member


Joined: February 25, 2007
Posts: 1791
Location: Kentfield, CA
Steelhead is offline

PostPosted: Sun Mar 17, 2013 8:14 pm    Post subject: Reply with quote

Thanks. The arms of most of the replacement cupholders I've bought (like pictured above) don't have a strong grasp. lost a few drinks this way. Much prefer the full hoops despite their "ones-size". The only non-hoop version that can a hold heavy drink on a hard corner are the ones they ratchet out to widen but don't "open" per se.

These weak-armed cupholders are a liability. buyer beware. my 2 cents.
_________________
'77 Bay Window / '89 Caratsburg (aka. the Stormtrooper)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
16CVs Premium Member
Samba Member


Joined: February 22, 2004
Posts: 4014
Location: Redwood City, California
16CVs is offline

PostPosted: Sun Mar 17, 2013 9:04 pm    Post subject: Reply with quote

Great write up ! ! !

A few comments on it though . When drilling a pop rivet ,always use the same drill bit as the size of the rivet . Don't just drill the heads off with a big ol drill bit , it is too easy to just pull through when drilling and end up with a huge hole . If you do get a hole that is bigger than you need ,then use a back up washer . They are available where you buy rivets . They are just a washer with the same size ID as the OD of the pop rivet . Those plastic panels are easy to pull and put one on when riveting it back together .

Stacy
_________________
1987 Syncro Westfalia Triple knob (bastard)
1989 Syncro Tristar Triple knob "Swedish"
2013 Jetta Hybrid a true "Zwitter"
Samba member # 14980
Call anytime number 650 722 4914 .
Keep Your van running and upkept tastefully for the love of the hobby.
Don't let your van end up in an "abortions" thread.
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Gallery Classifieds Feedback
T3 Pilot
Samba Member


Joined: January 10, 2011
Posts: 1507
Location: Deep South of the Great White North
T3 Pilot is offline

PostPosted: Sun Mar 17, 2013 9:36 pm    Post subject: Reply with quote

http://www.ultimatecupholders.com/fischercupholder.html
_________________
1988 Vanagon

The most important part in every vehicle is the nut behind the wheel......
Back to top
View user's profile Send private message Gallery Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9800
Location: San Diego
r39o is offline

PostPosted: Sun Mar 17, 2013 11:38 pm    Post subject: Reply with quote

dhaavers wrote:
Why no screws? That's how mine came from the PO... Rolling Eyes

Don't always tighten well. You risk stripping and making the hole really big. You may crack the plastic. Later you may not be able to get rivets to hold. Just a bad idea.

whynotvw wrote:
thanks for the how to pictures.

Welcome. I have been getting questions. Without a few hints, this simple task can turn in to a big pain fast.

whynotvw wrote:
I just drilled mine all the way through and then installed a larger rivets that fit snugly. No need to mess with pulling the old rivets out. I made sure I found factory used ones then the cheap new ones. I replaced three of them and they all look good.

Drilling through, can make the old rivets spin. If they spin they can enlarge the holes. If they spin they can melt plastic and make a friction fit and then they are stuck.

I wish I could find bits to fix the old cup holders, but usually the base is broken. Most people are not so lucky to find any to replace them.

New factory cup holders, if you can get them, are over $20 - $30 and I have seen them as high as $40. Just not for me.....

Steelhead wrote:
Thanks. The arms of most of the replacement cupholders I've bought (like pictured above) don't have a strong grasp. lost a few drinks this way. Much prefer the full hoops despite their "ones-size". The only non-hoop version that can a hold heavy drink on a hard corner are the ones they ratchet out to widen but don't "open" per se.

YUP, right. Not perfect. They are US made, and maybe they can be made better. We'll see.

Vwcrewman wrote:
Great write up ! ! !

Thank you.

Vwcrewman wrote:
A few comments on it though . When drilling a pop rivet ,always use the same drill bit as the size of the rivet . Don't just drill the heads off with a big ol drill bit , it is too easy to just pull through when drilling and end up with a huge hole .

Exactly.

So use a smallish drill to drill a bit off angle to pop the heads off and not spin the old rivet. Once spun, they are a pain. Pain because you need to be very careful to get them out and not damage the plastic.

Vwcrewman wrote:
If you do get a hole that is bigger than you need ,then use a back up washer . They are available where you buy rivets . They are just a washer with the same size ID as the OD of the pop rivet . Those plastic panels are easy to pull and put one on when riveting it back together.

Without taking the panel off you can not put the washers on!!!!

Just be careful in the first place.
_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!

1990 Multivan EJ 22, Rancho trans 0.82 4th, Small Car front AC, CLKs w/ 215/65-16, homemade big brakes 303mm, Konis, Recaros, etc....

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
OddN
Samba Member


Joined: August 19, 2010
Posts: 690
Location: Northern Norway
OddN is offline

PostPosted: Mon Mar 18, 2013 2:13 am    Post subject: Reply with quote

In my 86 Multivan the cupholders were attached with rivets like shown, however in a later model (90ish) Bluestar interiour I had they were held in place with snapnuts and screws. That is also how it is done in the Eurovan (T4) models in Europe. Just an idea if you have enlargened the holes too much for rivets.
_________________
1991 VW Multivan syncro 1,9 TD
Back to top
View user's profile Send private message Gallery Classifieds Feedback
shepherdsond
Samba Member


Joined: April 25, 2005
Posts: 439
Location: Bellingham, WA
shepherdsond is offline

PostPosted: Mon Mar 18, 2013 8:47 am    Post subject: Reply with quote

Quote:
The arms of most of the replacement cupholders I've bought (like pictured above) don't have a strong grasp. lost a few drinks this way. Much prefer the full hoops despite their "ones-size". The only non-hoop version that can a hold heavy drink on a hard corner are the ones they ratchet out to widen but don't "open" per se.

These weak-armed cupholders are a liability. buyer beware. my 2 cents.

Agreed.

These work well and they are on sale now for $6.08:
http://www.campingworld.com/shopping/item/adjustable-drink-holder-black/4176
Just purchased one.
_________________
87 Syncro Hightop Camper
3 knobs + solid shaft
2.2 Phase II Subaru
Hi-Top build thread:
http://www.thesamba.com/vw/forum/viewtopic.php?t=534517
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Jake de Villiers
Samba Member


Joined: October 24, 2007
Posts: 5911
Location: Tsawwassen, BC
Jake de Villiers is offline

PostPosted: Mon Mar 18, 2013 8:59 am    Post subject: Reply with quote

Nicely done Walt - now correct the spelling of "pictorial" in the title! Wink
_________________
'84 Vanagon GL 1.9 WBX
'86 Westy Weekender Poptop/2.5 Subaru/5 Speed Posi/Audi Front Brakes/16 x 7 Mercedes Wheels - answers to 'Dixie'
@jakedevilliersmusic1
http://sites.google.com/site/subyjake/mydixiedarlin%27
www.crescentbeachguitar.com
www.thebassspa.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Instagram Gallery Classifieds Feedback
maryloucb
Samba Member


Joined: June 22, 2012
Posts: 204
Location: Colorado
maryloucb is offline

PostPosted: Fri May 23, 2014 8:02 am    Post subject: Reply with quote

Thank you for this! Just broke my last cupholder and now I want to replace them--this pictorial is just what I needed.
