Sliding door handle re-keying how-to
Page: 1, 2  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9800
Location: San Diego
r39o is offline

PostPosted: Tue Apr 30, 2013 11:46 am    Post subject: Sliding door handle re-keying how-to Reply with quote

Per request here is a translation from German for the following threads:
http://www.thesamba.com/vw/forum/viewtopic.php?t=553863
http://www.thesamba.com/vw/forum/viewtopic.php?t=392080
http://www.thesamba.com/vw/forum/viewtopic.php?t=419907

DON"T FORGET TO GREASE!
Now is a good time to replace the body mounted handle seal.
Remove the handle by taking door panel off and lock screw out.
DON'T LOSE ANY PARTS!

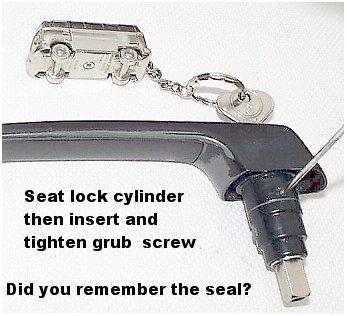

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!

1990 Multivan EJ 22, Rancho trans 0.82 4th, Small Car front AC, CLKs w/ 215/65-16, homemade big brakes 303mm, Konis, Recaros, etc....

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
One more islander...
Samba Member


Joined: May 14, 2010
Posts: 399
Location: Canada: British Columbia West Coast
One more islander... is offline

PostPosted: Tue Apr 30, 2013 3:35 pm    Post subject: Reply with quote

Duly bookmarked. Thanks!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9800
Location: San Diego
r39o is offline

PostPosted: Tue Apr 30, 2013 4:06 pm    Post subject: Reply with quote

One more islander... wrote:
Duly bookmarked. Thanks!

No need. It is in the FAQ.

The various lock threads all reference each other too now.

(NOTE: The rear hatch lock is next......)
_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!

1990 Multivan EJ 22, Rancho trans 0.82 4th, Small Car front AC, CLKs w/ 215/65-16, homemade big brakes 303mm, Konis, Recaros, etc....

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
70coupyel
Samba Member


Joined: September 06, 2006
Posts: 1657
Location: So.Cal
70coupyel is offline

PostPosted: Tue Apr 30, 2013 5:51 pm    Post subject: Reply with quote

r39o wrote:
(NOTE: The rear hatch lock is next......)


Small and large button?? Very Happy Wink
_________________
TheAndante wrote:
Saying that specs are different than dimensions doesn't make sense. Porsche specs/VW specs/engineering specs are nothing but a series of dimensions,sizes,percentages,measurements, etc.

http://www.thesamba.com/vw/forum/viewtopic.php?t=338946&highlight=
70 KG Coup
83 Westy Waterboxer
Back to top
View user's profile Send private message Gallery Classifieds Feedback
westofcenter
Samba Member


Joined: March 16, 2012
Posts: 34
Location: Bloomfield, NY
westofcenter is offline

PostPosted: Mon May 13, 2013 4:32 pm    Post subject: 82 Hatch Key Redo Reply with quote

So I am attempting to get my hatch key to match my other keys and am having trouble removing the tumbler. I cannot insert my key and I am assuming it is unlocked since I can open the door. I cannot see any pin or release screw to gain access to the tumbler? Anybody have the trick?

Image may have been reduced in size. Click image to view fullscreen.

_________________
1982 Westy
1986 Vanagon GL
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
70coupyel
Samba Member


Joined: September 06, 2006
Posts: 1657
Location: So.Cal
70coupyel is offline

PostPosted: Mon May 13, 2013 5:48 pm    Post subject: Re: 82 Hatch Key Redo Reply with quote

westofcenter wrote:
So I am attempting to get my hatch key to match my other keys and am having trouble removing the tumbler. I cannot insert my key and I am assuming it is unlocked since I can open the door. I cannot see any pin or release screw to gain access to the tumbler? Anybody have the trick?


My small button rear hatch lock was hosed in the unlocked position. I found out that in order to get the tumbler out it needs to be in the locked position. I still have it like this.
I went to a j/y and I watched a guy hack one up,with a Dremel, because he did not know what he was doing.
I went to my parts guy and he found a brand new one. It had ten years of dust on it and to the tune of $180.00. Shocked I was just so happy I could lock my van up again. My surfboards were safe again.
I do not think that this part is even available.
Maybe send it off to one of the VW locksmiths here on Samba?
_________________
TheAndante wrote:
Saying that specs are different than dimensions doesn't make sense. Porsche specs/VW specs/engineering specs are nothing but a series of dimensions,sizes,percentages,measurements, etc.

http://www.thesamba.com/vw/forum/viewtopic.php?t=338946&highlight=
70 KG Coup
83 Westy Waterboxer
Back to top
View user's profile Send private message Gallery Classifieds Feedback
westofcenter
Samba Member


Joined: March 16, 2012
Posts: 34
Location: Bloomfield, NY
westofcenter is offline

PostPosted: Mon May 13, 2013 6:17 pm    Post subject: Re: 82 Hatch Key Redo Reply with quote

70coupyel wrote:
westofcenter wrote:
So I am attempting to get my hatch key to match my other keys and am having trouble removing the tumbler. I cannot insert my key and I am assuming it is unlocked since I can open the door. I cannot see any pin or release screw to gain access to the tumbler? Anybody have the trick?


My small button rear hatch lock was hosed in the unlocked position. I found out that in order to get the tumbler out it needs to be in the locked position. I still have it like this.
I went to a j/y and I watched a guy hack one up,with a Dremel, because he did not know what he was doing.
I went to my parts guy and he found a brand new one. It had ten years of dust on it and to the tune of $180.00. Shocked I was just so happy I could lock my van up again. My surfboards were safe again.
I do not think that this part is even available.
Maybe send it off to one of the VW locksmiths here on Samba?


So, were you able to get your locks matched up? Doors, ignition, and hatch all the same key?
_________________
1982 Westy
1986 Vanagon GL
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
odamark
Samba Member


Joined: August 03, 2006
Posts: 10
Location: Auburn, CA.
odamark is offline

PostPosted: Mon May 27, 2013 4:18 pm    Post subject: Slider Door Reply with quote

The spring was a little tricky but much easier (once I figured it out) than the door spring. Locks updated, cleaned and reinstalled! Thanks, I appreciate the help.
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
yiucycle
Samba Member


Joined: August 22, 2007
Posts: 421

yiucycle is offline

PostPosted: Fri Feb 21, 2014 6:34 pm    Post subject: Re: 82 Hatch Key Redo Reply with quote

Thanks again for the post, i was able to rekey my sliding door and rear hitch door. Now i can lock the hatch instead of using a wood block to lock it.

As for the hitch lock, if it is lock in the "open" position, which prevent it from accessing the pin(which holds the lock core and that triangle push widge thing). You can try dremel/drill access holes 90 degree from the original access hole. you will need two, one on each side to form a cross. then push the pin out from the newly drill access hole. Afterward, you can pull the widge out and push the lock core out the other side.

FYI: i never done this method since the PO didn't place the pin back so i was able to pull the wedge out and push the lock core out. But this method will save you the trouble of sourcing any other hitch lock and save $180. Very Happy


Image may have been reduced in size. Click image to view fullscreen.
[/quote]
_________________
1980 2.8LV6 Fiero ASI/Riviera Vanagon
"there is no point in being embarrassed of all the stupid shit i done and will continue to do"

Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
rmcd
Samba Member


Joined: October 29, 2010
Posts: 1348
Location: PNW - its a dry rain.
rmcd is offline

PostPosted: Thu Apr 23, 2015 7:12 am    Post subject: Reply with quote

I can't find any explanation how to remove the last part of the slider handle lock. I've removed the grub screw and lock cylinder in preparation for powder coating. How do you remove the last piece?

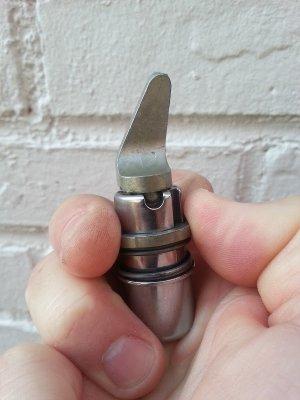

Image may have been reduced in size. Click image to view fullscreen.

_________________
VW LT40 build. Like a Vanagon but 30% larger in every direction and 40% slower even in metric.
https://www.thesamba.com/vw/forum/viewtopic.php?t=749359&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
davideric9
Samba Member


Joined: January 21, 2009
Posts: 998
Location: Oakland CA
davideric9 is offline

PostPosted: Thu Apr 23, 2015 8:34 am    Post subject: Reply with quote

If the lock cylinder is out, you've done it all. The remaining silver part at the bottom with the lock code stamped on it does not come out (afaik). Make sure they tape off everything that is not visible from the outside of the van so the size of the holes does not change (too much powder can be too thick to reinstall moving parts).
_________________
1987 Syncro Westfalia, stock (bought 1994)
1986 Syncro Westfalia SVX, 3 knob (bought 2008)
1987 Westfalia (bought 2010)
1988 Wolfsburg GL (bought 2012)


Last edited by davideric9 on Thu Apr 23, 2015 7:52 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
syncrodoka
Samba Member


Joined: December 27, 2005
Posts: 11997
Location: Santa Cruz, CA
syncrodoka is offline

PostPosted: Thu Apr 23, 2015 8:53 am    Post subject: Reply with quote

Paint stripper on a q-tip for more pecise placement will remove any powdercoat that gets into holes that the powdercoater inevitably will not mask off. As long as you have the cylinder, the spring and the locking bar out you are good to go.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rmcd
Samba Member


Joined: October 29, 2010
Posts: 1348
Location: PNW - its a dry rain.
rmcd is offline

PostPosted: Thu Apr 23, 2015 8:16 pm    Post subject: Reply with quote

Thanks. Now on to the plastic. I'll try hot water and a small screw driver.
_________________
VW LT40 build. Like a Vanagon but 30% larger in every direction and 40% slower even in metric.
https://www.thesamba.com/vw/forum/viewtopic.php?t=749359&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
syncrodoka
Samba Member


Joined: December 27, 2005
Posts: 11997
Location: Santa Cruz, CA
syncrodoka is offline

PostPosted: Thu Apr 23, 2015 8:58 pm    Post subject: Reply with quote

Removing the black plastic finger cover is the hardest part of the process, the cover isn't simply snapped into place. There are a pair of metal posts that protrude from the handle under the cover that slide onto a pair of metal sleeved keepers in the cover.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
VeeDubDaySpa
Samba Member


Joined: February 29, 2008
Posts: 368
Location: Bend, OR
VeeDubDaySpa is offline

PostPosted: Wed May 06, 2015 8:12 pm    Post subject: Reply with quote

Syncrodoka, so how do you remove the plastic part without ruining it??
_________________
North American Hightop Installer/Distributor
Current stock (5)
Hot Water Systems
_______________________________________
90 Syncro NAHT Vanagon RHINO
86 "Syncro" Van DIAMOND
87 Syncro Hightop WestyCamper ROCKY (for sale soon)
79 bay window OLIVER
Back to top
View user's profile Send private message Send e-mail Visit poster's website Instagram Gallery Classifieds Feedback
syncrodoka
Samba Member


Joined: December 27, 2005
Posts: 11997
Location: Santa Cruz, CA
syncrodoka is offline

PostPosted: Wed May 06, 2015 8:55 pm    Post subject: Reply with quote

I have the older version of this snap-on radiator pick that I slip in at the end of the handle and gently pry the plastic grip off with.
Image may have been reduced in size. Click image to view fullscreen.


There are 2 metal tabs that are cast into the back of the handle on the flat part that snap into a pair of tabs on the the plastic grip.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
windnsea
Samba Member


Joined: May 07, 2008
Posts: 424
Location: Pasadena, CA
windnsea is offline

PostPosted: Tue Jun 09, 2015 8:32 am    Post subject: Reply with quote

Could someone clarify for me the issue of the 'grub screw and cover'? The original posting suggests drilling out the grub screw, and then after resetting the lock tumblers reinserting it. My question is - are you just drilling out a cover and then unscrewing the screw, or if drilling out both, what will be used then as a grub screw? Part number or ?? - do you have to rethread the screw hole for a larger set screw, and if so, what size was used.

Thanks in advance.

Windnsea

I'm tired of hauling around two keys!!
Back to top
View user's profile Send private message Classifieds Feedback
syncrodoka
Samba Member


Joined: December 27, 2005
Posts: 11997
Location: Santa Cruz, CA
syncrodoka is offline

PostPosted: Tue Jun 09, 2015 8:47 am    Post subject: Reply with quote

Don't drill out anything. There is some threadlock on the grub screw that needs to be picked out before it is backed out.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
0to60in6min
Samba Member


Joined: November 27, 2006
Posts: 3411
Location: OR & CA (Oregon/California)
0to60in6min is offline

PostPosted: Tue Jun 09, 2015 8:50 am    Post subject: Reply with quote

you don't need to drill out the grub screw. It's a very small screw with a small plastic cover on it. Pull the plastic cover out and use a s mall screwdriver to take the screw out. Proceed in reverse upon reassembling.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Pascal
Samba Member


Joined: January 13, 2006
Posts: 825
Location: Fredericton, NB, Canada
Pascal is offline

PostPosted: Mon Oct 16, 2023 5:23 am    Post subject: Re: Sliding door handle re-keying how-to Reply with quote

Has anyone found a replacement seal that fits on the sliding door lock cylinder that is in this picture?
Image may have been reduced in size. Click image to view fullscreen.

Is it the same seal that fits the front door cylinders that is 111837227B and NLA? I can’t find the part number on ETKA for the slider door cylinder seal. Thanks
_________________
'84 Westy - 2.2wbx, GT Torque-Biasing Differential
'91 EA Cabby
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
