What do I use to paint the top?
Page: 1, 2, 3, 4  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Garske
Samba Member


Joined: February 08, 2006
Posts: 24
Location: Seattle, WA
Garske is offline

PostPosted: Wed May 08, 2013 4:27 pm    Post subject: What do I use to paint the top? Reply with quote

Next month I’m going to take some time off from work and clean up some rust and paint my 87 westy. I’m plan on keeping it white, but my question is do I paint the pop top and with what? I’ve seen a LOT of posts on painting or treating pop tops, but most are focused on restoring just the pop top. I feel like I’ll have a few more options since I’ll have access to a sprayer while I paint the body.

So my question is do I use the same paint on the top as the body? It doesn’t seem like many are doing this, but it’s not clear if this is a bad idea or if it’s just because most are just restoring the pop top and not painting the entire van the same color. And if I do use a fiberglass specific paint like Interlux, do I run the risk of not matching up with the body color (looks like Interlux has more than one type of white)? It seems like most of the people using Interlux or something like it for their pop tops don’t have a white bodied van, so it didn’t really matter.

Research so far…
Paint Post: http://www.thesamba.com/vw/forum/viewtopic.php?t=474609&highlight=paint+pop
Only one I found on painting with same paint: http://www.thesamba.com/vw/forum/viewtopic.php?t=427994&highlight=pop+paint
Pentrol post: http://www.thesamba.com/vw/forum/viewtopic.php?t=314474&highlight=pentrol
Body/Paint forum (mostly non-matching tops): http://www.thesamba.com/vw/forum/viewtopic.php?t=5...p;start=40
Interlux colors: http://www.yachtpaint.com/LiteratureCentre/topsides-colorcard-usa.pdf
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Bntbrl
Samba Member


Joined: September 04, 2012
Posts: 436
Location: Seattle, Wa
Bntbrl is offline

PostPosted: Thu May 09, 2013 6:30 am    Post subject: Reply with quote

I'm going to be painting my van in the not too distant future. I can't decide to paint the pop top the same color as the body or not.

Interlux is more durable than base coat and clear. I'm a little more partial to taking the top off and using Interlux on it while I spray the van top. It would be best to paint the body all at once but I'm planning on painting in stages because my garage is too small for painting the van top and body.

You can use the same paint on the pop op as the body. There's a few on here I've seen done with base clear. It will scratch from limbs easier but that's about it really.
_________________
1984 Vanagon Westfalia 1.9 wbx

www.DIYSeattle.com
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
dobryan
Samba Member


Joined: March 24, 2006
Posts: 16450
Location: Brookeville, MD
dobryan is offline

PostPosted: Thu May 09, 2013 7:25 am    Post subject: Reply with quote

I painted the top with the same paint I used on the body. I sanded the top first to remove any oxidized paint (don't sand into the fiberglass if you can help it) and then used an epoxy primer, base coat, clear coat...
_________________
Dave O
'87 Westy w/ 2002 Subaru EJ25 and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371

The Western Syncro build
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Azdeadhead
Samba Member


Joined: May 25, 2013
Posts: 21
Location: Arizona/colorado
Azdeadhead is offline

PostPosted: Mon May 27, 2013 11:20 am    Post subject: Reply with quote

I've read that someone used marine paint, as they are both fiberglass, I plan on doing it soon
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Vango Conversions
Samba Member


Joined: October 04, 2010
Posts: 1054
Location: Seattle, WA
Vango Conversions is offline

PostPosted: Mon May 27, 2013 11:37 am    Post subject: Reply with quote

I've used Interlux brightsides on wood and fiberglass boats and it's good paint but it is kind of soft compared to auto paint.

Personally I'd use the same automotive paint that you're going to use on the rest of the van. I think that on most, if not all, vanagons never had a clearcoat, but I may be wrong on that. a clearcoat will give you some more gloss but a single stage is easier to repair and touch up.

I'd make sure to do the proper prep on the fiberglass, lay down a fiberglass compatible primer, then paint everything with the same paint. That's the only way you'll have a perfect match.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
PDXWesty
Samba Member


Joined: April 11, 2006
Posts: 6234
Location: Portland OR
PDXWesty is offline

PostPosted: Mon May 27, 2013 12:26 pm    Post subject: Reply with quote

My poptop was painted to match the van with a base/clear coat. I couldn't be happier with the results. It will last for a very long time with little to no maintenance. Here's what it looked like after painting. There's a bit of a glare in the photo but you get the idea.

Image may have been reduced in size. Click image to view fullscreen.

_________________
89 Westy 2.1 Auto
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Mon May 27, 2013 2:36 pm    Post subject: Reply with quote

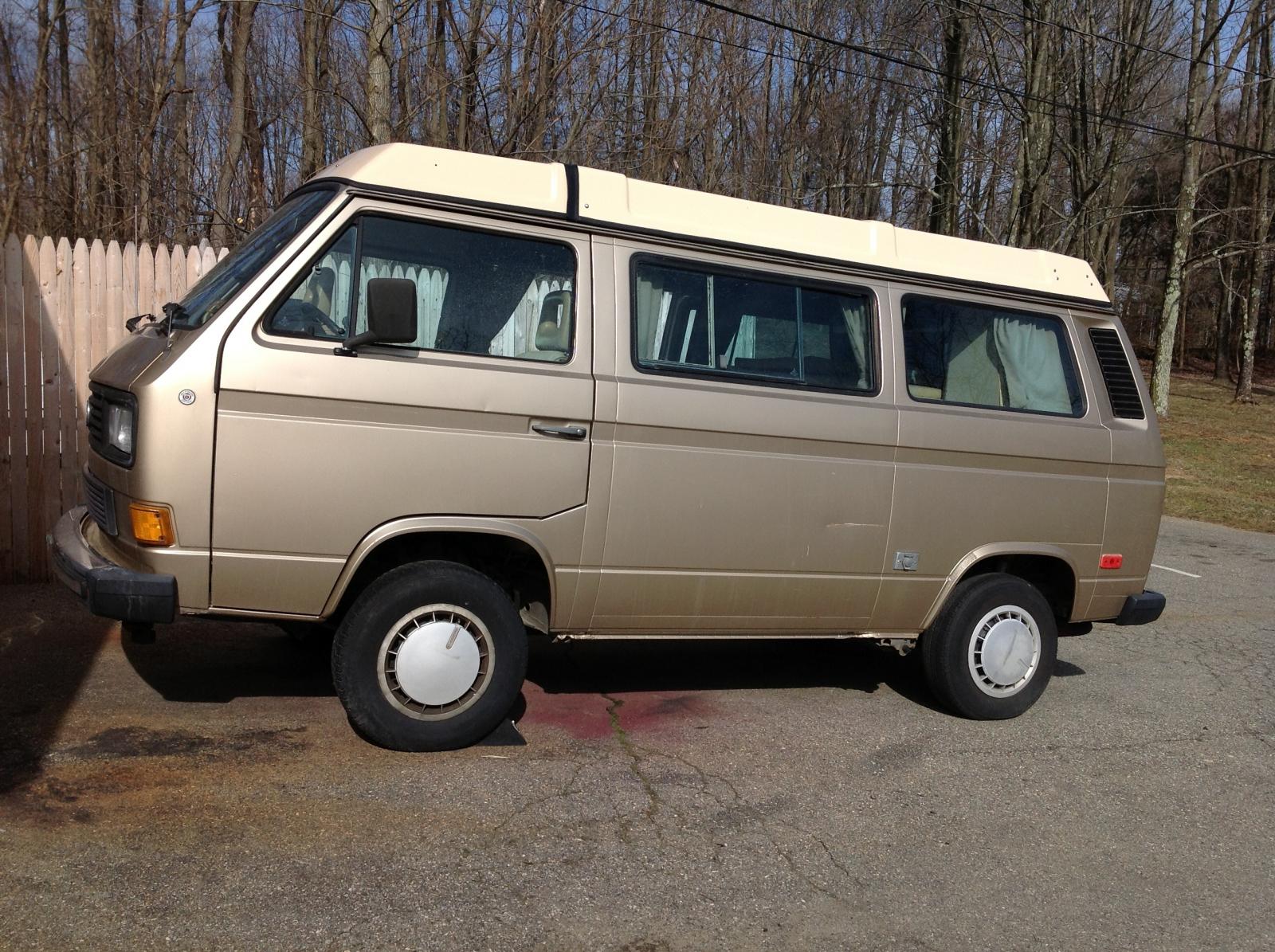

I brushed my Interlux Brightside on last Winter.

Overall I'm pleased but if I had a "do over" card..... I'd probably spray during the warmer months.

I do not like monochromatic...... I like my contrast......
Image may have been reduced in size. Click image to view fullscreen.


Click on my build thread and links embedded in it to see what I did....
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Chocolatewagon
Samba Member


Joined: June 10, 2008
Posts: 37
Location: La Conner, WA
Chocolatewagon is offline

PostPosted: Tue May 28, 2013 8:56 am    Post subject: Reply with quote

My top was looking pretty lousy, with fiberglass strands showing here and there and catching lots of dirt, so when I put a new tent on it, I used Petit EasyPoxy because I've also used it on my boat. Using the roll-and-tip method, it turned out very nicely and has lasted well so far.
Good luck!
_________________
'54 Bug-first car I owned (sold)
'69 Squareback-first new car and prob last (sold)
'80 Westy-"Chocolatewagon" my mountain jeep and land yacht(sold)
'78 Rawson 30PH-wind powered water yacht
'02 Eurovan Weekender-now we have power and a quiet ride! (sold)
'01 Eurovan Camper-had to have the amenities that Chocolatewagon had plus the power of the 24V AXK
Back to top
View user's profile Send private message Gallery Classifieds Feedback
randywebb
Samba Member


Joined: February 15, 2005
Posts: 3815
Location: Greater Metropolitan Nimrod, Orygun
randywebb is offline

PostPosted: Tue May 28, 2013 12:07 pm    Post subject: Reply with quote

some of you used automotive paint with no added flex agent?
_________________
1986 2.1L Westy 2wd Auto Trans.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Tue May 28, 2013 2:49 pm    Post subject: Reply with quote

randywebb wrote:
some of you used automotive paint with no added flex agent?


That's a pretty rigid chunk of Fiberglass, it isn't going to flex much.

Flex agents really weren't mainstream until the age of the plastic monochromatic bumpers in the late 70's early 80's........

Paint itself isn't totally rigid and has a degree of flexible properties to it.

If I had sprayed mine I'd not add it to the paint.

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dobryan
Samba Member


Joined: March 24, 2006
Posts: 16450
Location: Brookeville, MD
dobryan is offline

PostPosted: Tue May 28, 2013 3:08 pm    Post subject: Reply with quote

randywebb wrote:
some of you used automotive paint with no added flex agent?


Absolutely. That top has less flex in it than some body panels, especially door skins. Done two this way and never had an issue.
_________________
Dave O
'87 Westy w/ 2002 Subaru EJ25 and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371

The Western Syncro build
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794
Back to top
View user's profile Send private message Gallery Classifieds Feedback
nepawesty
Samba Member


Joined: April 08, 2013
Posts: 108
Location: CO
nepawesty is offline

PostPosted: Sat Aug 10, 2013 6:28 pm    Post subject: Topside Reply with quote

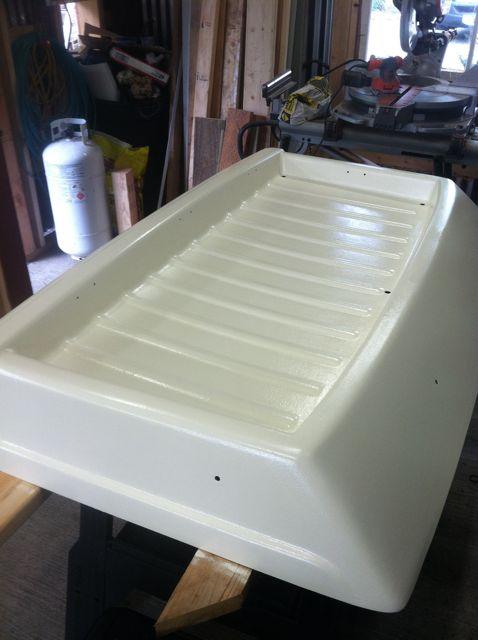

Interlux for sure. Went on so easy. Only used a roller. And it looks so good.
Image may have been reduced in size. Click image to view fullscreen.
[/quote]

Plus a little sand paper, scotch brite and elbow grease.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
regis101
Samba Member


Joined: July 28, 2005
Posts: 2078
Location: Livermore, Ca
regis101 is offline

PostPosted: Sat Aug 10, 2013 7:42 pm    Post subject: Reply with quote

I did one pop top a few years back. A stop at the Sherwin-Williams store dialed me in.
I told and showed them what I was working on.
They had a fiberglass primer of sorts and some other top paint that was designed for the elements. A small can of each, quarts probably, did the trick.
A trip to the car wash to blast off the barnacles.
Some light sanding to remove the fuzz.
Some primer.
Some paint.
Looked great.
Wouldn't hesitate to use their products again.
YMMV. Just sayin'
_________________
Peace, Regis
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jimeg
Samba Member


Joined: May 14, 2007
Posts: 510
Location: PNW
jimeg is offline

PostPosted: Sat Aug 10, 2013 10:02 pm    Post subject: Reply with quote

I recently used a Rustleum boat paint on my top. Got it at Home Depot and rolled it on.
_________________
1986 Root Beer Syncro Tin Top....so many plans.

Here: http://www.thesamba.com/vw/forum/viewtopic.php?t=578490
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Vango Conversions
Samba Member


Joined: October 04, 2010
Posts: 1054
Location: Seattle, WA
Vango Conversions is offline

PostPosted: Sun Aug 11, 2013 12:03 am    Post subject: Reply with quote

Lots of different paints will work on fiberglas so long as the proper prep and primer are used. Interlux has proven to be a good paint and good results can be obtained with a roller so those without the equipment, space, or experience, can get good results with it.

Automotive paint also works just fine, so those who want a perfect match while painting the rest of the van should just use the same paint. Perfect match, same paint, done.

Other paints can work well. I'd be a little hesitant to use rustoleum, since it's made to be used on slightly rusted metal without a primer but hey, whatever works.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jimeg
Samba Member


Joined: May 14, 2007
Posts: 510
Location: PNW
jimeg is offline

PostPosted: Sun Aug 11, 2013 8:29 am    Post subject: Reply with quote

This is the Rustoleum product I used -

http://www.amazon.com/Rust-Oleum-206999-Marine-Top...lass+paint

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
1986 Root Beer Syncro Tin Top....so many plans.

Here: http://www.thesamba.com/vw/forum/viewtopic.php?t=578490


Last edited by jimeg on Sun Aug 11, 2013 10:21 am; edited 4 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kerrvert
Samba Member


Joined: July 19, 2013
Posts: 23
Location: Kerrville, TX
kerrvert is offline

PostPosted: Sun Aug 11, 2013 9:13 am    Post subject: Reply with quote

We sprayed ours with Interlux and are very pleased with the result. Now if it would just cool off long enough for us to paint the rest of the car we could finish her off.
Back to top
View user's profile Send private message Classifieds Feedback
Vanagon Nut
Samba Member


Joined: February 08, 2008
Posts: 10333
Location: Sunshine Coast B.C.
Vanagon Nut is offline

PostPosted: Sun Aug 11, 2013 9:38 am    Post subject: Reply with quote

It's obviously a personal taste thing, but I much prefer the white top regardless of body colour.

I used Interlux. (edit: sanded, used roller/brush. Some spots of top repaired with fibreglass. Did not use primer. No issues.)

Of note, a local chain, "Cloverdale Paints" carries this product:

http://www.cloverdalepaint.com/contractor_professional/product.asp?code=111series

It's less money and by all accounts should work fine. I even used a little to touch up some spots over the Interlux. It adhered fine albeit not an exact colour match. If one of your local paint shops offers something similar, this might be a less expensive alternative. That said, using Interlux didn't exactly break the bank. Wink

Neil.
_________________
1981 Westy, 15º ABA

1988 West, 50º ABA

Vanagon VAG GAS engine swap Google Group:
https://tinyurl.com/2f24rmh

VE7TBN
Back to top
View user's profile Send private message Gallery Classifieds Feedback
K58
Samba Member


Joined: July 01, 2006
Posts: 1173
Location: Santa Barbara
K58 is offline

PostPosted: Sun Aug 11, 2013 10:16 am    Post subject: Reply with quote

Just did my pop top last weekend with Rustoleum Marine Paint. Gets better reviews than most and for the price you can't beat it. Less than 2 quarts of primer and a roller. Prepped with 80 grit and a palm sander (gelcoat was bad) and used scotchbrite pads with tack cloth in between coats.

http://www.amazon.com/gp/product/B000C025GA/ref=oh_details_o00_s00_i00?ie=UTF8&psc=1

so far I'm impressed with the results.

oh yeah, replaced the seal for the luggage rack as it tore when I removed it to fix some fiberglass damage.



Image may have been reduced in size. Click image to view fullscreen.

_________________
Westy HID Projector Retrofit
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
ewalt98
Samba Member


Joined: October 19, 2009
Posts: 94
Location: Corvallis, MT
ewalt98 is offline

PostPosted: Wed Feb 05, 2014 7:58 am    Post subject: Reply with quote

jimeg wrote:
This is the Rustoleum product I used -



Hey jimeg, did you use the oyster white? I was looking at the whites and oyster white last night, and the oyster white looks like it has a lot of yellow to it. If so, do you have a picture of your van with the painted top?
I am prepping my top right now, and bought both the oyster and semi-gloss white to test them out.
My van is tan and brown, so I suspect either would work, but it sure would be nice to see how it looks.
Thanks
Eric
_________________
Eric
82 Westfalia Camper (Currently getting a little bit fixed up)
85 944
72 GT6
88 F350
03 F150
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4  Next
Page 1 of 4


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
