Dash blower rebuild with (cheap) Jeep resistor - w/PICS
Page: 1, 2, 3, 4, 5, 6, 7  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
dhaavers
Samba Member


Joined: March 19, 2010
Posts: 7717
Location: NE MN (tinyurl.com/dhaaverslocation)
dhaavers is offline

PostPosted: Wed Apr 01, 2015 9:58 pm    Post subject: Dash blower rebuild with (cheap) Jeep resistor - w/PICS Reply with quote

I first posted this resistor upgrade idea a long time ago - well, it finally came through (true) this week...

4 years planning/thinking/researching/collecting parts - 3 days cleaning & wiring - 2 days left to
put it all back together - (including 1 day interruption for roadtrip & college visit with daughter #2)...

Here goes:

Finally collected everything needed to get everything back to NEW:
1 - new blower motor (stock)
2 - new heater core (stock)
3 - new blower switch (stock)
4 - new blower resistor...definitely not stock... Twisted Evil

I didn't want to renew # 1-3 just to put the old stock ceramic resistor back in - that's just
an open invitation for it to die a great, glorious death as soon as I've put it all back together... Rolling Eyes

Also, I didn't want to spring for a "new" or used stock resistor - at $90+, too expensive,
and/or no guarantee that it'll be any better than the one I took out... Rolling Eyes

[/musing]

So a while ago, I got one of these - fits most Jeeps from 1990-1996...
Image may have been reduced in size. Click image to view fullscreen.


Mopar part #55036000 (careful - ignore the larger "stock" number)...
Image may have been reduced in size. Click image to view fullscreen.


...less than $10 at my FLAPS or online...
http://www.mymoparpart.com/p/Jeep__/HVAC-Blower-Motor-Resistor-Resistor/49396618/55036000.html

...find a spot to mount it on the box & cut the hole...
Image may have been reduced in size. Click image to view fullscreen.


...mount it & wire it up (it already has foam in place for an air-tight seal)...
Image may have been reduced in size. Click image to view fullscreen.


...it sits right inside the vent port - always open to air flow (ram air -or- blower) to cool the resistors, as intended...
Image may have been reduced in size. Click image to view fullscreen.

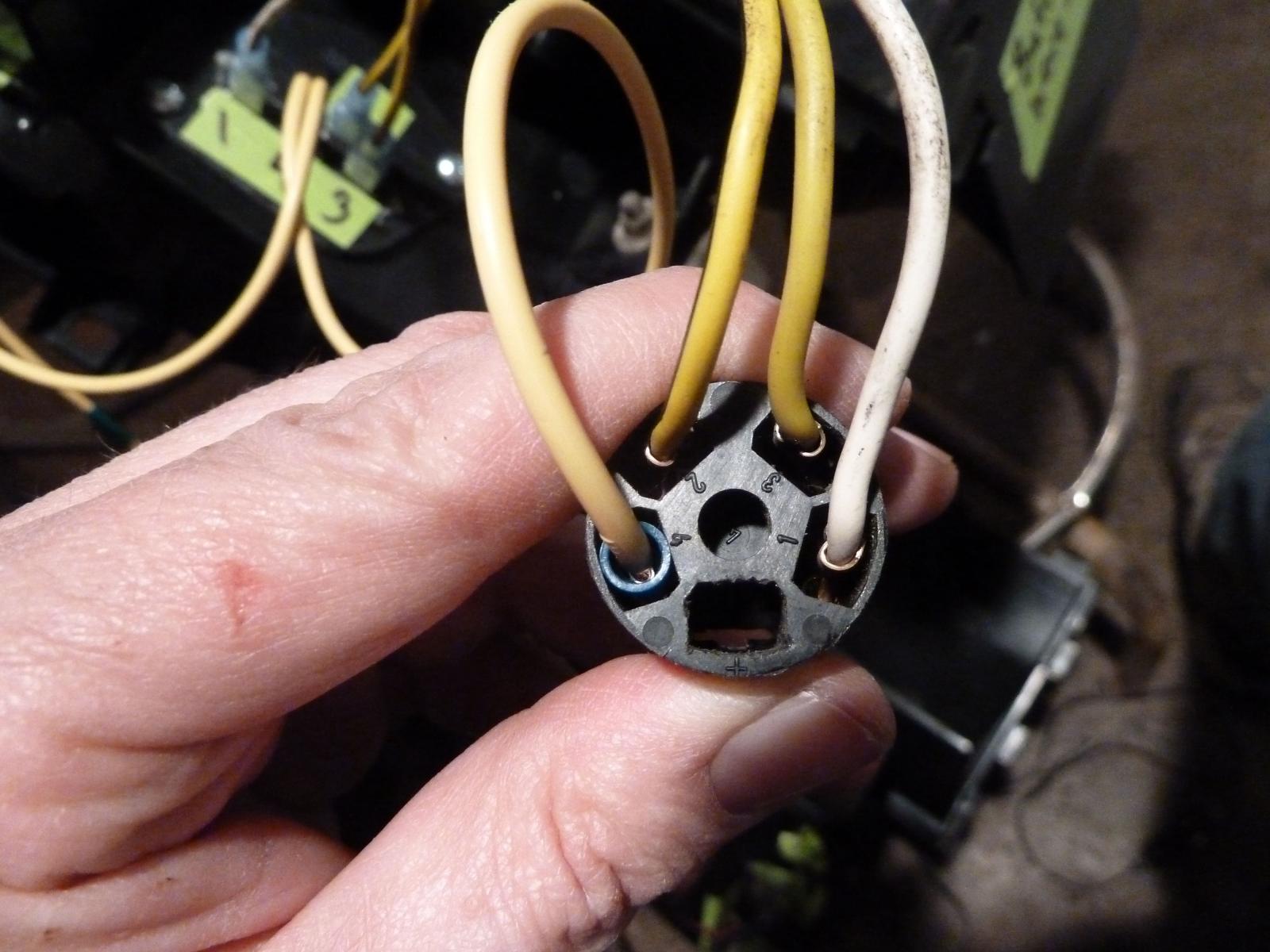

...thanks to my new switch, I can wire it for FOUR speeds instead of just the original three! I added
an additional female spade connector to the plug at "4" (the empty spot is for power from the dash)...
Image may have been reduced in size. Click image to view fullscreen.


...it matches my new 4-speed switch! (which has Roman numerals, for extra class)...
Image may have been reduced in size. Click image to view fullscreen.


...in place, bench-tested, ready to close up the box & reinstall...
Image may have been reduced in size. Click image to view fullscreen.


(Also pictured: fan bearing dust cap in yellow; vinyl tubing is my take on tencentlife's fan
bearing oil port - comes up through the DS defrost vent for a few drops each spring...)

(Not pictured: fully cleaned ground stars; fully lubed wiper linkage, heater control cables
& clutch/brake pedal pivots; soundproofing on all front sheet metal; rust treatment
on a few spots near air intake; some light "alphabetizing" & stereo wiring labeling...)

I figure by the weekend, I should have it back together & enjoying a real dash blower
for the first time in 4 years... Cool

Give me a few more days, then I'll see you on the road!

- Dave

PS: Whenever this thing DOES burn out (they all do eventually) It'll be an easy 10-minute job... Very Happy
_________________
86 White Westy Weekender
"The WonderVan"

<EDITED TO PROTECT INNOCENT PIXELS>
Back to top
View user's profile Send private message Gallery Classifieds Feedback
newfisher
Samba Member


Joined: January 05, 2012
Posts: 1764
Location: The wet spot--Oregon
newfisher is offline

PostPosted: Wed Apr 01, 2015 10:04 pm    Post subject: Reply with quote

Thanks! Mine is starting to fail and at the same time I am starting to smell the sweet smell of heater core. Your thread is perfect timing!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Forthwithtx
Samba Member


Joined: July 14, 2014
Posts: 717
Location: Fort Worth
Forthwithtx is offline

PostPosted: Wed Apr 01, 2015 10:46 pm    Post subject: Reply with quote

This is perfect timing. I noticed this topic which had begun earlier and wondered if it had gotten anywhere. I am fortunate enough to have a spare heater plenum from a parts van to rework, so when I dig into my dash, it is a simple swap out. The resistor in the donor has one speed dead, so I can have it all put together with this mod and not have to scavenge the resistor from the one in my dash.

Great work!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
IdahoDoug
Samba Member


Joined: June 12, 2010
Posts: 10234
Location: N. Idaho
IdahoDoug is offline

PostPosted: Wed Apr 01, 2015 10:53 pm    Post subject: Reply with quote

Awesome! You have to leave a note or something in there to explain to some future caretaker of your van what you did, eh?

So are you also renewing the foam on the dash flaps? If so and you don't know what foam to use, I will run downstairs to the cold garage and find the package for you. It turned my dash into a flipping hurricane of air, and silenced the dash-as-calliope-organ on the freeway.
_________________
1987 2WD Wolfsburg Vanagon Weekender "Mango", two fully locked 80 Series LandCruisers. 2017 Subaru Outback boxer. 1990 Audi 90 Quattro 20V with rear locking differential, 1990 burgundy parts Vanagon. 1984 Porsche 944, 1988 Toyota Supra 5 speed targa, 2002 BMW 325iX, 1982 Toyota Sunrader
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Thu Apr 02, 2015 4:21 am    Post subject: Reply with quote

Well done my friend!
Very very well done indeed!

But..... Where were you with this info three months ago while my unit was strewn across my shop?


FYI, our early 1986 rear AC Evaporator Blowers have an air cooled resistor in the plenum like this as original equipment.
Image may have been reduced in size. Click image to view fullscreen.


Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dhaavers
Samba Member


Joined: March 19, 2010
Posts: 7717
Location: NE MN (tinyurl.com/dhaaverslocation)
dhaavers is offline

PostPosted: Thu Apr 02, 2015 5:49 am    Post subject: Reply with quote

Thanks for your kind words, y'all...

Like a lot of Vana-goners here, I just deal with problems when necessary & try to
prevent problems when possible... Wink

Doug: Oh yeah, I forgot to mention my new flap foam..."camper tape" from NAPA.
It feels a lot like memory foam - very soft, easy to compress & seals perfectly.

Also, it should be obvious to any future owner where & what the resistor is for;
a label under the dash with the part number and all shall be revealed...

Cool
_________________
86 White Westy Weekender
"The WonderVan"

<EDITED TO PROTECT INNOCENT PIXELS>
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Forthwithtx
Samba Member


Joined: July 14, 2014
Posts: 717
Location: Fort Worth
Forthwithtx is offline

PostPosted: Thu Apr 02, 2015 7:06 am    Post subject: Reply with quote

Just for clarification on the four speed switch: For ordering purposes, this is known as the AC fan switch, and not the usual three speed fan switch, correct?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Jeffrey Lee
Samba Member


Joined: February 04, 2014
Posts: 1488
Location: Wisconsin
Jeffrey Lee is offline

PostPosted: Thu Apr 02, 2015 3:50 pm    Post subject: Reply with quote

djkeev wrote:

Image may have been reduced in size. Click image to view fullscreen.



Dave, is that rodential residue I see near the bottom of your pic? I thought you had that baby buttoned up!

Better get the dust mask and shop vac ... Smile
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Thu Apr 02, 2015 3:59 pm    Post subject: Reply with quote

I've yet to remove the Evaporator, that and the closet in the LR are the two virgin untouched areas of the Van.

Yes, that is indeed rodent residue, very old residue.
Every mouse entry point is closed and Daizee's Mouse repelling Peppermint oil is placed throughout the unit as a deterrent. Even in the rear by the tail lights.

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
bluebus86
Banned


Joined: September 02, 2010
Posts: 11075

bluebus86 is offline

PostPosted: Thu Apr 02, 2015 5:29 pm    Post subject: Reply with quote

djkeev wrote:
I've yet to remove the Evaporator, that and the closet in the LR are the two virgin untouched areas of the Van.

Yes, that is indeed rodent residue, very old residue.
Every mouse entry point is closed and Daizee's Mouse repelling Peppermint oil is placed throughout the unit as a deterrent. Even in the rear by the tail lights.

Dave


Oh Shit!!!!!! Embarassed Embarassed Embarassed Embarassed Embarassed Embarassed Embarassed Embarassed Embarassed Embarassed Embarassed Embarassed Embarassed

Tough little critters to deal with when storing a car.

In Arizona my cousin had pack rats the size of small cats making nests of cactus spines in his stored cars. These nests where huge and the rats nasty, they'd chew through anything and every thing, right though wires conductor and all, every rubber seal they could find, and hoses they loved hoses. Once in the cockpit the interior was a goner.
_________________
Help Prevent VW Engine Fires, see this link.....Engine safety wire information

Stop introducing dirt into your oil when adjusting valves ... https://www.thesamba.com/vw/forum/viewtopic.php?t=683022
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Zeitgeist 13
Samba Member


Joined: March 05, 2009
Posts: 12102
Location: Port Manteau
Zeitgeist 13 is offline

PostPosted: Thu Apr 02, 2015 5:33 pm    Post subject: Reply with quote

This is really nifty, and quite timely for the Syncro climate control box I'm currently servicing. Is the resistor accessible in its current location, without having to remove the dash?
_________________
Casey--

'89 Bluestar ALH w/12mm Waldo pump, PP764 and GT2052
'01 Weekender --> full camper
y u rune klassik?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Thu Apr 02, 2015 6:32 pm    Post subject: Reply with quote

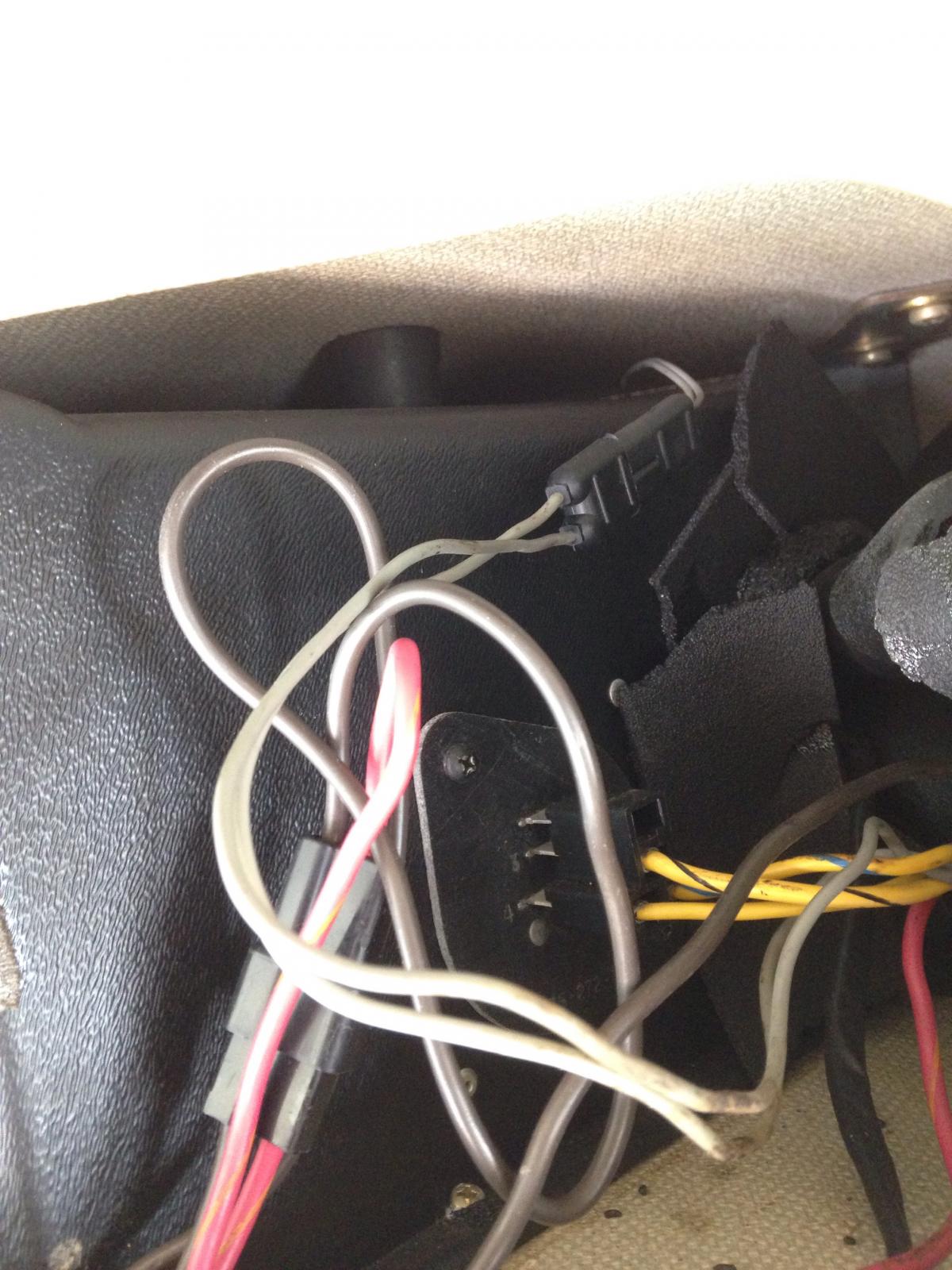

The factory blower resistor is only accessible by removing the dash, removing the air box and opening it up.

It is inside mounted in the upper corner.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.



Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert


Last edited by djkeev on Thu Apr 02, 2015 6:37 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dhaavers
Samba Member


Joined: March 19, 2010
Posts: 7717
Location: NE MN (tinyurl.com/dhaaverslocation)
dhaavers is offline

PostPosted: Thu Apr 02, 2015 6:36 pm    Post subject: Reply with quote

@ Zeitgeist: Indeed.

With this mod, the new resistor is right up in front of your right knee; literally a 10-minute
job - just remove the lower (center) dash panel & you're most of the way there... Cool

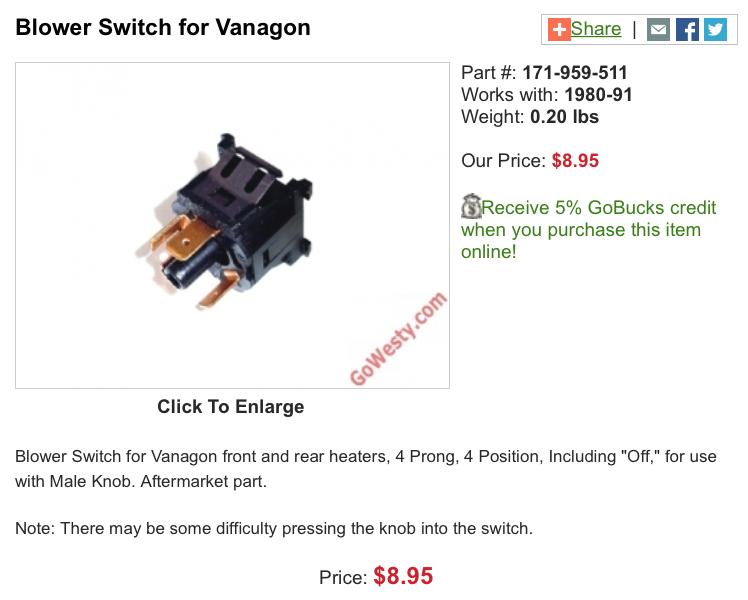

RE: The switch...I've had this one laying around for a while so I might be forgetting
something, but I don't recall specifying 4-speed; I thought I just ordered GoWesty's
standard "blower switch" and this is what I got... <shrug>

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
86 White Westy Weekender
"The WonderVan"

<EDITED TO PROTECT INNOCENT PIXELS>
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Zeitgeist 13
Samba Member


Joined: March 05, 2009
Posts: 12102
Location: Port Manteau
Zeitgeist 13 is offline

PostPosted: Thu Apr 02, 2015 9:32 pm    Post subject: Reply with quote

dhaavers wrote:
@ Zeitgeist: Indeed.

With this mod, the new resistor is right up in front of your right knee; literally a 10-minute
job - just remove the lower (center) dash panel & you're most of the way there... Cool



Best answer ever! When I pulled the heater housing, the resistor had clearly shown signs of over heating and blistering the plastic. I traced this back to the ground crowns, but was still pretty nervous about reusing the unit, so the idea of installing a DIY serviceable brand new unit is really optimal

Image may have been reduced in size. Click image to view fullscreen.

_________________
Casey--

'89 Bluestar ALH w/12mm Waldo pump, PP764 and GT2052
'01 Weekender --> full camper
y u rune klassik?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
luVWagn
Samba Member


Joined: February 21, 2008
Posts: 1340
Location: Snoqualmie (WA)
luVWagn is offline

PostPosted: Fri Apr 03, 2015 12:51 am    Post subject: Reply with quote

I haven't pulled my dash yet (on the syncro), but its only got three sliders for climate control. I don't think I have any fresh air inflow, meaning any airflow over the resistor could actually be HOT air. Issue?
_________________
'91 Syncro 16 Reimo Hightop Conversion, eTDI
Back to top
View user's profile Send private message Gallery Classifieds Feedback
t3 kopf
Samba Member


Joined: October 22, 2012
Posts: 1112
Location: over by 'der
t3 kopf is offline

PostPosted: Fri Apr 03, 2015 1:50 am    Post subject: Reply with quote

I actually moved my resistor pack to one of the braces that the steering wheel bolts to under the cluster in mine. I simply moved the bracket that holds it down over there and screwed it down with a self tapping screw and wired it to the blower. Now whenever it needs changed out, I simply have to remove the cluster to get at it.
_________________
'90 Carat w/ '95 phase 1 EJ22 OBD2 conversion
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Fri Apr 03, 2015 4:02 am    Post subject: Reply with quote

t3 kopf wrote:
I actually moved my resistor pack to one of the braces that the steering wheel bolts to under the cluster in mine. I simply moved the bracket that holds it down over there and screwed it down with a self tapping screw and wired it to the blower. Now whenever it needs changed out, I simply have to remove the cluster to get at it.


Which is going to be sooner rather than later.

These units get HOT!!!!

They are all placed in areas of air flow to cool them off.

No air flow will create a very hot unit that will very soon burn itself out........

Not unlike running your internal combustion engine without a cooling fan and sitting still.

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dhaavers
Samba Member


Joined: March 19, 2010
Posts: 7717
Location: NE MN (tinyurl.com/dhaaverslocation)
dhaavers is offline

PostPosted: Fri Apr 03, 2015 6:28 am    Post subject: Reply with quote

luVWagn wrote:
I haven't pulled my dash yet (on the syncro), but its only got three sliders for climate control. I don't
think I have any fresh air inflow, meaning any airflow over the resistor could actually be HOT air. Issue?

I can't imagine you don't have fresh air intake. You got one of these behind your top grille? (Thanks for the pic, Dave!)
Image may have been reduced in size. Click image to view fullscreen.


On my version, the resistor is BEFORE the heater core, so yes, I'll always be getting outside ambient air.
("Cool" & "hot" are relative terms...right?) Wink

Also, with only 3 sliders, maybe your van lost one of the plastic handles over the years...???
I'd bet there are 4 in there if you look close...http://www.gowesty.com/library_article.php?id=311

OTOH, your Syncro is a hightop conversion, which got me thinking...If you only have 3 sliders on the dash,
maybe Reimo deleted the bottom one which was for fresh air to the rear roof vents over the sliding door...???

Just a guess...<shrug>
_________________
86 White Westy Weekender
"The WonderVan"

<EDITED TO PROTECT INNOCENT PIXELS>
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Zeitgeist 13
Samba Member


Joined: March 05, 2009
Posts: 12102
Location: Port Manteau
Zeitgeist 13 is offline

PostPosted: Fri Apr 03, 2015 6:30 am    Post subject: Reply with quote

The modern vehicles I've serviced all attach the resistor packs to heat sinks, and install them directly in the fresh airflow and blower fan output prior to the heater core. Not sure what VW had in mind with their original design.
_________________
Casey--

'89 Bluestar ALH w/12mm Waldo pump, PP764 and GT2052
'01 Weekender --> full camper
y u rune klassik?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dhaavers
Samba Member


Joined: March 19, 2010
Posts: 7717
Location: NE MN (tinyurl.com/dhaaverslocation)
dhaavers is offline

PostPosted: Fri Apr 03, 2015 6:35 am    Post subject: Reply with quote

Zeitgeist 13 wrote:
...the resistor had clearly shown signs of over heating and blistering the plastic...
Image may have been reduced in size. Click image to view fullscreen.

I had the same issue, but mine had actually burned a HOLE through the plastic (sorry no pic). I smeared a nice dab
of silicone to patch the hole & never looked back. Yeah - NO WAY I'm putting that resistor back in there... Evil or Very Mad Evil or Very Mad Evil or Very Mad
_________________
86 White Westy Weekender
"The WonderVan"

<EDITED TO PROTECT INNOCENT PIXELS>
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4, 5, 6, 7  Next
Page 1 of 7


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
