PostPosted: Mon Feb 22, 2016 3:39 pm    Post subject: Jeep Wrangler Mirrors / Door Mounted / Installing Reply with quote

"Floppy Mirror Syndrome"

There doesn't seem to be a once and done fix unless you are going to spring for powered mirror heads..... New or used.

The repairs I Read about seem short lived,
The replacement units seem to become floppy, here is a thread about mirrors for Vanagons.......
http://www.thesamba.com/vw/forum/viewtopic.php?t=648791

So I decided to order a pair of side view mirrors that fit the 07 and up Jeep Wrangler, the door mounted units.

***********
EDIT: FYI.... These Wrangler Mirrors can be ordered as....
A) fully manual adjustment (as I did)
B) manual adjustment with heated glass
C) power adjustment
D) power adjustment with heated glass
E) power adjustment with built in turn signal
F) chrome with various options.
Of course price swings significantly with added options.

*********
This has been done before, twice that I've noticed by having seen photos.

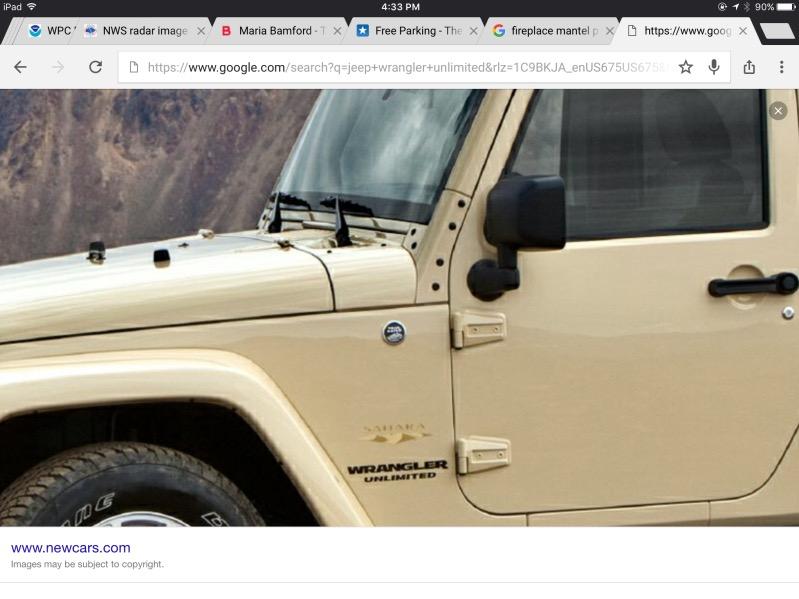

Here is the mirror unit on the Jeep.....

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


I ordered a left and right for about $34 each, they were shipped today.

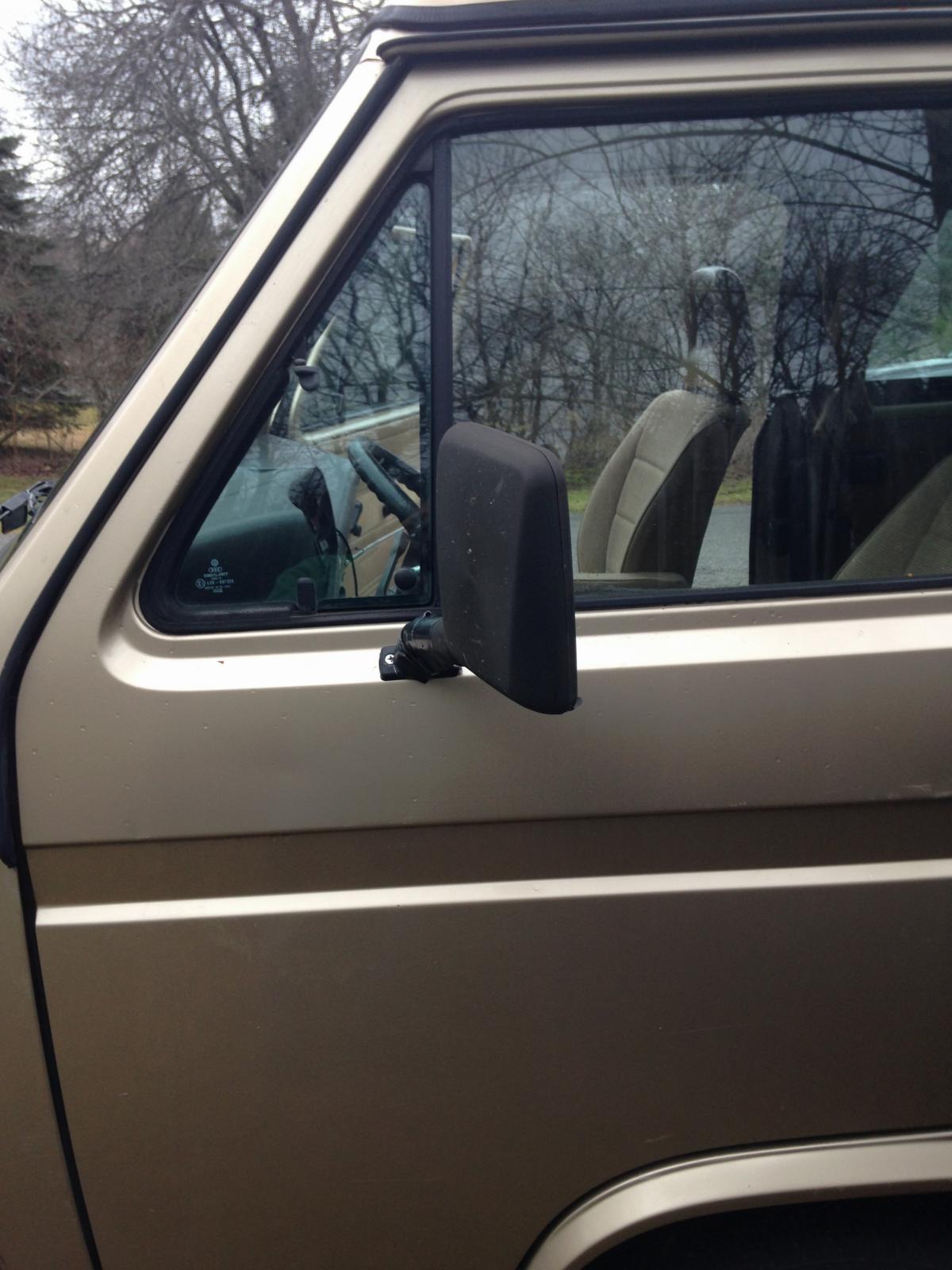

In order to get a start on the process I removed the factory mirror, I was expecting two screw holes....... Instead I got a 3rd center hole for power mirror wires...... Shocked

Image may have been reduced in size. Click image to view fullscreen.

_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert


Last edited by djkeev on Wed Mar 16, 2016 3:33 am; edited 4 times in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Mon Feb 22, 2016 3:59 pm    Post subject: Re: Installing Door Mounted Jeep Wrangler Mirrors Reply with quote

If the new mirrors work well, the three factory holes will eventually be welded closed and painted to match the body.

If the new mirrors are HORRIBLE, the original holes may be needed and the new holes for the Jeep mirrors will be welded shut....

For now I want to close the three holes in a neat manner.

I can use the factory gasket and a block off plate, a piece of steel, a piece of ridgid plastic or a piece of Aluminum.....

Wait! My new BULLY steps came with a upper reinforcement that I Cannot use on the Van....... This would be ideal to use as a block off plate!.
http://www.thesamba.com/vw/forum/viewtopic.php?t=648023

Image may have been reduced in size. Click image to view fullscreen.

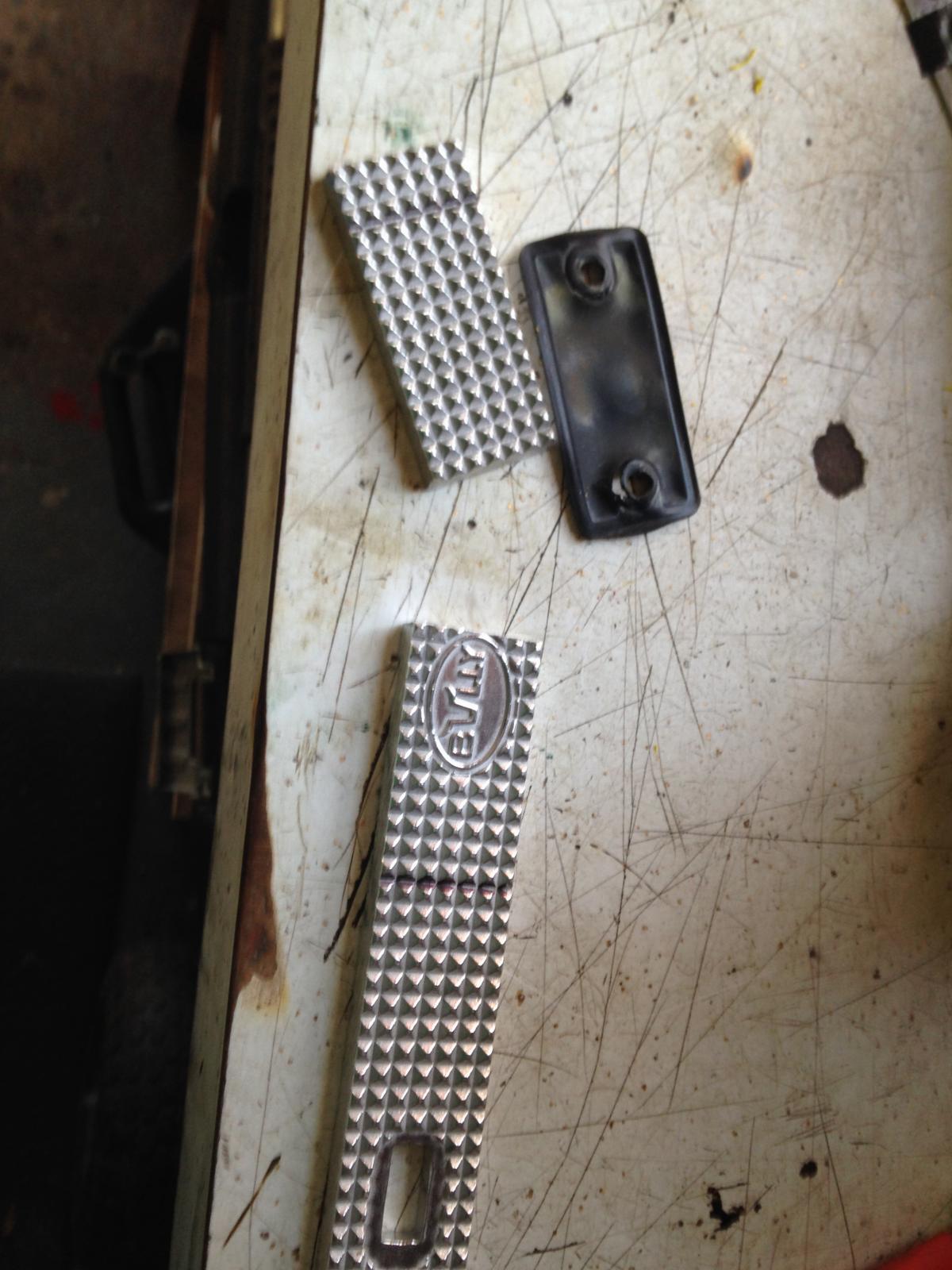

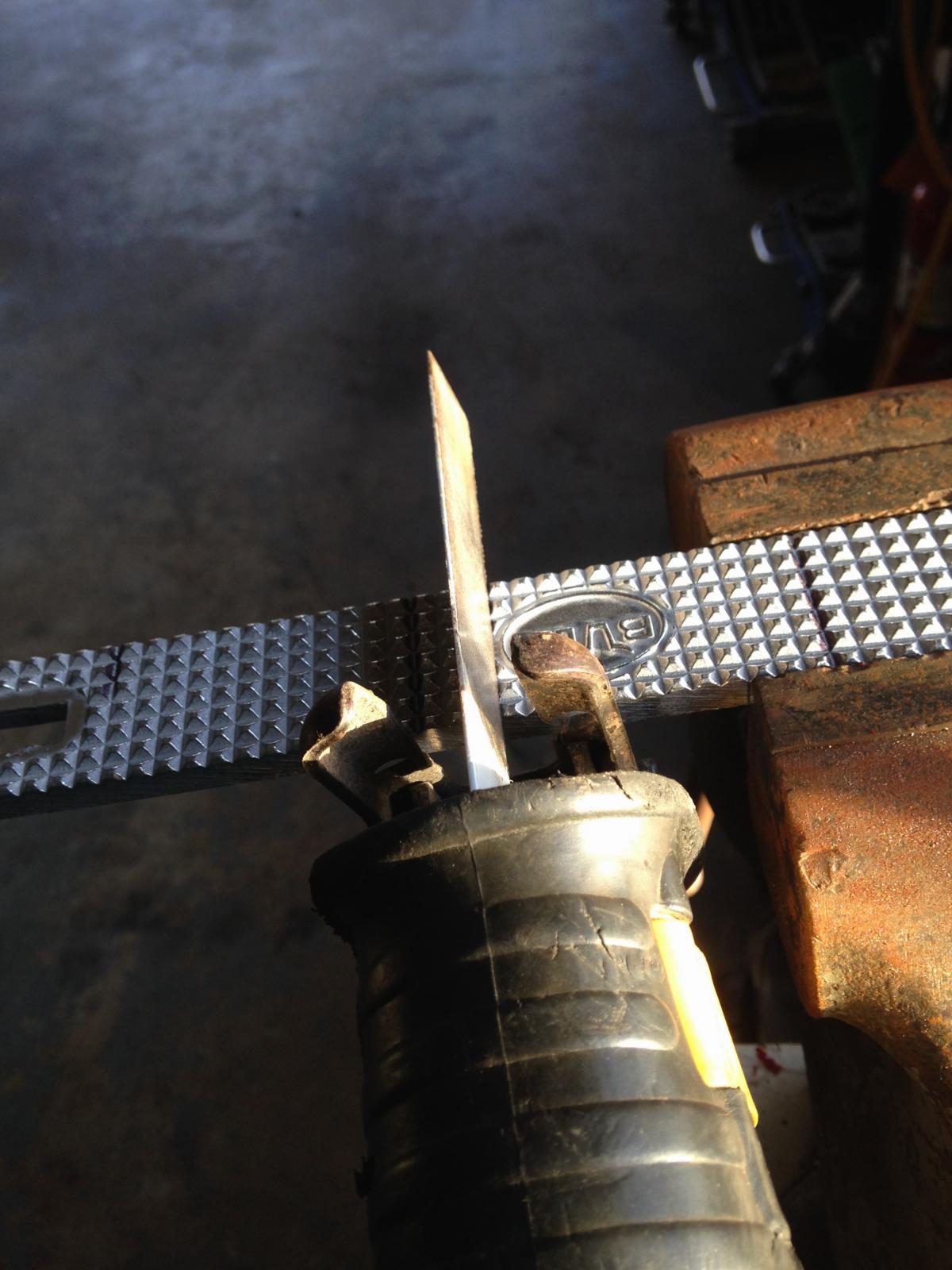

A little slicing and dicing......

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Also I'll need some holes but due to the textured surface it is best to drill from the rear so the bit doesn't "walk" off center.

I used the old mirror base as a template, center punched and drilled my holes. I Also countersunk the top for the factory mirror screws......

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

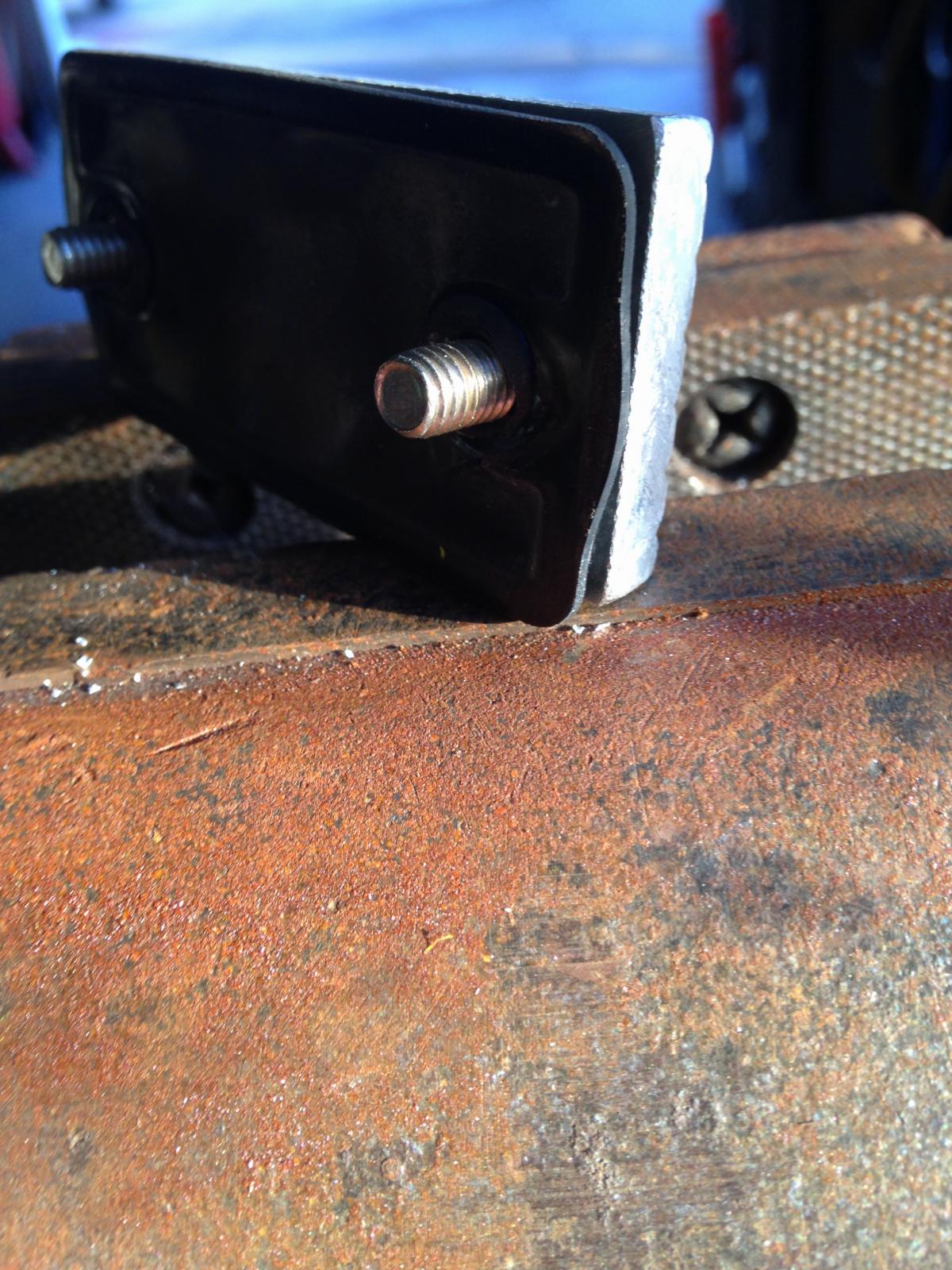

View with gasket and screws ready to install......

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

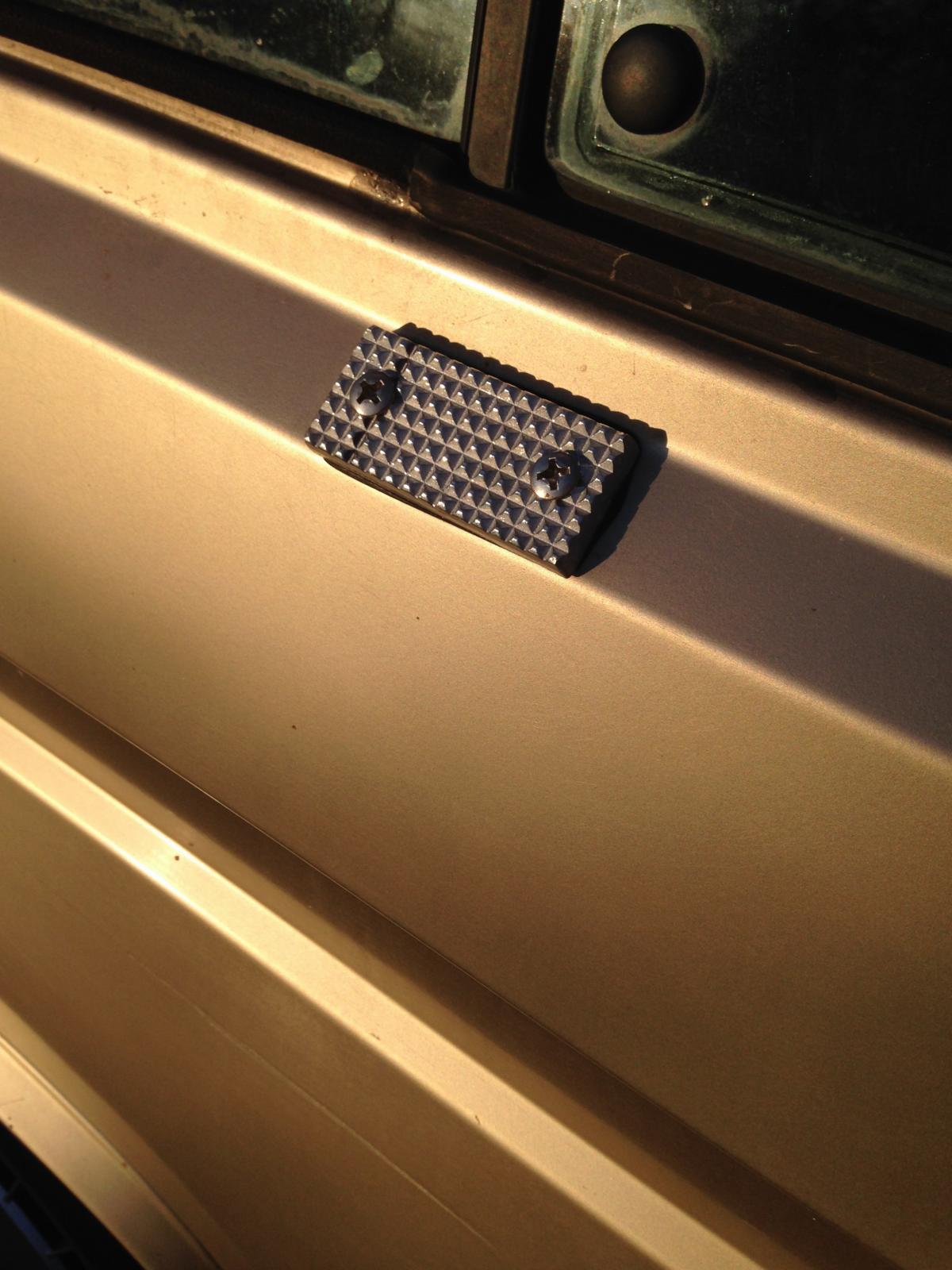

And here the plate is mounted......

Image may have been reduced in size. Click image to view fullscreen.


I don't have the Jeep Mirrors yet so the exact mounting is yet to be determined but I'm guessing that it will need to be forward of the vent window pillar approximately where I put the green "X"......

Image may have been reduced in size. Click image to view fullscreen.


Now to repeat for the drivers side.......

Here is a photo of a Vanagon with the Wrangler mirrors, I will need to make sure that the Vent Window is able to fully pivot......

Image may have been reduced in size. Click image to view fullscreen.
[/quote]

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert


Last edited by djkeev on Mon Feb 22, 2016 4:21 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
levi
Samba Member


Joined: February 11, 2005
Posts: 5522
Location: Las Vegas
levi is offline

PostPosted: Mon Feb 22, 2016 4:16 pm    Post subject: Re: Installing Door Mounted Jeep Wrangler Mirrors Reply with quote

Eyeballing that x location... looks like the wing windows will be prevented from opening completely ?

On this one, it's in line with the wing pillar, and kinda looks like it still may block the wing opening.

Image may have been reduced in size. Click image to view fullscreen.

_________________
One of these days I'm gonna settle down,
but till I do I won't be hangin round.
Going down that long lonesome highway,
gonna see life my way

https://youtu.be/cSrL0BXsO40


Last edited by levi on Mon Feb 22, 2016 4:23 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Mon Feb 22, 2016 4:23 pm    Post subject: Re: Installing Door Mounted Jeep Wrangler Mirrors Reply with quote

levi wrote:
Eyeballing that x location... looks like the wing windows will be prevented from opening completely ?


Yes! I just had that thought edited my post and posted a photo ..... Good eye!

Edit: just came in from the Van .... Brrrr ...... temps are dropping!
Anyway, a quick dirty measurement tells me the open vent window protrudes past the flat "belt" panel by about 2 1/2".
Careful measuring will be requred for exact placement.

Here is a front view of the mirror...... It will be close!

Image may have been reduced in size. Click image to view fullscreen.


Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Wed Feb 24, 2016 5:47 pm    Post subject: Re: Installing Door Mounted Jeep Wrangler Mirrors Reply with quote

Mark...... My friendly UPS driver, just dropped off two Jeep mirrors.

Sadly it's dark, hard rain, windy and we're in a tornado watch....... No test fitting tonight!

The mirrors look nice, they have a Loonnggggg mounting stud but that can be easily modified.

Photos tomorrow if my Van doesn't get sucked up into a cyclone! And I'm in Jersey! This is mid west weather!!!

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
DwarfVader
Samba Member


Joined: July 28, 2015
Posts: 646
Location: Missoula, MT
DwarfVader is offline

PostPosted: Wed Feb 24, 2016 7:43 pm    Post subject: Re: Installing Door Mounted Jeep Wrangler Mirrors Reply with quote

djkeev wrote:
Mark...... My friendly UPS driver, just dropped off two Jeep mirrors.

Sadly it's dark, hard rain, windy and we're in a tornado watch....... No test fitting tonight!

The mirrors look nice, they have a Loonnggggg mounting stud but that can be easily modified.

Photos tomorrow if my Van doesn't get sucked up into a cyclone! And I'm in Jersey! This is mid west weather!!!

Dave


Global warming. Cool

excited to see how they mount up.
_________________
- oderint dum metuant -

I'll find my van someday, or it will find me.
Back to top
View user's profile Send private message Visit poster's website Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Thu Feb 25, 2016 8:52 am    Post subject: Re: Installing Door Mounted Jeep Wrangler Mirrors Reply with quote

My Jeep Mirrors, Left and Right, right is disassembled in the photo.

Image may have been reduced in size. Click image to view fullscreen.


I disassembled the mirror to enable me to locate it on the door.
The greatest concern is being able to comfortably view the mirrors. The secondary concern is that the mirror does not hinder the vent window operation.

I removed the metal mounting and used the empty plastic mount housing to locate my mirror.
Doing so required me to mark the angle the mirror sets with the metal mount in place.

I also used a 3" Magnet to help hold the mirror in place on the door, while not strong enough to hold the mirror alone, it was a great aid in placing the mirror on the door..... I held the magnet in place with clear packaging tape...

Image may have been reduced in size. Click image to view fullscreen.


I first covered the area of the door that will accept the mirror with painters tape. A removal planning canvas.
I also used a straight edge to see how much curvature the door panel had. Vertically is very slight, Horizontally not at all.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Thu Feb 25, 2016 9:03 am    Post subject: Re: Installing Door Mounted Jeep Wrangler Mirrors Reply with quote

To begin, I made note of where the factory mirror sat in relation to the drivers normal viewing angle.
Here is the drivers side, just about in line with the Vent window vertical frame. The passenger side was similar but I failed to photograph it....

Image may have been reduced in size. Click image to view fullscreen.


I next held the mirror to the door. It required three hands but I'm way above average and got it located! You can see in the photo the vent window clears the mirror body..... Once locating this location I drew the outline of the mirror body onto the door (masking tape)

Image may have been reduced in size. Click image to view fullscreen.


Once the Mirror mount was drawn, I located the center of the circle and drew a vertical line using a common speed square. I used the horizontal belt molding crease as the true horizontal line and drew a perpendicular line through the mount circle.

Image may have been reduced in size. Click image to view fullscreen.

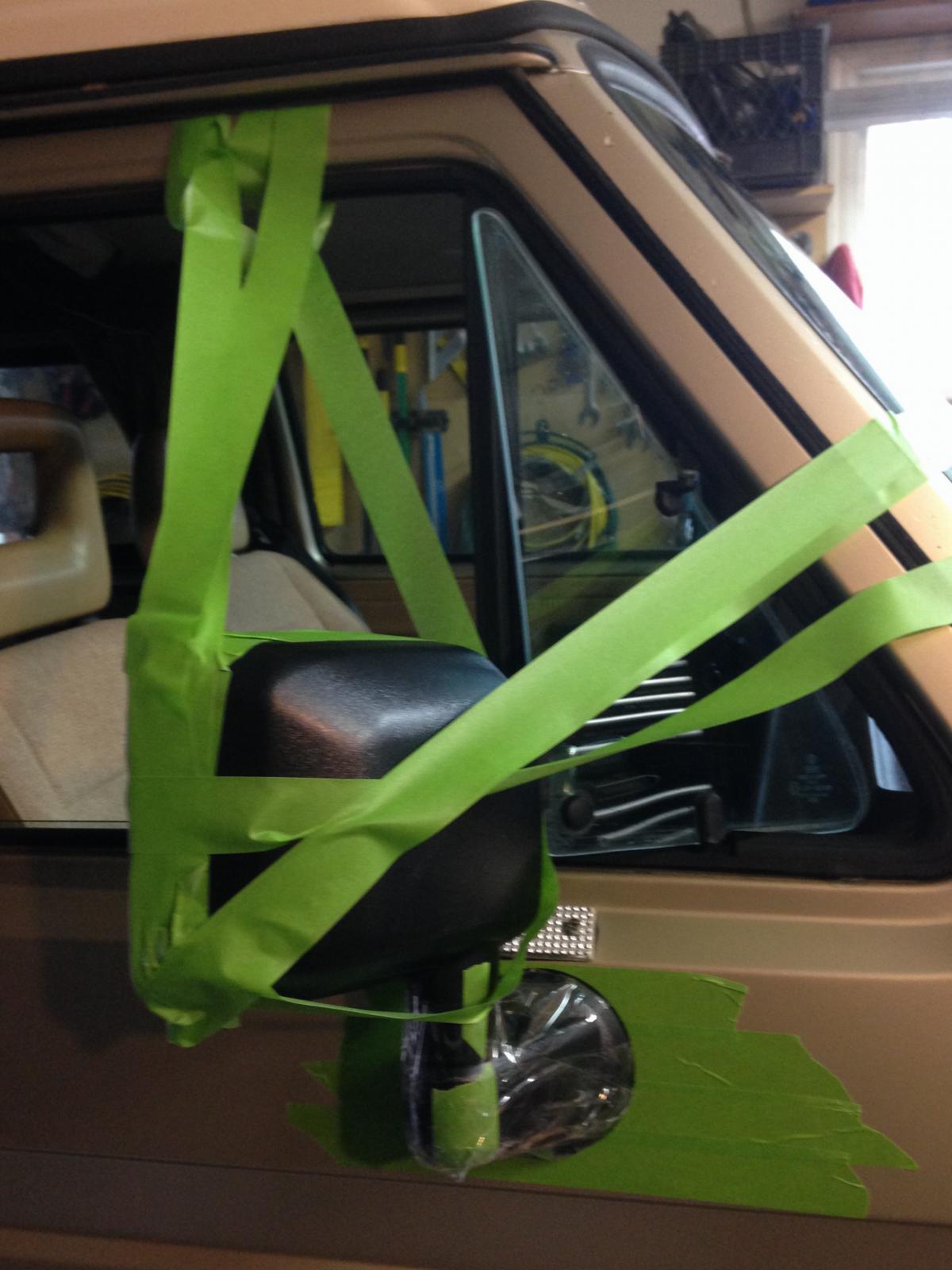

I then taped my mirror to the door using masking tape. It required some finagling to get it properly placed and vertical with the drawn line.
A lot of tape was used!!!

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


See the vent window clears the mirror head!!

Image may have been reduced in size. Click image to view fullscreen.


View from the drivers seat, adjusts just fine, very solid, good size mirror head too.....

Image may have been reduced in size. Click image to view fullscreen.


Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Thu Feb 25, 2016 9:14 am    Post subject: Re: Installing Door Mounted Jeep Wrangler Mirrors Reply with quote

Next is to pull the door panel, peel back the plastic and see If I can and How can I mount the mirror in my selected location!

Image may have been reduced in size. Click image to view fullscreen.


Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dobryan
Samba Member


Joined: March 24, 2006
Posts: 16450
Location: Brookeville, MD
dobryan is offline

PostPosted: Thu Feb 25, 2016 9:44 am    Post subject: Re: Installing Door Mounted Jeep Wrangler Mirrors Reply with quote

Dave, Is this your cure for floppy mirror syndrome? Razz

Image may have been reduced in size. Click image to view fullscreen.

_________________
Dave O
'87 Westy w/ 2002 Subaru EJ25 and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371

The Western Syncro build
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Thu Feb 25, 2016 1:04 pm    Post subject: Re: Installing Door Mounted Jeep Wrangler Mirrors Reply with quote

dobryan wrote:
Dave, Is this your cure for floppy mirror syndrome? Razz



Ha!
Yes it is..... Attractive..... No?

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Thu Feb 25, 2016 1:09 pm    Post subject: Re: Installing Door Mounted Jeep Wrangler Mirrors Reply with quote

Well.......

Just an FYI......

Blue tape is the front edge of the door glass......

Image may have been reduced in size. Click image to view fullscreen.


OK...... Center Punching and nerve wracking Pilot Drilling.......

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


1/2" bit walked a bit on tge top hole....... But no worries.... 1/2" is small....

Image may have been reduced in size. Click image to view fullscreen.


Not a final attachment but YES!!!!!

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


More details, mistakes and lessons learned (So you don't have to!) coming soon.......

But I'm happy! Vent Window clears! All is well!!!

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
newfisher
Samba Member


Joined: January 05, 2012
Posts: 1764
Location: The wet spot--Oregon
newfisher is offline

PostPosted: Thu Feb 25, 2016 2:16 pm    Post subject: Re: Installing Door Mounted Jeep Wrangler Mirrors Reply with quote

Looks GREAT!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Thu Feb 25, 2016 3:29 pm    Post subject: Re: Installing Door Mounted Jeep Wrangler Mirrors Reply with quote

newfisher wrote:
Looks GREAT!


Thanks!

I am really happy with these mirrors...... Sitting still.
A test drive for wind noise will be on the agenda.

I was concerned about the round mount looking "Odd" but really it fits right in quite well.

I Had my frustrations, I made my "Oh Shoot" mistakes and I determined how to do the drivers side in 1/4 of the time! I was inventing and modifying on the fly.

As with many things I do....... By the rime I complete the task and have it figured out...... I never need to do it again!

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Thu Feb 25, 2016 7:33 pm    Post subject: Re: Installing Door Mounted Jeep Wrangler Mirrors Reply with quote

Here is a photo of the inside of the RF door.

The bolt you see in the upper left? That is the front mounting screw for the factory door mirror.

The black channel? The front window channel.

Image may have been reduced in size. Click image to view fullscreen.


Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dhaavers
Samba Member


Joined: March 19, 2010
Posts: 7717
Location: NE MN (tinyurl.com/dhaaverslocation)
dhaavers is offline

PostPosted: Fri Feb 26, 2016 8:01 am    Post subject: Re: Installing Door Mounted Jeep Wrangler Mirrors Reply with quote

dobryan wrote:
Dave, Is this your cure for floppy mirror syndrome? Razz

Image may have been reduced in size. Click image to view fullscreen.

Gee I've never had to do that, say, on a cross-country road trip...(yes I have)... Embarassed

Image may have been reduced in size. Click image to view fullscreen.


Laughing Laughing Laughing

Looks really good - very nice work!

- Dave
_________________
86 White Westy Weekender
"The WonderVan"

<EDITED TO PROTECT INNOCENT PIXELS>
Back to top
View user's profile Send private message Gallery Classifieds Feedback
IdahoDoug
Samba Member


Joined: June 12, 2010
Posts: 10234
Location: N. Idaho
IdahoDoug is offline

PostPosted: Fri Feb 26, 2016 8:29 am    Post subject: Re: Installing Door Mounted Jeep Wrangler Mirrors Reply with quote

Cool mod!!
_________________
1987 2WD Wolfsburg Vanagon Weekender "Mango", two fully locked 80 Series LandCruisers. 2017 Subaru Outback boxer. 1990 Audi 90 Quattro 20V with rear locking differential, 1990 burgundy parts Vanagon. 1984 Porsche 944, 1988 Toyota Supra 5 speed targa, 2002 BMW 325iX, 1982 Toyota Sunrader
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Thu Mar 03, 2016 8:34 am    Post subject: Re: Installing Door Mounted Jeep Wrangler Mirrors Reply with quote

Well, Infinally finished the laundry list of "extras" that popped up once the door panel was removed!

Finished the Passenger Mirror install...... I am very very pleased. It actually looks like it belongs there.

On the drivers side I'll do it differently based upon what I learned by doing the passenger side. I'll lay out dimensions and a mounting "How To".

What I did on the passenger side works just fine....... But I'm not entirely proud of how it got there! .... Embarassed I'd never recommend that anyone do likewise.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


I would go for a test drive and listen for Wind Whistles and such but...... They're forcasting Snow and the anti-snow army is polluting the highways again....... Rolling Eyes

Image may have been reduced in size. Click image to view fullscreen.


Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Abelabelabel
Samba Member


Joined: November 17, 2014
Posts: 336
Location: Santa Ana, CA
Abelabelabel is offline

PostPosted: Thu Mar 03, 2016 9:16 am    Post subject: Re: Installing Door Mounted Jeep Wrangler Mirrors Reply with quote

Looks great! Definitely like they were meant to be there.
_________________
1991 Vanagon GL / Carat Interior / Auto - White "Daily"
1990 Vanagon Carat / manual / Cherry Red "Bella Rouge"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
otiswesty
Samba Member


Joined: November 21, 2006
Posts: 1729
Location: Portland
otiswesty is offline

PostPosted: Sat Mar 05, 2016 9:31 pm    Post subject: Re: Installing Door Mounted Jeep Wrangler Mirrors Reply with quote

Are those mirrors heated or elec adjustable?
_________________
1978 Sage Green P22 Westfalia
1989 T3 Syncro Single cab

Just a regular guy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4  Next
Page 1 of 4


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
