PostPosted: Fri Mar 04, 2016 7:52 pm    Post subject: Front door comparison: pre-86 and post-86 Reply with quote

Ive got an 87 tin top that beeds new doors. Im a hot sweaty guy and im lazy so i need power windows and locks.

Ive noticed there is a difference between late model passenger doors pre-1986 and post- 86 doors. According to the bentley pre-86 didnt have power windows. Id like to fit power mirrors, winows and locks. Anyone tried to retrofit these accessories to the pre-86 doors?

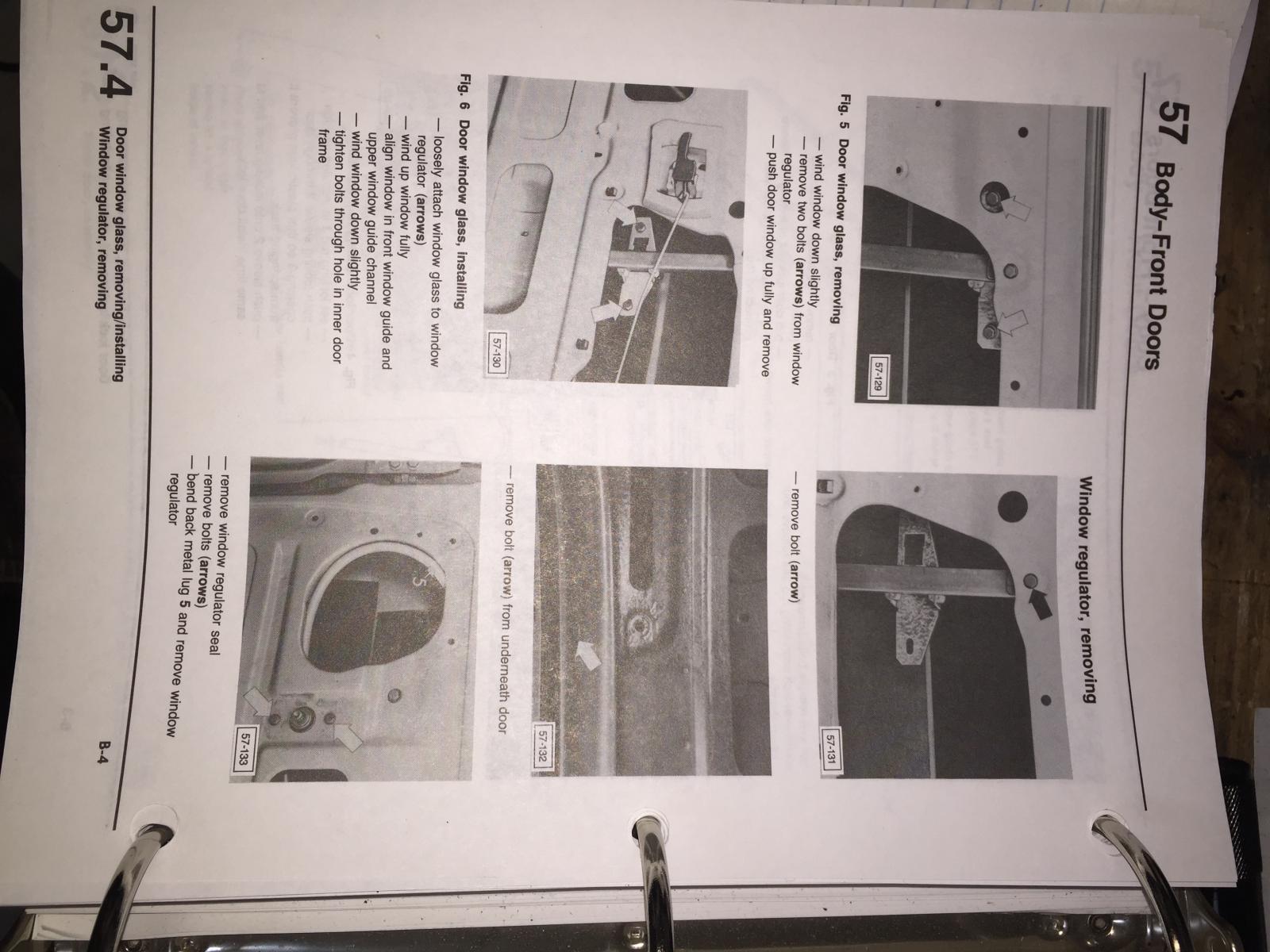

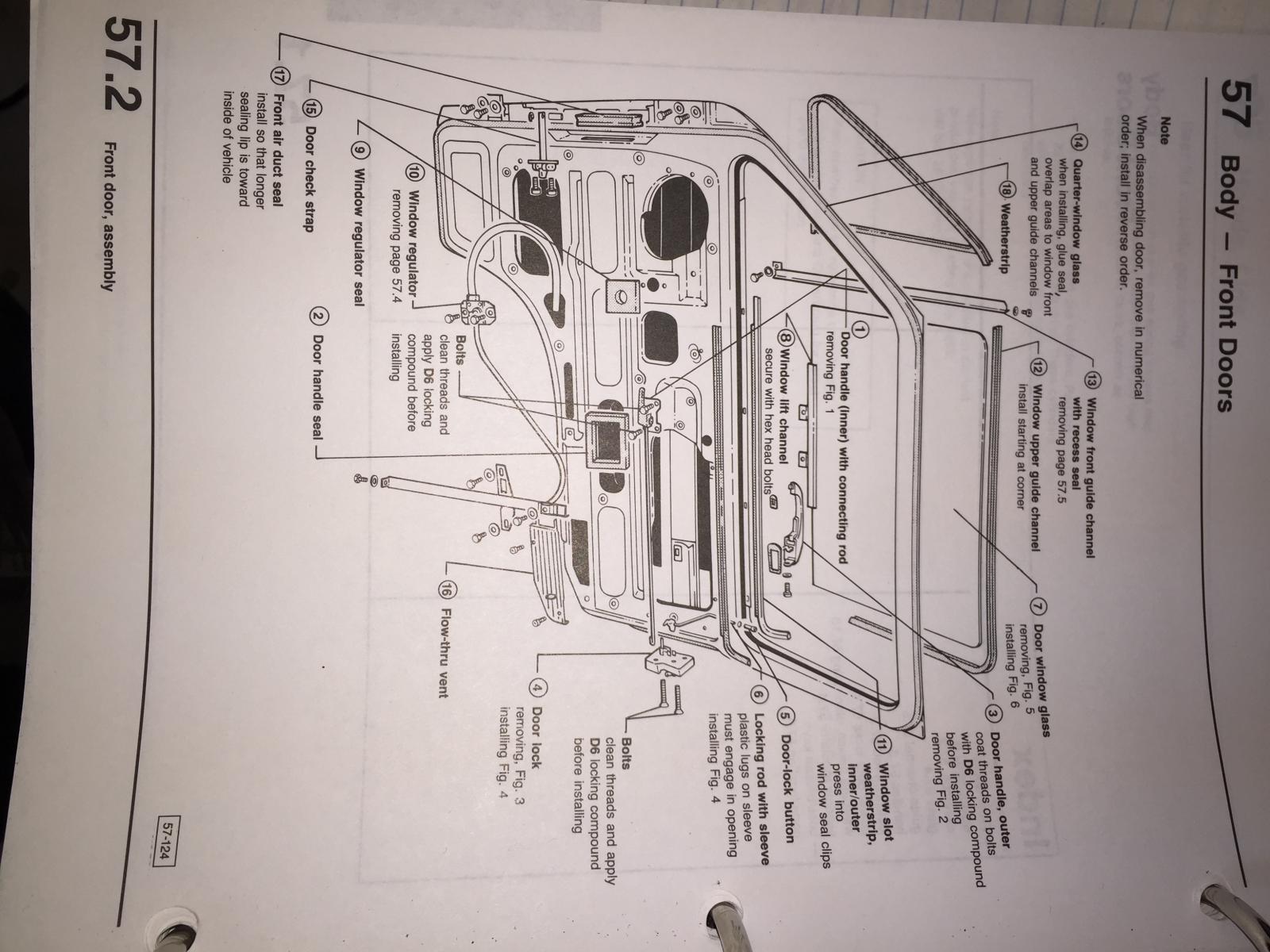

Here is the pre-86 info.


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


And the later model info. Sorry about the rotated photos. Not sure how to fix them in the samba.


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
VW LT40 build. Like a Vanagon but 30% larger in every direction and 40% slower even in metric.
https://www.thesamba.com/vw/forum/viewtopic.php?t=749359&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
syncrodoka
Samba Member


Joined: December 27, 2005
Posts: 11997
Location: Santa Cruz, CA
syncrodoka is offline

PostPosted: Fri Mar 04, 2016 8:13 pm    Post subject: Re: Front door comparison pre-86 and post 86 Reply with quote

The lack of the hole for the wiring harness to pass through the stock location is often a stumbling block for people with early model doors.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rmcd
Samba Member


Joined: October 29, 2010
Posts: 1348
Location: PNW - its a dry rain.
rmcd is offline

PostPosted: Fri Mar 04, 2016 10:40 pm    Post subject: Re: Front door comparison pre-86 and post 86 Reply with quote

I saw that and cut a new opening. Not pretty but will do. I see an indent near the big opening where the window crank cable can be seen.
_________________
VW LT40 build. Like a Vanagon but 30% larger in every direction and 40% slower even in metric.
https://www.thesamba.com/vw/forum/viewtopic.php?t=749359&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32367
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Fri Mar 04, 2016 11:25 pm    Post subject: Re: Front door comparison pre-86 and post 86 Reply with quote

FYI..... Front doors were redesigned for the 1988 model year as well......

http://www.thesamba.com/vw/forum/viewtopic.php?t=649032&highlight=

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
outwesty
Samba Member


Joined: June 06, 2006
Posts: 1074
Location: Tahoe City
outwesty is offline

PostPosted: Sat Mar 05, 2016 2:25 pm    Post subject: Re: Front door comparison pre-86 and post 86 Reply with quote

syncrodoka wrote:
The lack of the hole for the wiring harness to pass through the stock location is often a stumbling block for people with early model doors.


I found this out the hard way when replacing a front door on my 87. The door was supposedly from an 86 and did not have a hole for running any wiring into the door. Of course I found that out after I had installed it Wink It would be nearly impossible to drill the hole in the factory spot on an early door that allows you to use the factory rubber boot that the wires run through.
_________________
www.outwesty.com Vanagon / Syncro Repair in Tahoe City, CA
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
GreenMachineVW
Samba Member


Joined: August 08, 2008
Posts: 645

GreenMachineVW is offline

PostPosted: Sat Mar 05, 2016 3:04 pm    Post subject: Re: Front door comparison pre-86 and post 86 Reply with quote

The stock power window mounts are not on the early model door. You can see the difference in the pictures above.
