MOFOCO heads - is there any hope?
Goto page 1, 2  Next
Forum Index -> Performance - Engines/Transmissions Share: Facebook Twitter
Reply to topic
Print View
View previous topic :: View next topic
Author Message
sandshark
Samba Member


Joined: February 27, 2004
Posts: 92
Location: Warren, MI
sandshark is offline

PostPosted: Wed Dec 15, 2004 1:56 pm    Post subject: MOFOCO heads - is there any hope? Reply with quote

OK... before I discovered this board, I bought a set of 042's from MOFOCO. I have since read all the bad things stated about them on posts here on the forum.

But here is my question... are the casting themselve junk?

If I were to run them for awhile as is, and then eventually take them to a reputable head guy for port/polish/valves/springs/etc.... are they saveable or did I just get hosed?

These are brand new, not yet run by the way.

Thanks for your honest input!
_________________
Fins up~~^~~
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
toddb_67
Samba Member


Joined: November 28, 2003
Posts: 967
Location: Hansville, WA
toddb_67 is offline

PostPosted: Wed Dec 15, 2004 2:22 pm    Post subject: Reply with quote

MOFOCO has been suffering from some quality issues. If you think the heads are okay then run 'em. If you are second guessing them then take them to a good machine shop and have them inspect them for any obvious flaws and see what they say.
_________________
1970 Pastel White Westfalia
1971 Super Beetle Convertible (under construction) http://www.thesamba.com/vw/forum/viewtopic.php?t=582365&highlight=

busdaddy wrote:
Quote:
"I fold mine using search and lots of it, a liberal application of search makes almost any job go smoother, infact "I put that #%*@ on everything!"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bugman Jeff
Samba Member


Joined: May 20, 2004
Posts: 636
Location: Evansville, WI
Bugman Jeff is offline

PostPosted: Wed Dec 15, 2004 4:12 pm    Post subject: Reply with quote

A friend of mine just bought a set too. I tried to talk him out of it, but he did anyway because they are within driving distance from him. Sad
_________________
Restorer of Porsche Speedster 80486 Smile
Back to top
View user's profile Send private message Gallery Classifieds Feedback
auslander
Samba Member


Joined: January 07, 2003
Posts: 1784
Location: Heart Of Dixie
auslander is offline

PostPosted: Wed Dec 15, 2004 4:14 pm    Post subject: Reply with quote

Hey if you havent run them get your money back or buy from a reputable source
_________________
Zombie
Wandering...Have you found what your looking for?
66 POS Bus
69 Class 11 Beetle
!!! F**k Cancer !!!




Time's Tide will Smother You

"You can't throw a rock in Long Beach without hitting a tweaker" Steve Tucci
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
vwracerdave
Samba Member


Joined: November 11, 2004
Posts: 9591
Location: OKLAHOMA
vwracerdave is offline

PostPosted: Wed Dec 15, 2004 4:15 pm    Post subject: Reply with quote

If you don't think they are what you want and they are still brand new, I would list them on eBay and sell them and then buy exactly what you want. You'll spend less money in the long run. Always buy what you want the first time. Some people will not port/polish a used head.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Type 5 Joe
Samba Member


Joined: January 18, 2003
Posts: 1411
Location: Redmond Oregon (Central Oregon)
Type 5 Joe is offline

PostPosted: Wed Dec 15, 2004 4:18 pm    Post subject: Reply with quote

The castings themselfs are the problem... Get you're money back if you can.

Go get a set of C.B. 044's... Even with these, I replace the valves, retainers, and do about 30+ hours worth of work to before they are ready... and this is without any special port-work.

Definately not ready out-of the-box.

- Joe
Back to top
View user's profile Send private message Gallery Classifieds Feedback
nsracing
Samba Member


Joined: November 16, 2003
Posts: 5955
Location: NORTHERN VIRGINIA
nsracing is offline

PostPosted: Wed Dec 15, 2004 4:43 pm    Post subject: mofukyo heads? Reply with quote

did you say Mofukyo heads?

They are kind of soft. You will see it when you are boring or flycutting them on the mill. The chips are dull and has that low note cutting sound on them. Do not worry.. I use high grade C2 carbides to cut them with 1/32 radius and chip clearance built in the toolbit.

These just do not cut as good as the Brazilian heads or Mexican heads. The German ones...have that high pitched and hard cutting aluminum sound. The chips are nicely formed too.

Don't mind me..just babbling.

I know it does not take me 30 hours to flycut/bore and 3 angle valve job a set of heads...more like 2 hours. But I charge for 30 hours. JUST KIDDING AGAIN! People might think all machinists are rip offs.

Hey it is almost Christmas fellows. Let us be nice to everyone and pick up after the New Year.

regards. NSR.
_________________
Guilty of wind-doping.

All other info, lineboring or machine work, dynamic balancing, PM me.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Type 5 Joe
Samba Member


Joined: January 18, 2003
Posts: 1411
Location: Redmond Oregon (Central Oregon)
Type 5 Joe is offline

PostPosted: Wed Dec 15, 2004 5:47 pm    Post subject: Reply with quote

The Mofoco heads have worse problems than just the sound they make when you machine them... Rolling Eyes

It takes about + / - 15 hrs per head for the C.B. 044's

Ever take a look at what you get out-of-the-box?

The valve seats have steps that are about 1/16" - 1/8" surrounding each seat... the area near the plug has an almost verticle wall Shocked

The combustion chambers are huge... good for a non-quench motor.

The core shift is pretty extreme on the ports.. the valve-job needs to go gone-over.

Yes about 30 hrs for a Professional to do the work... Less time for a
V.W.anker Cool
Back to top
View user's profile Send private message Gallery Classifieds Feedback
nsracing
Samba Member


Joined: November 16, 2003
Posts: 5955
Location: NORTHERN VIRGINIA
nsracing is offline

PostPosted: Wed Dec 15, 2004 6:04 pm    Post subject: Brazilian heads... Reply with quote

Hi Joe..

I should have said I would rather work with Brazilian heads...if I can help it. Big valves and all-out.

Of course the Brazilians are NOT CB Eliminators or Super Flos, but for the most part are nice to start a nice super street heads.

Maybe you can still get your money back with return and receipt in hand. They are still NEW, right? The company should be able to take their items back. If NOT? then that should tell you something.

regards. NSR
_________________
Guilty of wind-doping.

All other info, lineboring or machine work, dynamic balancing, PM me.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
[email protected]
Samba Member


Joined: August 15, 2002
Posts: 2313
Location: Brew City
roy@mofoco.com is offline

PostPosted: Mon Dec 20, 2004 2:29 pm    Post subject: So, what exactly are the problems........ Reply with quote

with the cylinder heads and the net effect on the engine/life of the cylinder heads? Do you have any of the heads where this problem has occured during the life on an engine? These are not designed to be race quality cylinder heads. They are built for the street.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
1964VW
Samba Member


Joined: May 04, 2004
Posts: 464
Location: I live where people chew dip,just past the sticks...
1964VW is offline

PostPosted: Mon Dec 20, 2004 6:30 pm    Post subject: Reply with quote

I race on the street...
_________________
Jonks
Back to top
View user's profile Send private message Classifieds Feedback
Baja Bugster
Samba Member


Joined: December 20, 2011
Posts: 1
Location: Vancouver BC
Baja Bugster is offline

PostPosted: Tue Dec 20, 2011 12:58 pm    Post subject: Reply with quote

I had them ship me a set of 041's for my 1800 cc. fresh top end, these heads performed very well! I even changed my dual Kadron's to a single 34-3 and man they still flowed great! nice heads! No problem. I was very satisfied with Mofoco's service and price. I would buy again and highly recommend them!
Paul
Back to top
View user's profile Send private message Classifieds Feedback
the2ndcashboy
Samba Member


Joined: March 19, 2007
Posts: 580
Location: Shreveport
the2ndcashboy is offline

PostPosted: Tue Dec 20, 2011 1:10 pm    Post subject: Reply with quote

Oh my gawd! Talk about back from the dead! You dug deep to find this one...
_________________
SRP1 wrote:
You see....... He talks in code and translation requires a priest, geologist, astronomer, biophysicist, and Indiana Jones.
modok wrote:
If anything comes out perfect it just means your measuring tools are substandard.
Back to top
View user's profile Send private message Classifieds Feedback
itHaKa
Samba Member


Joined: February 20, 2008
Posts: 210
Location: Argentina
itHaKa is offline

PostPosted: Tue Dec 20, 2011 2:30 pm    Post subject: Reply with quote

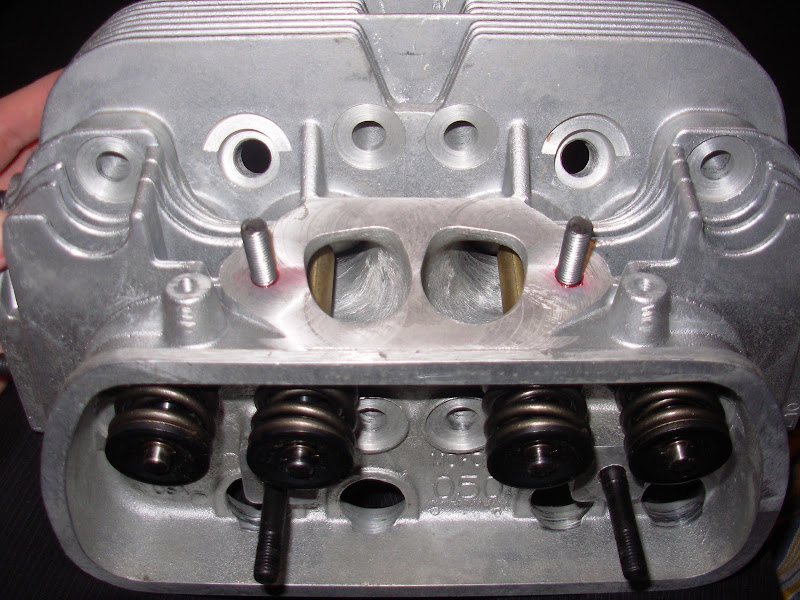

here some pictures from my 050 heads, they are still new, so i dont have personal experience with them .... yet .

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
_________________
76x88 , 1849cc engine build :
http://mundoescarabajo.com.ar/me/viewtopic.php?t=635
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Bad bug
Samba Member


Joined: March 11, 2006
Posts: 726
Location: Jamaica
Bad bug is offline

PostPosted: Tue Dec 20, 2011 4:32 pm    Post subject: Reply with quote

in the second photo from the top are those holes where the liner would rest, seems like they broke through to the fins when they machined these heads.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
neil68
Samba Member


Joined: March 17, 2007
Posts: 2576
Location: Canada
neil68 is offline

PostPosted: Tue Dec 20, 2011 4:36 pm    Post subject: holes Reply with quote

Yeah, those fin holes don't matter, since the compression "sealing" is all at the cylinder-to-head surface.
_________________
Neil.

Der Kleiner Rennwagens
68 Beetle 2332 cc, 204 WHP
12.6 seconds @ 106 mph
http://www.youtube.com/watch?v=B2jeGRqRUvo
Back to top
View user's profile Send private message Classifieds Feedback
mark tucker
Samba Member


Joined: April 08, 2009
Posts: 11193
Location: SHALIMAR ,FLORIDA
mark tucker is offline

PostPosted: Tue Dec 20, 2011 4:49 pm    Post subject: Reply with quote

hmm,how thin is it at the aera where it does seal??,I have the 042's about 10 years old,wedgeported and work great.(wish roy would update the chamber)
Back to top
View user's profile Send private message Classifieds Feedback
miniman82
Samba Swamp Donkey


Joined: March 22, 2005
Posts: 9482
Location: No F*uck Vagina
miniman82 is offline

PostPosted: Tue Dec 20, 2011 6:38 pm    Post subject: Reply with quote

This is a very old post that got dredged up from the depths...


For those that don't know, MOFOCO has come a long way in the QC department since this thread started. It's not even fair to compare, Roy has turned the place around completely. I've ordered from them several times, and will again in the future. Also, they have reworked the head castings (still made in USA).
_________________
Build thread: http://www.thesamba.com/vw/forum/viewtopic.php?t=212747

Glenn wrote:
satterley_sr wrote:

I just wanted to bitch but I'm getting no sympathy.


Welcome to the Samba.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
SRP1
Samba Member


Joined: January 06, 2007
Posts: 4227
Location: Escondido, CA
SRP1 is offline

PostPosted: Tue Dec 20, 2011 6:51 pm    Post subject: Reply with quote

miniman82 wrote:
This is a very old post that got dredged up from the depths...


For those that don't know, MOFOCO has come a long way in the QC department since this thread started. It's not even fair to compare, Roy has turned the place around completely. I've ordered from them several times, and will again in the future. Also, they have reworked the head castings (still made in USA).


x2, I was familar with the MOFOCO of old, seen thier work in the field,
spoke with customers, etc.
It is not what I see today, Hat's off to Roy and what he has done with
the business. Job well done Applause
_________________
Phenix Industries AN fittings- Stocking dealer
Braided hoses, AN Fittings, Fire Sleeve, E85 compatible braided AN line!!!- All 100% made in the USA!!!
Justice Brothers of San Diego
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
torsionbar
Samba Member


Joined: December 11, 2010
Posts: 2187
Location: earf
torsionbar is offline

PostPosted: Tue Dec 20, 2011 6:51 pm    Post subject: Reply with quote

Bad bug wrote:
in the second photo from the top are those holes where the liner would rest, seems like they broke through to the fins when they machined these heads.

doesn't matter, that area isn't used for sealing. you should know this already. you've got a porsche logo in your avatar. 3.0 liter (and larger) air cooled porsche 911 cylinder heads are like that from the factory.
_________________
Max Welton wrote:

[air cooled vw's] are no longer suitable for the general public. The owner has to be be able to maintain the car. And that is after fixing all the deferred maintenance items and ill-conceived modifications. If you can't do those things you are pretty much screwed.


Last edited by torsionbar on Wed Dec 21, 2011 2:11 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
