Steve Tims Heads Turn on always show all large photos     Ad id: 1069091
Additional Photos
Click to load image
L & R arrow keys scroll through photos
Stage 2

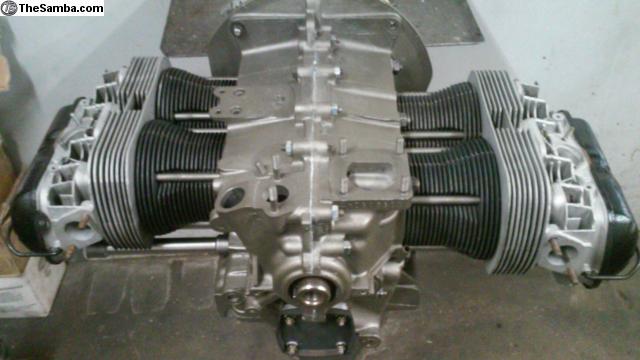

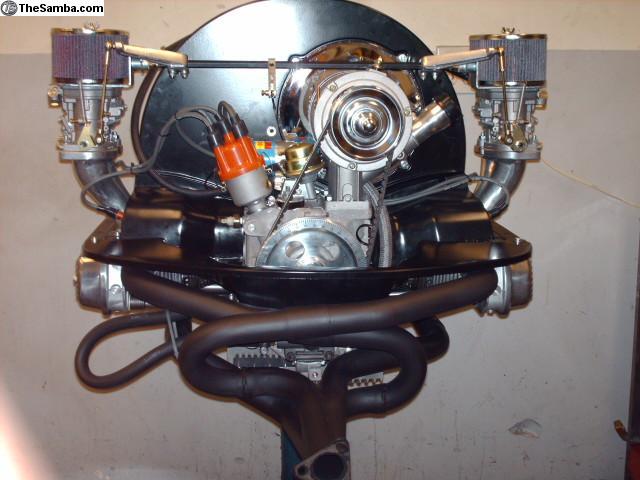

We sell longblock and turnkeys
FREE manifold match port
Our Race heads are race tested
Stage 1
Stage 1 with chambers
Stage 3 head
Weekend Warrior
Super Stock heads
Engine rebuilding
Steve Tims Heads   Price: $799 & up

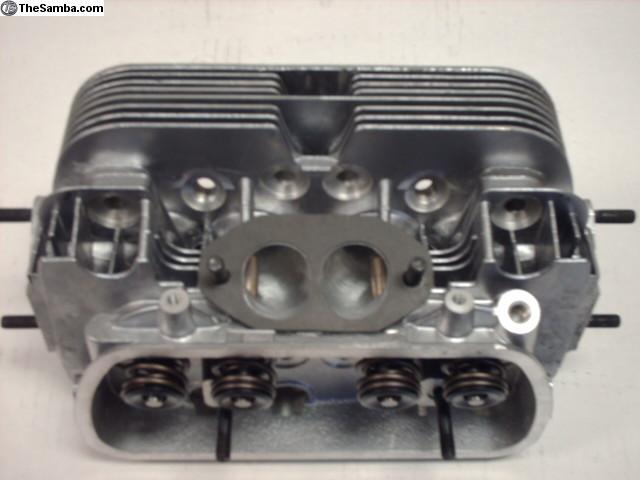

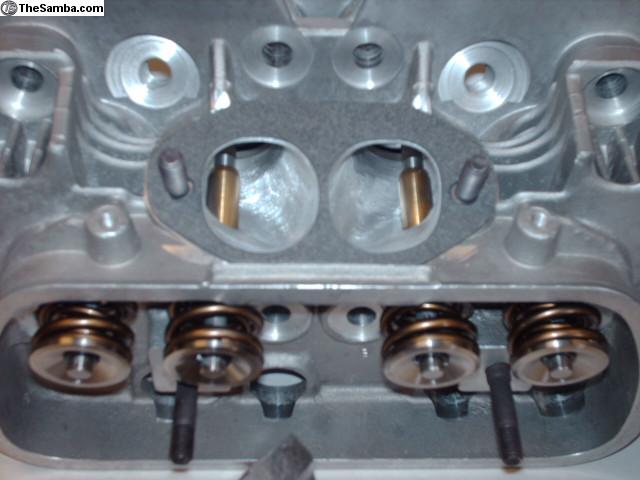

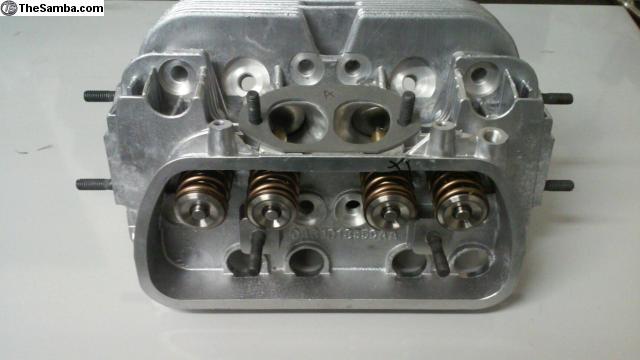

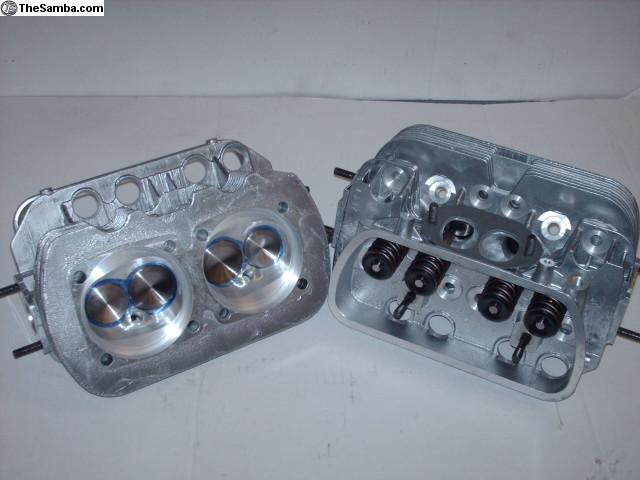

Steve Tims' Performance Workshop Ported and Polished Cylinder heads


Our heads are built on AA 043 castings. We start with bare castings and install our own quality silicon bronze guides and chromoly seats. 043 castings feature 12mm spark plus holes and a large cylinder base pad. The 043 casting has the best cooling of any type 1 head on the market. We offer a full line of heads. From mild to wild we have a cool running cylinder head option for you.
We can provide a chamber on the heads up to 60cc with no step

** Bore Heads 90.5, 92 or 94 INCLUDED**
**Manifold Match Porting INCLUDED**

Super stock heads 37x32 ported and polished round intake port, single spring $799

Stage 1 $865
-40 x 35mm Stainless valves
-Oval intake port 69cc port volume
-Ported chambers 60cc with no step
-Dual valve springs &Chromoly retainers
-3 angle valve job , Ready to install
-Ideal for small displacement street and off road engines

Stage 1 plus 42x37 $899
-42 x 37mm Stainless Valves
-Oval intake port 70cc port volume
-Ported Chambers 60cc with no step
-Dual Valve Springs & Chromoly retainers
-3 angle valve job, Ready to install
-Ideal torque head for stroker street and off road engines

Stage 2 $999
-42 x 37mm Stainless Valves
-"Street" port intake with 73cc port volume
-Ported chambers 60cc no step
-1 1/2" ported exhaust port
-Dual valve springs & Chromoly retainers
-3 angle valve job, Ready to install
- #1 choice for stroker street engines

Stage 3 Heads 42 x37 $1499
-42 x 37 Stainless Valves
-"Signature" welded race port with 77cc intake port volume
-Ported Chambers 60cc no step
- 1 5/8" ported exhaust port
-650 valve springs & Titanium retainers
- 3 angle valve job, Ready to install
-The ultimate head for 200+ hp street driven cars or all out Drag racing

Weekend Warrior Heads $1499
-42 x37 or 44 x37 Stainless Valves
-Race ported Intake 78cc Intake port volume
-1 5/8 ported exhaust
-ported chambers 58cc no step
-650 springs, Titanium retainers
- 3 angle valve job ready to install
-Built on the AA 501 casting , great for drag cars and weekend warrior street cars

Call or email to find out which heads are right for your engine.

We also offer a full line of Big valve heads built on the 043 AA casting!

37.5x32 "Super" Stock heads. A perfect upgrade for your stock dual port heads. These heads feature a larger 37.5 mm intake valve. Valve seat area is hand blended to ports. Stainless Steel valves, 3 angle valve job. 85.5 bore $299 each.

We also offer our "super " stock heads in a fully ported and polished configuration for $799 per pair

041 style heads 40x32mm valves Single HD spring, CM retainers . Hand blended seats. 3 angle valve job 90.5/92 bore $319 each 94 bore $329 each.


1600 cc Engine rebuilds. Rebuild your good core $2200 with new heads
Rebuild your good 1600 core to 1776, 1835 or 1914 $2600 with new heads
Type 4( 1.7 1.8 2.0) Rebuild your good core $2399

Visit our website www.performanceworkshop.net

*We can supply you with all the parts needed to build your engine at great prices.*

We build performance longblock and turnkey engines as well
In House Dyno
