Restored Distributors 36 hp Beetle 1955-1960 Turn on always show all large photos     Ad id: 1224662
Additional Photos
Click to load image
L & R arrow keys scroll through photos

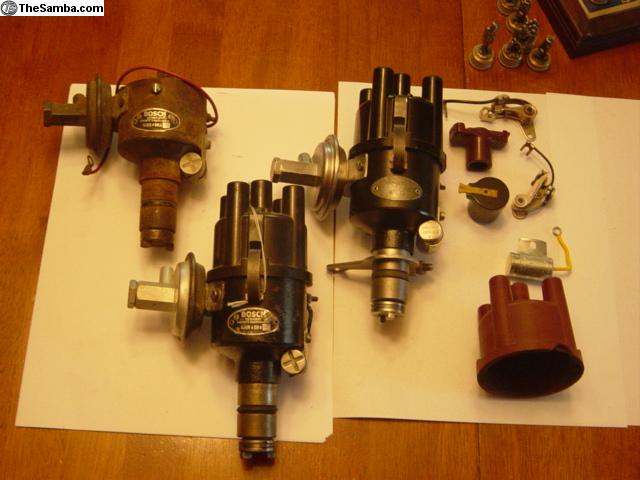

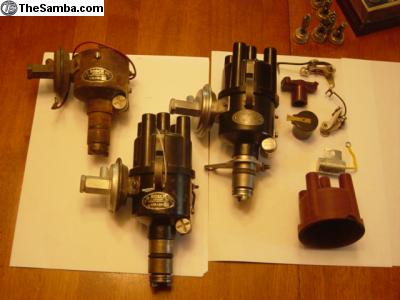

unrestored core on left with restored cores middle and right
All distributors tested using my refurbished 1947 SUN MSD
Restored Distributors 36 hp Beetle 1955-1960   Price: $165 shipped
These are the correct distributors for the early beetle. They are compatable with the 28 PCI carburetor. I have units ready to ship and many more cores. The following part numbers are found on these distributors:

VJU 4 BR 8 non resistor rotor
VJUR 4 BR 8 resistor rotor
0 231 115 020
0 231 115 040
0 231 115 005

These distributors have date stamps on them and I am willing to check my cores for a date stamp that matches your engine or chassis. I have over 60 cores from 1954 until 1960.

I can restore your core. It can be test run on my Sun Distributor Tester.

I can supply all of the tune up parts for these distributors at additional cost. The tune up parts with short Bosch number are:

points 003 two styles available
condenser 170
rotor 008 both resistor and non resistor types
cap 019

These distributors are static timed at 7.5 degrees BTDC with maximum advance of 32 degrees BTDC. This is a long running ad. I have many cores to choose from.

All distributors are completely disassembled,missing parts replaced and all parts thuroughly cleaned with non-toxic solvents. Cast iron bodies are painted with semi-gloss black engine paint. Units are reshimmed including new oil seals. Ground wires are checked using a VOM, points cams are checked for scratches and lightly polished. All moving parts are lubricated and Bosch grease is applied to the points cam. Each distributor is carefully reassembled and vacuum cans are tested using my restored 1947 Sun MSD distributor machine.

I have a limited supply of steel vacuum lines and dust covers. If you would like one request it at time of sale. They are $15 each.

Please see my other ads and feedback
