Split/Oval Baja pedals with custom wide clutch   Price: $240 exchange

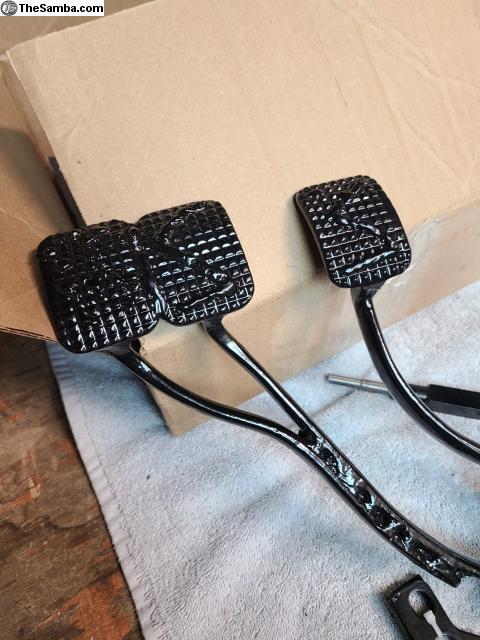

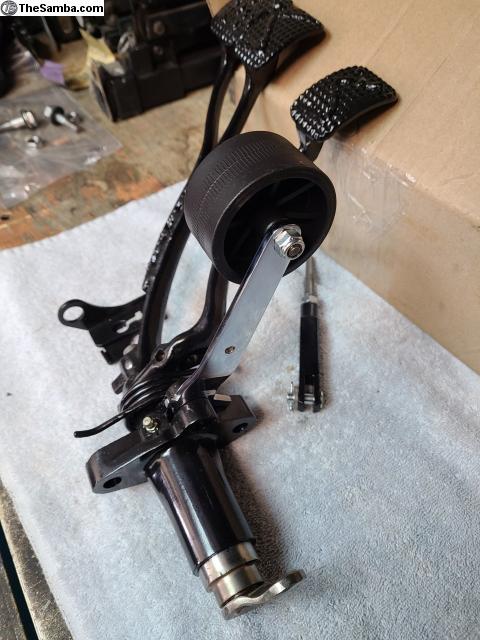

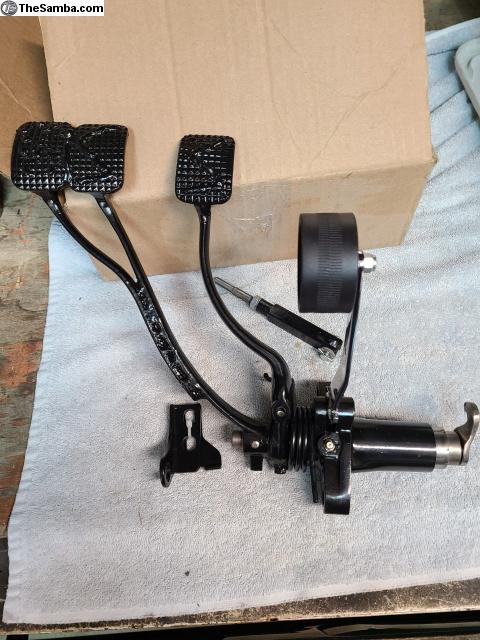

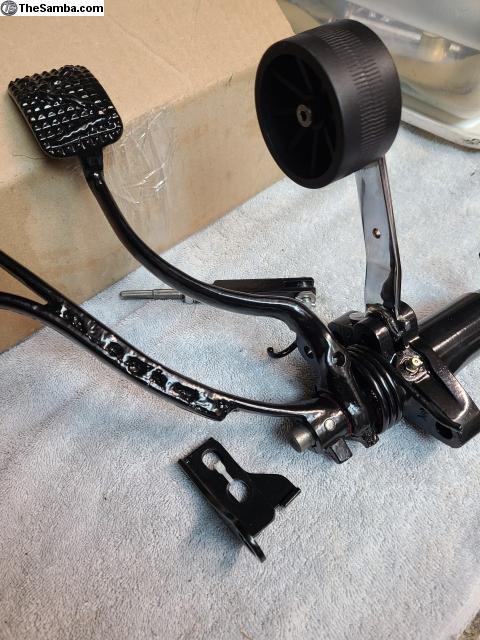

This is a factory set of split/oval/low light Ghia pedals that have had a second clutch pedal welded to the stock clutch pedal for wider spacing,

*PLEASE READ BEFORE CONSIDERING HAVING YOUR SPLIT/OVAL PEDALS RESTORED*

Please be aware of an issue with the design of the Split Oval pedal assembly’s where a small percentage of sets of pedals have a condition where when the clutch pedal and brake pedal are depressed at the same time ( as when coming to a stop) the brake pedal will stay depressed until the clutch pedal is released,
This can occur both before and/or after the pedals have been restored,
This is not considered a safety issue and pedals restored by Pedal Werks will make every effort to eliminate this but pedals are not warrantied or guaranteed not to have this issue, and this is not a refundable condition or another set of pedals will not be sent unless paid in full for another restoration.
Pedal Werks has been aware of this issue for many years and is working to find a solution

Pedal Werks VW Pedal Restoration Services www.PedalWerks.com [email protected] IG @pedalwerksdotcom Facebook PedalWerks.com

please specify Year of floor pan (and it has not been changed) and Deluxe (hydraulic brakes) or Standard (cable brakes)

I completely tear down the Pedal cluster, throw away the old bushings then Clean, Inspect, Bead blast all the parts. Only good serviceable parts will be reused.

Pedals are reassembled to factory specs including NEW BUSHINGS setting brake, and roller pedal "side Play"
The support and stop are repaired and welded as needed and powdercoated also. The master cylinder push rod is taken apart powdercoated and the threads are chased and a coating of anti seize is applied and a new cotter pin is supplied.

PEDALS are powder coated Gloss Black, then the parts are assembled with grease, than the assembly is greased through the factory Zerk fitting and ready to install.

Chrome or other finishes are available, see my other ads.

Shipping to the U.S. is $25

United States Postal Money Orders, PayPal, Zelle, Venmo and personal checks accepted,

breakdown is Pedal cluster $80, Roller Pedal $50(I DO NOT ACCEPT NON GERMAN ROLLERS AS CORES) , roller pedal pin $5, clutch support/stop bracket $15, brake pedal stop bracket $15, brake spring $10, clutch hook $20, push rod $75, push rod pin $5 ($240)

Bad or missing parts will be subtracted from core refund. Example $250 core charge paid. But core received back with aftermarket or unusable Roller pedal $170 will be refunded.


This ad is for up to Aug 1 1957' Beetles, KdF, Hebmullers, Zwitters, Kubels, and any Coachbuilt VW. 47 AND OLDER With STEEL BASE $100 ADDITIONAL CHARGE FOR THE CUSTOM MADE BUSHINGS.

please verify the year of your pan and that it has not been changed.

Add a Cruser Pedal for $100

Please check my Feedback
http://www.thesamba.com/vw/forum/viewtopic.php?t=302803&highlight=scott+stuart

I have 3 levels of restoration for the pre 57.

1) concourse would be spray painted semi gloss black with a stock clutch hook and 3 bushings as delivered from the factory original hardware and brake pedal push rod is maintained if any parts are not original i would replace them with og German at no additional cost. NOS extra cost where available

2) Daily driver same as above but would be powdercoat semi gloss or gloss black with stock or aftermarket heavy Duty clutch hook. Original hardware is maintained if possible.

3) Custom cars with big engines and clutches i recommend 4 bushings and aftermarket clutch hook, hardware is up graded as needed.

All pedals are fitted with original roller pedals unless other rollers are requested.. I have NOS roller pedals available for extra cost.

note effective Jan 2024 Sales Tax will be added to all inside California sales. (PW has been covering all sales tax for the last 18 years. cash sales will get free shipping and I will cover the Sales tax also.


See my other ads for other years including late "bullet Proof Pedals" & Right
Hand Drive
