Wiper Motor Controller 12Vin 6Vout Delay Turn on always show all large photos     Ad id: 310741
Additional Photos
Click to load image
L & R arrow keys scroll through photos

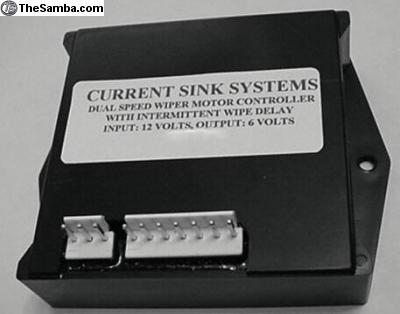

WIPER MOTOR CONTROLLER
CONTROLLER INSTALLED
DELAY CONTROL UNDER DASH
WIPER MOTOR CONNECTIONS
Wiper Motor Controller 12Vin 6Vout Delay   Price: $245
Dual Speed Wiper Motor Controller With Intermittent Wiper Delay

This wiper motor controller was designed to operate a 6 volt VW wiper motor in a 12 volt electrical system upgrade. It vastly improves the wiper motor performance over a VOLT-A-DROP resistor (BURN-A-MOTOR) or ADJUST-A-BURN and ALL other wiper conversion devices. Unlike other devices, the Wiper Motor Controller will provide maxim wiper performance under all conditions and will not damage your wiper motor.

The wiper speed is not affected by battery voltage, RPM or wiper blade drag. With over 60 wipes per minutes, even heavy rain is quickly cleared from the windshield. Ease of installation is also a consideration; replacing the motor armature requires much more time and does not provide dual speed or wiper delay. Other wiper motor options do not provide a regulated motor voltage for constant motor speed, which is independent of wiper drag and engine RPM. The motor controller provides better motor performance than the stock system, with the added convenience of wiper delay.

In locations where ice, snow or frost forms on the windshield a dropping resistor is not the best choice to operate your wiper motor. With ice, snow or frost on the windshield, more motor current is required to get the blades unstuck and move them over the uneven surface. As the current increases, the voltage drop across the resistor also increases, providing little or no voltage to the wiper motor. The Wiper Motor Controller provides a constant voltage to the wiper motor independent of the current. If the current exceeds the maximum safe level, the Wiper Motor Controller will prevent damage to the motor my limiting the current to the motor.

The original wiper switch operates the wiper continuously at high speed; just like the stock wiper motor operates. The delay mode operates the wiper at low speed with a 2 to 20 second delay and a wipe cycle is started immediately after the delay switch is turned on. The controller is encapsulated in epoxy for protection against moisture and vibration. The control knob can be mounted in a hidden location under the dashboard. Motor, linkage and wiper blade life is extended by using the intermittent wiper function.

The installation instructions provide a step-by-step installation and test procedure. All motor and power connections are made with push on terminals. The installer is not required to cut wires, strip wires or crimp terminals. This controller will operate a three terminal 6 volt wiper motor, with or without delay, as used in Beetles from 1958 to 1966. The controller will also operate a two terminal 6 volt wiper motor, with delay, as used in 1953 to 1957 Beetles.

The installation kit is included, it has mounting hardware and wiring harness.
The delay kit is included, it has the delay control, knob and cable.

YEARS AND MODELS OTHER THAN BEETLE 58 TO 66

Beetle 53-57, with two terminal motor, with park.
Options;
1. Use the two terminal original switch; will park. Will run at hi speed. Delay feature will function.
2. Use a three terminal original 1958 switch; will park. Will run at hi speed and park at low speed. Delay feature will function.

Bus 50-65, with two terminal motor, without park. Delay feature will not function.
Options;
1. Use the two terminal original switch; will not park. Will run at hi speed.
2. Use the two terminal original switch, with additional FAST/SLOW switch. Will run at hi speed and low speed.

The first production unit was installed in February 2006 and many units have been sold since. I have not received any complaints or returns. The customer remarks have been all excellent and the detailed installation instructions makes the installation easy.

This product provides the best possible wiper performance in the rain and offers personal safety, performance and unique feathers not available with any other device.

Warranty protects against defects in material and workmanship for a period of one year from the date of delivery to the original user.

Check my 100% POSITIVE feedback:
http://www.thesamba.com/vw/forum/viewtopic.php?t=224610&highlight=wsj+garlic

Check out our other ads:
http://www.thesamba.com/vw/classifieds/search.php?username=Wayne+S.+Johnson

Contact:
Wayne at 408 396-0676 in Gilroy, CA
Shipping and packing: $18 in USA, I accept US Postal money orders from USA buyers.
I answer all emails, but some emails are blocked; CALL ME if you donít receive a response in 24 hours.
