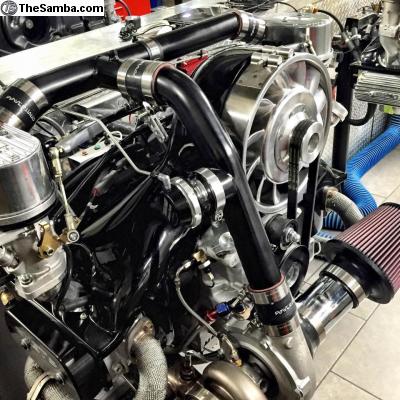

Powerhaus New 2332cc Turbo EFI Turnkey's Turn on always show all large photos     Ad id: 550433
Additional Photos
Click to load image
L & R arrow keys scroll through photos
Photo Photo
2854cc Turnkey-Autocraft 500HP
Ron's 2332-Driver in California
2854cc Driver-Sent to Mexico 500HP
Shop Bug-2275
Photo Photo Photo
Photo Photo Photo
Photo Photo Photo
Photo Photo Photo
Powerhaus New 2332cc Turbo EFI Turnkey's   Price: $15,495.00
BRAND NEW POWERHAUS 2332cc BLOW THROUGH DUAL THROTTLE BODY REDLINE WEBER ELECTRONIC FUEL INJECTION

Fits Completely Under The Deck-Lid

Street Driven- NO Heating Issues

High Quality- Specifically Chosen & Tailored Parts

Custom Built In House Per Application


LONG-BLOCK FEATURES
-Aluminum Super Case, Full Flow,Shuffle Pin,Added Material For Extra Strength,10mm Chromoly Head Studs,Steel Inserts
-PH 4340 Counter Weight 84mm Crankshaft, Chevy Journals,Magna Fluxed,Shot Peened,Nitrited,Micro Polished, Cross Drilled,Chamfered,Exta Long 8mm Dowel Pins
-New Gear Assembly, Hardware,Racer Spacer,Distributor Drive Gear,Pinion,Washers
-Scat H-beam Rods, 3/8 ARP Bolts,Chevy Journal
-Clevite Rod, Steel Back Main,Double Thrust Cam Bearings
-Turbo Grind Camshaft, Steel Straight Cut Gears
-Scat Light Weight Lube-a-Lobe Lifters
-PH Forged Chromoly Flywheel, 8 Dowel,Chromoly Gland Nut,Washer
-PH 30mm Cast Oil Pump, Jaycee Billet Powerflow Full Flow Cover,By-pass Return,H.P.Relief Springs,Plungers
-Scat 2qt.Deep Sump, Tapped -10 Turbo Oil Return,Oil Temp.Sensor,PH Billet Aluminum O-Ring Sump Plate
-Wiseco 94mm Pistons, Rings,Wrist Pins,Spiral Clips,PH Cylinders,PH Modified Cool Tins (rings-gapped,turbo prepped)
-PH Heads C&C Ported Intake, Exhaust,68cc Chambers,Copper Sealing Gaskets,Match Ported Manifolds,42x37.5 Stainless Valves,Multi Angle Valve Job,Dual Springs,Chromoly Retainers,Added Material,12mm 3/4 Long Reach Spark Plug,Turbo Prep, Built In The USA Heat Treated Castings
-PH Aluminum Double 0-ring Pushrod Tubes
-Pauter Roller Rockers, Chromoly Studs,Lash Caps,Manton .058th Chromoly Pushrods (geometry,shimmed,side playprepped)
-MST Billet Aluminum Valve Covers,Tapped 3/8 Vents
-Kennedy Stage 2 2100lb Pressure Plate, PH Clutch Disc,German T.O.Bearing
-Balanced Rotating Assembly

SHEET METAL, TOP END COMPONENTS
-Powder Coated, Modified Doghouse Shroud,Dual Port Tins,3pc Backing plate,Rear tins,Doghouse Oil Cooler,Adapter,55 Amp Alternator,Aluminum Alternator Stand,Billet Filler Neck,Stainless Strap,Welded Fan,Billet Upper & Lower Pulleys
-NGK Spark Plugs, PH 8mm Spark Plug Wires,PH Billet Fuel Pump Block,Billet Dip Stick

ELECTRONIC FUEL INJECTION FEATURES
-Redline Weber Sequential Fuel Injection
-Programmable Fuel Ignition ECU,Relay Box,Software,Data Cable to Connect to your Laptop,Tech Support With External Connection Capability
-Complete High Quality Shrink Tube Protected Wire Harness,Deutch Sealed Push Connectors
-PH Billet Aluminum Distributor, PH 8mm Spark Plug Wires,Redline Ignition Coil,Boost/Retard Capability,Rev.Limiter
-Dual 45mm Throttle Bodies, Linkage,Manifolds,Sensors
-Billet Aluminum Fuel Injection Fuel Pump, Fuel Pressure Regulator

TURBO, INTAKE, EXHAUST FEATURES
-Garret Journal Bearing Stage 3 Turbo
-Custom Blow Through Intake System, PH Silicone Hoses, PH Stainless Clamps
-Turbo Smart V-Port BOV, Ultragate 38mm Waste Gate
-Stainless Braided Fuel Hoses @ Engine, AN fittings, -6 Hose Ends
-PH Vacuum Distribution Block, AN Fittings,B-Nuts,Sleeves,German Cloth Braided Hoses
-Stainless Custom Built 1 5/8 Header, Header Wrap,Graphite Gaskets,Lock Nuts,Washers

UPGRADE OPTIONS
$2150.00-Bergmann Porsche Style Fan Shroud
-110 Amp Alternator, Cast Aluminum Cooling Fan,Fan Housing,Custom Wire Harness,Serpentine Upper,Lower Pulley,
Nuts,Belt,Tensioner
-Modified, Fitted Shroud,Tins,Linkage,Fuel Lines

$2000.00-Garret Ball Bearing GT Series V-Band Turbo (spools up 15% faster than bushing type turbo's)
-Modified Stainless V-Band Header,Billet Clamps
-Tial Stainless V-Band Exhaust Housing,Billet Wheel
-Turbo Smart WG-45 Waste Gate
-Turbo Smart Race-Port BOV

$595.00-Water/Methanol Injection Kit
-Injects A Specific Amount Of Water/Methanol Mix During Boosted Conditions-Helps Lower Intake Temperatures. Raises Octane Rating Allowing For Larger Boosted Conditions While Running On 91 Octane Pump Gas, Increases HP Output
-Pump, ECU,Jets,1 Gallon Holding Tank,Misc.Tubing,Fittings,Activation/Low Warning Indicators

ALL OF OUR ENGINE PACKAGES COME WITH 100% "BRAND NEW" PARTS THAT HAVE BEEN SPECIFICALLY CHOSEN, TAILORED, MACHINED, ASSEMBLED IN HOUSE & CAN BE SHIPPED WORLD WIDE OR PICKED UP FROM OUR TORRANCE BUSINESS LOCATION OPEN 6 DAYS A WEEK.

PICTURES SHOWN ARE FOR EXAMPLE ONLY,ENGINE COMBINATIONS & OPTIONS CAN DIFFER.

WEBSITE & ON-LINE SHOPPING https://shop.powerhausvwparts.com/
CURRENT PROJECTS & ENGINE BUILDS http://media44ys.onlineview.it/
YOUTUBE VIDEOS http://www.youtube.com/user/powerhausvw?ob=0&feature=results_main
FACEBOOK https://www.facebook.com/PowerhausJohn

Powerhaus
1938 Del Amo Blvd.#B
Torrance, Ca.90501
(310)328-2746
email - [email protected]
Mon-Fri 9:00am-6:00pm PST

_________________
POWERHAUS 1938 UNIT B DEL AMO BLVD.TORRANCE,CALIFORNIA 90501
