6 Volt Power Amp opt Bluetooth 4 Ch 100 W/Ch $445 Turn on always show all large photos     Ad id: 796241
Additional Photos
Click to load image
L & R arrow keys scroll through photos
XM-GTX6040
Photo Photo
Photo Photo Photo
Install MY57
Enclosure not included.
Enclosure and tweeter not included.
Photo Photo Photo
6 Volt Power Amp opt Bluetooth 4 Ch 100 W/Ch $445   Price: $445

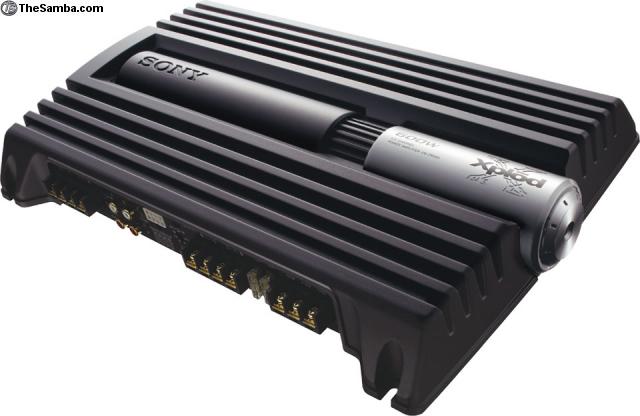

Sony XM-GTX6041 modified for 6 Volt systems

NOTE: DUE TO HIGH DEMAND THE FREE SPEAKERS ARE ALL GONE.

The internal power supply of the Sony XM-GTX6041 Power Amplifier is modified to operate in 6 Volt systems.

Options:

1. The 6 Volt amplifier provides two 12 V outputs. The unswitched output provides 12 Volts to a head unit memory. The switched 12 V output provides power to a head unit or an iPhone, iPod, MP3 player, CD player, Cassette player or Satellite Radio from a DC-to-DC converter inside the amplifier with maximum output of 1 Amp.

The Amplifier 12 V Accessory output is switched off when the Amplifier remote is off, which is used to control the CD player remote power (accessory) input. This feature shuts off the head unit with the 6 volt ignition switch, but maintains the memory so all your settings will not be lost.

The 12 V Accessory output has been tested with the iPhone, iPod, Pioneer DEH-4300UB and Alpine CDE-123 head unit using one USB device. The Alpine CDE-123 head unit will charge and control an iPod or iPhone. An iPhone using Pandora will provide satellite radio without a satellite antenna or monthly satellite radio fee.
http://www.youtube.com/watch?v=jD84_iGYkKM&feature=player_embedded#
http://www.youtube.com/watch?v=TX2qd3y3JmQ&feature=related
http://www.youtube.com/watch?v=wvam1soTByM&feature=related

Under evaluation: Alpine CDE-147BT
Alpine’s fully loaded CD/HD/BT receiver. This unit is packed with technology and service. Enjoy built-in HD Radio® with multi-cast channels, Bluetooth® Plus, iPod® and iPhone® music playback, SiriusXM compatibility, and Pandora® control for Android™ and BlackBerry® – All–in-one single-DIN receiver. With built-in Bluetooth for hands-free calling and Pandora audio streaming. Subwoofer level and phase controls. 6-channel preamp outputs (front, rear and subwoofer)
http://www.alpine-usa.com/product/view/cde-hd138bt/
http://www.youtube.com/watch?v=Hji1G3KMExU



A toggle switch or the ignition switch may be used to turn on the amplifier and head unit using the remote terminal. The modification was tested form 5.5 to 7.2 volts, it sounds fantastic.

NOW YOU CAN HAVE AN AWESOME SOUND SYSTEM IN YOUR 6 VOLT.
The sound quality is better than most home theater systems costing thousands.

I tested the amp, at clipping the amp output was 20 V RMS.
Power output is 20 squared * 4 ohms = 100 Watts with 7.2 VDC input each channel. The 55 W specification is indicating what the power is at 0.04% THD.
Also the 20 Hz to 20 kHz spec is the minimum, the output is flat 10 Hz to 60 kHz.

This is a full power 2 x 4 ohms battery current test.
The 12 Amp meter on the left is measuring battery current.
The digital meter on the right is measuring battery voltage.
The average current between the min and max current is about 8 Amps.
http://www.youtube.com/watch?v=l2QKlA4fh48
https://www.youtube.com/watch?v=6s86Xv0eXEs

SPECIFICATIONS:
Input Power requirements 6 V car battery (negative ground)
Input Power supply voltage 5.5 to 7.2 V
Head unit power supply output 12 V @ 1 A
Inputs RCA jacks
High level input connector
Input level adjustment range
0.3 to 6 V (RCA jacks),
2.8 to 12 V (High level input)
Outputs Speaker terminals
Speaker impedance 4 to 8 OHMS, DO NOT USE 2 OHMS
Maximum output 4 speakers: 110 W at 4 (at 4 OHMS)
Rated output (supply voltage at 7.2 V at amp terminals)
4 speakers:
55 W at 4 (20 Hz tp 20 kHz, 0.04% THD, at 4 OHMS)
Frequency response 5 Hz to 50 kHz (+0, -3dB)
Harmonic distortion 0.005% or less (at 1 kHz, 4 OHMS)
Low-pass filter 80 Hz, 18 dB/oct
High-pass filter 80 Hz, 12 dB/oct
NOTE: THE AVERAGE CURRENT DRAIN WITH MUSIC IS ABOUT 8 A
Dimensions:
Width 15.787 in.
Height 2.165 in.
Depth 10.394 in.
Weight 7 lbs.
Supplied accessories
Mounting screws (4)
High level input cord (1)
Protection cap (1)
Design and specifications are subject to change without notice.

WARRANTY:
Warranty covers the modification to be free from defects in materials and workmanship for a period of 60 days from the date of purchase. Products will be repaired or replaced if the modification failed under the terms of this warranty and product is sent to CURRENT SINK SYSTEMS for evaluation. Contact the CURRENT SINK SYSTEMS before shipping. Operating the product under extreme conditions that exceed the intended use will void the Warranty. Warranty is void if damage is a result of improper installation, removing cover, tampering or if the tamper sticker is broken. The shipping cost both ways will be the customers expense for all repairs. DANGER: POWER SUPPLY POLARITY REVERSAL WILL DESTROY THE AMPLIFIER AND VOID THE WARRANTY.




Customer emails and Forum posts:

A new happy customer 10/14/2015
https://www.youtube.com/watch?v=WeLhnobbytU
https://www.youtube.com/watch?v=Kn76LohRepc

Forum post by Dangermouse
http://www.thesamba.com/vw/forum/viewtopic.php?p=5112976#5112976

¡°Well I've been using and abusing Wayne's 6V amplifier for over a year now and I think I've given it a pretty thorough shake down so I thought I'd report back and say that it has operated flawlessly in my car and I have experienced no problems with running it.

Naturally, I had wondered initially about how the power input would go and, to be honest, I have been quietly amazed. I have a voltmeter and, running a 6V system, I tend to keep a weather eye of the state of the electrics.

I'm used to seeing the system voltage drop when, say, I turn the headlights on, or brakelights and seeing the needle bip up and down in time with the turn signals. When I turn the amp. on and up, the voltmeter doesn't even twitch. I take this to mean the amp. is using very little power, at least at comfortable (to me) volumes. We've been on several longer trips where the amp. has been going strong and loud for hours at a time to drown out the aircooled madness in the rear with no problems whatsoever. It really doesn't seem to draw anything noticeable from the electrical supply (I don't understand how that can actually be possible but there you go). Wayne can probably tell us exactly what current it uses but I'd estimate it uses less than a single headlight bulb if we can be imprecise about it.¡±

Hi Wayne,
Thanks for that, splitting the stereo signal into two fronts and two rears made a big difference. The two front speakers (Sony 16cm 3-Way Speakers, 40W Rated power) sound sweet.
I¡¯m stoked to be getting all of this from a 6V battery though!

***************************************************************

my 57. New 6 volt stereo
my59vw
wayne johnson 6 volt power amp in my 57 oval. with my motorola big m radio converted with an ipod jack. jl audio 6 inch sub under the back seat and jl audio components up front in speaker pods. also I have an alpine cde-123 cd player ran off the 6 volt power amp
http://www.thesamba.com/vw/forum/album_page.php?pic_id=806323

Forum discussions and installation options:
http://www.thesamba.com/vw/forum/viewtopic.php?p=4451365#4451365
http://www.thesamba.com/vw/forum/viewtopic.php?t=366459&highlight=
http://www.thesamba.com/vw/forum/viewtopic.php?t=275804

Check my 100% POSITIVE feedback:
http://www.thesamba.com/vw/forum/viewtopic.php?t=224610&highlight=wsj+garlic

Check out our other ads:
http://www.thesamba.com/vw/classifieds/search.php?username=Wayne+S.+Johnson

Contact:
Wayne at 408 396-0676 in Gilroy, CA
Shipping and Amplifier costs:
Options:
1. 12 Volt output for external device (CD Player, iPod, etc.): $75
Shipping and packing: Amp.
2. Shipping insurance is optional: $5. If you do not pay for shipping insurance, I will not replace lost or damaged items.
3. Bluetooth option, $100.
I accept US Postal money orders from USA buyers.
I answer all emails, but some emails are blocked; CALL ME if you don't receive a response in 24 hours.
*****Please send your phone number and address with your email.*****
