 Posted: Sat Jul 17, 2010 3:36 pm Post subject: hockey stick question |
 |
|

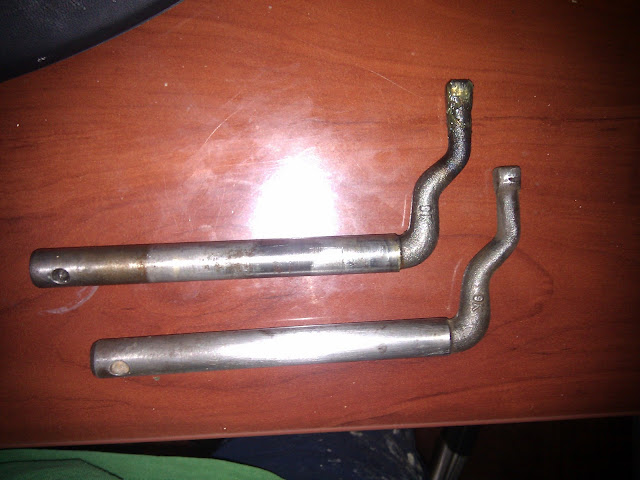

I have a full synchro tranny in a '59 bug. I just had it rebuilt. We put a bus nose cone on it -211-301-205 so I could still use rubber mounts and not mod the the mounts.
Anyway, the hockey stick I have doesn't appear to line up properly. I looked on line and saw that I needed to use a special hockey stick 113-311-541.
I bought what I thought was a 113... hockey stick but it looks exactly like the one I am taking out. I think the one that I need has a different bend.
Can someone show me what the 113-311-541 looks like? Are these the wrong ones?
|
|
| Back to top |
|
 |
Bruce
Samba Member
Joined: May 16, 2003
Posts: 17658
Location: Left coast, Canada
|
| Posted: Sat Jul 17, 2010 10:28 pm Post subject: |
|
|
You must use a hockey stick like the one in the right :
_________________
| overheard at the portland Swap Meet... wrote: |
| ..... a steering wheel made from a mastadon tusk..... |
|
|
| Back to top |
|
|
jstgtpaid
Samba Member
Joined: April 08, 2010
Posts: 19
Location: Tampa, FL
|
| Posted: Sun Jul 18, 2010 6:24 am Post subject: |
|
|
| Is there any place other than cip1 to get that rascal? What part number should I be asking for? |
|
| Back to top |
|
|
bill may
Samba Member
Joined: August 27, 2003
Posts: 14160
Location: san diego,ca
|
|
| Back to top |
|
|
jstgtpaid
Samba Member
Joined: April 08, 2010
Posts: 19
Location: Tampa, FL
|
| Posted: Sun Jul 25, 2010 1:39 pm Post subject: |
|
|
I got a used type two hockey stick. The problem with the type 2 hockey stick is that they have the coupler hole on the bottom. I will need to drill a hold on top so that I can connect my coupler to it.
My question is, how can I be certain where to drill the top hole? |
|
| Back to top |
|
|
Bruce
Samba Member
Joined: May 16, 2003
Posts: 17658
Location: Left coast, Canada
|
| Posted: Sun Jul 25, 2010 11:59 pm Post subject: |
|
|
Assemble the hockey stick in the Bus nose cone. Now rotate it left and right to find the center. Pull or push it into 2nd or 1st gear. The hockey stick should now be in the mid position of it's rotation. Mark it with your sharpie right at the top. Now shift it into 3rd/4th and mark that. Now go over to reverse and mark that. Your 1st/2nd position should be very close to half way between the R and 3rd/4th. If it is, now you're ready to drill. I took a drill bit about the right size and ground it with a really pointy tip to match the angle on the factory divot.
_________________
| overheard at the portland Swap Meet... wrote: |
| ..... a steering wheel made from a mastadon tusk..... |
|
|
| Back to top |
|
|
zabo
Samba Member
Joined: May 24, 2005
Posts: 1205
Location: ATL
|
| Posted: Mon Jul 26, 2010 11:27 am Post subject: |
|
|
ive had this set up in mine for abt 2 years now- the only thing that really bugs me is the coupler ends up screwing to the very tip of the bus hockey stick. Doesnt seem like a super strong connection.
Anybody else have this problem or did i do something wrong?
_________________
1960 36hp sedan- 1978 adventurewagen
What will you do when the label comes off and the plastic's all melted and the chrome is too soft? ~FZ |
|
| Back to top |
|
|
bill may
Samba Member
Joined: August 27, 2003
Posts: 14160
Location: san diego,ca
|
|
| Back to top |
|
|
zabo
Samba Member
Joined: May 24, 2005
Posts: 1205
Location: ATL
|
| Posted: Mon Jul 26, 2010 7:50 pm Post subject: |
|
|
What?  Don't really know what could be messed up... Bus nose cone hockey stick. Stock coupler.
When I ordered the hockey stick from long enterprises the guy talked about this happening but I haven't heard anyone on here mention anything about it. I think I talked with you before bill about trimming the rear tin. Thought this was just an extention of that issue.
_________________
1960 36hp sedan- 1978 adventurewagen
What will you do when the label comes off and the plastic's all melted and the chrome is too soft? ~FZ |
|
| Back to top |
|
|
jstgtpaid
Samba Member
Joined: April 08, 2010
Posts: 19
Location: Tampa, FL
|
| Posted: Sat Aug 07, 2010 12:35 pm Post subject: |
|
|
I apologize... Just to clarify on Bruce's directions...
Let's assume I have the tranny out and the hockey stick/nose cone attached and it is in neutral. I rotate the hockey stick left (counter clockwise) and right(clockwise) to find the mid point of the movement. Then I push in on the hockey stick to engage first gear. If I engage first gear successfully, I mark the top of the hockey stick with a sharpie.
Then I pull on the hockey stick (the same distance as I pushed it) and ensure that it is back in neutral by rotating it back and forth. How do I engage 3rd gear? Do I rotate the hockey stick counter clockwise, then push forward to engage 3rd gear? after I engage 3rd gear, I assume I mark the top as I did with 1st.
Then I get it back into neutral. How do I engage reverse?
Once I have reverse engaged and mark the top, I have three marks. Which mark do I drill?
Sorry for the late response... I appreciate you taking the time to answer my questions!
Steven |
|
| Back to top |
|
|
Bruce
Samba Member
Joined: May 16, 2003
Posts: 17658
Location: Left coast, Canada
|
| Posted: Sat Aug 07, 2010 4:49 pm Post subject: |
|
|
To get 3rd, rotate it CW then push.
To get reverse, rotate it CCW, then pull.
Drill your divot at the middle line. You mark the others to verify the first mark is truely in the middle.
_________________
| overheard at the portland Swap Meet... wrote: |
| ..... a steering wheel made from a mastadon tusk..... |
|
|
| Back to top |
|
|
jstgtpaid
Samba Member
Joined: April 08, 2010
Posts: 19
Location: Tampa, FL
|
| Posted: Sat Aug 07, 2010 6:51 pm Post subject: |
|
|
| Thank you very much, Bruce! I appreciate it! |
|
