 Posted: Fri May 01, 2009 10:05 am Post subject: so42 rear facing seat |
 |
|
I need the dimensions for the rear facing seat in a non-walk thru westy.
I have a bay closet and I'm planning on making one.
I have never seen one for sale...any help/pictures/ thank you!
_________________
"If you don't do it this year, you'll be one year older when you do." -Warren Miller |
|
| Back to top |
|
 |
Major Woody
Samba Enigma
Joined: December 04, 2002
Posts: 9016
Location: Portland, OR
|
| Posted: Fri May 01, 2009 10:14 am Post subject: |
|
|
Jeremy, you are really going to need to make paper templates from an original one. There are many curved cuts on it to match the contour of the side of the bus, the back of the bulkhead, etc, and then there is the interior "map pocket" compartment with its bottom etc.
I'd suggest you find an upcoming show near you and then use the forums to find someone bringing their SO-42 westy. Try to link up for an opportunity to remove the seat and make those templates. |
|
| Back to top |
|
|
jeremy57ride
Samba Member
Joined: May 23, 2005
Posts: 1340
|
| Posted: Fri May 01, 2009 11:19 am Post subject: |
|
|
Major Woody, it's funny you should reply. I'm getting ready to do the whole interior and your "baltic birch" stain recipe has been added to my archives. Thanks for the detailed information!
I've been to a few shows and continue to see the walk thru westys...I honestly have never seen a rear facing bench seat!
_________________
"If you don't do it this year, you'll be one year older when you do." -Warren Miller |
|
| Back to top |
|
|
wudbuch
Samba Member
Joined: November 15, 2003
Posts: 58
Location: lehman
|
| Posted: Fri May 01, 2009 1:43 pm Post subject: |
|
|
I have a 66 so42 non walkthrough and am in northeast pa I have the interior out of the bus so I could take some pics for ya if needed shoot me a mail [email protected]
_________________
68 bug daily driver
66 westy non walkthrough velvet green |
|
| Back to top |
|
|
jeremy57ride
Samba Member
Joined: May 23, 2005
Posts: 1340
|
| Posted: Fri May 01, 2009 1:56 pm Post subject: |
|
|
Thank you! Message sent.
If I get a decent one of these made, I'll be sure to share the info...
I haven't seen alot of topics on these.
_________________
"If you don't do it this year, you'll be one year older when you do." -Warren Miller |
|
| Back to top |
|
|
nimbus
Samba Member
Joined: April 15, 2004
Posts: 1302
Location: Jacksonville, N. FL
|
| Posted: Fri May 01, 2009 5:14 pm Post subject: |
|
|
I am looking to make one of these, or buy one...they don't come up too often.
_________________
Notchback
Bug
Single Cab |
|
| Back to top |
|
|
jeremy57ride
Samba Member
Joined: May 23, 2005
Posts: 1340
|
| Posted: Tue May 05, 2009 10:55 am Post subject: |
|
|

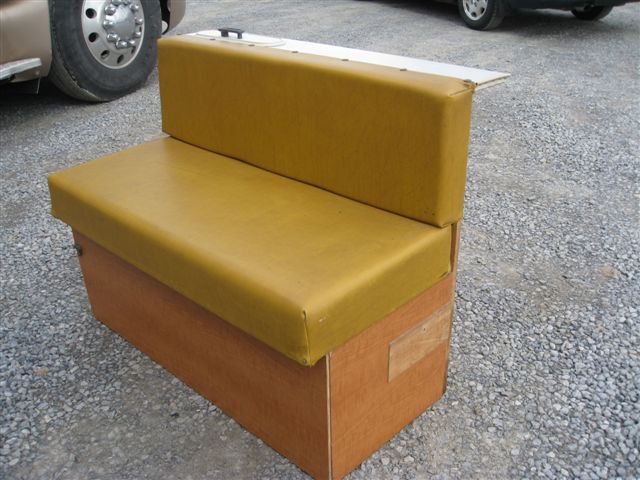

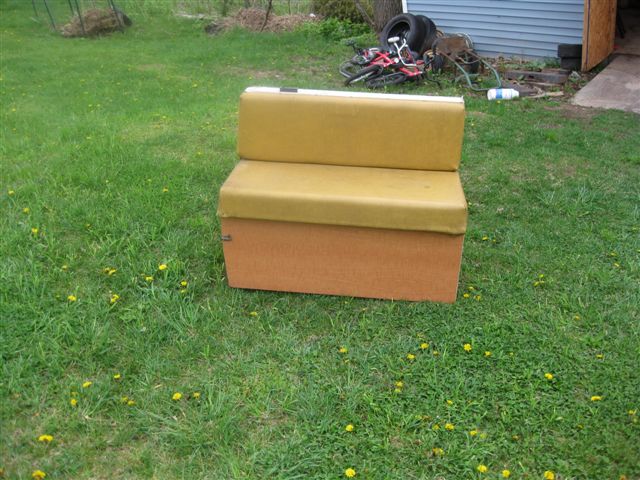

Thanks for the detailed pictures Matt.
Dimensions to follow...
_________________
"If you don't do it this year, you'll be one year older when you do." -Warren Miller |
|
| Back to top |
|
|
jeremy57ride
Samba Member
Joined: May 23, 2005
Posts: 1340
|
| Posted: Tue May 05, 2009 10:58 am Post subject: |
|
|

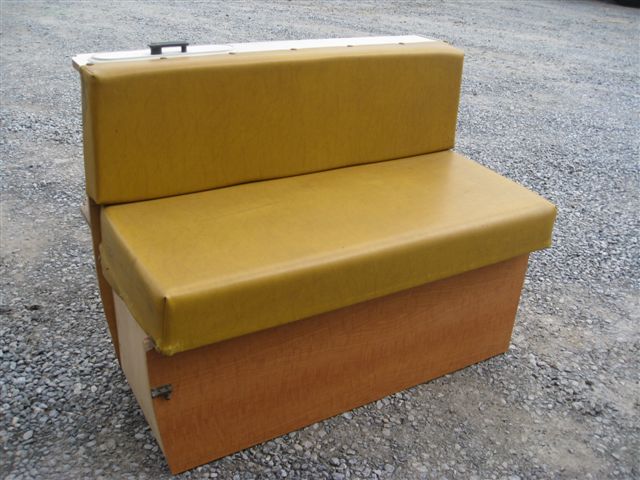

two more:
_________________
"If you don't do it this year, you'll be one year older when you do." -Warren Miller |
|
| Back to top |
|
|
ekimikem
Samba Member
Joined: May 16, 2004
Posts: 438
Location: Coeur d'Alene, Idaho
|
|
| Back to top |
|
|
jeremy57ride
Samba Member
Joined: May 23, 2005
Posts: 1340
|
| Posted: Sat May 09, 2009 8:52 am Post subject: |
|
|
Thanks...I would have been all over that!! Just talked to Ed, he already sold it!! Thanks anyway.
_________________
"If you don't do it this year, you'll be one year older when you do." -Warren Miller |
|
| Back to top |
|
|
jeremy57ride
Samba Member
Joined: May 23, 2005
Posts: 1340
|
| Posted: Mon May 11, 2009 7:59 am Post subject: |
|
|
Ok, here are the dimensions I received. Thanks again Matt.
Sorry for the lame paint skills!
A 38 1/4 bottom and 39 3/8 on the top for the curve on the side
B 13 3/4
C 16 1/2
D 29 3/8 to the bottom of the top ply
E 6 wide and 8 3/4 with the pad 6 is the ply though
F 18 base
Map Pocket 15 across and 13 deep
I hope to find this seat as an original, but this may be a way to build your own. Feel free to add any build pictures or advice along the way.
_________________
"If you don't do it this year, you'll be one year older when you do." -Warren Miller |
|
| Back to top |
|
|
nimbus
Samba Member
Joined: April 15, 2004
Posts: 1302
Location: Jacksonville, N. FL
|
| Posted: Mon May 11, 2009 8:07 am Post subject: |
|
|
Thanks.
_________________
Notchback
Bug
Single Cab |
|
| Back to top |
|
|
my65vert
Samba Member
Joined: November 09, 2003
Posts: 6187
Location: Middleburg, Florida
|
| Posted: Mon May 11, 2009 8:31 am Post subject: |
|
|
will, I still have the bottom pedestal section and cushion here. I just do not have the back section or cushion.
But I do have an extra set of z-bed cushions that you could use to make the back piece.
_________________
OGJHC
Kombisutra;
I'm starting to get little wafts of bus stink coming from the north. Something about the unique scent of drivers seat padding when it's glued together with mouse piss and shit that really gets me going... and I'm smelling it! Oh yeah! Time to start loading up the equipment. |
|
| Back to top |
|
|
nimbus
Samba Member
Joined: April 15, 2004
Posts: 1302
Location: Jacksonville, N. FL
|
| Posted: Mon May 11, 2009 8:43 am Post subject: |
|
|
| my65vert wrote: |
will, I still have the bottom pedestal section and cushion here. I just do not have the back section or cushion.
But I do have an extra set of z-bed cushions that you could use to make the back piece. |
Thanks Mike, I have a bunch of foam from a mattress so I can use that for the back. I will get that bottom from you soon.
_________________
Notchback
Bug
Single Cab |
|
| Back to top |
|
|
nimbus
Samba Member
Joined: April 15, 2004
Posts: 1302
Location: Jacksonville, N. FL
|
| Posted: Tue Nov 03, 2009 2:43 pm Post subject: |
|
|
Ok, I finally got my hands on one. It had the back piece with cushion and shelf, and the seat bottom cushion. I had to make cut and attach the 3 wood pieces that the seat bottom rests on. Good for now..after seeing some originals, the front piece goes infront of the left side and is curved.
_________________
Notchback
Bug
Single Cab |
|
| Back to top |
|
|
jeremy57ride
Samba Member
Joined: May 23, 2005
Posts: 1340
|
| Posted: Mon Mar 14, 2011 10:10 am Post subject: |
|
|
Just thought I'd update, thanks to Nate, (Jung Restoration) I now have an original seat! It is in remarkable shape!
_________________
"If you don't do it this year, you'll be one year older when you do." -Warren Miller |
|
| Back to top |
|
|
xavi_242
Samba Member
Joined: May 06, 2005
Posts: 1672
Location: Barcelona (SPAIN)
|
| Posted: Tue Mar 15, 2011 12:58 pm Post subject: |
|
|
nice!
_________________
1967 Split SO-42 Dormobile |
|
| Back to top |
|
|
nimbus
Samba Member
Joined: April 15, 2004
Posts: 1302
Location: Jacksonville, N. FL
|
| Posted: Tue Mar 15, 2011 1:45 pm Post subject: |
|
|
_________________
Notchback
Bug
Single Cab |
|
| Back to top |
|
|
jpeters
Samba Member
Joined: May 06, 2005
Posts: 1063
Location: Woodsfield, Ohio
|
|
| Back to top |
|
|
Darth Wolfsburg
Samba Member
Joined: August 14, 2012
Posts: 13
Location: Miami Florida
|
| Posted: Wed Mar 11, 2015 11:27 pm Post subject: Rear seat attaching |
|
|
How does this seat install? I have a rear facing in pretty bad shape. I cut some plywood pieces and connected everything with metal brackets on the inside. It's actually lookin good now, but I have no idea how it gets installed in the bus.
The more details the better!  |
|
