PostPosted: Sun Feb 09, 2020 6:16 pm    Post subject: Re: Vanagon T3 Westfalia roof renovation w/ solar Reply with quote

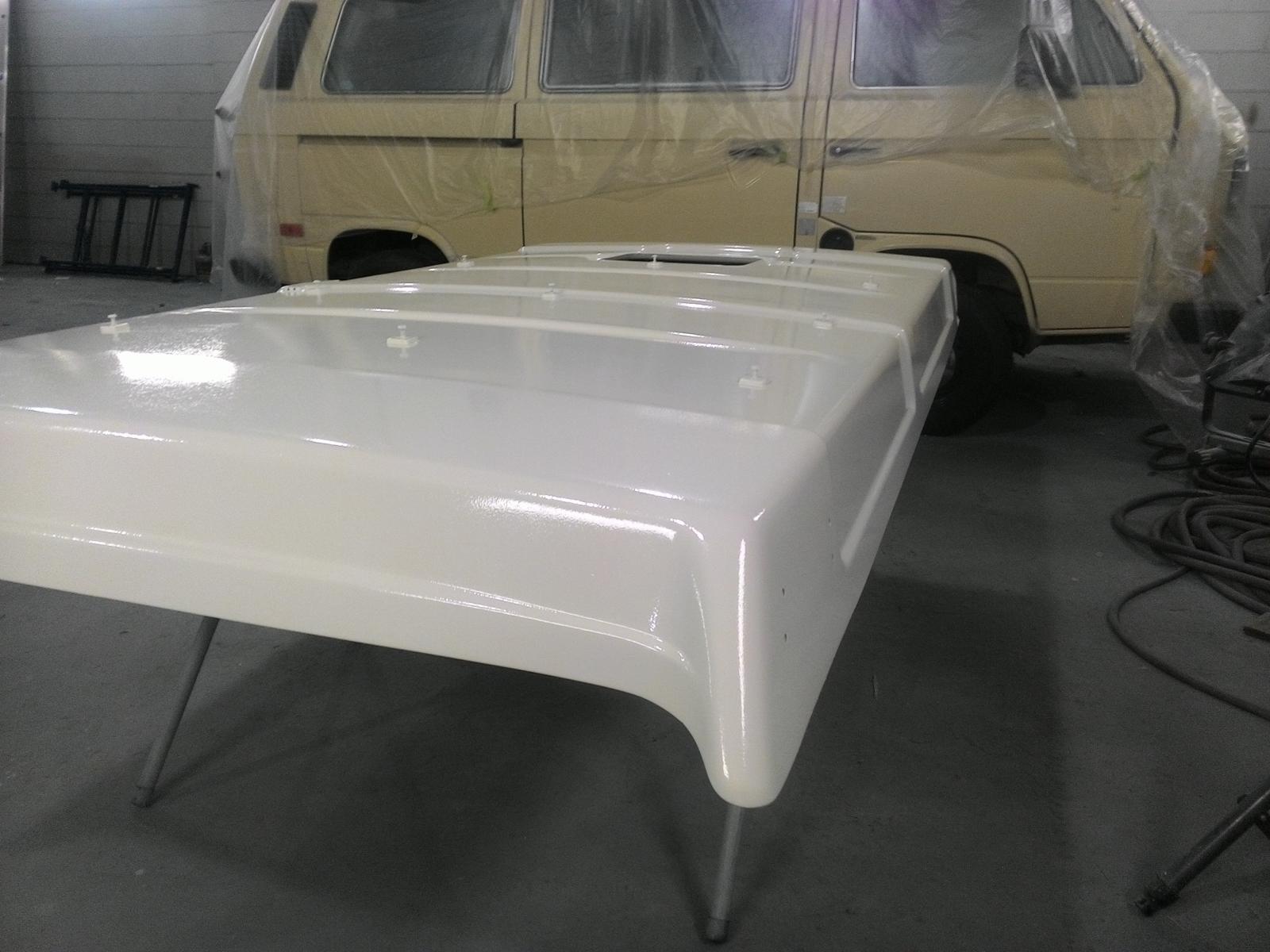

So again, no pictures of Painting


Image may have been reduced in size. Click image to view fullscreen.


Awlgrip "oyster white" with G3013 flattening agent to dull it down a bit.
Used a 4" foam roller, 3 coats, I decided to roll it to replicate
the original GELCOAT texture, if you even seen a roof that is super shiny
and no texture , it shows every bump,warp, and defect.



Image may have been reduced in size. Click image to view fullscreen.

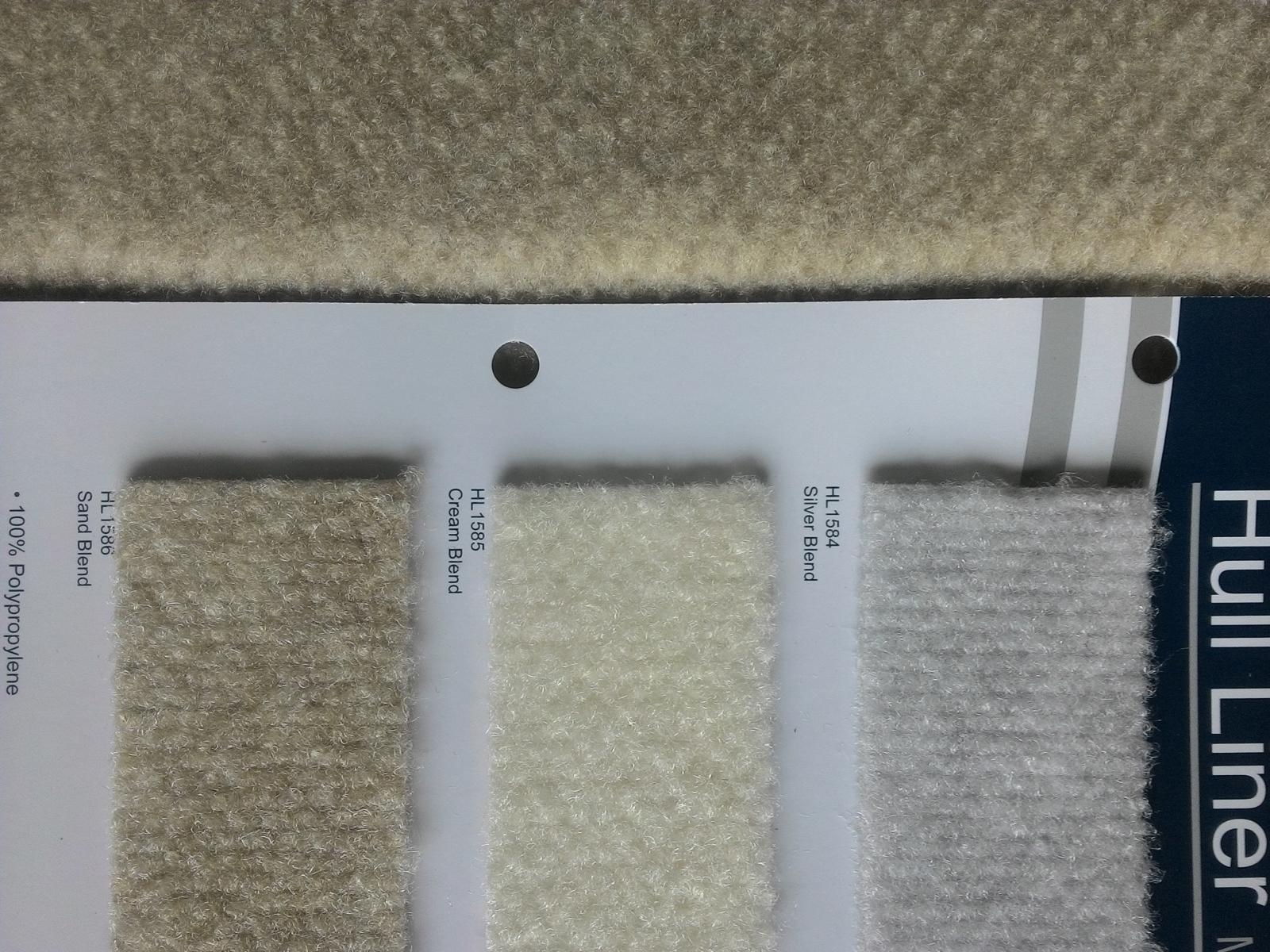

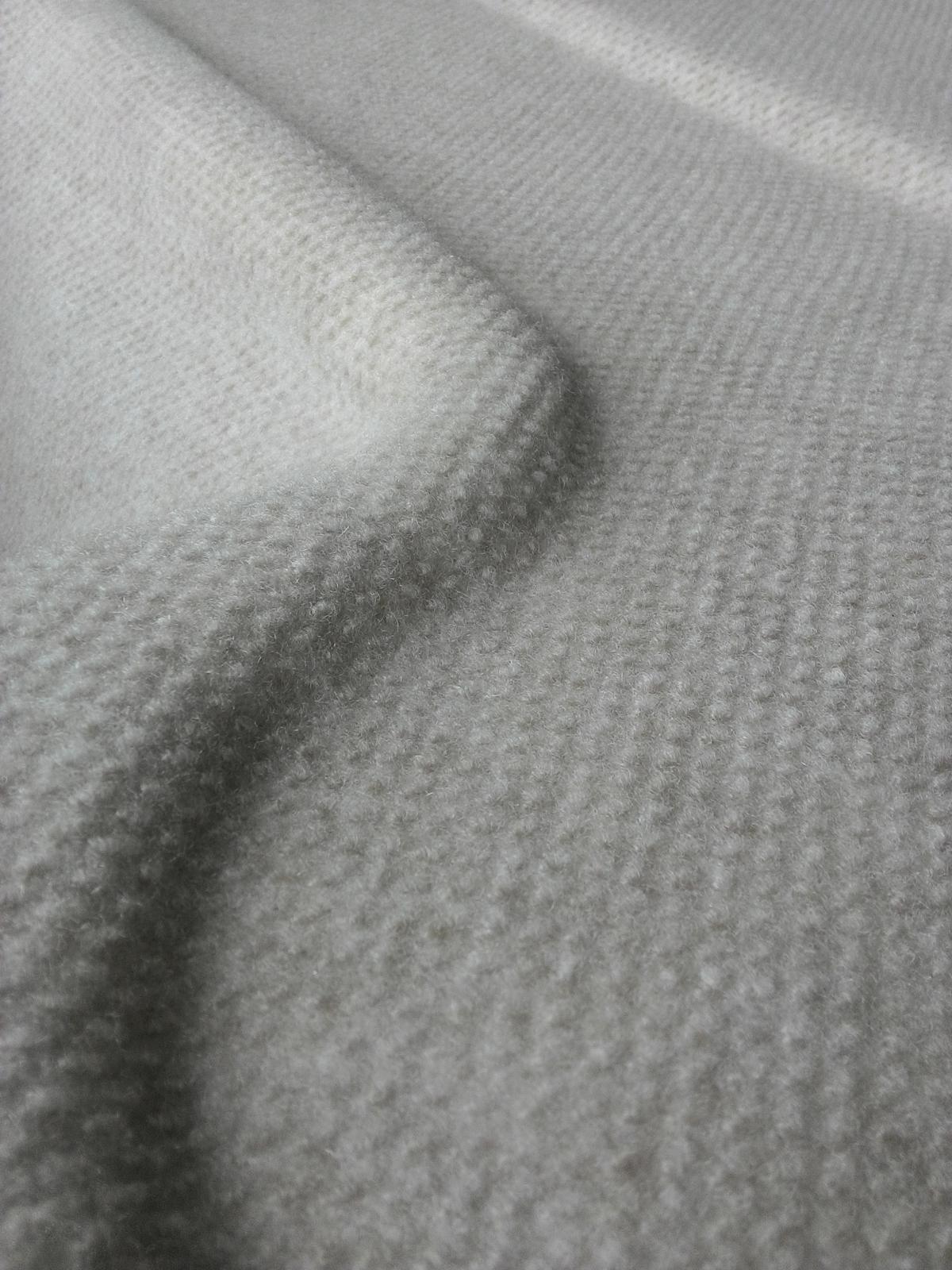

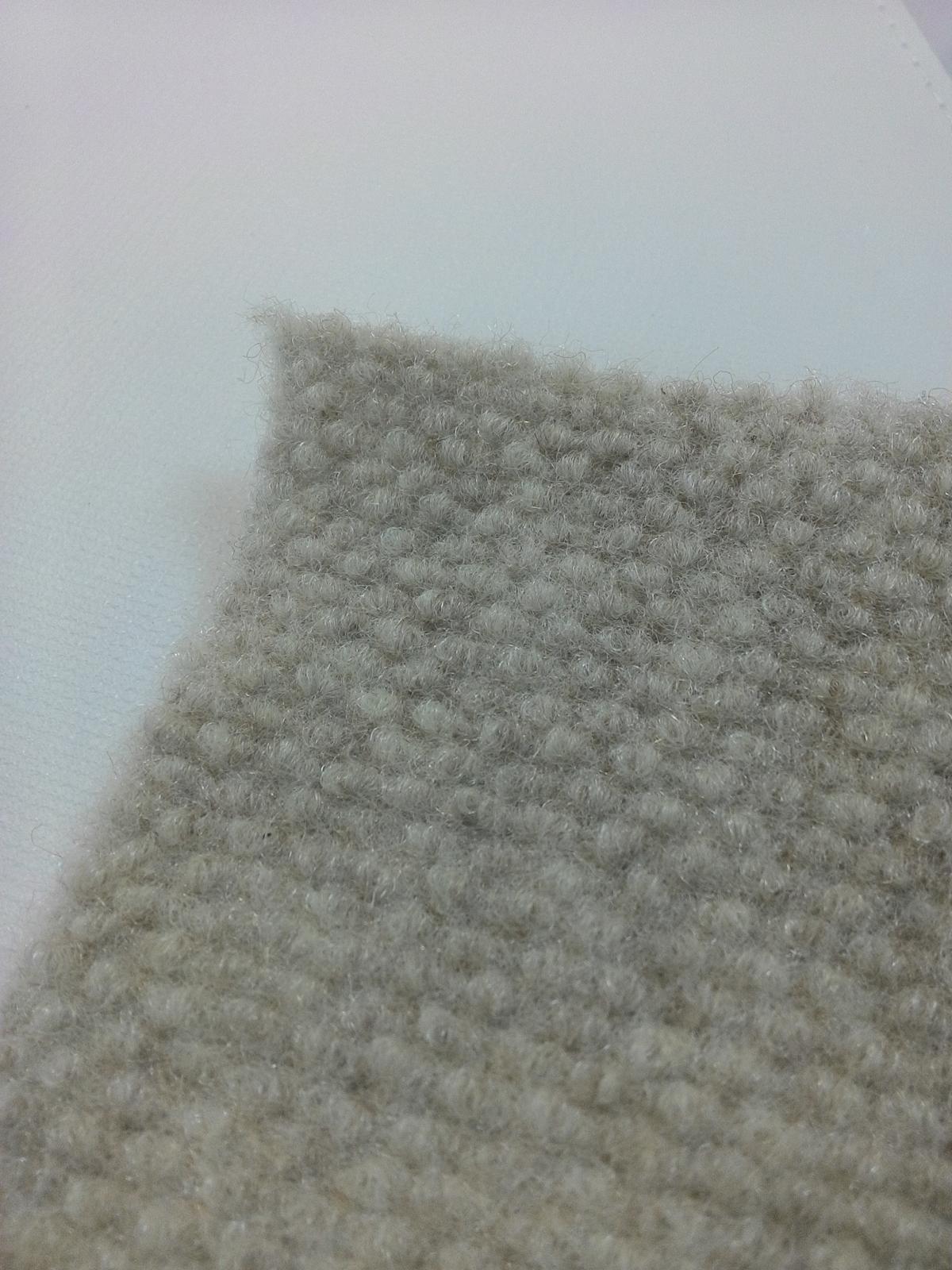

this is called "hull Liner" and it is PERFECT for this application,
100% Polypropylene very stretchy, even has better insulation factor



Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


you can also Google "hull Liner" for other vendors

Shout out to
Quote:
87vanwes
who gave me the idea from his incredible build!

https://www.thesamba.com/vw/forum/viewtopic.php?t=...;start=180
_________________
ABYC marine master technician , EX European auto technician, new business- EASTCOASTWEST , custom work on campers, only systems, no mechanical
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
puchfinnland
Samba Member


Joined: December 26, 2005
Posts: 241
Location: Deale Maryland
puchfinnland is offline

PostPosted: Mon Feb 10, 2020 6:23 pm    Post subject: Re: Vanagon T3 Westfalia roof renovation w/ solar Reply with quote

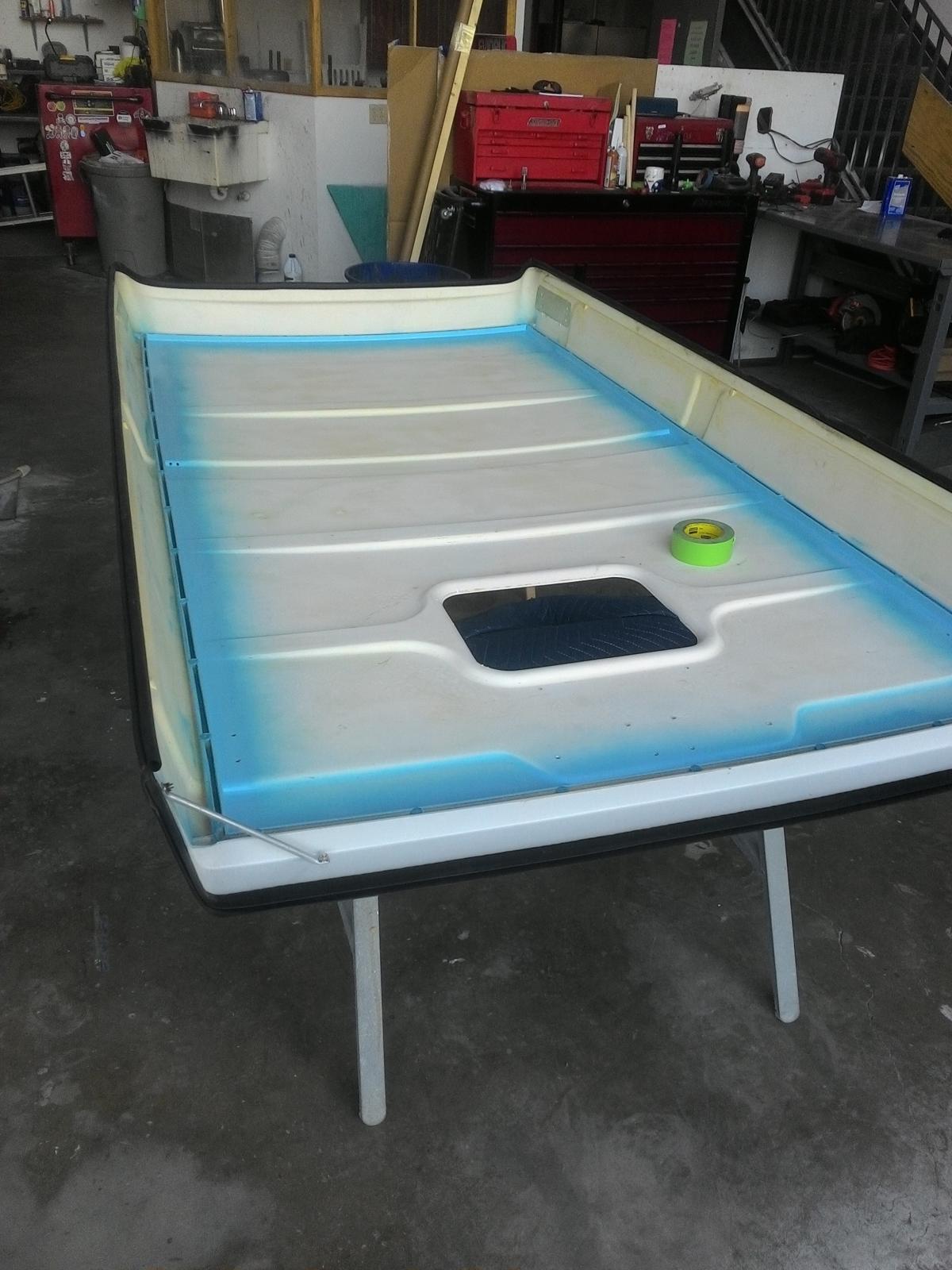

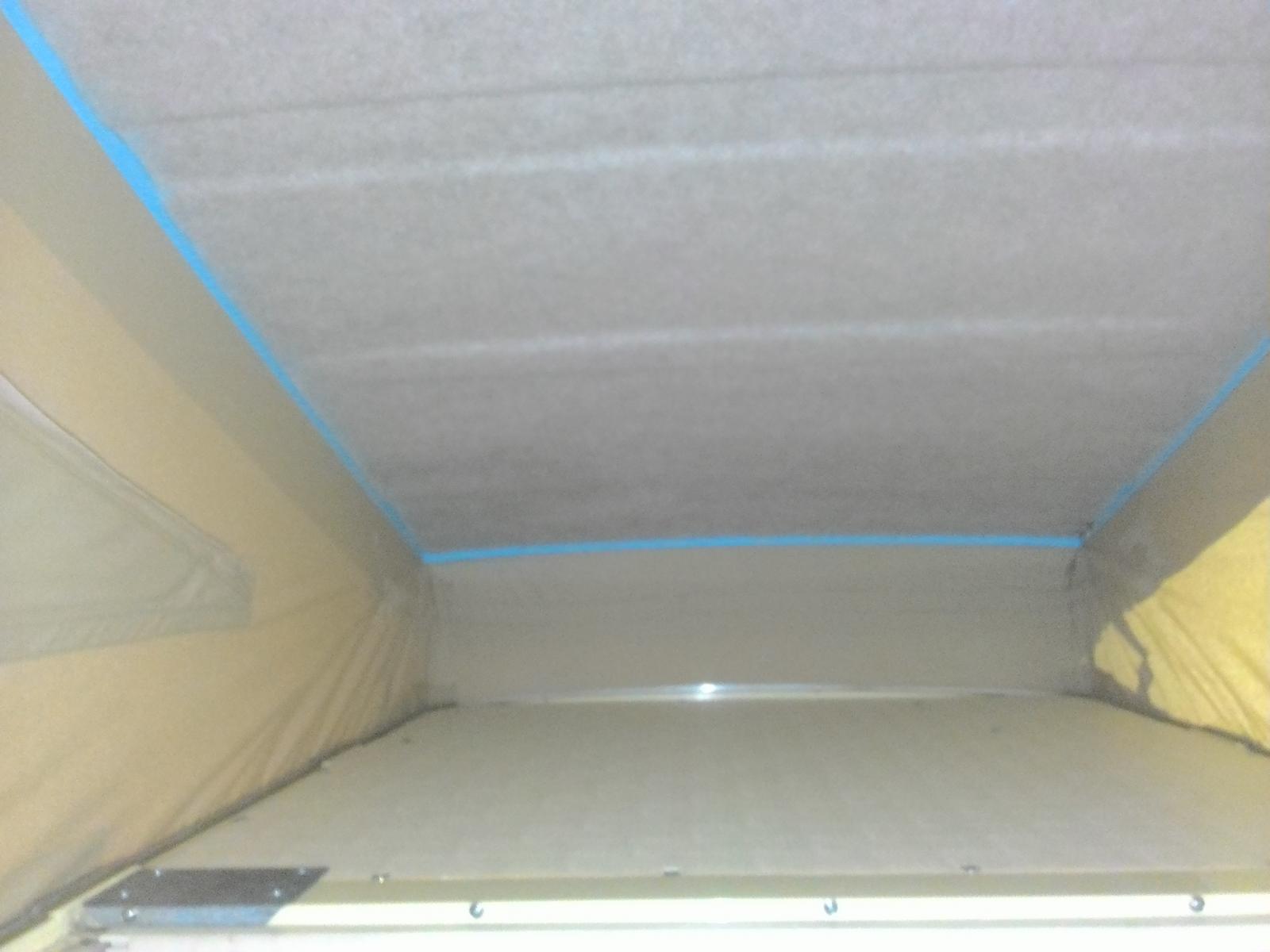

At this time I installed the top seals, and taped up my new blue edge to prevent overspray from glue

Image may have been reduced in size. Click image to view fullscreen.


Before covering the top, I temporarily installed the skylight seal, ran a pencil around it and then taped the edge so I knew where to cut the carpet after its installed.



Image may have been reduced in size. Click image to view fullscreen.

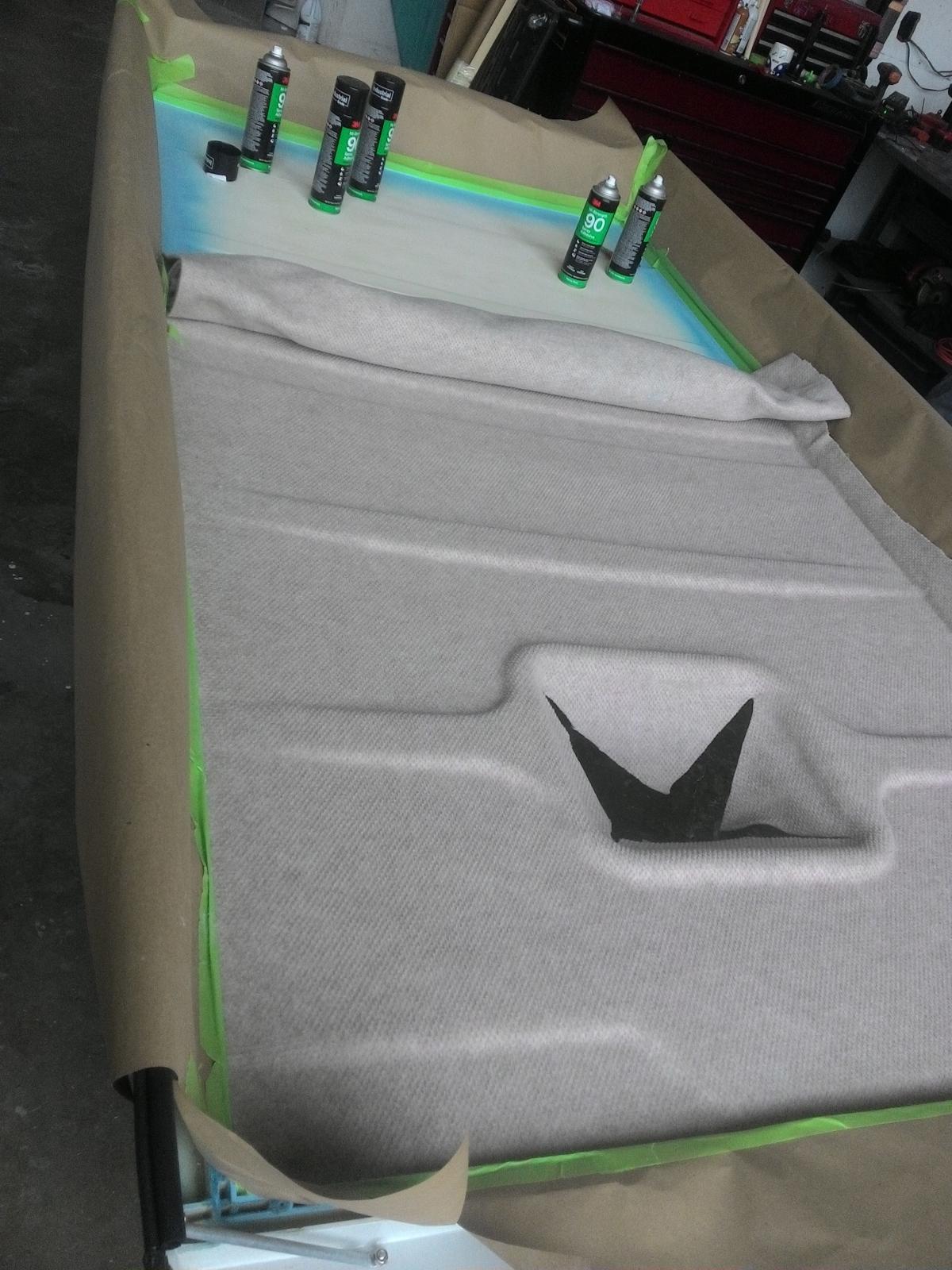

I used 2 full cans 3M #90 adhesive. this is a 2 person job,
do not cut to fit as the material is very stretchy,
mark off like 2ft lengths with pencil, only attach 2 feet of length at a time


start in the corner and work back and across to your 2 foot mark
your helper will hold the material away from the surface as you rub and contour to fit

_________________
ABYC marine master technician , EX European auto technician, new business- EASTCOASTWEST , custom work on campers, only systems, no mechanical
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
puchfinnland
Samba Member


Joined: December 26, 2005
Posts: 241
Location: Deale Maryland
puchfinnland is offline

PostPosted: Mon Feb 10, 2020 6:34 pm    Post subject: Re: Vanagon T3 Westfalia roof renovation w/ solar Reply with quote

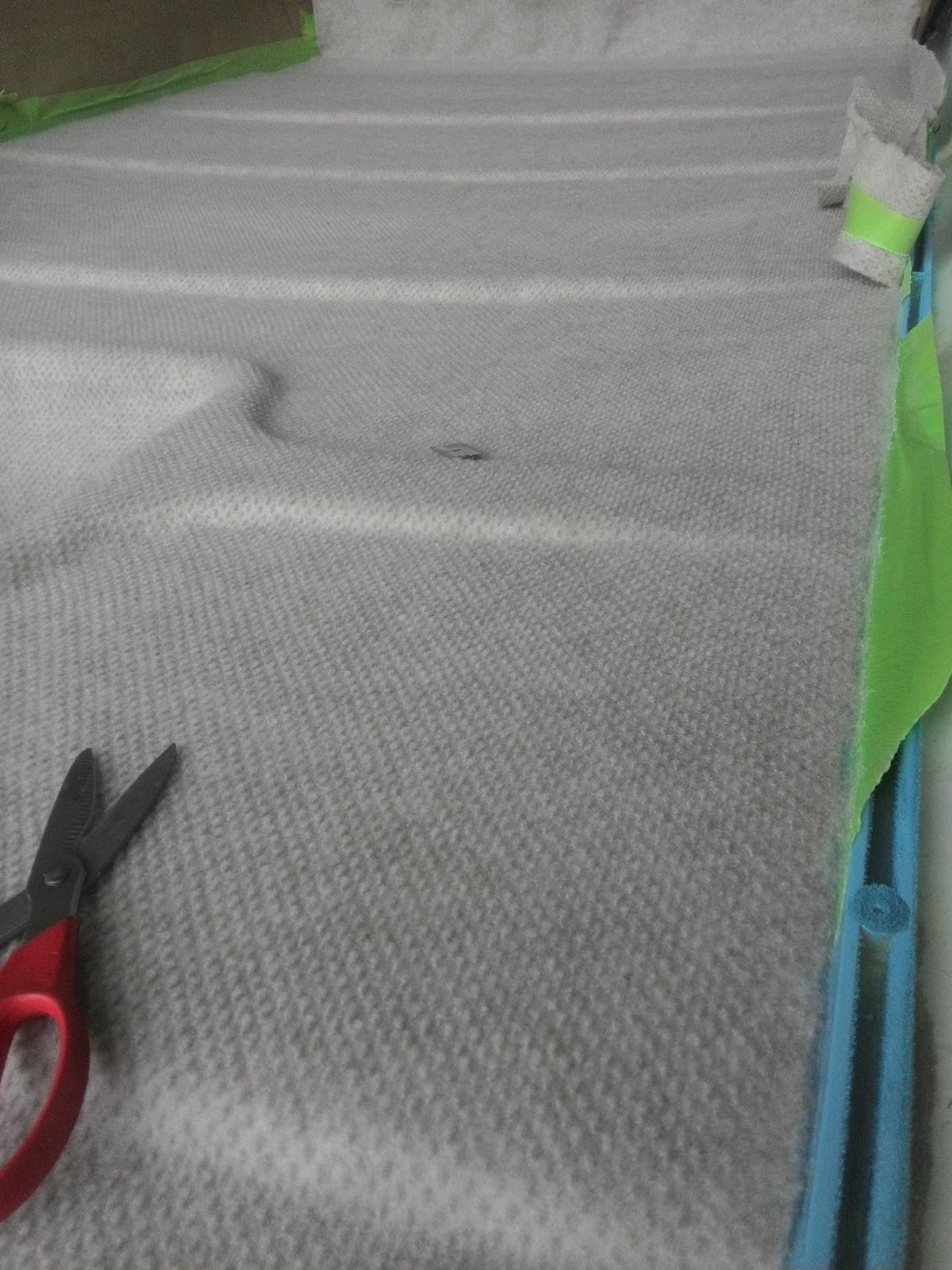

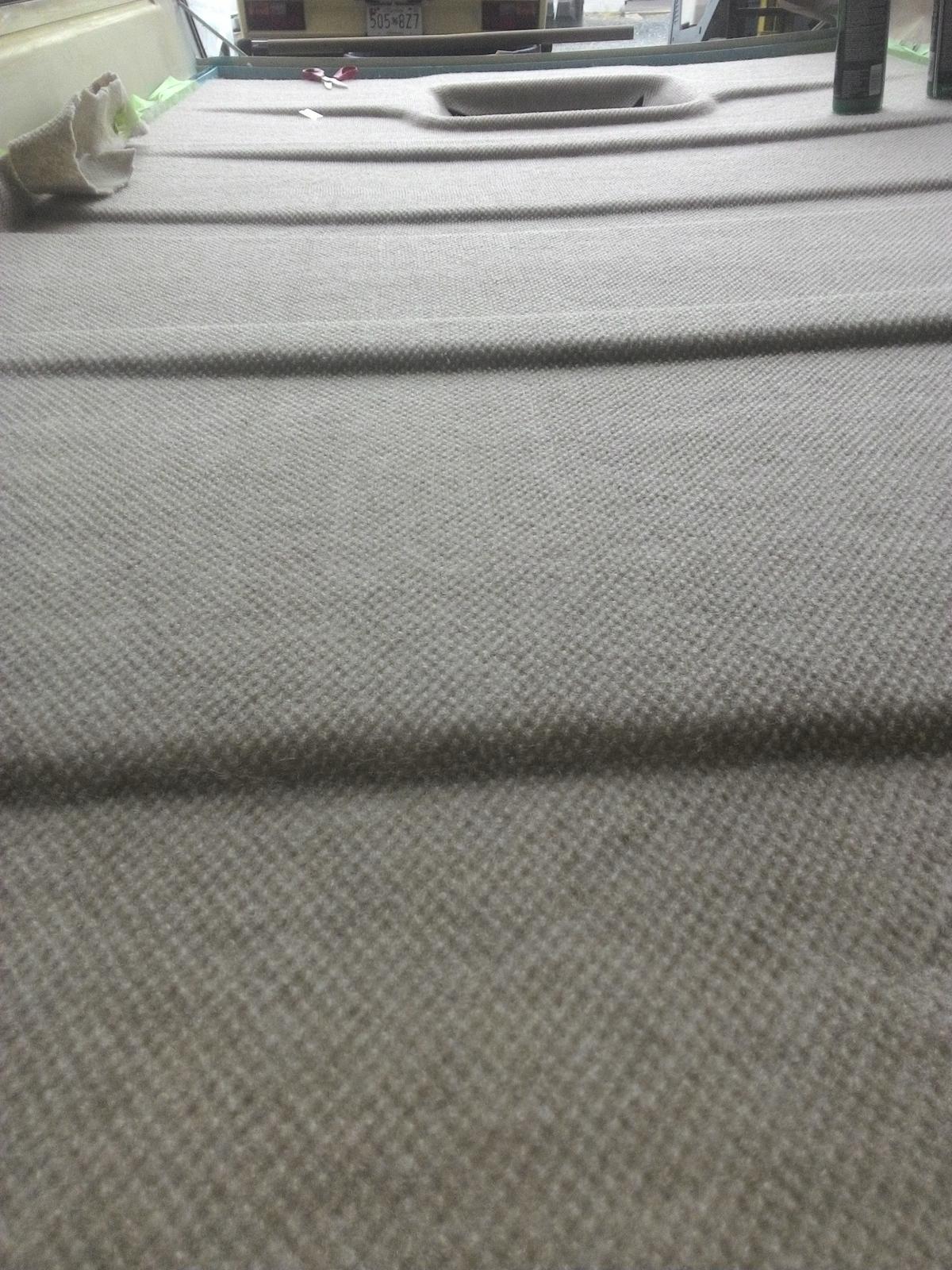

Please note I used one edge back as the guide and the other side was trimmed after

Image may have been reduced in size. Click image to view fullscreen.


tools I used were putty knife, ball end of screwdriver, and tools to rub down the corners, carpet knife and scissors.


Image may have been reduced in size. Click image to view fullscreen.

_________________
ABYC marine master technician , EX European auto technician, new business- EASTCOASTWEST , custom work on campers, only systems, no mechanical
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
puchfinnland
Samba Member


Joined: December 26, 2005
Posts: 241
Location: Deale Maryland
puchfinnland is offline

PostPosted: Mon Feb 10, 2020 7:03 pm    Post subject: Re: Vanagon T3 Westfalia roof renovation w/ solar Reply with quote

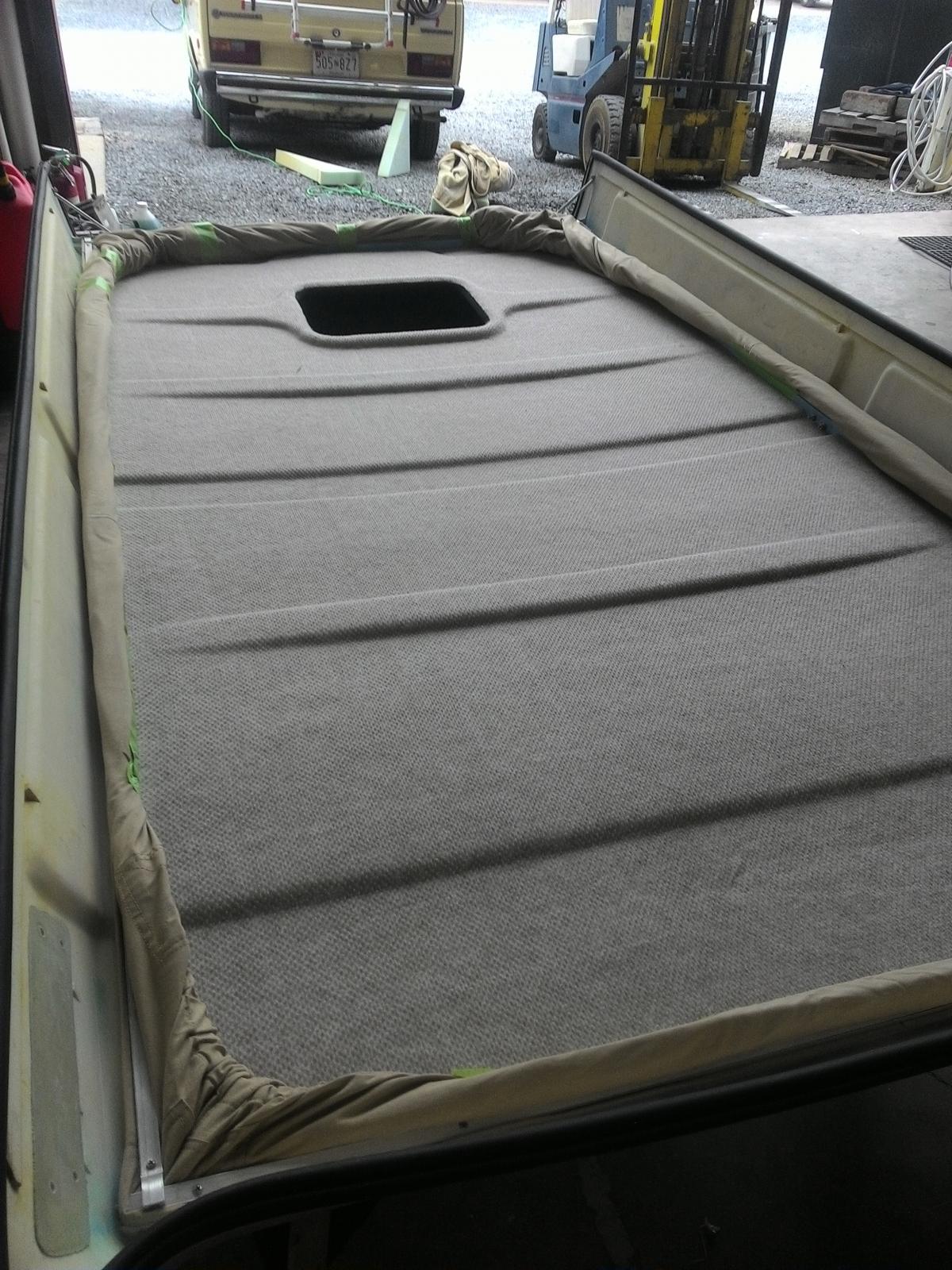

I did pause half way to trim the other edge,


Image may have been reduced in size. Click image to view fullscreen.

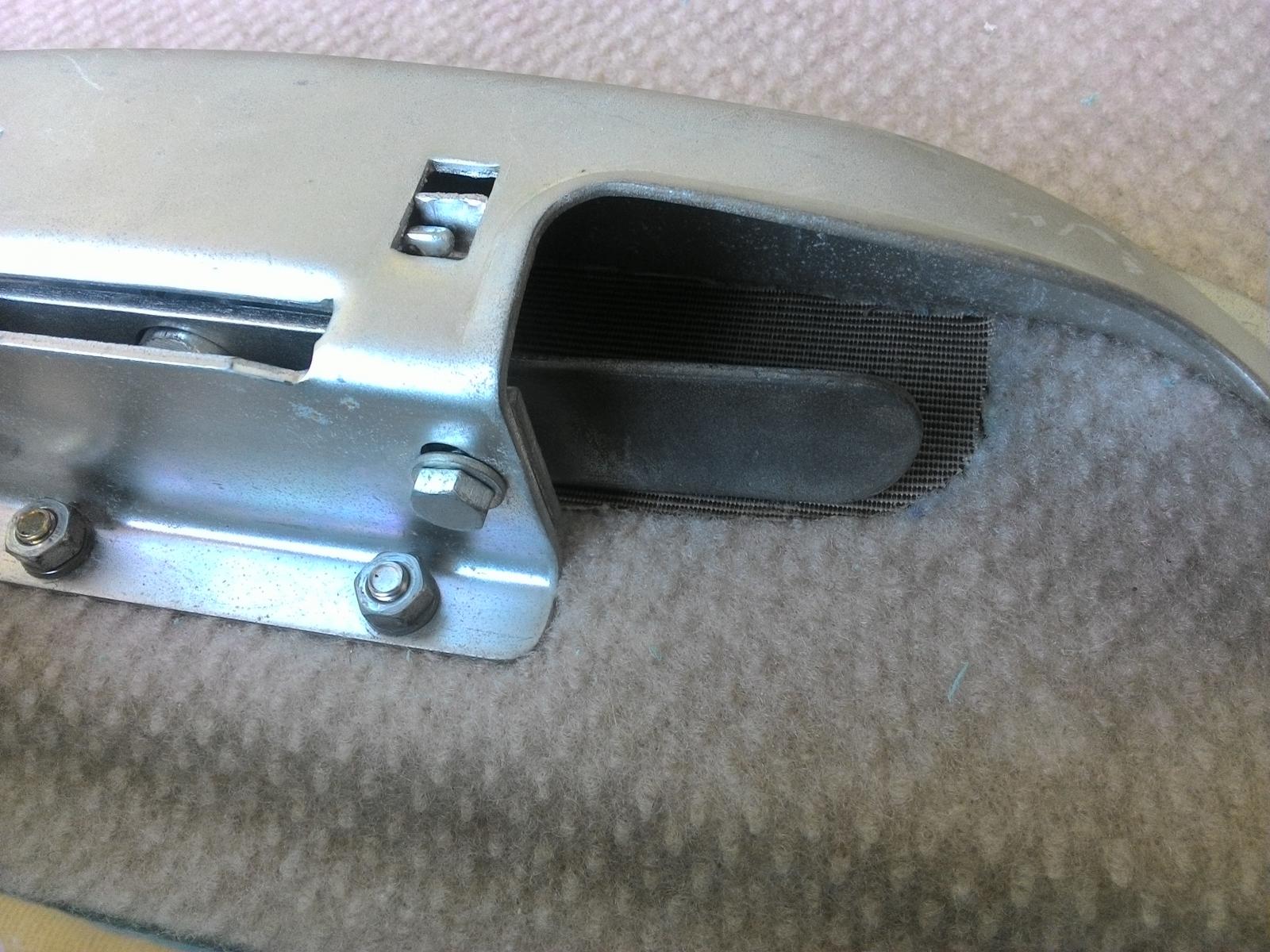

Fit the latch, the paddles will rub on the material,
I marked an area, cut it out with a knife and glued in a flat fabric
this is important as the latch must operate smoothly



Image may have been reduced in size. Click image to view fullscreen.

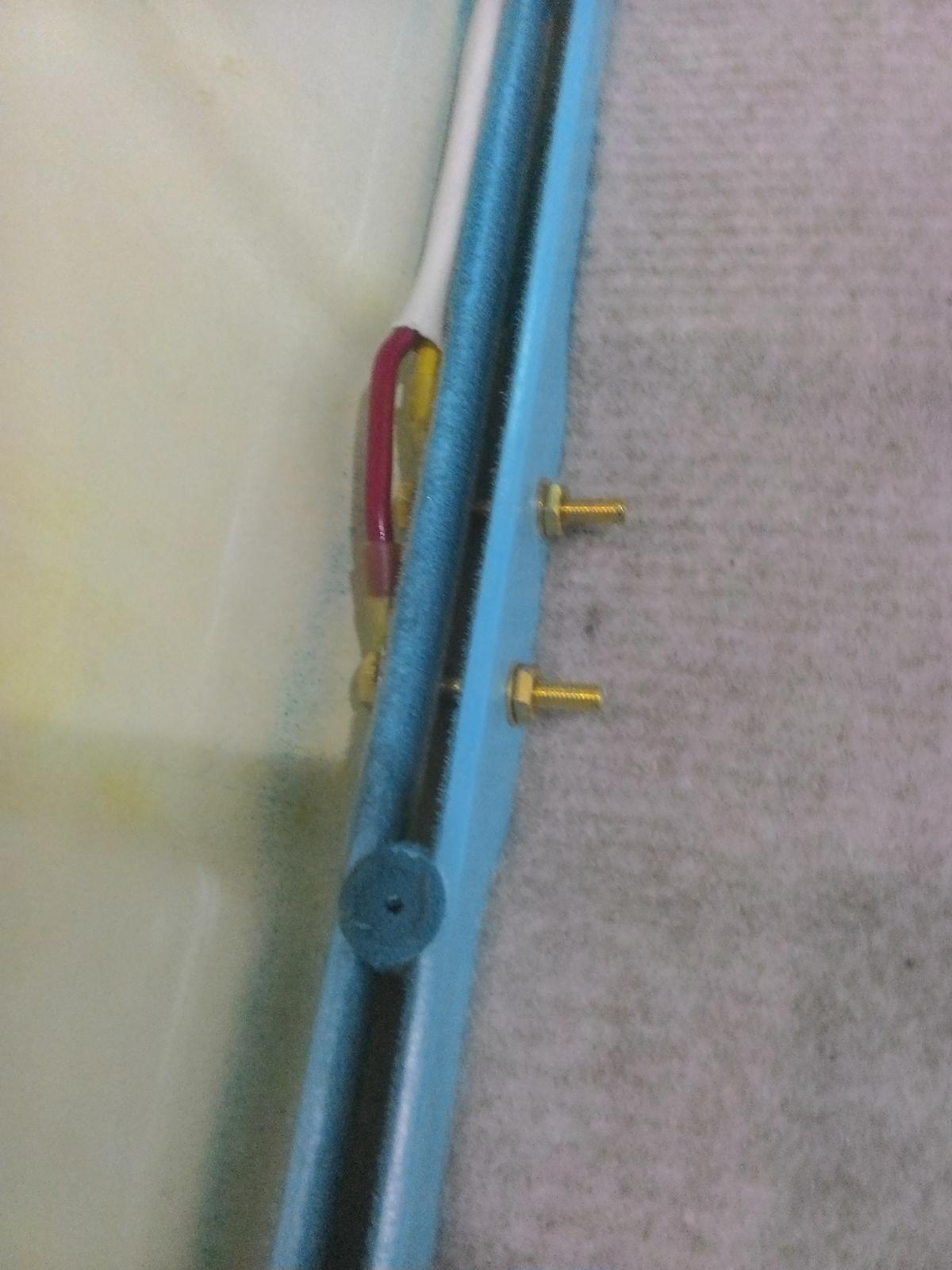

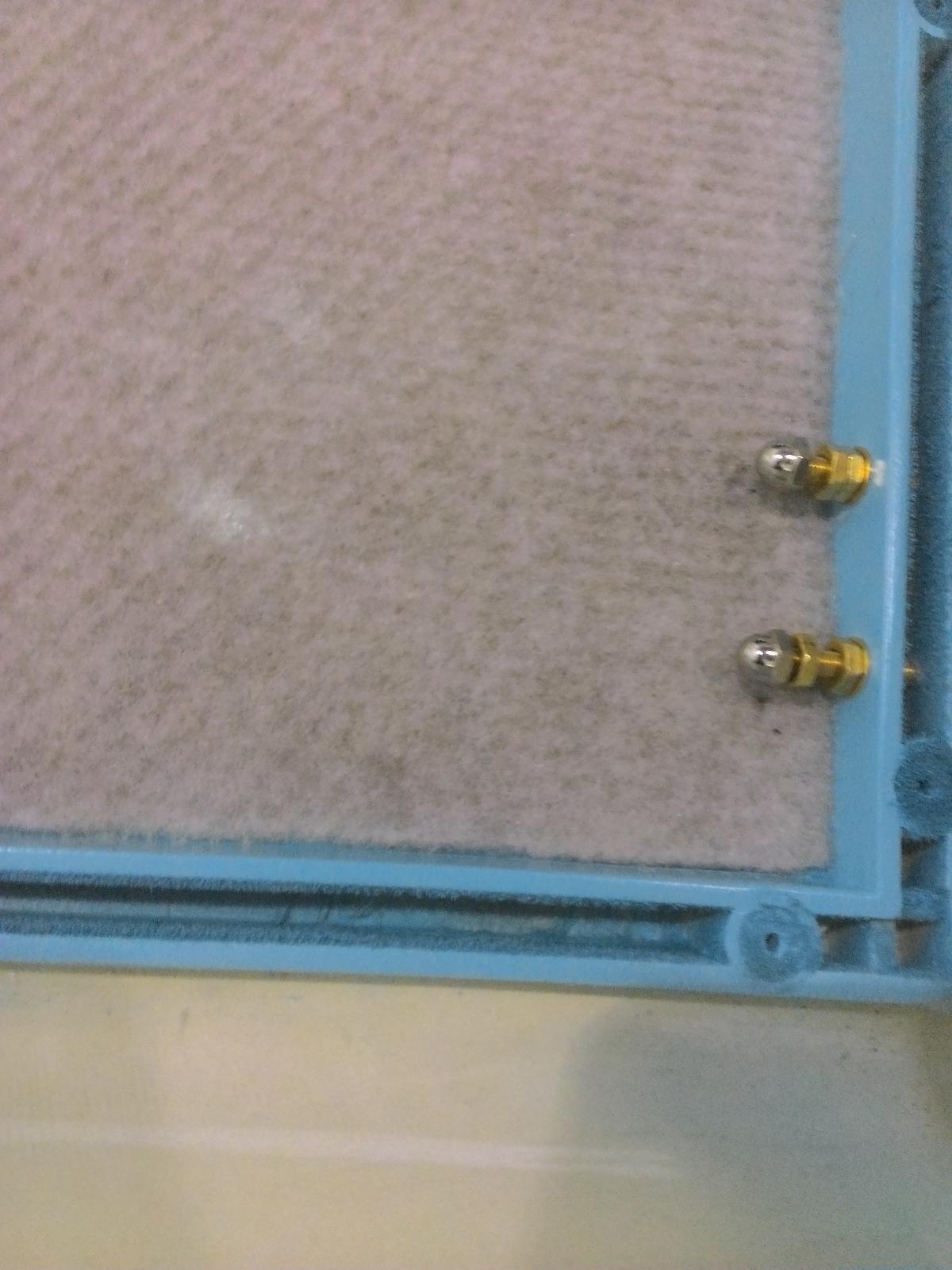

Back to my Solar install, I drilled holes thru the edge and inserted brass
all-thread, wires are outside the tent, I chose to re-enter the tent in the back
I will drill hole in the plywood in the back and keep the cables inside the vehicle


Image may have been reduced in size. Click image to view fullscreen.

_________________
ABYC marine master technician , EX European auto technician, new business- EASTCOASTWEST , custom work on campers, only systems, no mechanical
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
puchfinnland
Samba Member


Joined: December 26, 2005
Posts: 241
Location: Deale Maryland
puchfinnland is offline

PostPosted: Mon Feb 10, 2020 7:11 pm    Post subject: Re: Vanagon T3 Westfalia roof renovation w/ solar Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


I installed my GW tent as per instructions, only note I will say is mark the top and bottom middles of the fabric before mounting


Image may have been reduced in size. Click image to view fullscreen.


Ready for my friends to help it back up

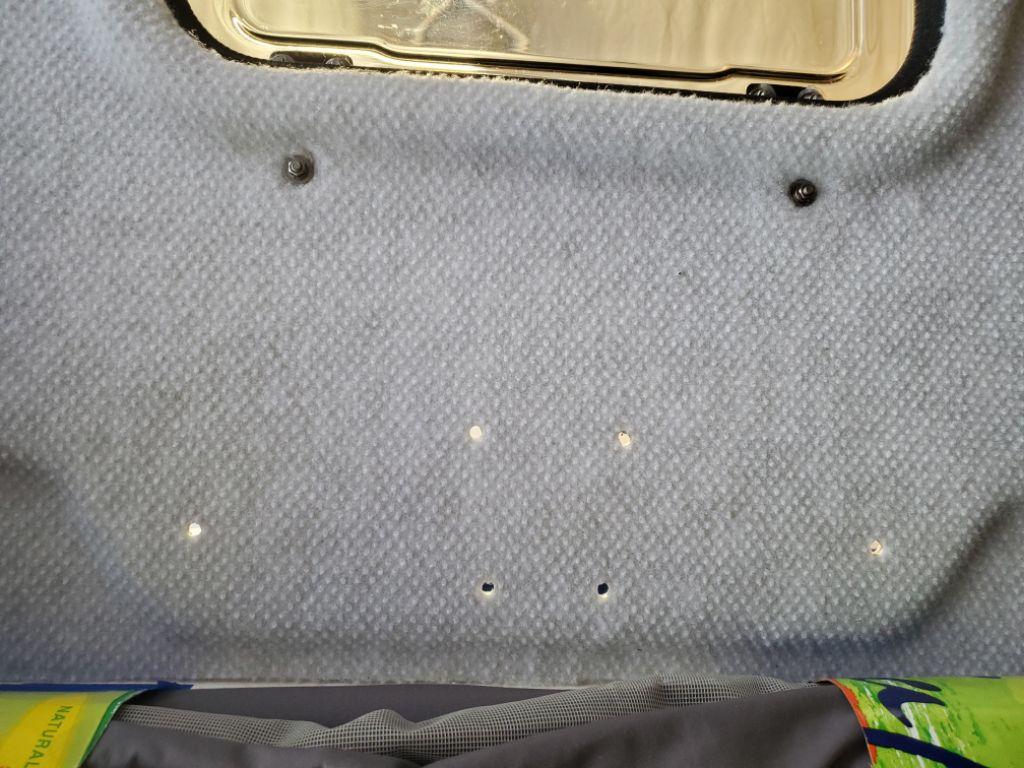

A view from Inside


Image may have been reduced in size. Click image to view fullscreen.
[/b]
_________________
ABYC marine master technician , EX European auto technician, new business- EASTCOASTWEST , custom work on campers, only systems, no mechanical
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
puchfinnland
Samba Member


Joined: December 26, 2005
Posts: 241
Location: Deale Maryland
puchfinnland is offline

PostPosted: Mon Feb 10, 2020 7:12 pm    Post subject: Re: Vanagon T3 Westfalia roof renovation w/ solar Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


DONE!

My services are available, if anyone is serious,
Love to start a little weekend company doing what I enjoy

_________________
ABYC marine master technician , EX European auto technician, new business- EASTCOASTWEST , custom work on campers, only systems, no mechanical
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
4Gears4Tires
Samba Member


Joined: October 08, 2018
Posts: 2699
Location: MD
4Gears4Tires is offline

PostPosted: Mon Feb 10, 2020 7:43 pm    Post subject: Re: Vanagon T3 Westfalia roof renovation w/ solar Reply with quote

That looks great. I think the hull liner is a much better looking alternative to the original flocking.
_________________
'87 Syncro
Ferric Oxyhydroxide Superleggera Edition
Back to top
View user's profile Send private message Classifieds Feedback
Italjohn
Samba Member


Joined: October 29, 2016
Posts: 170
Location: Molde, Norway
Italjohn is offline

PostPosted: Tue Feb 11, 2020 12:05 am    Post subject: Re: Vanagon T3 Westfalia roof renovation w/ solar Reply with quote

Very good craftsmanship there my friend.
_________________
Follow me on facebook: https://www.facebook.com/norwayvanagon
My youtube channel: https://www.youtube.com/c/Italjohn
Instagram: https://www.instagram.com/italjohn/
Back to top
View user's profile Send private message Visit poster's website Facebook Instagram Classifieds Feedback
xoo00oox
Samba Member


Joined: February 11, 2010
Posts: 2628
Location: East Nassau, NY
xoo00oox is offline

PostPosted: Tue Feb 11, 2020 6:48 am    Post subject: Re: Vanagon T3 Westfalia roof renovation w/ solar Reply with quote

Very nice work, thanks for sharing it. How did you remove the old flocking? Or did you just glue over it?
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
elizer Premium Member
Samba Member


Joined: May 02, 2016
Posts: 1224
Location: Northern Virginia
elizer is offline

PostPosted: Tue Feb 11, 2020 6:55 am    Post subject: Re: Vanagon T3 Westfalia roof renovation w/ solar Reply with quote

looks like he used acetone and a scraper.

Man, I have to agree that hull liner material is aesthetically pleasing.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
eleven
Samba Member


Joined: July 10, 2019
Posts: 14
Location: North Carolina
eleven is offline

PostPosted: Tue Feb 11, 2020 7:01 am    Post subject: Re: Vanagon T3 Westfalia roof renovation w/ solar Reply with quote

Amazing! Nice work.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
WilsonsWesty
Samba Member


Joined: February 06, 2006
Posts: 73
Location: Parkersburg, WV
WilsonsWesty is offline

PostPosted: Tue Feb 11, 2020 7:04 am    Post subject: Re: Vanagon T3 Westfalia roof renovation w/ solar Reply with quote

xoo00oox wrote:
Very nice work, thanks for sharing it. How did you remove the old flocking? Or did you just glue over it?


Acetone (laid on heavy) and a paint scraper. We talked through his process over the weekend. I used the same removal technique on mine and it worked really well.
_________________
~WilsonsWesty~

1980 Westy Vanagon - Just getting started on the restore!

If you want to see what I am doing to it, I have a facebook page started for the restoration: https://www.facebook.com/wilsonswesty
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Twitter Gallery Classifieds Feedback
joetiger
Samba Member


Joined: January 27, 2005
Posts: 4857
Location: denver
joetiger is offline

PostPosted: Tue Feb 11, 2020 10:00 am    Post subject: Re: Vanagon T3 Westfalia roof renovation w/ solar Reply with quote

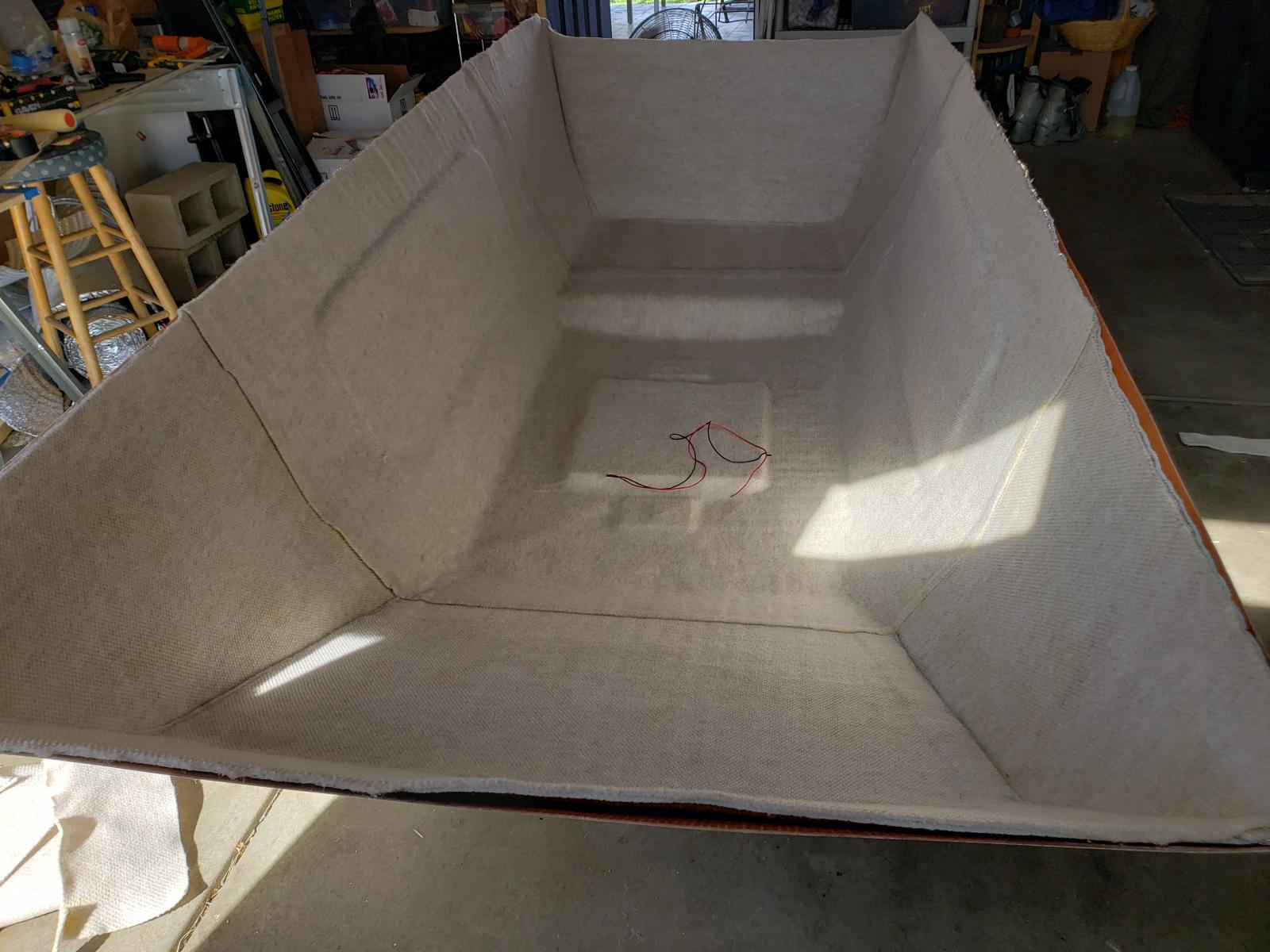

Beautiful work. That hull liner looks familiar:

(although mine is a bit sloppy compared to yours!)

Image may have been reduced in size. Click image to view fullscreen.

_________________
Joe T.

'86 NAHT Vanagon GL Syncro/ supercharged ABA 2.0 "Pigpen"
'19 Golf R
'02 Beetle GLS
'02 Golf GL
'04 GTI 1.8T

"get metaphysical with it. if it's simply a means to get to and from places, it will let you down. if it becomes your zen, it can't fail you." -dabaron

"Still, it's good to be afield."--VWagabond
Back to top
View user's profile Send private message Visit poster's website Instagram Gallery Classifieds Feedback
dabaron
Samba Member


Joined: June 21, 2018
Posts: 2341
Location: Philly, mang
dabaron is offline

PostPosted: Tue Feb 11, 2020 10:24 am    Post subject: Re: Vanagon T3 Westfalia roof renovation w/ solar Reply with quote

fantastic work and write up Mike. looking forward to seeing this in person.
_________________
1991 Vanagon GL Camper
i had no idea i wanted to be a mechanic
"burnin oil and cookin coils" -- Destructo
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SyncroBouree Premium Member
Samba Member


Joined: August 25, 2017
Posts: 25
Location: Alongside Monterey Bay
SyncroBouree is offline

PostPosted: Tue Feb 11, 2020 12:07 pm    Post subject: Re: Vanagon T3 Westfalia roof renovation w/ solar Reply with quote

I'll build upon the compliments of the other members above this post.

Thank you very much for the excellent presentation of some new approaches, materials selections, and procedures descriptions. A project of this ilk is certainly in our future and your sharing will improve our considerations and execution.

Cheers!
_________________
--Liam
1990 Vanagon GL Syncro Westy VW1.8T Triple-Knobber
1975 911S Widened Turbo/RSR Hybrid
1979 Harley Lowrider -- Donated to a good home
1969 Ford Bronco Half-Cab 351W, Toploader, Dana 44 FE, Detroit Locker, Duffy’s Suspension – wish I still had it
1962 GMC 3/4T Fleetside, V6<-Chevy 409 w/factory headers, Camper/Tow Rig – ditto
Back to top
View user's profile Send private message Gallery Classifieds Feedback
buelteman
Samba Member


Joined: November 25, 2009
Posts: 18
Location: Montara
buelteman is offline

PostPosted: Sun Jun 07, 2020 12:10 pm    Post subject: Re: Vanagon T3 Westfalia roof renovation w/ solar Reply with quote

An exceptionally well done job! Thanks for sharing it with us.
_________________
'91 Westfalia Camper - VW BNB
1.8 Turbo courtesy Stephan's
Custom Geared 5-speed tranny with
Peloquin Limited Slip Diff
H&R Progressive Rate Springs
300 Watt 13 speaker stereo
Audi Disc Brakes
LED driving and interior lights
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address Facebook Twitter Instagram Gallery Classifieds Feedback
Alaskaberrys
Samba Member


Joined: June 19, 2016
Posts: 944
Location: SE Alaska
Alaskaberrys is offline

PostPosted: Sun Jun 07, 2020 11:47 pm    Post subject: Re: Vanagon T3 Westfalia roof renovation w/ solar Reply with quote

Great write up and pictures, thanks!

We’re doing a re-paint of our westy and I’d like to install low profile solar while I have the roof off - your technique looks great.


I didn’t understand just how you routed the wires as I’m not sure just where this picture is. Along the outside of the tent to the rear?
puchfinnland wrote:
Image may have been reduced in size. Click image to view fullscreen.



You’ll attach wires to the brass all thread on the inside and continue on to the controller?
_________________
'91 Westfalia, Bordeaux Red Pearl 2.1L 2wd Auto
'91 T3 Syncro Doka, Escorial Green 1.9L TD AAZ “Gremian” (to provoke, irritate, exasperate, vex...)
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dobryan Premium Member
Samba Member


Joined: March 24, 2006
Posts: 15191
Location: Brookeville, MD
dobryan is offline

PostPosted: Mon Jun 08, 2020 4:11 am    Post subject: Re: Vanagon T3 Westfalia roof renovation w/ solar Reply with quote

Looks great. Nice job! Very Happy
_________________
Dave O
'87 Westy w/ 2002 Subaru EJ25 and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371

The Western Syncro build
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794
Back to top
View user's profile Send private message Gallery Classifieds Feedback
puchfinnland
Samba Member


Joined: December 26, 2005
Posts: 241
Location: Deale Maryland
puchfinnland is offline

PostPosted: Mon Jun 08, 2020 7:23 pm    Post subject: Re: Vanagon T3 Westfalia roof renovation w/ solar Reply with quote

answering questions-

[quote="Alaskaberrys"]Great write up and pictures, thanks!

We’re doing a re-paint of our westy and I’d like to install low profile solar while I have the roof off - your technique looks great.


I didn’t understand just how you routed the wires as I’m not sure just where this picture is. Along the outside of the tent to the rear?
[quote="puchfinnland"]
Image may have been reduced in size. Click image to view fullscreen.


the solar wires connected INSIDE to the brass screws, and then continued outside, in the rear, they jumped back in as I prefer to make a hole thru the plywood, rather then drill holes in the metal outside where a leak is more of a possibility.
_________________
ABYC marine master technician , EX European auto technician, new business- EASTCOASTWEST , custom work on campers, only systems, no mechanical
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
Franklinstower
Samba Member


Joined: September 21, 2006
Posts: 1724
Location: PNW
Franklinstower is offline

PostPosted: Sat Jun 20, 2020 8:47 pm    Post subject: Re: Vanagon T3 Westfalia roof renovation w/ solar Reply with quote

Thanks for this thread! I haven't done the solar yet, but I followed your headliner tip! It turned out great. Anyone else doing the polypro headliner, this a great tip for punching holes :

Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.


Heat something up to punch out holes, Don't use a drill!
_________________
'89 Westy - EJ25/22 Frank 4.44 5mt
'75 Miami Blue Sunroof FI Bug - rescued!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3  Next
Page 2 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
