Aftermarket 36hp cam specs

[esde]

before I reinvent the wheel, has someone already compiled the various 36hp cam specs in one table somewhere? I have a picture with the old Isky cam specs, I have an email somewhere from Matt (RIP) with the Aircooled Research cam specs, and there's the Wolfsburg West cam. What else is out there? It seems that currently it's the WW cam or nothing, so I was going to send a WW blank to Web and have them make me something, just would be so much easier to consider off the info was in one place.
SD
_________________
modok wrote:
Bent cranks are silent but gather no moss. I mean, ah, something like that.

[[email protected]]

Only folks I see selling camshafts besides ww or web cam ..are the porsche 356 guys/ shops but those porsche 356 pre A cam shafts are $ 900+ bucks for 1 ...folks can buy a ww blank and make a pre A cam specs for much cheaper .... than that ...

[Robert Chambers]

If I remember correctly Mr Okrasa Joe Ruiz was selling cams for 25/36 HP engines in the past? Does anyone else remember or have/run one in their engine. If so does anyone know the specs?
_________________
'63 OG 117 Herbie Replica
'56 Euro Oval Deluxe
'52 Standard Zwitter
'63 OG 117

[[email protected]]

I've found this of the vw 36hp, denzel, okrasa, porsche 356 preA engine specs/ cam.. i dont know if it helps much but thats what ive found.. if i find the others ill post the link 👇👇👇

https://www.thesamba.com/vw/forum/viewtopic.php?t=662198

[esde]

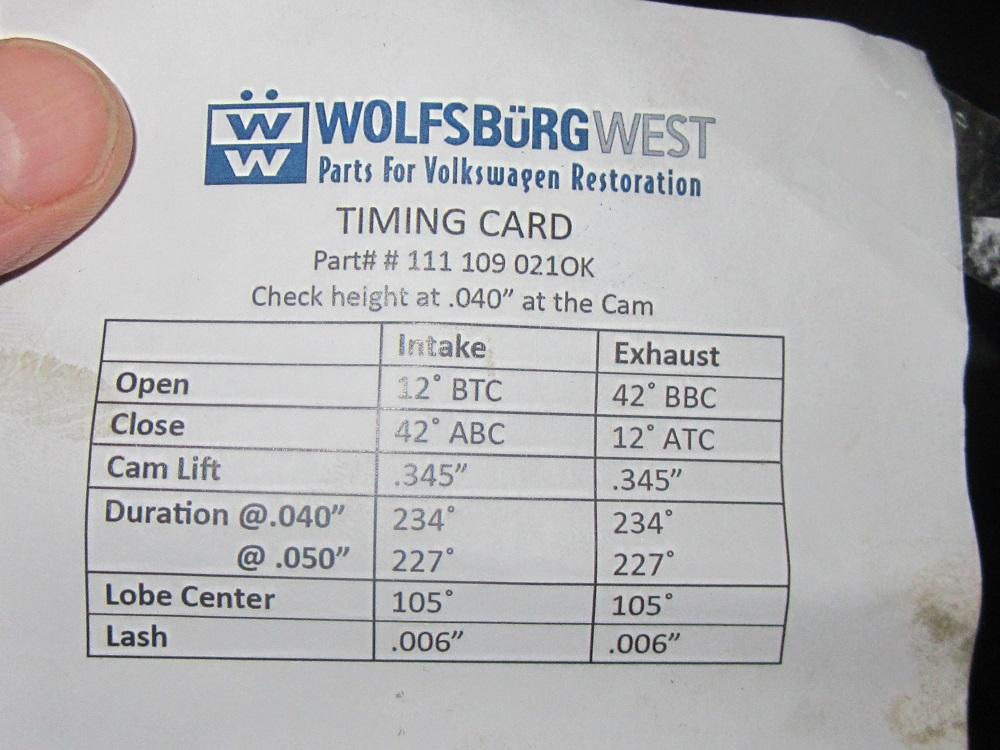

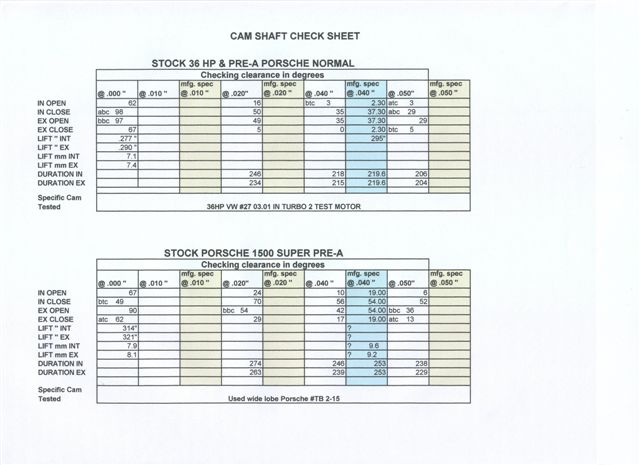

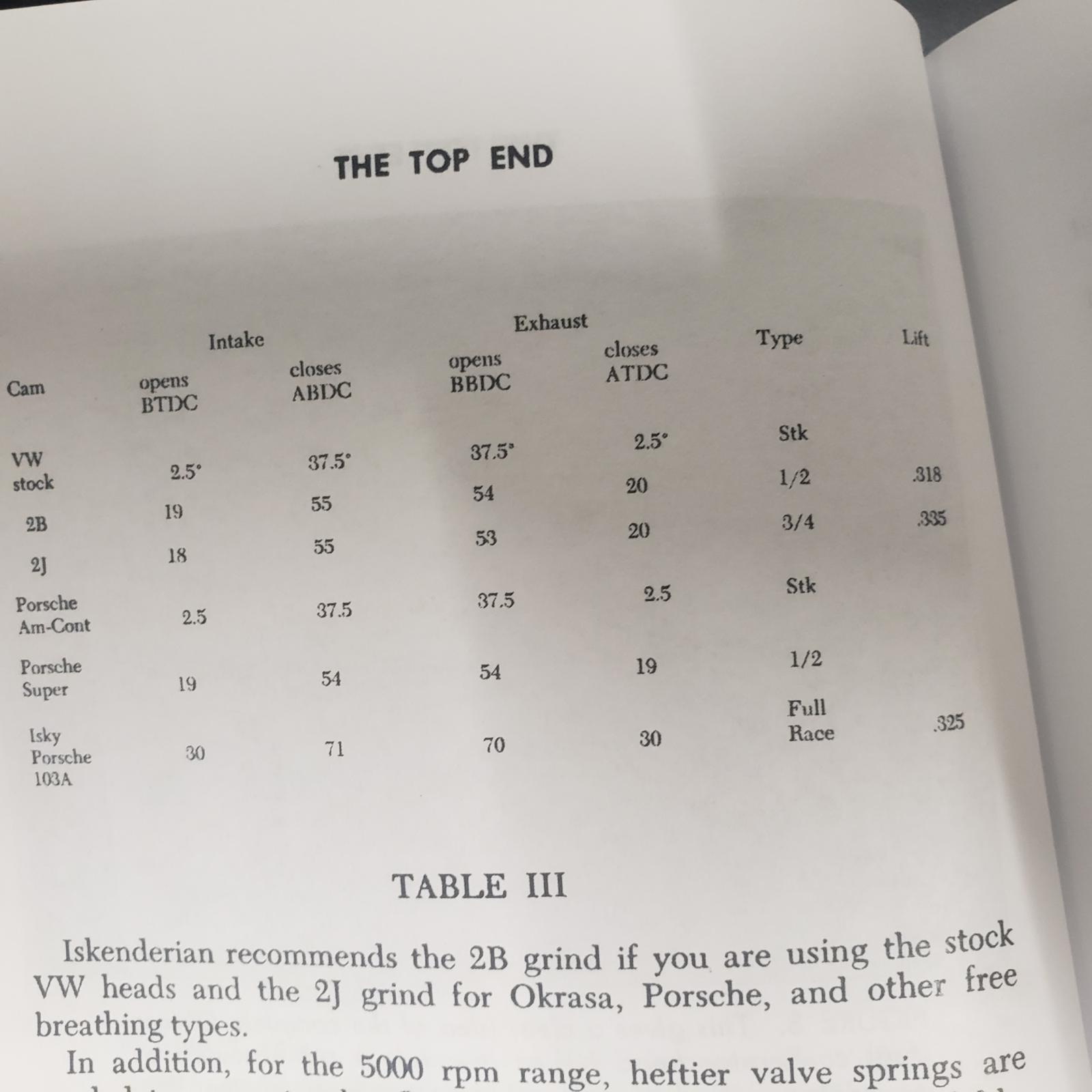

Here are the pics I had bookmarked
I'd love to get my hands on a 2B or 2J.

_________________
modok wrote:
Bent cranks are silent but gather no moss. I mean, ah, something like that.

[esde]

This is all I could find on the Aircooledresearch cams. I have one packed away, will have to see if it was sent with a cam card.

[[email protected]]

Here's this aftermarket porsche 356 1500s cam with spec 👇👇

https://m.mrfiat.com/porsche-356-pre-a-1500s-sport-camshaft-w-o-gear-wheel-high-quality.html

[oldslow]

CIP1 has a 356 grind for $231, and a gear for $101.
_________________
- better to drive a slow car fast than fast car slow -

[scotty timmerman]

I had web cam grind there grind# 1630 onto a WW cam blank. This is Porsche 356 1500 Sport PRE A 8v cam specs. http://www.webcamshafts.com/pages_vehicles/automobile/porsche/2297.html
_________________
71 ghia coupe: Build thread http://www.thesamba.com/vw/forum/viewtopic.php?t=511738&highlight=
71 type 3 fastback auto
71 type 3 fastback manual
73 super beetle
57 oval: build thread: https://www.thesamba.com/vw/forum/viewtopic.php?p=8616563#8616563
63 beetle reassembly: http://www.thesamba.com/vw/forum/viewtopic.php?p=7458619#7458619
2332cc engine build: https://www.thesamba.com/vw/forum/viewtopic.php?p=8608429&highlight=#8608429

[earthquake]

Schneider will regrind 36hps as well...

http://schneidercams.com/

eQ
_________________
74 CLASS 11 LOOK-A-LIKE
69 DUNE BUGGY
79 INTERNATIONAL SCOUT II
05 SCION XB SERIES RELEASE 2[#437]
95 Chevy C3500 dually
98 Ford E150
Link to Kelly J. Nolte 3/20/53 - 11/6/08
https://time-zonelabs.blogspot.com/p/about-kelly.html
DEATH TO CHINGERS!
[From a military recruitment poster in the novel "The Stainless Steel Rat" By Harry Harrison]

[FritzCP]

I had Schnieder make me a custom cam off of a WW blank for my SP engine with AMR300 Blower. Engine still not done, but if you send them your complete specs on your engine and intended use / rpm range including the Head Flow CFM at various lifts, they will grind you a suitable cam for it. They are familiar with the VW / 356 heads and can tailor one to your engine. This is especially useful when using a Stroker crank and ratio rockers so you can avoid coil bind. If you have the flow numbers, they can tailor the lift profile to your flow rates as well getting the most bang for your exact heads. Brian at Type E motorsports in SD flowed my 36hp heads for me at actual 25 or 28" instead of 10 and doing the math. This is pretty fun stuff.
_________________
Fritz Custom Products
Fritz 124 Crank Pulley Puller
Fritz 70 6306 Bearing Puller
Fritz 44 - Dizzy Puller
64-67 Middle seat grab bar vinyl & endcaps- repro

[oldslow]

Information from Web Cam

Porsche 356 1500 Sport PRE A 8v
VALVE LIFT: .335/.335
DURATION: 290°/290°
DURATION @ 0.050: 268°/268°
GRIND NUMBER: 1630
_________________
- better to drive a slow car fast than fast car slow -

[esde]

I've downloaded all this and will try to get a chart together, so it can all be viewed on one screen, comparing apples to apples
_________________
modok wrote:
Bent cranks are silent but gather no moss. I mean, ah, something like that.

[Alstrup]

While Elgin cams are not widely known in the 36 hp community they do have good grinds toi chose from. When I need cams for such engines I go to Elgin or Web.
The WW grind is not bad, its just horribly unprecise. This doesnt matter if youre just building to be able to say that you have an Okrasa engine. But if you actually put some miles on the car or even race it, it suddenly becomes an issue.
_________________
https://www.thesamba.com/vw/forum/viewtopic.php?t=435993

[esde]

Alstrup, thank you for adding to this. Do they have grinds for 36hp that aren't listed on the site? When I looked, it just seemed that the offering were for 40hp to 1600 and larger engines. Thats just my ass-umption after reading there cam descriptions
SD

https://elgincams.com/vw-bug-and-bus/
_________________
modok wrote:
Bent cranks are silent but gather no moss. I mean, ah, something like that.

[gimmesomeshelter]

It looks like Elgin does have grinds not listed on their site.

"The stock 1500 Super used a cam very similar to the later Super cam but ground on the early two-piece case billet. The problem in simply picking a sport profile for grinding the cam was that the early engines use a radius lifter that requires a different lobe profile than the flat lifters of the later engines. A call was made to Dema Elgin and he had two options, a 270 and 280 degree. The 270 was chosen because of the carb and exhaust limitations."

http://www.willhoitautorestoration.com/1500_super.php

Cheers,

Paul
_________________
"I would rather have questions that can't be answered than answers that can't be questioned."

Richard Feynman
