 Posted: Thu Nov 17, 2022 12:56 pm Post subject: Re: Hazet Assistent |
 |
|
I have a assistent(166N) that needs a little TLC. The hazet badges are missing.Does anyone know of replacements or who can 3d print them?
_________________
1965 Type-1 117 Belgium import.
Thank You to all Veterans.
Freedom is not free,Thank a Veteran.
(o\ l /o) |
|
| Back to top |
|
 |
rsbadura
Samba Member
Joined: November 30, 2009
Posts: 580
Location: Berlin, Germany
|
|
| Back to top |
|
|
heimlich
VWNOS.com
Joined: November 20, 2016
Posts: 5792
Location: Houston, Texas
|
| Posted: Sat Dec 03, 2022 8:18 am Post subject: Re: Hazet Assistent |
|
|
That's a really nice writeup with history.
_________________
www.vwnos.com [email protected]
Classic Brands. Classic Quality.
Not all parts are made the same. NOS OEM parts made mainly in West Germany, Early Germany, and Early Brazil are where VW produced the best quality parts and best fitting products.
5% Off your order with coupon code: 5%OFF
Restored Distributors Available (<--Click here) |
|
| Back to top |
|
|
70bus
Samba Member
Joined: July 15, 2004
Posts: 111
Location: P.O.
|
| Posted: Sat Dec 10, 2022 12:05 pm Post subject: Re: Hazet Assistent keys |
|
|
For those of you needing keys (and who are not fussy that it be an original German Flora-made one), my locksmith used an Ilco 997 ER and filed it down a bit to work. There's one pin that catches slightly, but isn't an issue. This is for a 166TS from the late 70s, H key code.
Don't know if they'll sell direct, but this site has some profile pics of other keys to try:
https://shop.basi.eu/en/search.html?searchStr=flora
_________________
Craig K
70 Neunsitzer
65 Pritschenwagen
"If Von Dutch was alive, he'd walk in there with a pistol and shoot these people."
-Robert Williams |
|
| Back to top |
|
|
rsbadura
Samba Member
Joined: November 30, 2009
Posts: 580
Location: Berlin, Germany
|
|
| Back to top |
|
|
70bus
Samba Member
Joined: July 15, 2004
Posts: 111
Location: P.O.
|
| Posted: Sat Dec 10, 2022 5:28 pm Post subject: Re: Hazet Assistent |
|
|

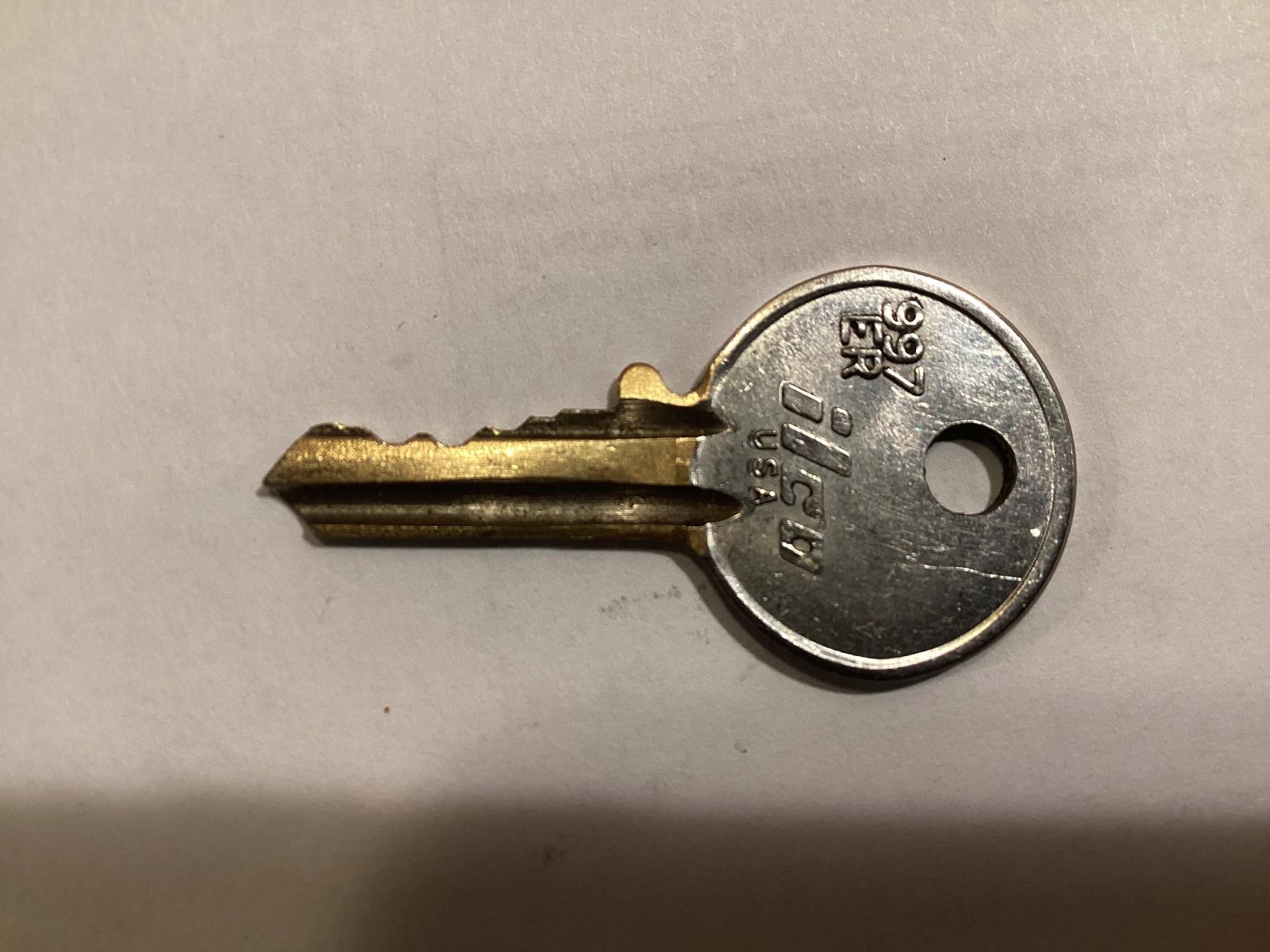

Ilco key cut for H 185
[/img]
_________________
Craig K
70 Neunsitzer
65 Pritschenwagen
"If Von Dutch was alive, he'd walk in there with a pistol and shoot these people."
-Robert Williams |
|
| Back to top |
|
|
70bus
Samba Member
Joined: July 15, 2004
Posts: 111
Location: P.O.
|
| Posted: Sat Dec 10, 2022 5:34 pm Post subject: Re: Hazet Assistent |
|
|

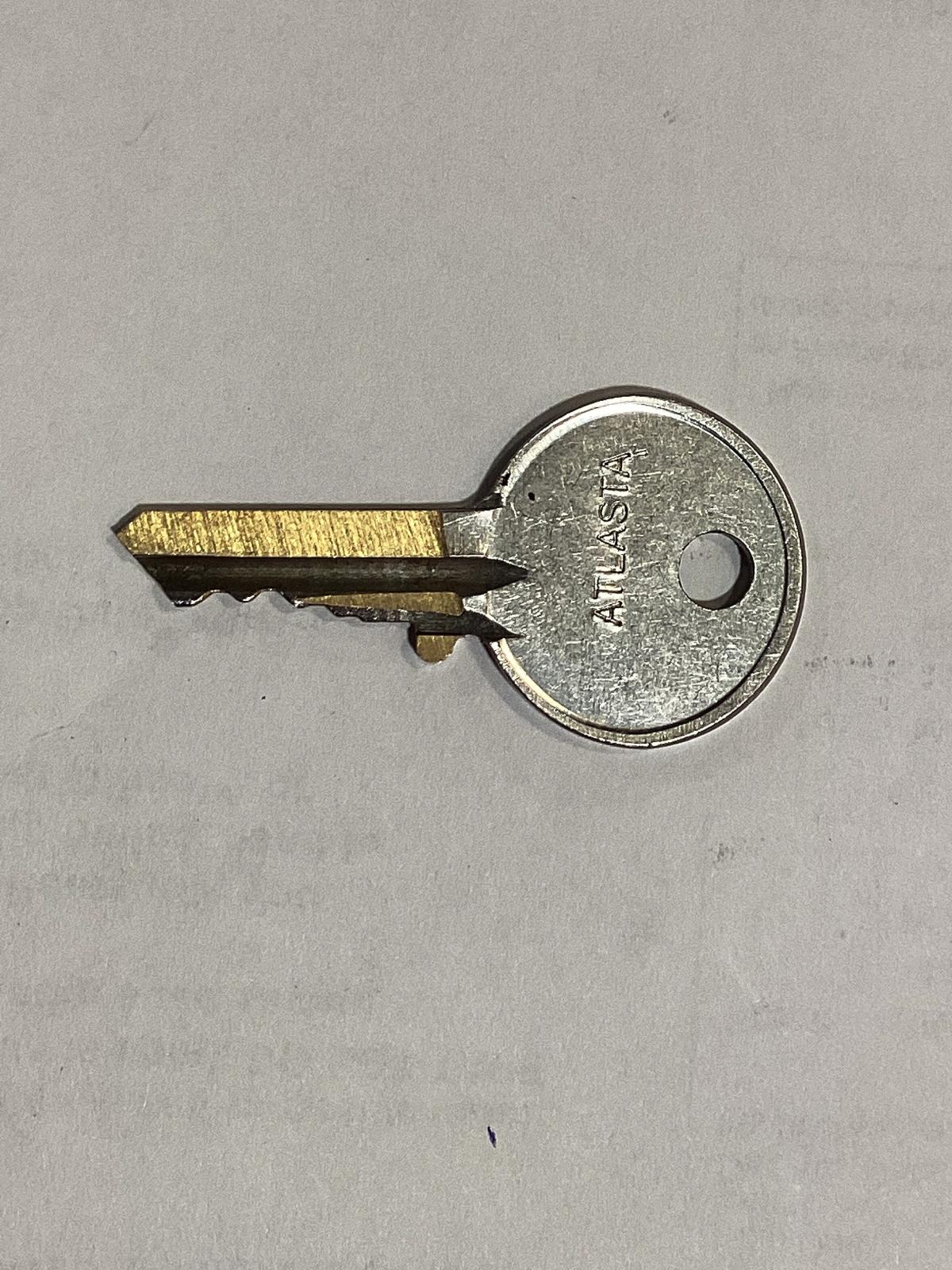

other side to match your image!
_________________
Craig K
70 Neunsitzer
65 Pritschenwagen
"If Von Dutch was alive, he'd walk in there with a pistol and shoot these people."
-Robert Williams |
|
| Back to top |
|
|
rsbadura
Samba Member
Joined: November 30, 2009
Posts: 580
Location: Berlin, Germany
|
|
| Back to top |
|
|
rsbadura
Samba Member
Joined: November 30, 2009
Posts: 580
Location: Berlin, Germany
|
|
| Back to top |
|
|
rsbadura
Samba Member
Joined: November 30, 2009
Posts: 580
Location: Berlin, Germany
|
|
| Back to top |
|
|
lasslo
Samba Member
Joined: September 01, 2004
Posts: 202
Location: sweden
|
| Posted: Wed Dec 21, 2022 12:39 pm Post subject: Re: Hazet Assistent |
|
|
I had to by another bad but cheep assistent.
One more to fix up
_________________
65 DD klenbus
57 Karmann Ghia |
|
| Back to top |
|
|
rsbadura
Samba Member
Joined: November 30, 2009
Posts: 580
Location: Berlin, Germany
|
| Posted: Fri Dec 23, 2022 6:55 am Post subject: Re: Hazet Assistent |
|
|
Hello everybody
some first photos of the locking mechanism of a Hazet Assistent 160 (1954).
Only the locking mechanism has 21 parts.
dismantled locking mechanism under the table top with the two rods in the columns for locking:
dismantled lock:
the key turns a disc with 2 sliders - the bitting is unused - only need to fit to the disc:
dismantled lock parts:
I wish you a Merry Christmas,
regards,
_________________
Rolf-Stephan Badura
1970 VW Karmann-Ghia Coupe
1979 VW Bus L to camper conversion
1982 Eriba Pan travel trailer
2017 VW CrossPolo
HAZET classic tools |
|
| Back to top |
|
|
rsbadura
Samba Member
Joined: November 30, 2009
Posts: 580
Location: Berlin, Germany
|
| Posted: Sun Jan 15, 2023 12:13 pm Post subject: Re: Hazet Assistent |
|
|
Hello again,
I'm still in the process of stripping (including post-lacquered rust protection as ugly red lead priming coat  ) and de-rusting of my 1954 "Hazet Assistent 160"...
Some more details as these inscription at top:
"DBP u Auslandspatente angem" ("German federal patent" and "Foreign patents pending"):
Furthermore, a "92" (serial number?) and at both sides an unknown character like a tick similar to a 4 or the side flanks of the Hazet logo:
regards,
_________________
Rolf-Stephan Badura
1970 VW Karmann-Ghia Coupe
1979 VW Bus L to camper conversion
1982 Eriba Pan travel trailer
2017 VW CrossPolo
HAZET classic tools |
|
| Back to top |
|
|
rsbadura
Samba Member
Joined: November 30, 2009
Posts: 580
Location: Berlin, Germany
|
| Posted: Mon Jan 23, 2023 1:16 am Post subject: Re: Hazet Assistent |
|
|
Hello again,
the nameplate of my 1954 "Hazet Assistent 160" at the mid floor...
Like many of its age, it lacks the clamped-on front mask with window (I will try to rebuild this later).
There are two recesses on the side, in which the front mask grips (I found photos of front masks also with recesses there).
The base plate with a width of 45 mm (1.8") was not screwed on, but fastened with sheet metal rivets.
regards,
_________________
Rolf-Stephan Badura
1970 VW Karmann-Ghia Coupe
1979 VW Bus L to camper conversion
1982 Eriba Pan travel trailer
2017 VW CrossPolo
HAZET classic tools |
|
| Back to top |
|
|
70bus
Samba Member
Joined: July 15, 2004
Posts: 111
Location: P.O.
|
| Posted: Tue Jan 31, 2023 10:38 pm Post subject: Re: Hazet Assistent |
|
|
Well, tis no Rademacher, but it works, and it was $6 at Habitat ReStore for the light, $25 for the rechargeable power brick, and 30 minutes of time and some JB Weld!
Also, no worries about slicing the cord and putting 120V into the cart...
_________________
Craig K
70 Neunsitzer
65 Pritschenwagen
"If Von Dutch was alive, he'd walk in there with a pistol and shoot these people."
-Robert Williams |
|
| Back to top |
|
|
rsbadura
Samba Member
Joined: November 30, 2009
Posts: 580
Location: Berlin, Germany
|
| Posted: Tue Feb 07, 2023 11:43 am Post subject: Re: Hazet Assistent |
|
|
Hello again everyone,
a new addition to my 1954 "Hazet Assistent 160" project:
an old Rademacher 12-304 lamp also sold as Hazet 1615 with a switch over the lampshade to the front (instead of later from 1967 upwards) in black as in the Hazet catalogs 1954 to before 1963 (in the 1963 catalog it is in grey, e.g. back of catalogue). It needs some work, better a new cable and a new rubber cap to protect the switch from dust and humidity... It is enameled, not painted - to be able to use the old hot 200 Watt light bulbs (seen in an old Rademacher ad - but have also seen stickers on such lamps with only 60 Watts?!?).
1954 catalog page 32: Assistent 160 with stool 1610 and this kind of lamp 1615
regards,
_________________
Rolf-Stephan Badura
1970 VW Karmann-Ghia Coupe
1979 VW Bus L to camper conversion
1982 Eriba Pan travel trailer
2017 VW CrossPolo
HAZET classic tools |
|
| Back to top |
|
|
sloans265
Samba Member
Joined: October 24, 2004
Posts: 1318
Location: 32207
|
| Posted: Tue Feb 21, 2023 7:29 pm Post subject: Re: Hazet Assistent |
|
|
Took a spare bucket and made something for my kids to enjoy at car shows. Next thing is to convert it to RC so I can control it and make seat for trailer. Only so many ways you can get your kids into old tool boxes! 😂
_________________
1970 Lotus White Panel
In search of any Pensacola Fla dealership items |
|
| Back to top |
|
|
Wout
Samba Member
Joined: November 05, 2008
Posts: 84
Location: Belgium
|
| Posted: Mon Mar 06, 2023 5:24 am Post subject: Re: Hazet Assistent |
|
|
Very nice!
Made something similar some years ago for my kids.
gr
Wout
_________________
Aircooled vw's for life! |
|
| Back to top |
|
|
rsbadura
Samba Member
Joined: November 30, 2009
Posts: 580
Location: Berlin, Germany
|
|
| Back to top |
|
|
Cour6396
Samba Member
Joined: August 04, 2008
Posts: 48
Location: Vancouver, Wa
|
| Posted: Wed Mar 29, 2023 6:05 pm Post subject: Re: Hazet Assistent |
|
|
Putting my Hazet trolley to work!
|
|
