PostPosted: Mon Mar 20, 2023 11:40 am    Post subject: 12 volt generator Bosch Reply with quote

Amazon sells Bosch 12v 0101302111 compatible? Generators. The armature on my old Bosch is toast ó itís arching. Would love to hear some opinions on the new Bosch 12v generators.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jinx758
Samba Member


Joined: October 04, 2014
Posts: 437
Location: Texas
jinx758 is offline

PostPosted: Mon Mar 20, 2023 1:14 pm    Post subject: Re: 12 volt generator Bosch Reply with quote

Howdy ...

"New" Bosch is probably Taiwan or China, heck Mercedes is Brazilian now.

Mite be worth it to have a local shop do a rewire/rebush/rebuild but week a specialist.
You could easily take brushes out to inspect them & the armature for scoring & excessive carbon build up.

Best luck ... jinx
_________________
" It's not valuable unless you learn something from an experience. " Henry Ford

It's not unlike the same difference

You can't push a rope


VALVES (cold)
POINTS
TIMING
CARB (fully warmed engine)

SCRAPE ALL GROUNDS

My Craigslist rescued 100 footer :
1971 Standard Bug
1776cc dual port
034 distributor
38mm EGAS Carburetor
Back to top
View user's profile Send private message Gallery Classifieds Feedback
pernest
Samba Member


Joined: May 24, 2008
Posts: 176
Location: Jacksonville FL
pernest is offline

PostPosted: Mon Mar 20, 2023 2:37 pm    Post subject: Re: 12 volt generator Bosch Reply with quote

A local shop inspected it today and said the armature is no good and is arching. So itís either get a new generator, alternator, or armature for the old generator which I believe is Brazilian.

Amazon is pretty good at returns so Iím thinking of getting a ďBoschĒ thru them with a cheap protection plan.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jinx758
Samba Member


Joined: October 04, 2014
Posts: 437
Location: Texas
jinx758 is offline

PostPosted: Mon Mar 20, 2023 5:19 pm    Post subject: Re: 12 volt generator Bosch Reply with quote

Scam - a - zon ...

Fingers crossed !
Protection plan is a good idea, too.

Hope it lasts ... stay safe

jinx
_________________
" It's not valuable unless you learn something from an experience. " Henry Ford

It's not unlike the same difference

You can't push a rope


VALVES (cold)
POINTS
TIMING
CARB (fully warmed engine)

SCRAPE ALL GROUNDS

My Craigslist rescued 100 footer :
1971 Standard Bug
1776cc dual port
034 distributor
38mm EGAS Carburetor
Back to top
View user's profile Send private message Gallery Classifieds Feedback
pernest
Samba Member


Joined: May 24, 2008
Posts: 176
Location: Jacksonville FL
pernest is offline

PostPosted: Mon Mar 20, 2023 7:53 pm    Post subject: Re: 12 volt generator Bosch Reply with quote

Thanks Jinx!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
pernest
Samba Member


Joined: May 24, 2008
Posts: 176
Location: Jacksonville FL
pernest is offline

PostPosted: Thu Mar 30, 2023 4:50 pm    Post subject: Re: 12 volt generator Bosch Reply with quote

Update

I found a new/ rebuilt generator at NAPA ó an exact replacement.

Installed it but the red light stayed on. Took the generator to a respected shop ó his testing led him to say it should work. Reinstalled it but the red light is still as bright as ever.

I hooked a wire between the DF contact and the generator ground screw, started the car, then hooked my battery voltage tester leads to the D+ and the generator ground screw. The voltage needle didnít budge. No voltage at all.

Kind of frustrating!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bnam
Samba Member


Joined: July 02, 2006
Posts: 2794
Location: El Dorado Hills CA/ Bangalore, India
bnam is offline

PostPosted: Thu Mar 30, 2023 5:19 pm    Post subject: Re: 12 volt generator Bosch Reply with quote

You need to first polarize the genereTor. Please look up that procedure. Easy.

https://www.thesamba.com/vw/forum/viewtopic.php?t=337164&highlight=polarize+gen
_________________
1971 1302LS Convertible (RHD) owned since '74
Click to view image
1965 Karmann Ghia Coupe - under restoration
1966 Fiat 1500 Cabrio (with 1600 Twin cam)
1952 Citroen TA 11BL
Back to top
View user's profile Send private message Gallery Classifieds Feedback
heimlich Premium Member
VWNOS.com


Joined: November 20, 2016
Posts: 5792
Location: Houston, Texas
heimlich is offline

PostPosted: Thu Mar 30, 2023 6:03 pm    Post subject: Re: 12 volt generator Bosch Reply with quote

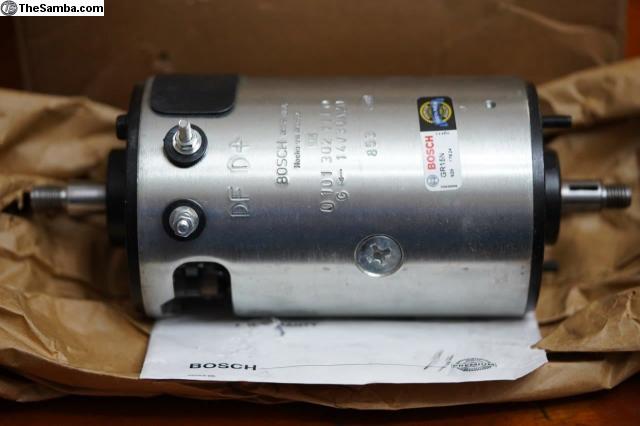

New Bosch generators are still made in Mexico along with the Alternators. The production has not moved to another country as of yet.

Image may have been reduced in size. Click image to view fullscreen.

_________________
www.vwnos.com [email protected]
Classic Brands. Classic Quality.
Not all parts are made the same. NOS OEM parts made mainly in West Germany, Early Germany, and Early Brazil are where VW produced the best quality parts and best fitting products.
5% Off your order with coupon code: 5%OFF
Restored Distributors Available (<--Click here)
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
pernest
Samba Member


Joined: May 24, 2008
Posts: 176
Location: Jacksonville FL
pernest is offline

PostPosted: Fri Mar 31, 2023 7:54 am    Post subject: Re: 12 volt generator Bosch Reply with quote

Thanks bnam.

Got generator to spin as described in your attachment and retested for output. Itís putting out some pretty good voltage and Iím convinced itís working fine. Will go to next step and check regulator. Thanks!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
pernest
Samba Member


Joined: May 24, 2008
Posts: 176
Location: Jacksonville FL
pernest is offline

PostPosted: Fri Mar 31, 2023 4:37 pm    Post subject: Re: 12 volt generator Bosch Reply with quote

Started the car today and the generator light went off briefly but came back on after just a few blocks. The brake light came on for no reason ó the brakes are working fine.

Did some more testing later. Voltage across the battery was 12.3 before cranking. At idle it was 12.1. Never got over 12.2 when racing the engine. A post that I saw suggested testing for system voltage but did not tell how. Prior testing showed that the generator is capable of producing 35 volts plus (unregulated) so I think itís working fine.

I would like to solve the problem myself without having to take the car to a shop. Thanks for the help you have given me on this.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
goober
Samba Member


Joined: May 03, 2003
Posts: 1110

goober is offline

PostPosted: Fri Mar 31, 2023 10:55 pm    Post subject: Re: 12 volt generator Bosch Reply with quote

Check to make sure the brushes move freely in their holders.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
heimlich Premium Member
VWNOS.com


Joined: November 20, 2016
Posts: 5792
Location: Houston, Texas
heimlich is offline

PostPosted: Sat Apr 01, 2023 8:56 am    Post subject: Re: 12 volt generator Bosch Reply with quote

You can also clean up the area where the brushes rub. Take some very find sandpaper to it.
_________________
www.vwnos.com [email protected]
Classic Brands. Classic Quality.
Not all parts are made the same. NOS OEM parts made mainly in West Germany, Early Germany, and Early Brazil are where VW produced the best quality parts and best fitting products.
5% Off your order with coupon code: 5%OFF
Restored Distributors Available (<--Click here)
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
pernest
Samba Member


Joined: May 24, 2008
Posts: 176
Location: Jacksonville FL
pernest is offline

PostPosted: Sat Apr 01, 2023 11:31 am    Post subject: Re: 12 volt generator Bosch Reply with quote

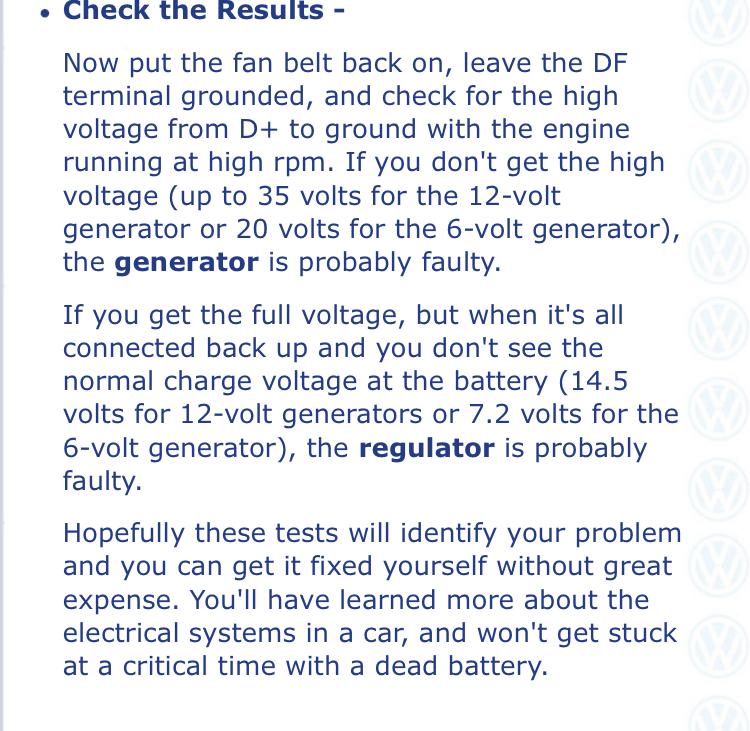

Per instructions below, I tested the ďnewĒ generator installed and it more than exceeded the 35 volt requirement when I raced the engine.


Image may have been reduced in size. Click image to view fullscreen.

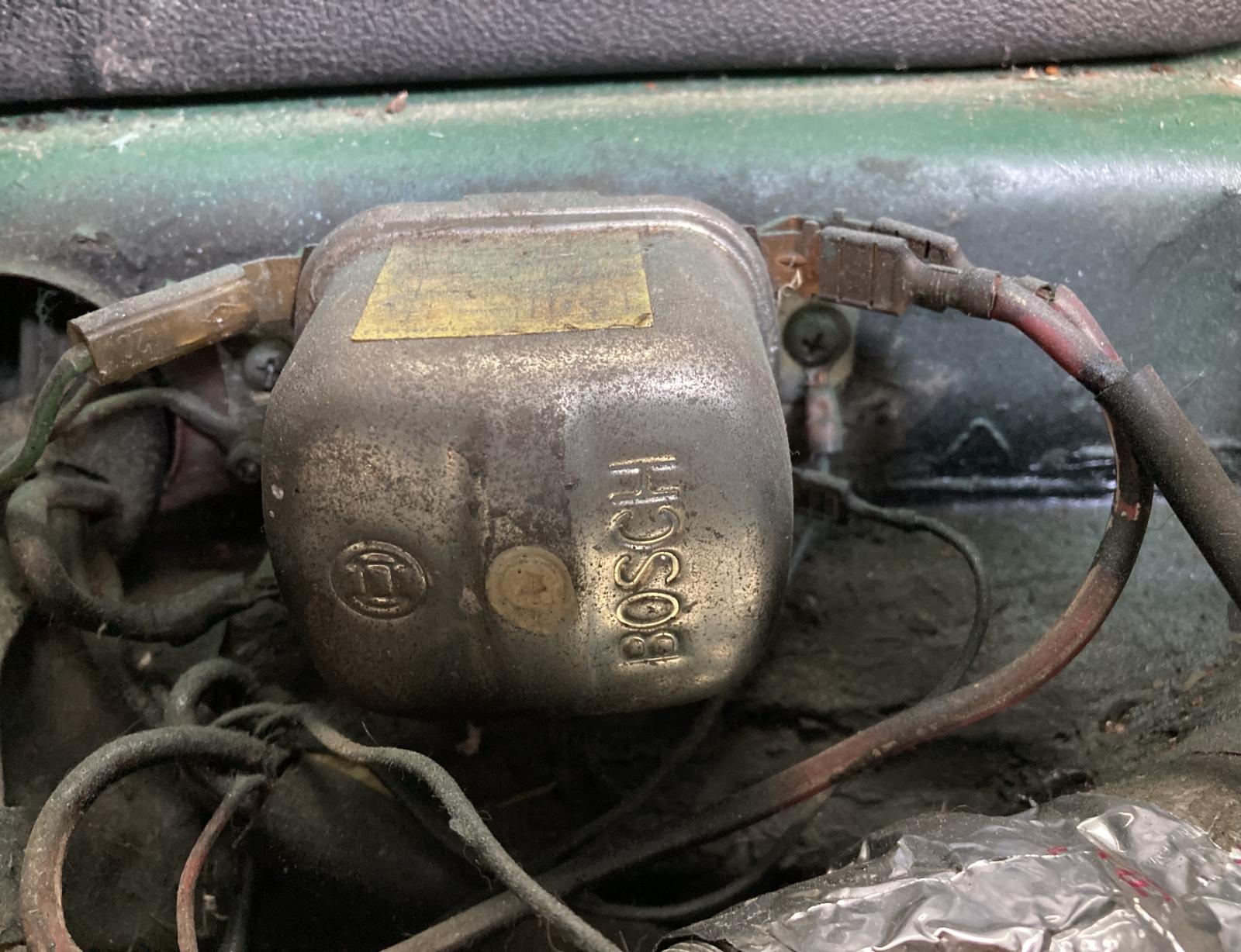

See photo of old voltage regulator. The information above suggests itís probably no longer working. The red light continues. Thanks all.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
pernest
Samba Member


Joined: May 24, 2008
Posts: 176
Location: Jacksonville FL
pernest is offline

PostPosted: Mon Apr 03, 2023 2:06 pm    Post subject: Re: 12 volt generator Bosch Reply with quote

Happy ending (maybe). Hate just throwing parts at a problem and I noticed that my battery cables fit loosely over the posts but were not tight. I tightened them with the result that the red light went out and the battery is being charged when the car is running.

The old generator was arching but it appears the old regulator is working fine. Thanks for the info you provided ó it helped a lot!
